Closure of West Midlands Manufacturer of Precision Press Tools
Starts: 02 June 2025 at 09:00 BST
Ends: 08 July 2025 at 15:00 BST
Surplus EDMs, grinders, bandsaws, tool room machinery and equipment due to the closure of a West Midlands based toolmakers. Please see the sale information section for any additional fees that may be applicable upon purchasing an item. NOTE: Vendor to approve all closing bids prior to Apex final invoicing.
Share:
Showing 115 of 115 lots
- LOT 1

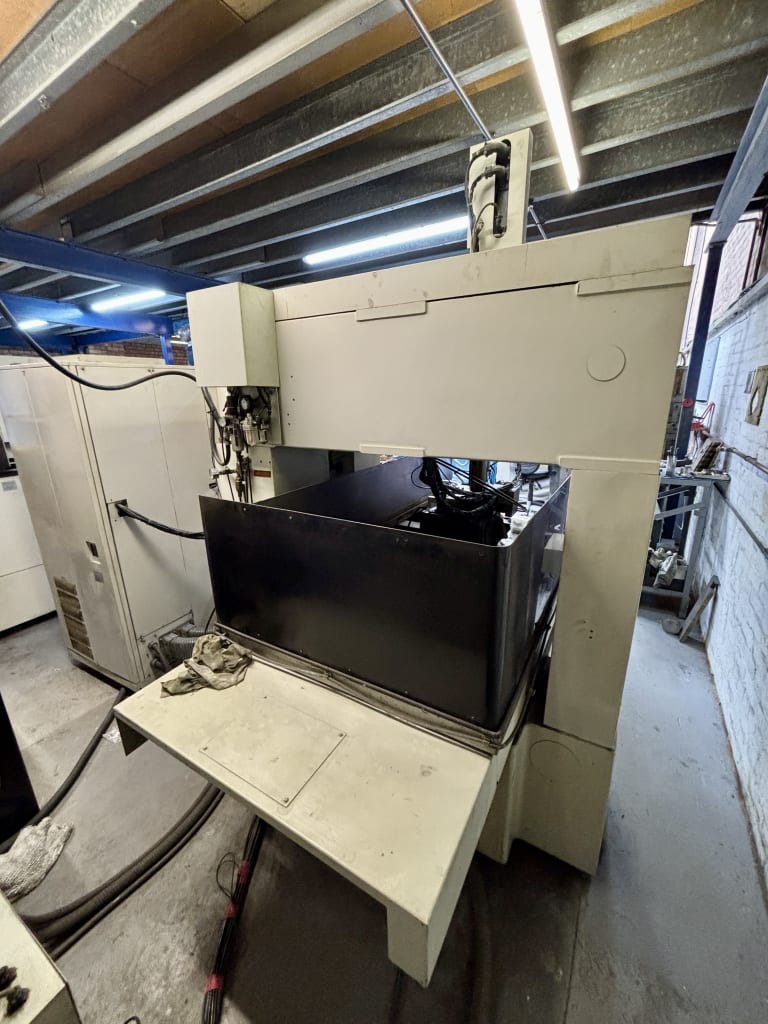

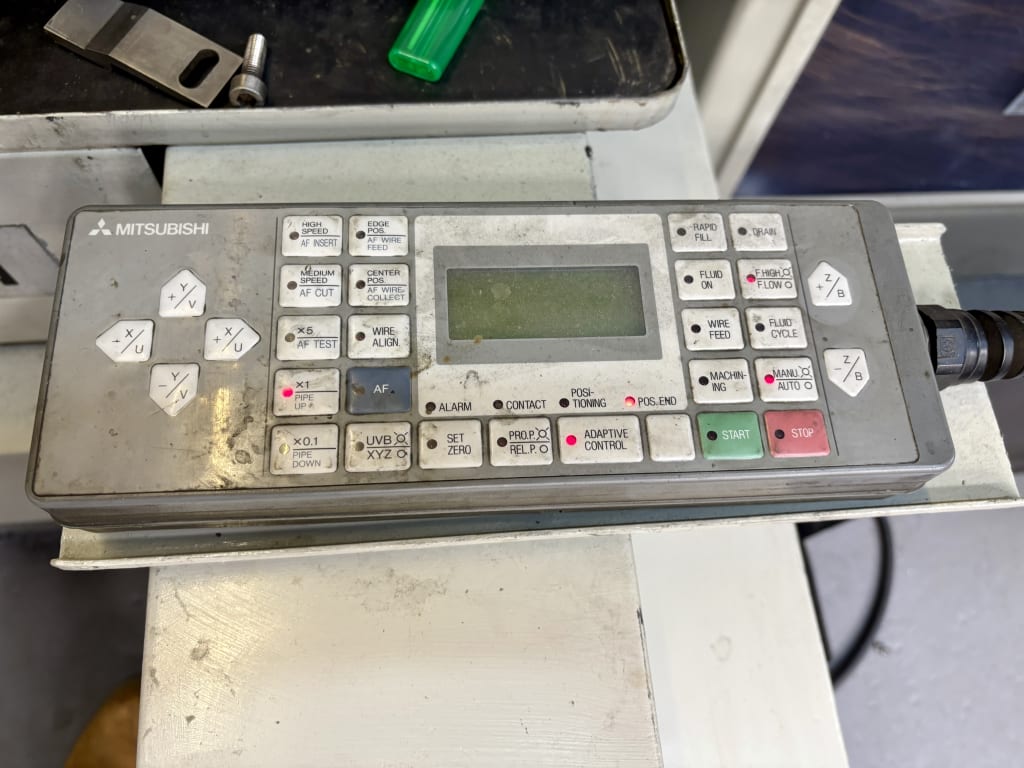

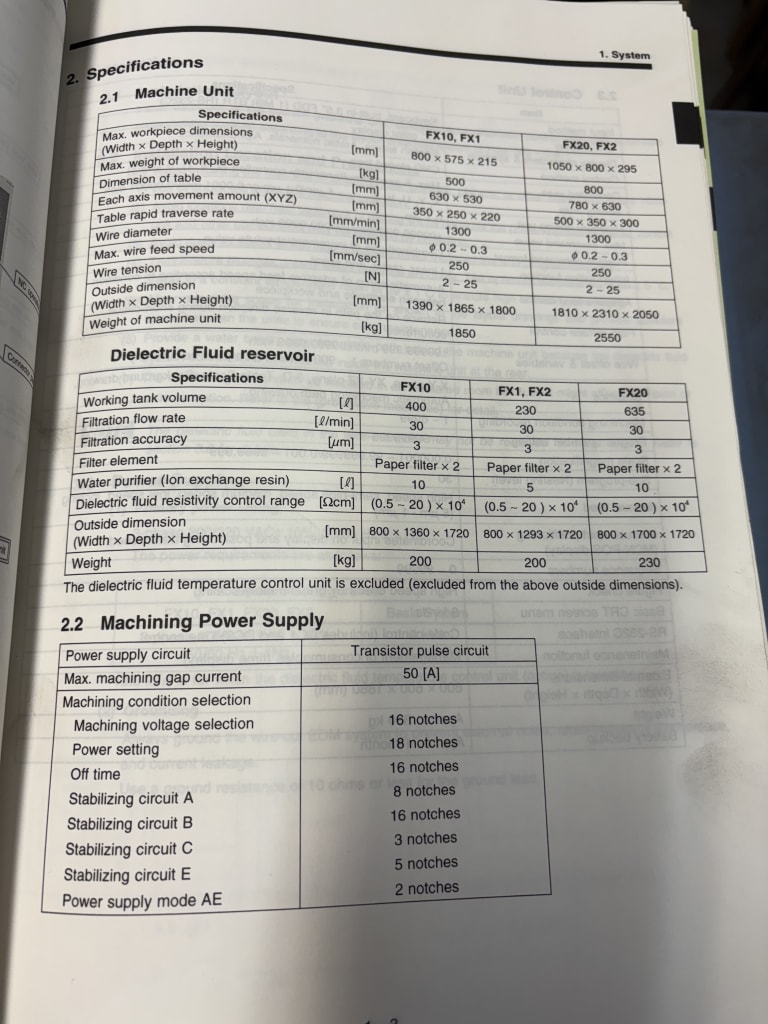

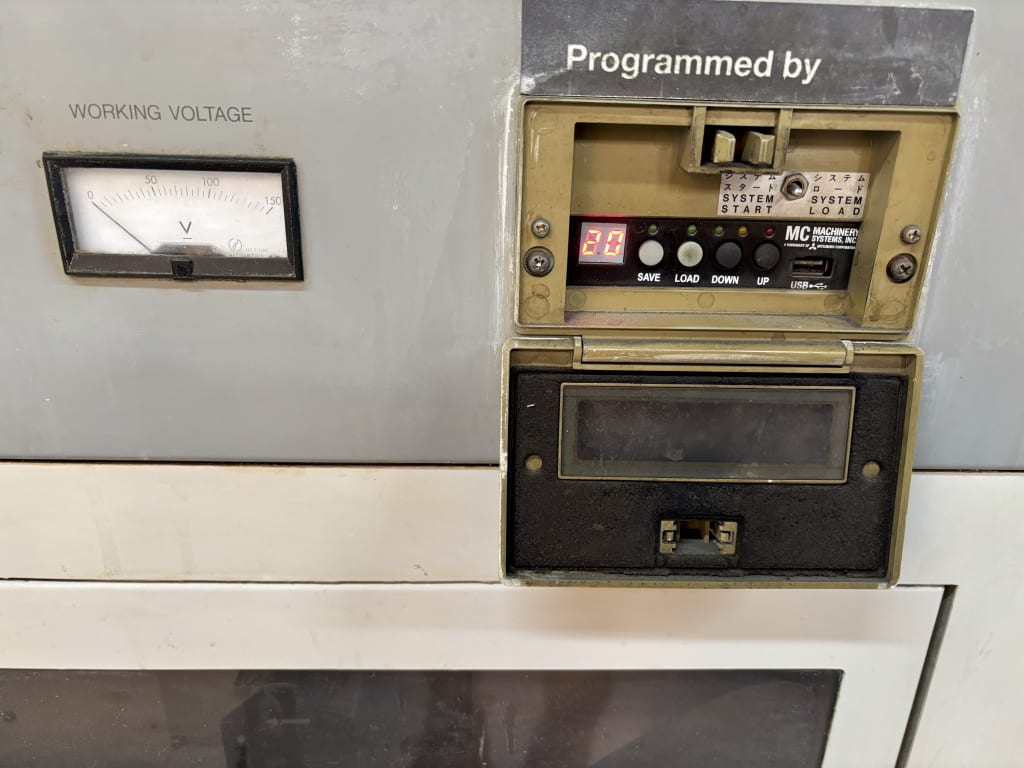

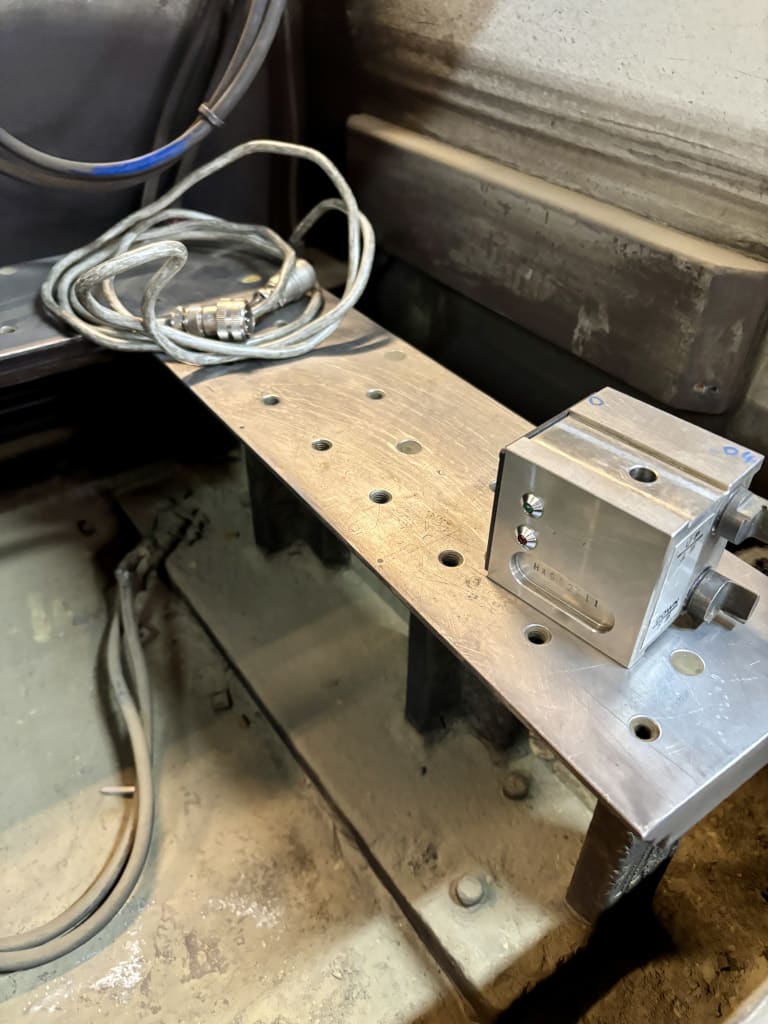

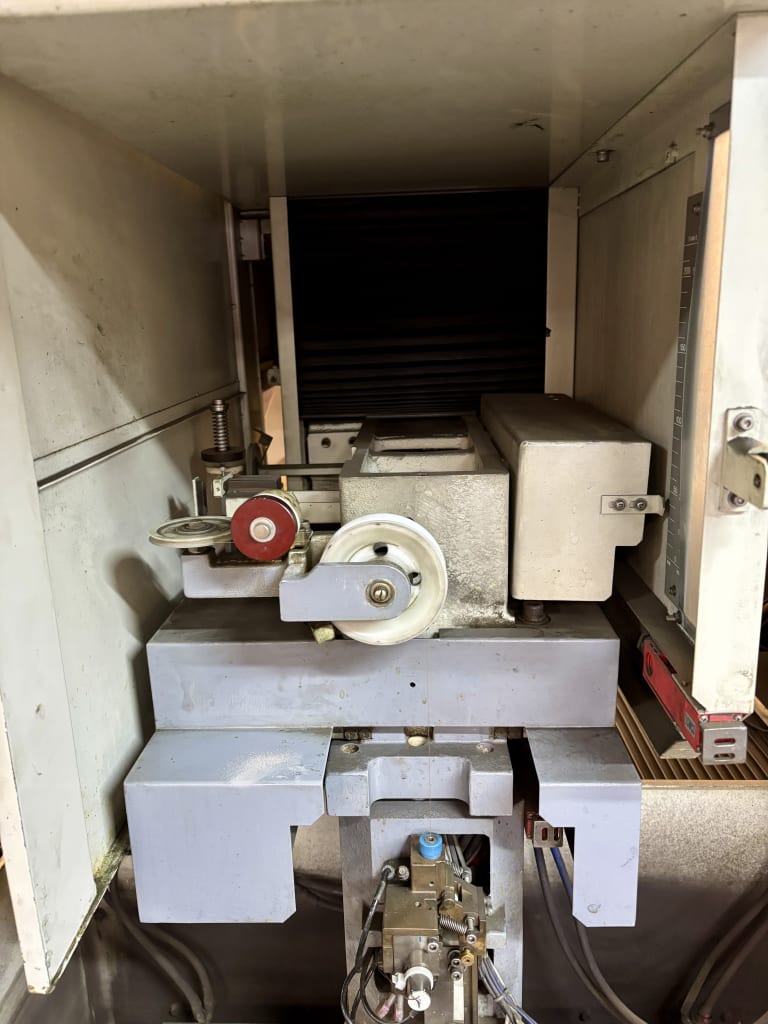

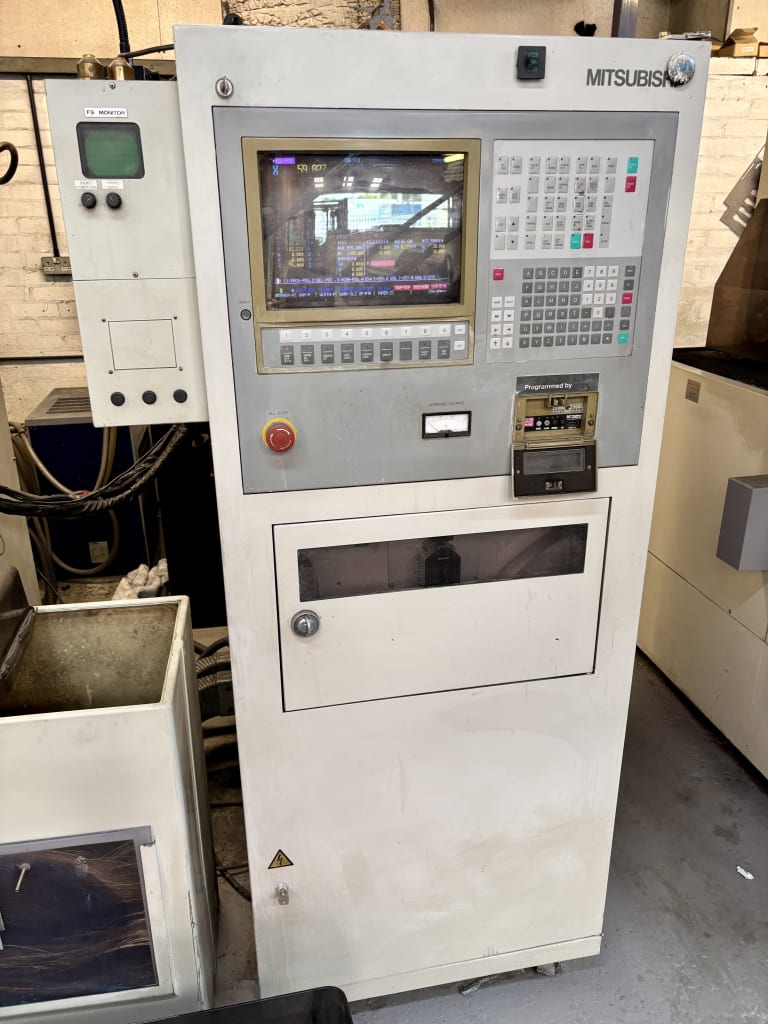

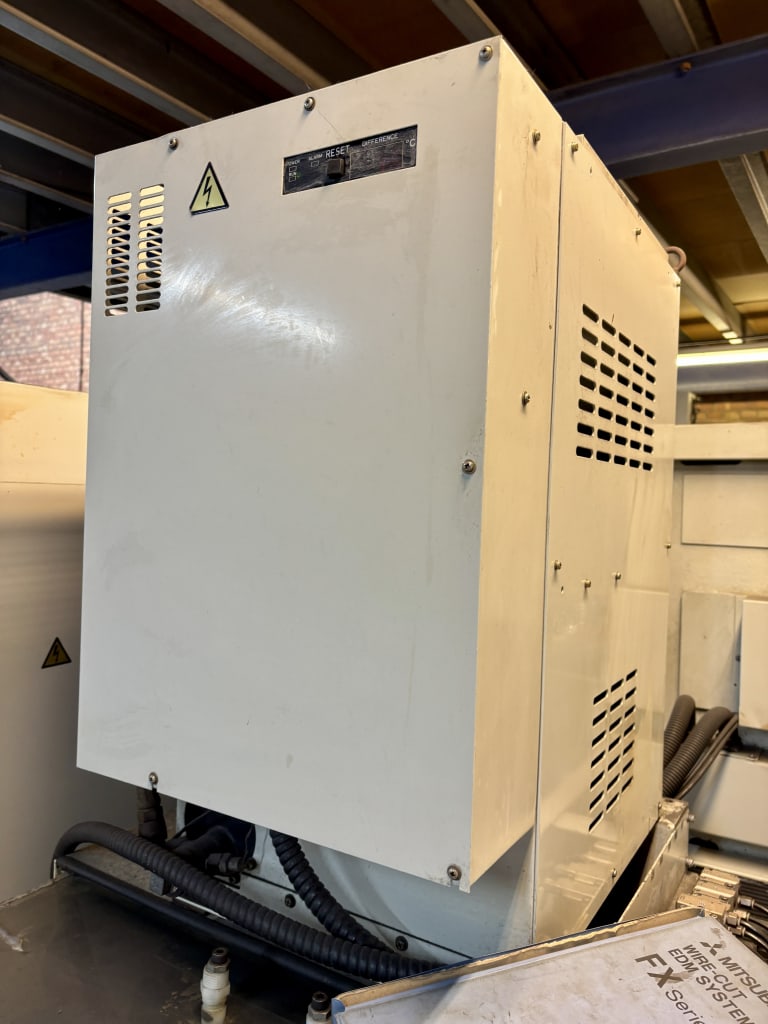

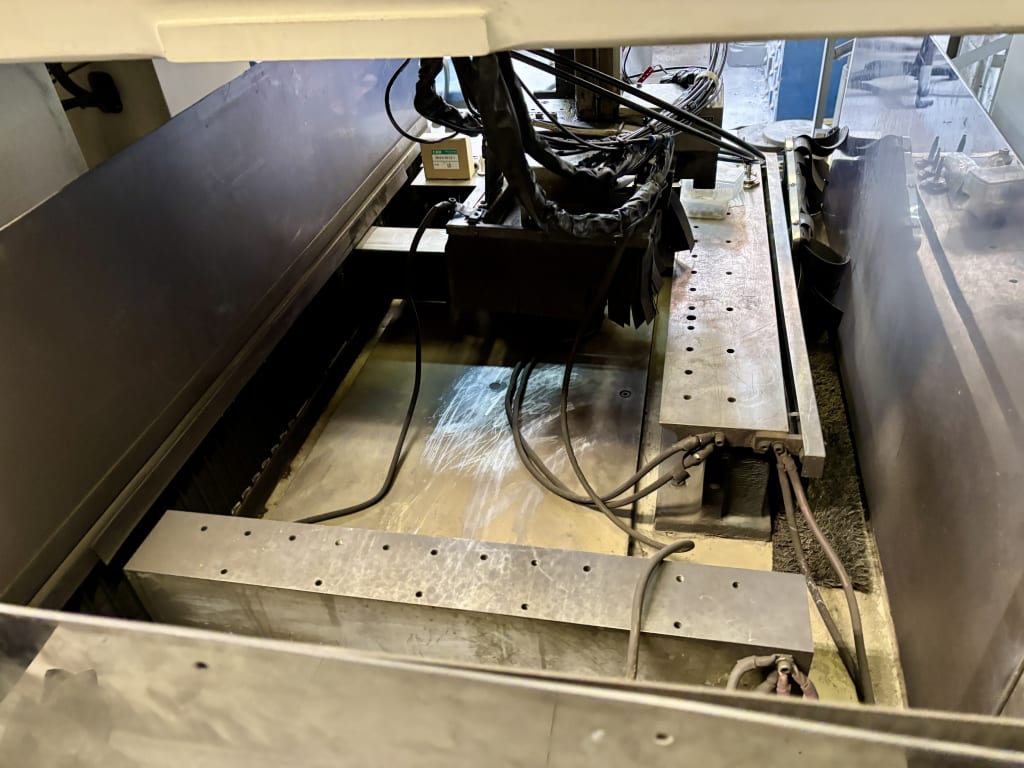

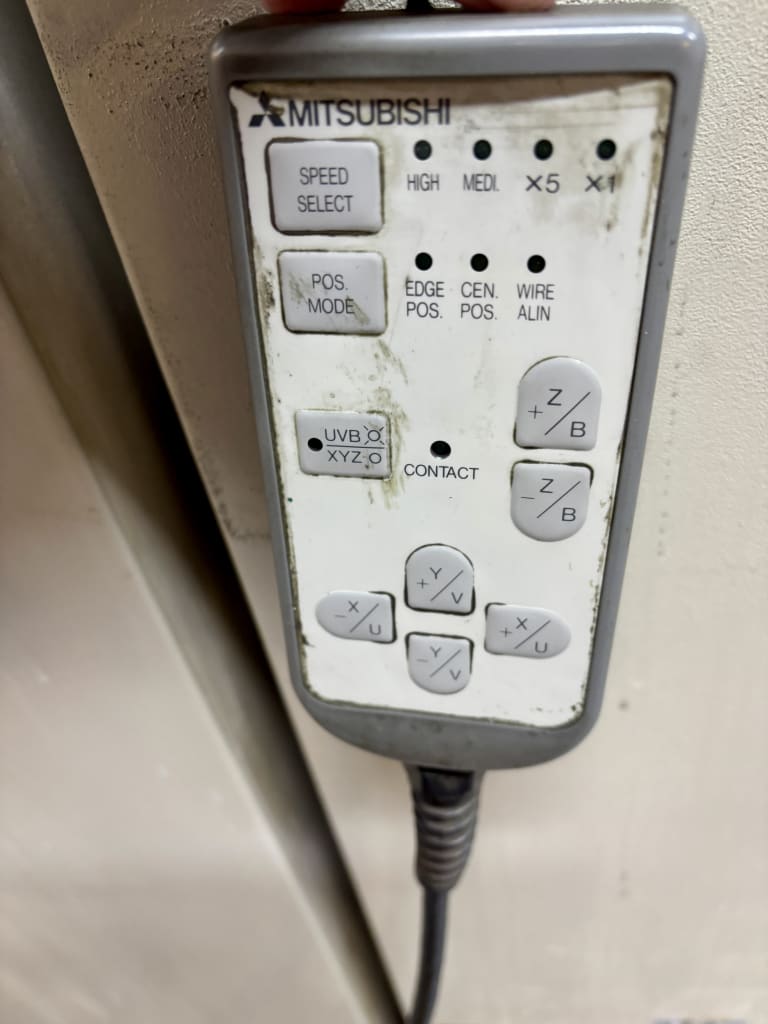

Mitsubishi FX10M CNC EDM Wire Cutting Machine
Maximum Work Dimension 800 x 575 x 215mm. Maximum Weight 500kg. Table Dimension 630 x 230mm. Axis Travel 'X'=350mm, 'Y'=250mm, 'Z'=220mm. Rapid Traverse 1,300mm/min. Wire Ø0.2-0.3mm. Maximum Wire Speed 250mm/sec. S/No. 56E10341 (1996). - LOT 2

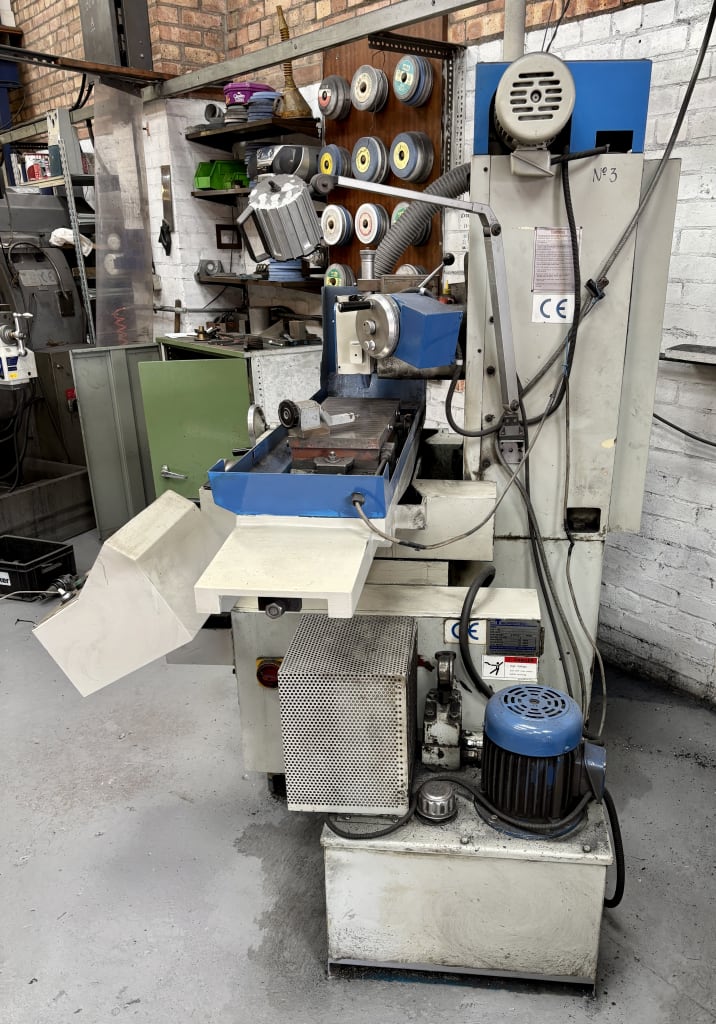

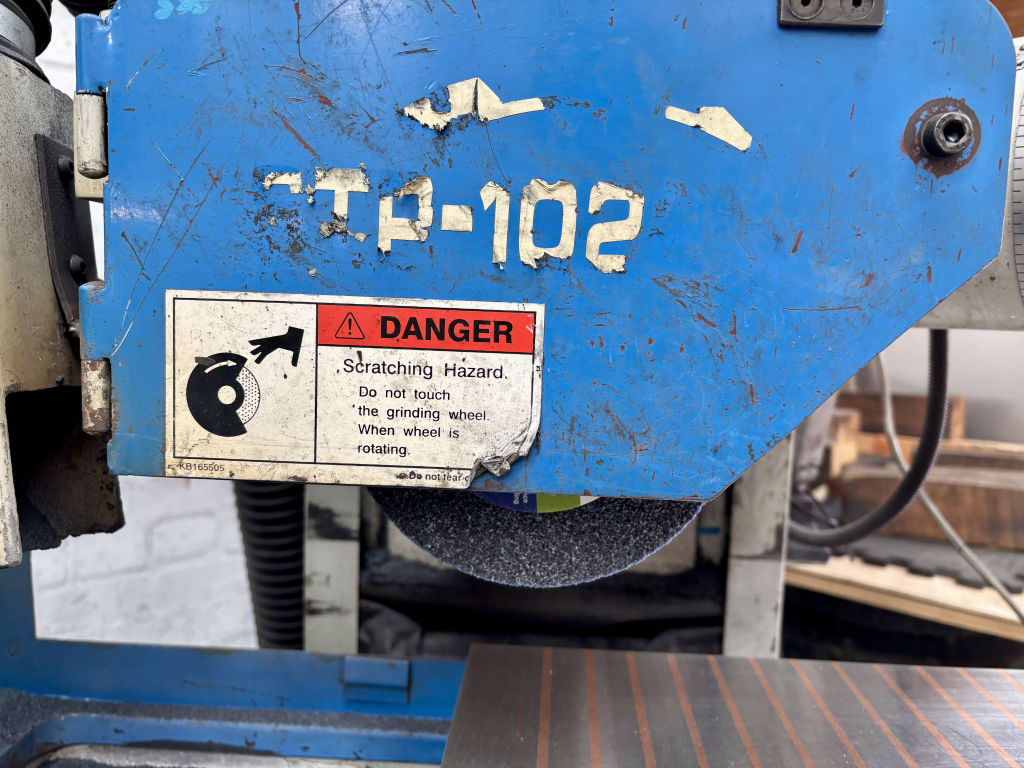

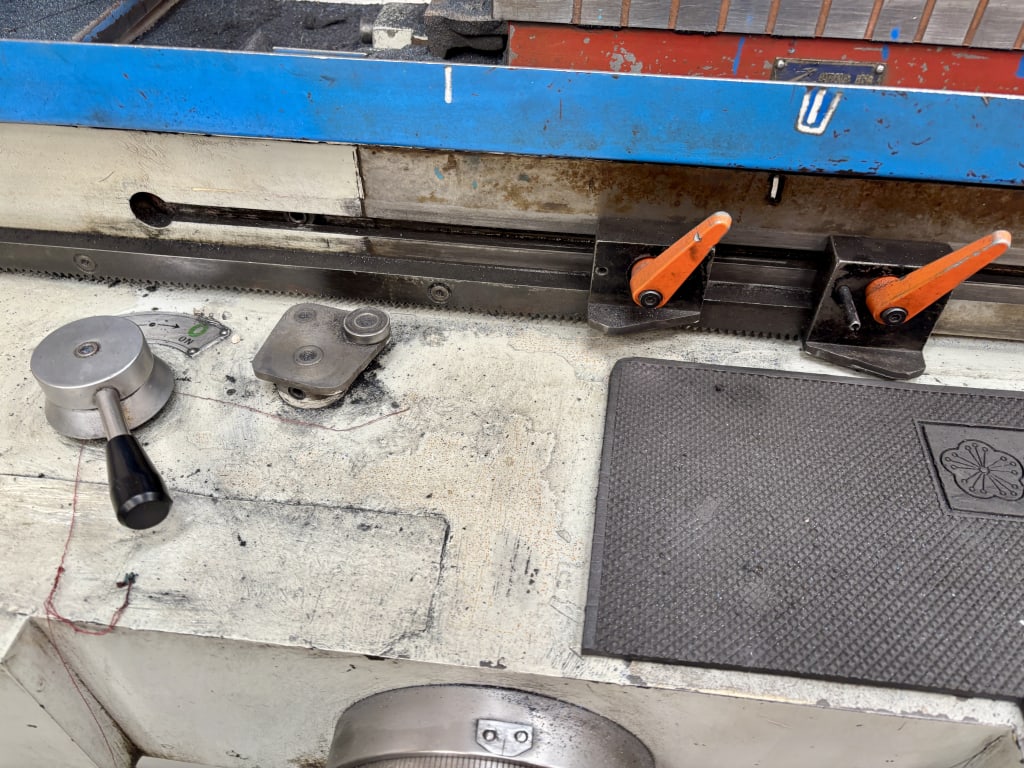

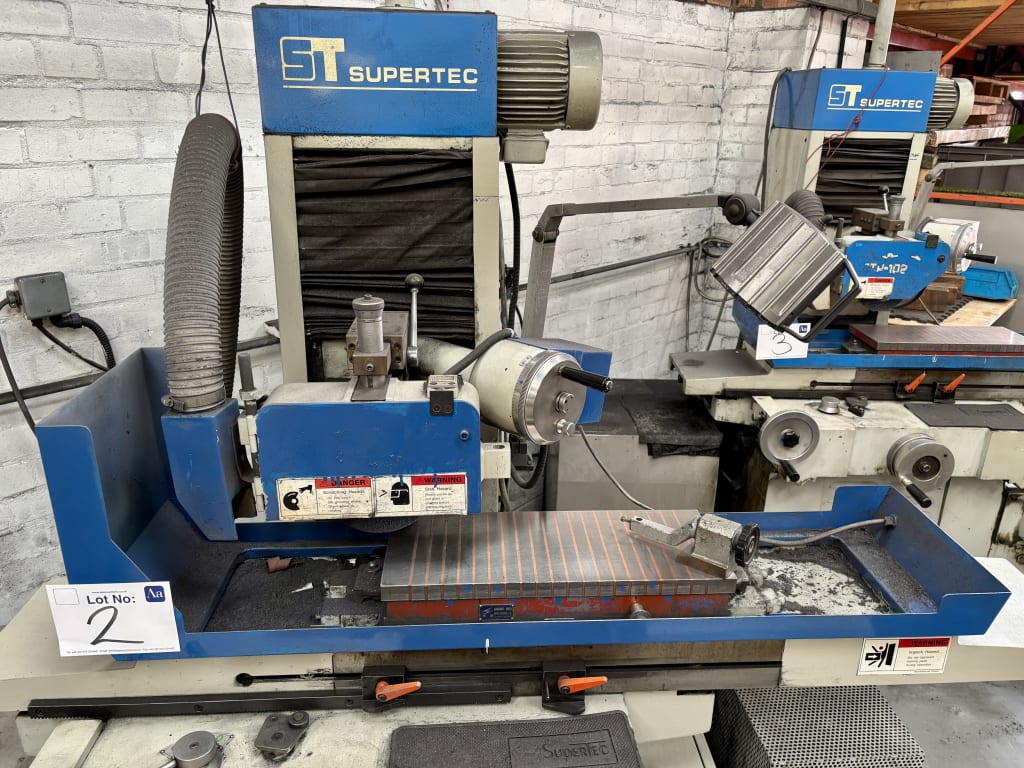

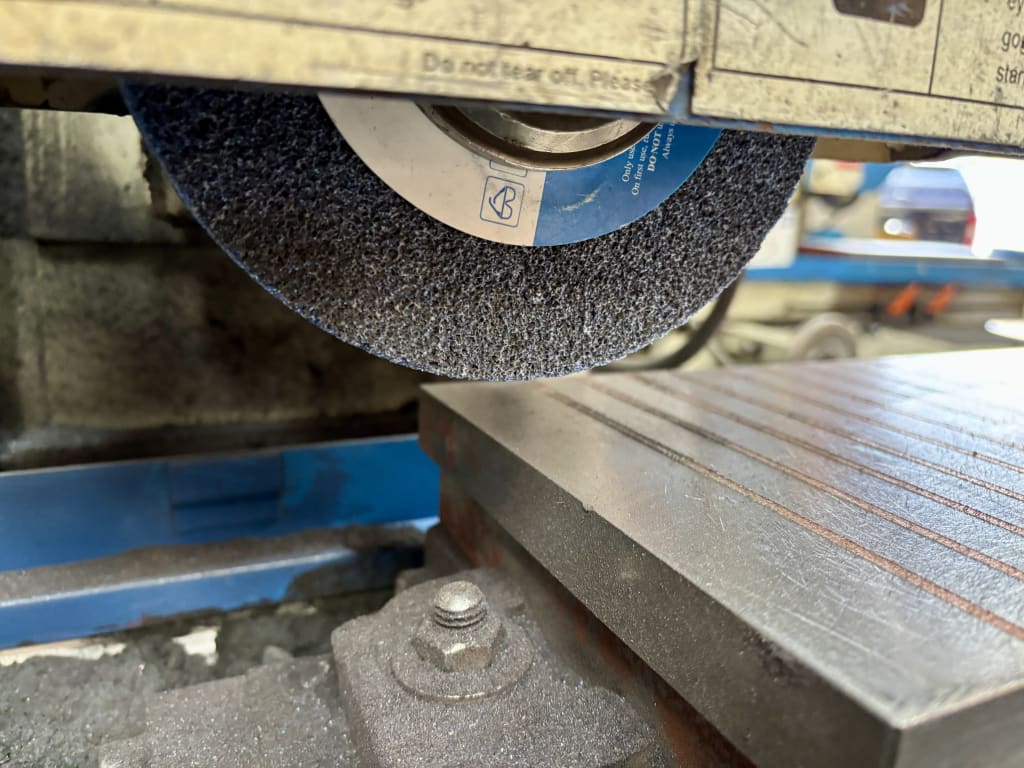

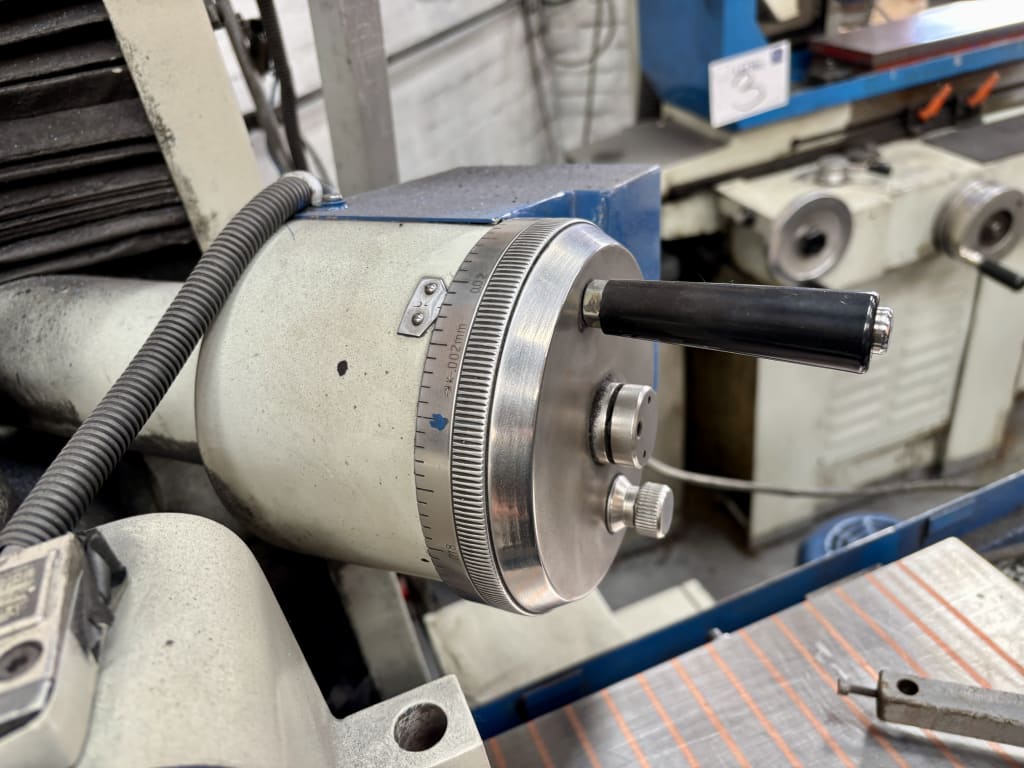

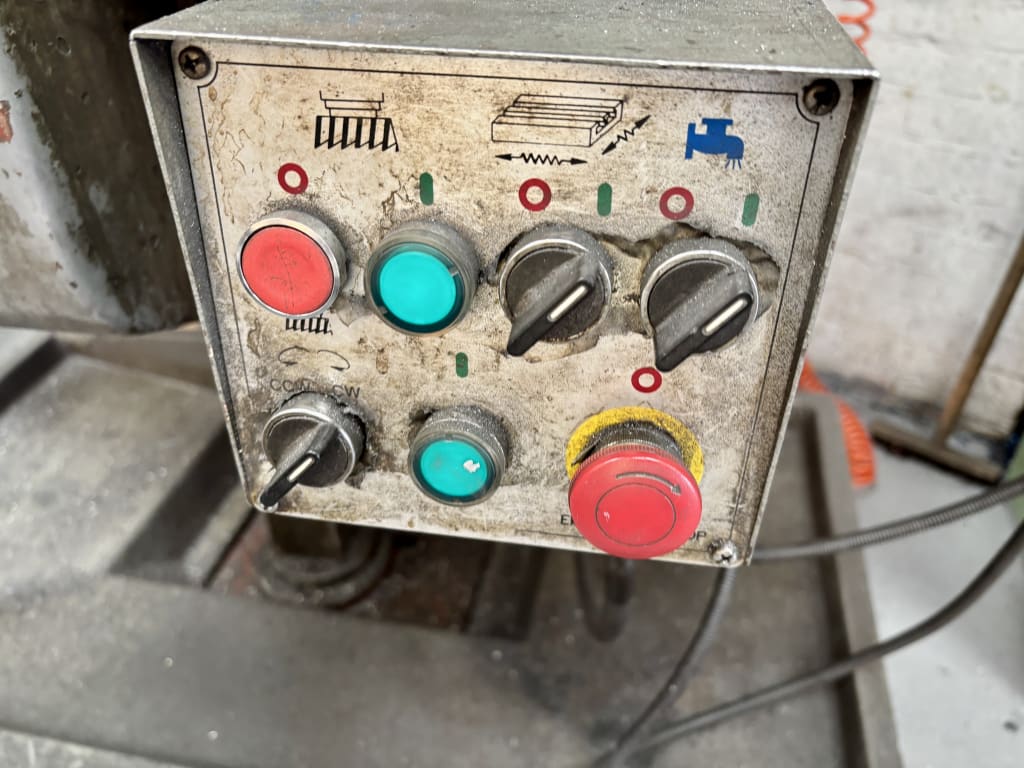

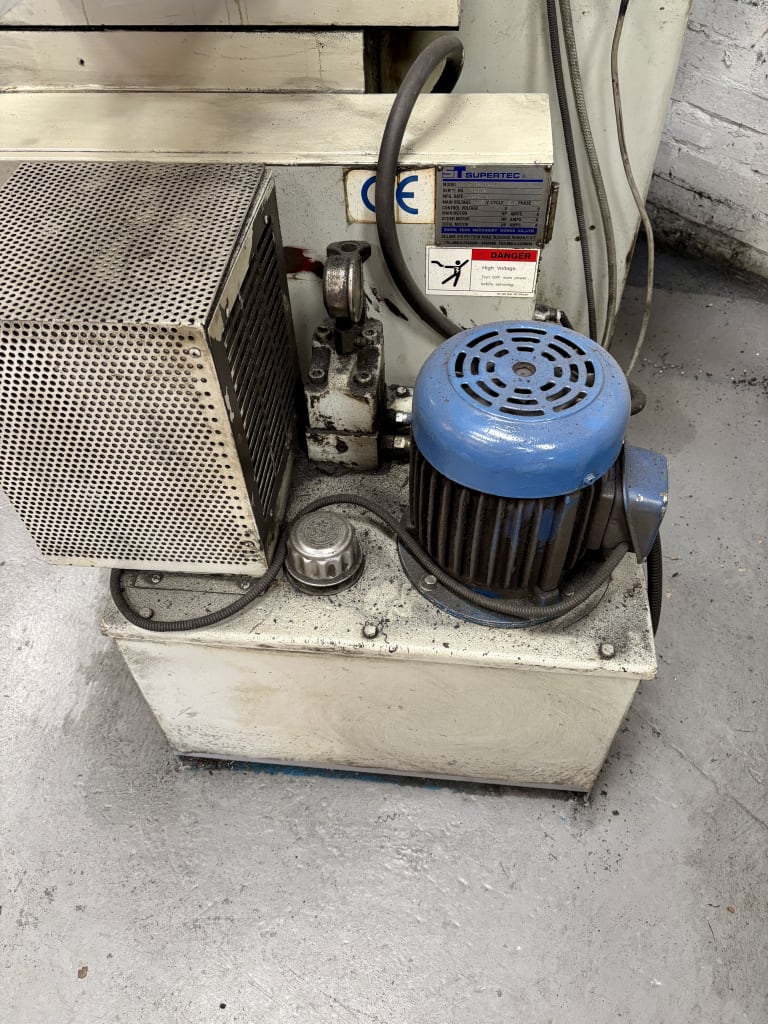

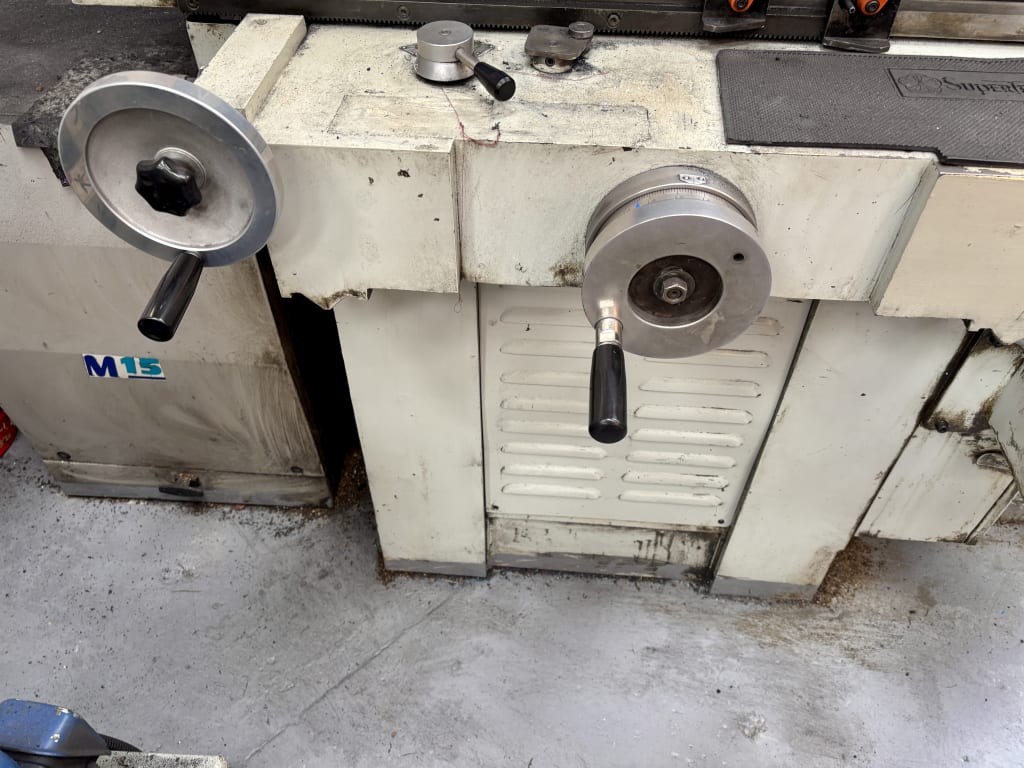

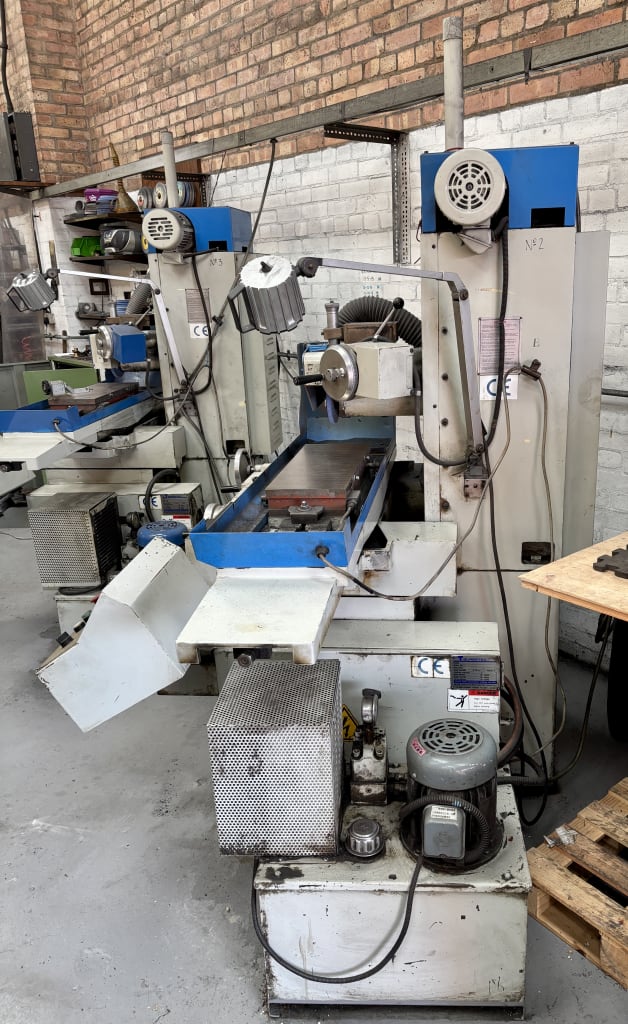

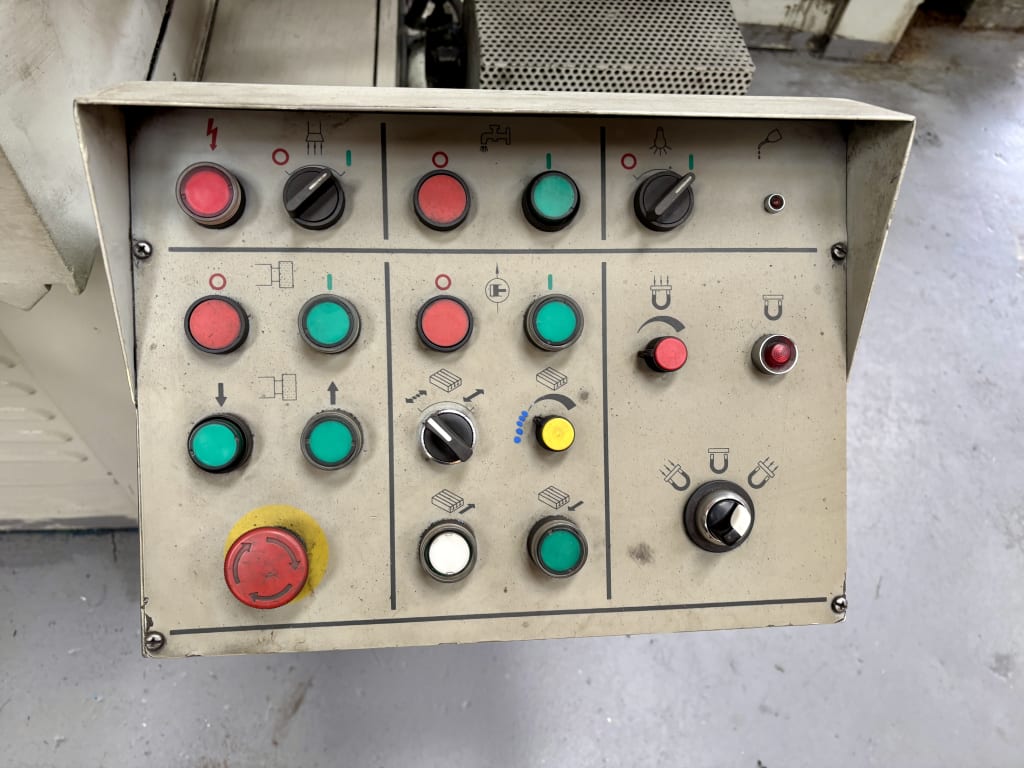

ST Supertec STP-1022A Surface Grinder

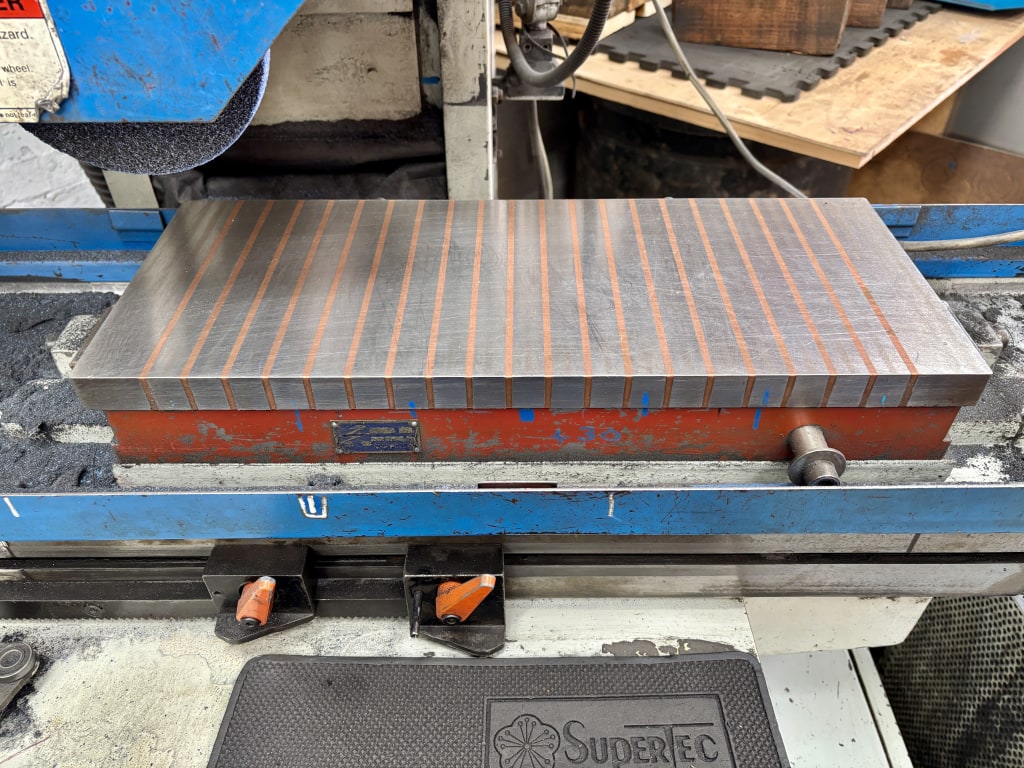

Table Dimension 500 x 200mm. Maximum Grinding Length 550mm, Maximum Grinding Width 210mm. Distance From Table Surface To Spindle Centre 415mm. Maximum Table Load 300kg. Magnetic Chuck Dimension 500 x 200mm. Grinding Wheel Dimension Ø205 x 22 x Ø32mm. S/No. P39812 (1998). - LOT 3

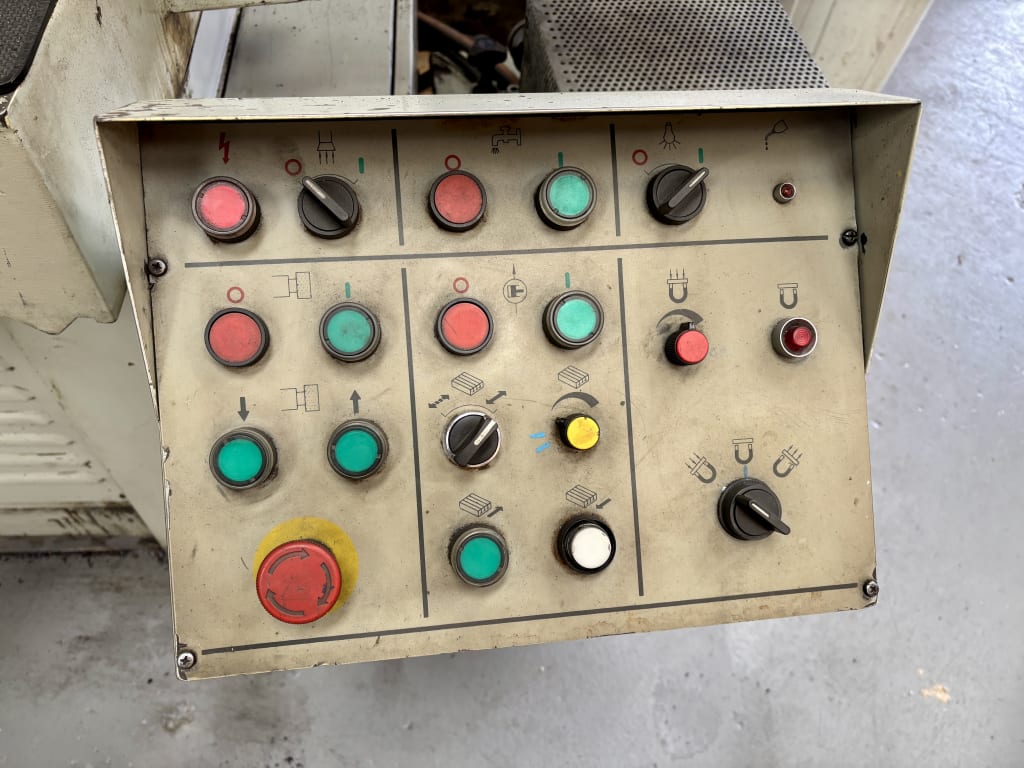

ST Supertec STP-1022A Surface Grinder
Table Dimension 500 x 200mm. Maximum Grinding Length 550mm, Maximum Grinding Width 210mm. Distance From Table Surface To Spindle Centre 415mm. Maximum Table Load 300kg. Magnetic Chuck Dimension 500 x 200mm. Grinding Wheel Dimension Ø205 x 22 x Ø32mm. S/No. P39813 (1998). - LOT 4

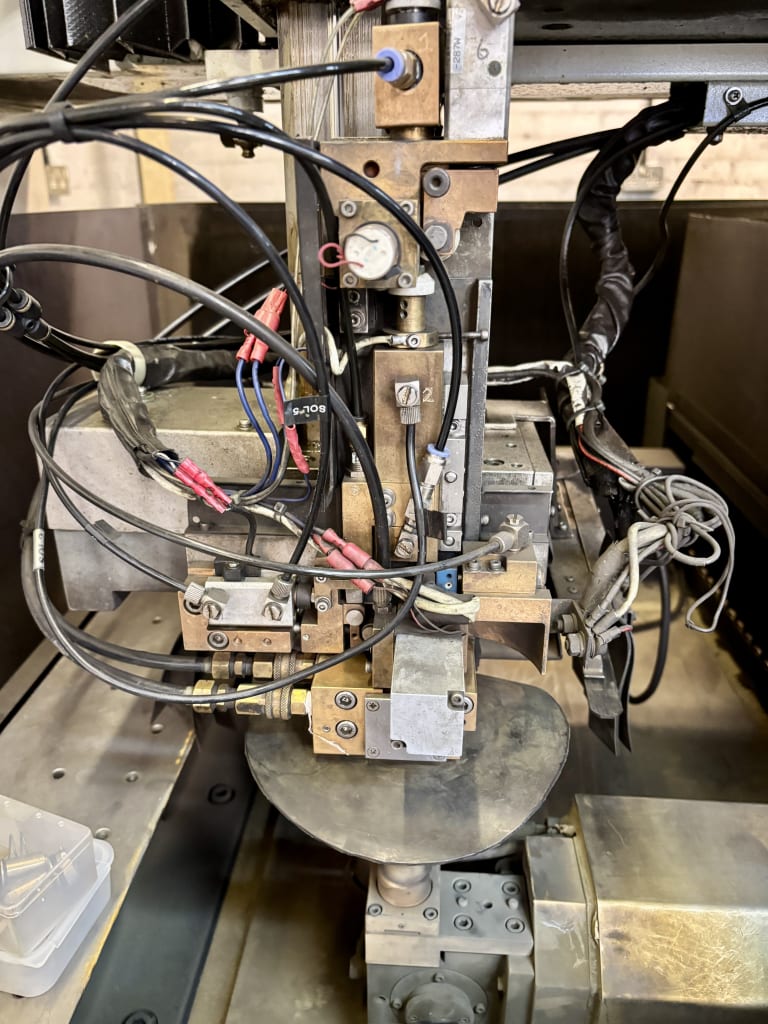

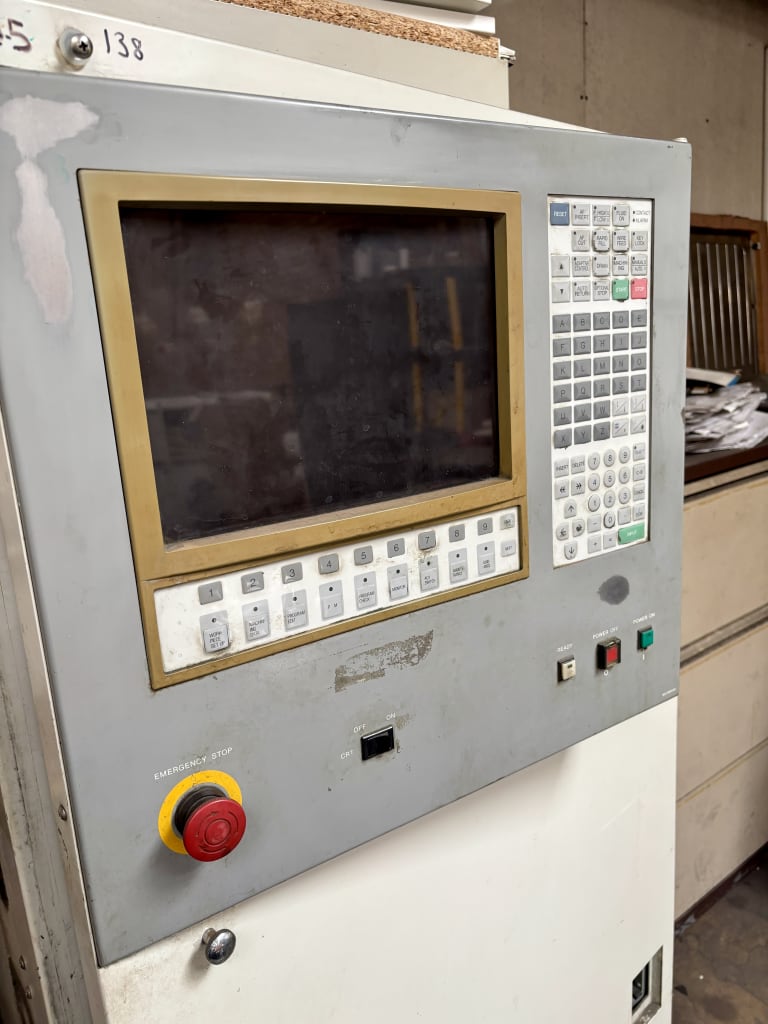

Mitsubishi DWC200HA CNC Wire Cutting EDM
Table Dimension 810 x 650mm. With Dielectric Tank, Mitsubishi Unit Cooler, Quantity Of Assorted Spare Parts, Handwheel & EKO Ioniser 1501. Weight 3,200kg. S/No. 0320L381 (1993). - LOT 5

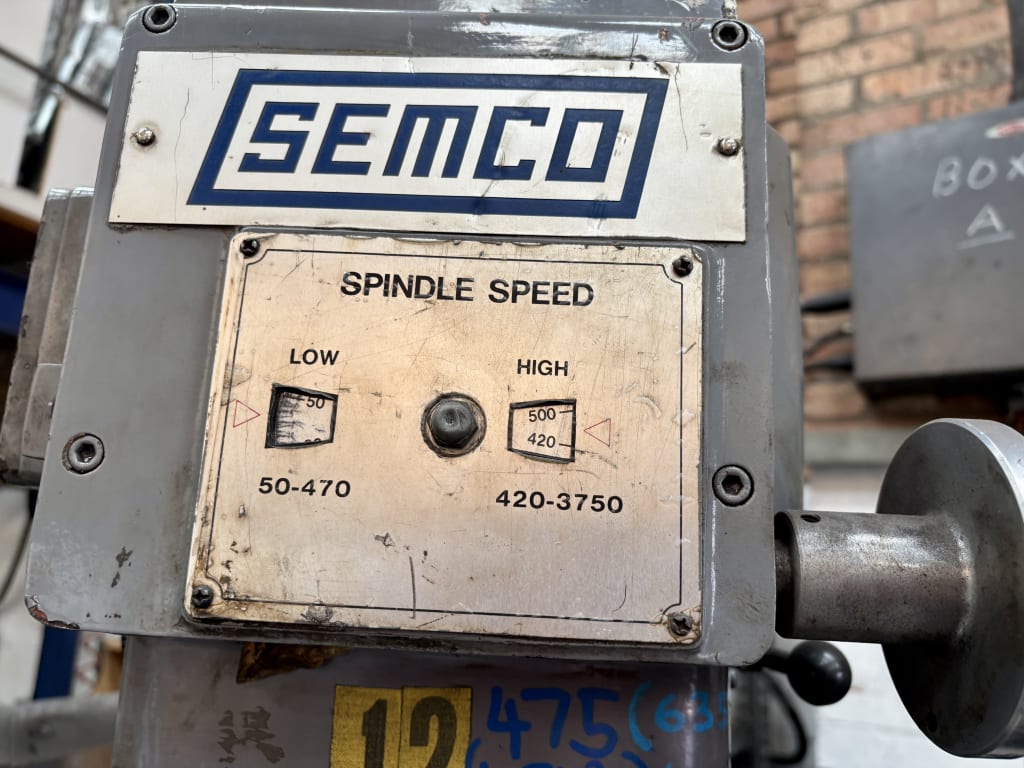

Semco LC-20VS Turret Milling Machine With Anilam Wizard 211 2 Axis DRO
Table Dimension 1,300 x 260mm (3 'T' Slots). Maximum Table Load 200kg. Axis Travel Longitudinal 800mm, Cross 415mm, Vertically 460mm. Spindle Speed Range Low 50-470rpm, High 420-3,750rpm. Spindle Taper ISO 40. With Power Feeds. S/No. 70901352. - LOT 6

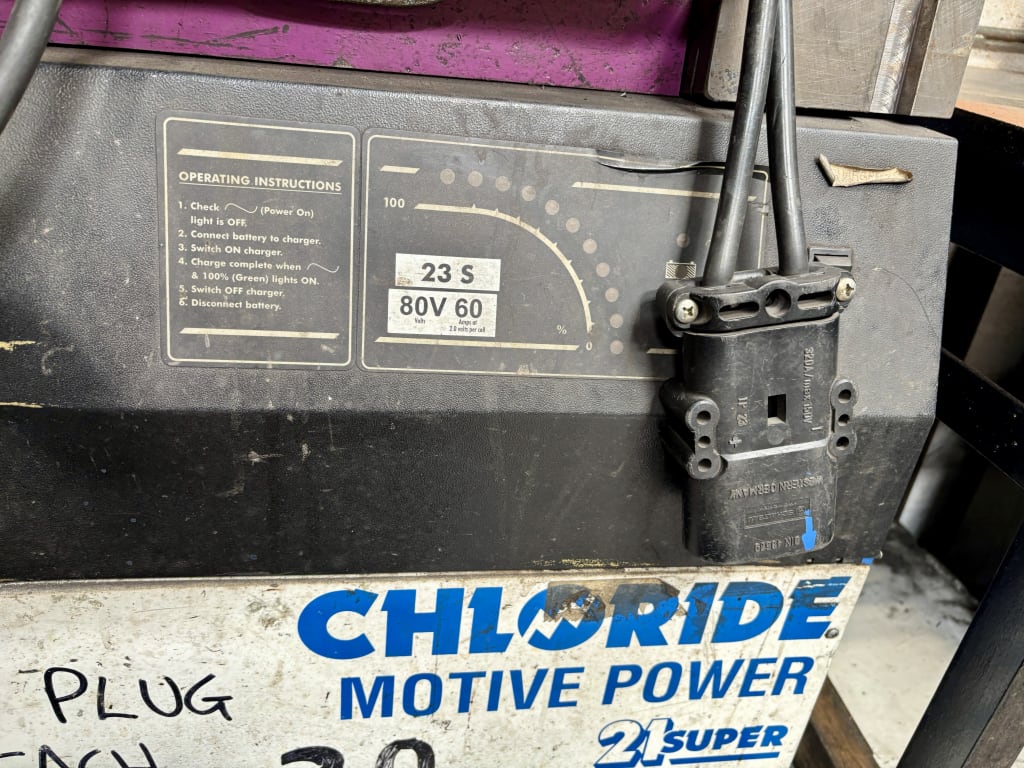

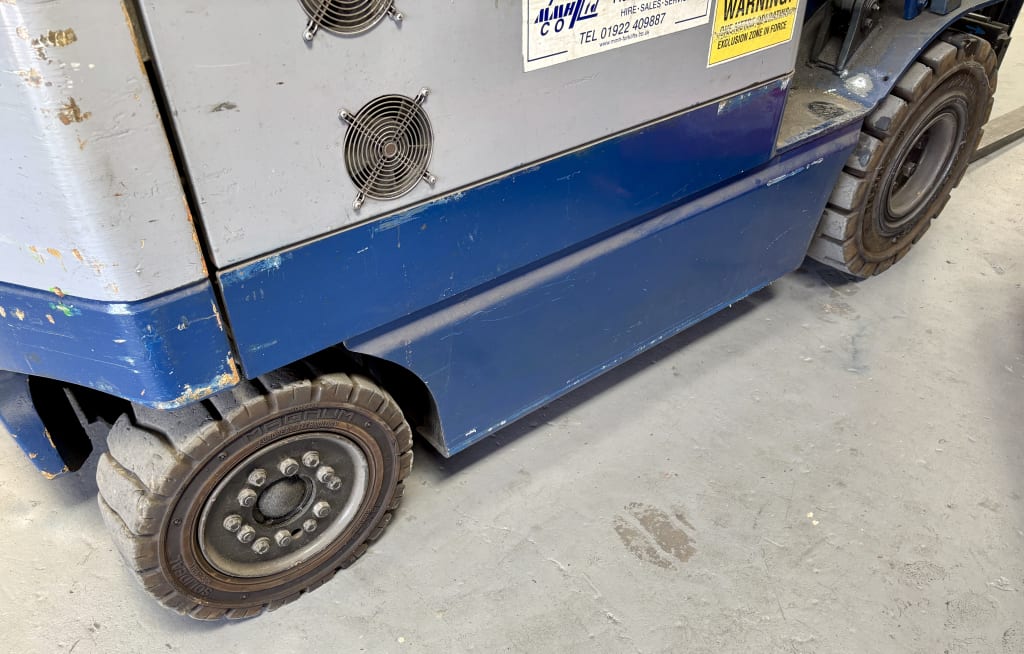

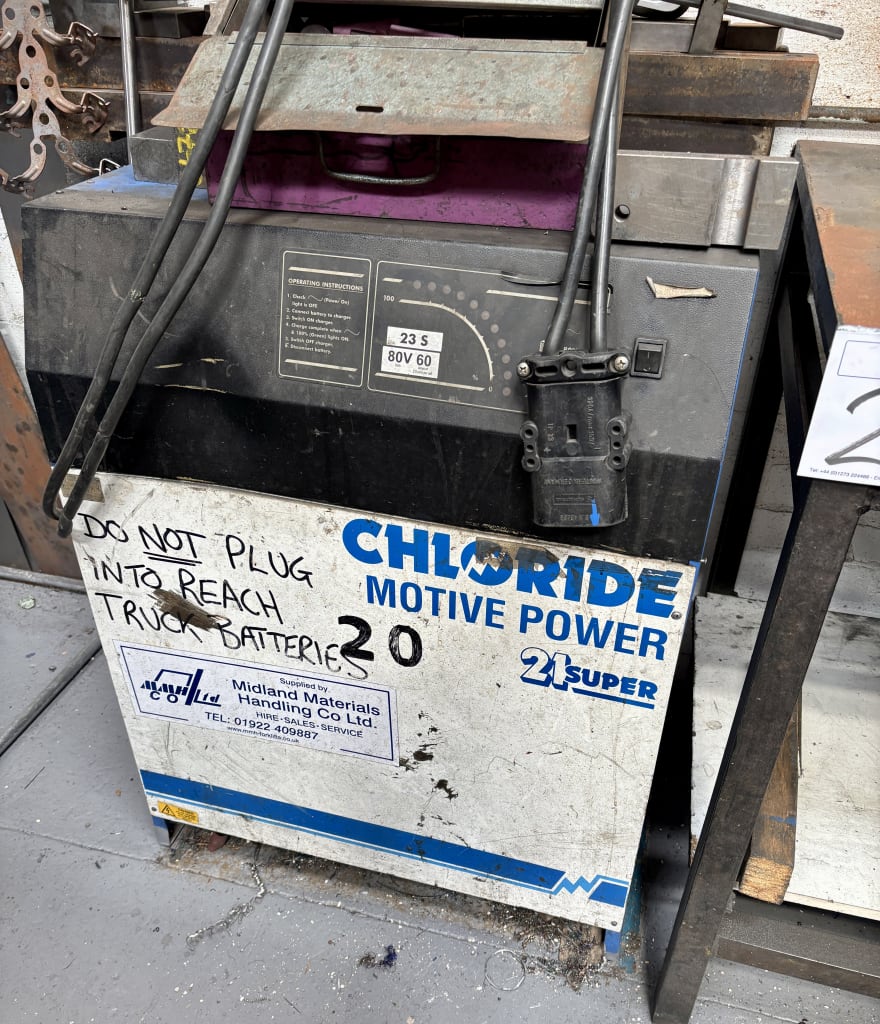

TCM FHB25-6 Electric Fork Truck with 21 Super Charger
Capacity 2,500kg. Maximum Lifting Height 3,300mm. With Sideshift & Rubber Tyres. S/No. 77R02686 (2002). - LOT 7

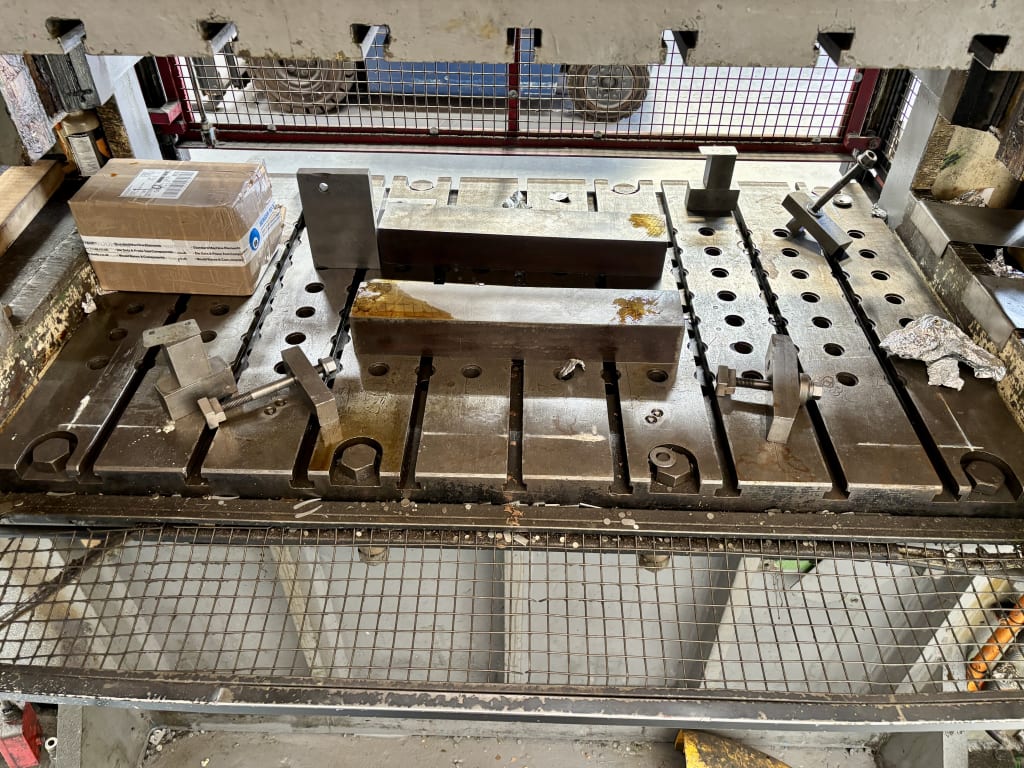

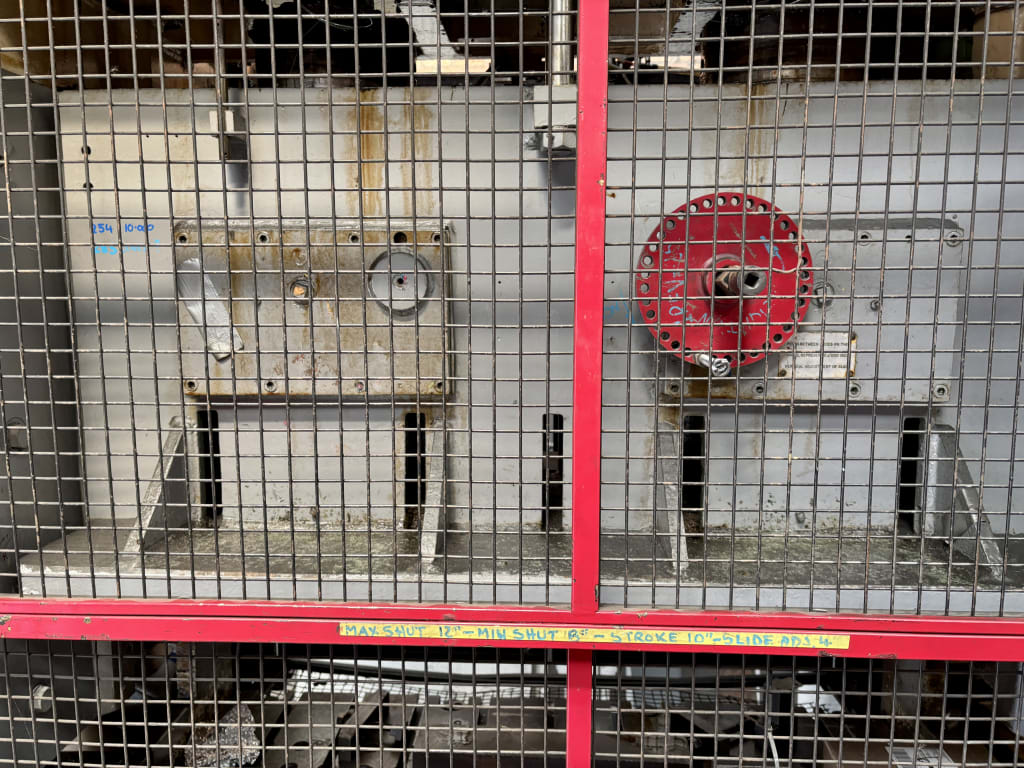

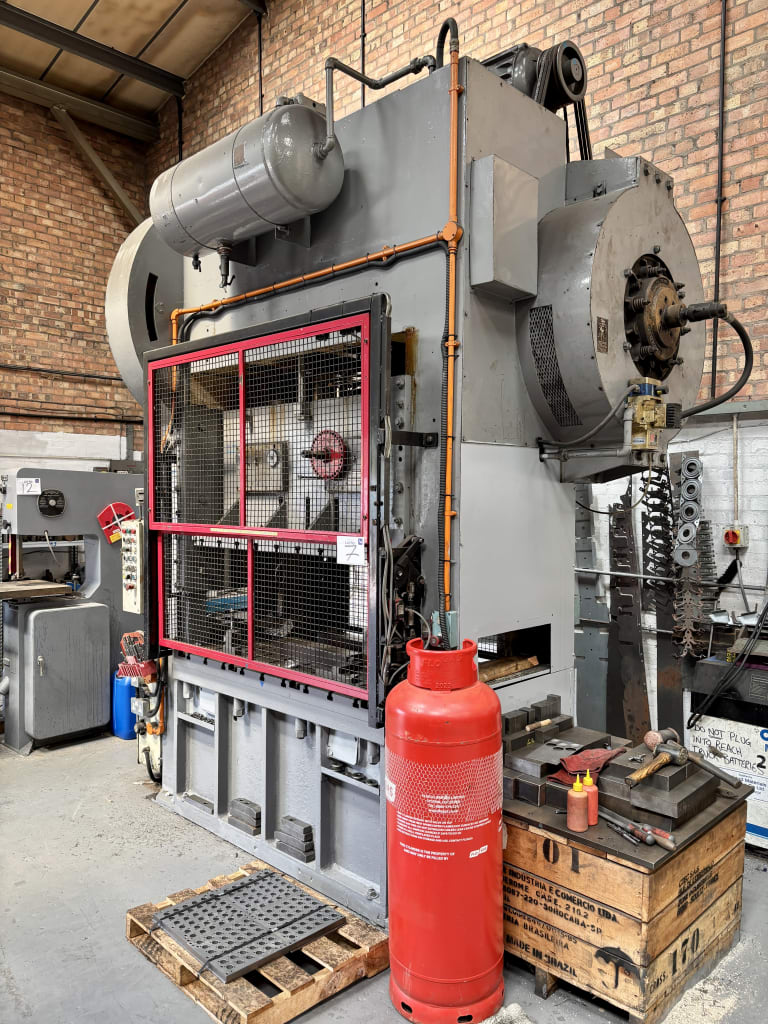

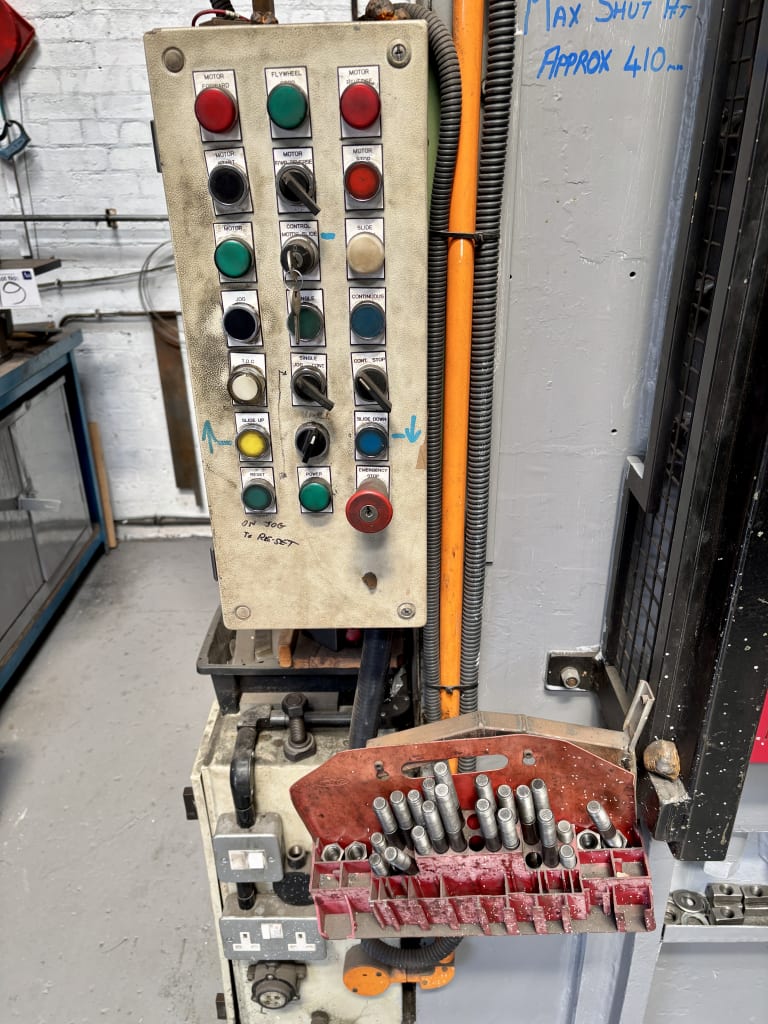

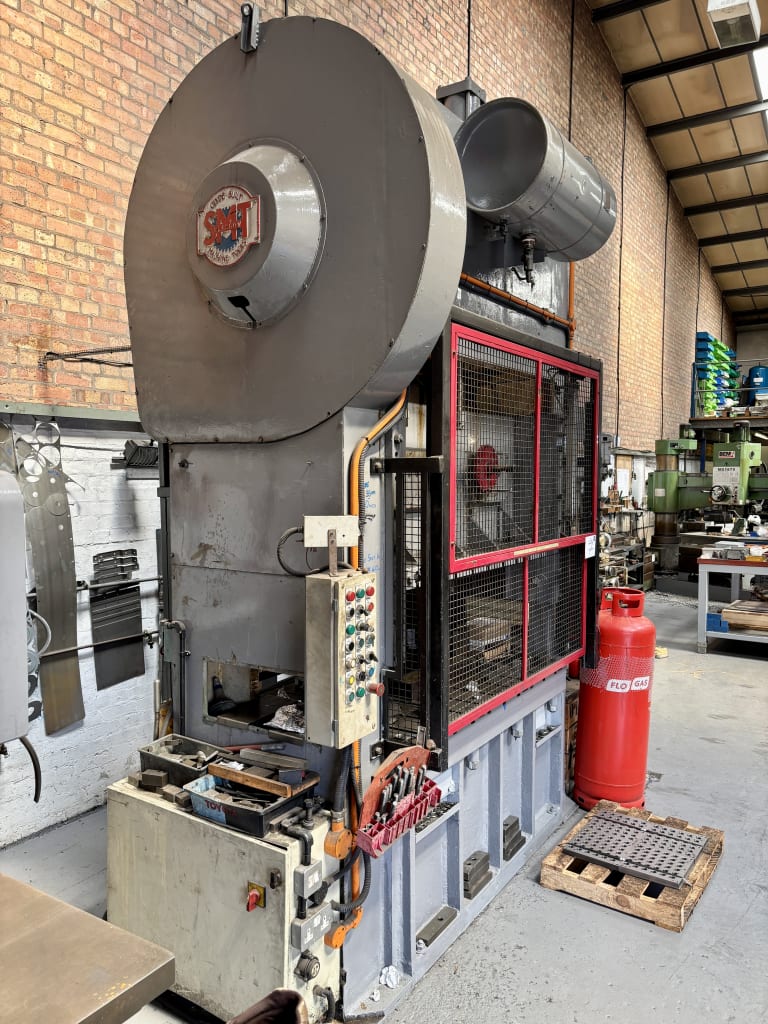

SMT Vertical Hydraulic 150 Ton Power Press

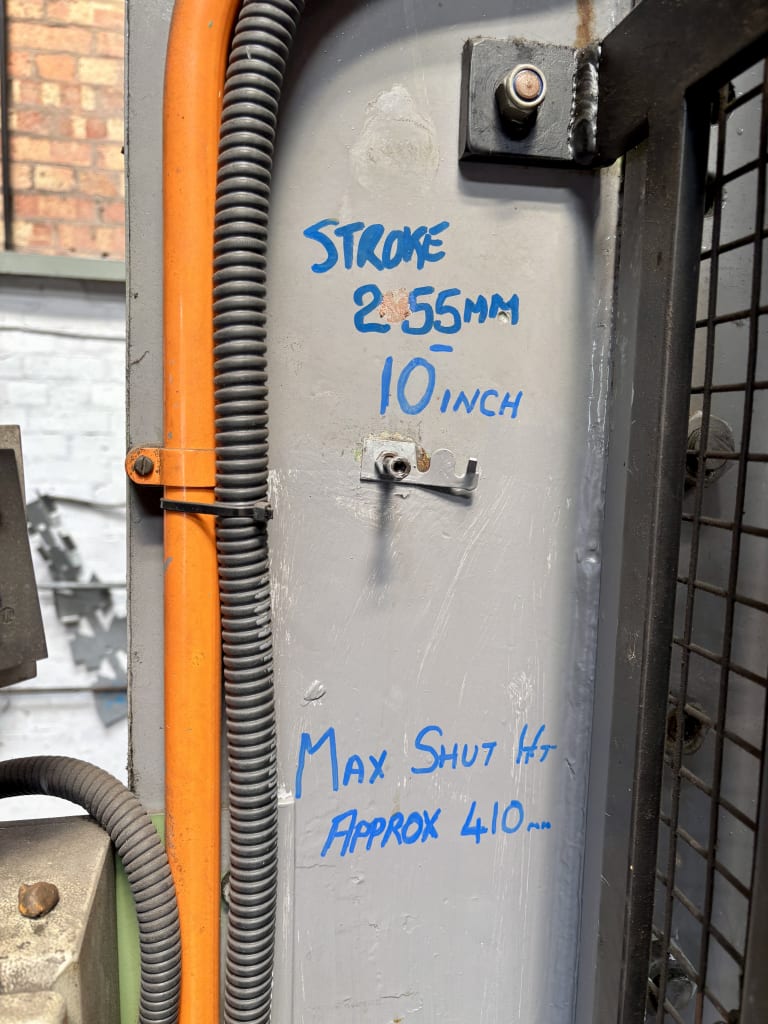

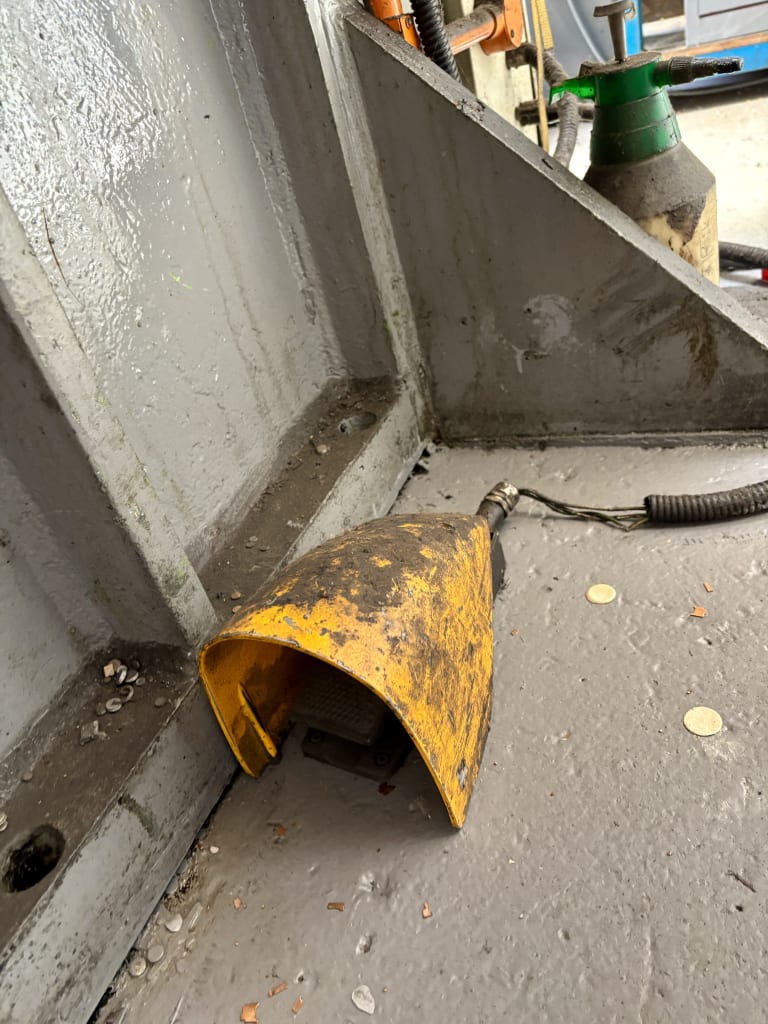

Top Plate Dimension 1,410 x 750mm (9 'T' Slots). Bottom Plate Dimension 1,525 x 915mm (9 'T' Slots). Approx Stroke 255mm. Approx Shut Height 410mm. With Foot Switch. - LOT 8

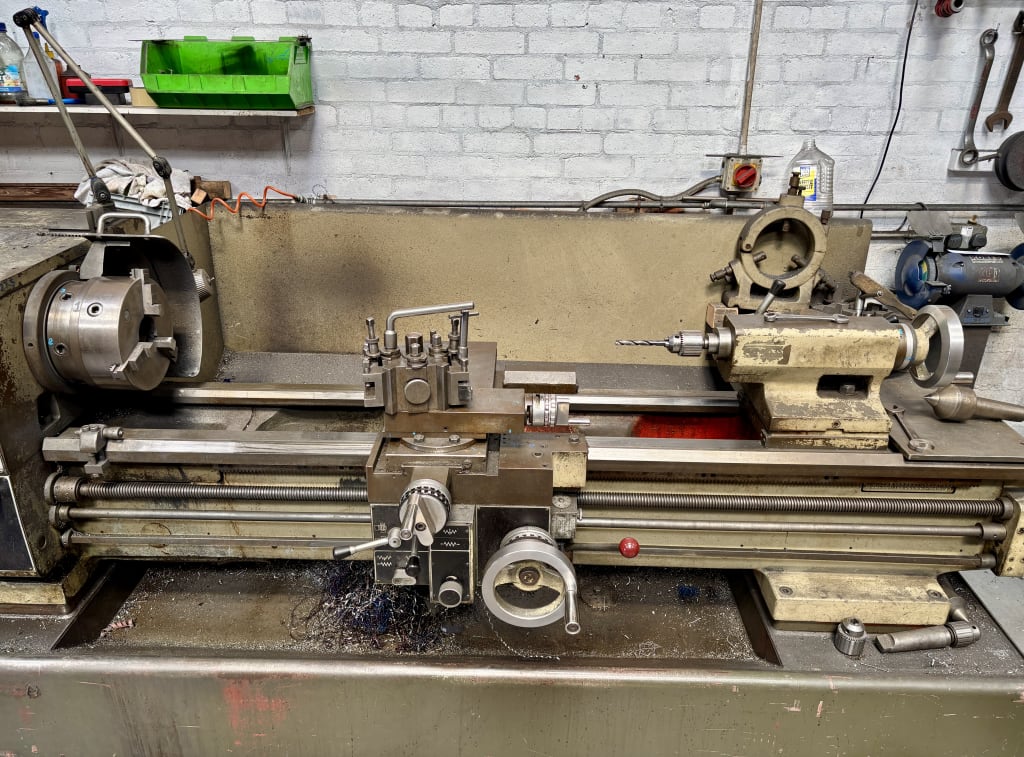

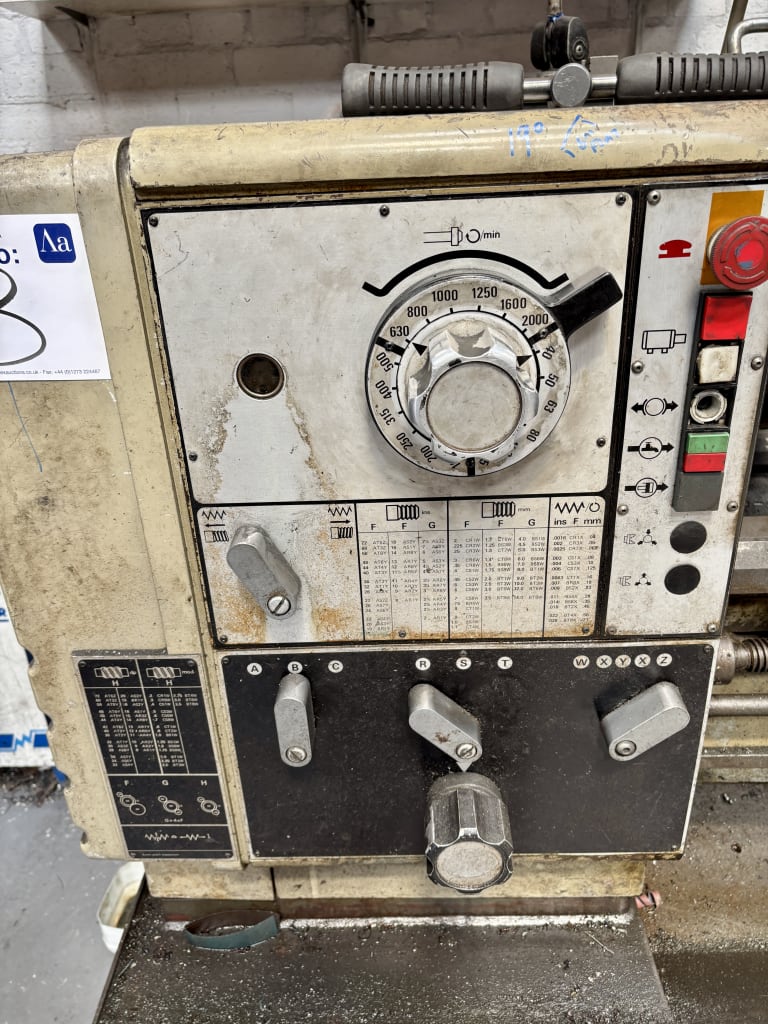

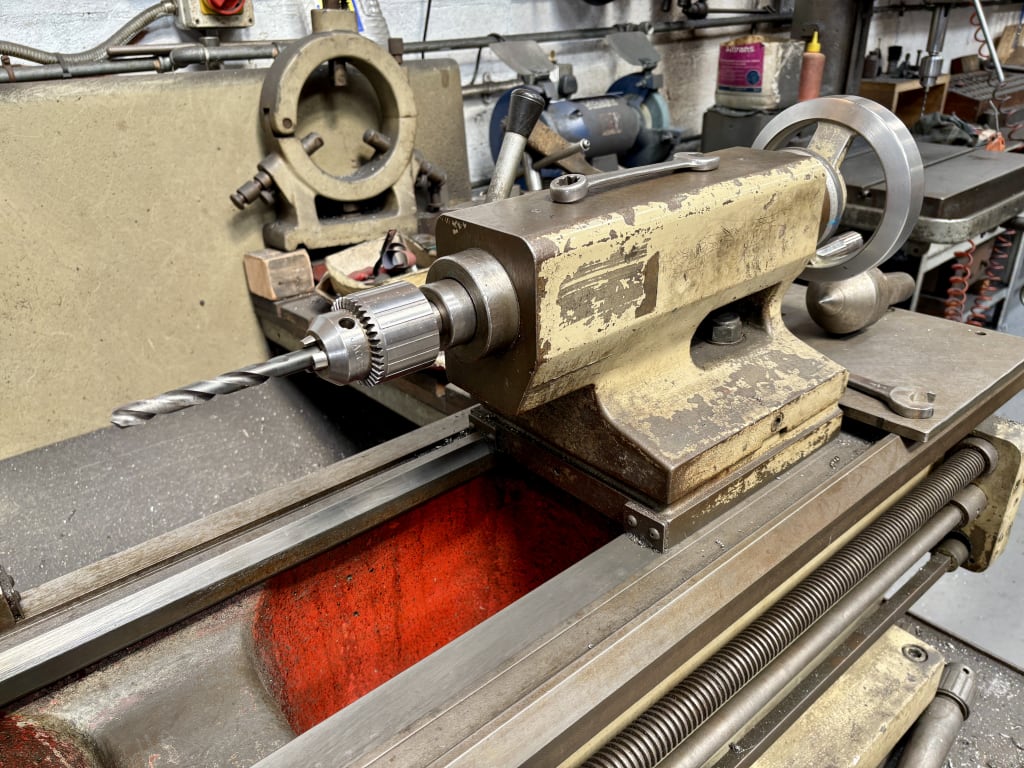

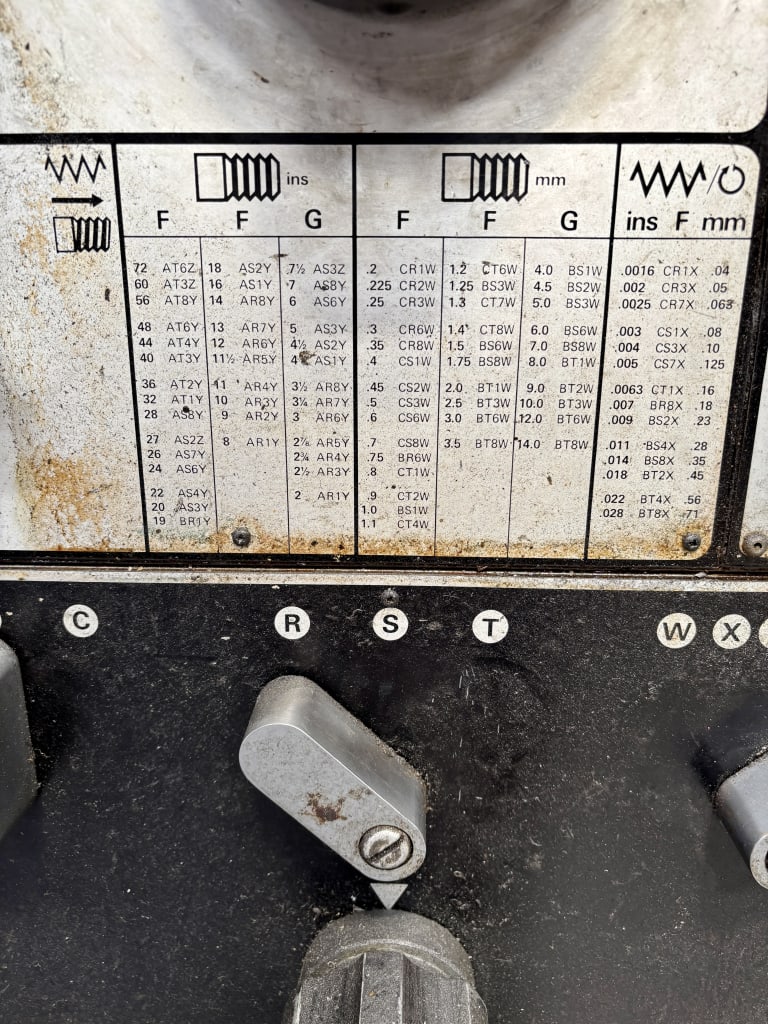

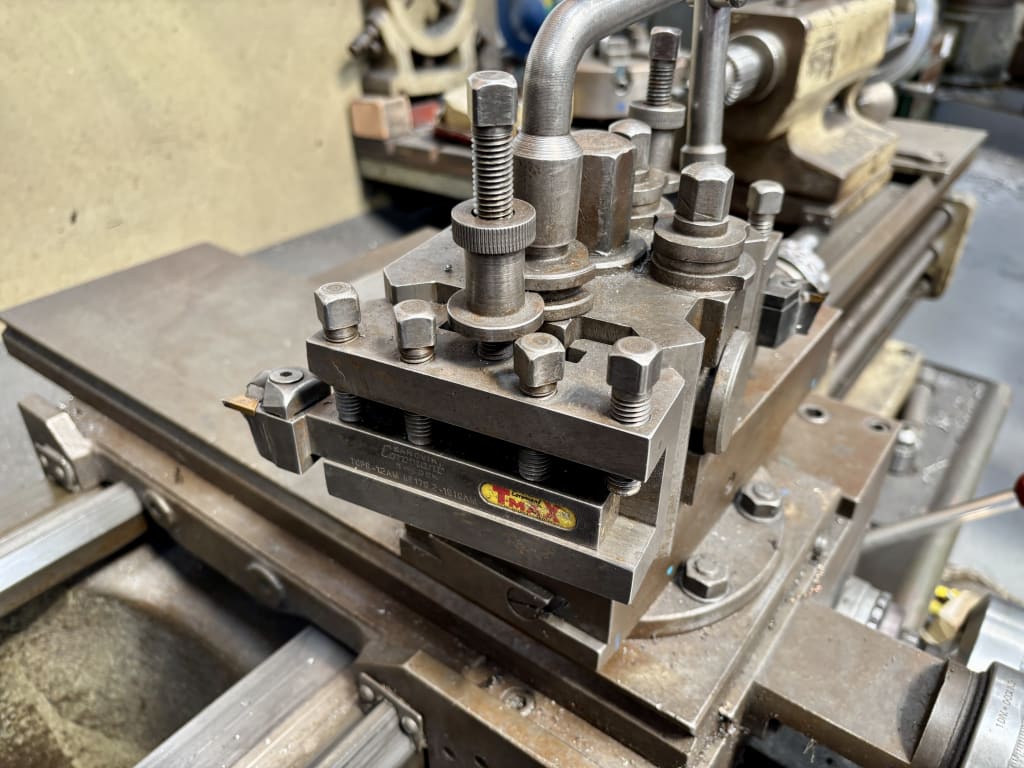

Harrison M400 Gap Straight Bed Lathe
Ø250mm 3 Jaw Chuck. Maximum Swing Over Bed Ø430mm. Maximum Swing Over Cross Slide Ø260mm. Swing Over Gap Ø642mm x 200mm Long. Distance Between Centres 1,500mm. Spindle Bore Ø65mm. Speed Range (18) 40-2,000rpm (7.5kW Motor). QTC. Tailstock Quill Ø73mm, Quill Travel 155mm, MT5. QTC. - LOT 9

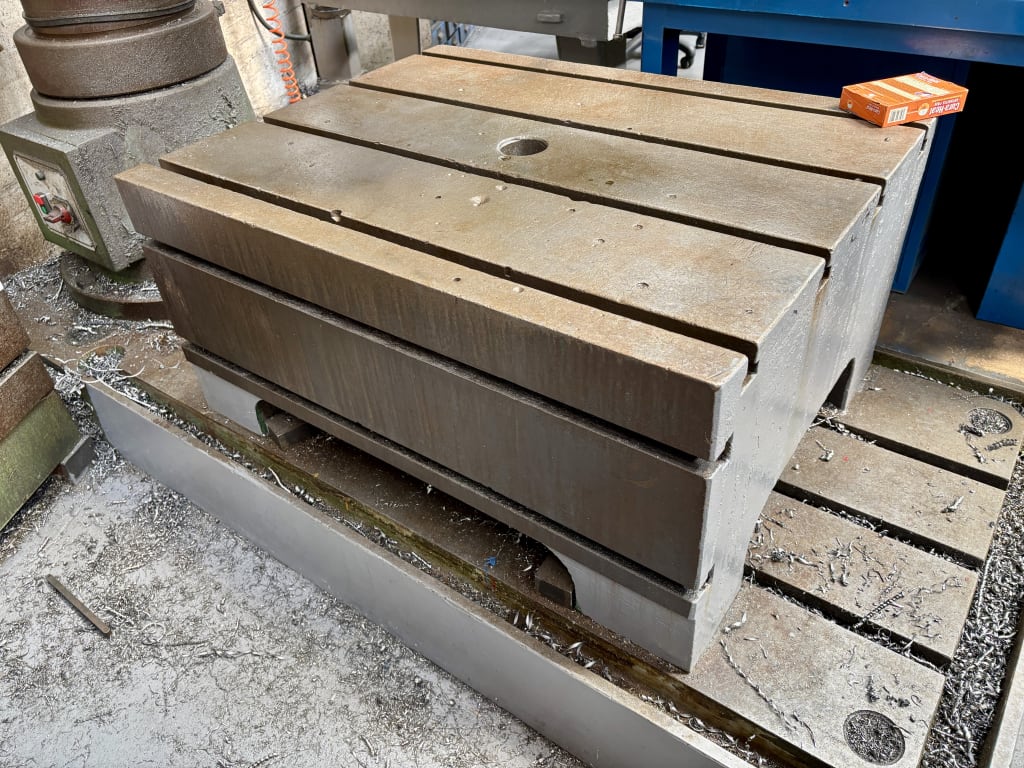

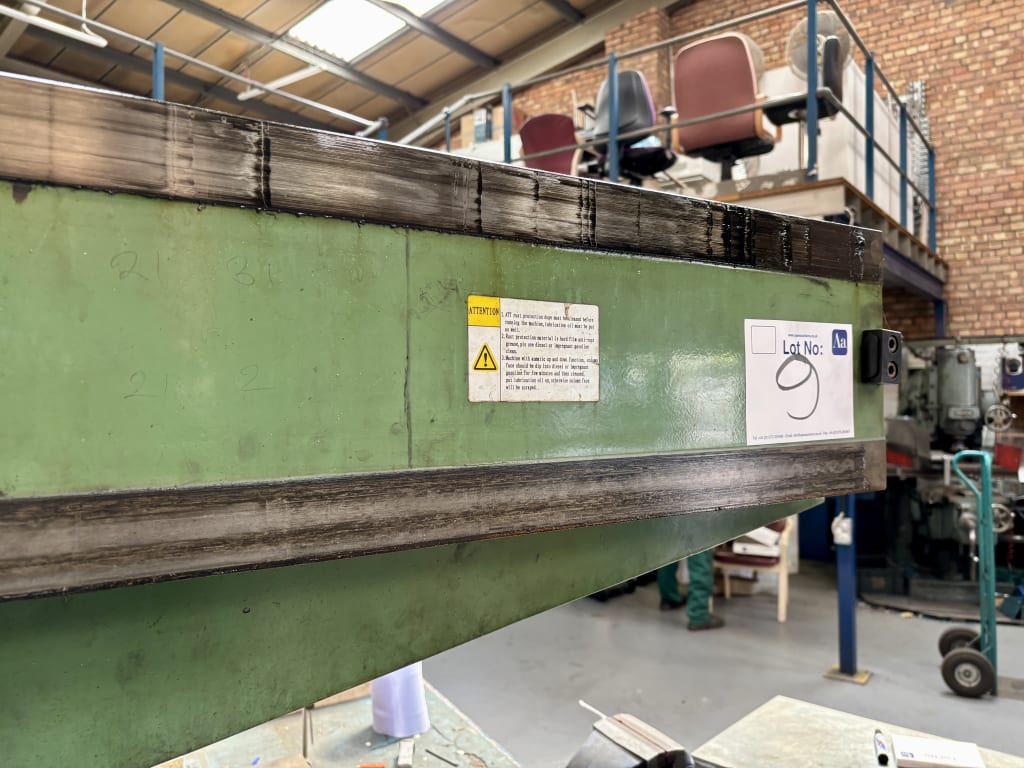

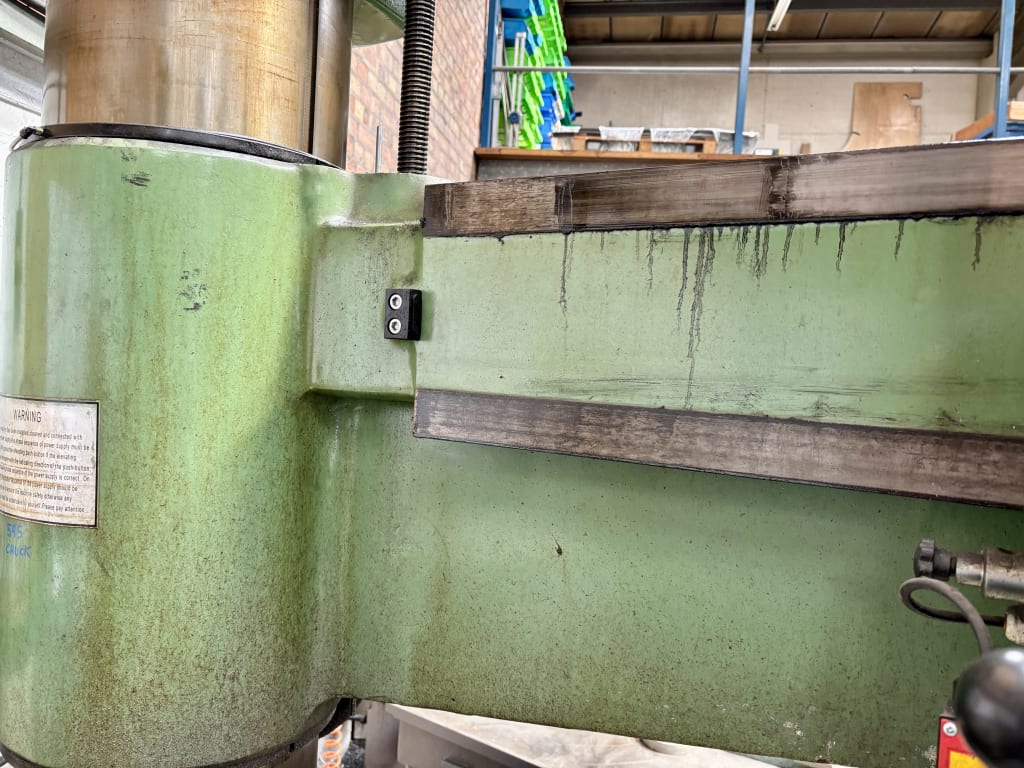

Bema MG1675 Radial Arm Drill With 'T' Slotted Box Table
Arm Length 1,600mm. Morse Taper MT5. Maximum Drilling Capacity Ø50mm. Speed Range 25-2,000rpm. Feed Range 0.04-0.32mm/rev. 'T' Slotted Box Table Dimension 1,070 x 835 x 505mm. Bed Dimension 2,370 x 985mm. S/No. 1409247 (2014). - LOT 11

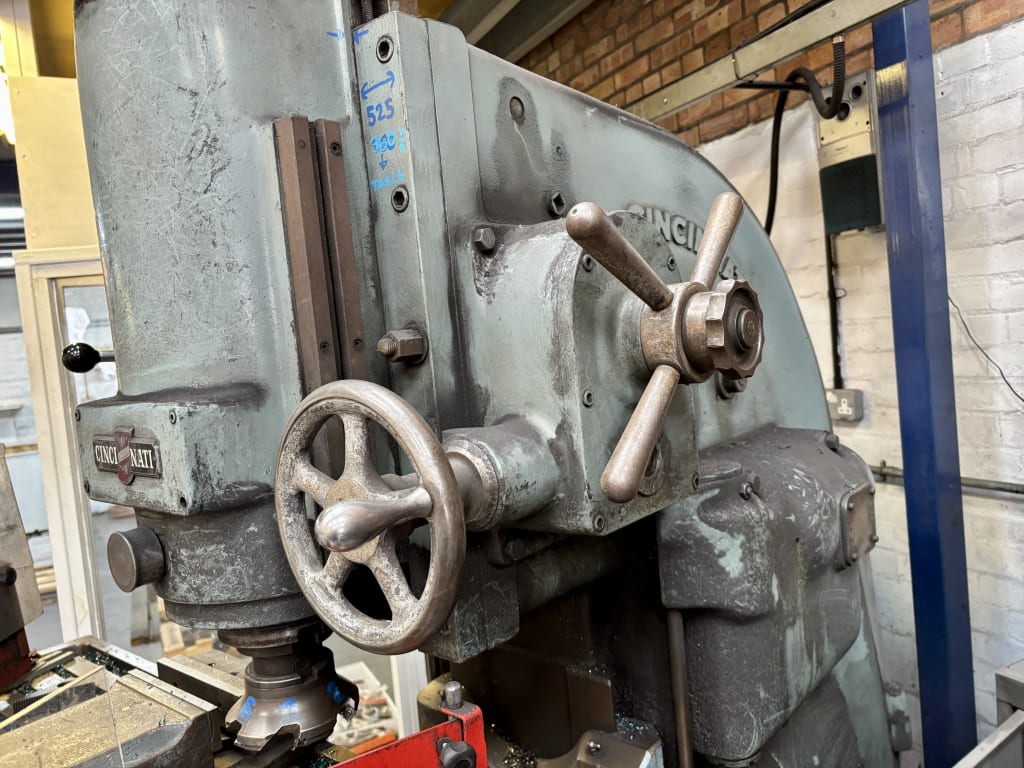

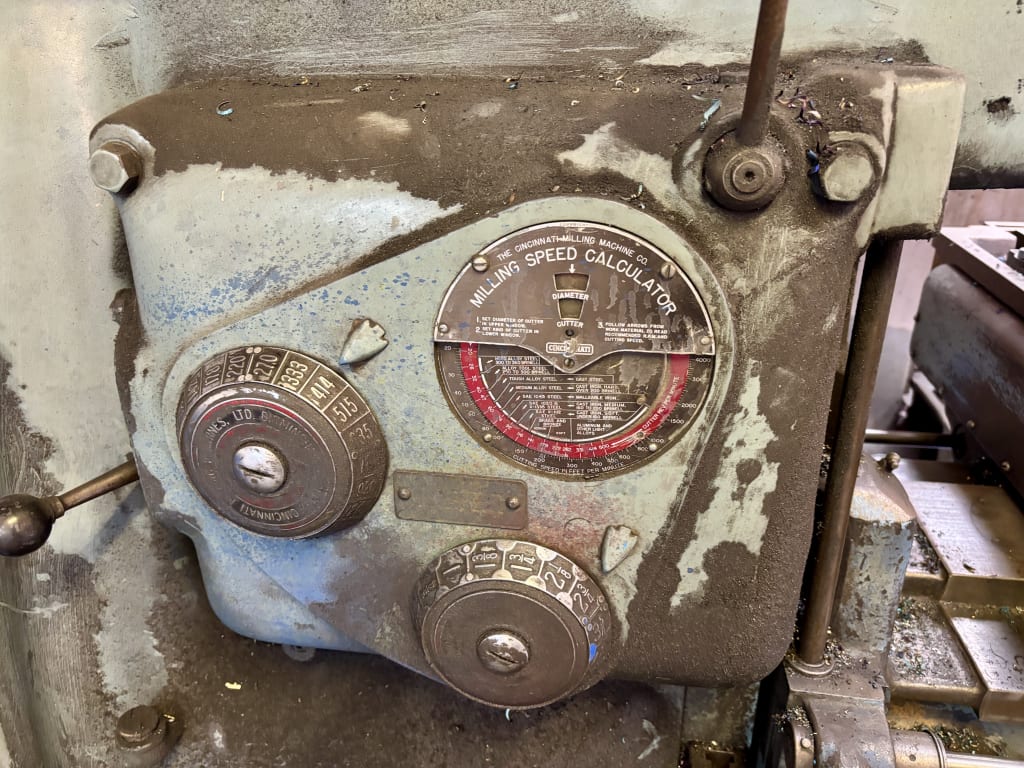

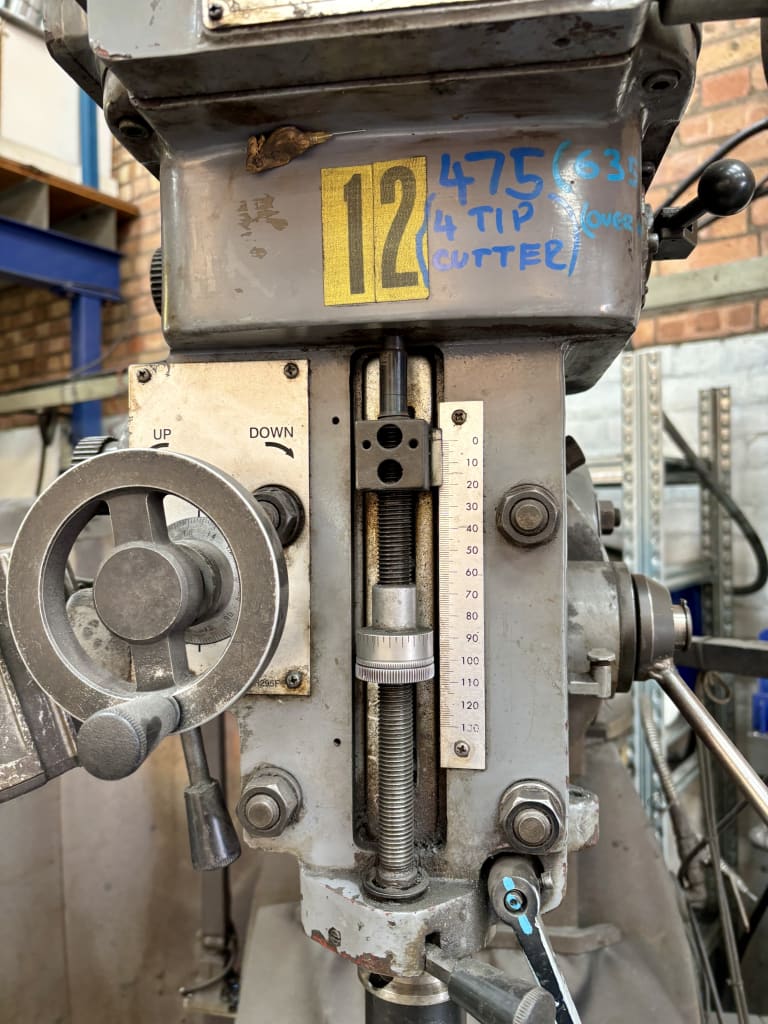

Cincinnati No.2 Knee Type Vertical Milling Machine
Table Dimension 1,340 x 310mm (3 'T' Slots). Axis Travel 'X'=711mm, 'Y'=254mm, 'Z'=483mm. Speed Range 20-1,500rpm. Spindle Taper ISO 40. S/No. 2A2V1K-103. - LOT 12

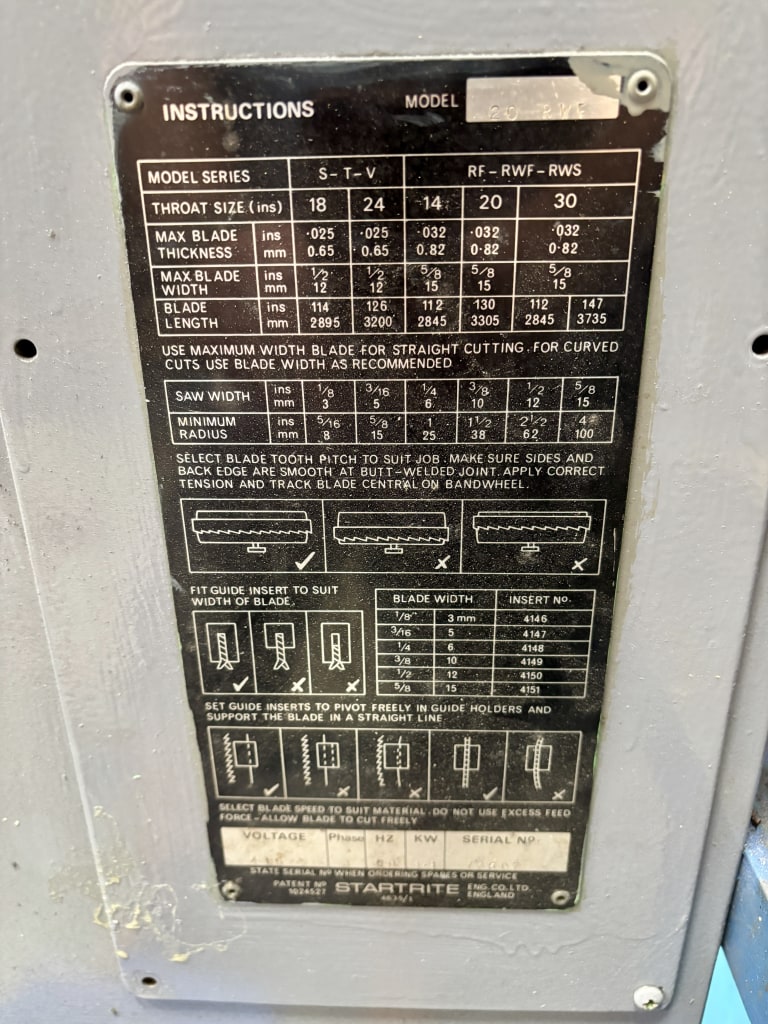

Startrite 20RWF Vertical Bandsaw

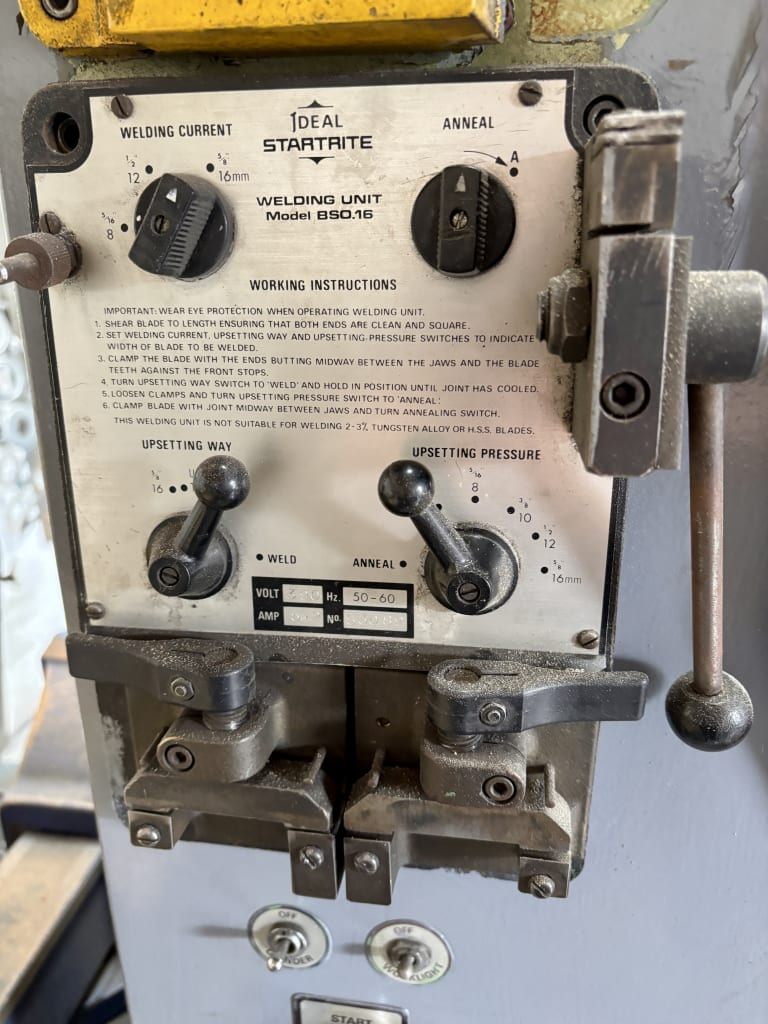

Table Dimension 535 x 535mm. Throat 520mm. BSO.16 Blade Welder. Voltage 415v. - LOT 13

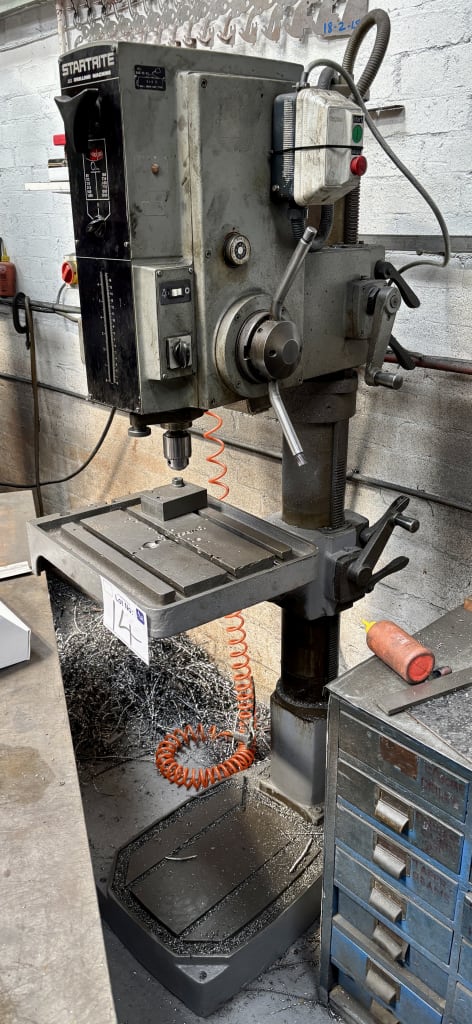

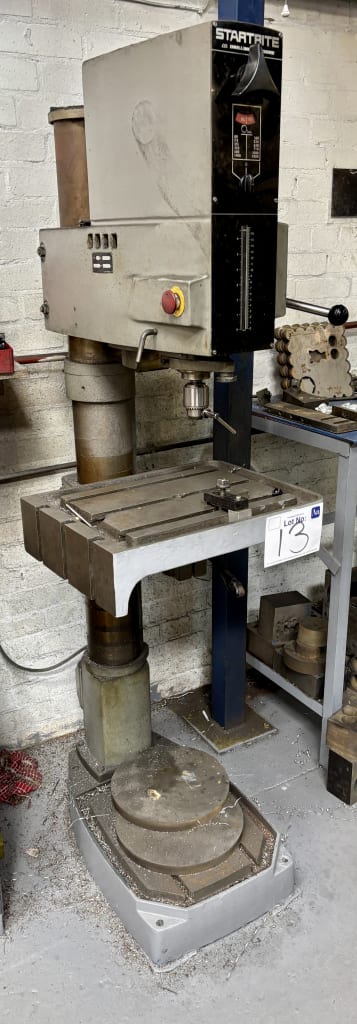

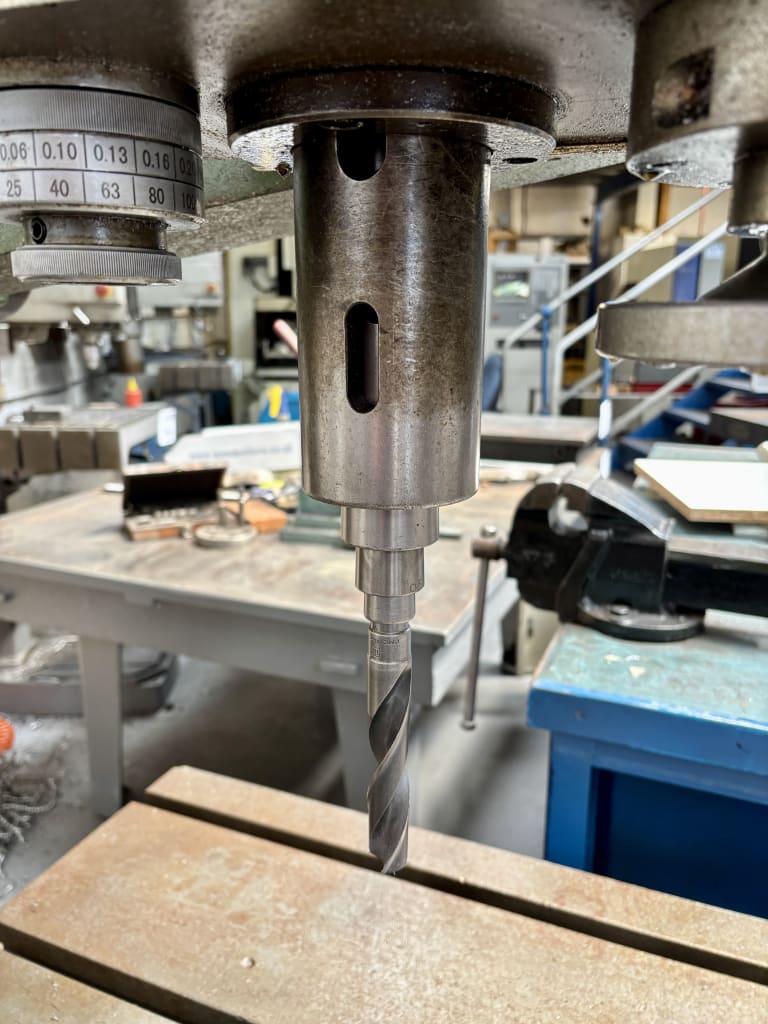

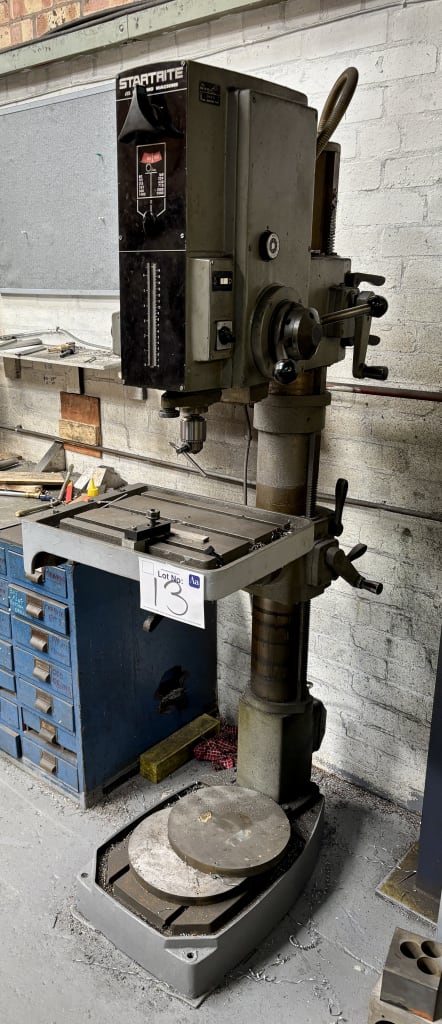

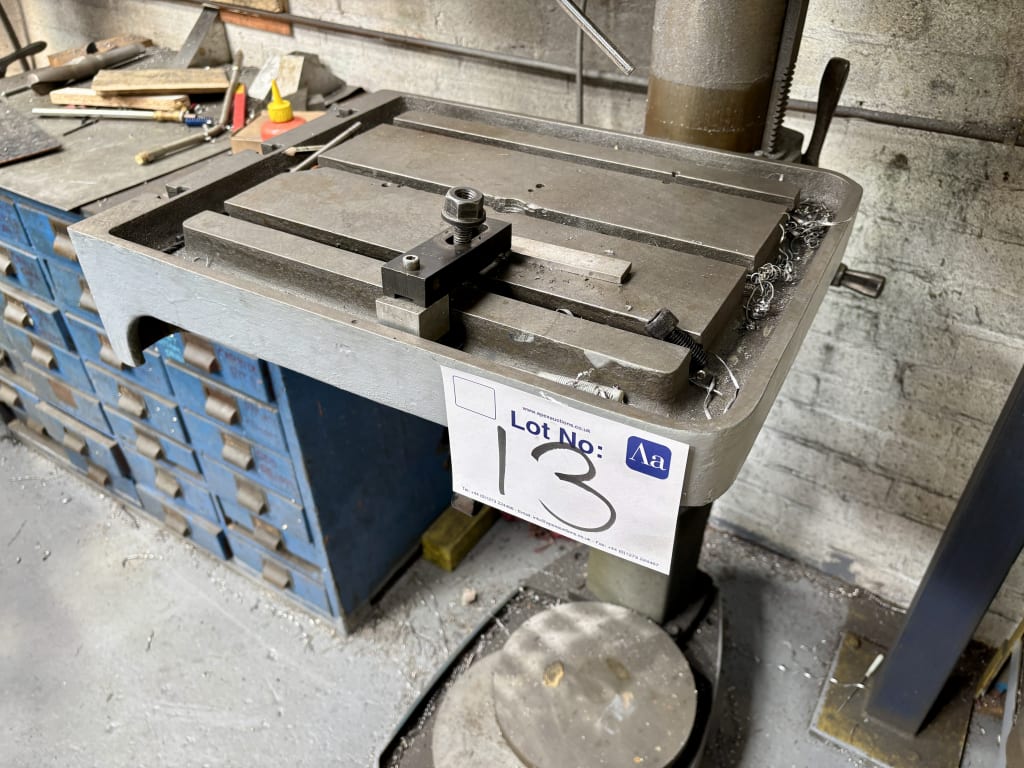

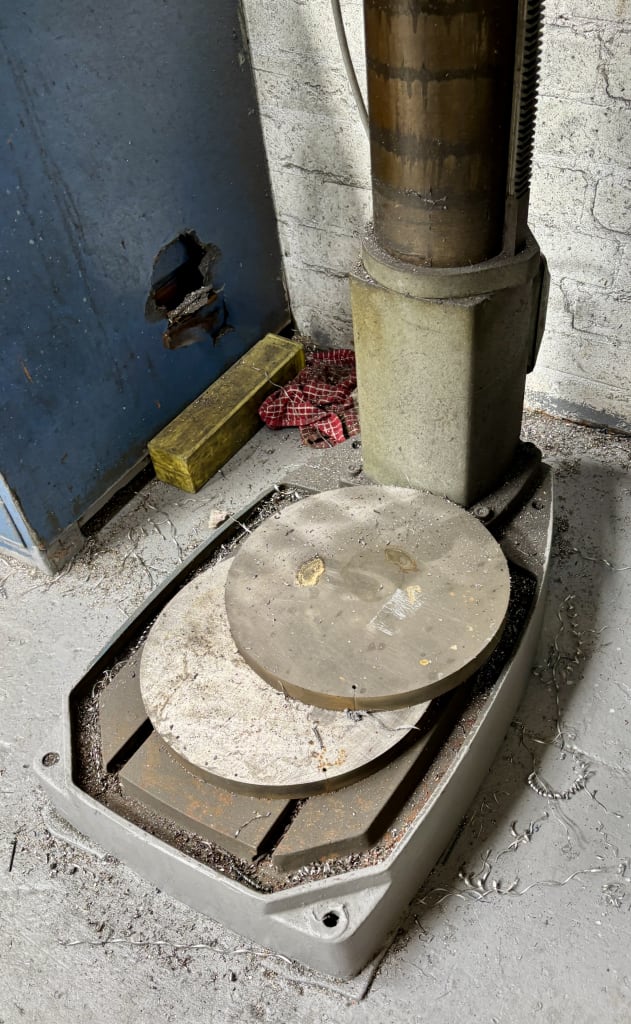

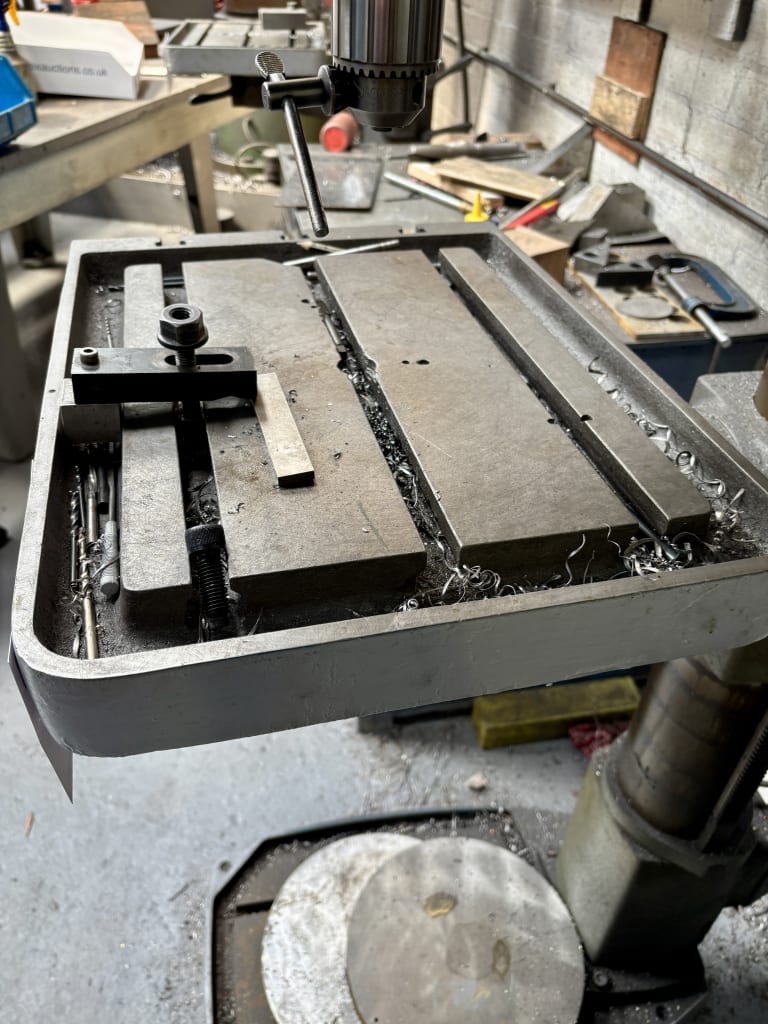

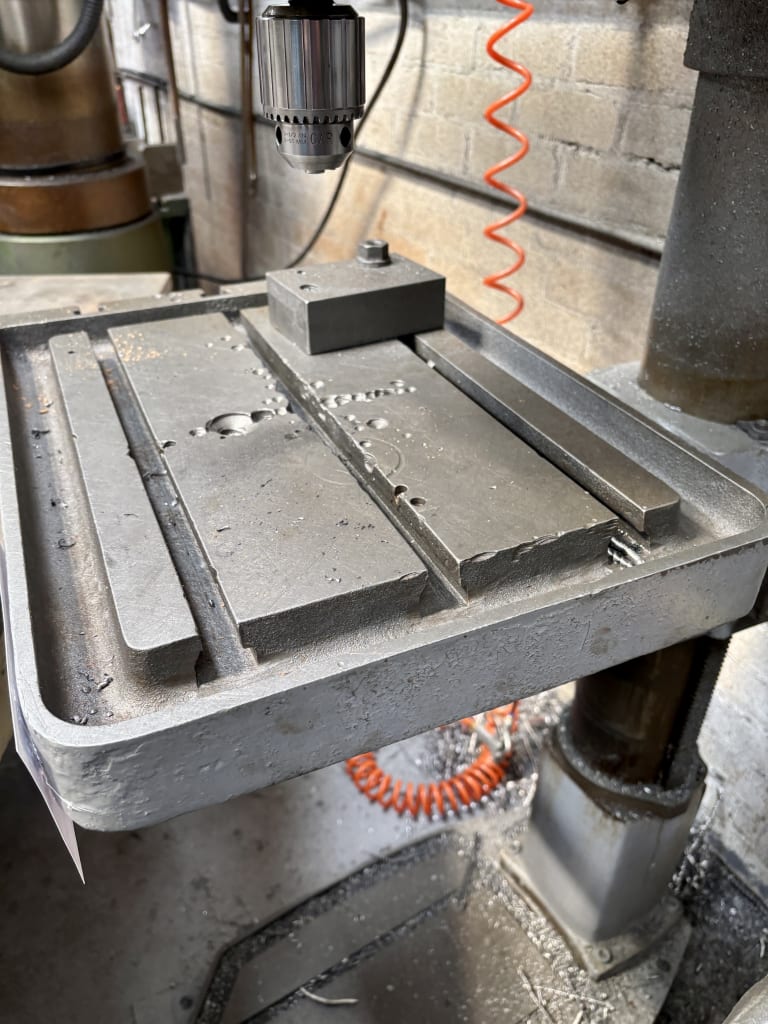

Startrite EFI Gear Head Drilling Machine
Rise & Fall Table Dimension (500 x 385mm (3 'T' Slots). Speed Range (12) 80-2,800rpm. Feed Range 0,1, 0.15, 0.25mm/min. Morse Taper MT3. Power Feed. Voltage 415v. - LOT 14
Startrite EFI Gear Head Drilling Machine
Rise & Fall Table Dimension (500 x 385mm (3 'T' Slots). Speed Range (12) 80-2,800rpm. Feed Range 0,1, 0.15, 0.25mm/min. Morse Taper MT3. Power Feed. - LOT 15

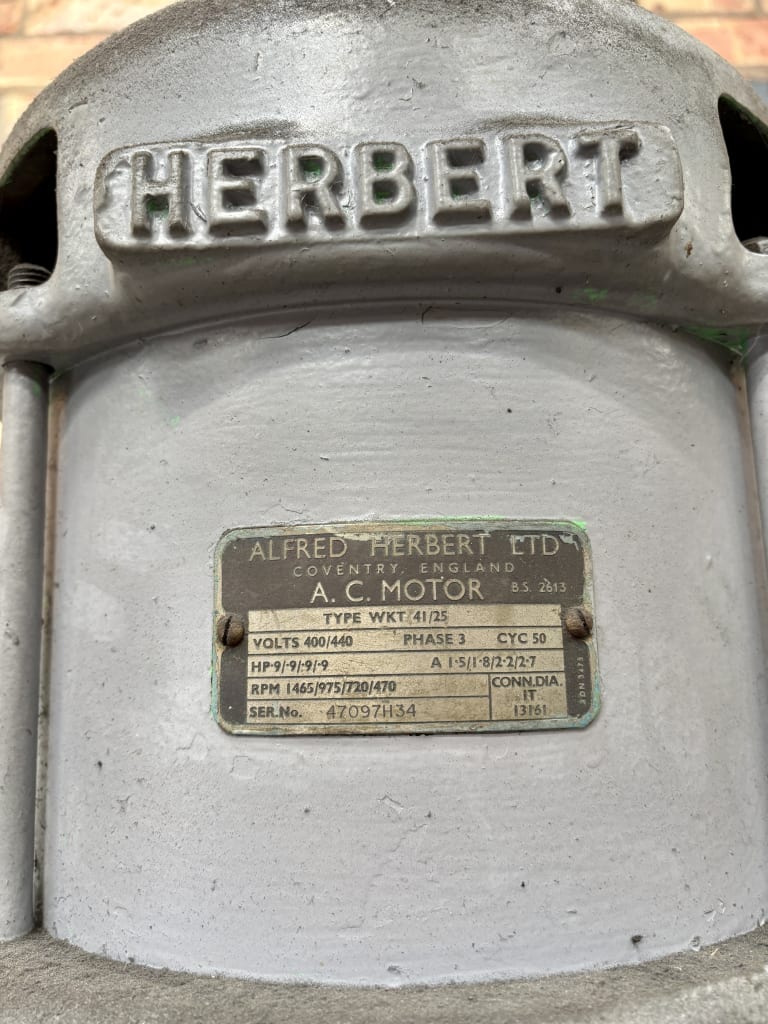

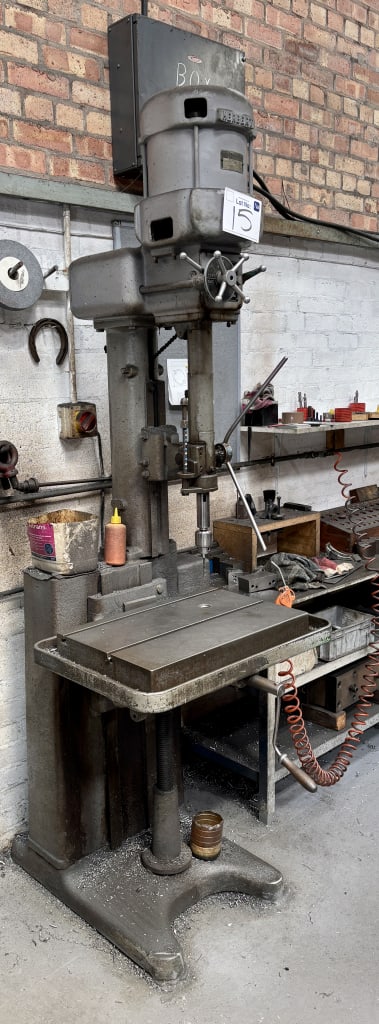

Herbert WKT 41/25 Single Spindle Drilling Machine
Rise & Fall Table Dimension 610 x 1,445mm (2 'T' Slots). Speed Range 106-145mm (0.9HP Motor). Morse Taper MT3. - LOT 16

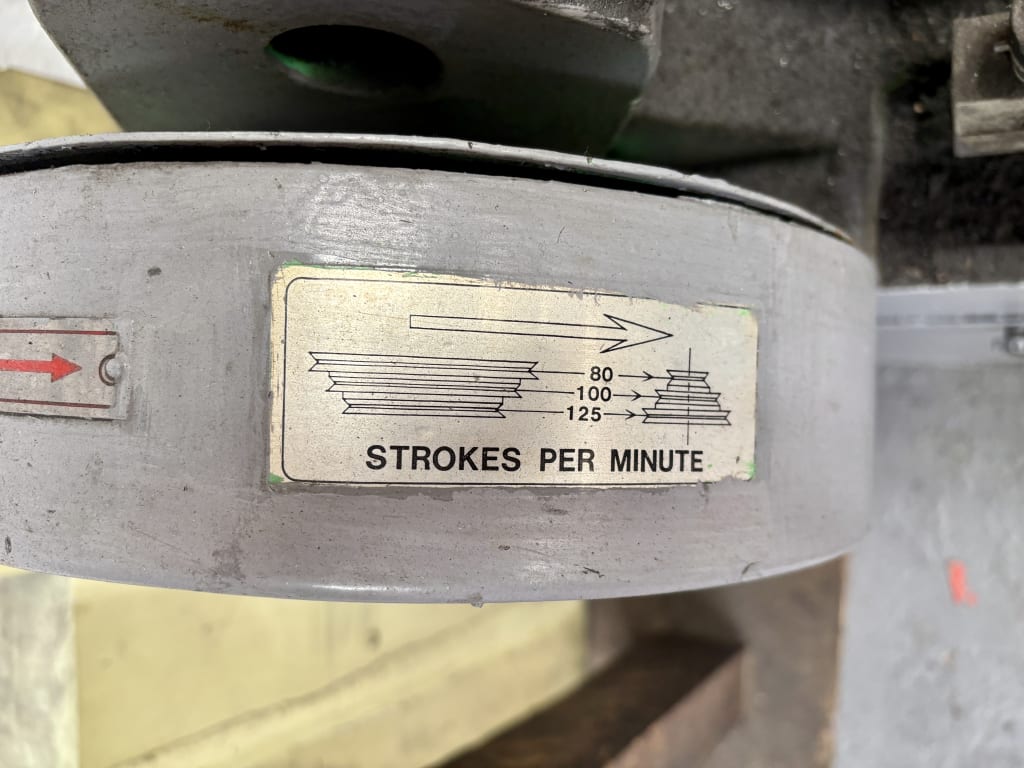

Addsion HS225A Power Hacksaw
Cutting Capacity Ø228mm, 2hp Motor, Stroke/min 80/100/120, 16" Blade, Power Down Feed, Coolant System & Mitre Cut. - LOT 17
Sealey 3 Tonne Fixed Frame Mobile Crane Model PH30
Adjustable Arm Length Range 1,000-3,000kg. - LOT 18

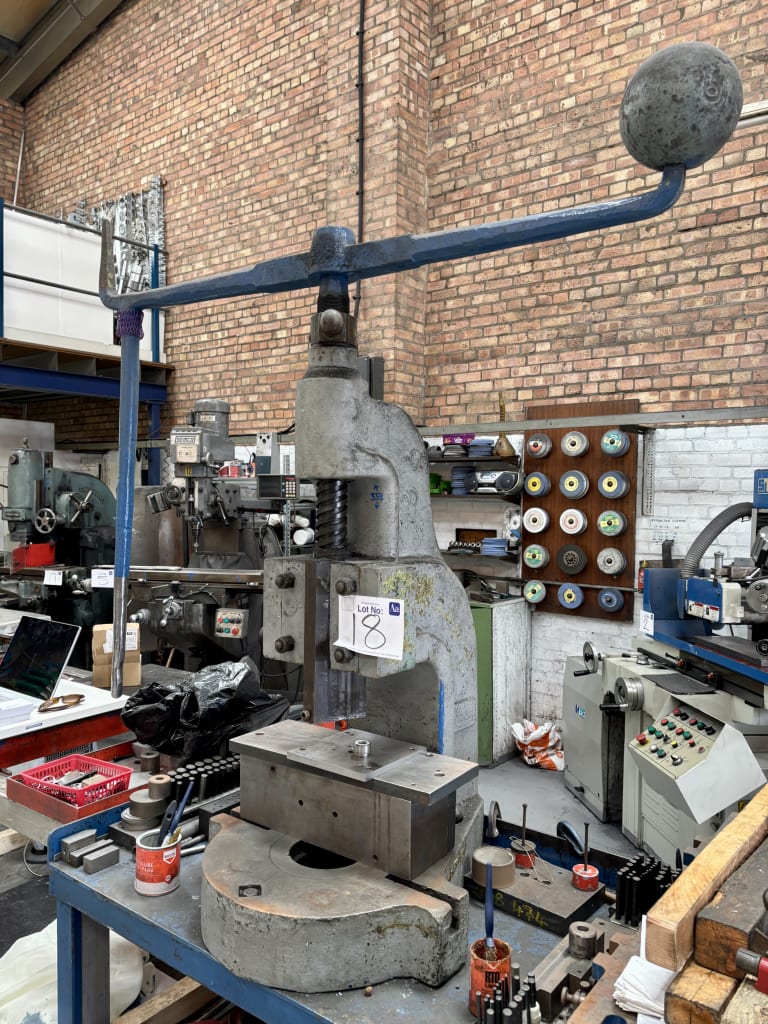

Sweeney & Blocksidge Flypress On Steel Fabricated Table With Press Tools
Throat 200mm. Height Under Ram 365mm. Distance Between 'T' Slots 305mm. Table Dimension L1,265 x W705 x H940mm. - LOT 19
- LOT 20
- LOT 21

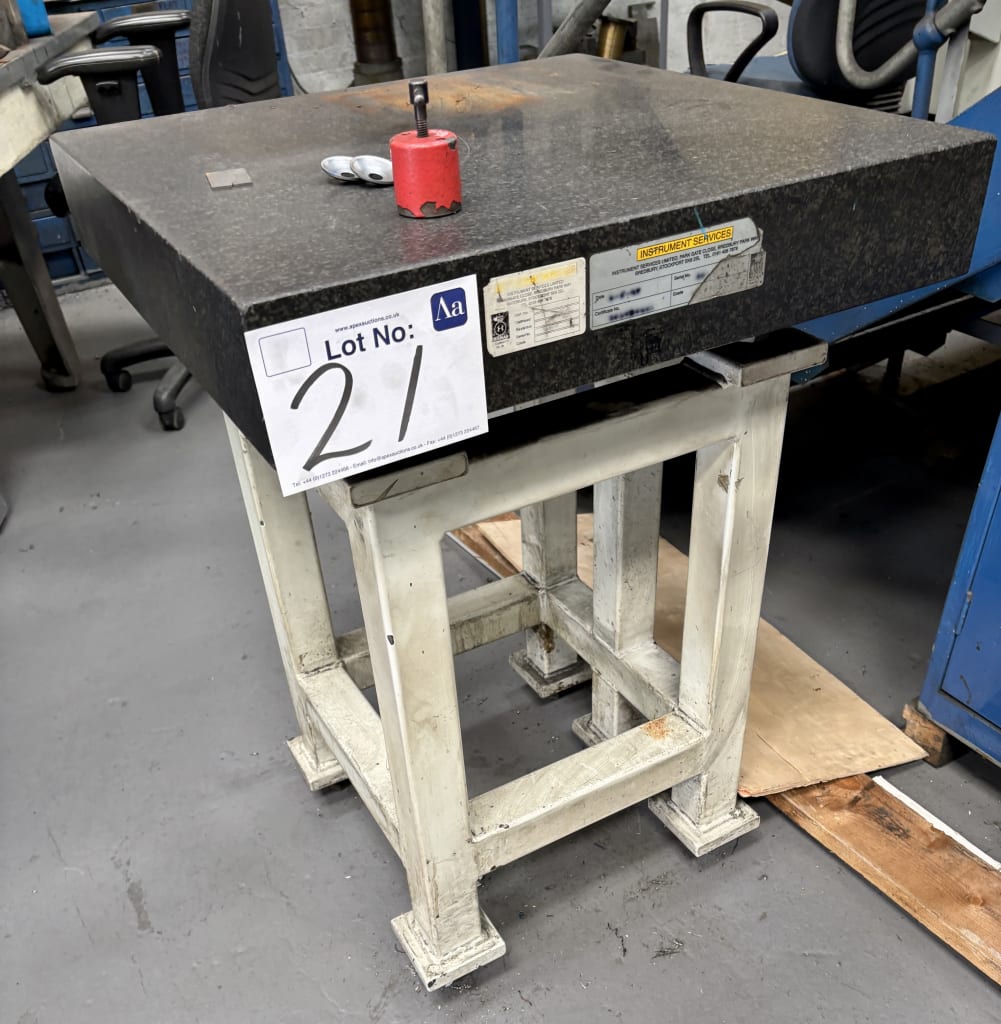

Granite Surface Plate On Steel Frame
Approx Dimensions L605 x W605 x H110mm (Overall Height 870mm). - LOT 22
- LOT 23
- LOT 24
- LOT 25
- LOT 26
- LOT 27

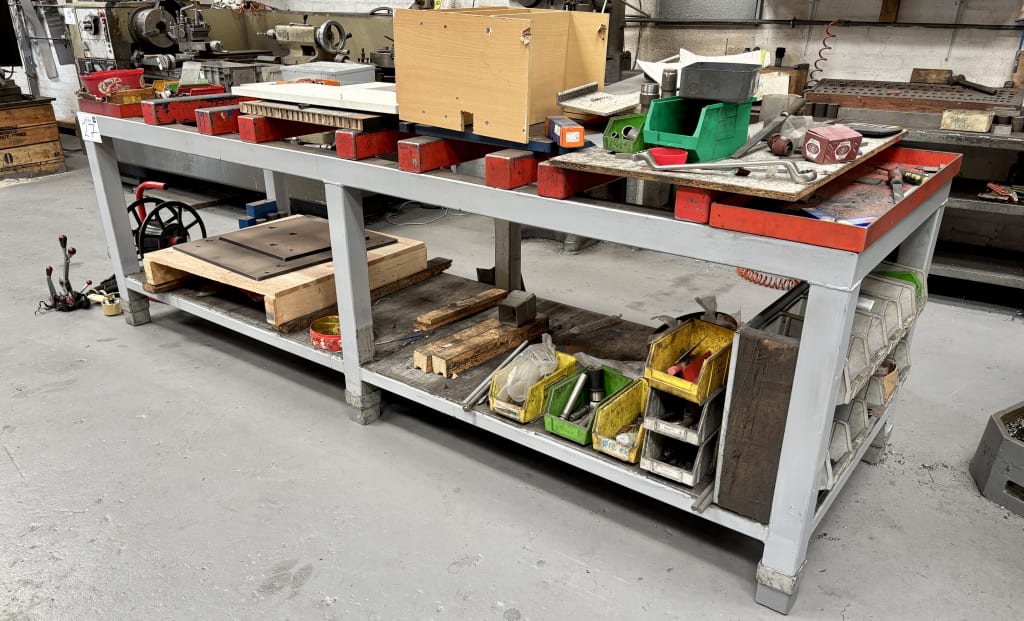

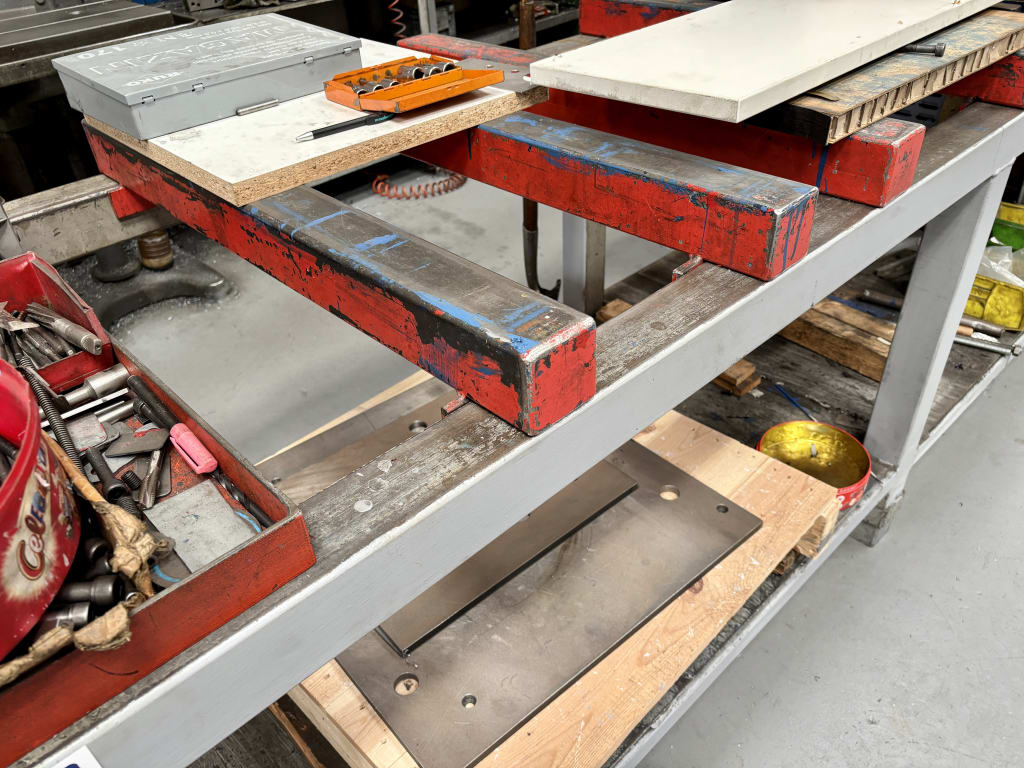

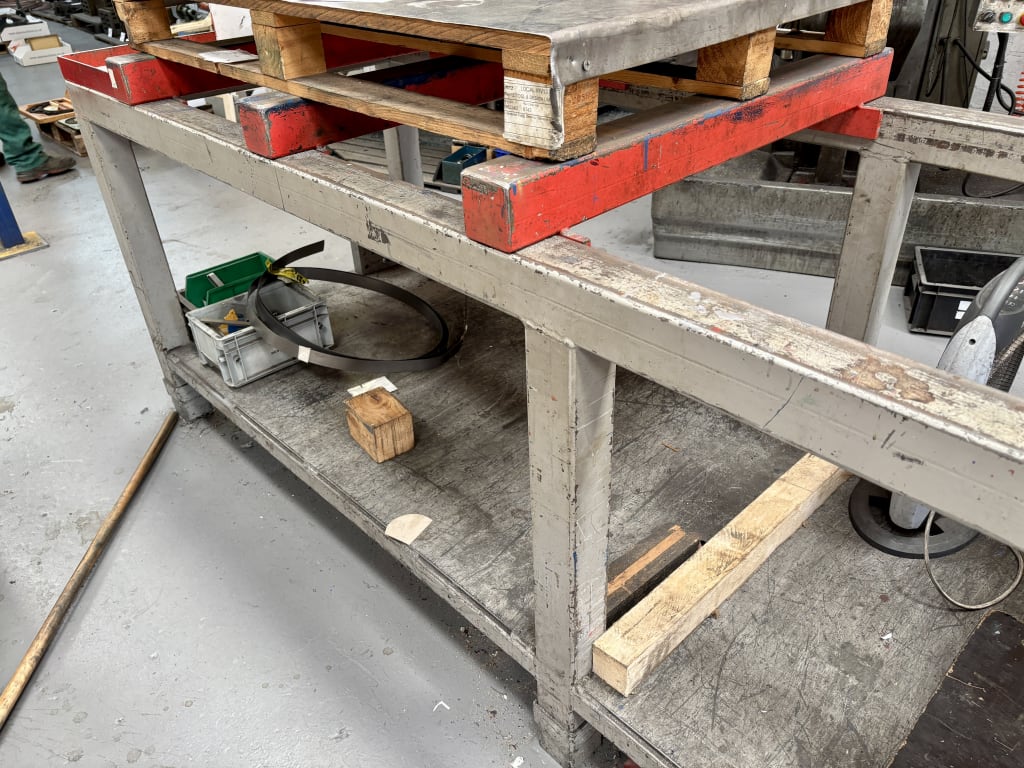

Steel Fabricated Heavy Workbench With Adjustable Steel Arms
Approx Dimensions L3,050 x W910 x H910mm. - LOT 28
Steel Fabricated Heavy Workbench With Adjustable Steel Arms
Approx Dimensions L3,050 x W910 x H910mm. - LOT 29
Steel Fabricated Heavy Workbench With Adjustable Steel Arms
Approx Dimensions L3,050 x W910 x H910mm. - LOT 30

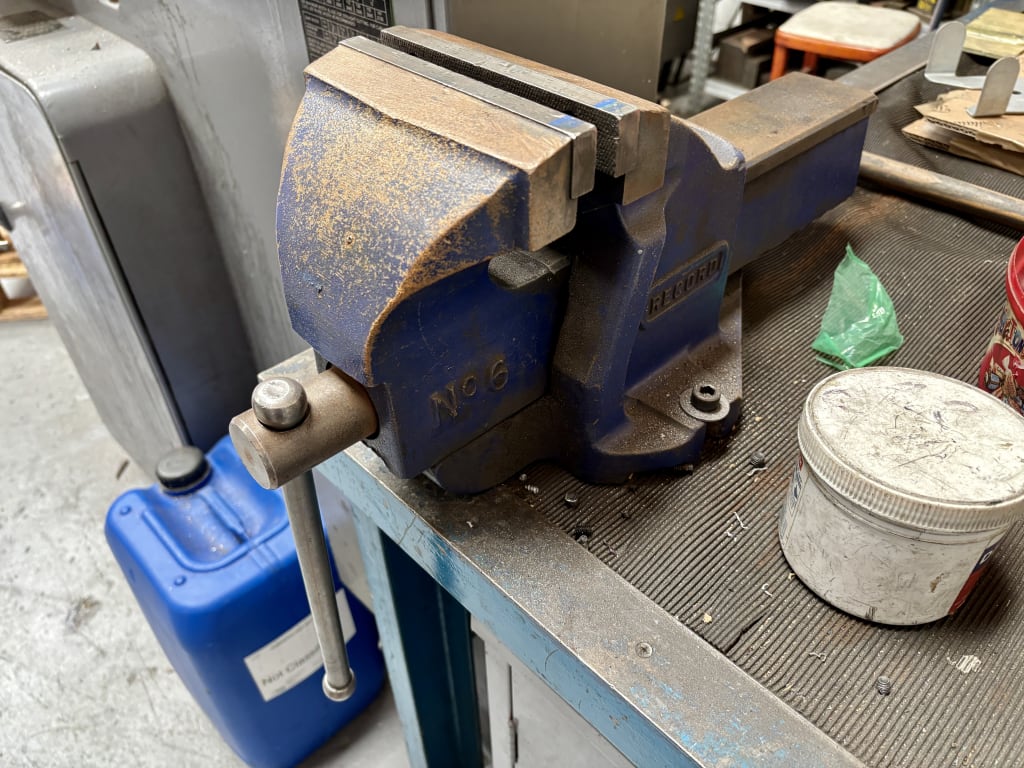

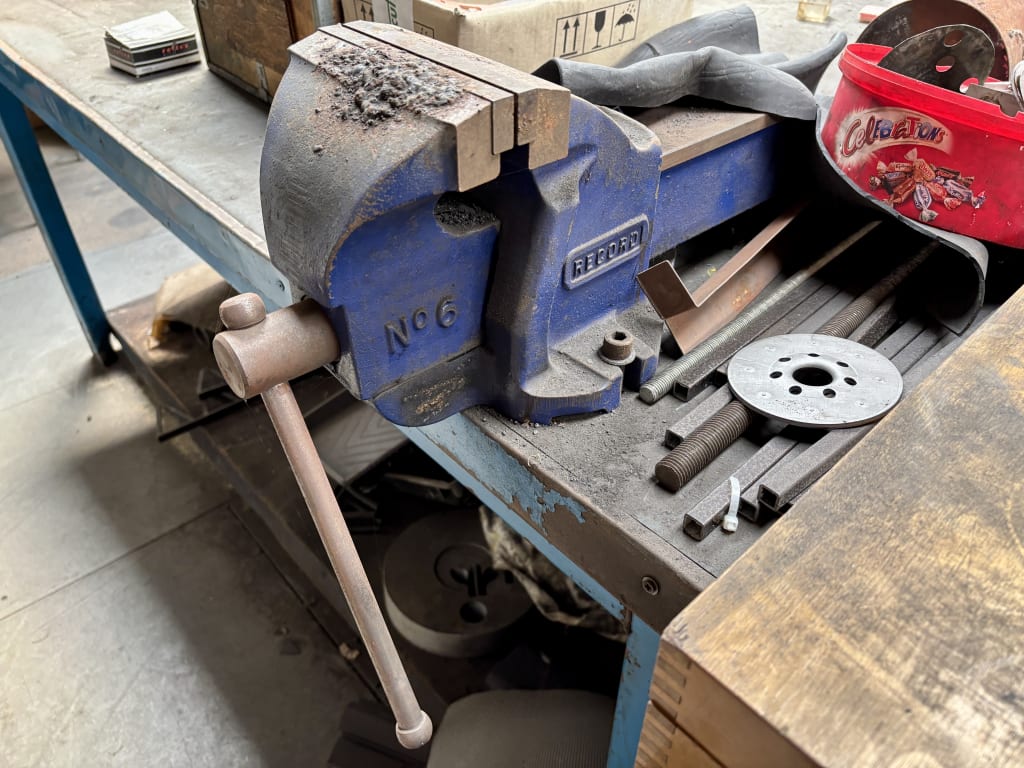

Steel Fabricated Workbench With Cabinets & 2 Record No.6 Vices
Approx Dimensions L1,850 x W1,230 x H880mm. - LOT 31
Steel Fabricated Workbench With Cabinets & 2 Record No.6 & No.5 Vices
Approx Dimensions L1,850 x W1,230 x H880mm. - LOT 32
Steel Fabricated Workbench With Cabinets & 2 Record No.6 Vices
Approx Dimensions L1,850 x W1,230 x H880mm. - LOT 33
Steel Fabricated Workbench With Cabinets & 2 Record No.6 Vices
Approx Dimensions L1,850 x W1,230 x H880mm. - LOT 34

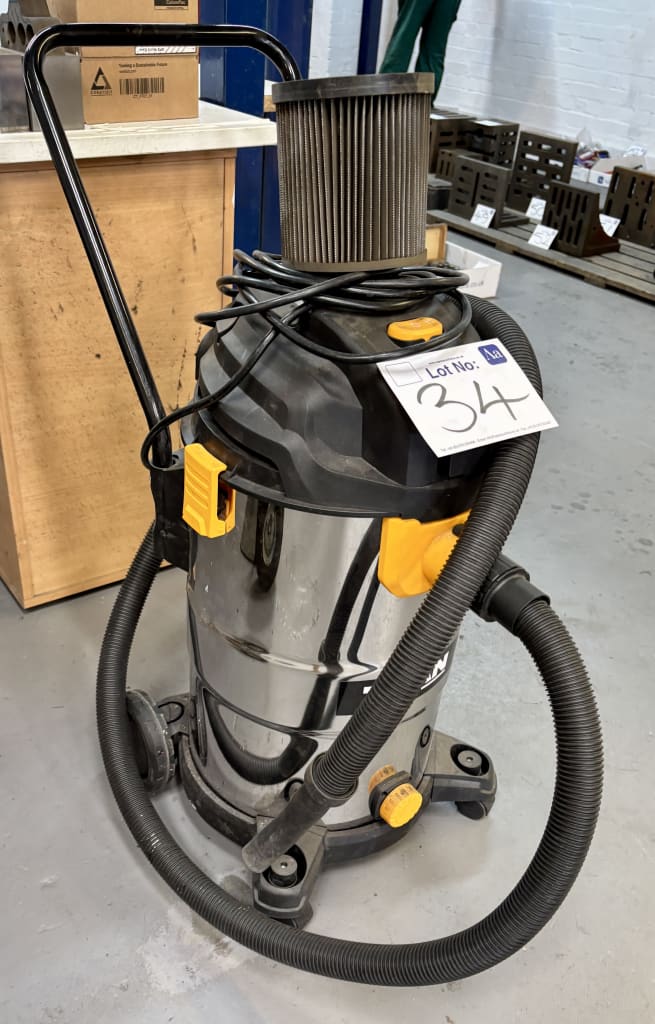

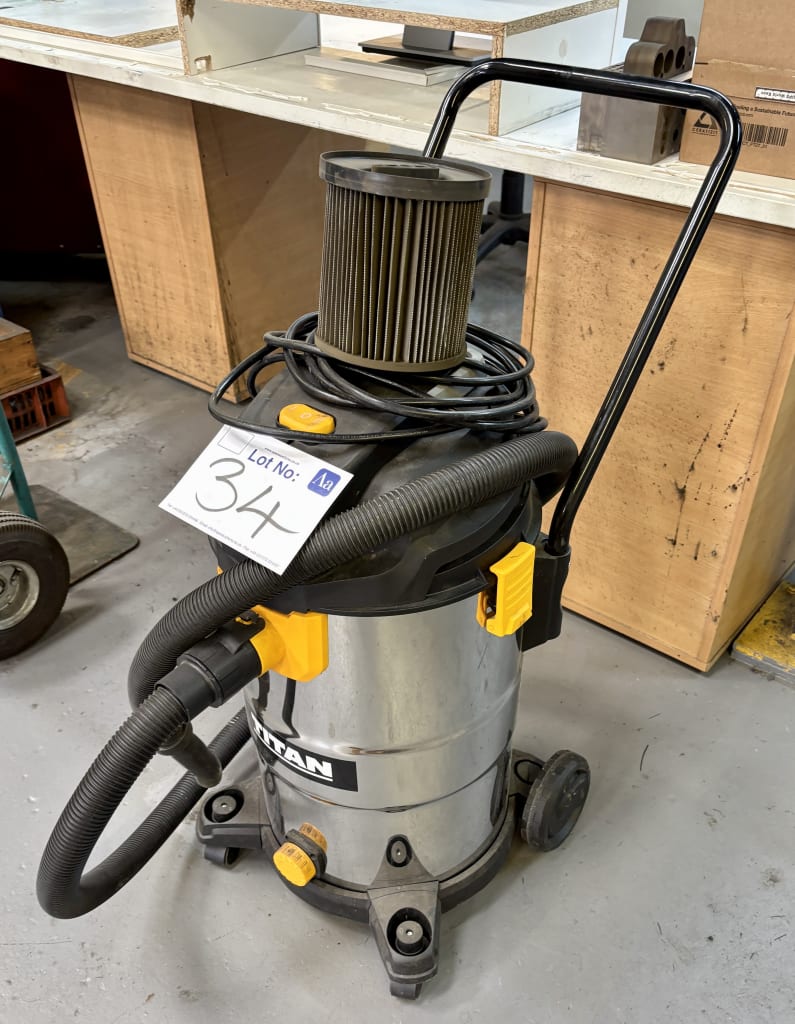

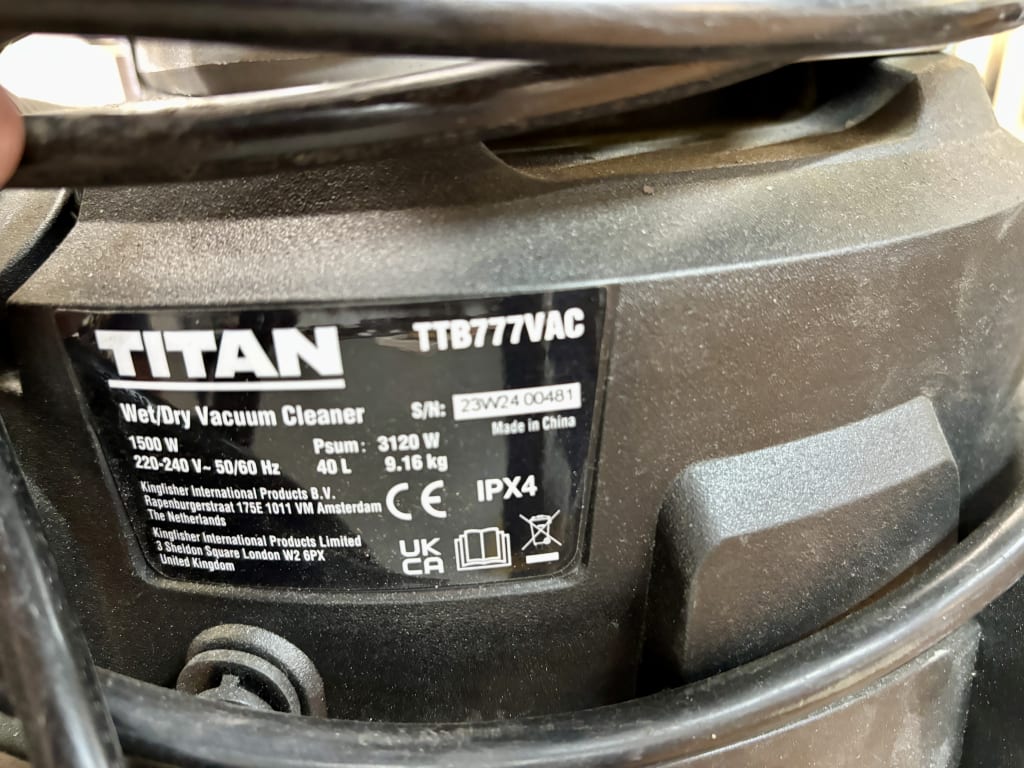

Titan TTB777VAC Wet/Dry Vacuum Cleaner
Power 1,500W. Capacity 40L. Voltage 220v. With Spare Filter. - LOT 35
- LOT 36
- LOT 39

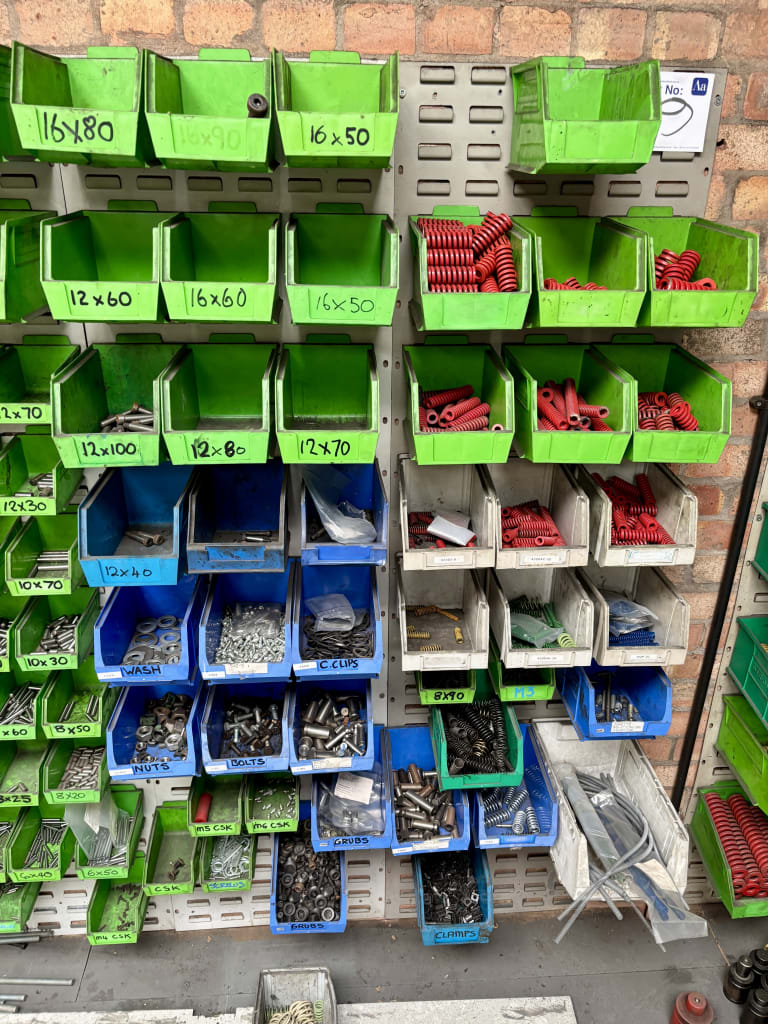

Wall Mounted Lin Bin Storage Rack With Contents OF Lin Bins
Lin Bin Contents Of Toolmakers, Fixings, Dowels & Springs. - LOT 40
- LOT 41
- LOT 42
- LOT 43
- LOT 44
- LOT 45
- LOT 46
- LOT 47
- LOT 48

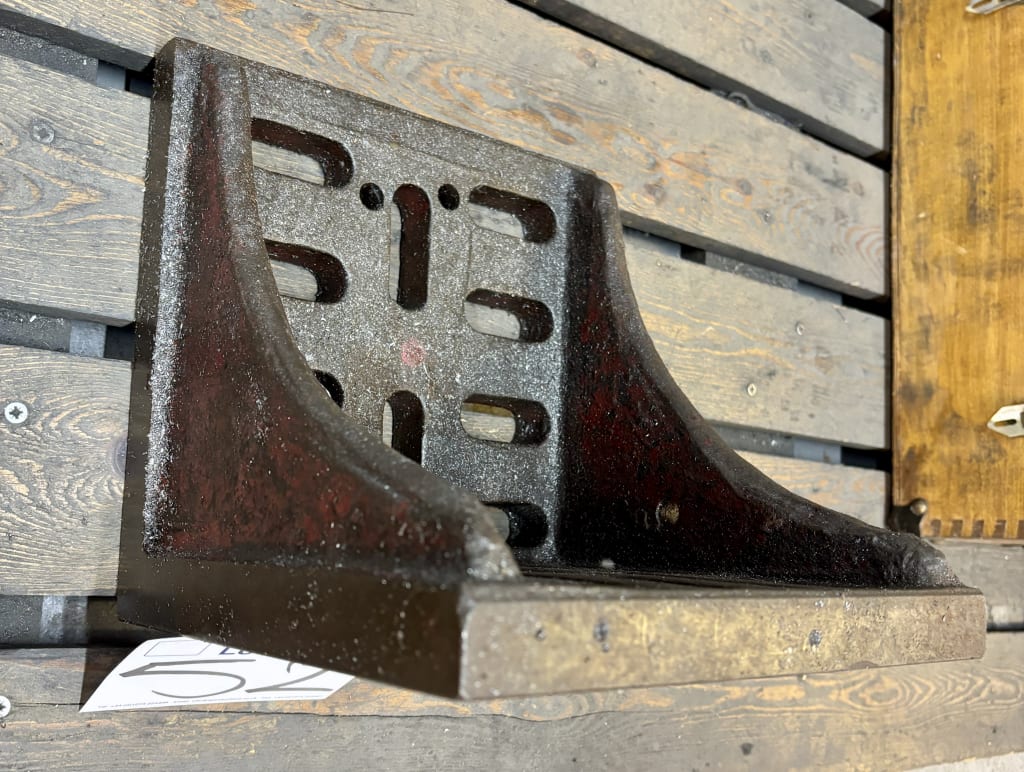

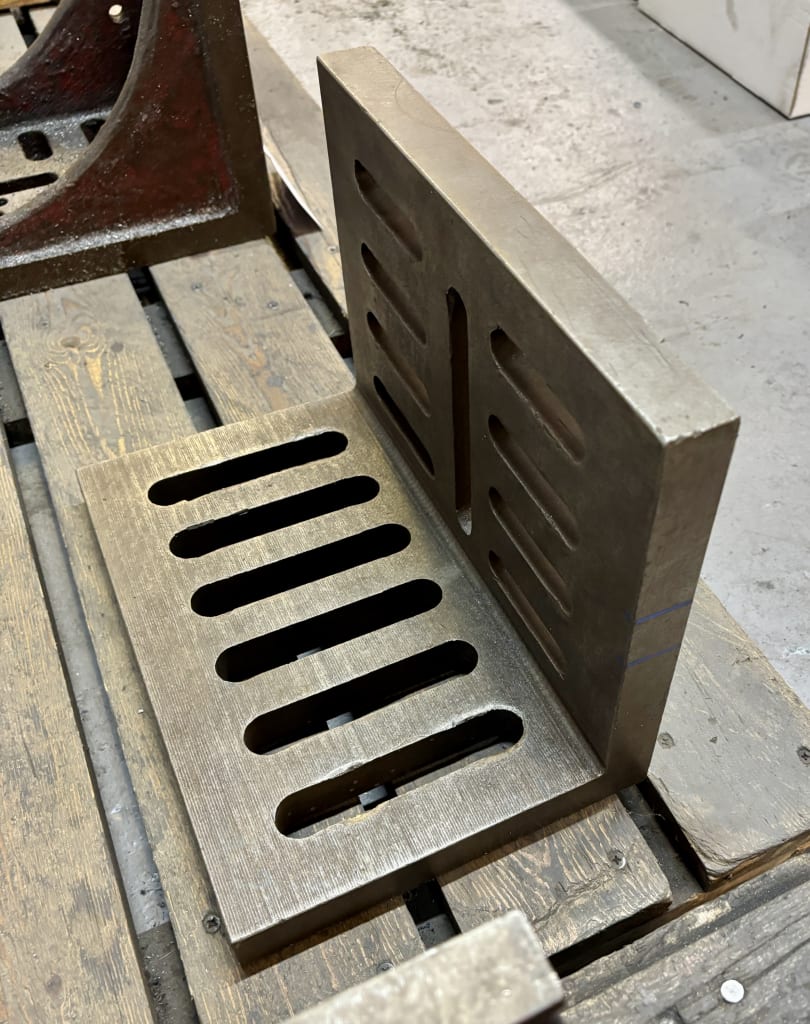

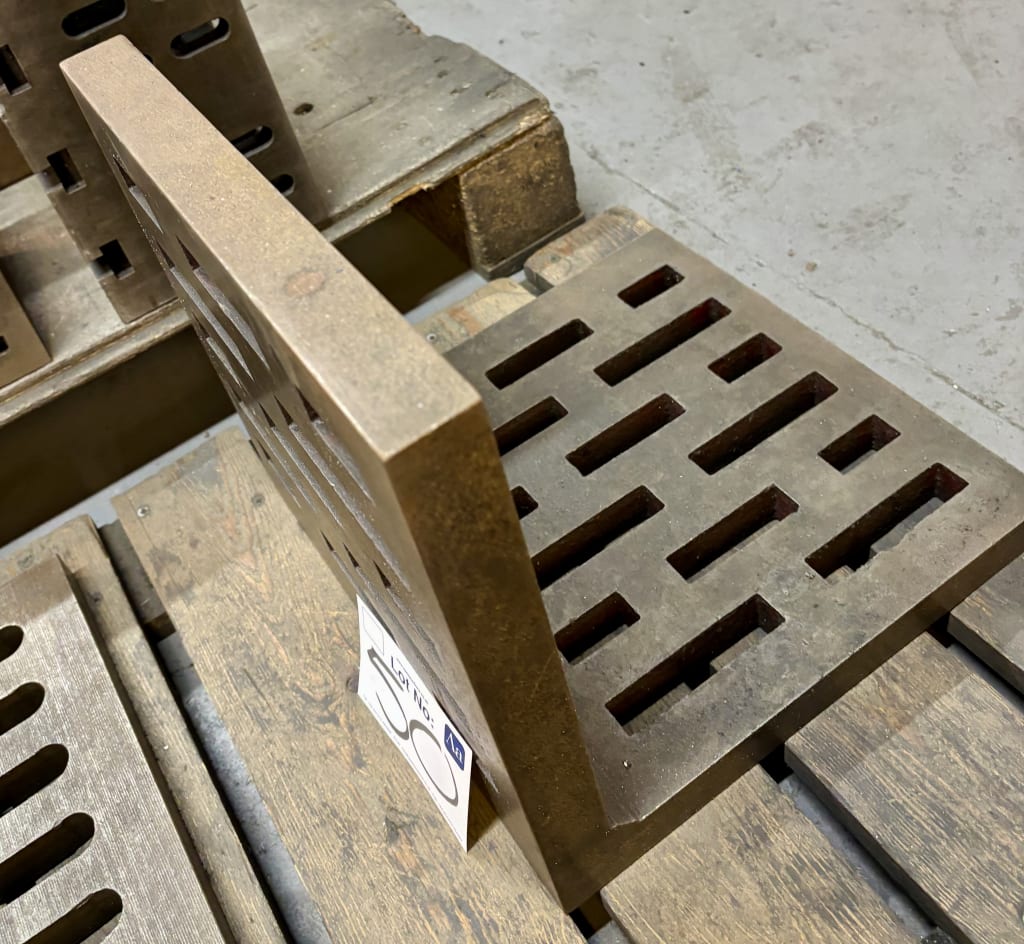

2 Cast Iron 'T' Slotted Angle Boxes
Approx Dimensions L180 x W150 x H230mm & L150 x W130 x H115mm. - LOT 49
- LOT 50
- LOT 51
- LOT 52
- LOT 56
- LOT 96

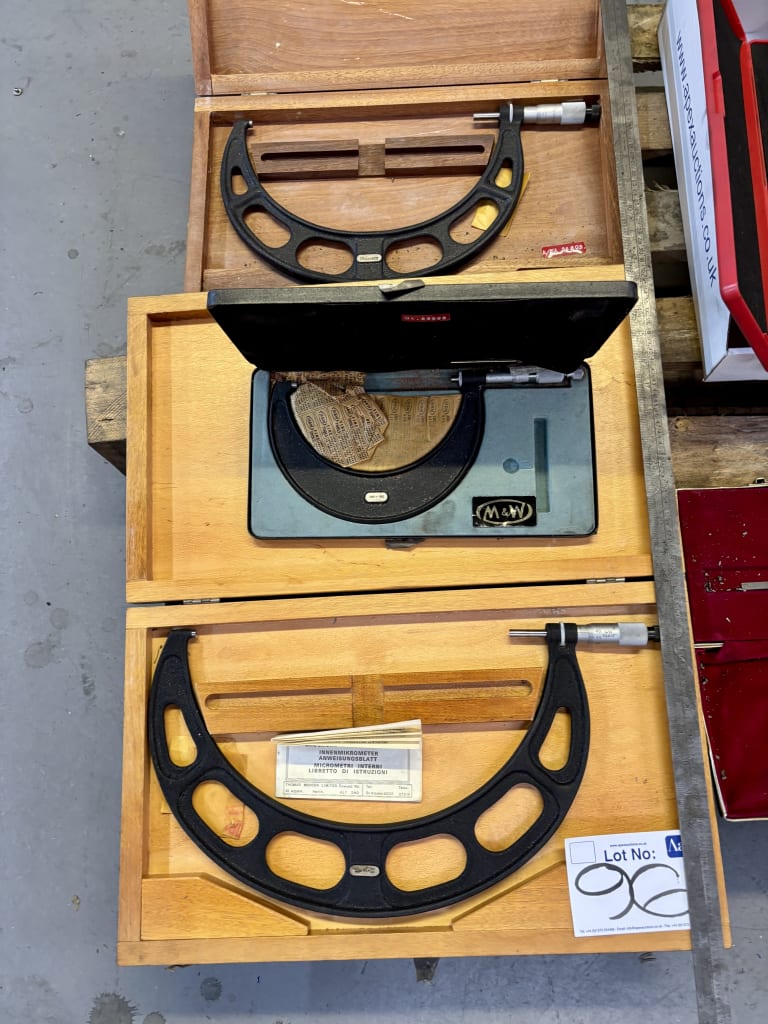

Quantity Of Assorted Metrology
Including 3 Metric Micrometers With Boxes & Depth Gauge With Box. - LOT 98
- LOT 103
- LOT 104
- LOT 105
- LOT 107
- LOT 111
- LOT 112
- LOT 114
