Complete Production Closure of UK Gear Manufacturer - Short Notice Final Clearance Sale
Starts: 25 April 2025 at 09:00 BST
Ends: 14 May 2025 at 15:00 BST
Short Notice Final Clearance Sale. Please see the sale information section for any additional fees that may be applicable upon purchasing an item. NOTE: Vendor to approve all closing bids prior to Apex final invoicing.
Share:
Showing 61 of 61 lots
- LOT 8

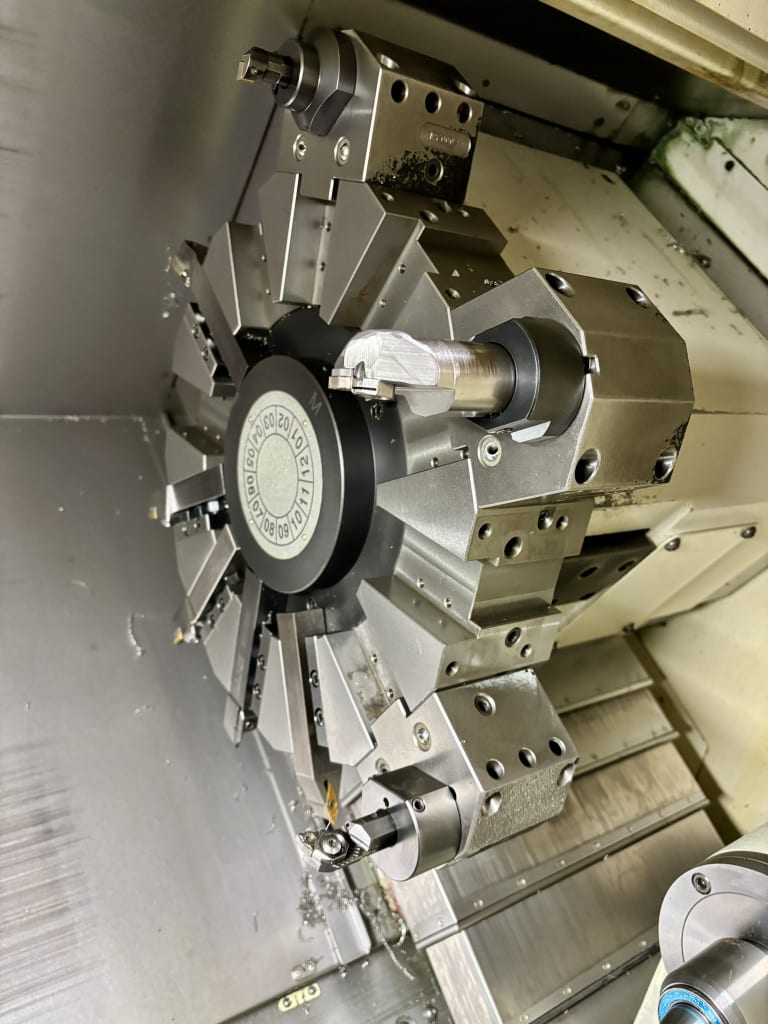

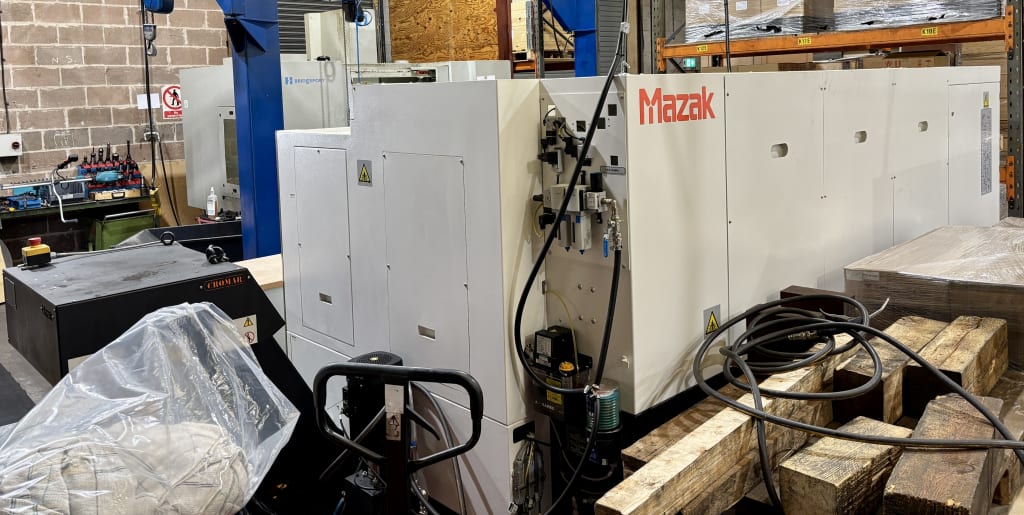

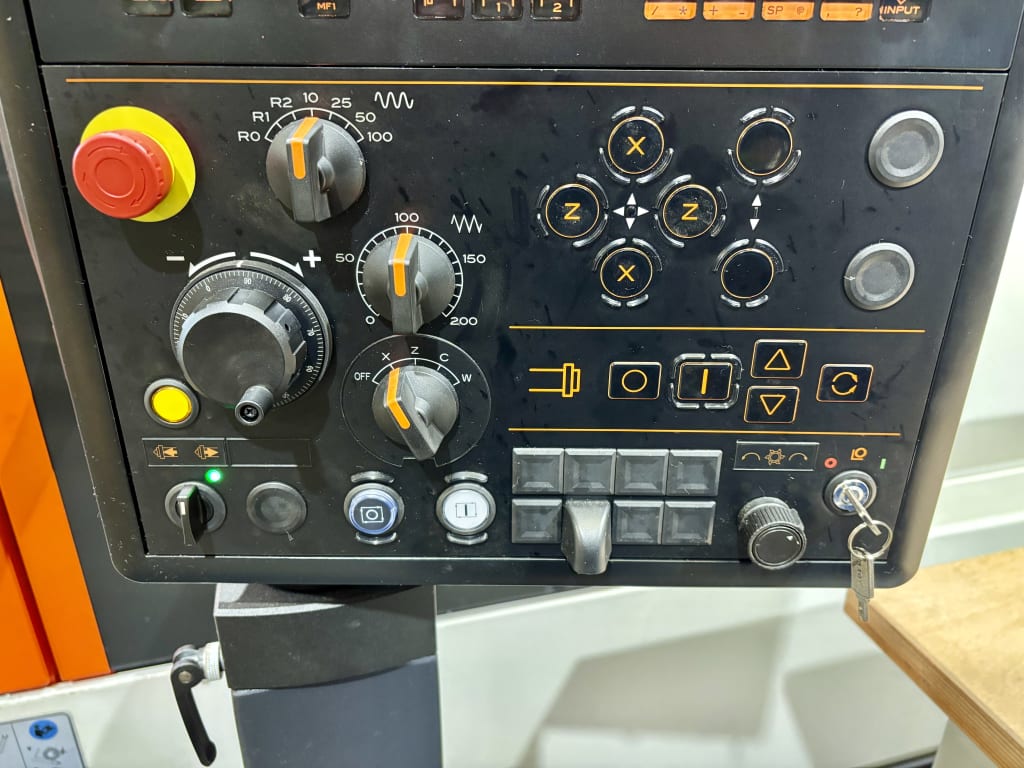

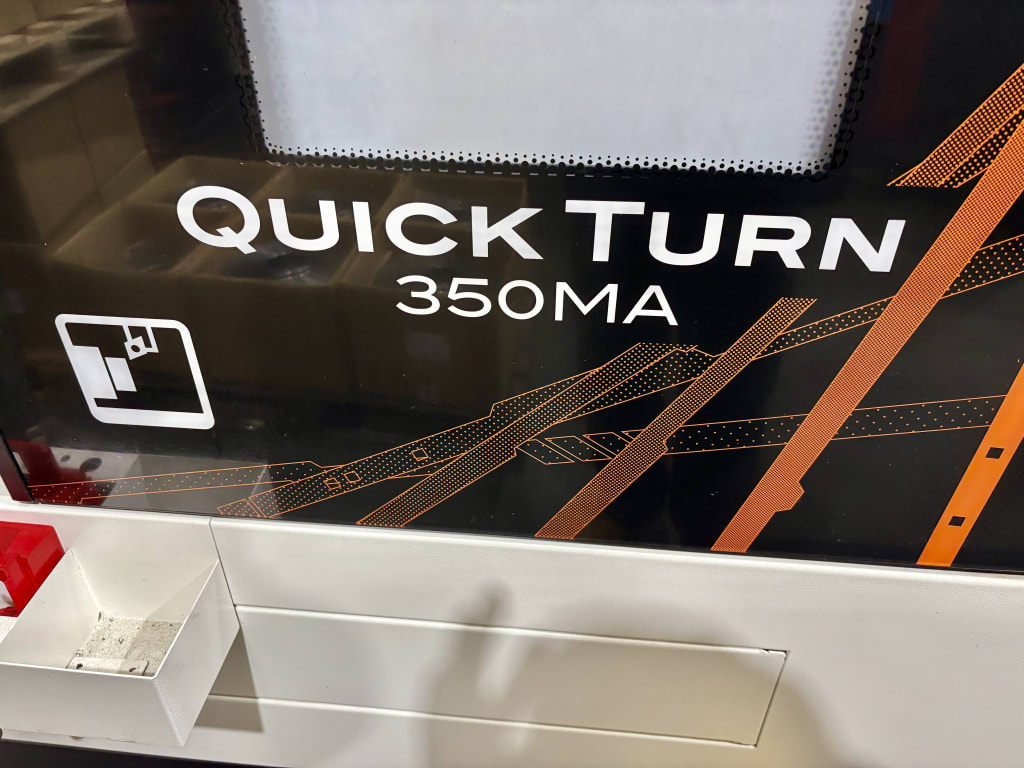

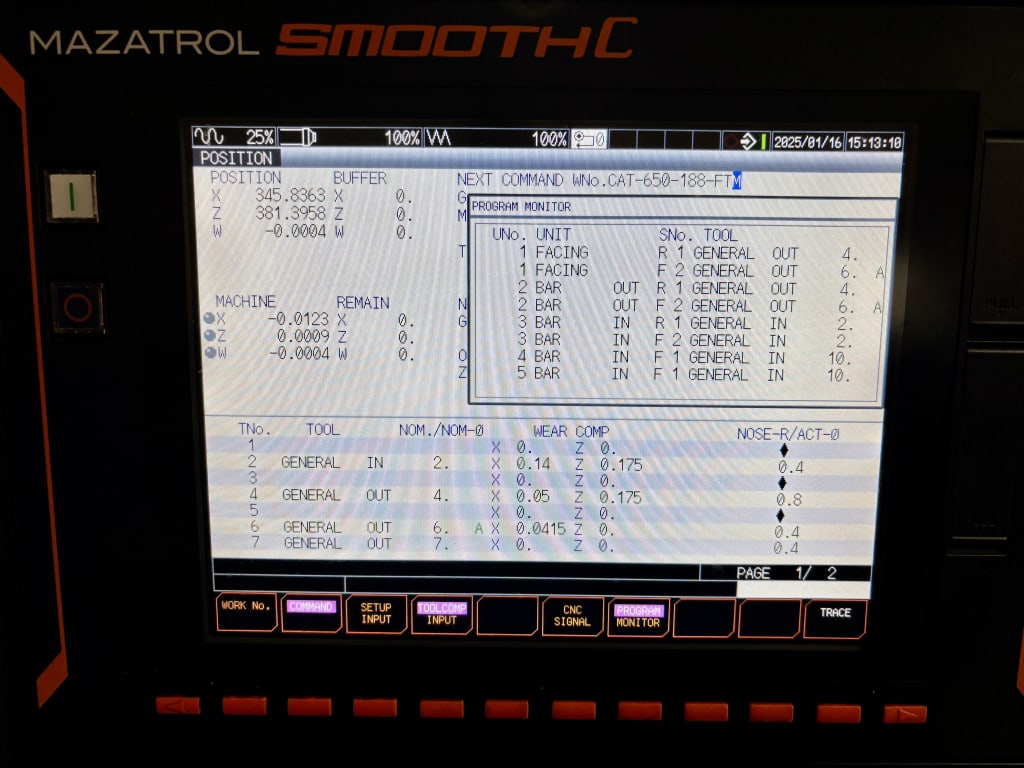

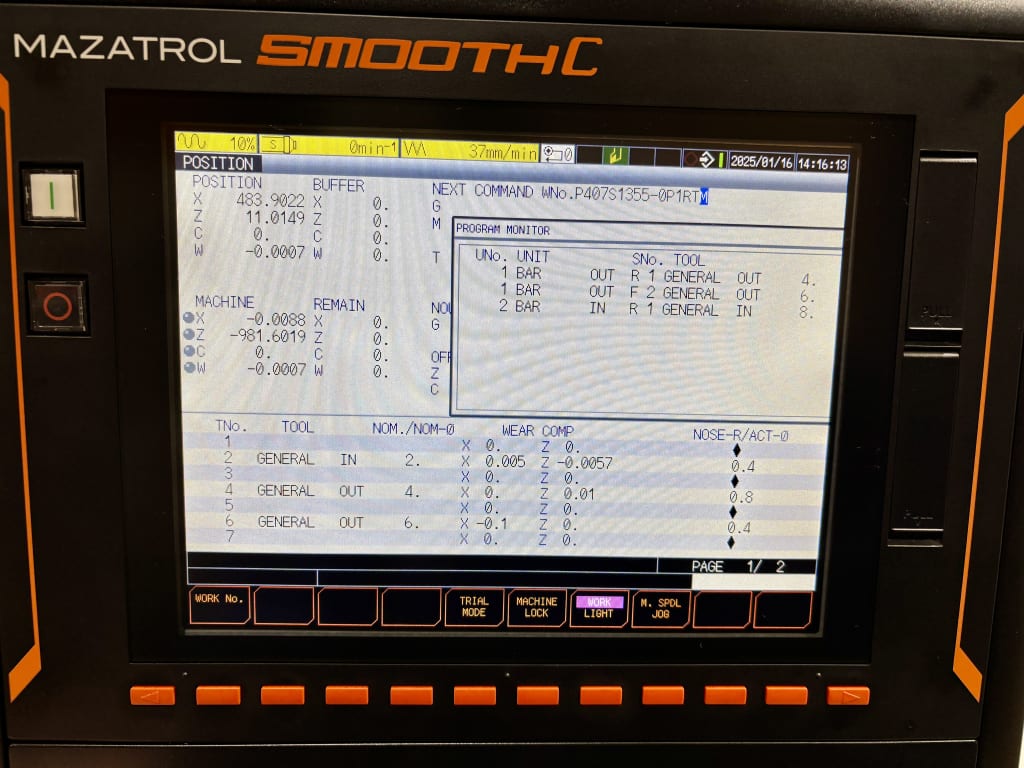

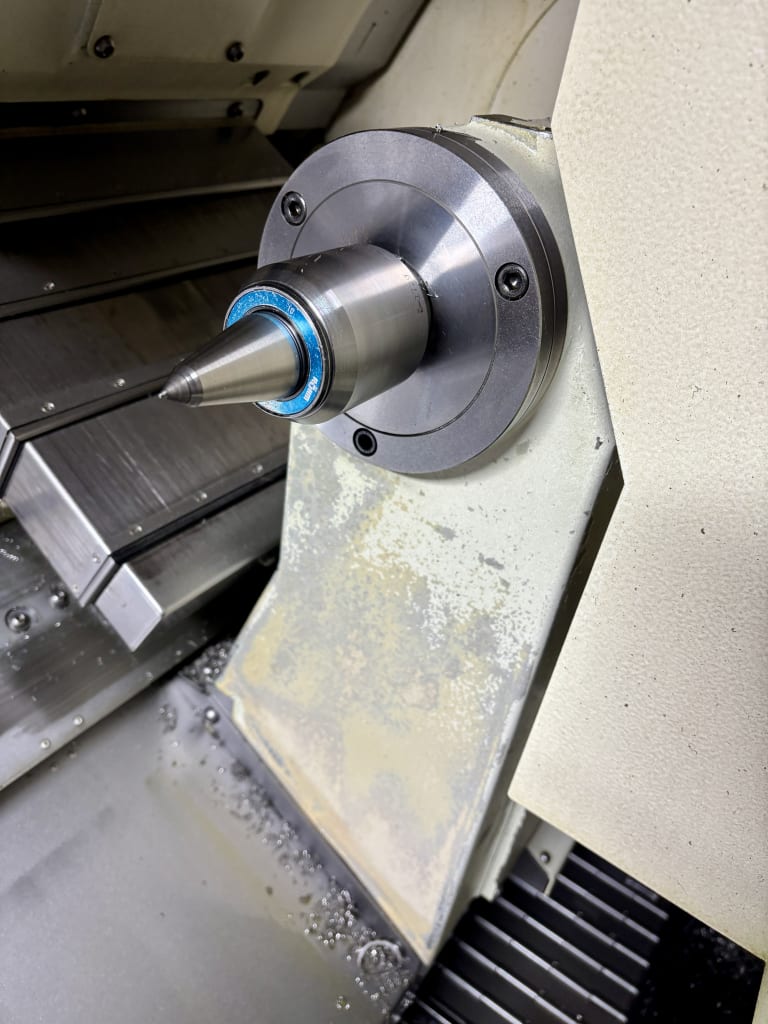

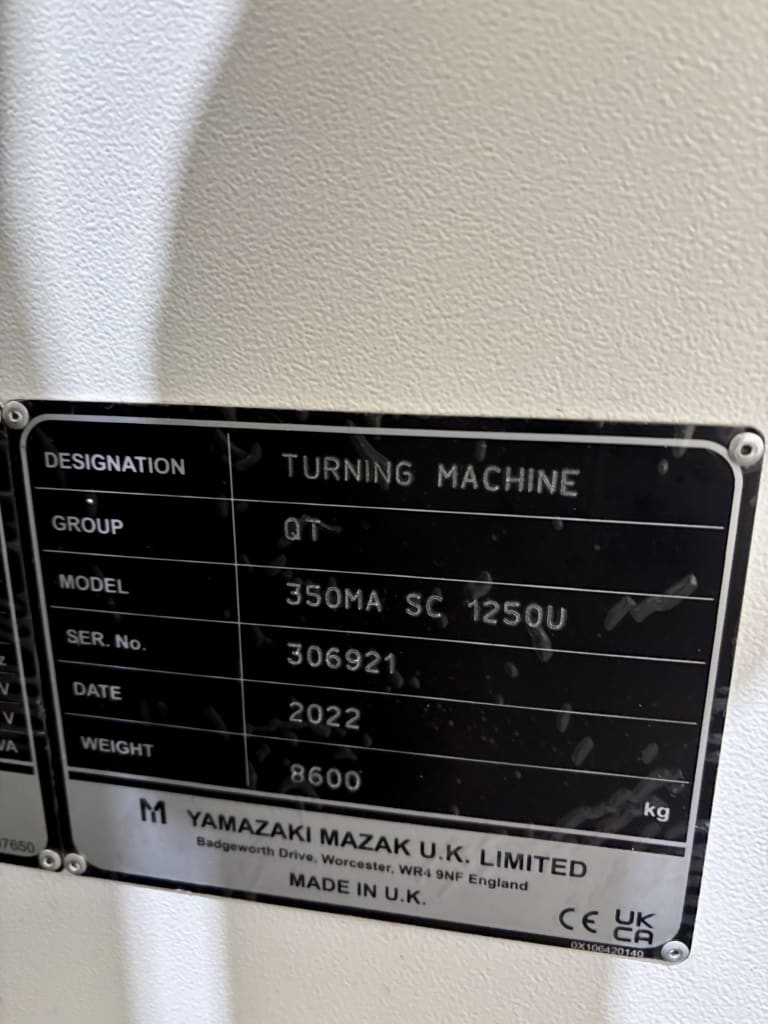

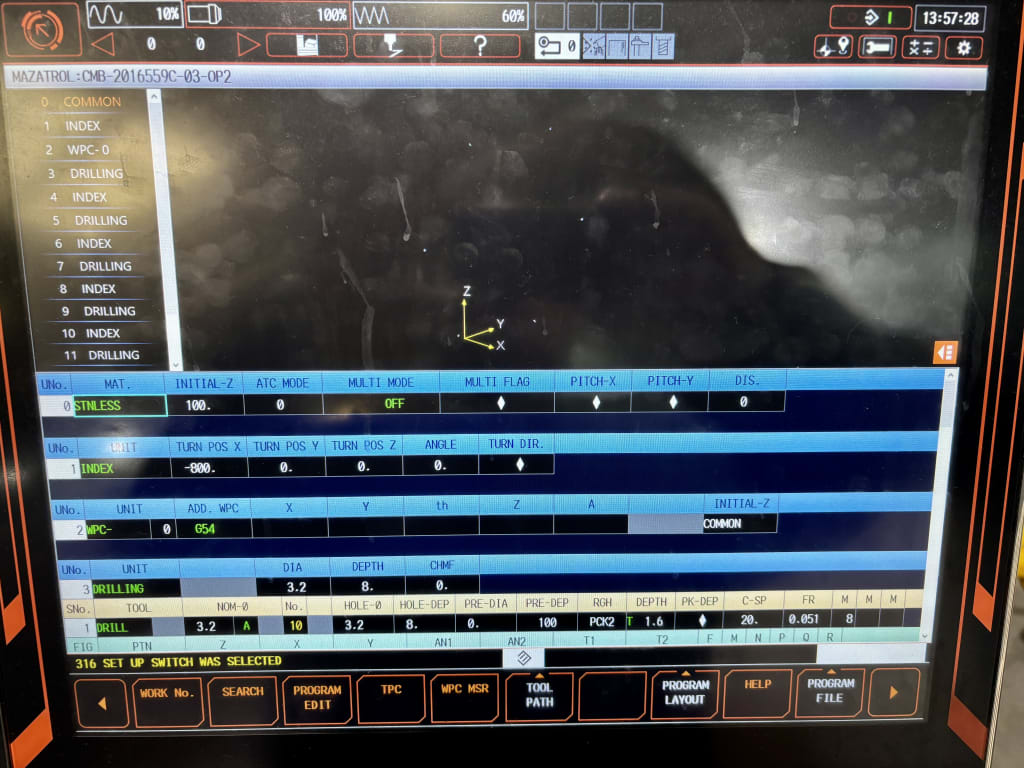

2022 Mazak QuickTurn 350MA CNC Multitasking Lathe With Mazatrol Smooth G Control

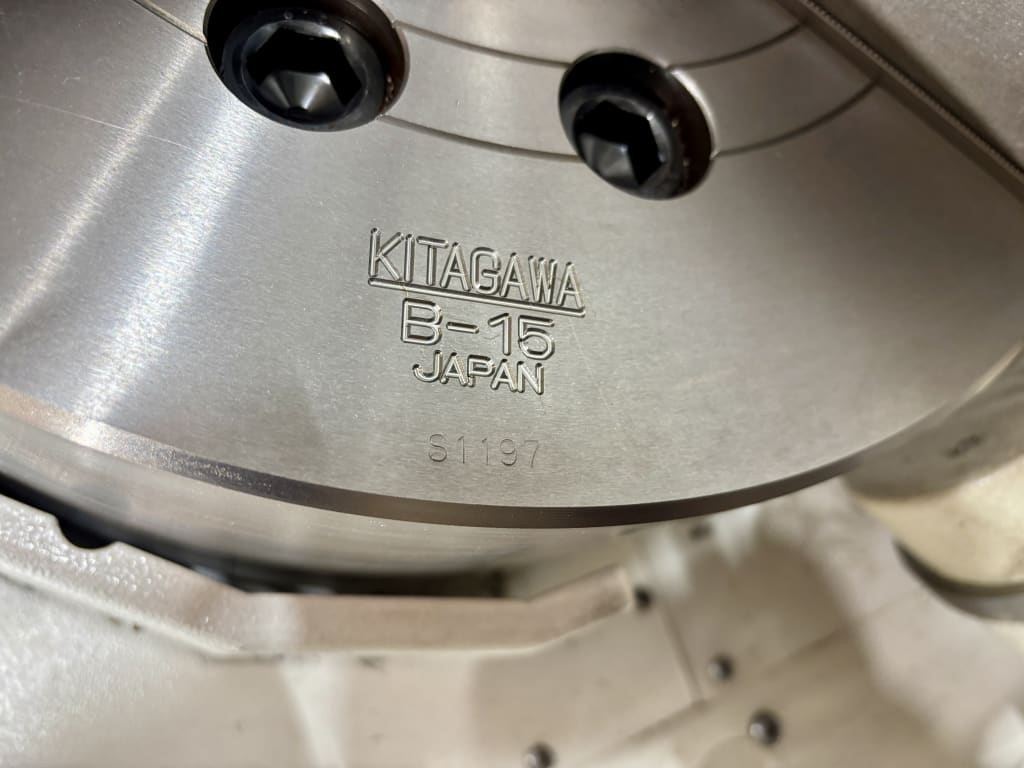

Ø400mm Kitagawa B-15 3 Jaw Power Chuck. Maximum Swing Ø720mm. Standard Machining Ø276mm. Maximum Machining Ø420mm. Maximum Bar Capacity Ø102mm. Distance Between Spindle End & Turret End Face 97-1,442mm. Maximum Support Weight Chuck Work Main Spindle 650kg, Maximum Support Weight Shaft Work Main Spindle 1,000kg. Axis Travel 'X'=265mm, 'Z'=1,350mm. Rapid Traverse 'X'=30m/min, 'Z'=33m/min. Main Spindle Speed Range 35-3,300rpm (30kW Motor). Spindle Nose JIS A2-11. Maximum Milling Speed 5,000rpm (7.5kW Motor). 12 Position Turret. Tool Size (OD Turning) 25mm. Tool Size (ID Turning) 50 mm. Indexing Time (Single Step) 0.29sec, Indexing Time (Full Turn) 0.72Sec. Tailstock Centre MT5, Tailstock Travel 1,265mm, Tailstock Thrust 10,000N. S/No. 306921 (2022). - LOT 11

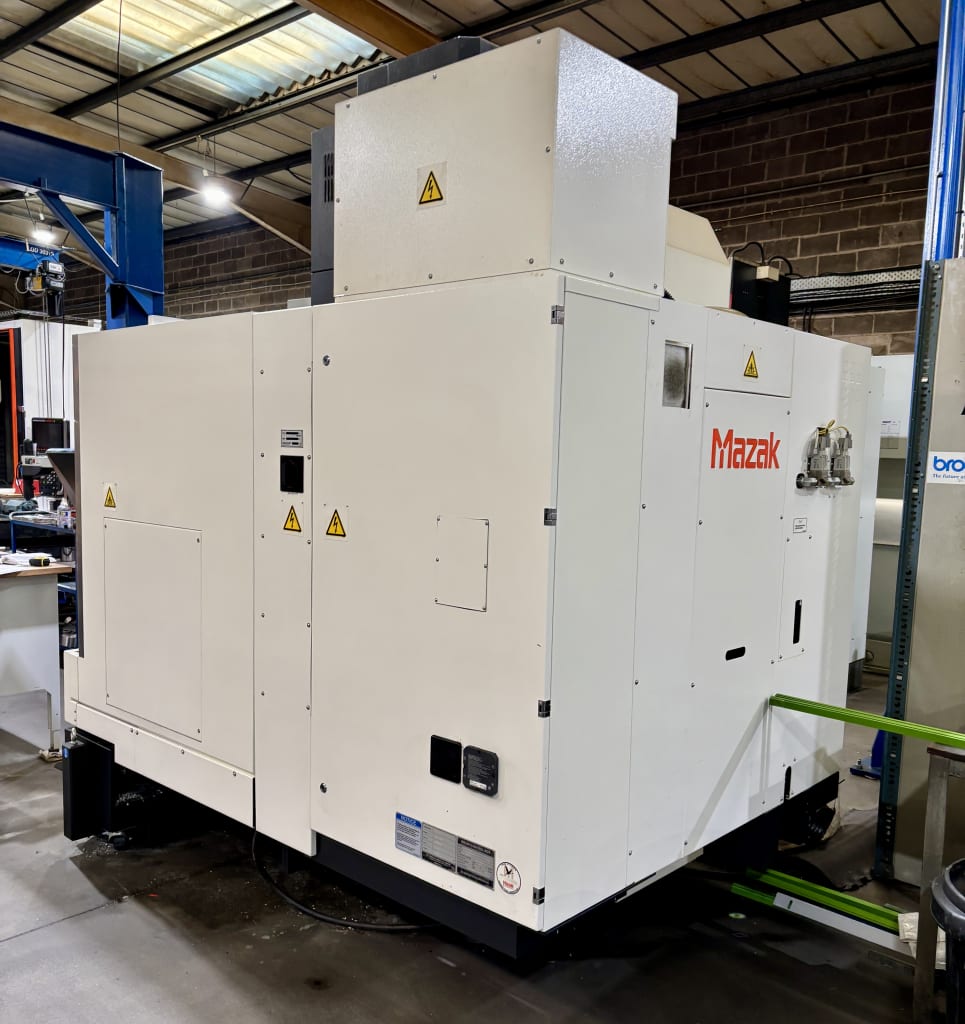

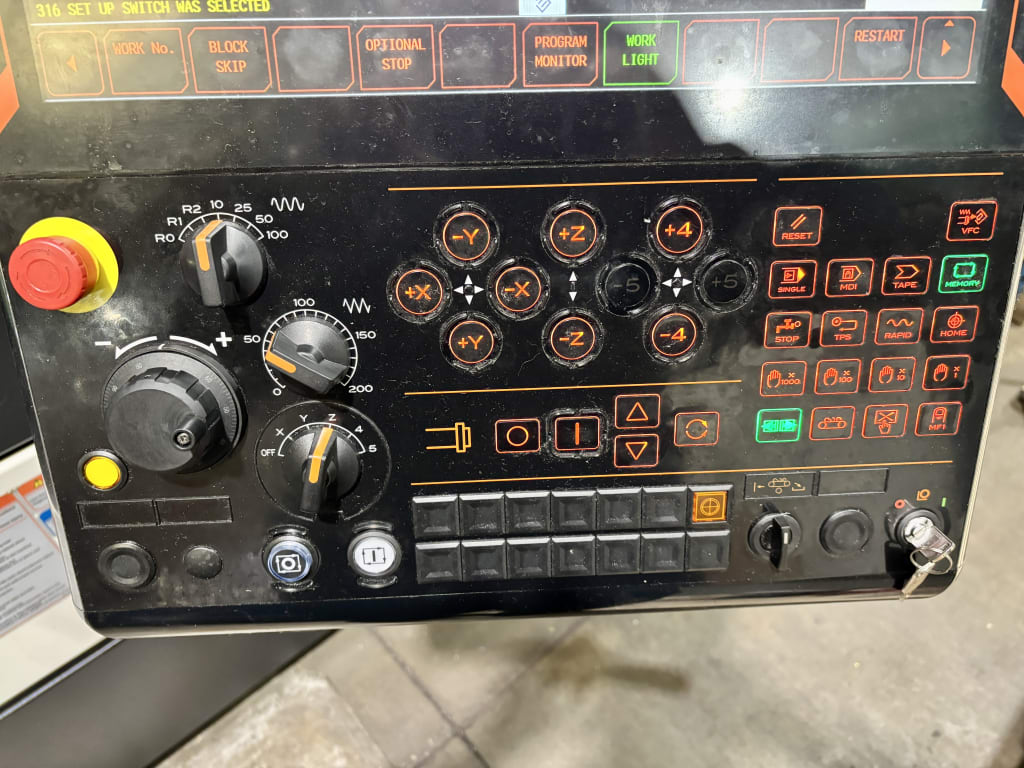

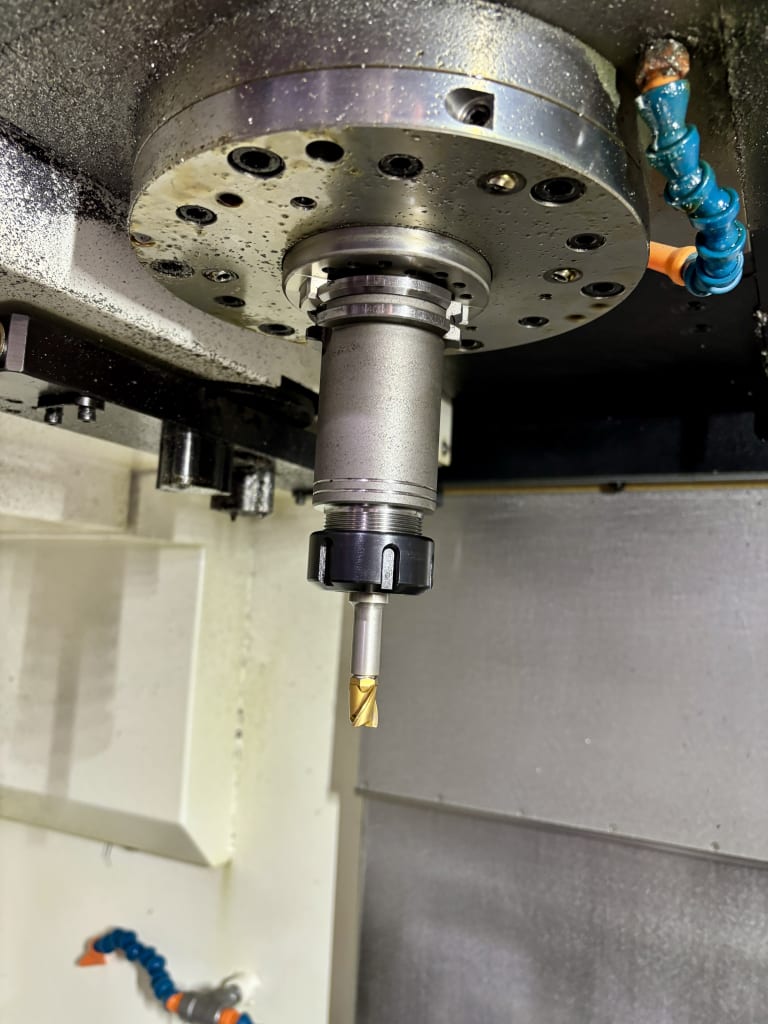

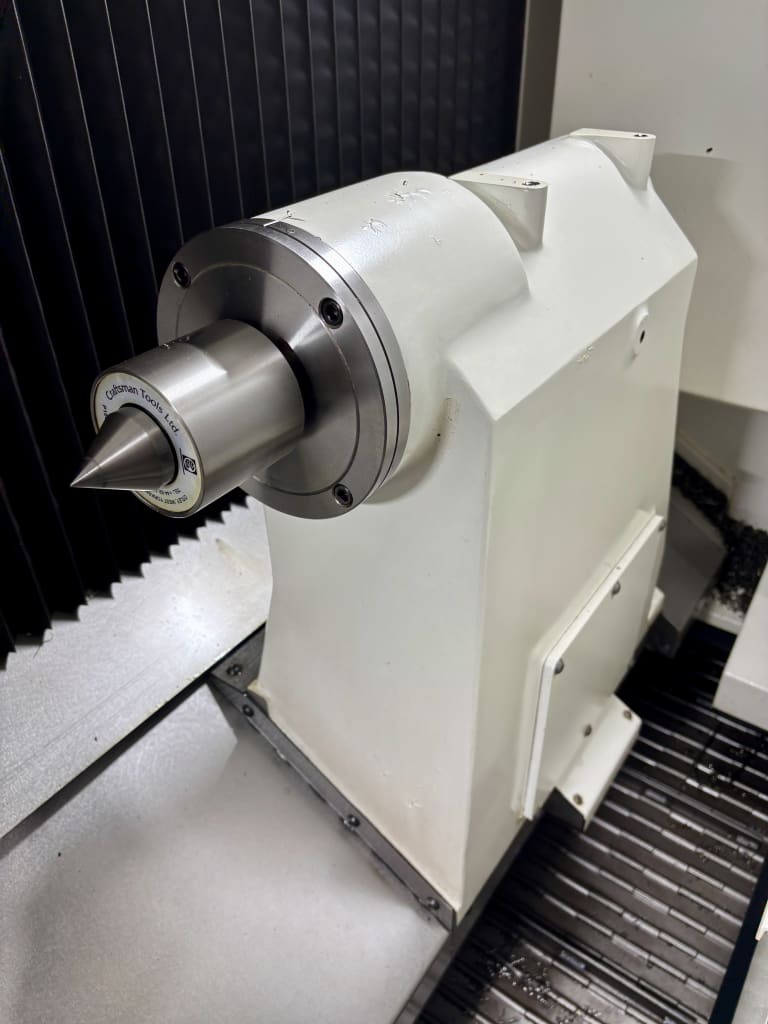

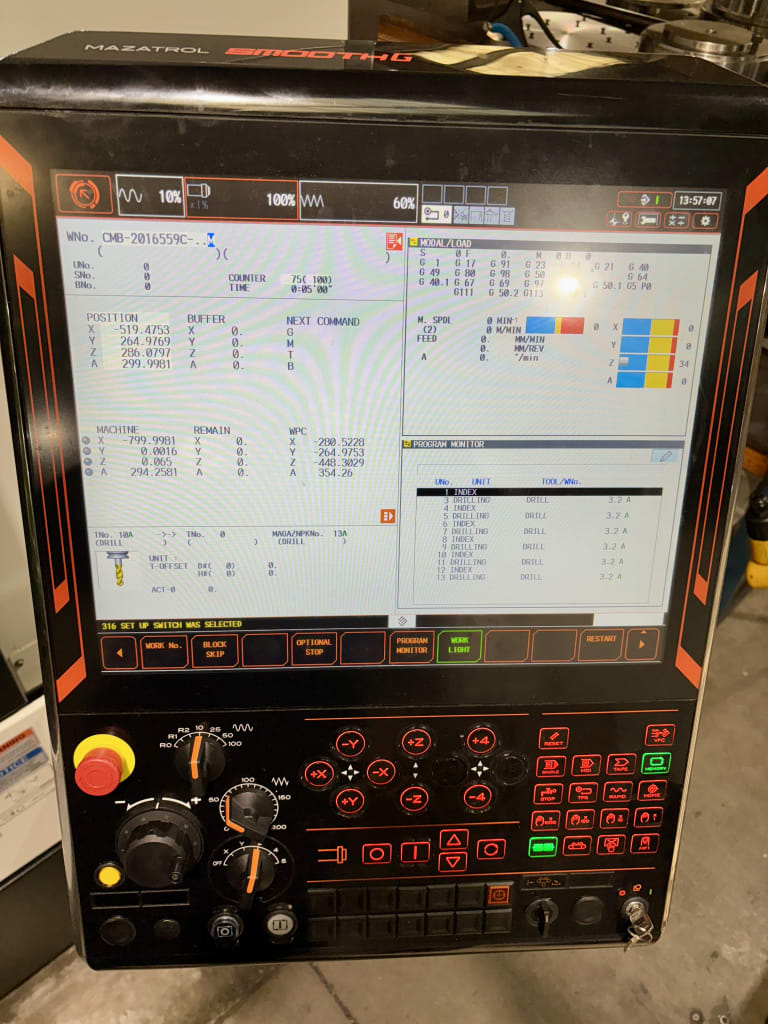

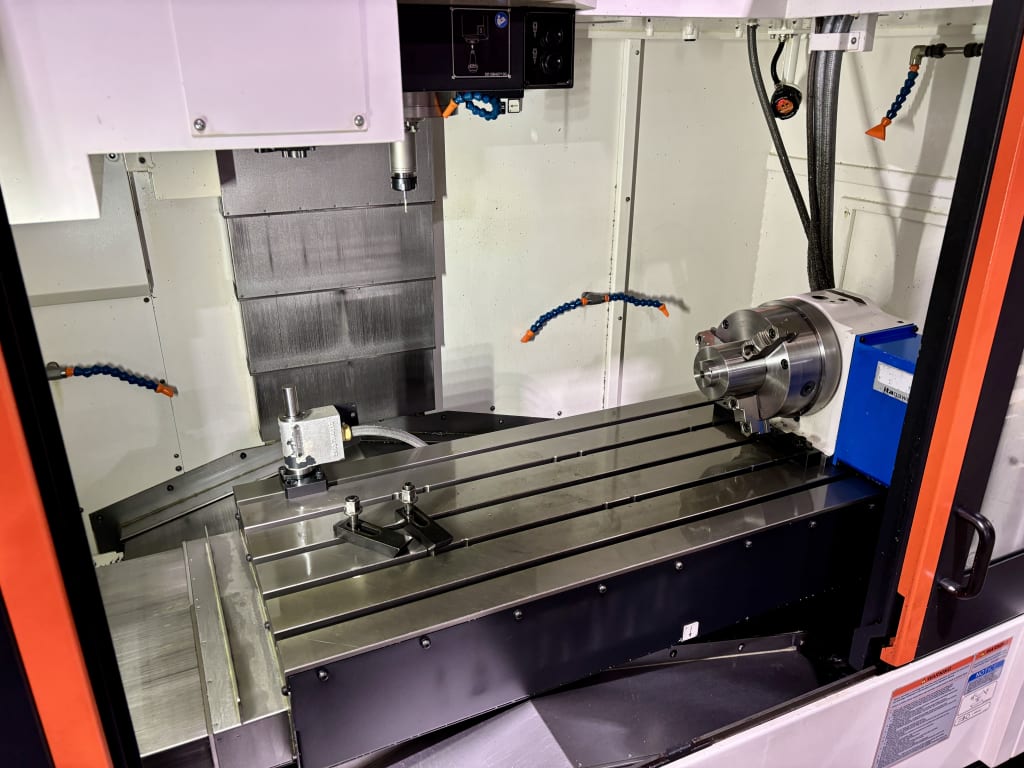

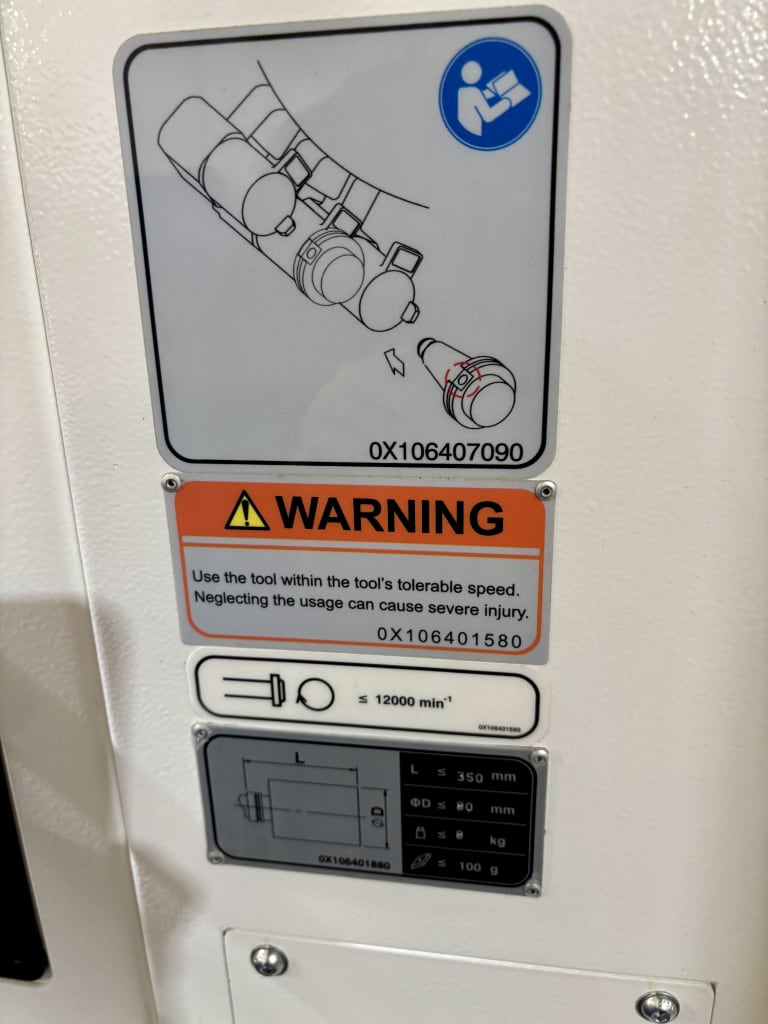

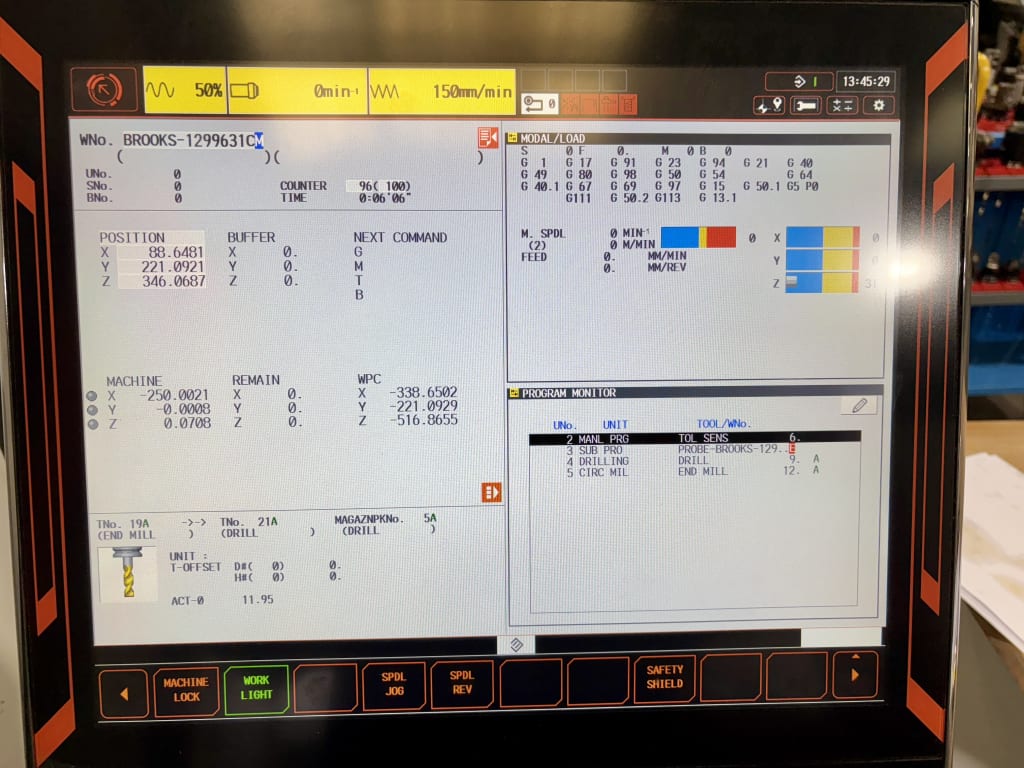

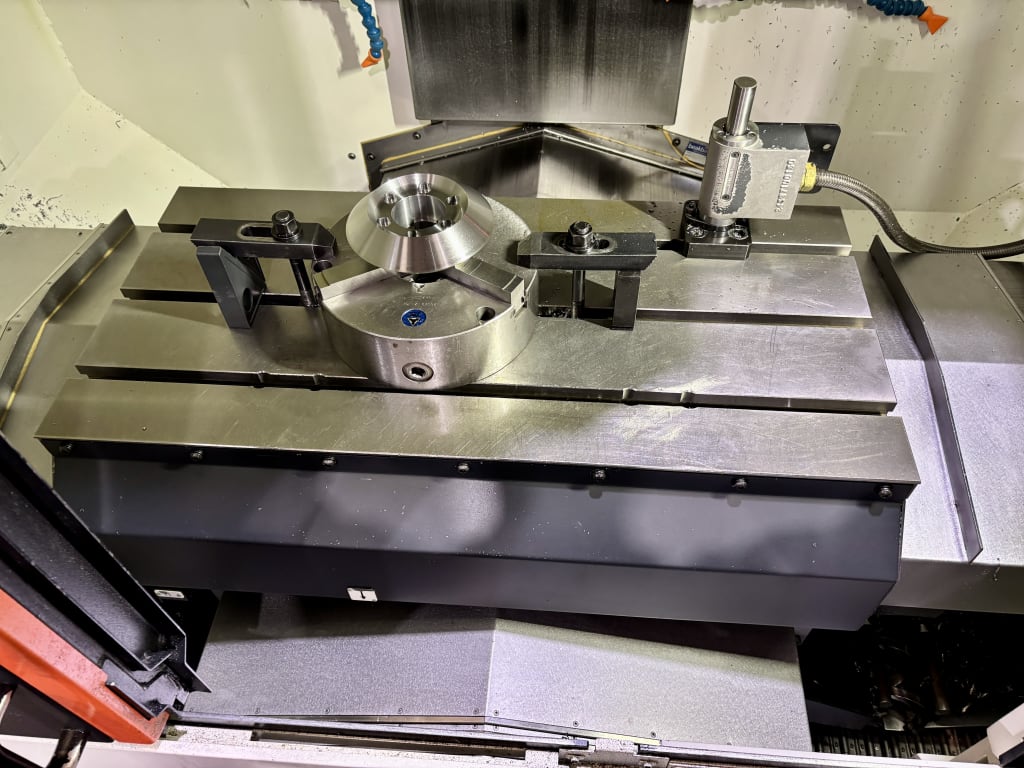

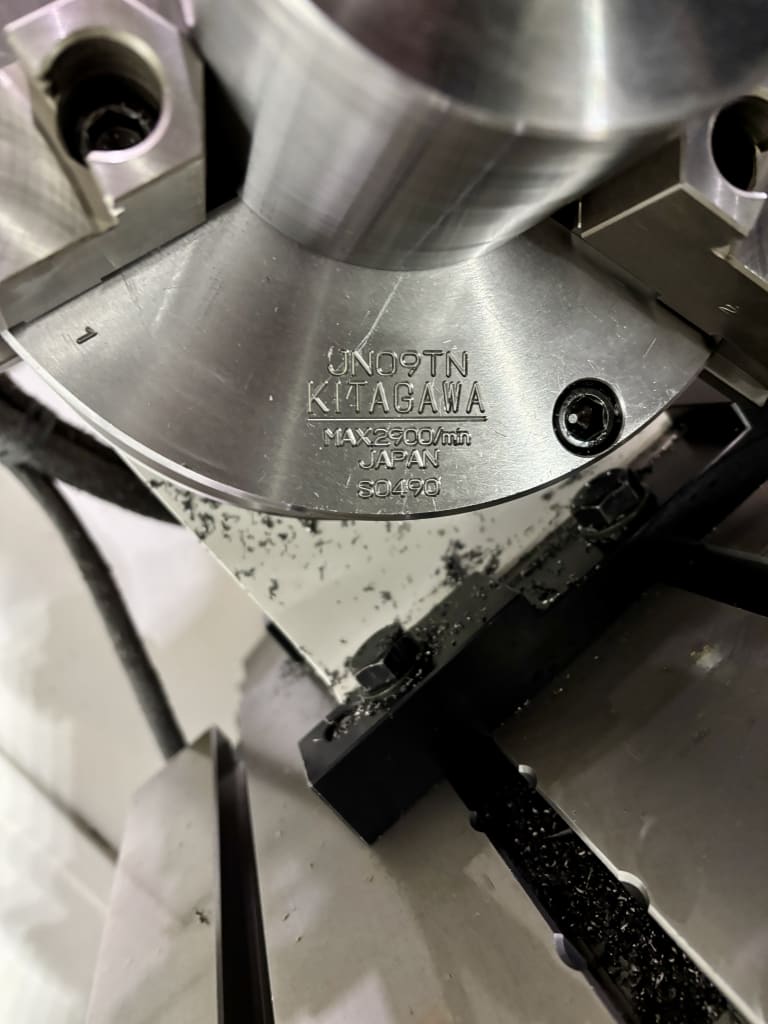

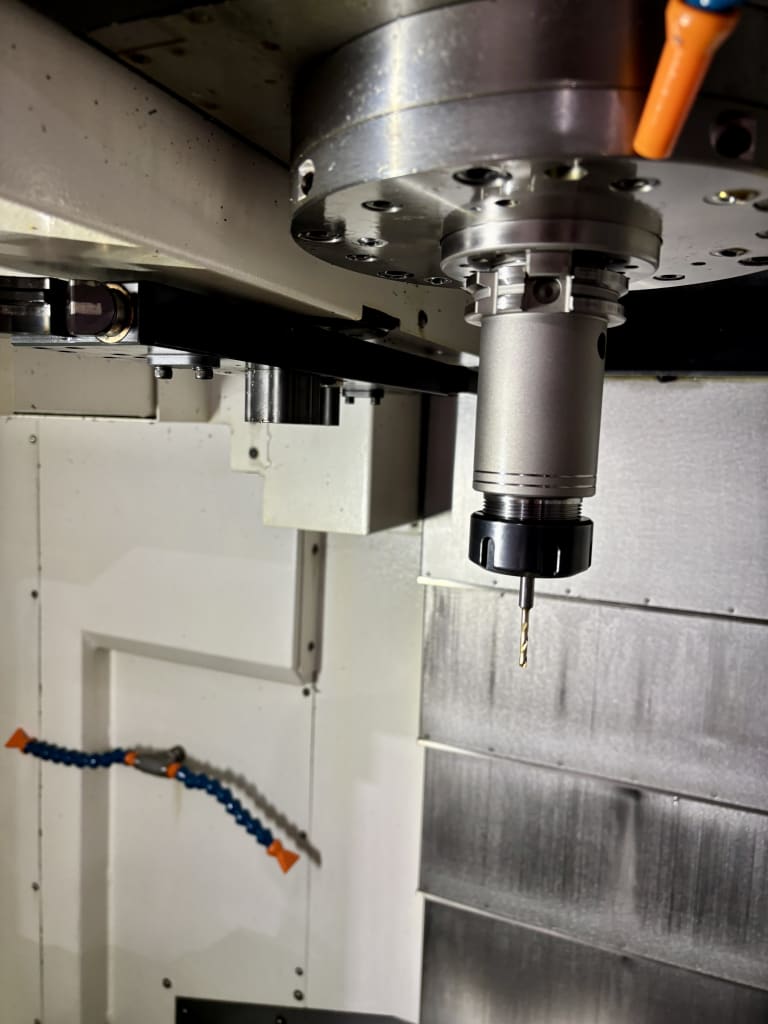

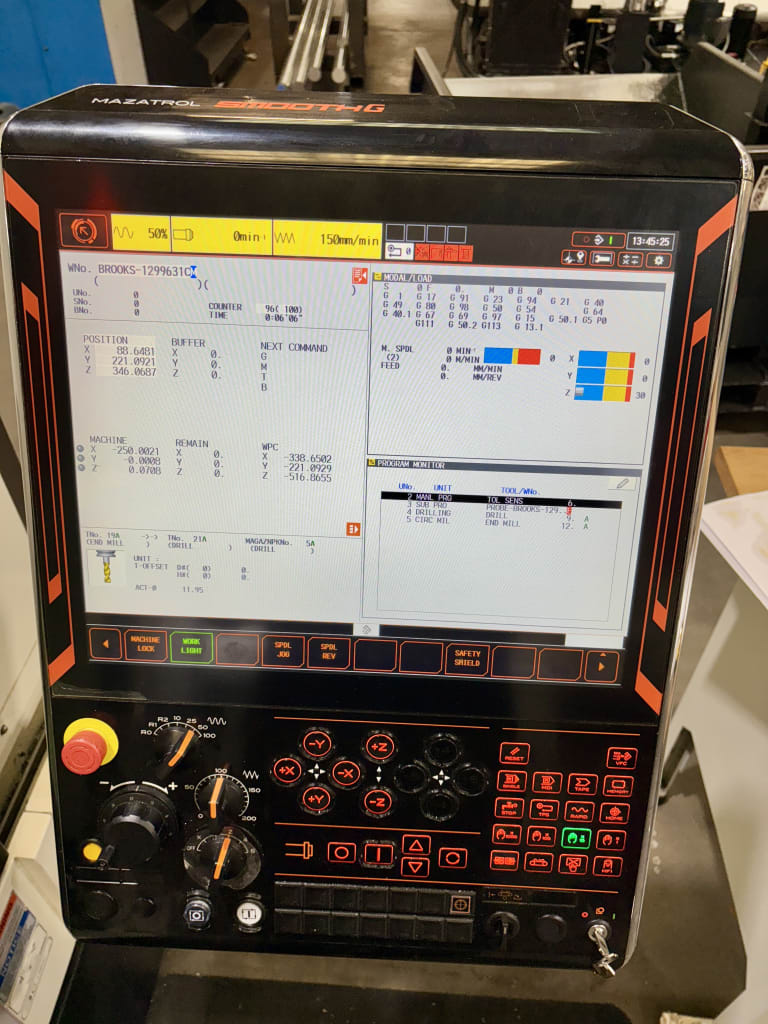

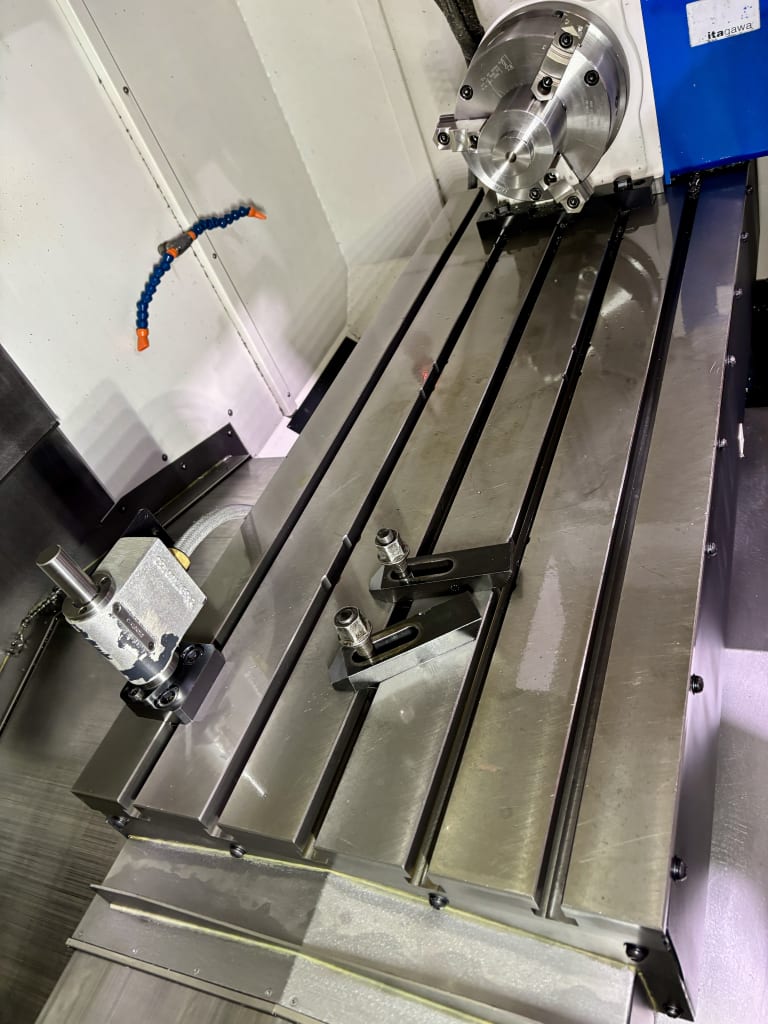

2021 Mazak VCN-530C CNC Vertical Machining Centre With Mazatrol Smooth G Control & Kitagawa MR250 4th Axis Unit

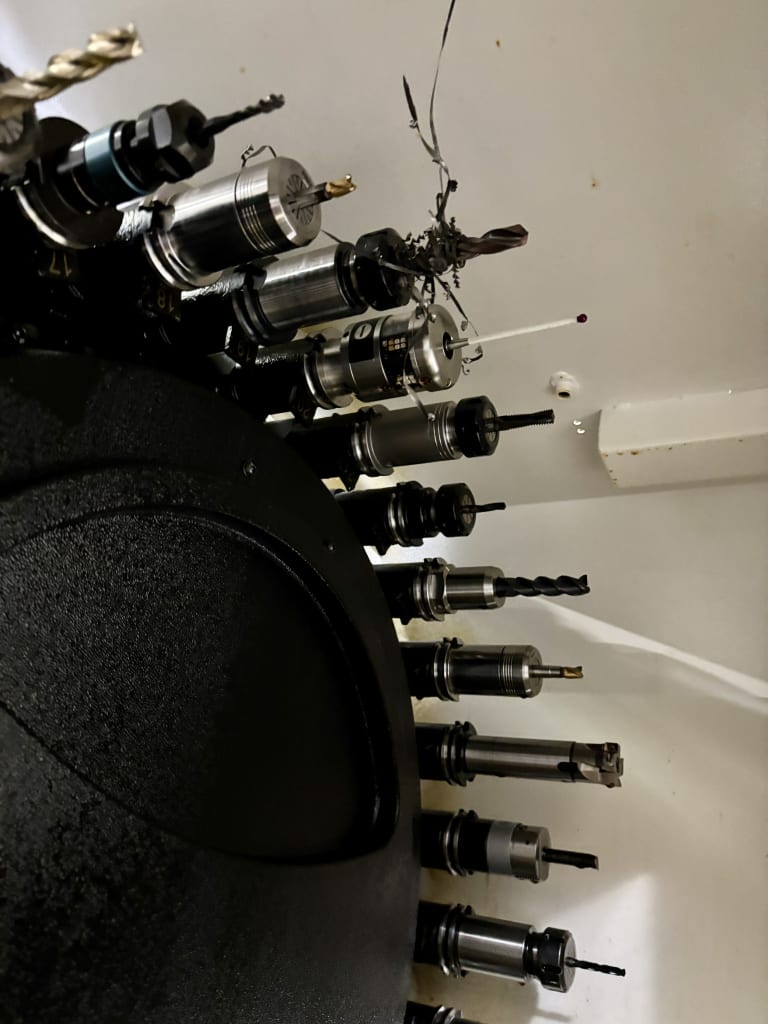

Table Dimension 1,300 x 550mm (5 'T' Slots, 18mm x 100mm Pitch. Maximum Table Load 1,200kg. Distance From Floor To Table Surface 850mm. Distance From Spindle Nose To Table 150-660mm. Distance From Spindle Centre To Column 586mm. Axis Travel 'X'=1,050mm, 'Y'=530mm, 'Z'=510mm. Rapid Traverse 'X/Y/Z'=42m/min. Cutting Feed 'X/Y/Z'=42,000mm/min. Spindle Speed Range 40-12,000rpm (18.5kW Motor). 30 Position ATC. Spindle Taper ISO 40. Maximum Tool Ø80mm (Ø125mm Non Adjacent), Maximum Tool Length 350mm, Maximum Tool Weight 8kg. Tool Change Time (Chip To Chip) 2.8sec. Kitagawa 4th Axis Ø250mm 3 Jaw Chuck, Centre Height 175mm With Tailstock. S/No. 317457 (2021). - LOT 13

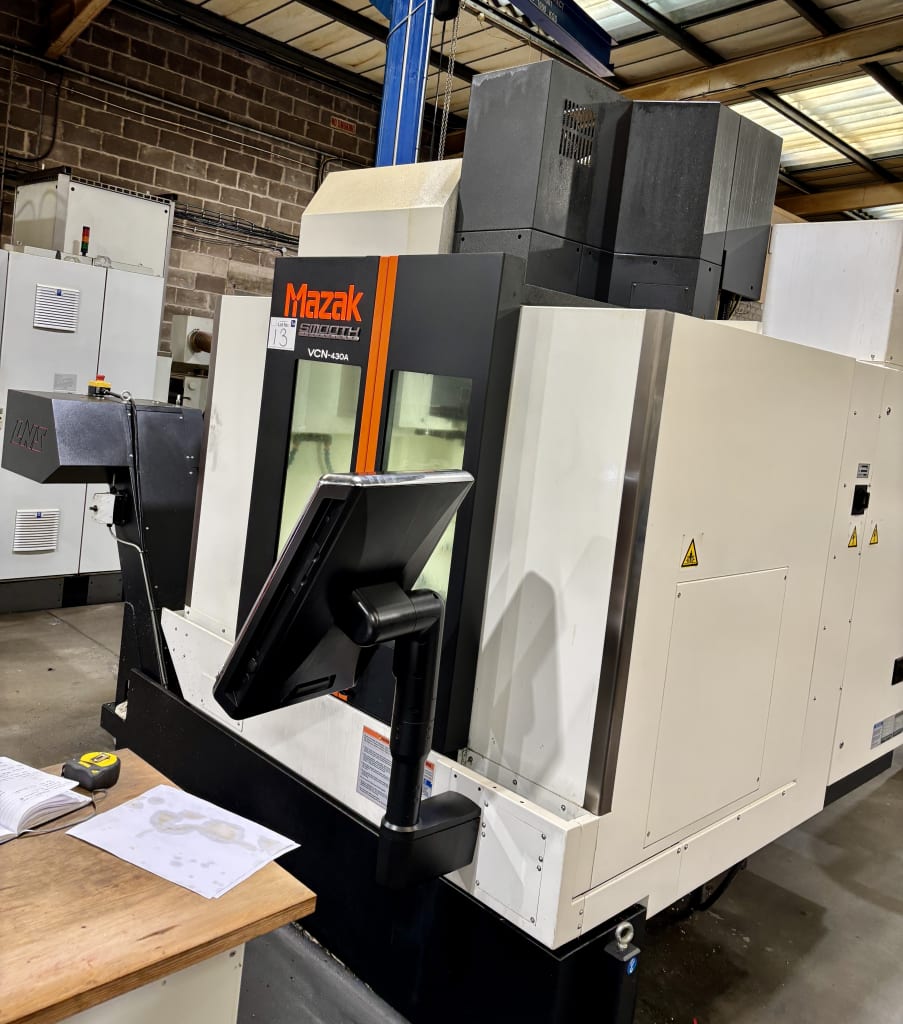

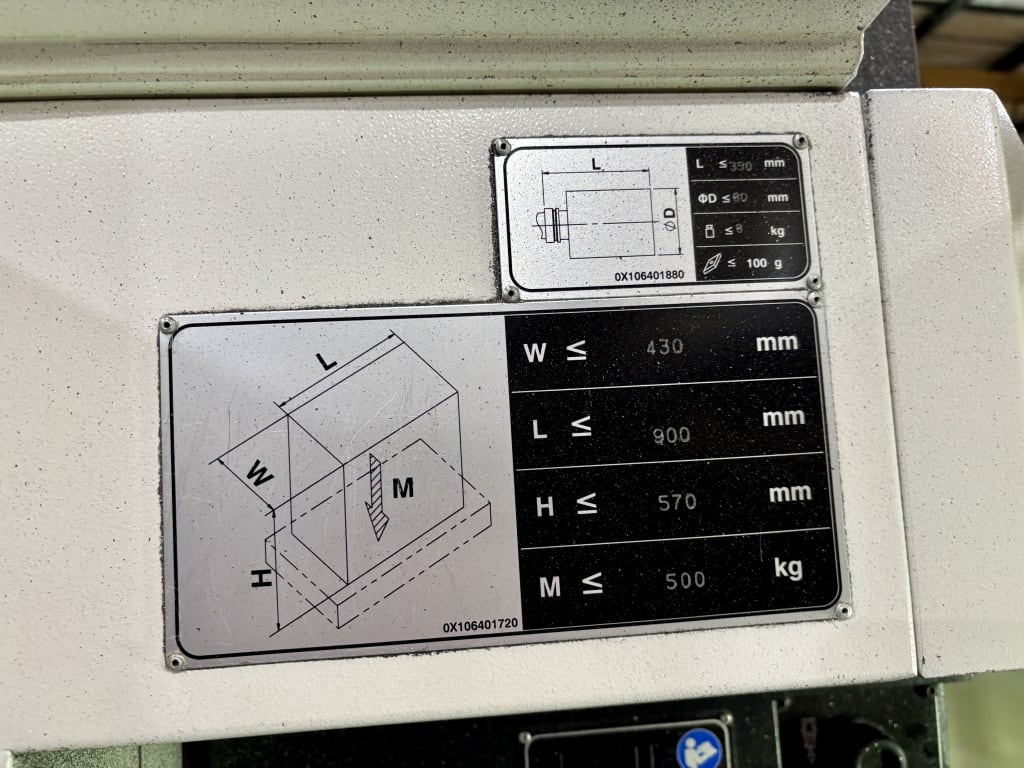

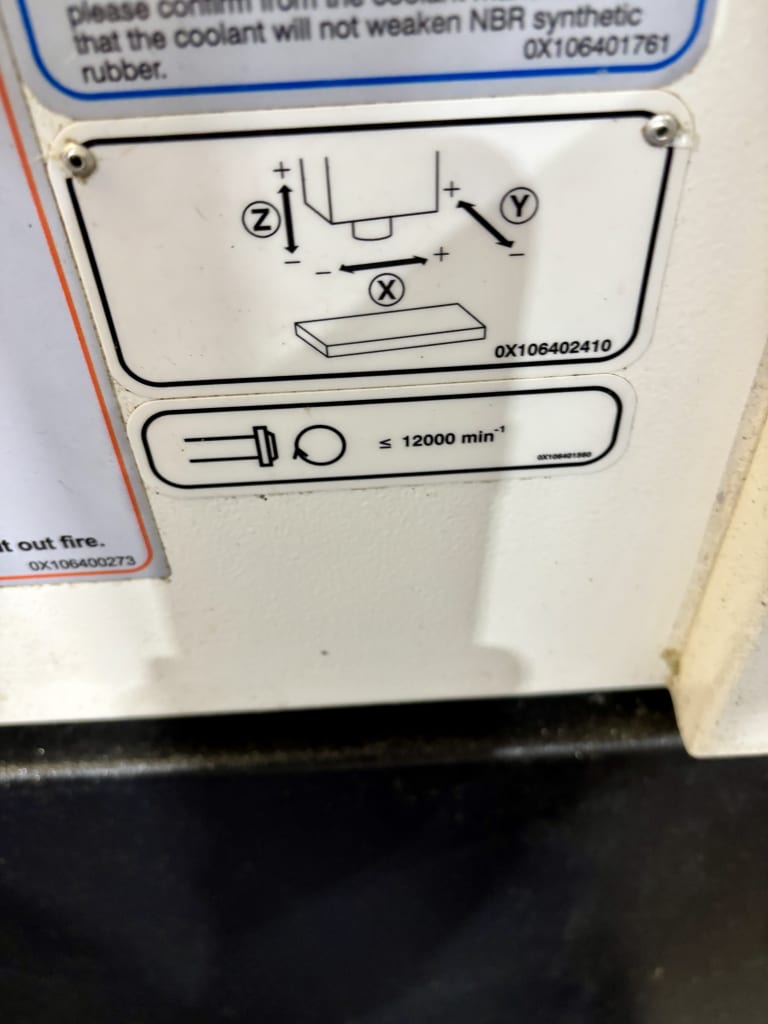

2018 Mazak VCN 430A CNC Vertical Machining Centre With Mazatrol Smooth G Control
Table Dimension 900 x 430mm (3 'T' Slots, 18mm x 125mm Pitch. Maximum Table Load 500kg. Distance From Floor To Table Surface 780mm. Distance From Spindle Nose To Table 150-660mm. Distance From Spindle Centre To Column 494mm. Axis Travel 'X'=560mm, 'Y'=430mm, 'Z'=510mm. Rapid Traverse 'X/Y/Z'=42m/min. Cutting Feed 'X/Y/Z'=42,000mm/min. Spindle Speed Range 40-12,000rpm (18.5kW Motor). 30 Position ATC. Spindle Taper ISO 40. Maximum Tool Ø80mm (Ø125mm Non Adjacent), Maximum Tool Length 350mm, Maximum Tool Weight 8kg. Tool Change Time (Chip To Chip) 2.8sec. S/No. 295376 (2018). - LOT 15

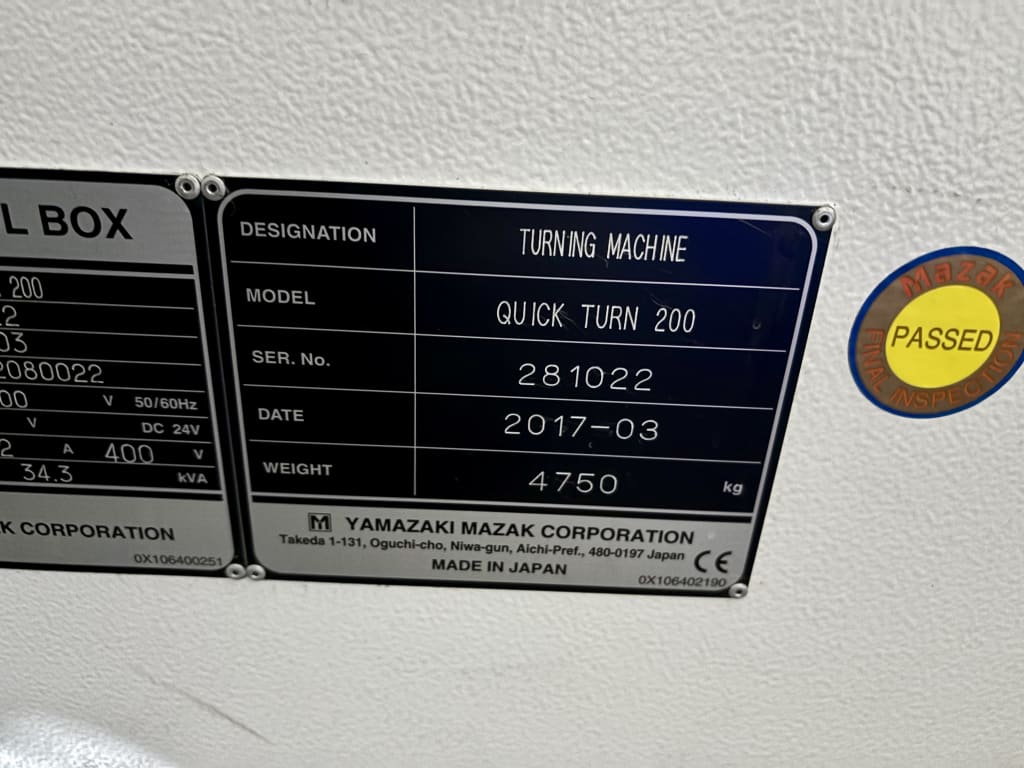

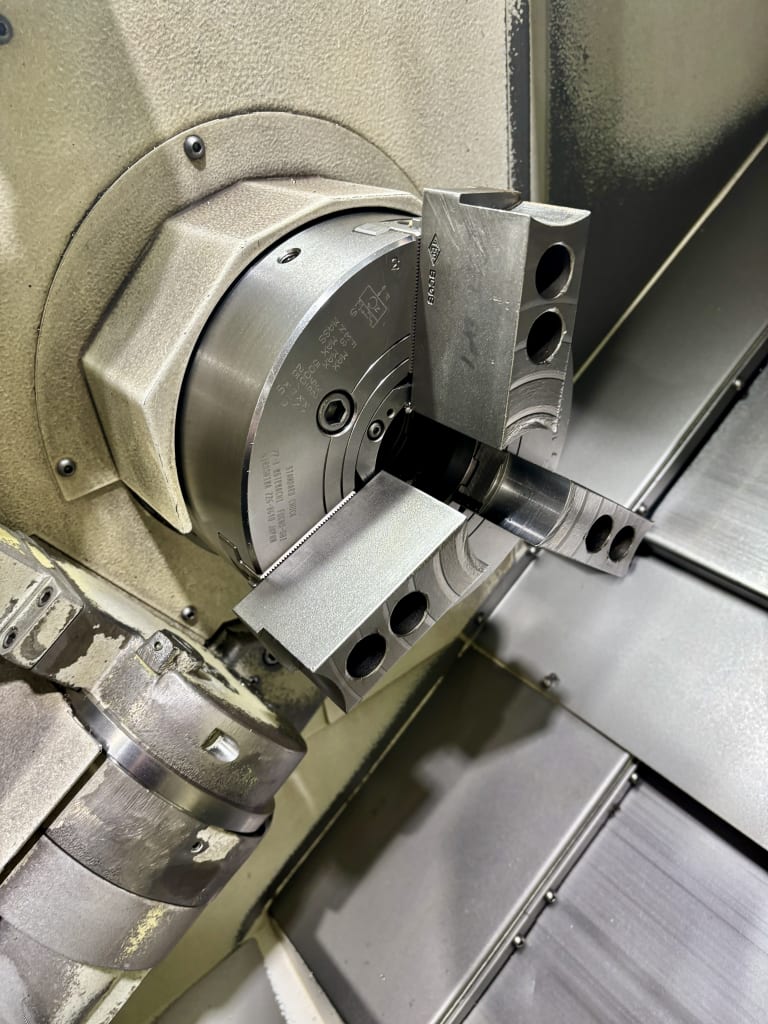

2017 Mazak QuickTurn 200 CNC Slant Bed Lathe With Mazatrol Smooth G Control
Ø400mm Kitagawa B-15 3 Jaw Power Chuck. Maximum Swing Ø660mm. Standard Machining Ø212mm. Maximum Machining Ø350mm. Maximum Bar Capacity Ø65mm. Distance Between Spindle End & Turret End Face 687mm. Maximum Support Weight Chuck Work Main Spindle 200kg, Maximum Support Weight Shaft Work Main Spindle 500kg. Axis Travel 'X'=195mm, 'Z'=560mm. Rapid Traverse 'X'=30m/min, 'Z'=33m/min. Main Spindle Speed Range 35-5,000rpm (15kW Motor). Spindle Nose JIS A2-6. 12 Position Turret. Tool Size (OD Turning) 25mm. Tool Size (ID Turning) 40mm. Indexing Time (Single Step) 0.2sec, Indexing Time (Full Turn) 0.29Sec. Tailstock Centre MT5, Tailstock Travel 565mm, Tailstock Thrust 5,000N. S/No. 281022 (2017). - LOT 25
- LOT 30

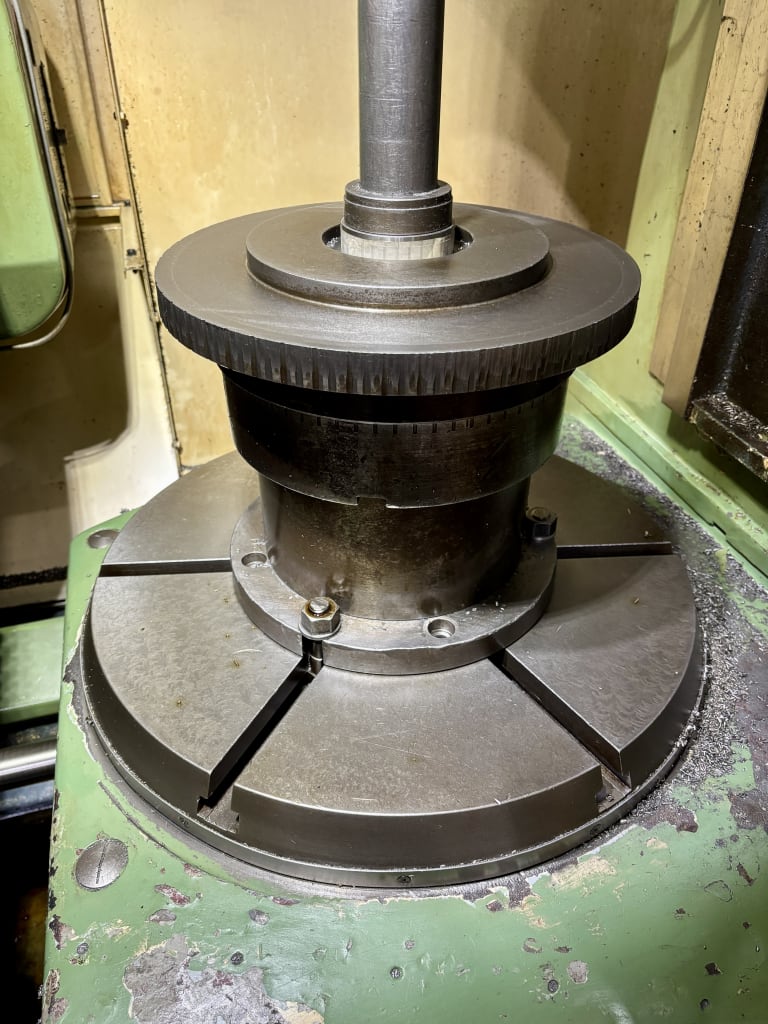

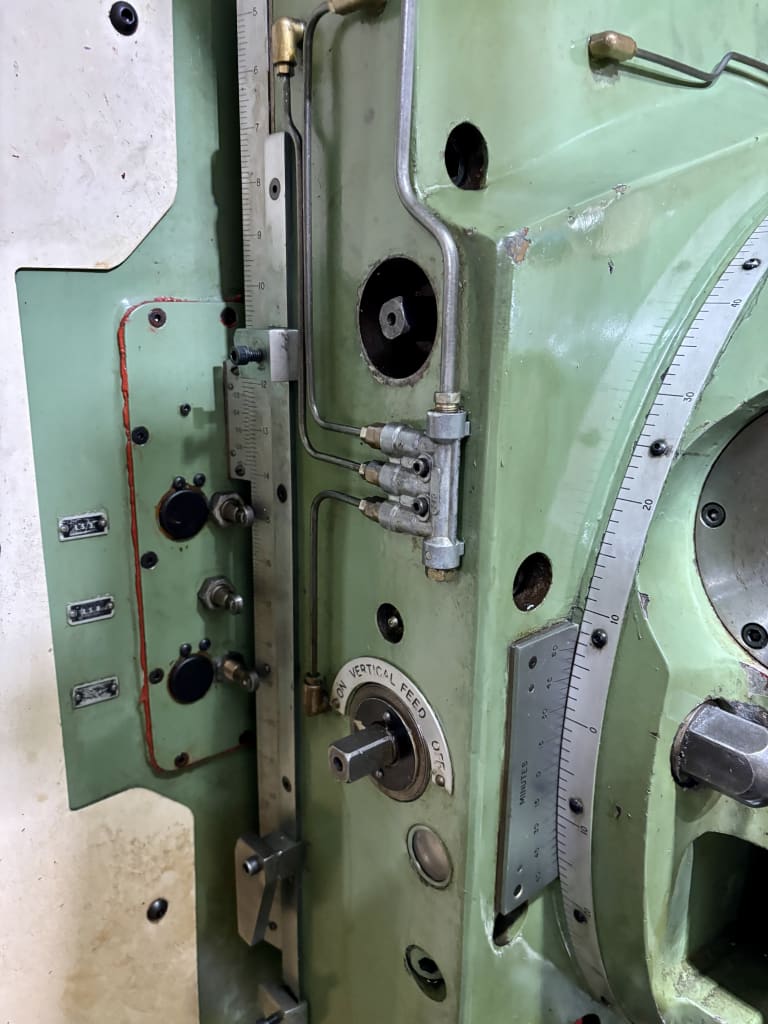

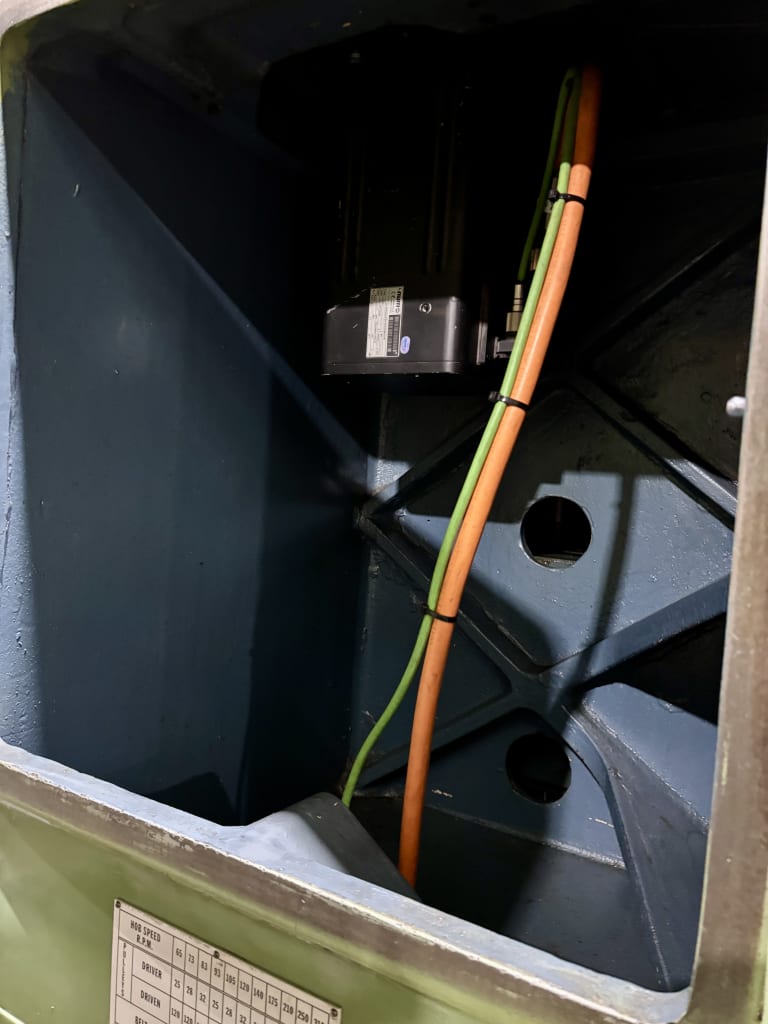

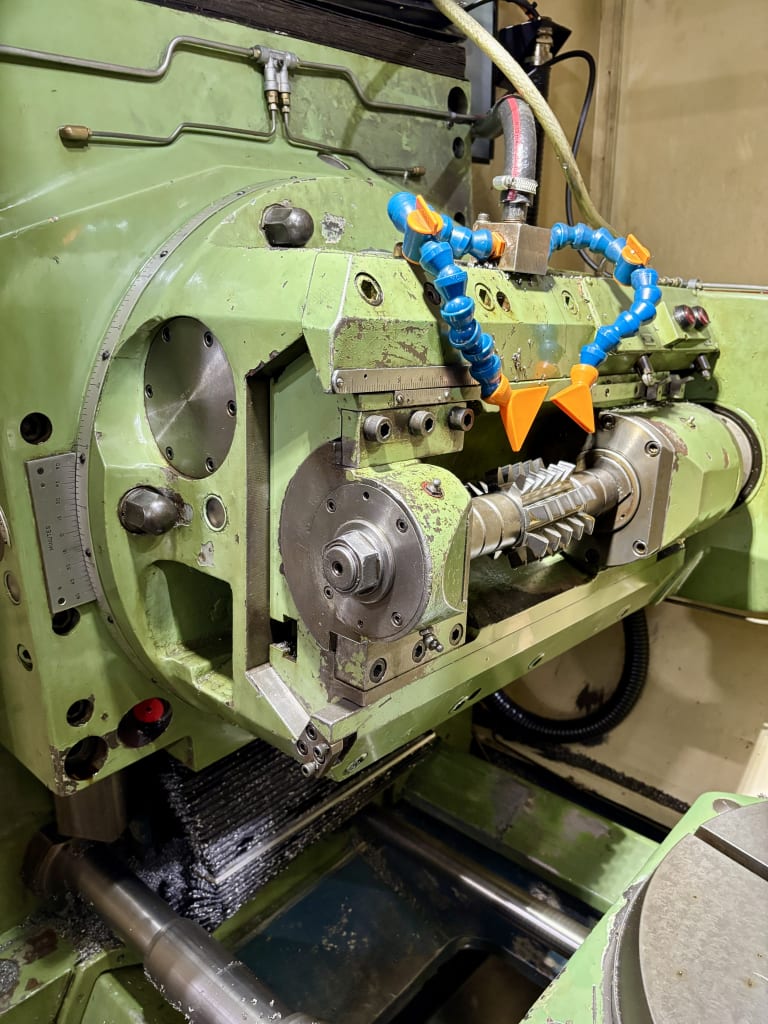

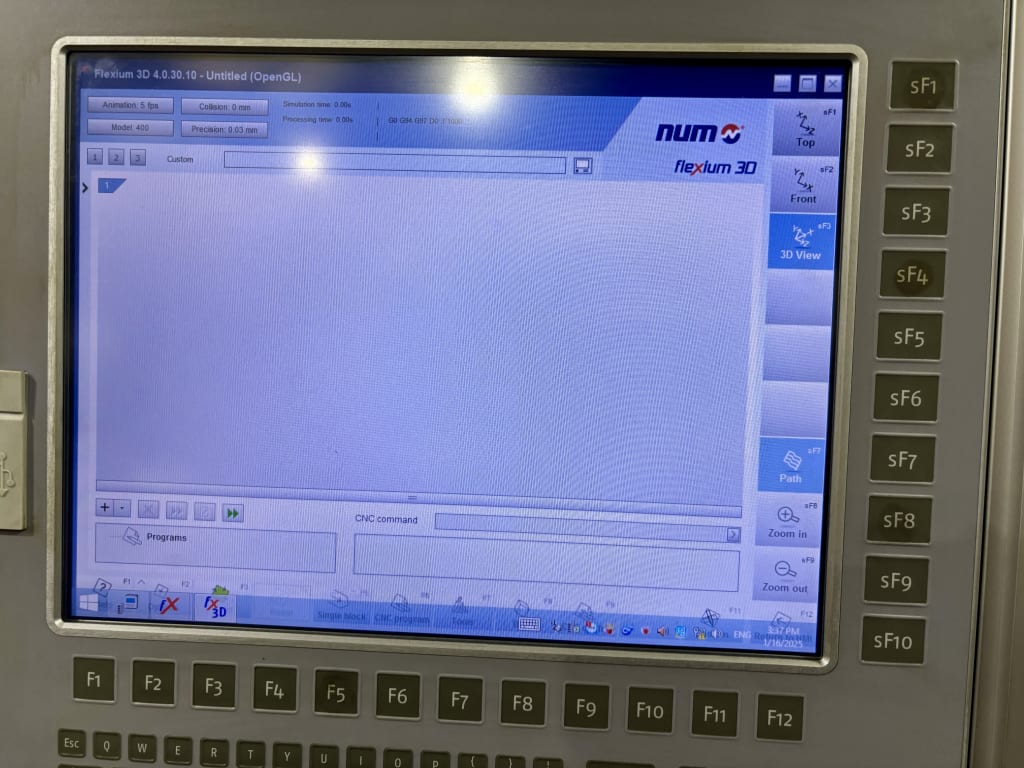

Churchill U2415 CNC Gear Hobber With Num Flexium ControlØ500mm
Ø500mm Faceplate. Approx Swing Ø660mm. Approx Distance Between Centres 830mm. Hobbing Speed Range 65-310rpm. S/No. UH 620701. - LOT 105
- LOT 217
- LOT 227
(4) Mitutoyo External Micrometers
(1) Digital, (1) Metric 0-25mm, (1) Metric 25-50mm and (1) Imperial 0-1" - LOT 230
- LOT 284
- LOT 299
- LOT 310
- LOT 312

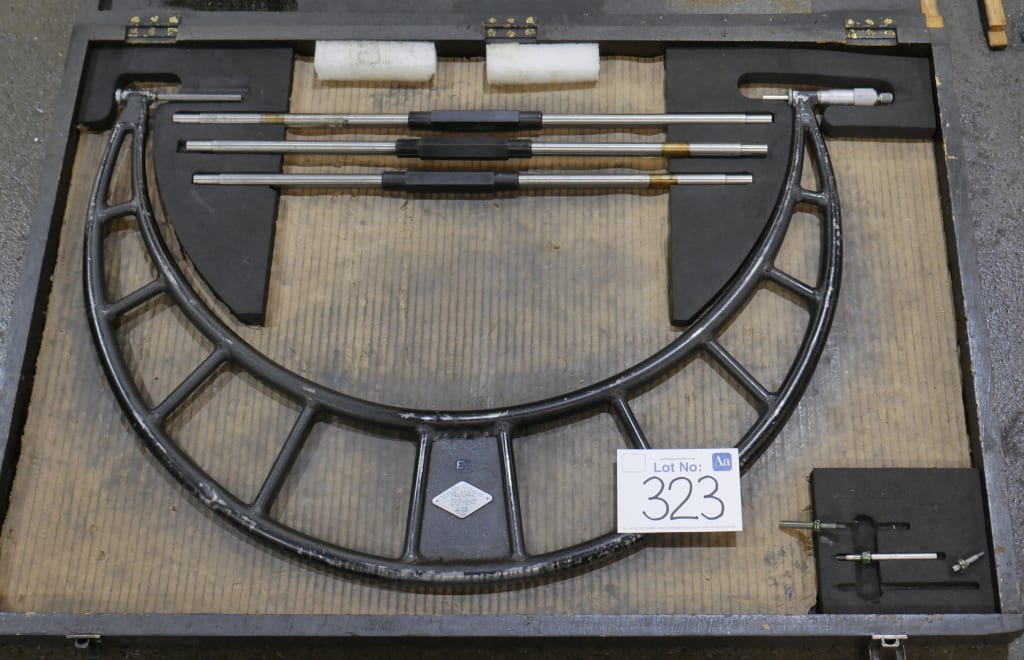

- LOT 323
- LOT 356
- LOT 359
- LOT 360
- LOT 440
- LOT 447
- LOT 454
- LOT 467
- LOT 474

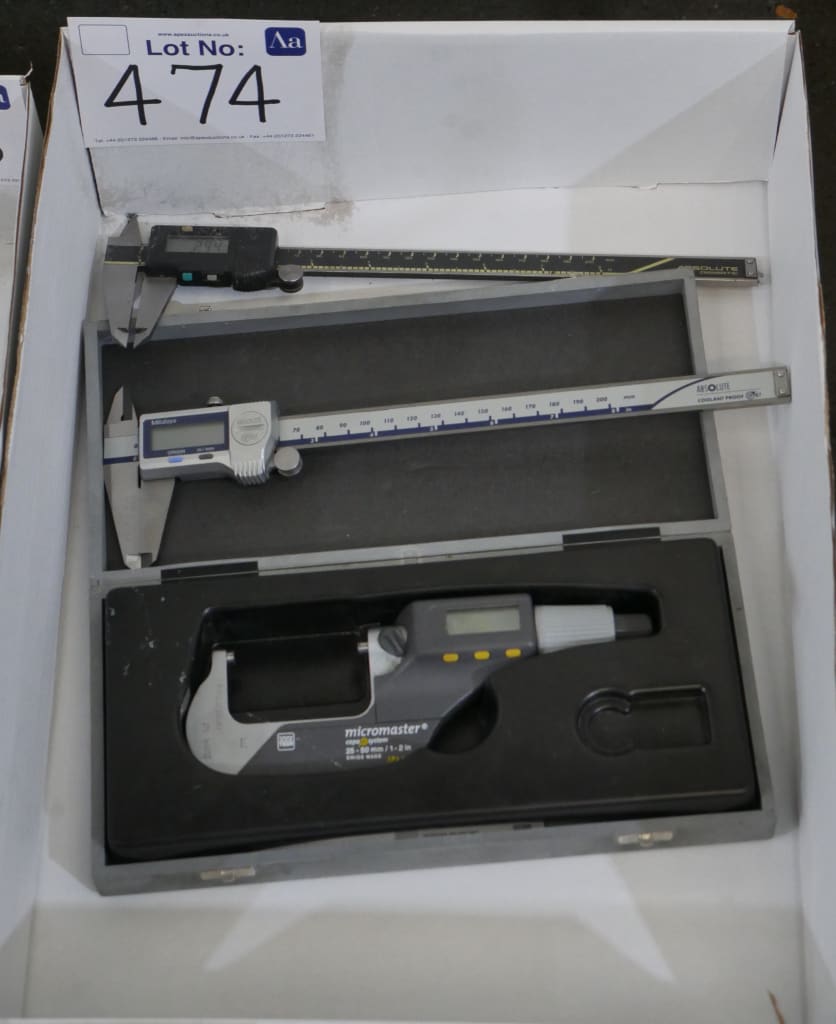

TESA Micrometer and Mitutoyo Digital Calipers
Micromaster 25-50mm External Digital Micrometer. Mitutoyo 0-200mm Absolute IP67 Digital Caliper. Mitutoyo 0-200mm Absolute Digital Caliper. - LOT 488
- LOT 608

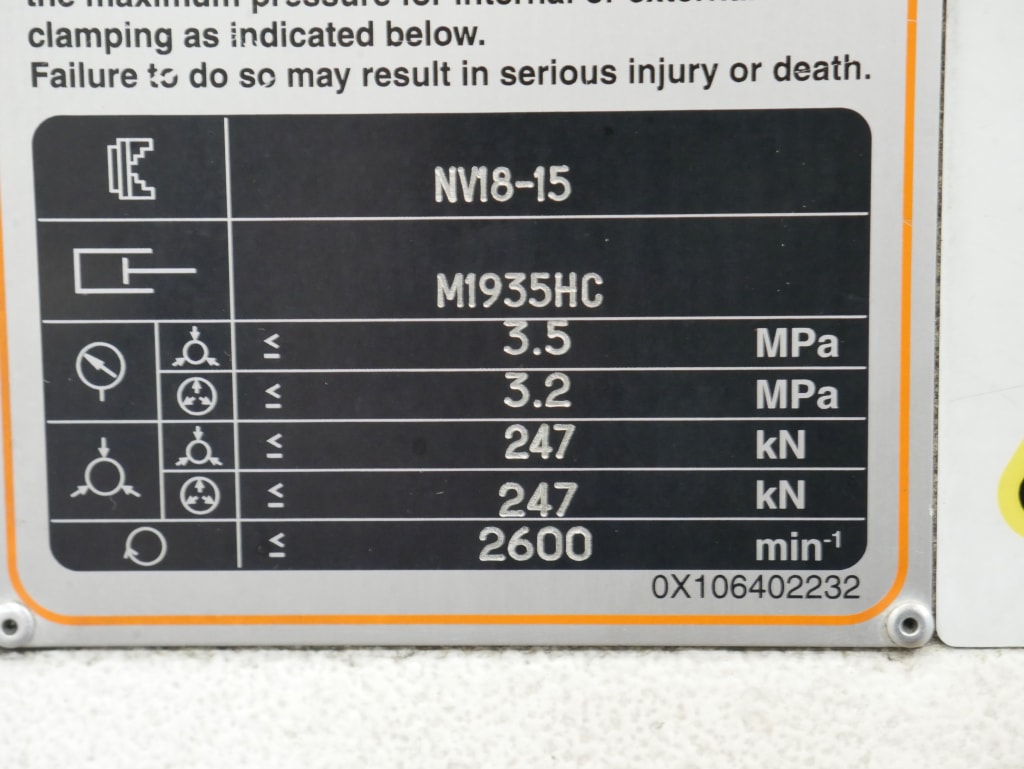

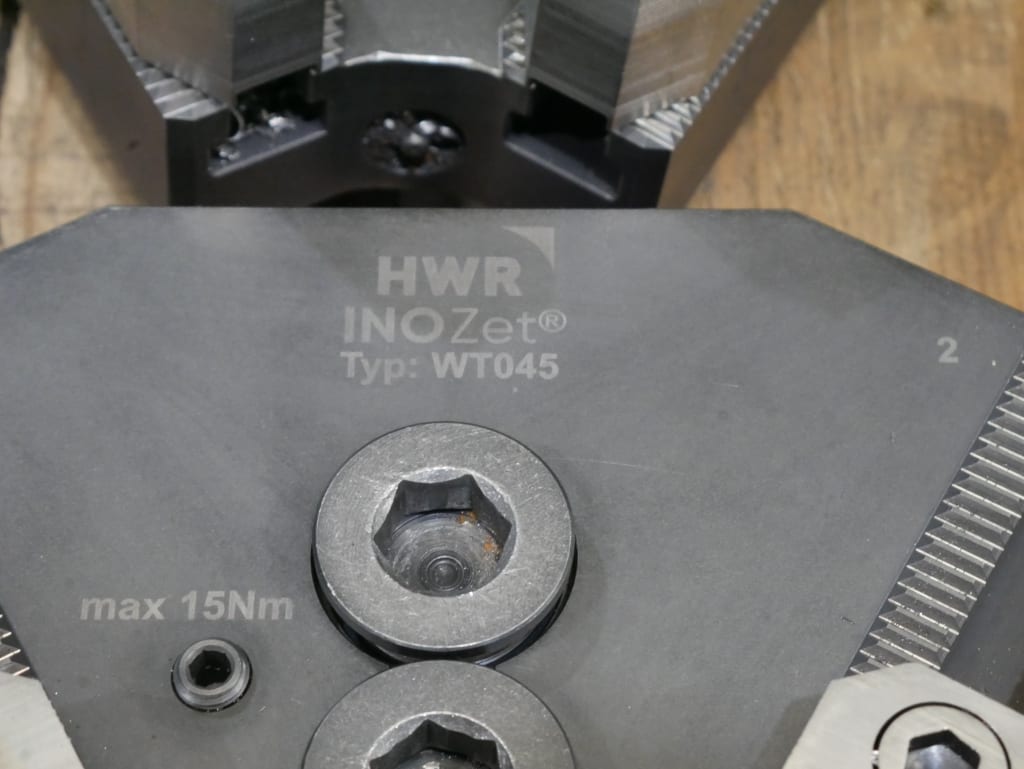

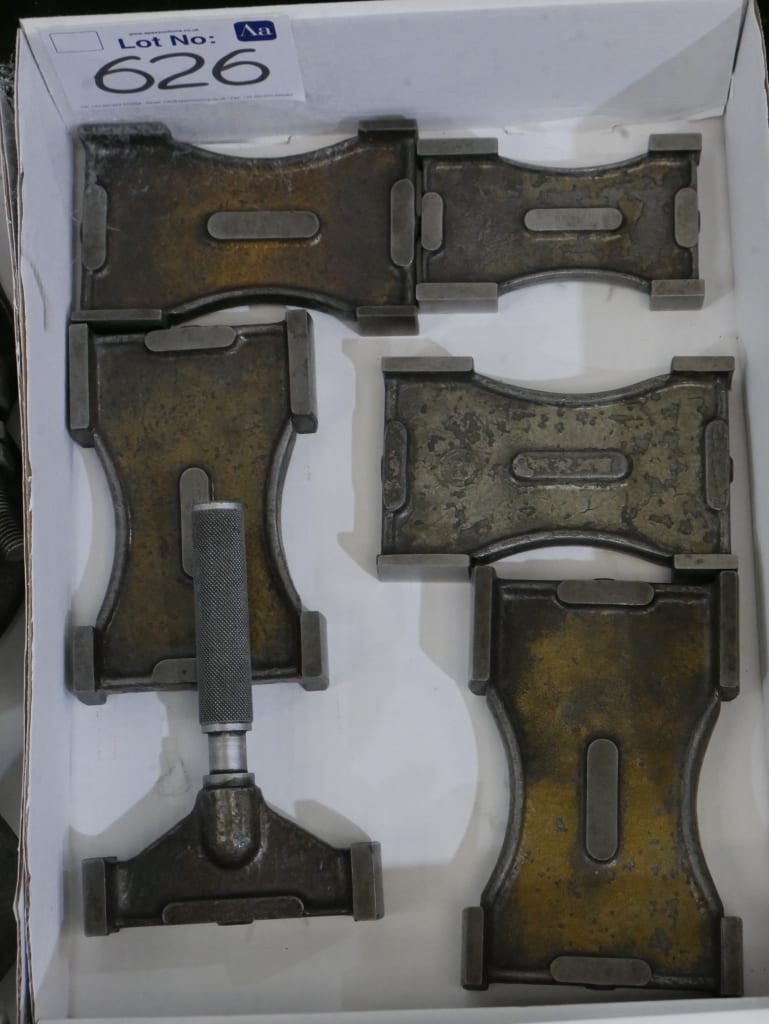

HWR Inozet WT045 Set of 3 for 6 Point Clamping
Complete with 7 Sets of 6 Jaws. Previously Used on Mazak NV18-15 Chuck - LOT 626
- LOT 627
- LOT 648

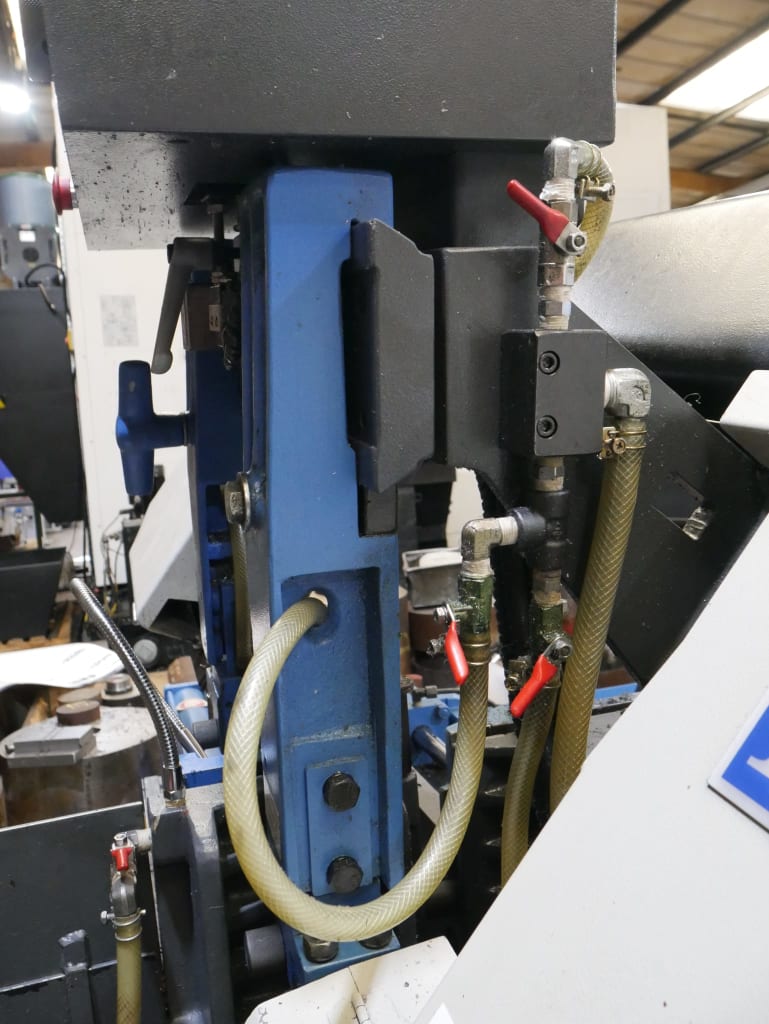

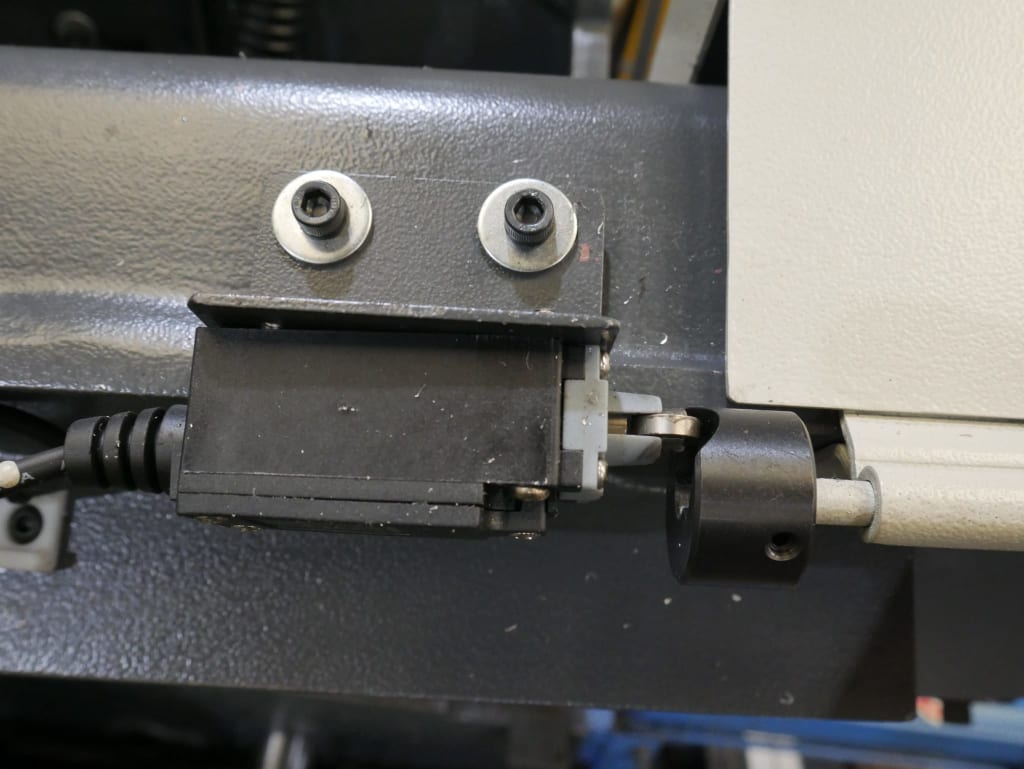

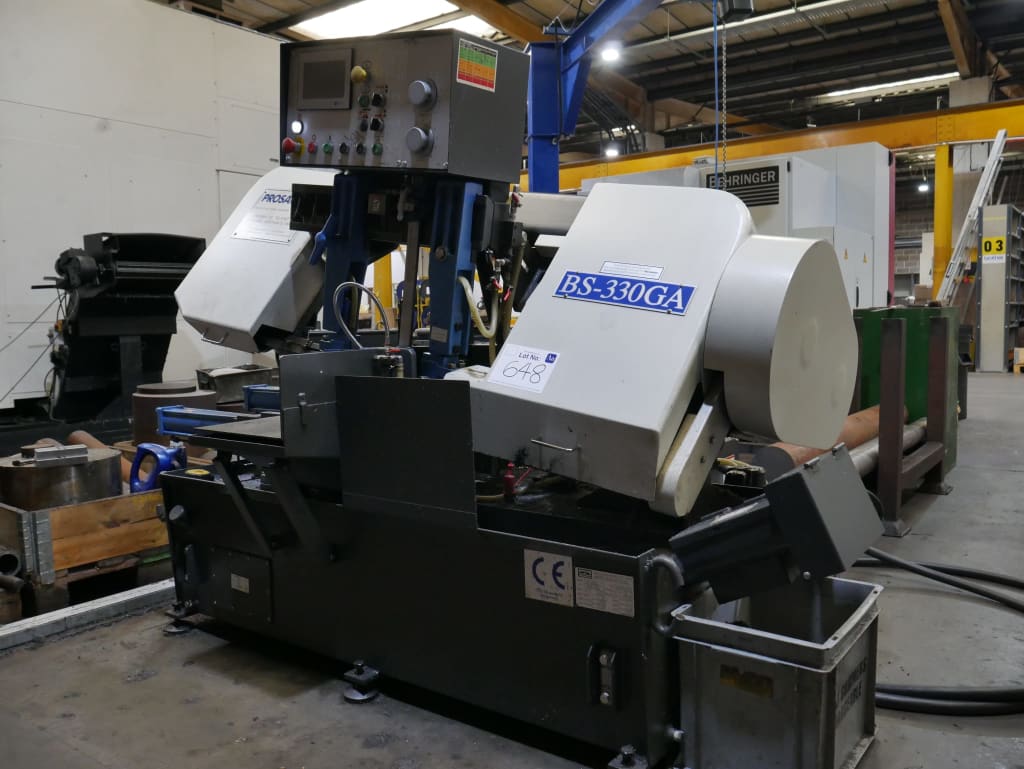

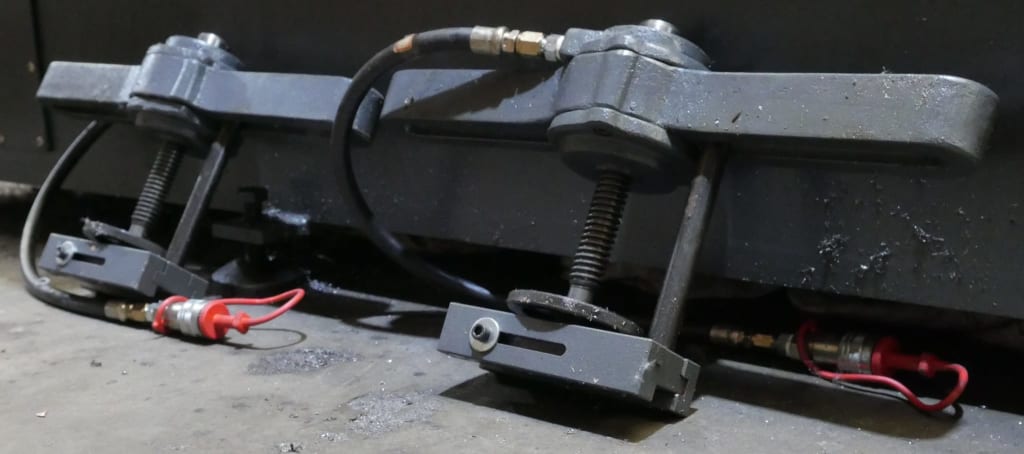

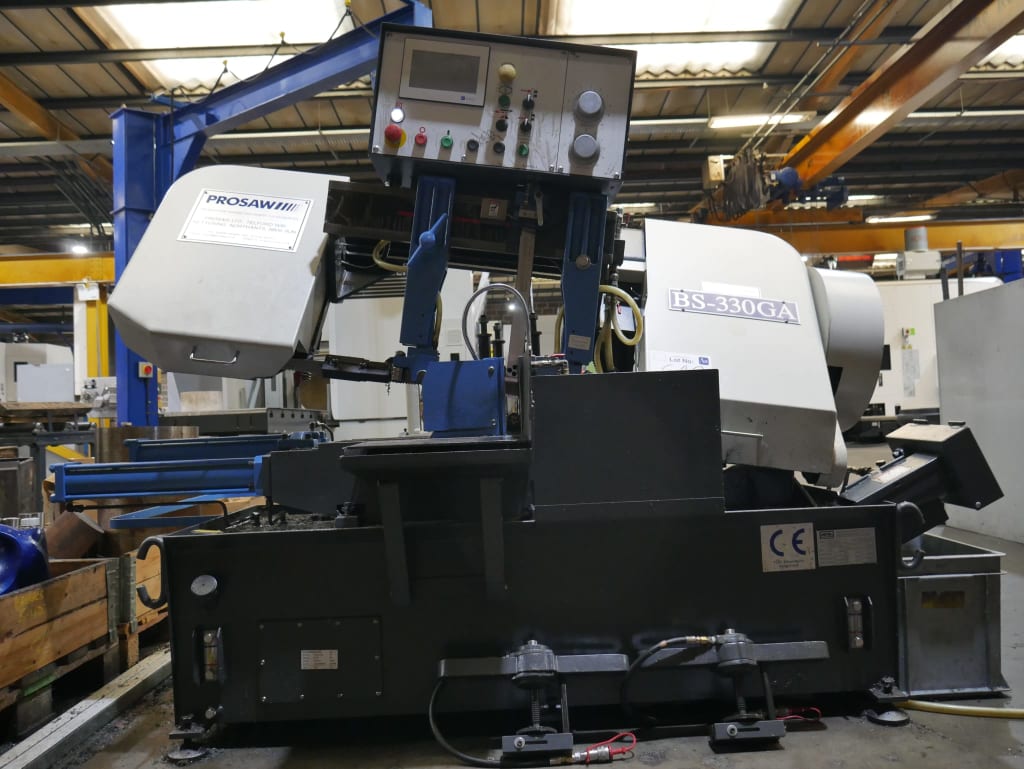

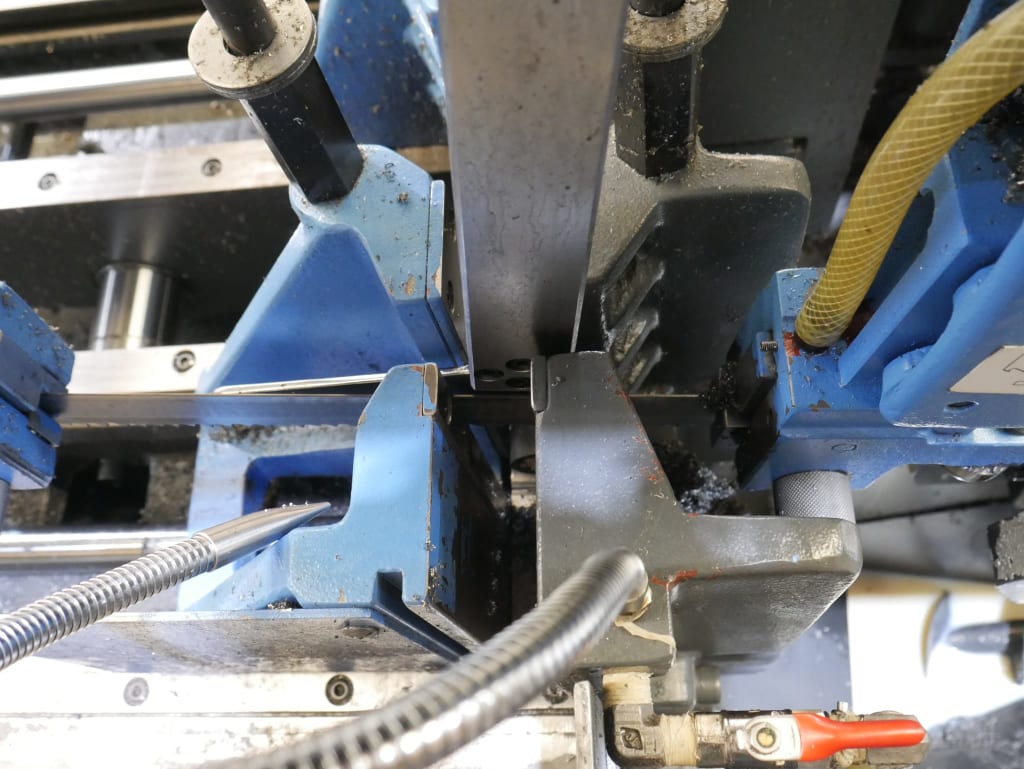

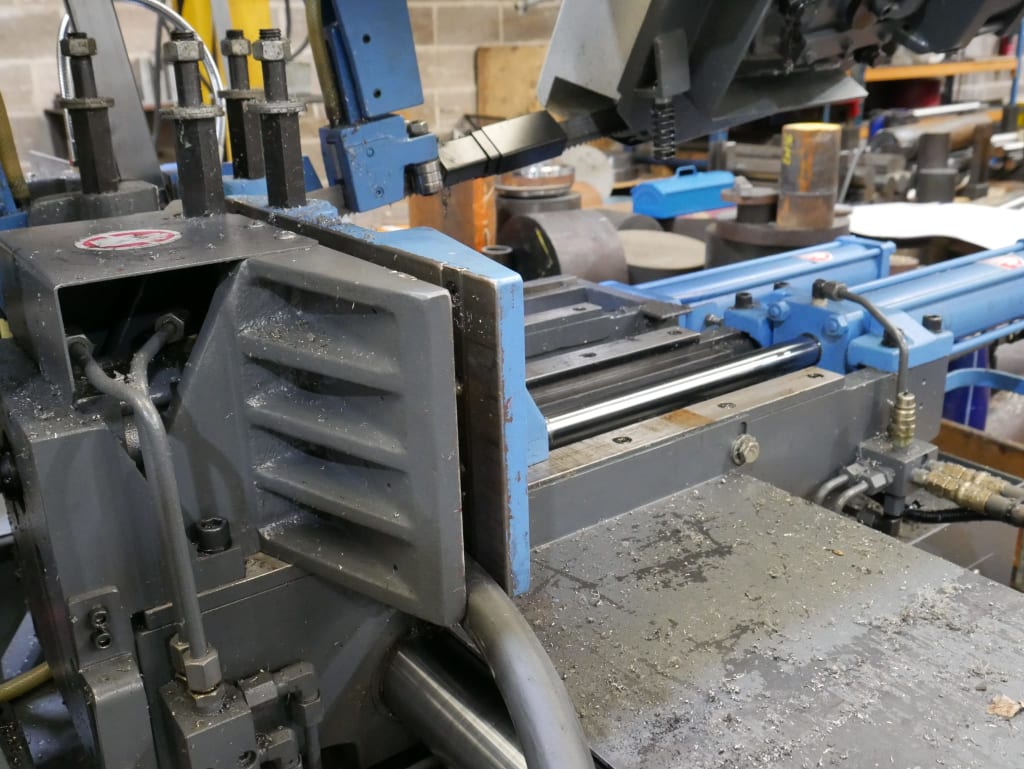

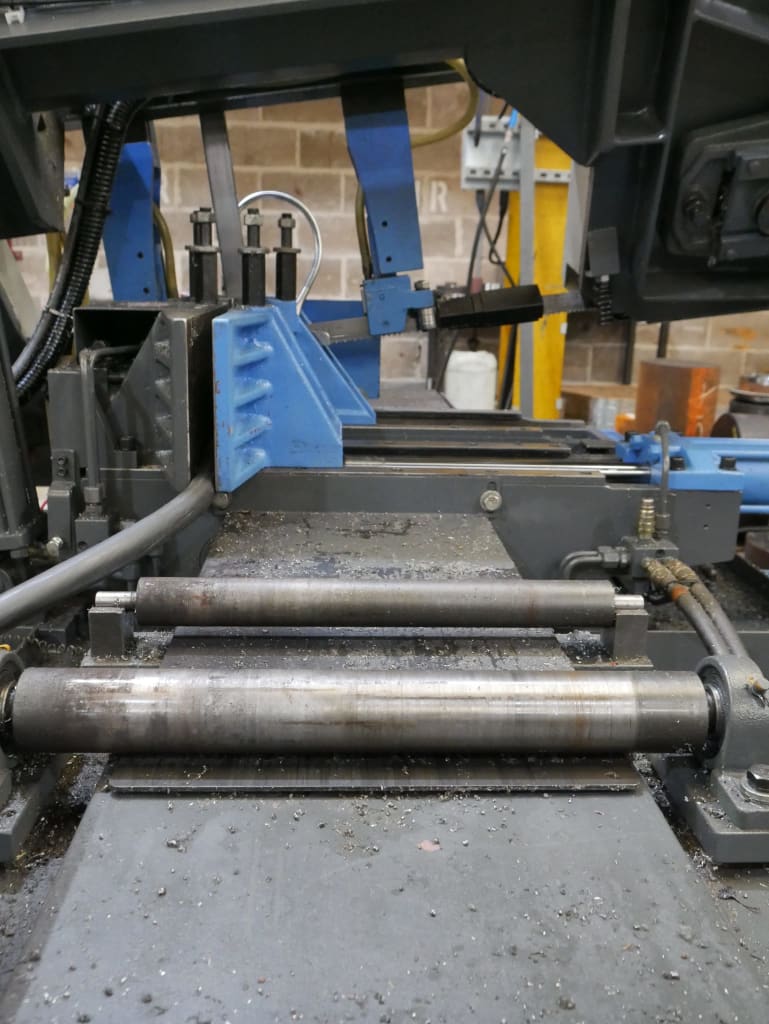

2022 Prosaw Mega Machine Co. Ltd BS-330GA Horizontal Automatic Feed Vice Power Saw
Maximum Capacity Ø330mm. □ 350 x 250mm. Bundle 250 x 165mm. Blade Speed 20 - 72m/min. Feed Stroke Maximum 400mm. Blade Size 3,820 x 34 x 1.1mm. Bed Height 593mm. Dimensions (W)2,250 x (D)2,000 x (H)1,800mm. Weight 1,410kg. S/No. 220315 (2022) - LOT 716

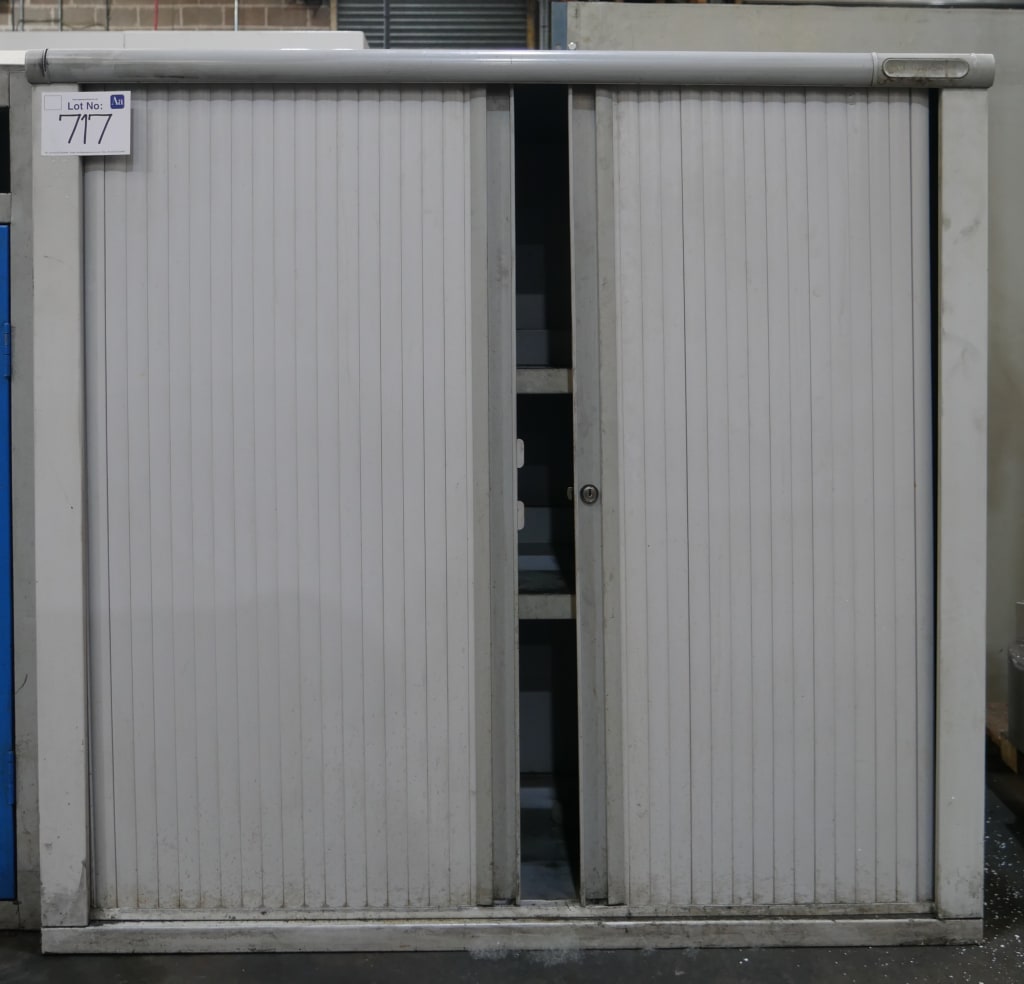

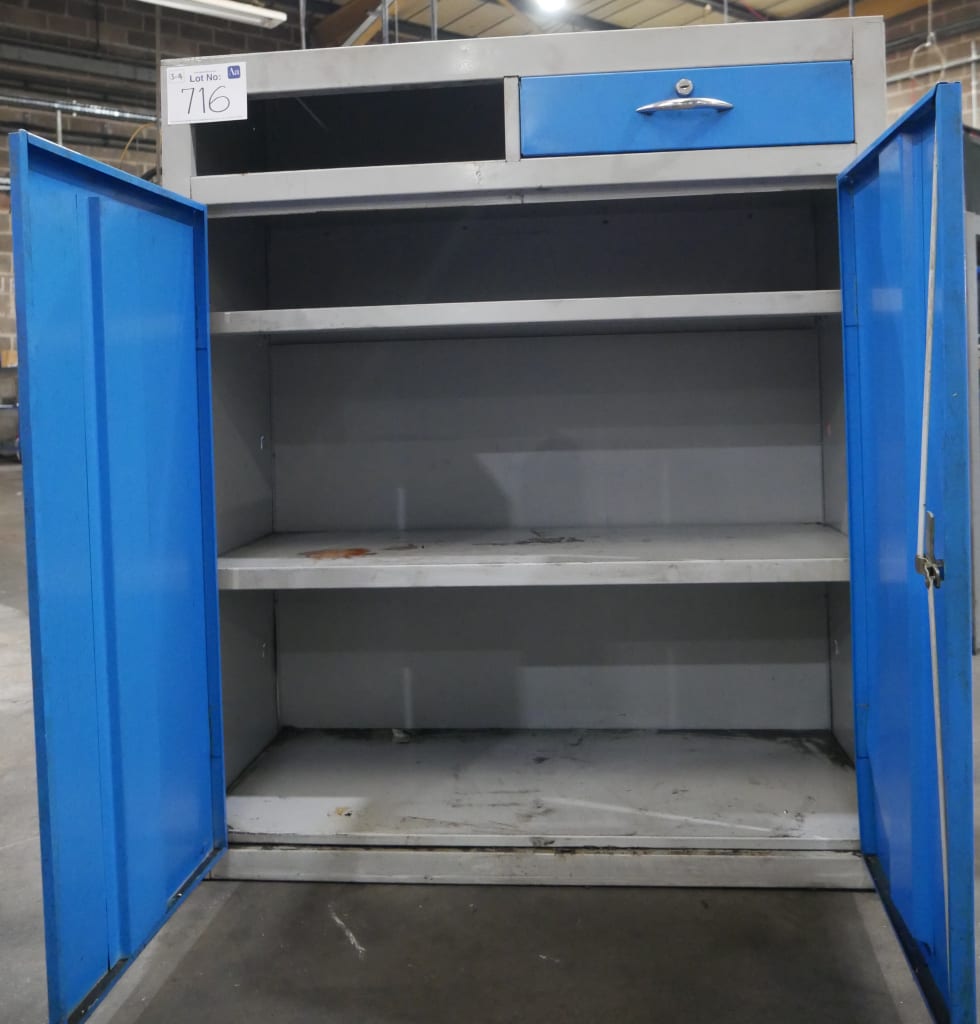

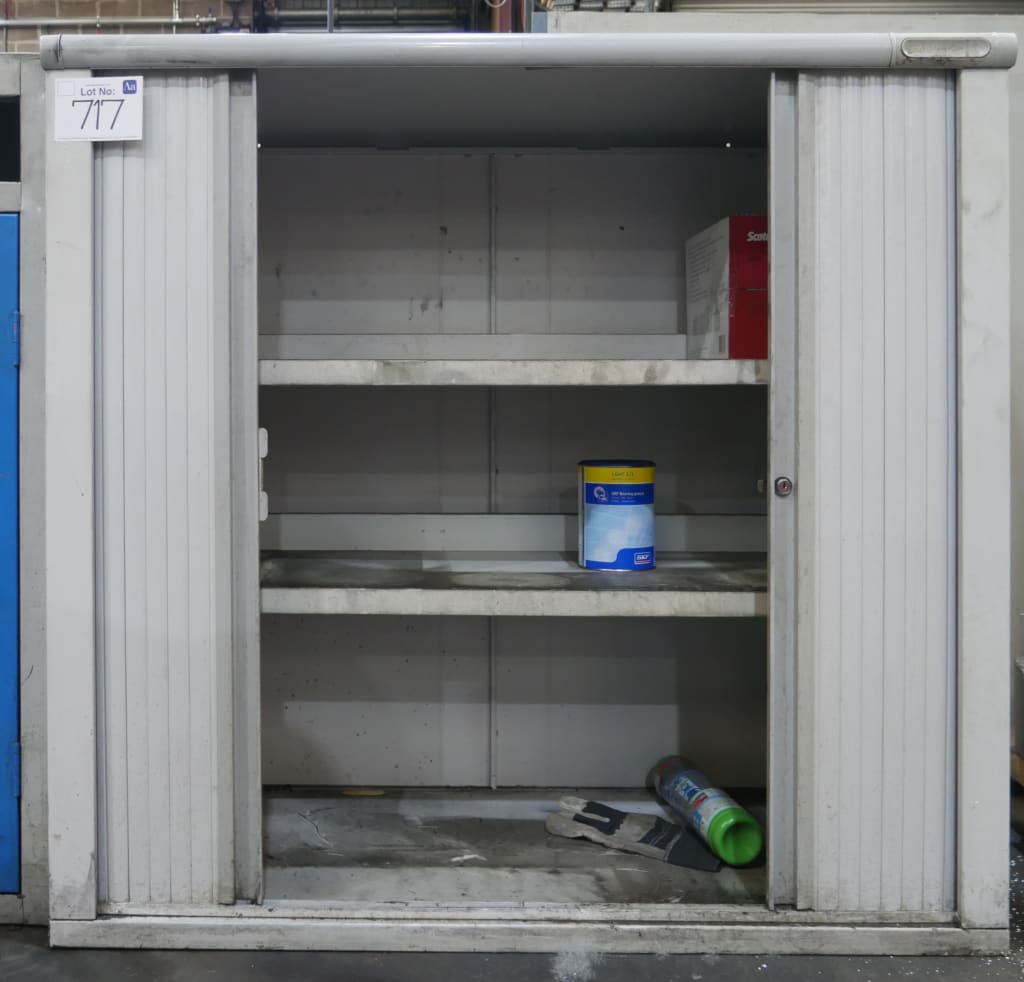

(4) Steel Storage Cabinets with Steel Shelves and Drawers
Dimensions (W)910 x (D)460 x (H)1,200mm - LOT 717

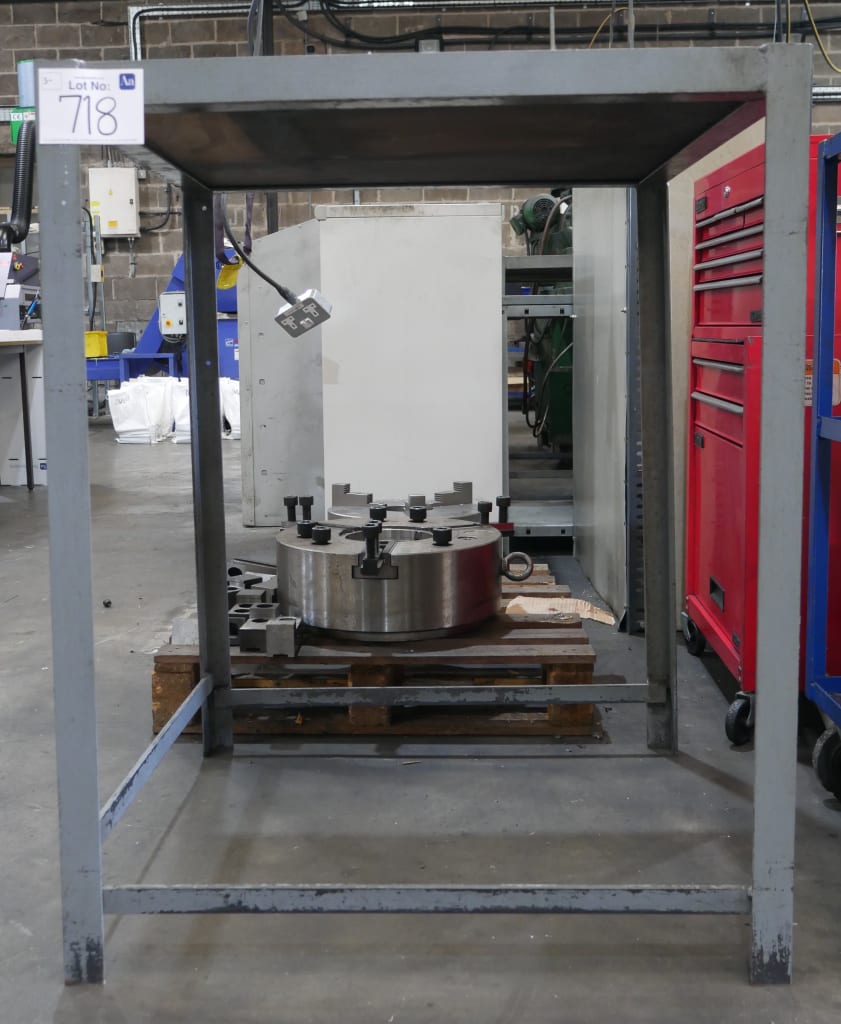

- LOT 718
- LOT 719
- LOT 720

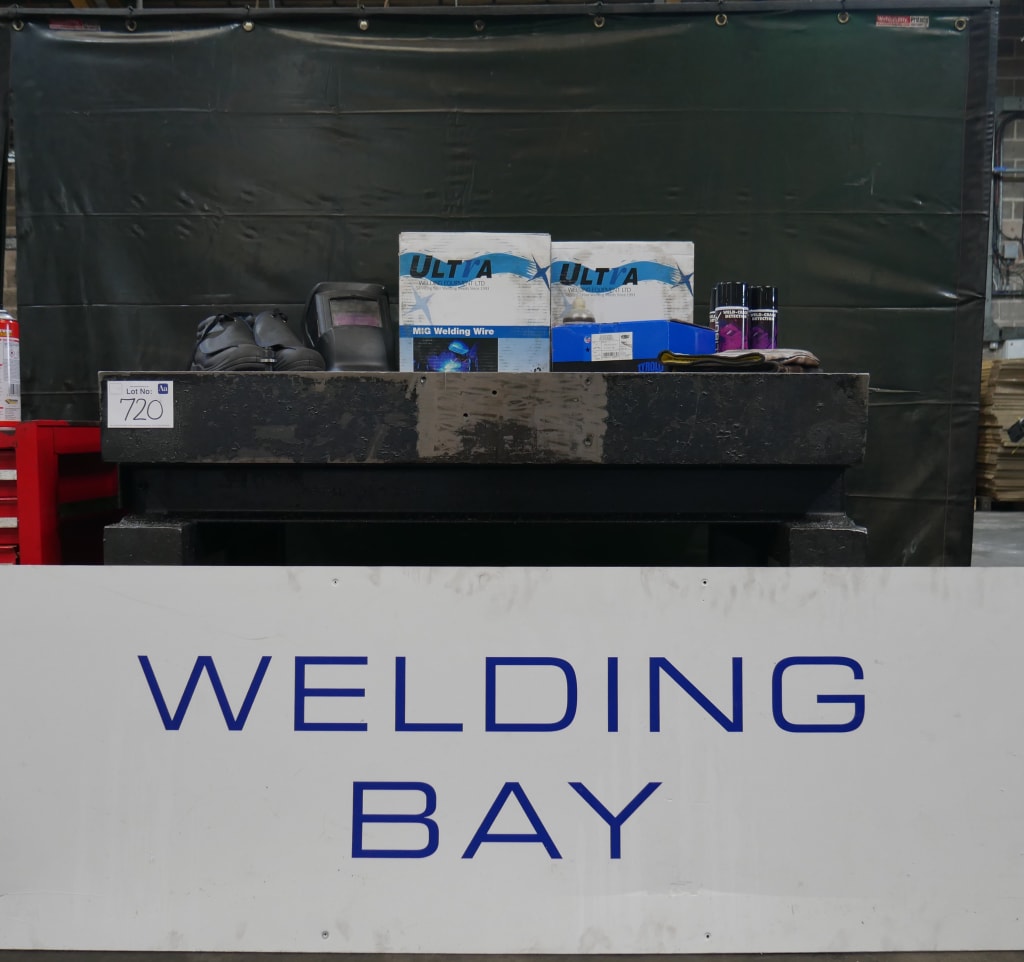

Welding Bench, Screen and Quantity of Assorted Equipment
Welding Wire, Visor, Gaunlets, Boots - LOT 722

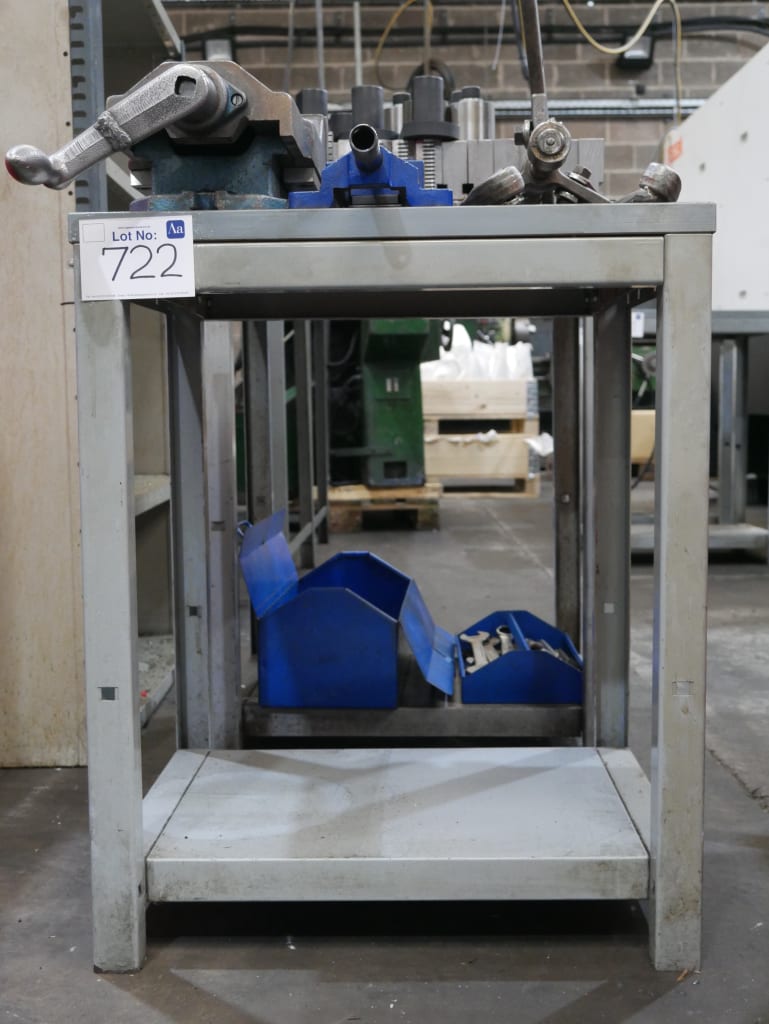

Heavy Duty Small Work Bench with Quantity of Assorted Tooling
Large and Small Machine Vices. Large Hub Puller - LOT 723
Heavy Duty Small Work Bench with Quantity of Assorted Machine Tooling
VDI 50 Blanks. Sets of Soft Jaws - LOT 725
- LOT 726

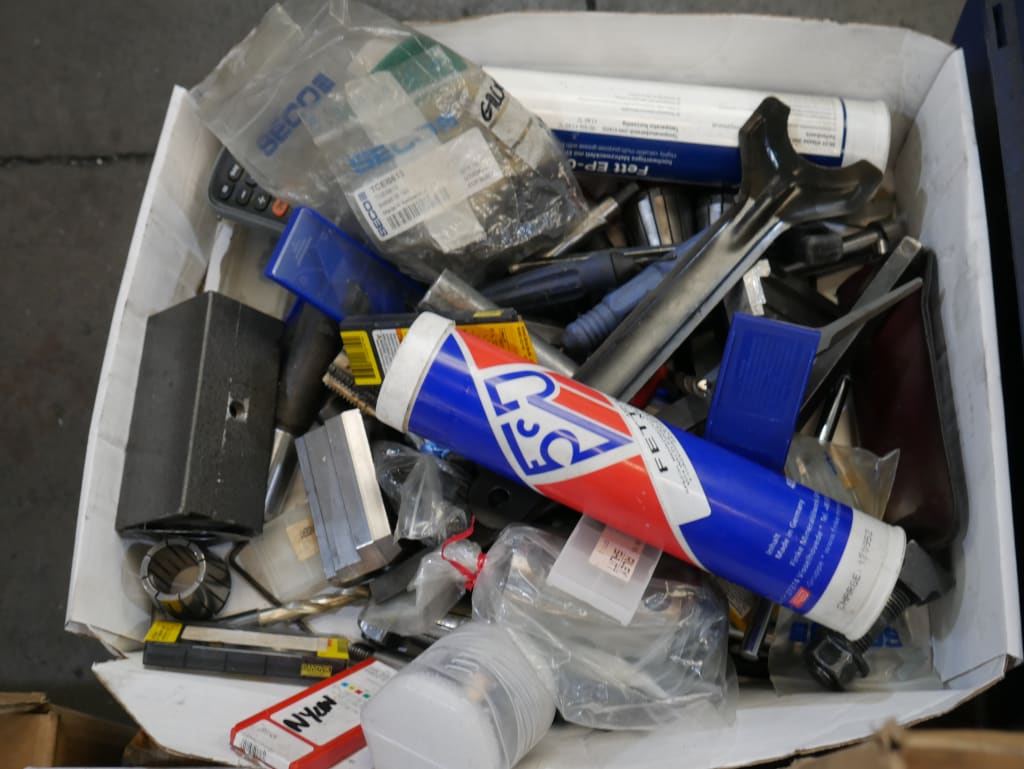

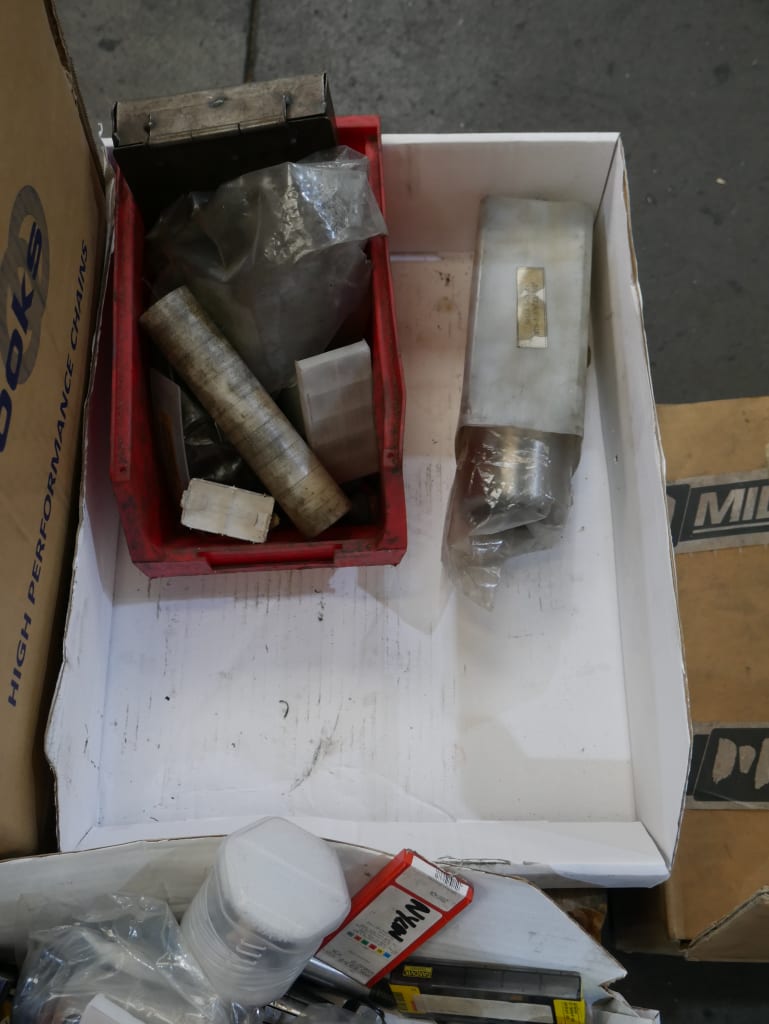

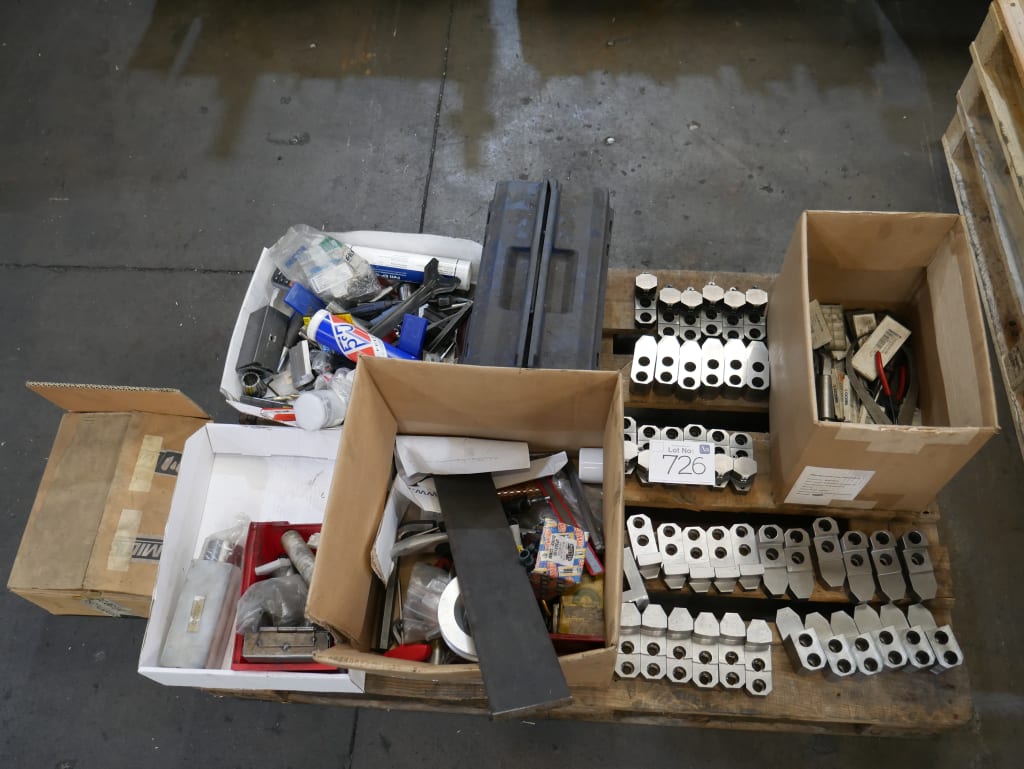

Pallet Full of Assorted Workshop Equipment
Large Quantity of (3) Soft Jaws. Boxes of Carbide Inserts.Various Other Equipment - LOT 727

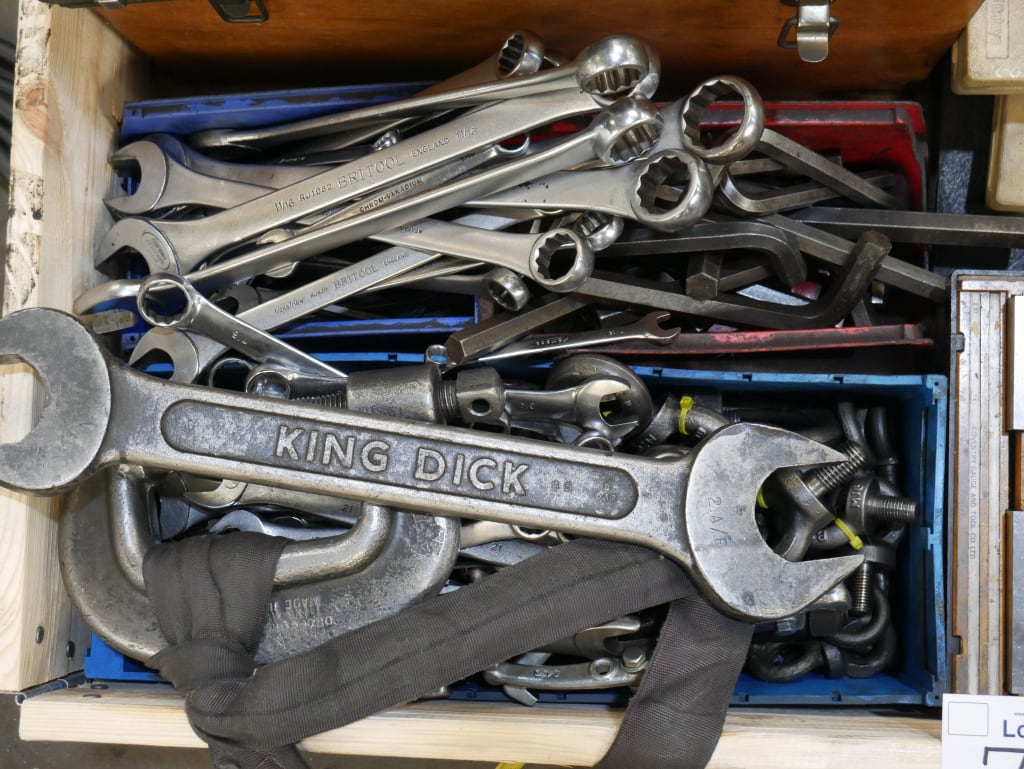

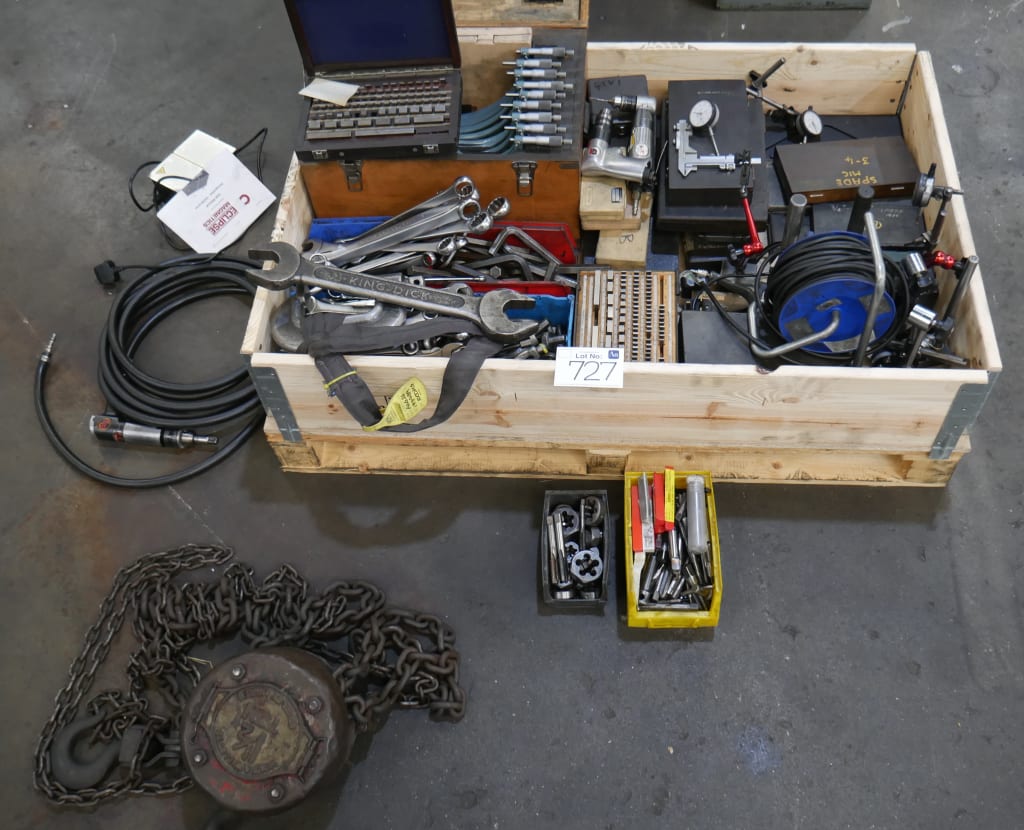

Pallet Full of Assorted Workshop Equipment Including 1.1/2 Tonne Pulley

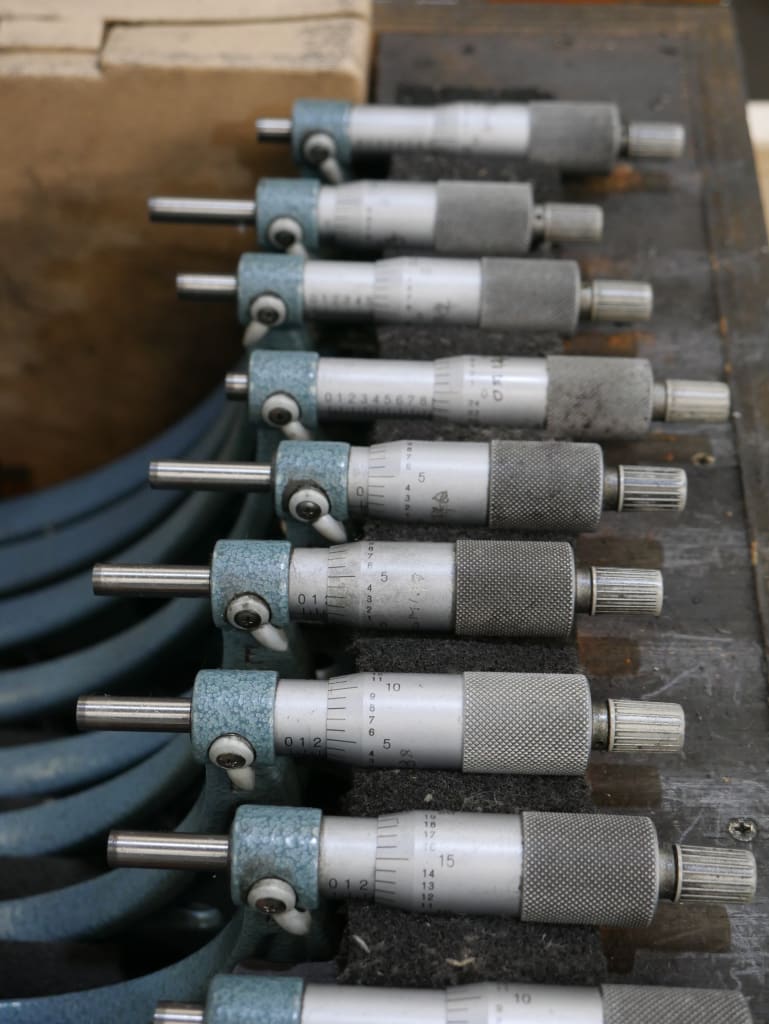

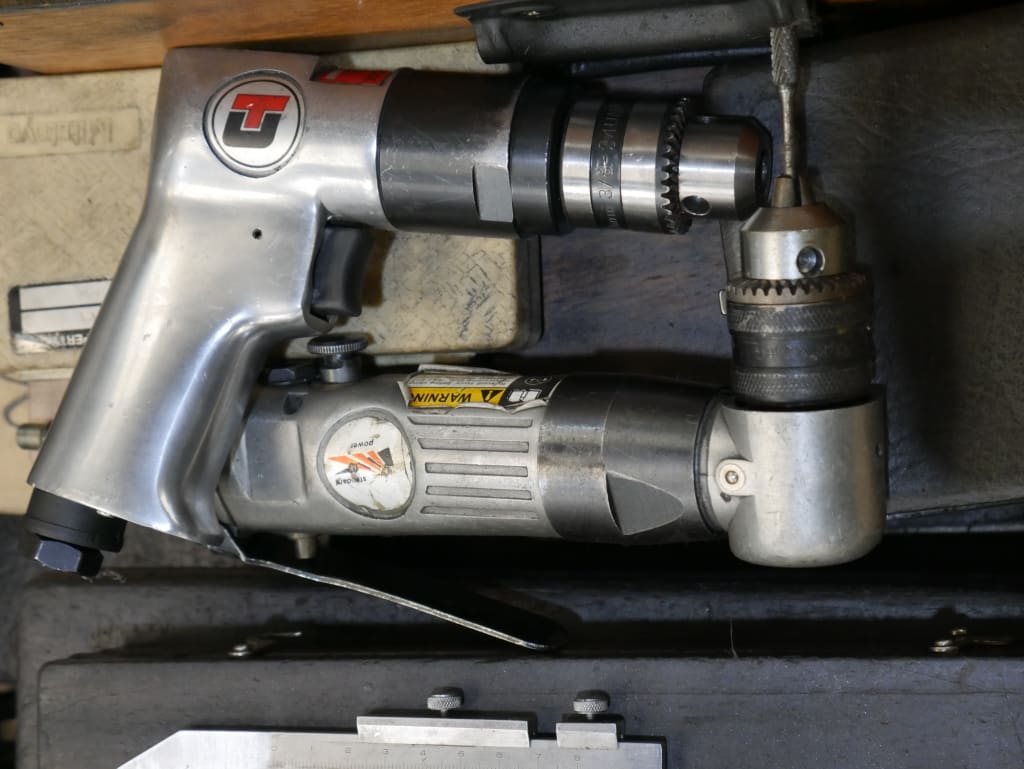

Imperial Micrometer Set. (2) Slip Gauges. Quantity of (3) Soft Jaws. Boxes Taps & Dies. Magnetic DTI Bases. Pneumatic Drill/Drivers. Hand Tools - LOT 728

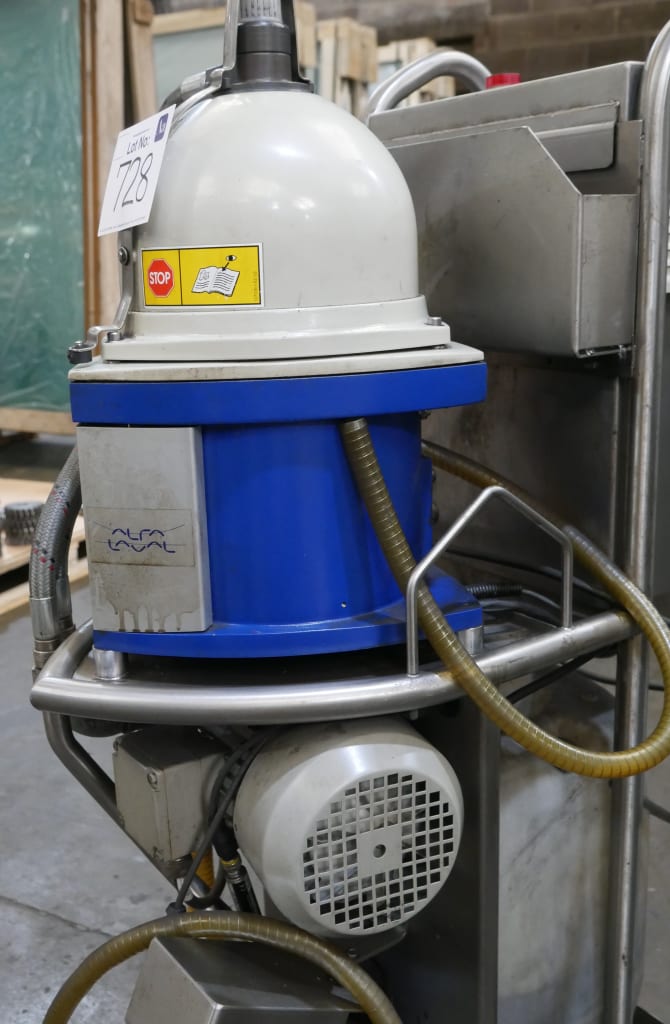

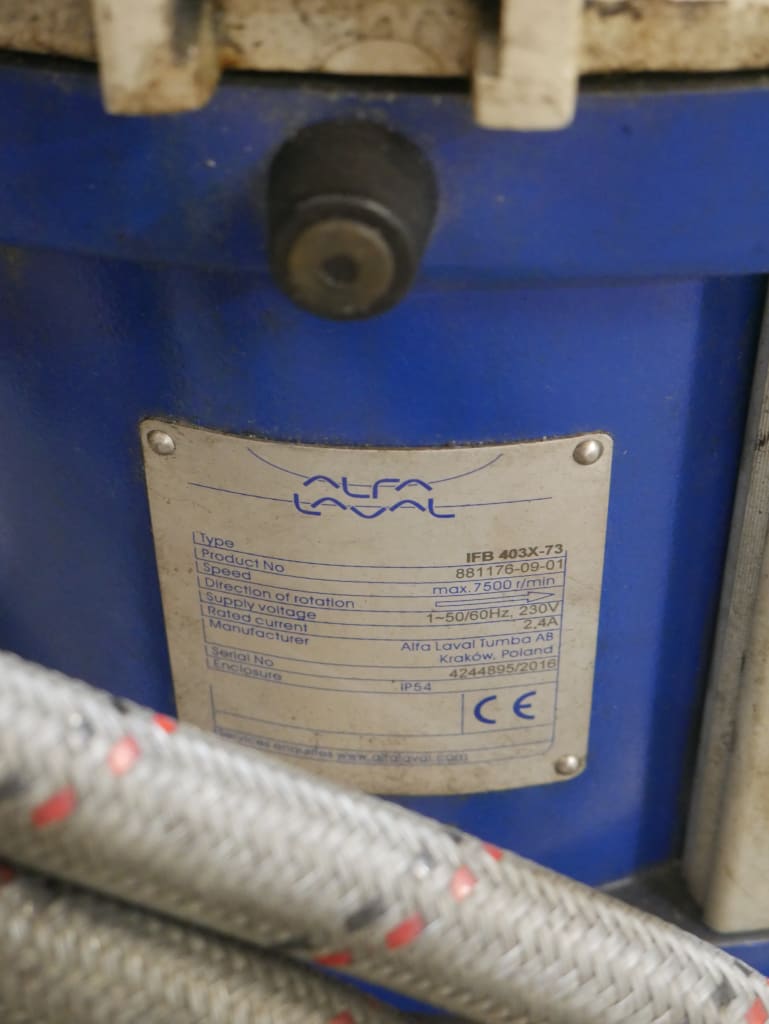

2016 Alfa Laval Lubriserve Alfie 500 IFB 403X-73 Mobile Centrifugal Coolant Filtering System
Handles Volumes upto 7,500 Gallons. S/No. 4244895 - LOT 729
- LOT 731
- LOT 732
