Major Aerospace - Variety of Mori Seiki Twin Pallet CNC Horizontal Milling Machines
Starts: 13 May 2025 at 09:00 BST
Ends: 22 October 2025 at 15:00 BST
Sale features Mori Seiki NH5000, Mori Seiki SH-503/40 and 4 x Mori Seiki SH-50 Twin Pallet CNC Horizontal Milling Machines. Please see the sale information section for any additional fees that may be applicable upon purchasing an item. NOTE: Vendor to approve all closing bids prior to Apex final invoicing.
Share:
Showing 10 of 10 lots
- LOT 1

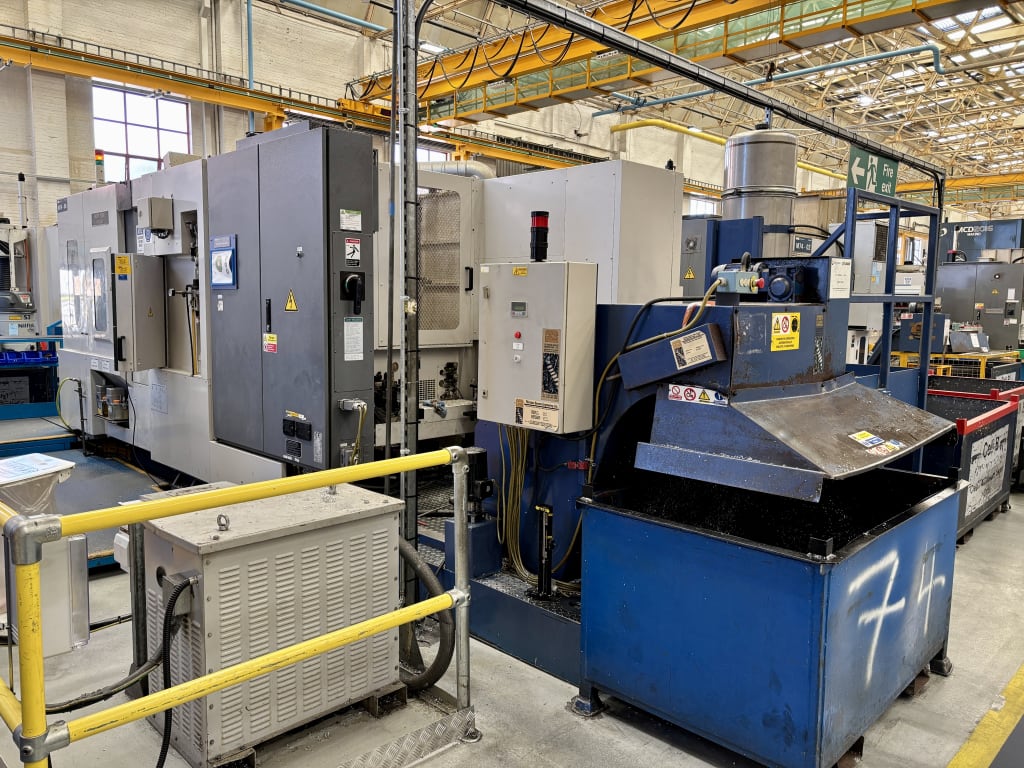

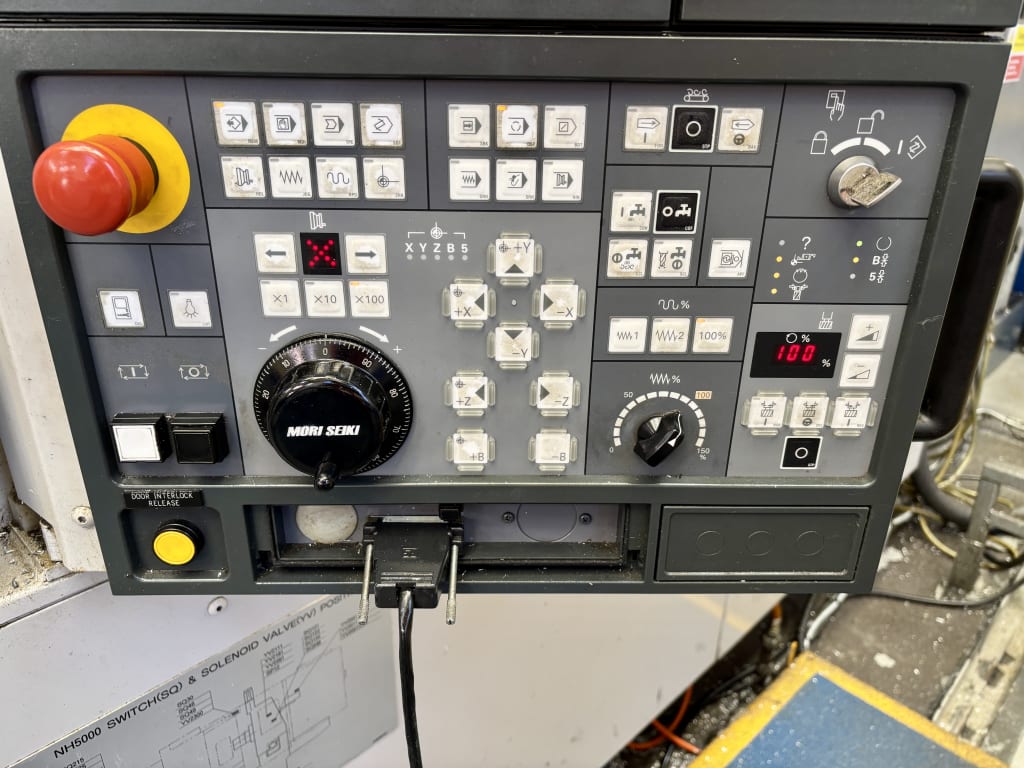

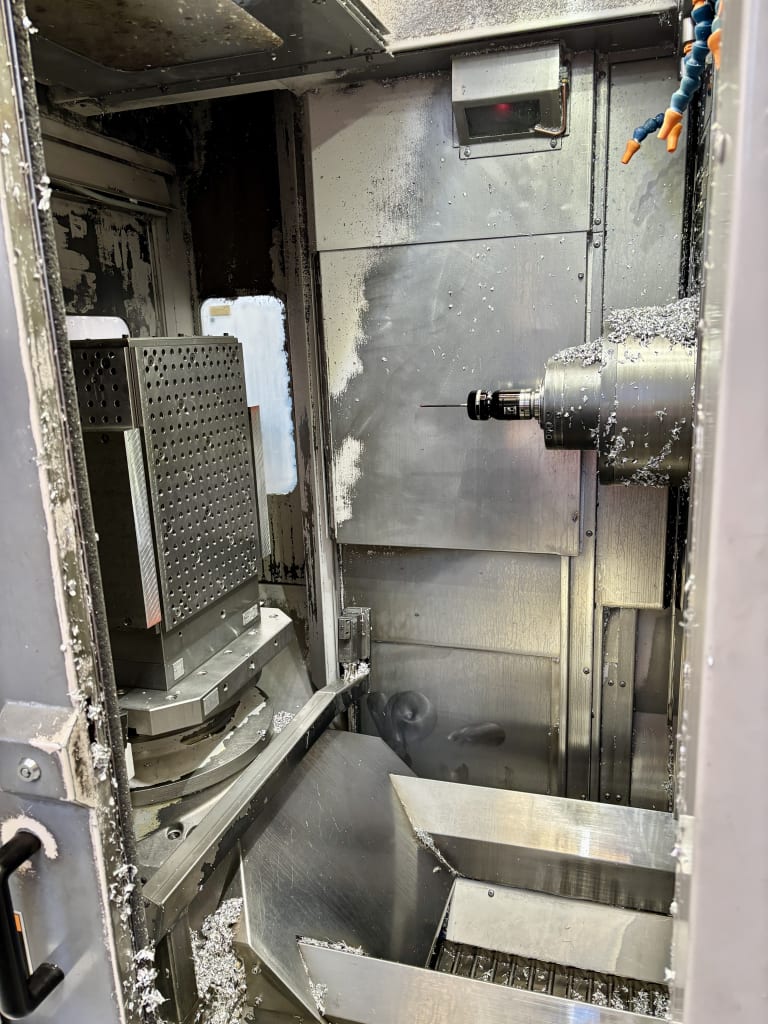

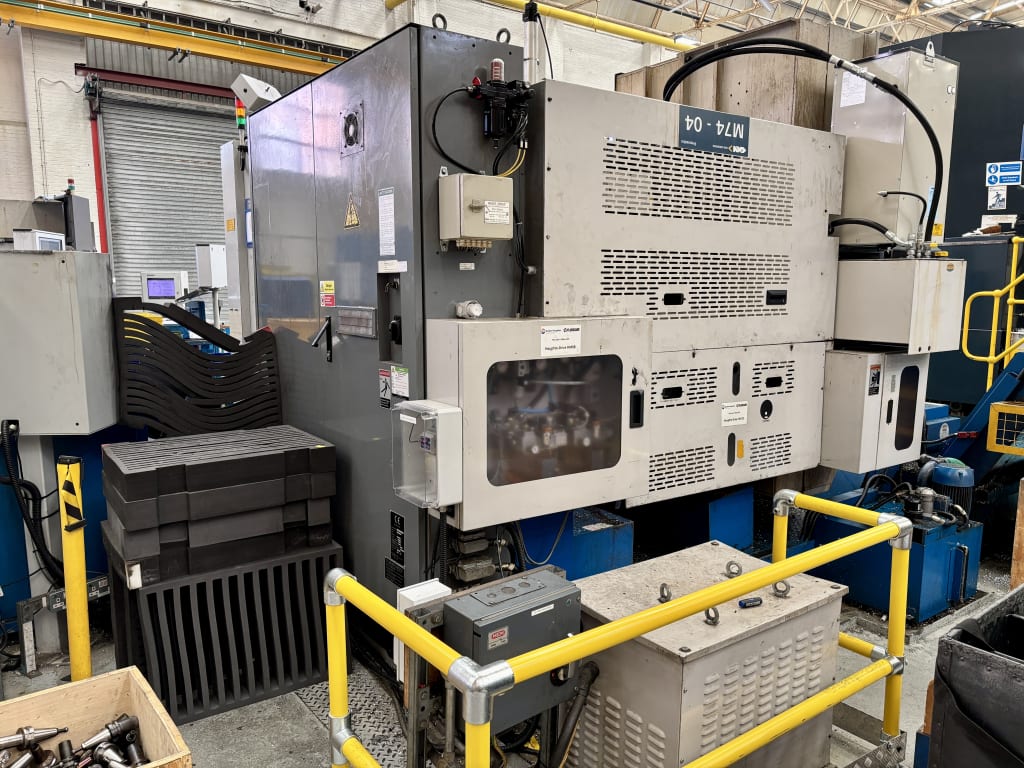

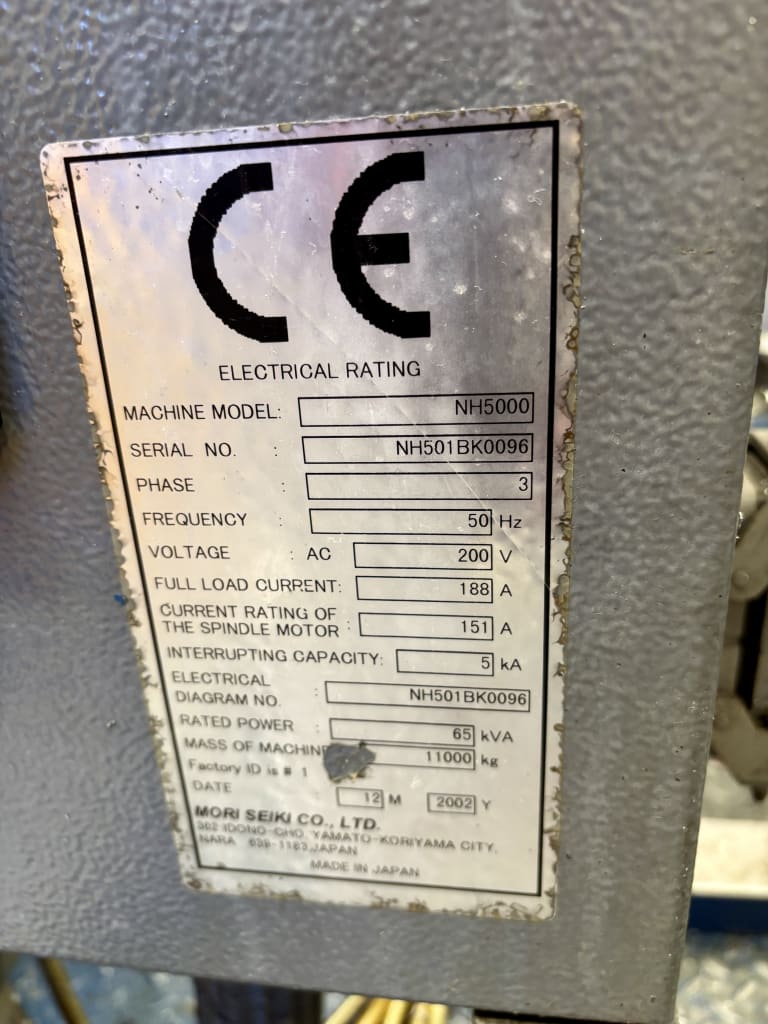

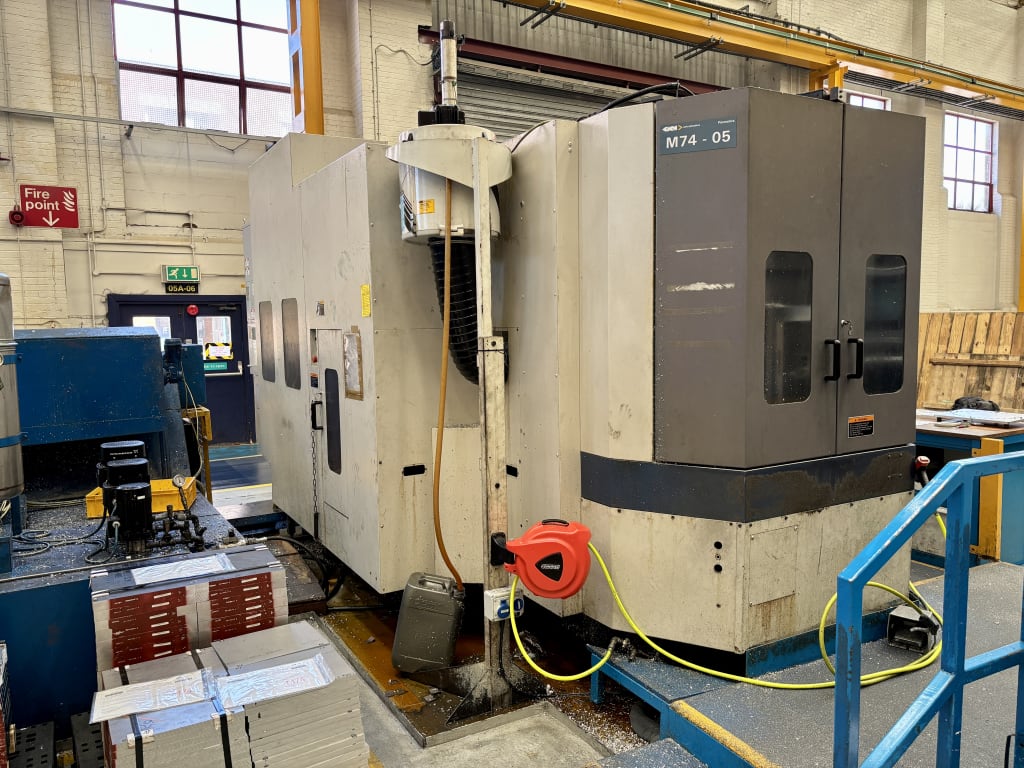

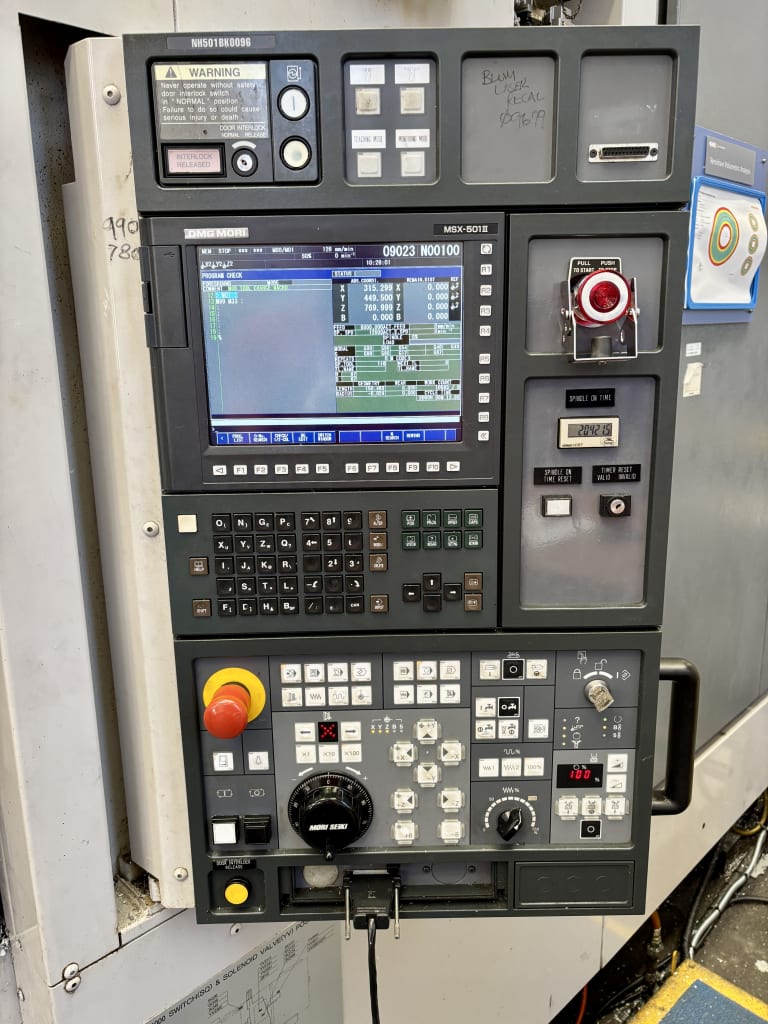

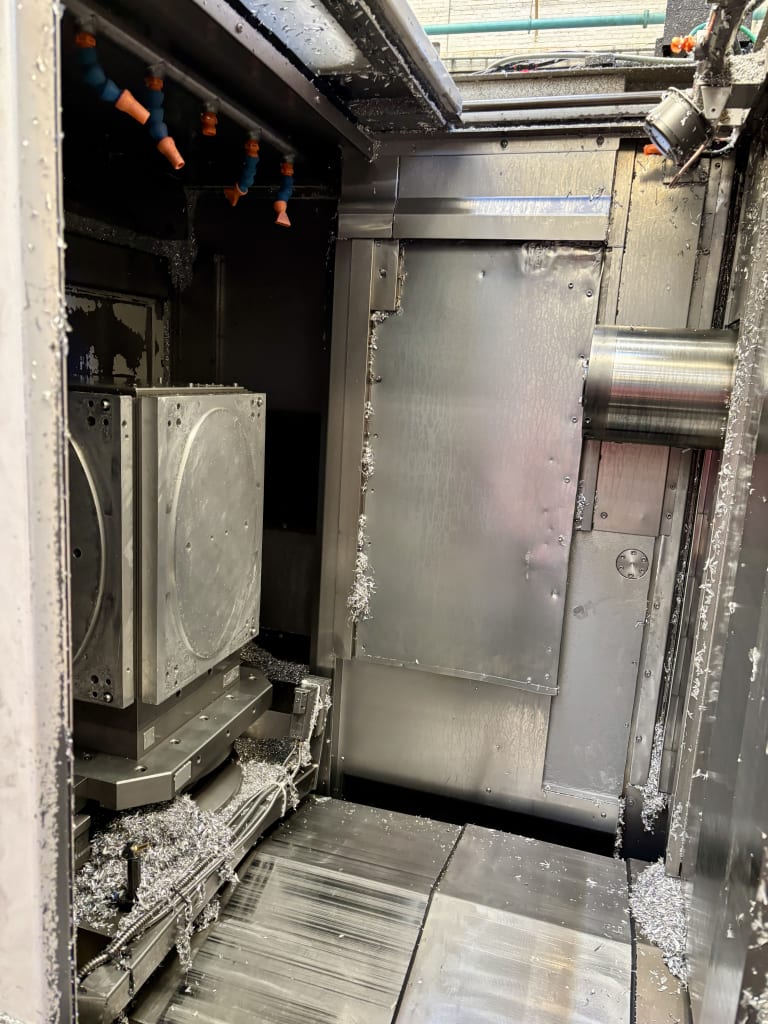

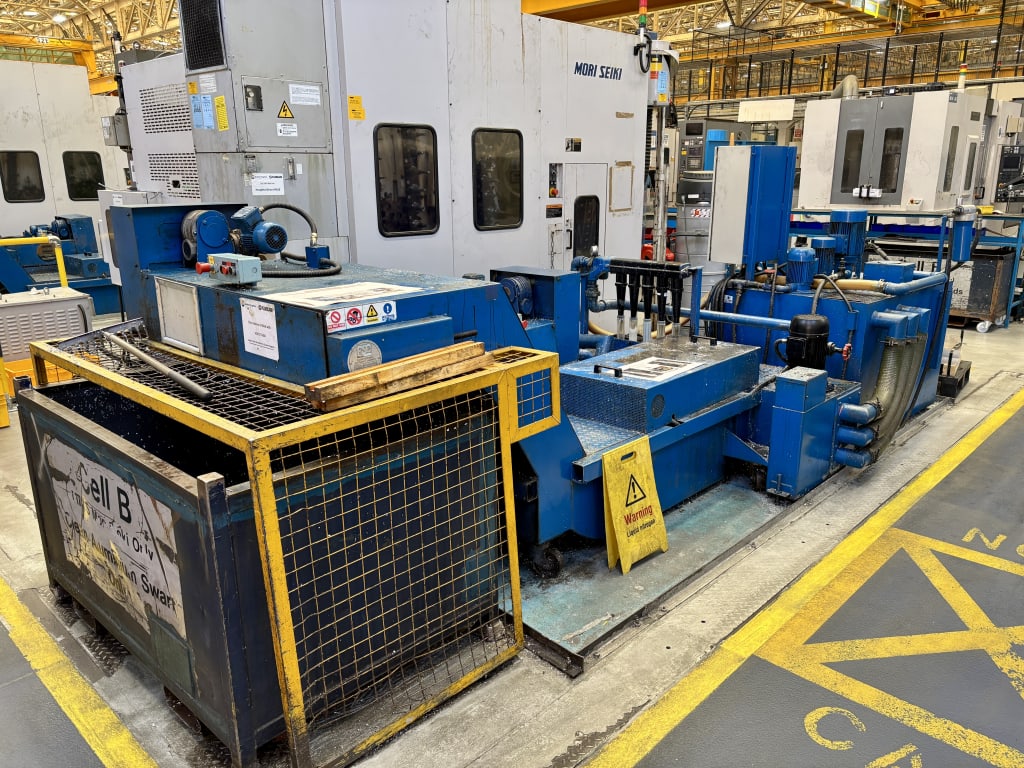

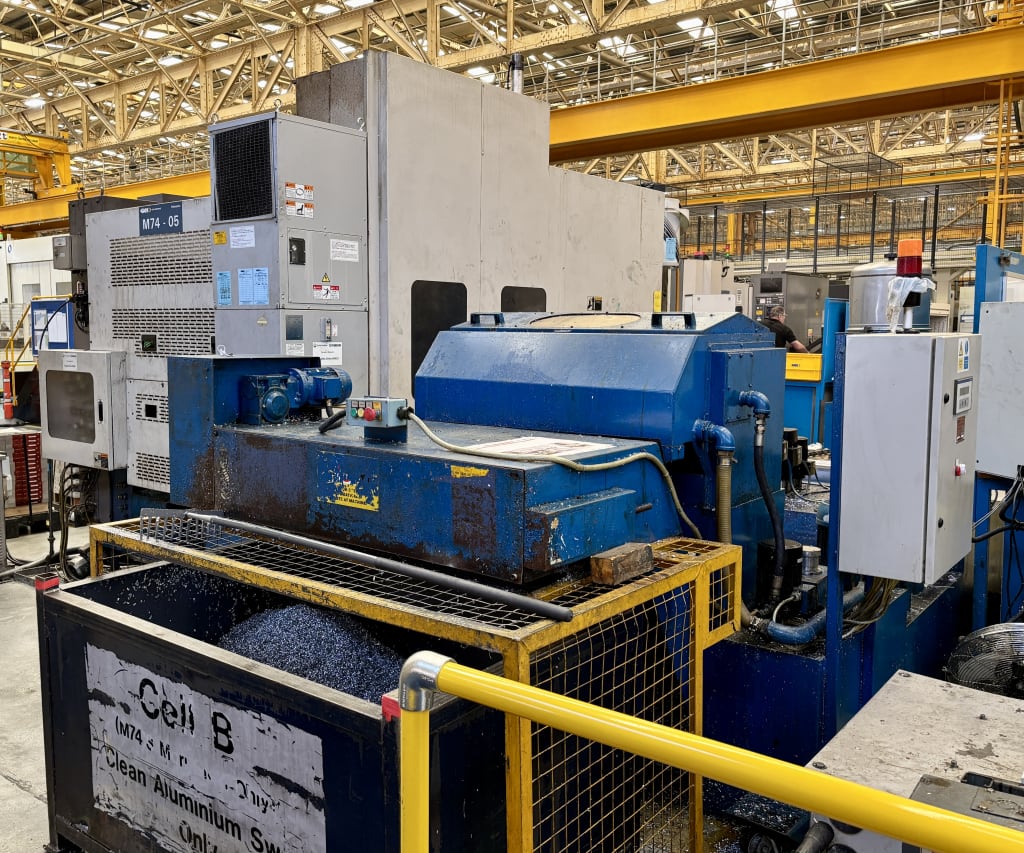

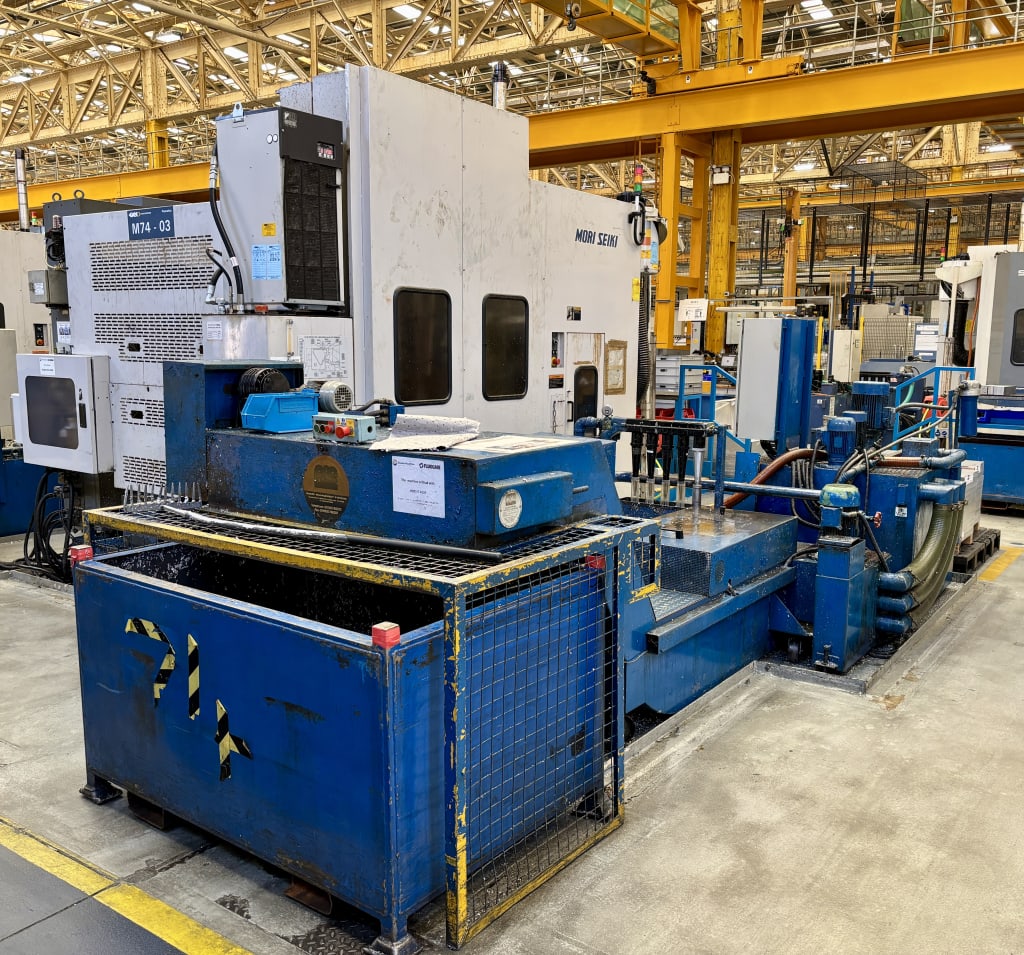

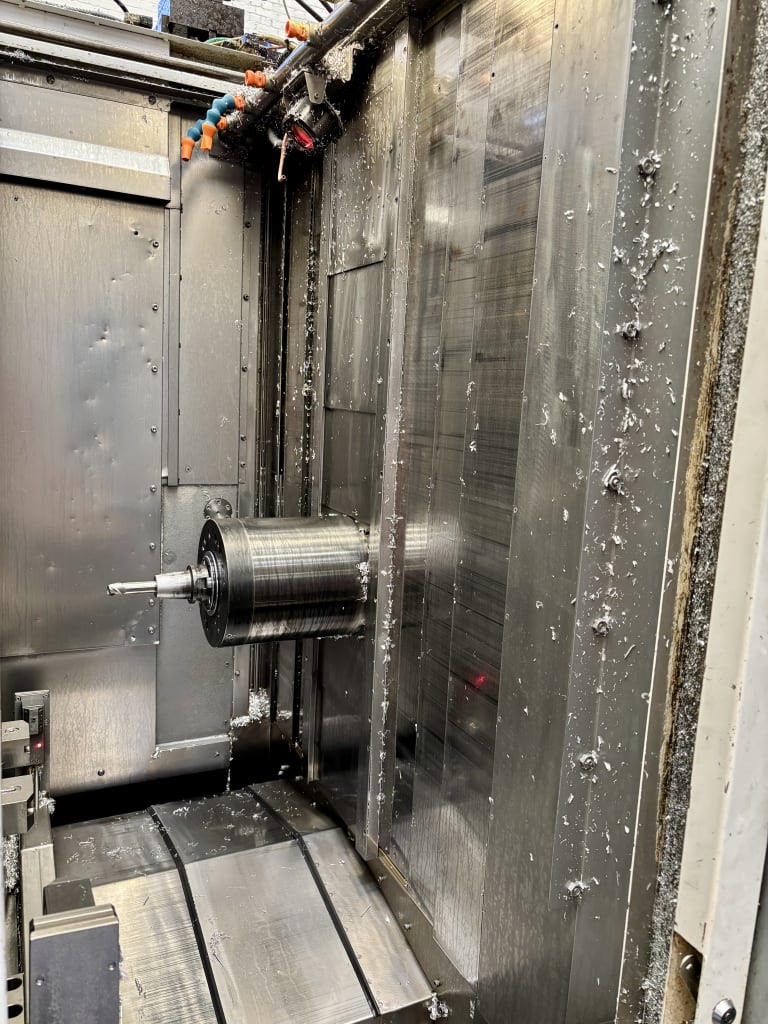

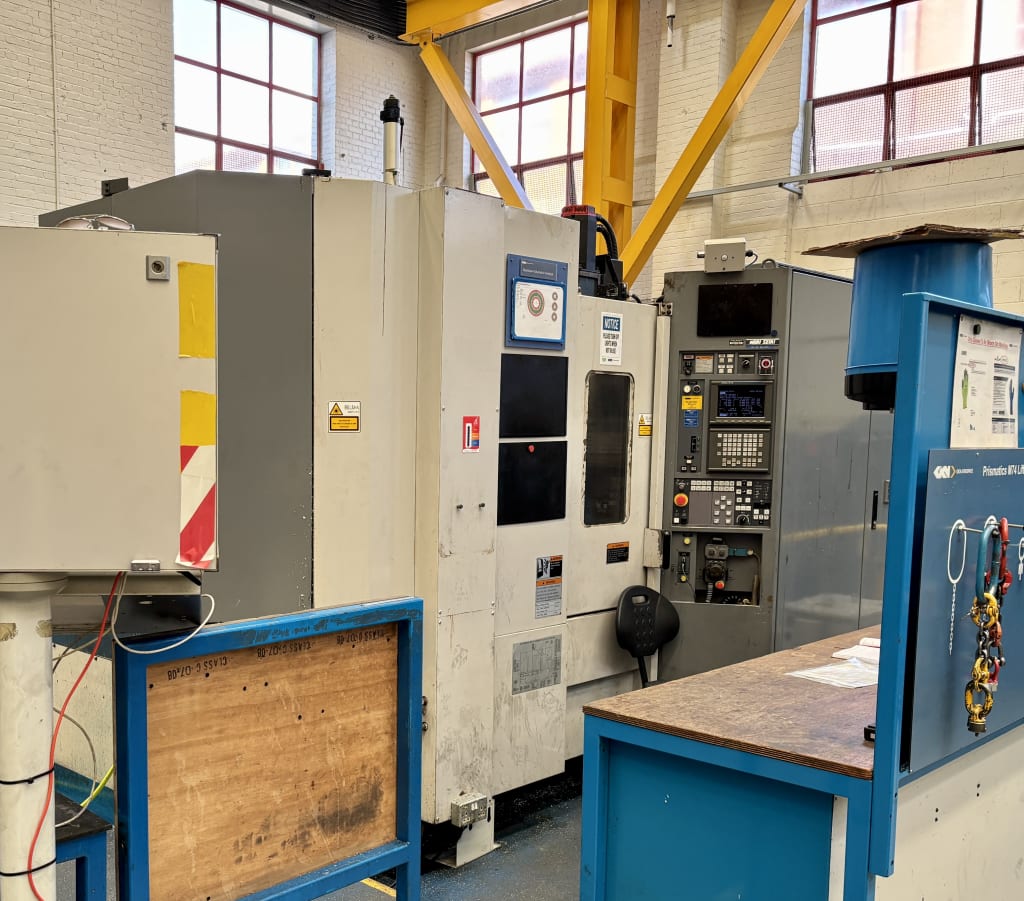

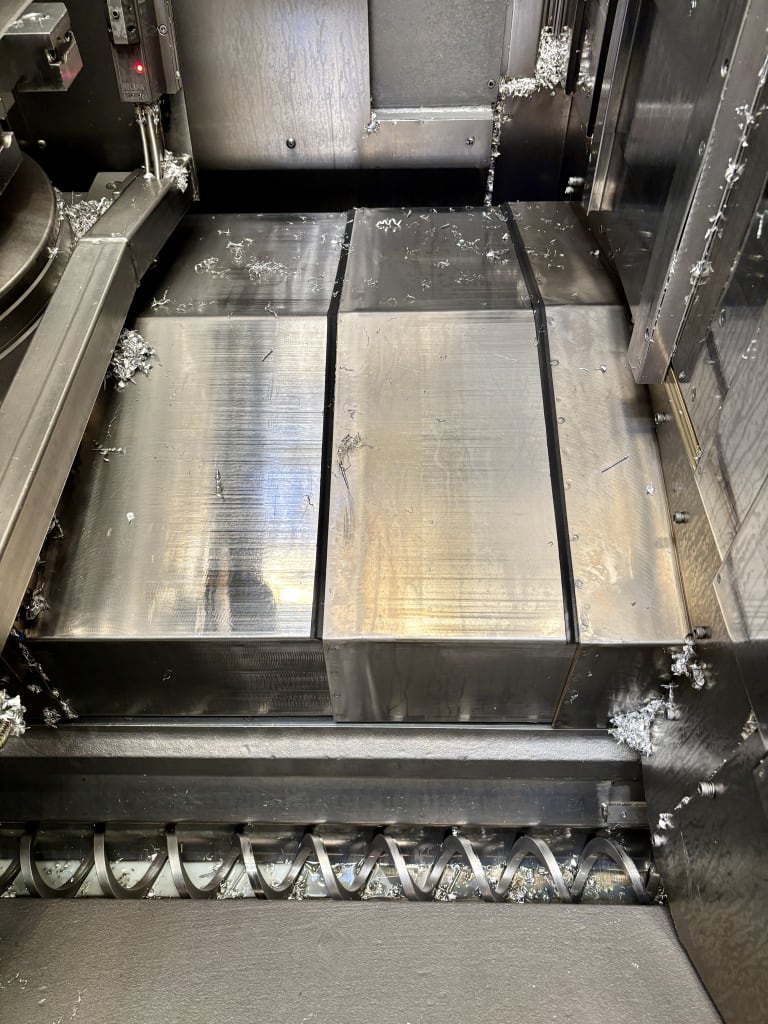

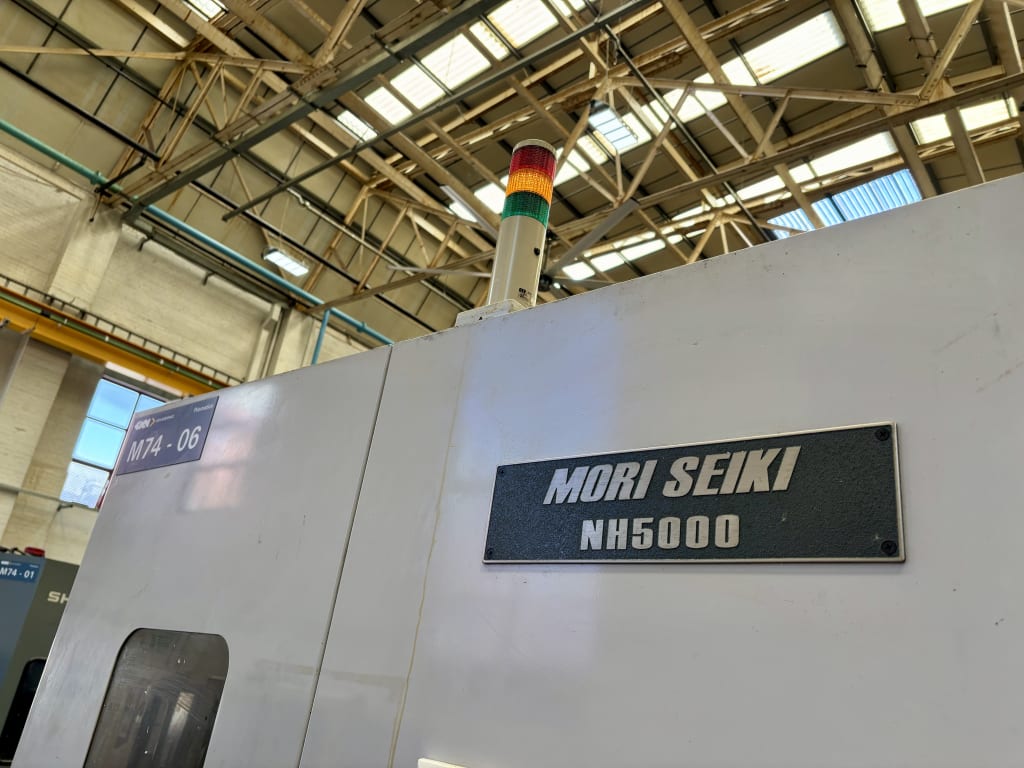

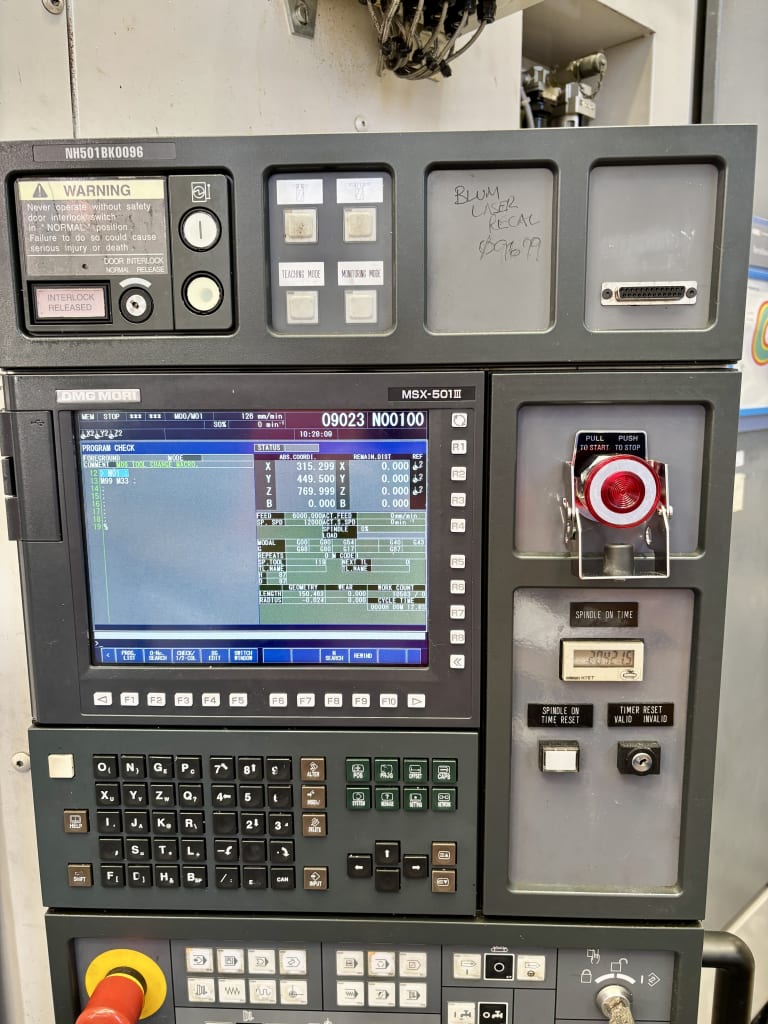

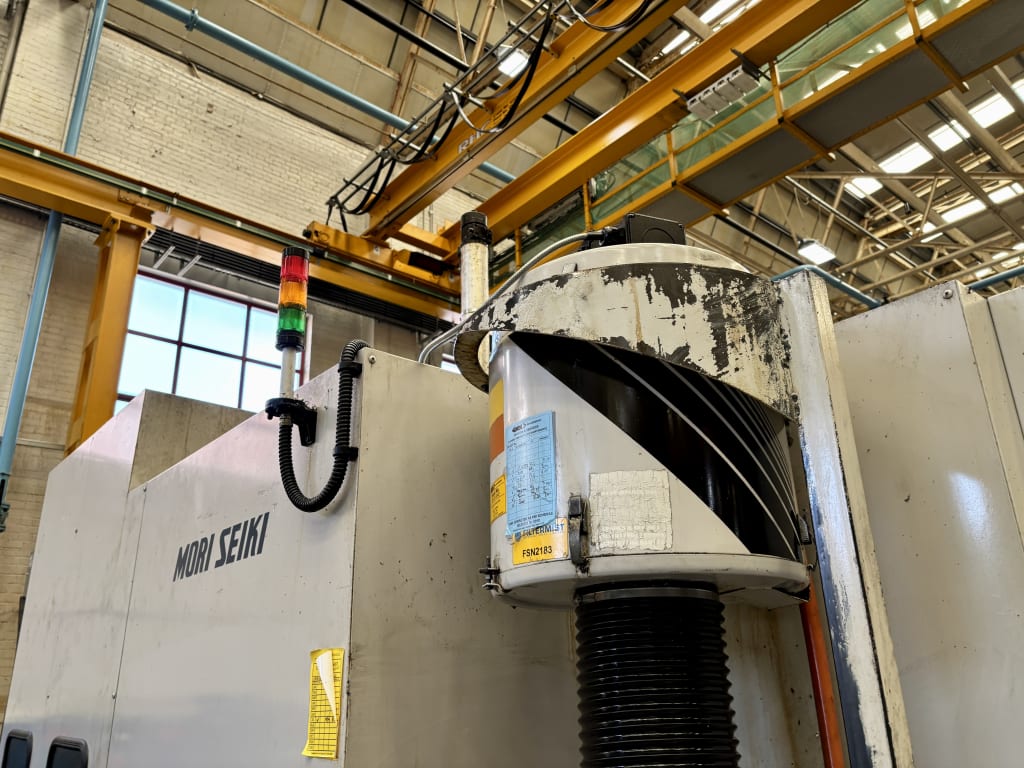

Mori Seiki NH5000 Twin Pallet CNC Horizontal Milling Machine With Mori Seiki MSX-501III Control

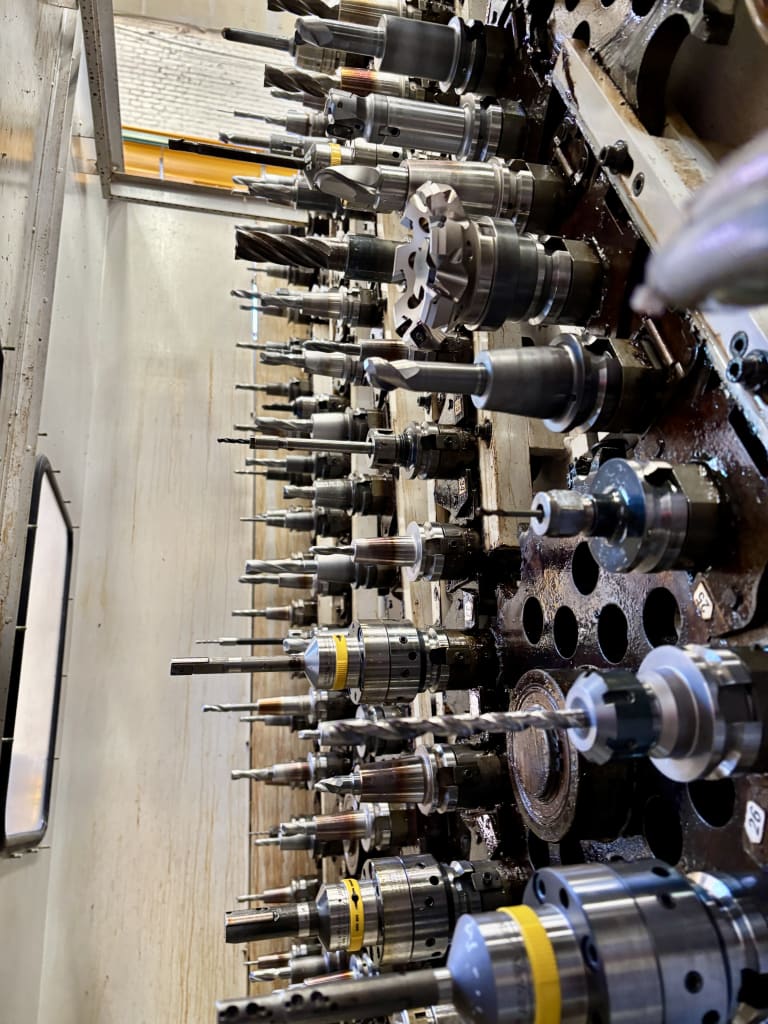

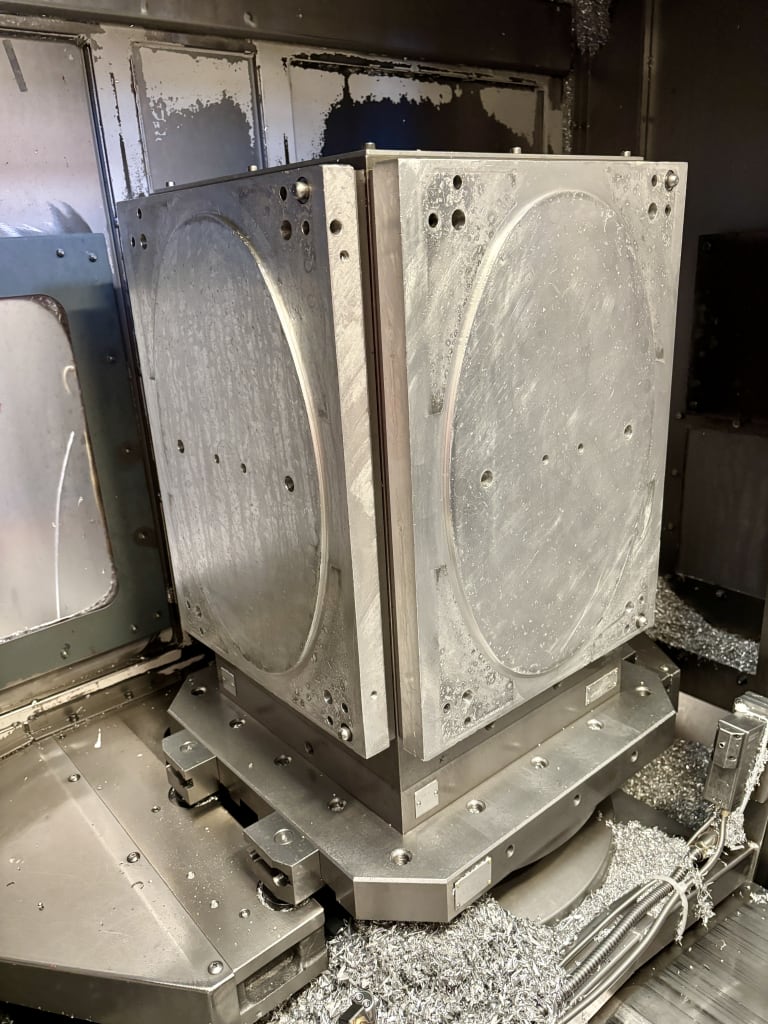

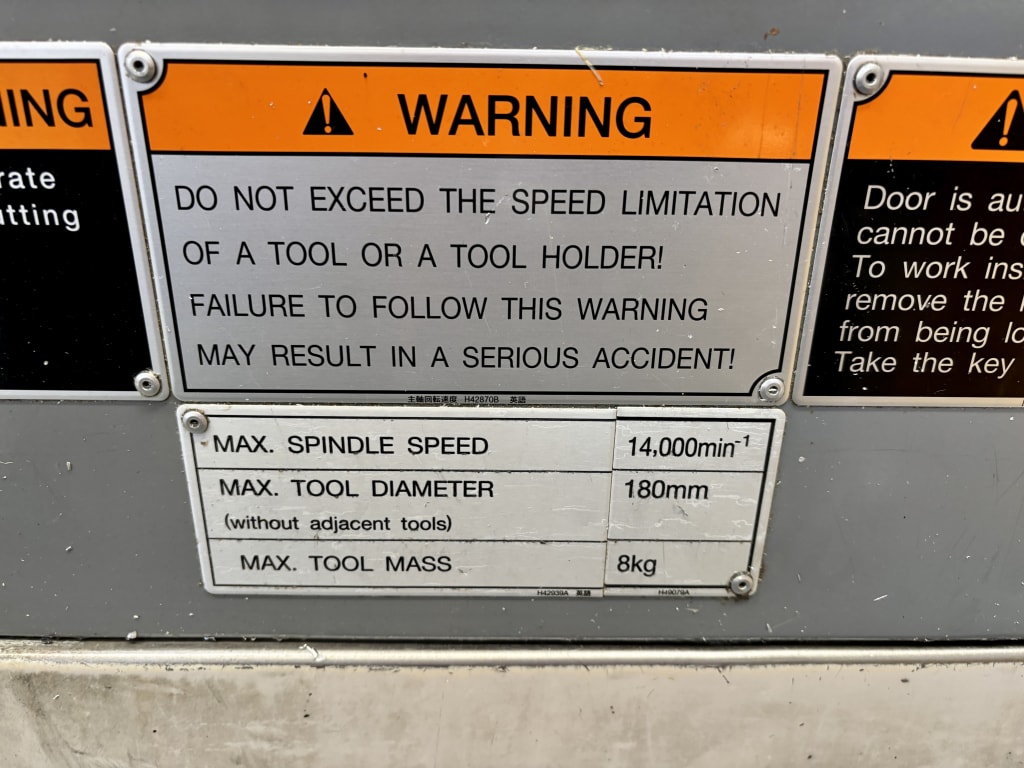

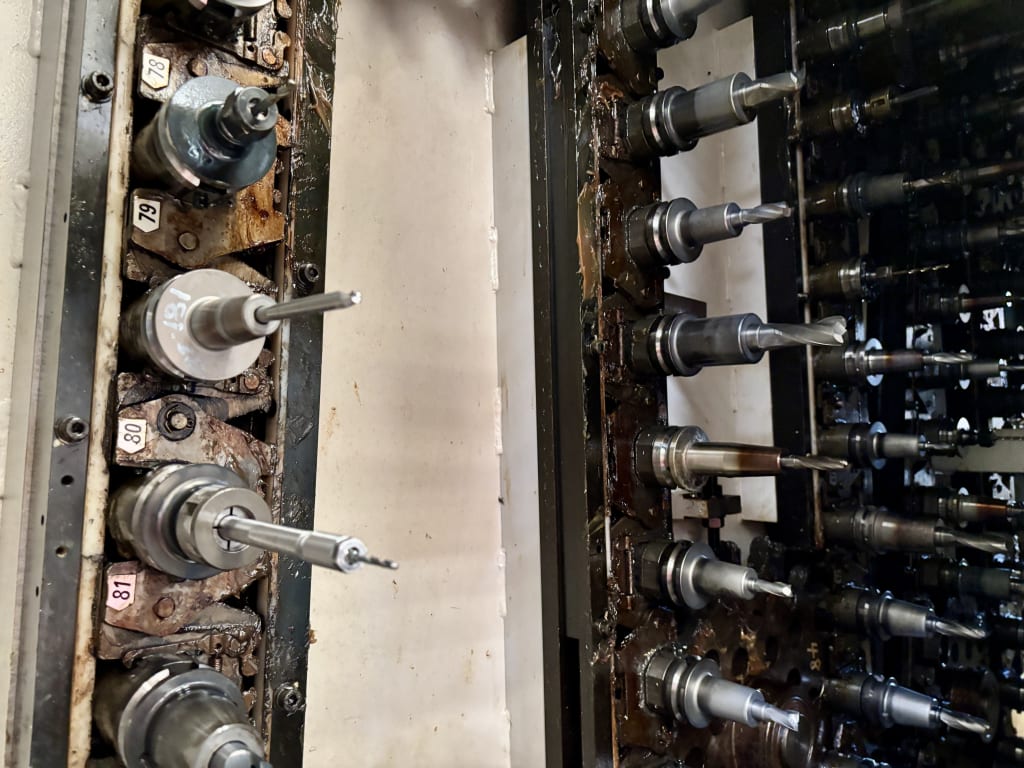

Pallet Dimension 500 x 500mm. Maximum Table Load 500kg. Maximum Workpiece Dimension ø800×1.000mm. Axis Travel X'=630mm, 'Y'=600mm, 'Z'=670mm, 'B'=1° Increment. Rapid Traverse 'X,Y,Z'=50m/min. Spindle Taper BT40. Maximum Spindle Speed 14,000rpm (18.5kW Motor). 120 Position ATC. Maximum Tool Ø180mm (Without Adjacent Tools), Maximum Length 400mm, Maximum Tool Weight 8kg. S/No. NH501BK0096 (2002). - LOT 2

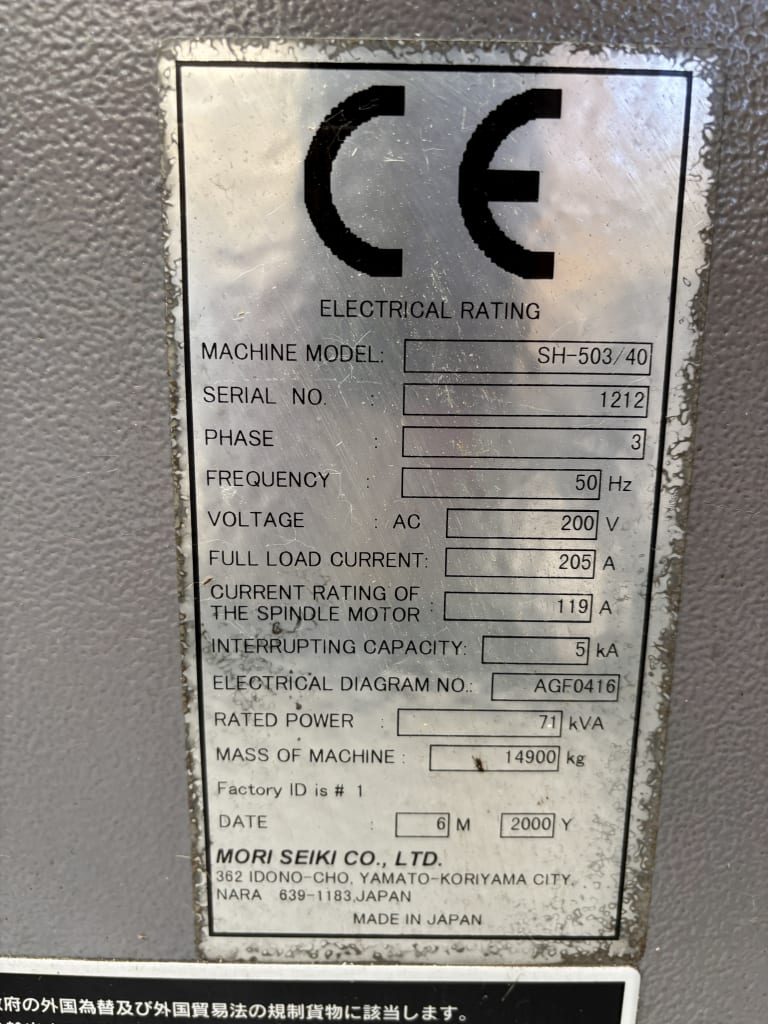

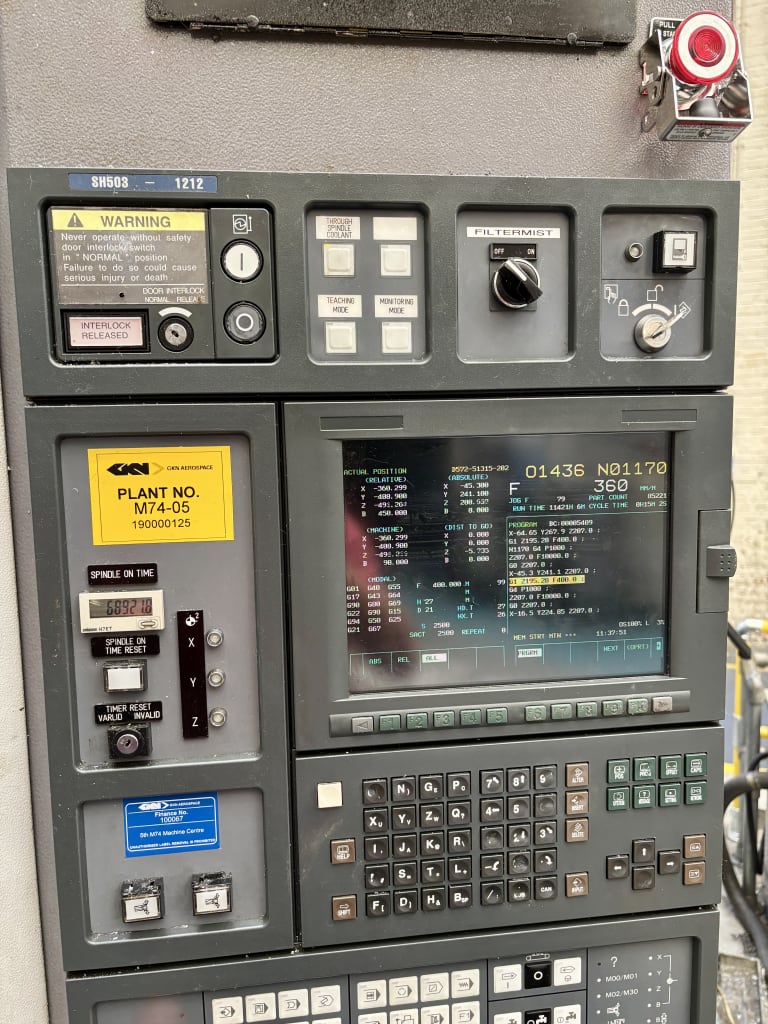

Mori Seiki SH-503/40 Twin Pallet CNC Horizontal Milling Machine With Mori Seiki MSX-502III Control
Pallet Dimension 500 x 500mm. Maximum Table Load 1,000kg. Axis Travel X'=630mm, 'Y'=600mm, 'Z'=650mm, 'B'=1° Increment. Rapid Traverse 'X,Y,Z'=32m/min. Spindle Taper BT40. Maximum Spindle Speed 12,000rpm (22kW Motor). 120 Position ATC. Maximum Tool Ø150mm (Without Adjacent Tools), Maximum Length 360mm, Maximum Tool Weight 12kg. S/No. 1212 (2000). - LOT 3

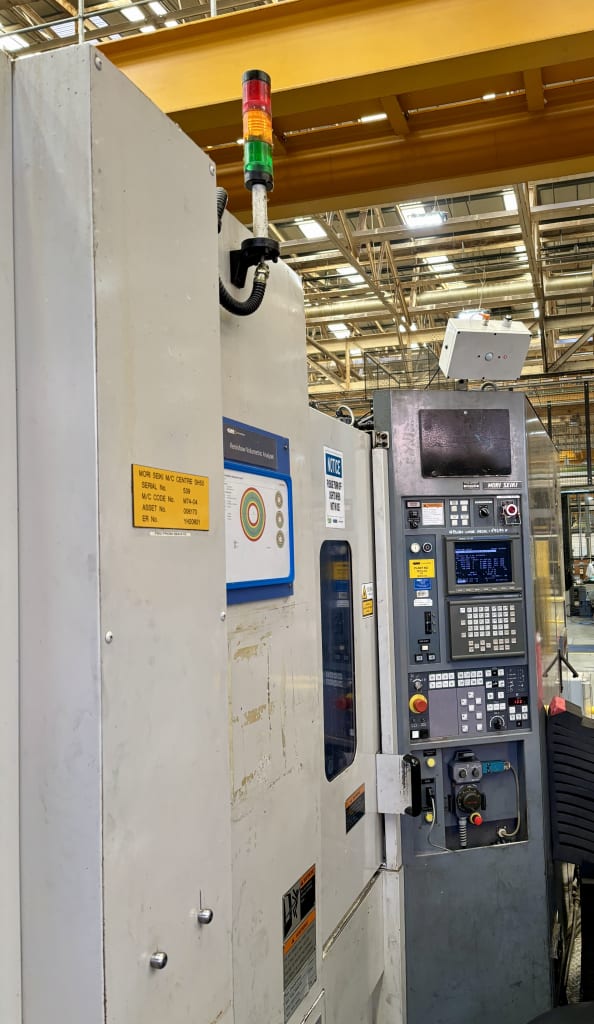

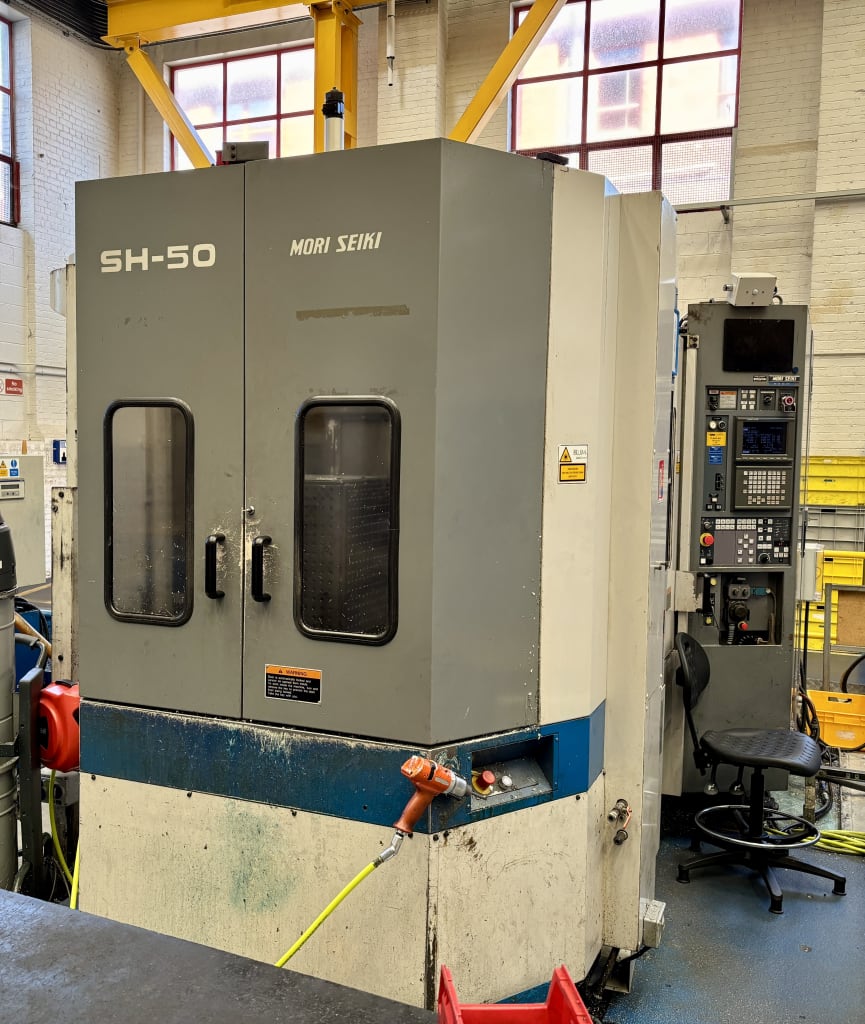

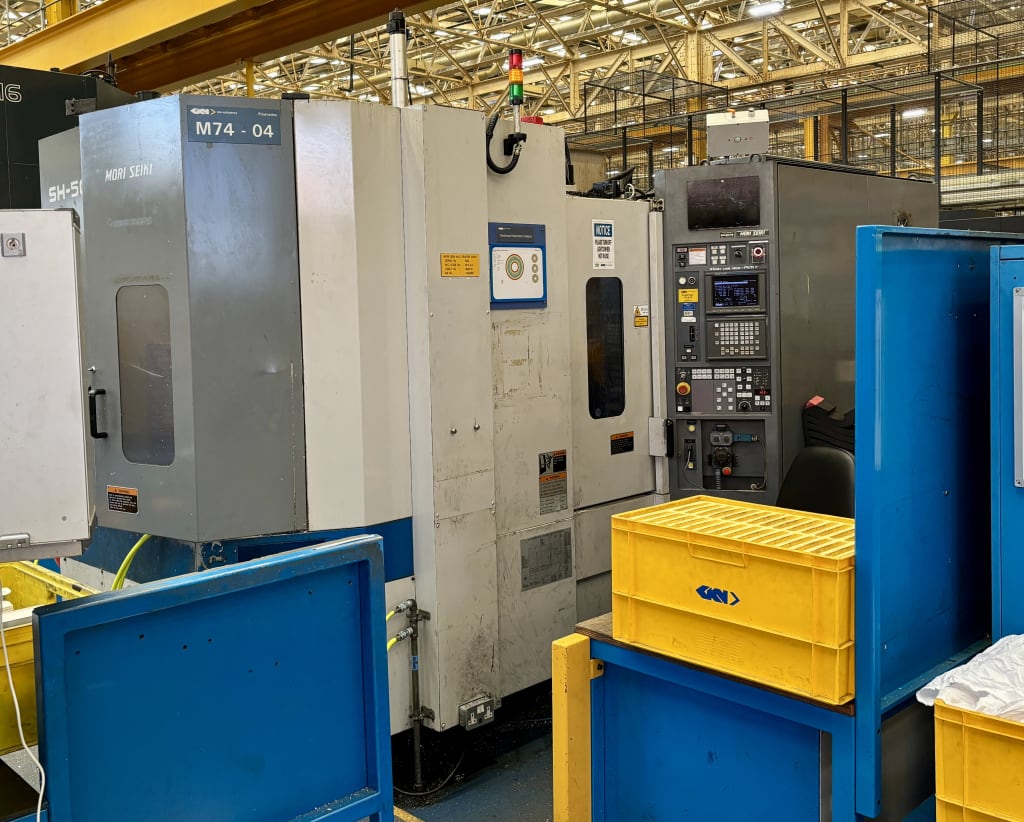

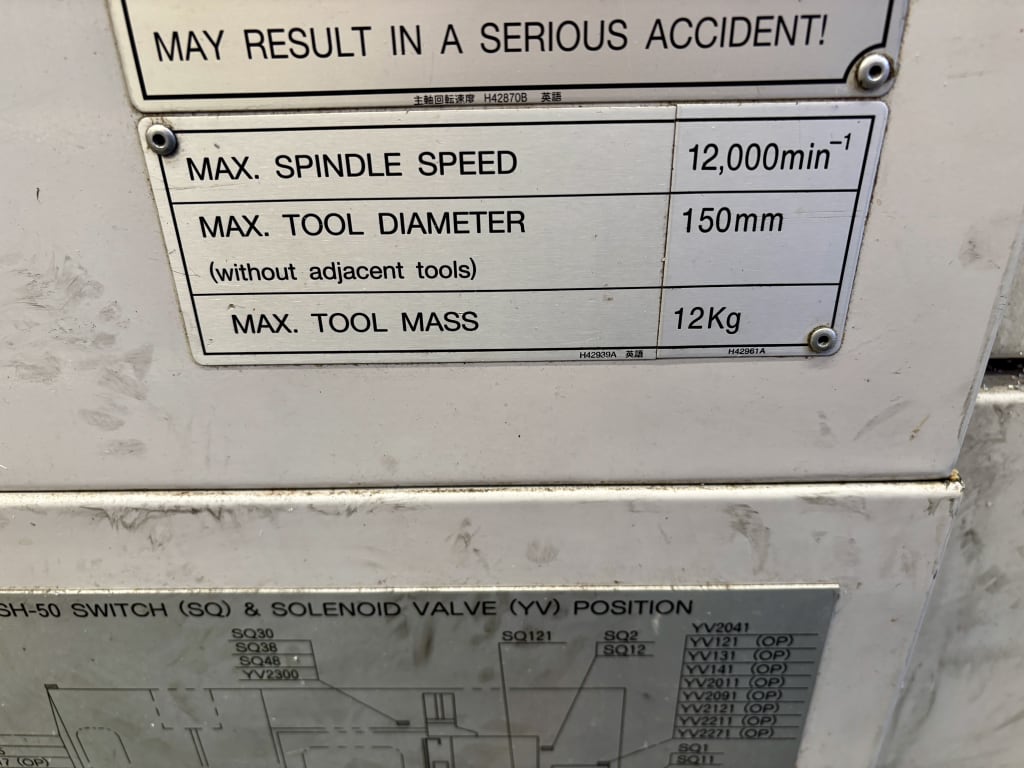

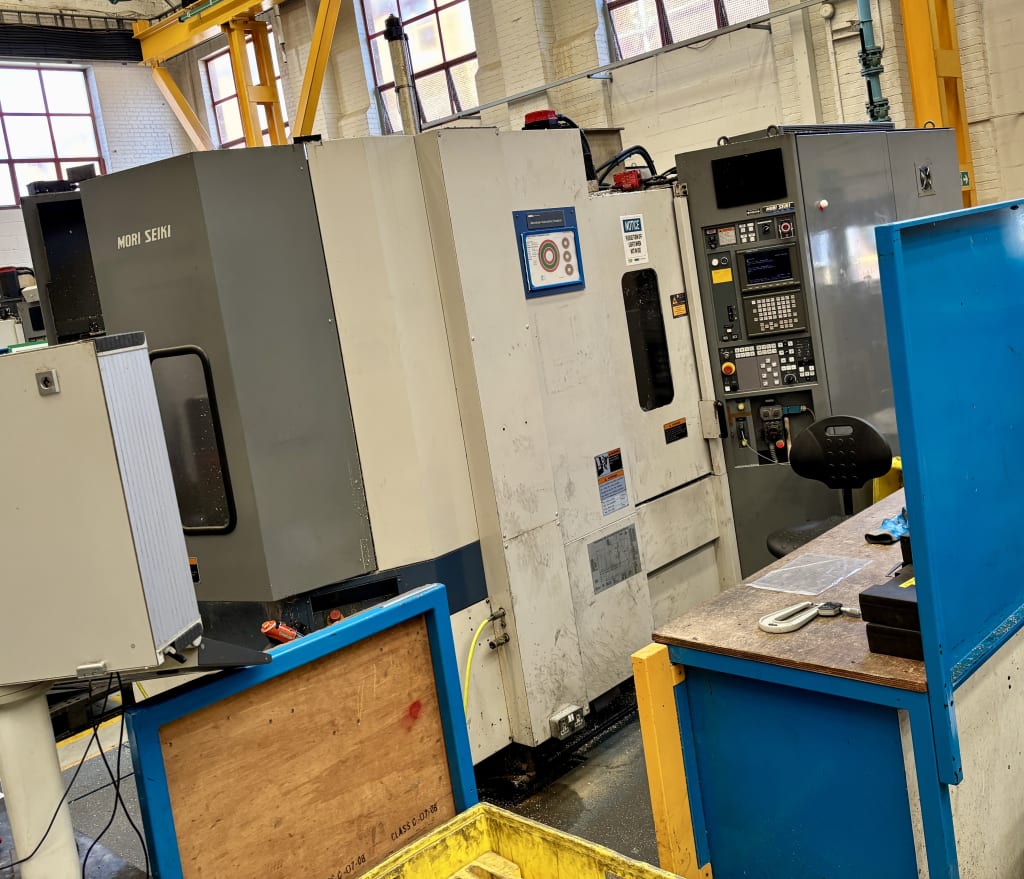

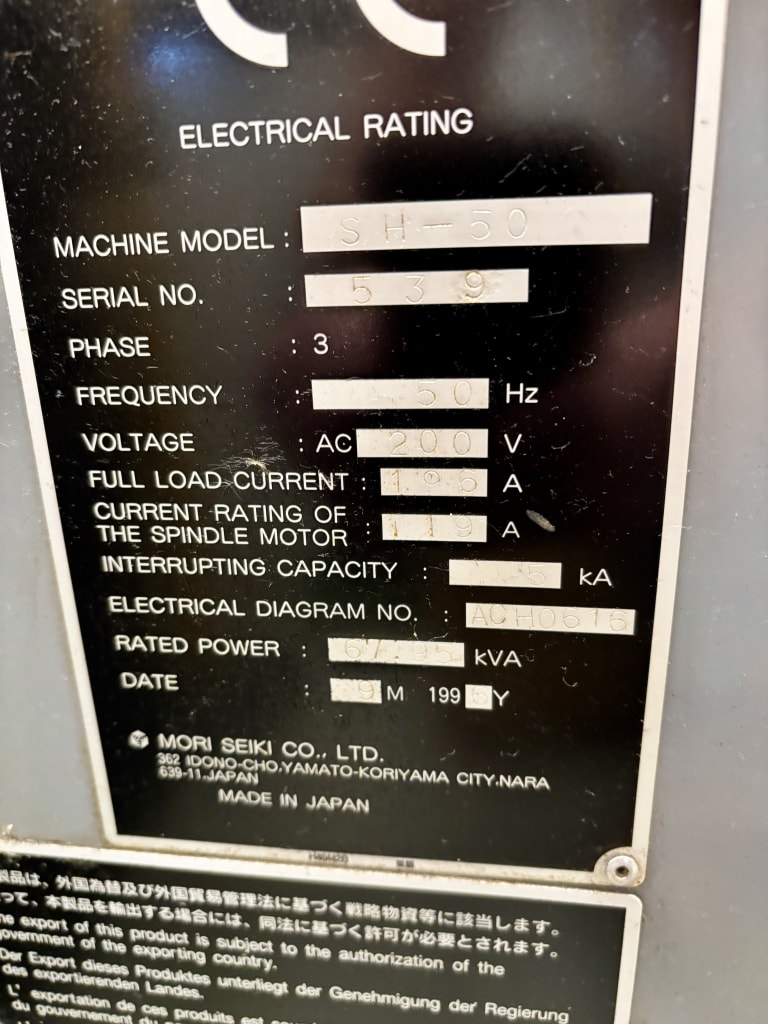

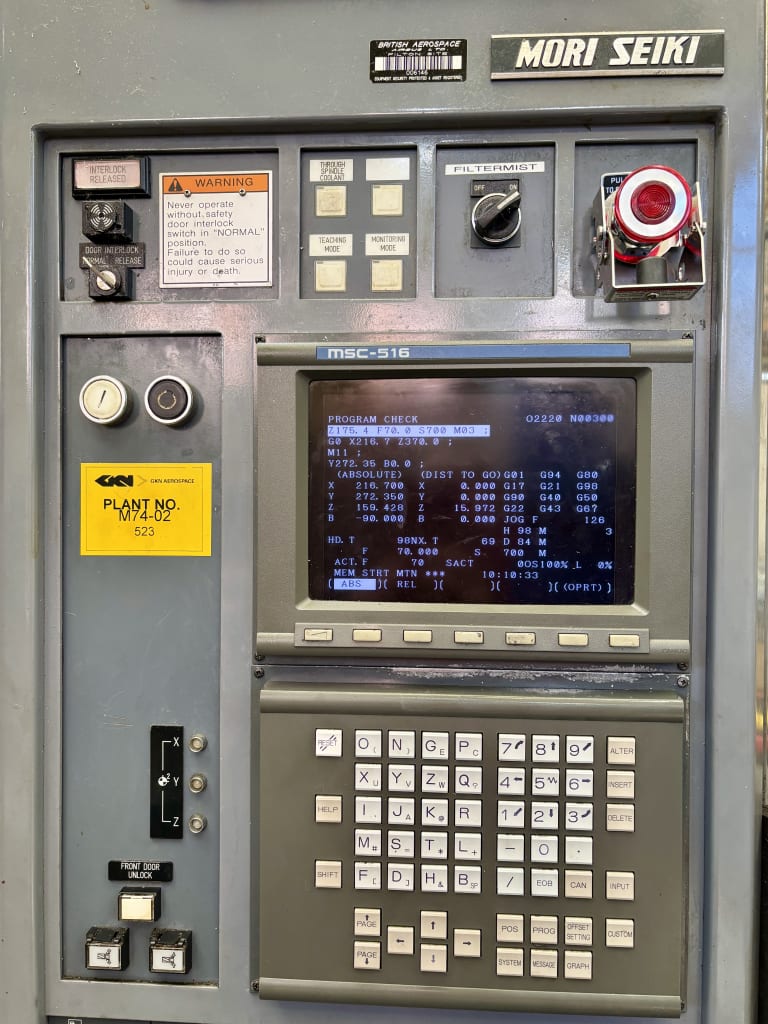

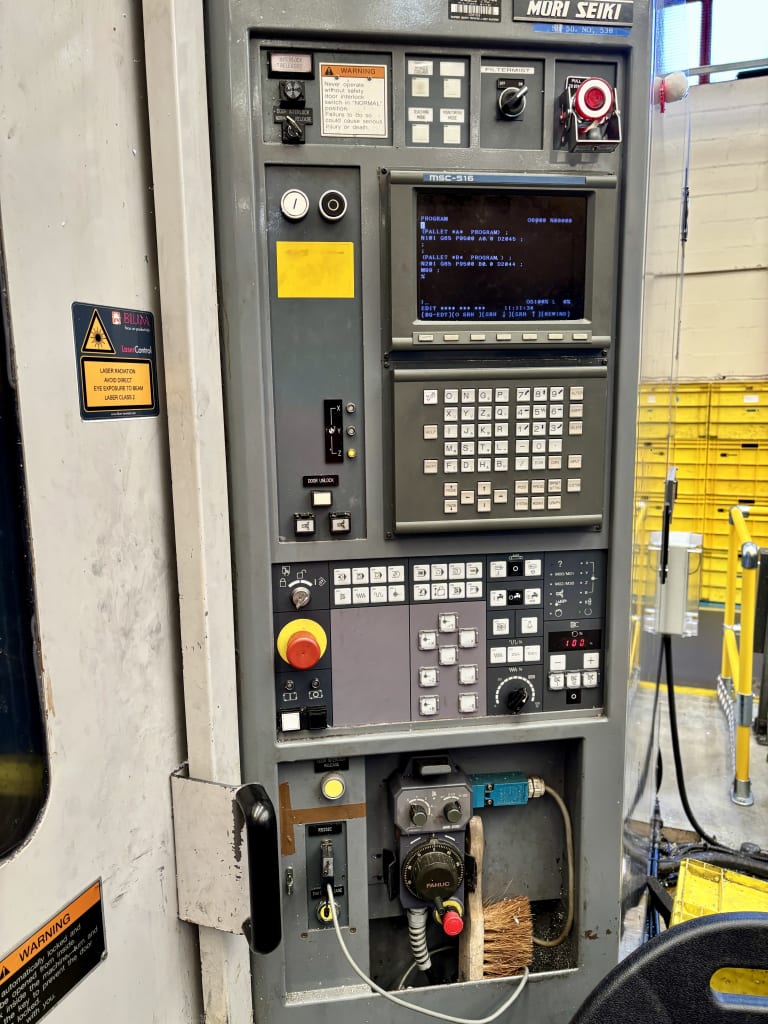

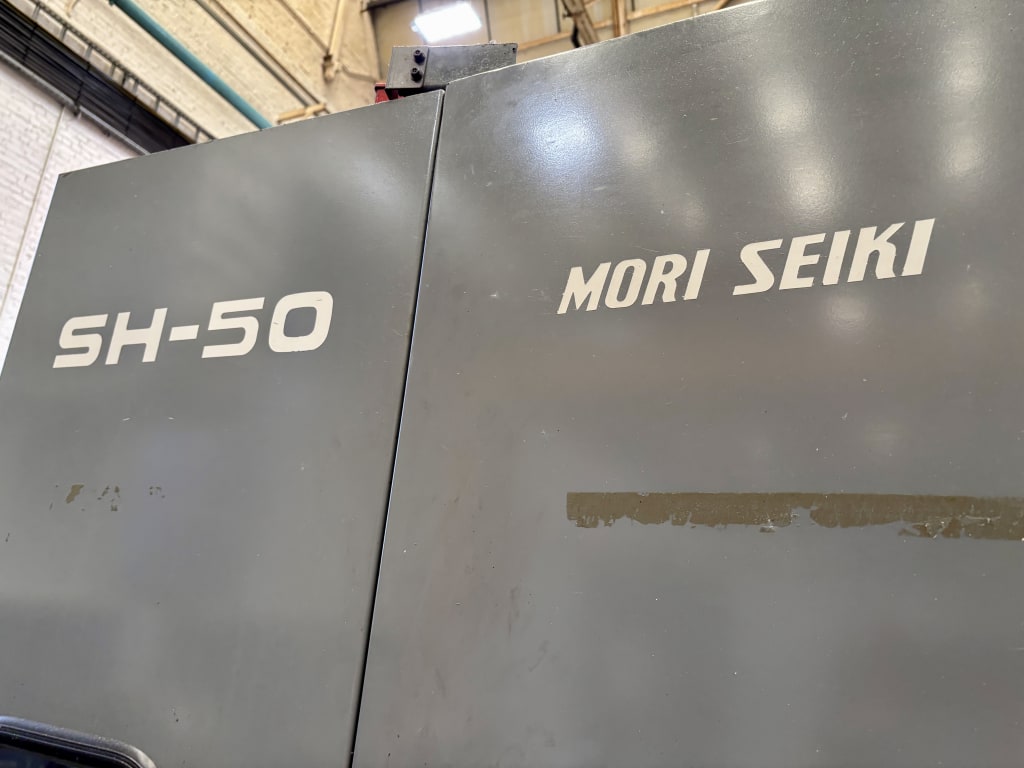

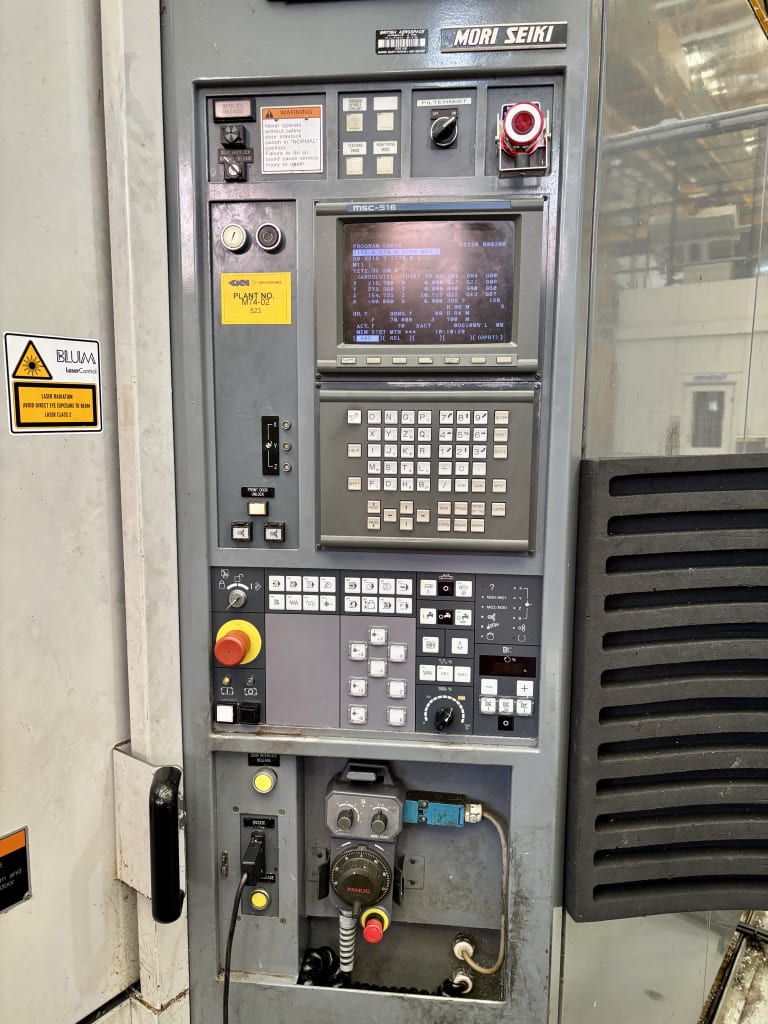

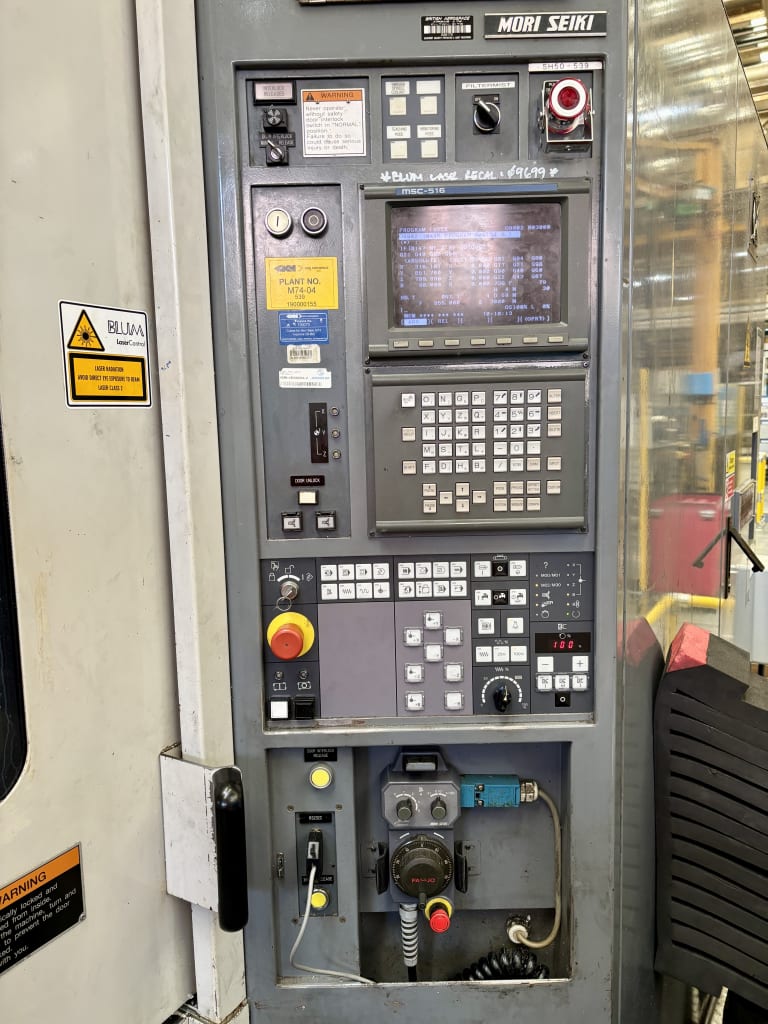

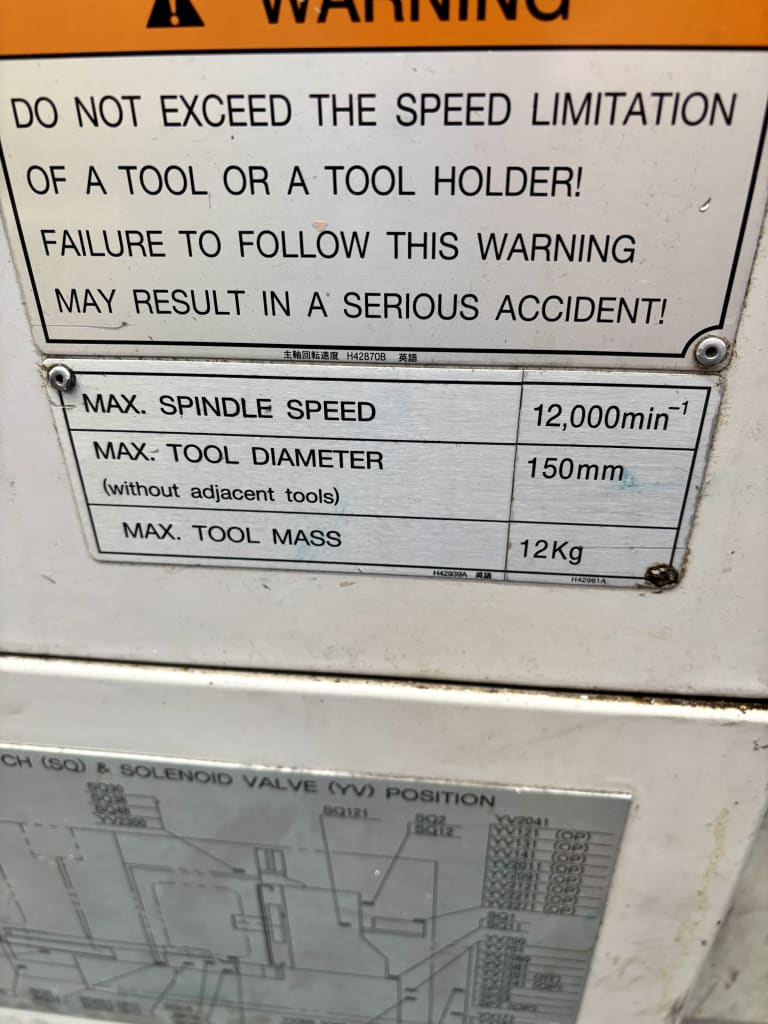

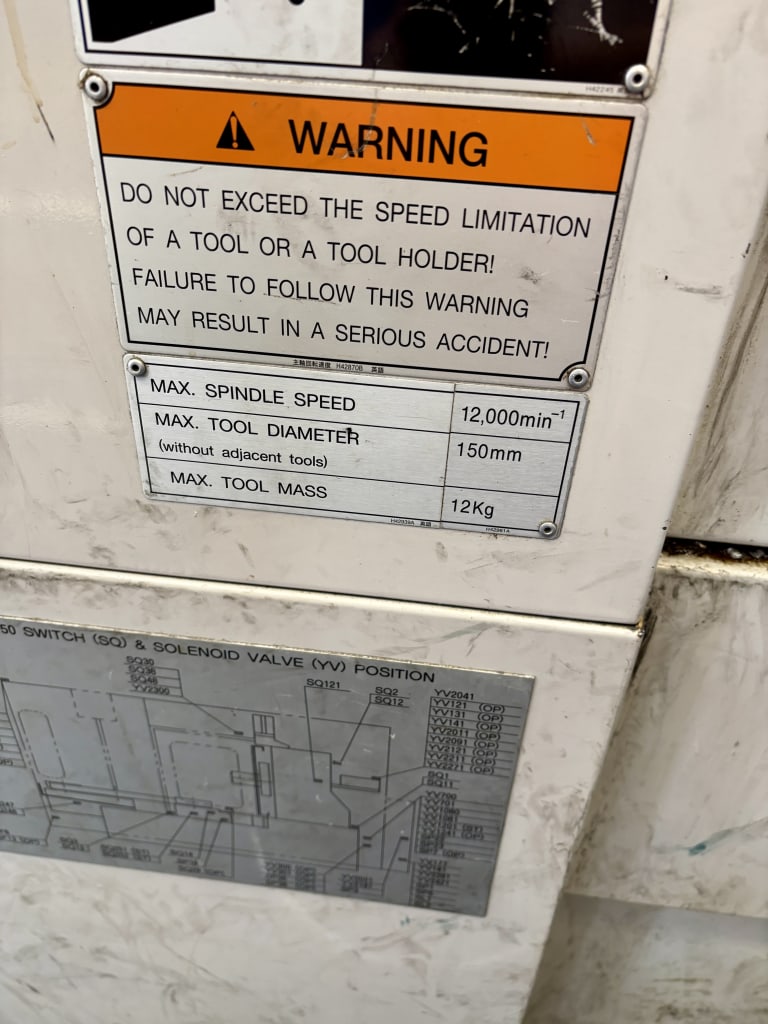

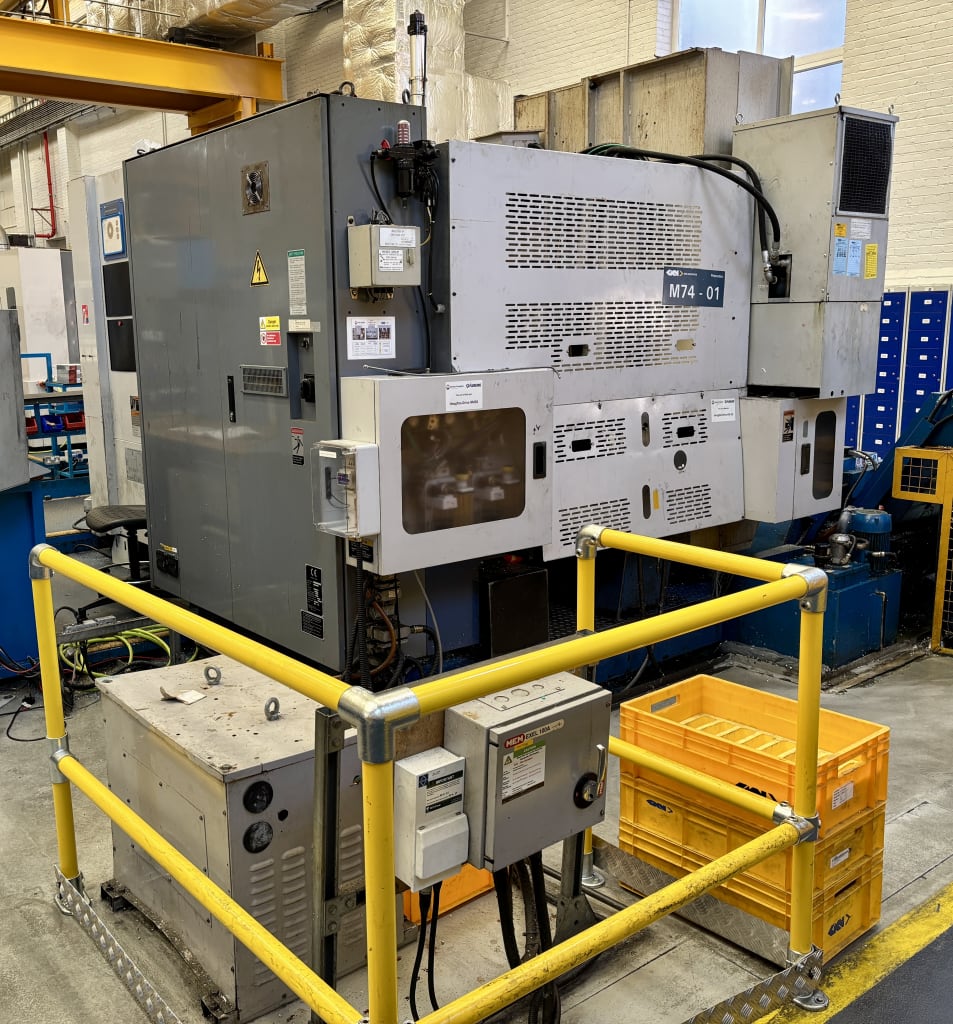

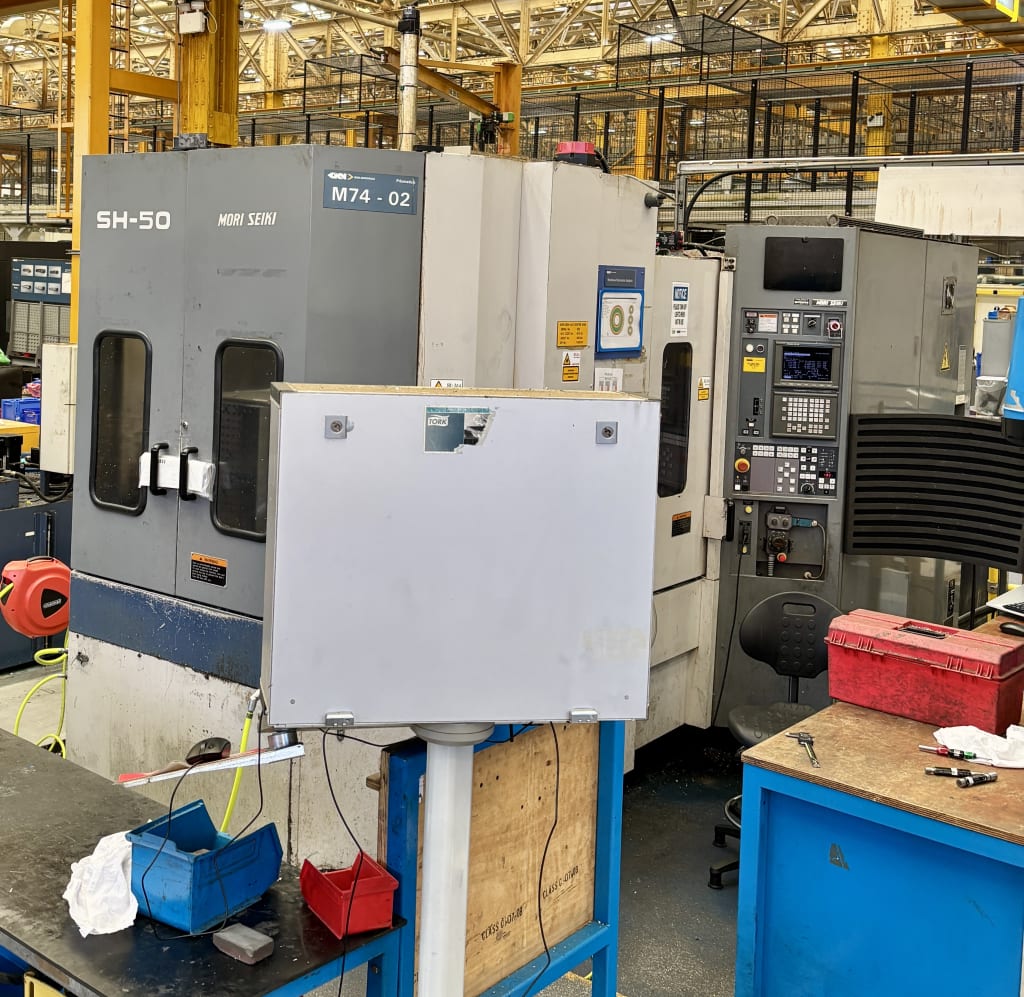

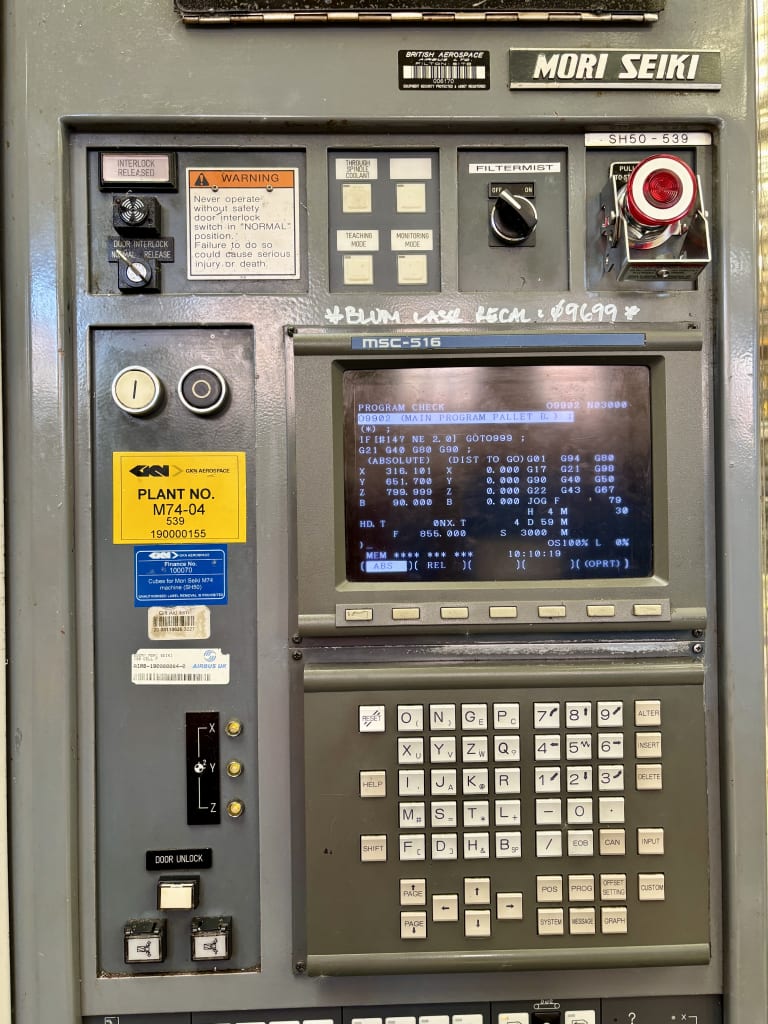

Mori Seiki SH-50 Twin Pallet CNC Horizontal Milling Machine With Mori Seiki MSC-516 Control
Pallet Dimension 500 x 500mm. Maximum Table Load 1,000kg. Axis Travel X'=630mm, 'Y'=600mm, 'Z'=650mm, 'B'=1° Increment. Rapid Traverse 'X,Y,Z'=32m/min. Spindle Taper BT40. Maximum Spindle Speed 12,000rpm (15kW Motor). 120 Position ATC. Maximum Tool Ø150mm (Without Adjacent Tools), Maximum Length 400mm, Maximum Tool Weight 12kg. S/No. 539 (1996). - LOT 4

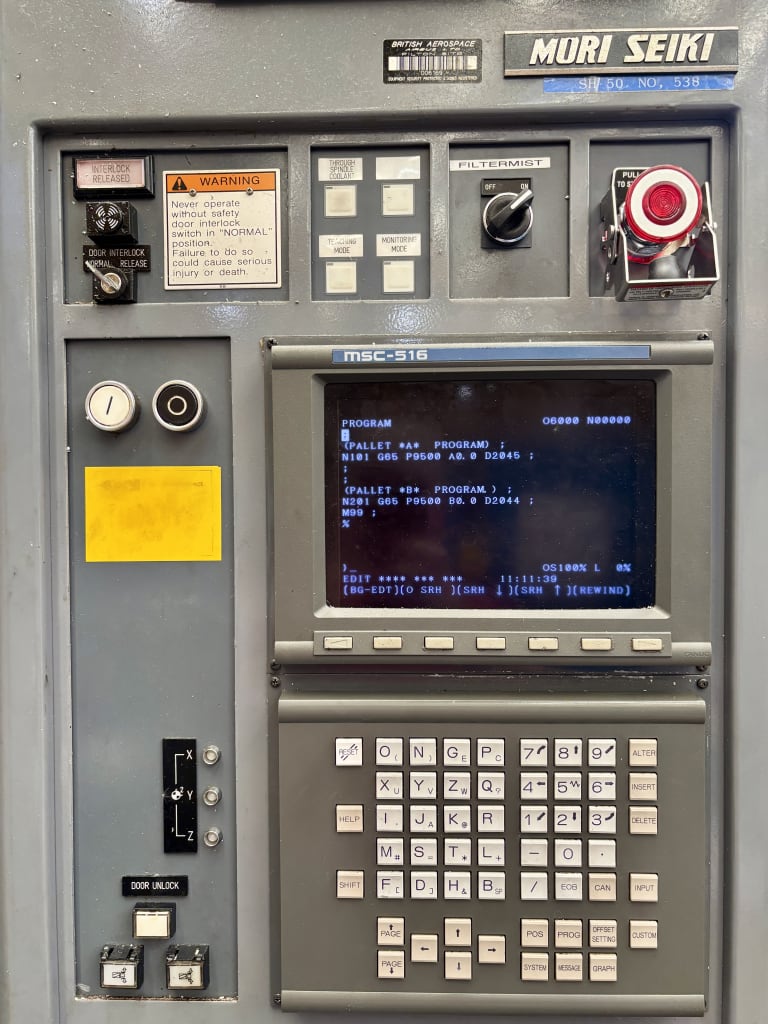

Mori Seiki SH-50 Twin Pallet CNC Horizontal Milling Machine With Mori Seiki MSC-516 Control
Pallet Dimension 500 x 500mm. Maximum Table Load 1,000kg. Axis Travel X'=630mm, 'Y'=600mm, 'Z'=650mm, 'B'=1° Increment. Rapid Traverse 'X,Y,Z'=32m/min. Spindle Taper BT40. Maximum Spindle Speed 12,000rpm (15kW Motor). 120 Position ATC. Maximum Tool Ø150mm (Without Adjacent Tools), Maximum Length 400mm, Maximum Tool Weight 12kg. S/No. 538 (1996). - LOT 5
Mori Seiki SH-50 Twin Pallet CNC Horizontal Milling Machine With Mori Seiki MSC-516 Control
Pallet Dimension 500 x 500mm. Maximum Table Load 1,000kg. Axis Travel X'=630mm, 'Y'=600mm, 'Z'=650mm, 'B'=1° Increment. Rapid Traverse 'X,Y,Z'=32m/min. Spindle Taper BT40. Maximum Spindle Speed 12,000rpm (15kW Motor). 120 Position ATC. Maximum Tool Ø150mm (Without Adjacent Tools), Maximum Length 400mm, Maximum Tool Weight 12kg. S/No. 523 (1996). - LOT 6

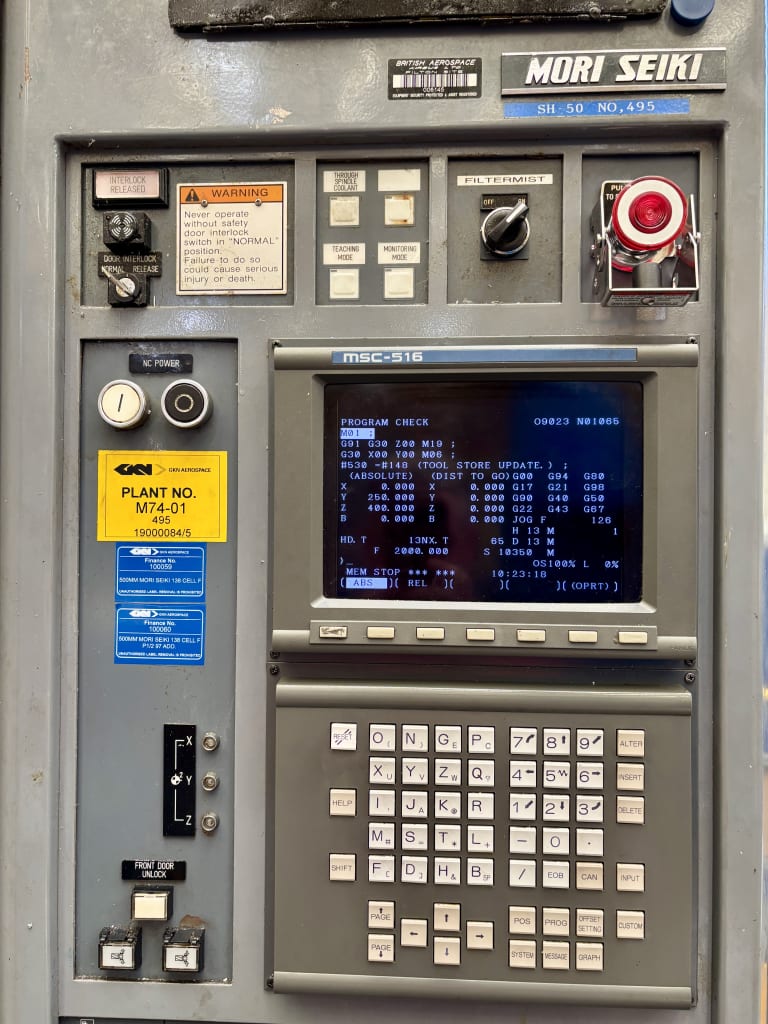

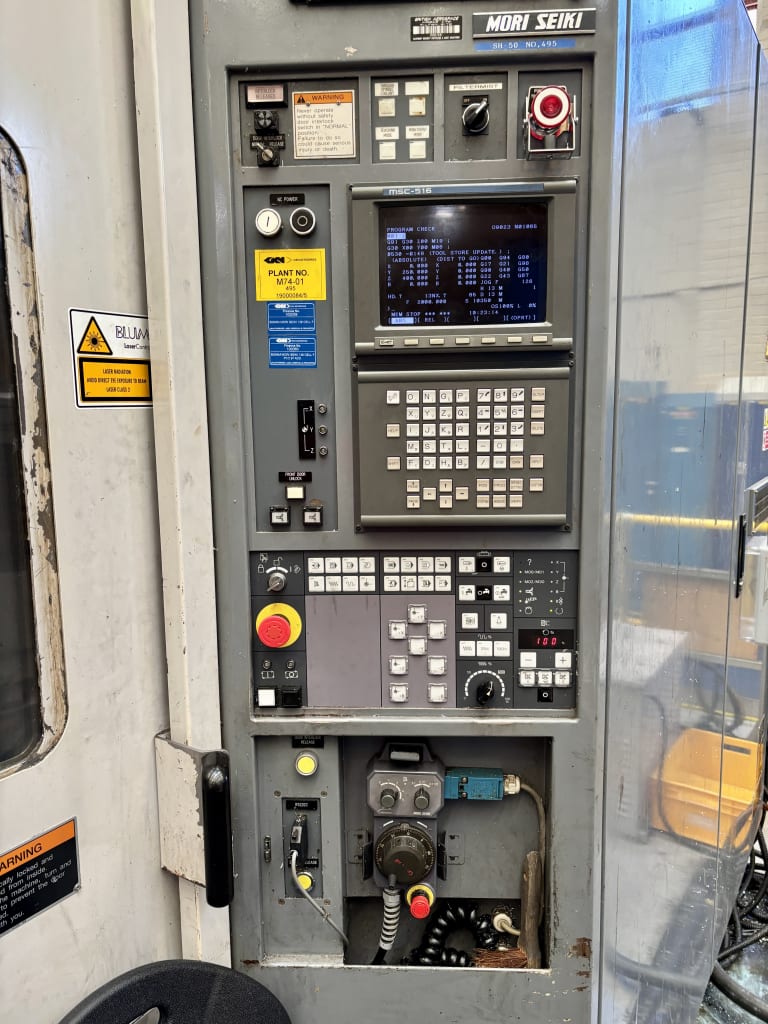

Mori Seiki SH-50 Twin Pallet CNC Horizontal Milling Machine With Mori Seiki MSC-516 Control
Pallet Dimension 500 x 500mm. Maximum Table Load 1,000kg. Axis Travel X'=630mm, 'Y'=600mm, 'Z'=650mm, 'B'=1° Increment. Rapid Traverse 'X,Y,Z'=32m/min. Spindle Taper BT40. Maximum Spindle Speed 12,000rpm (15kW Motor). 120 Position ATC. Maximum Tool Ø150mm (Without Adjacent Tools), Maximum Length 400mm, Maximum Tool Weight 12kg. S/No. 495 (1996). - LOT 7

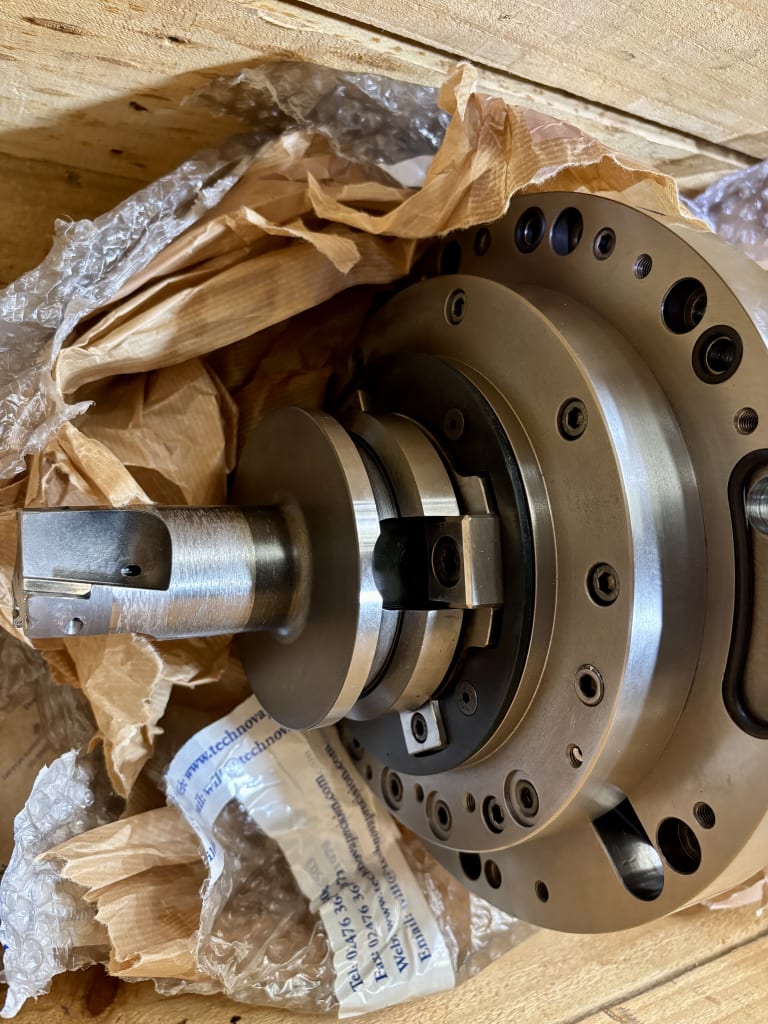

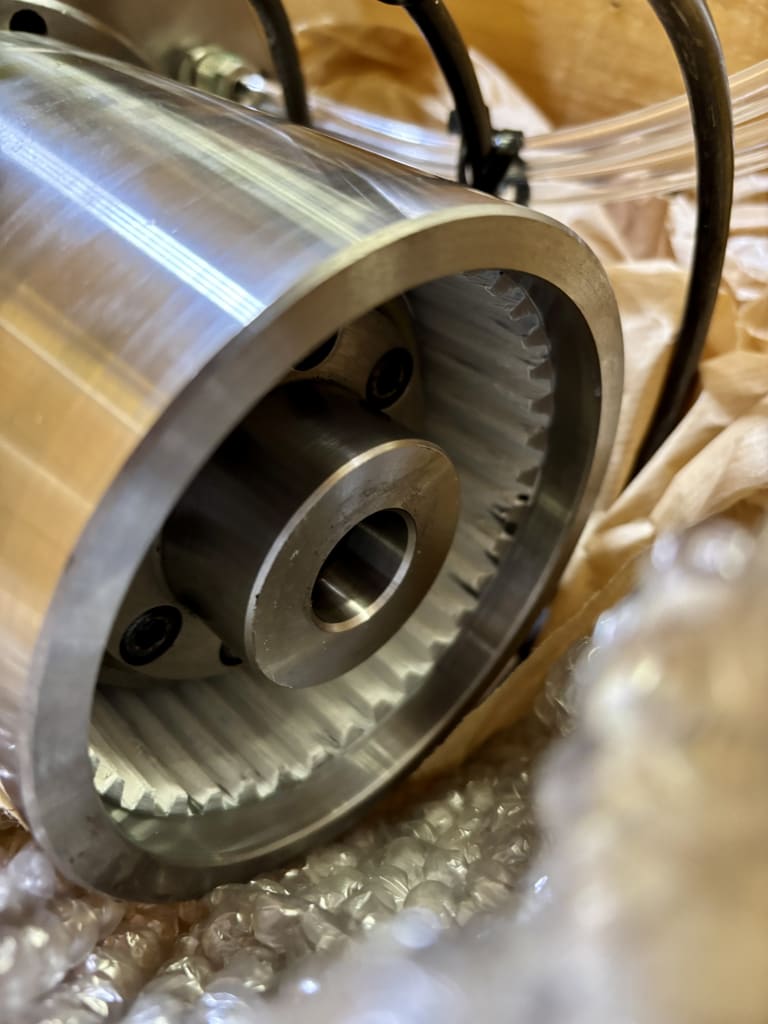

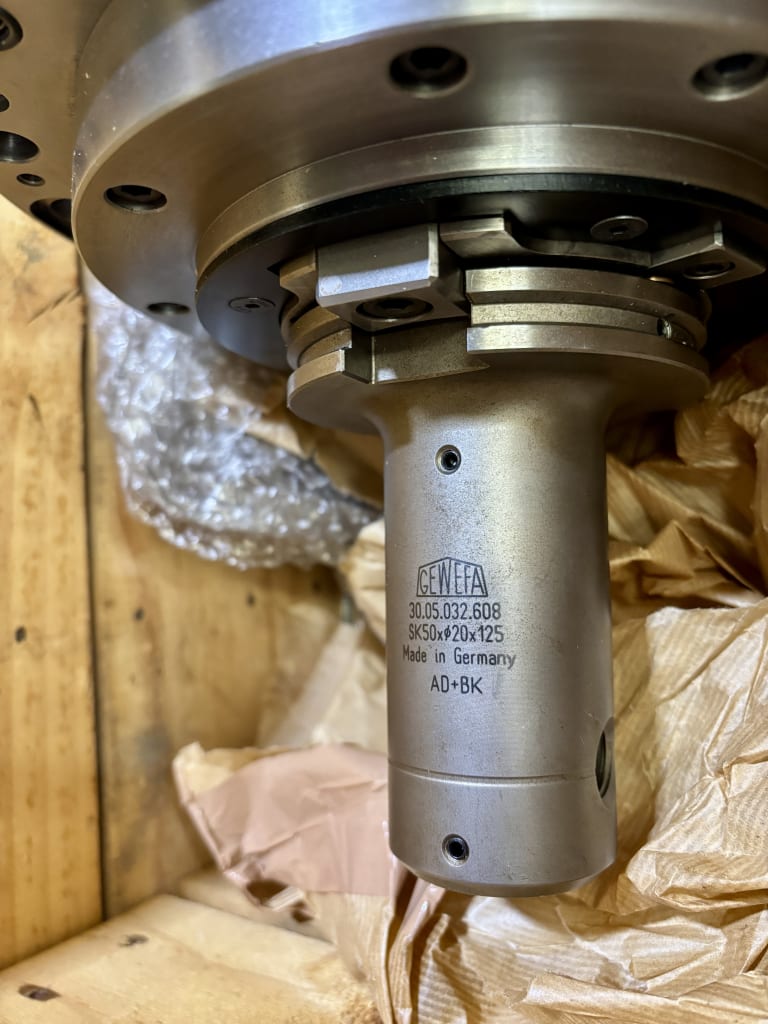

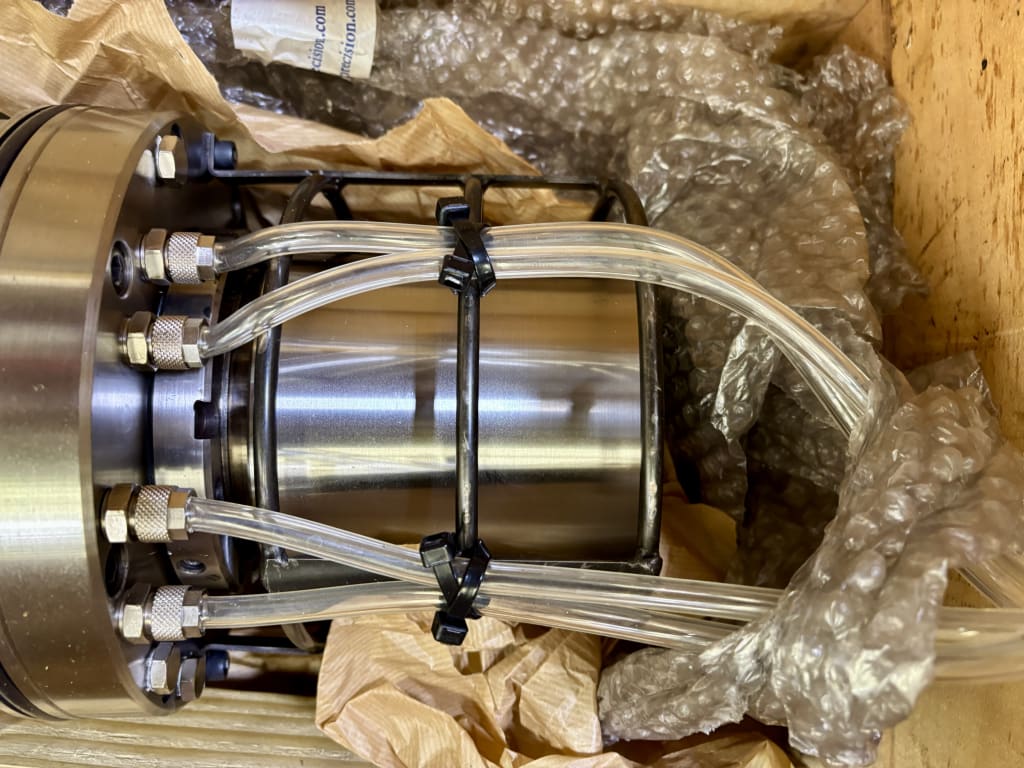

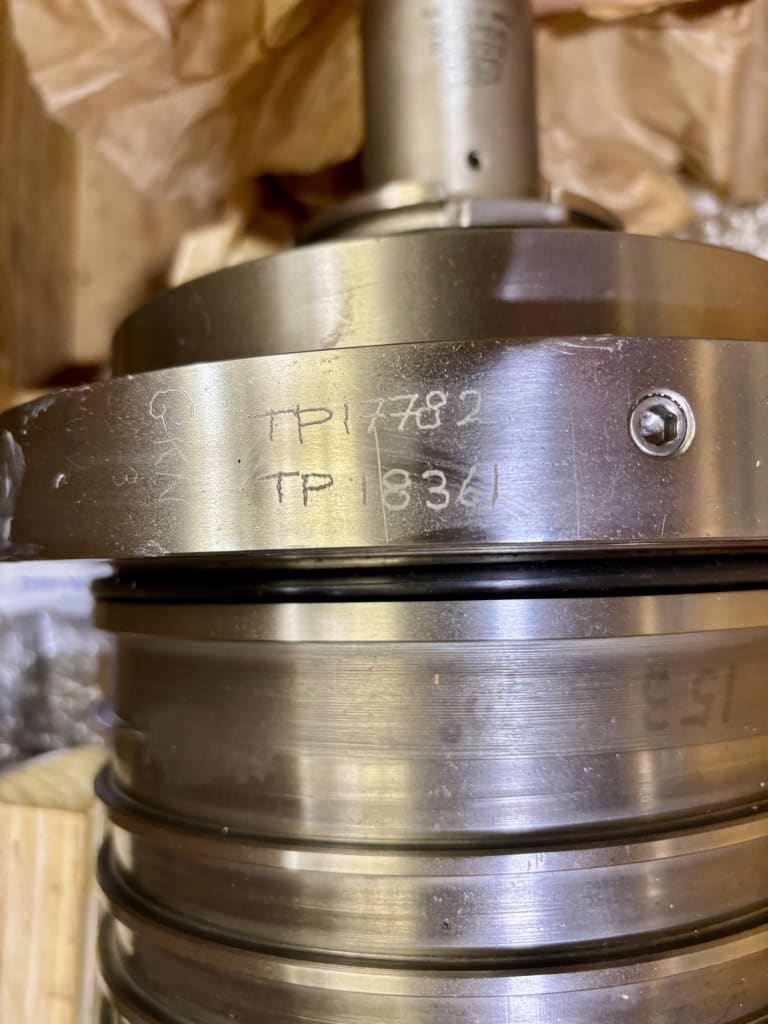

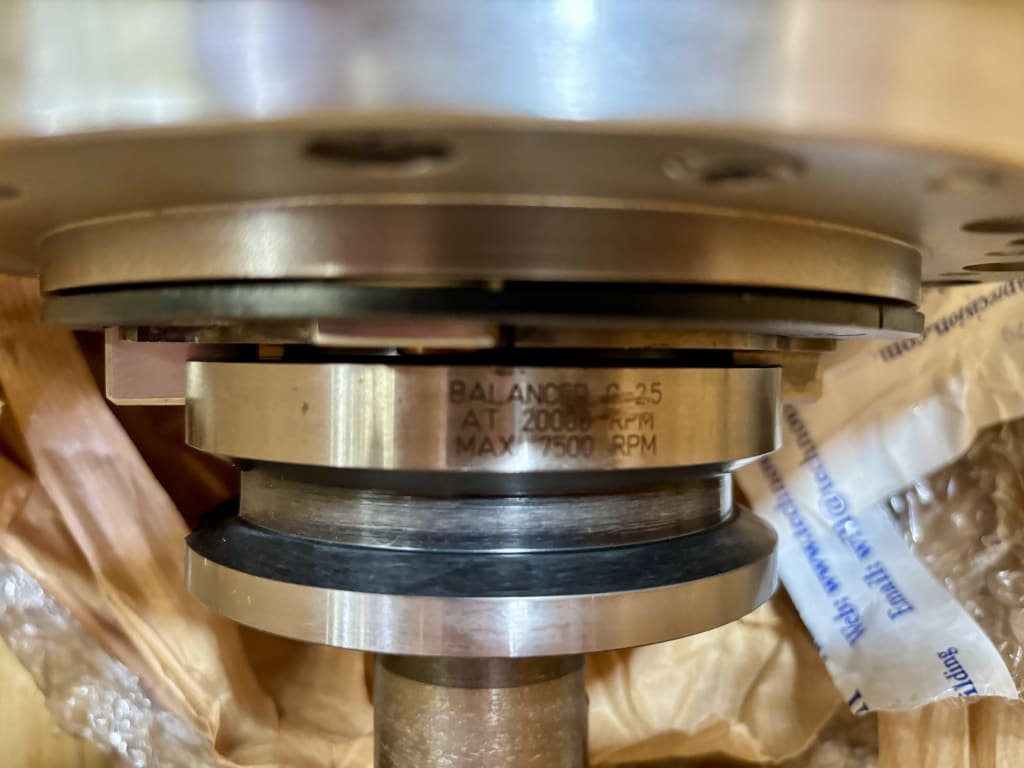

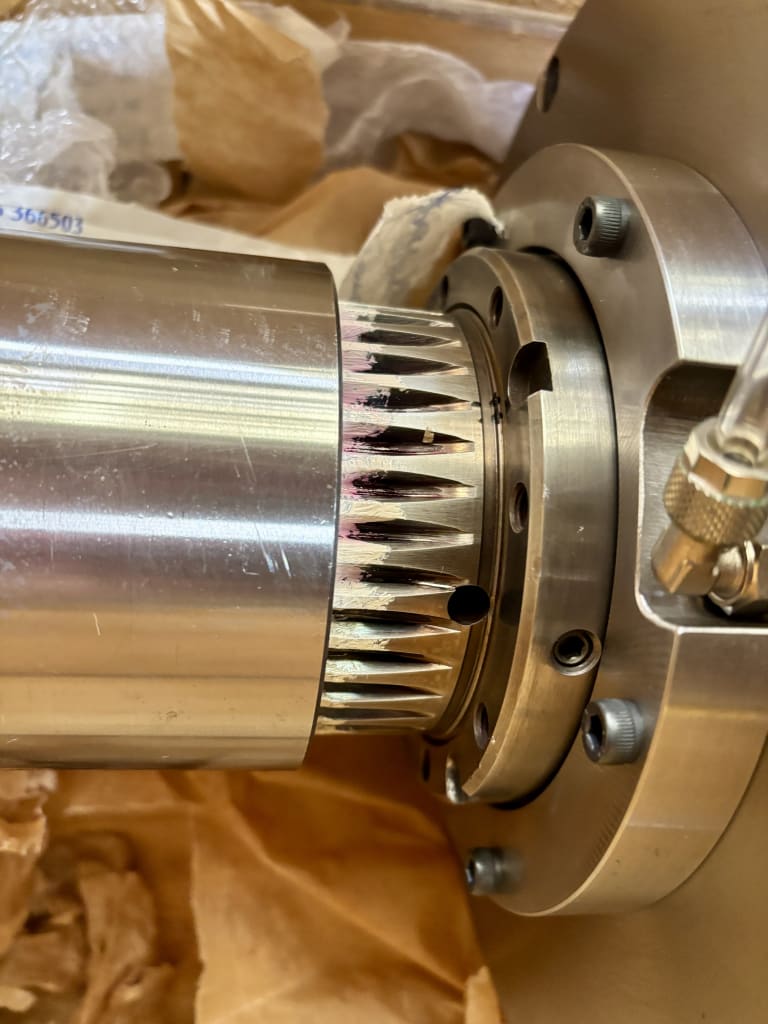

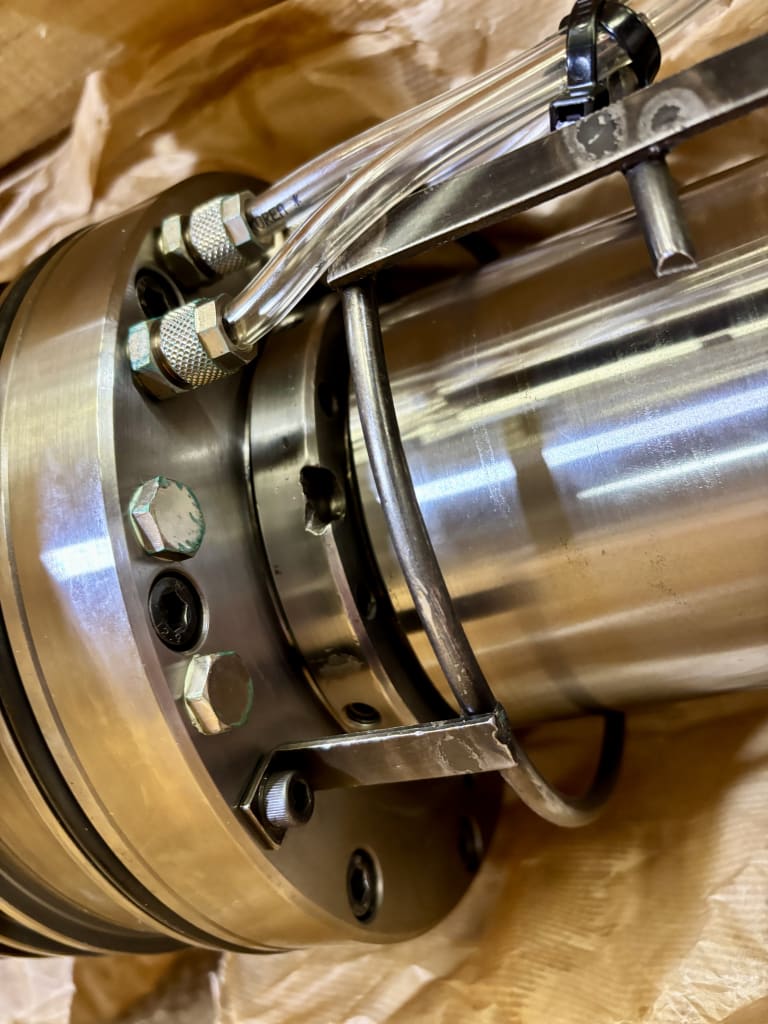

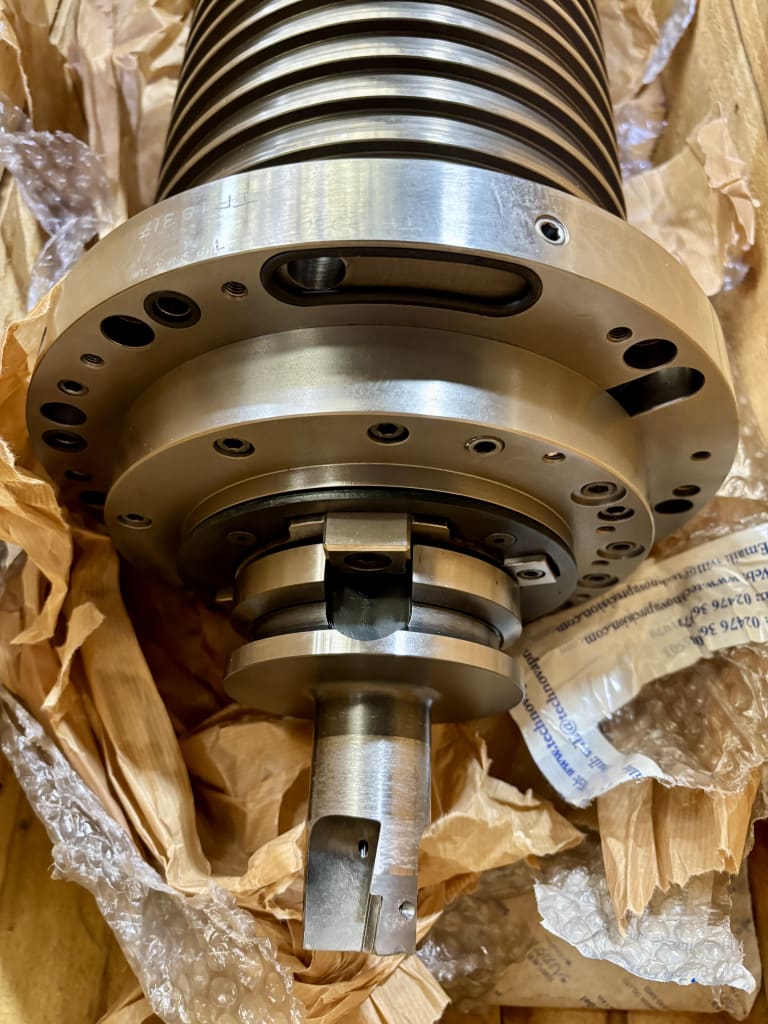

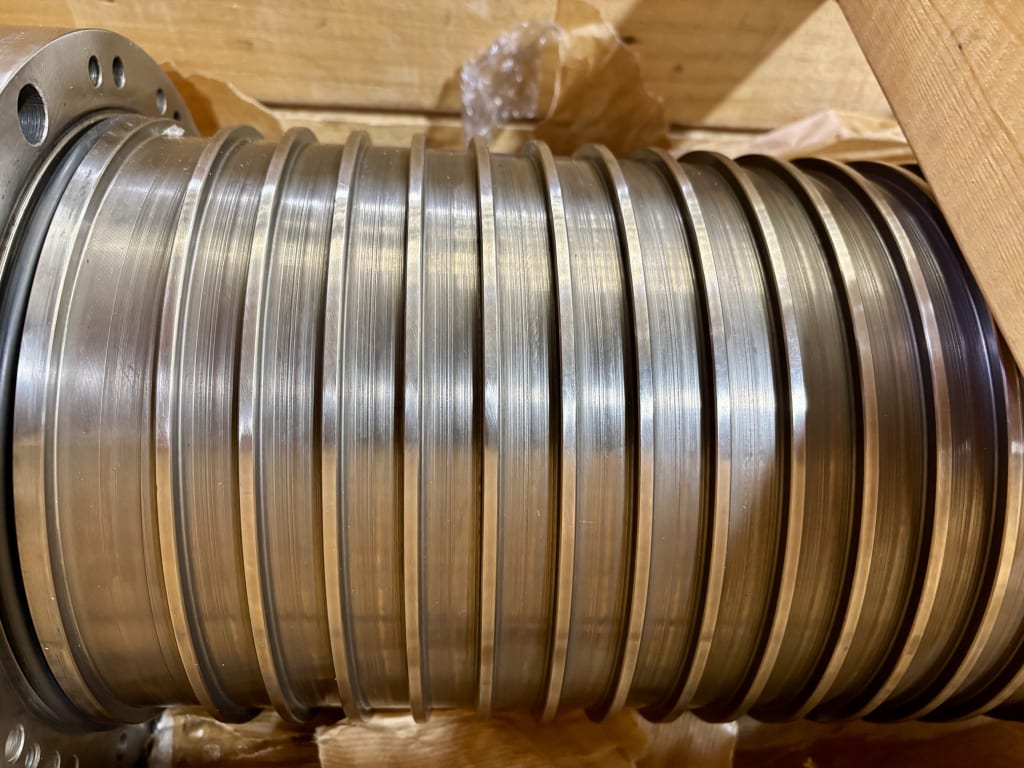

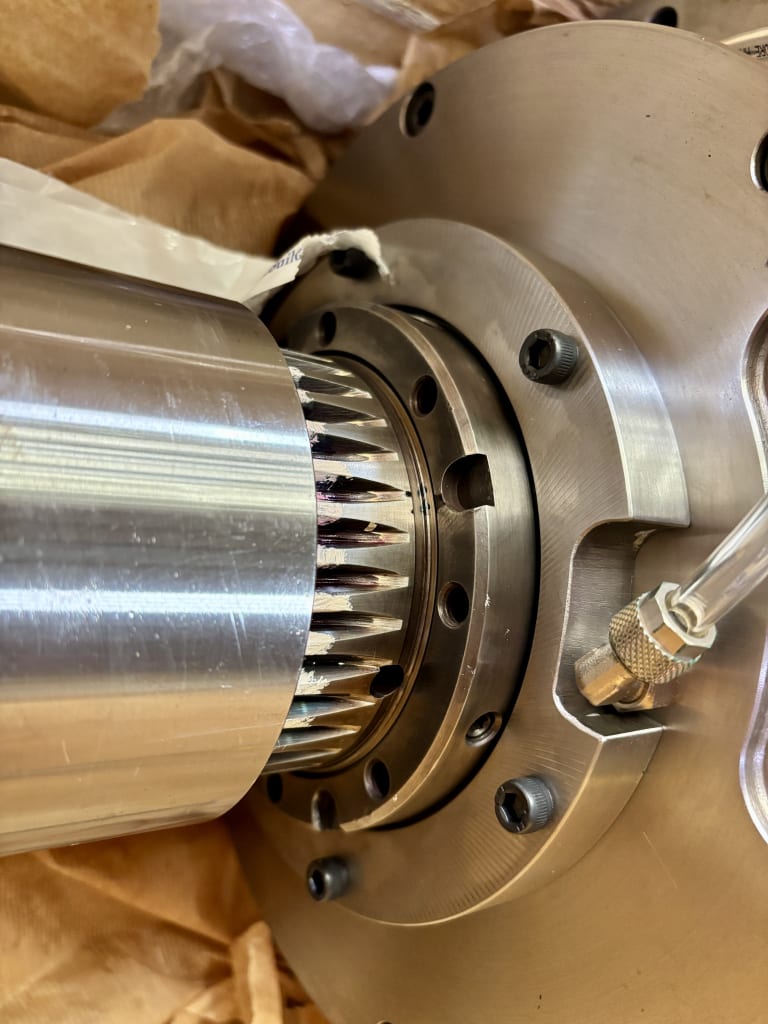

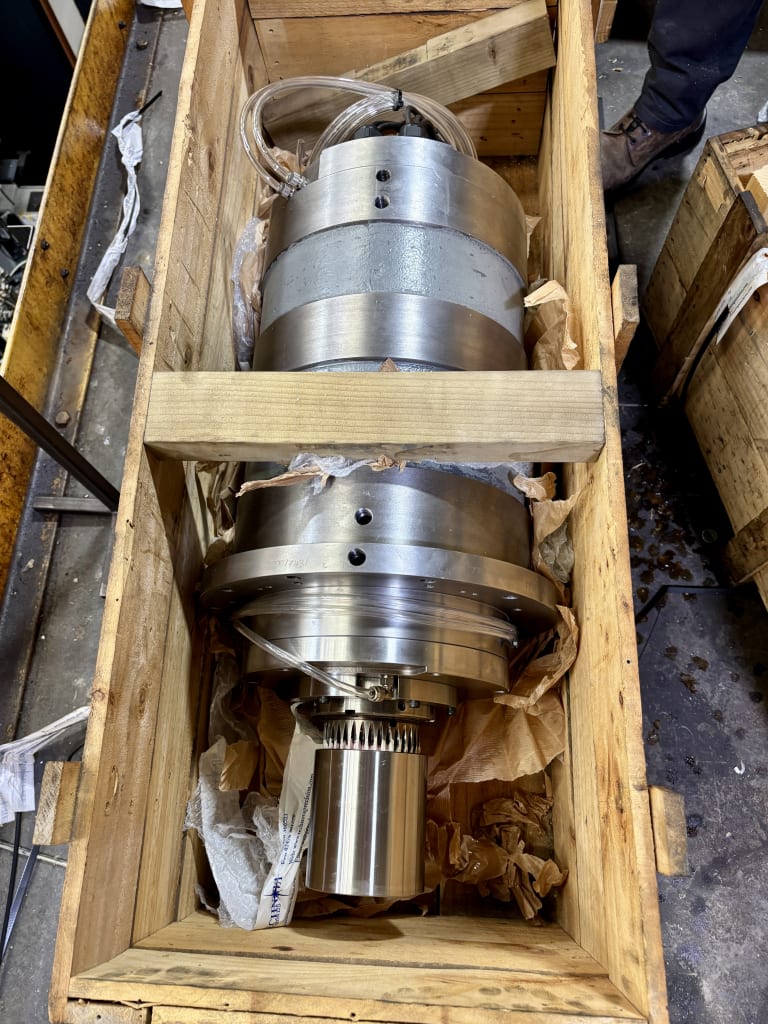

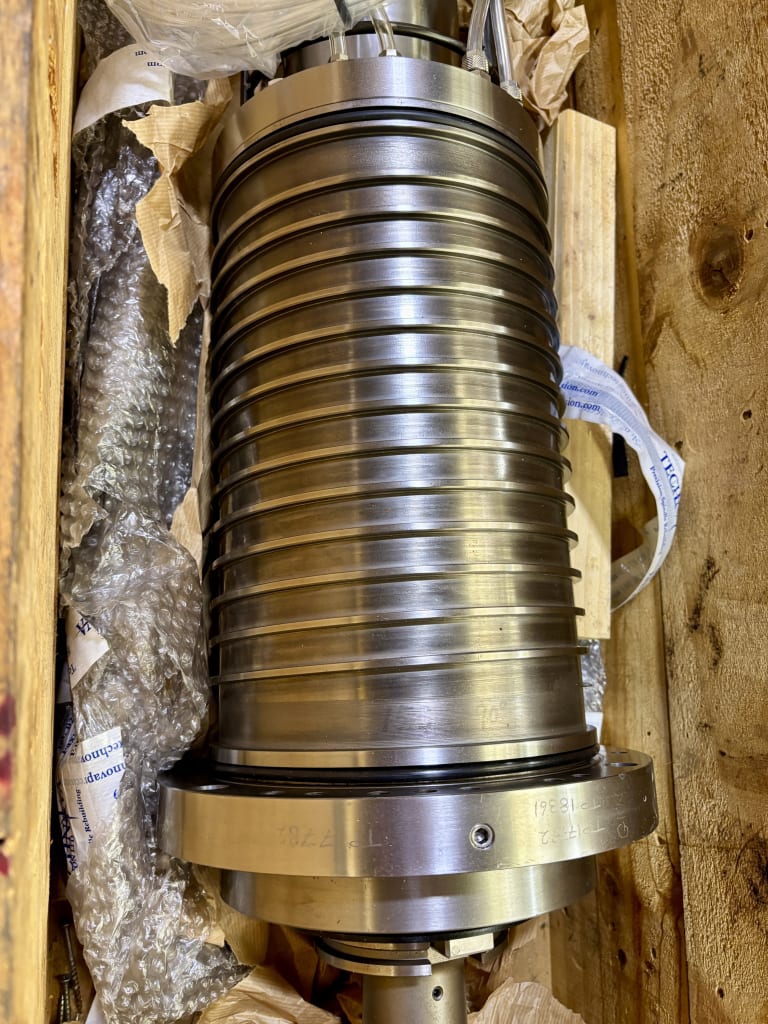

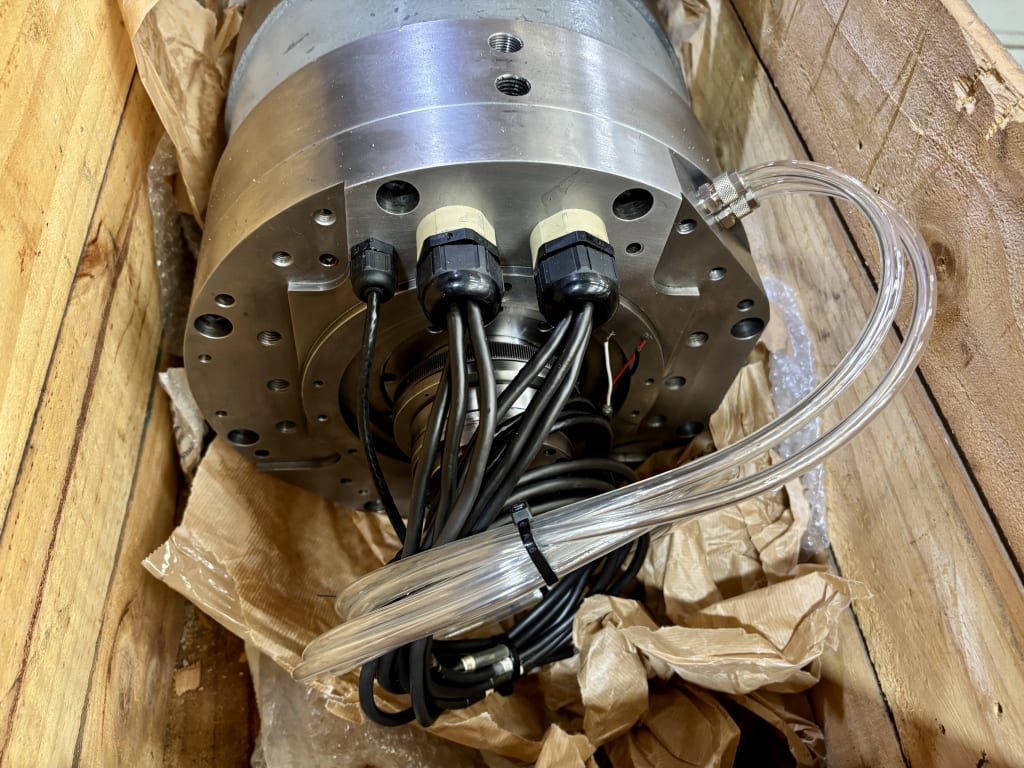

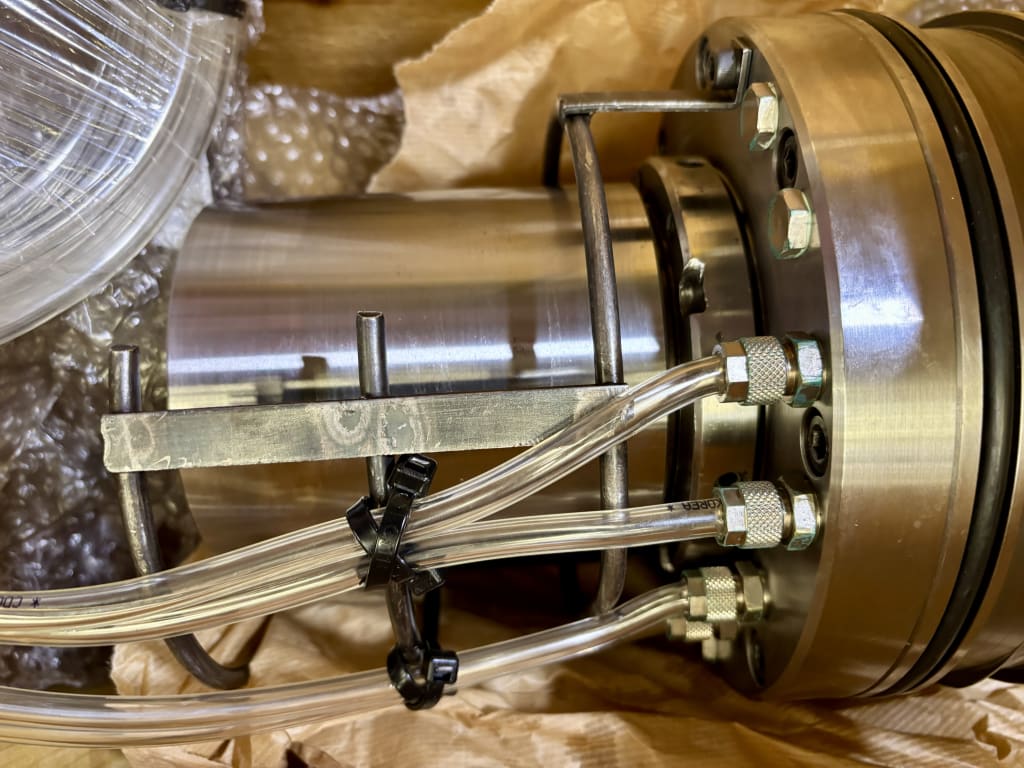

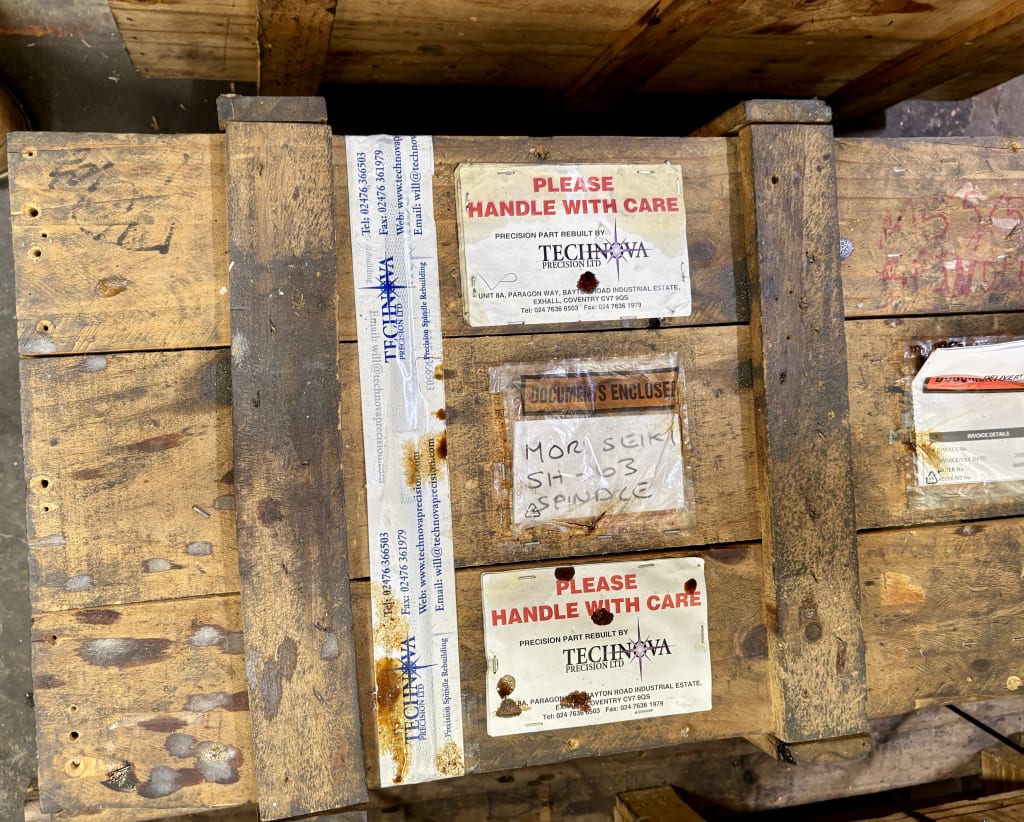

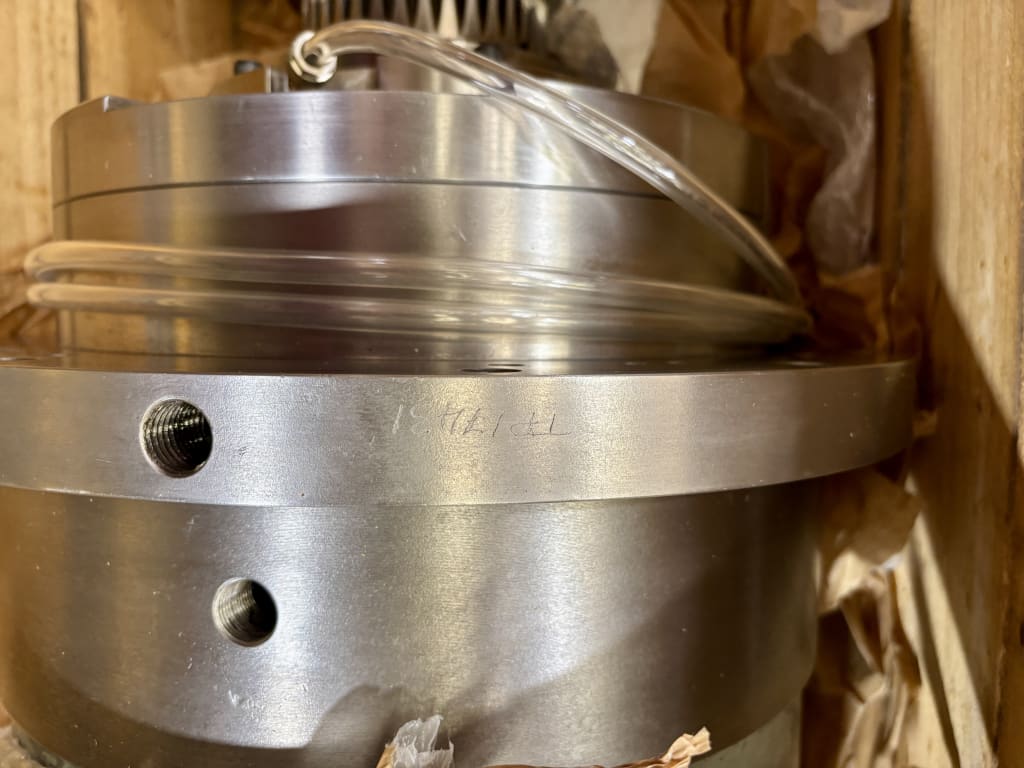

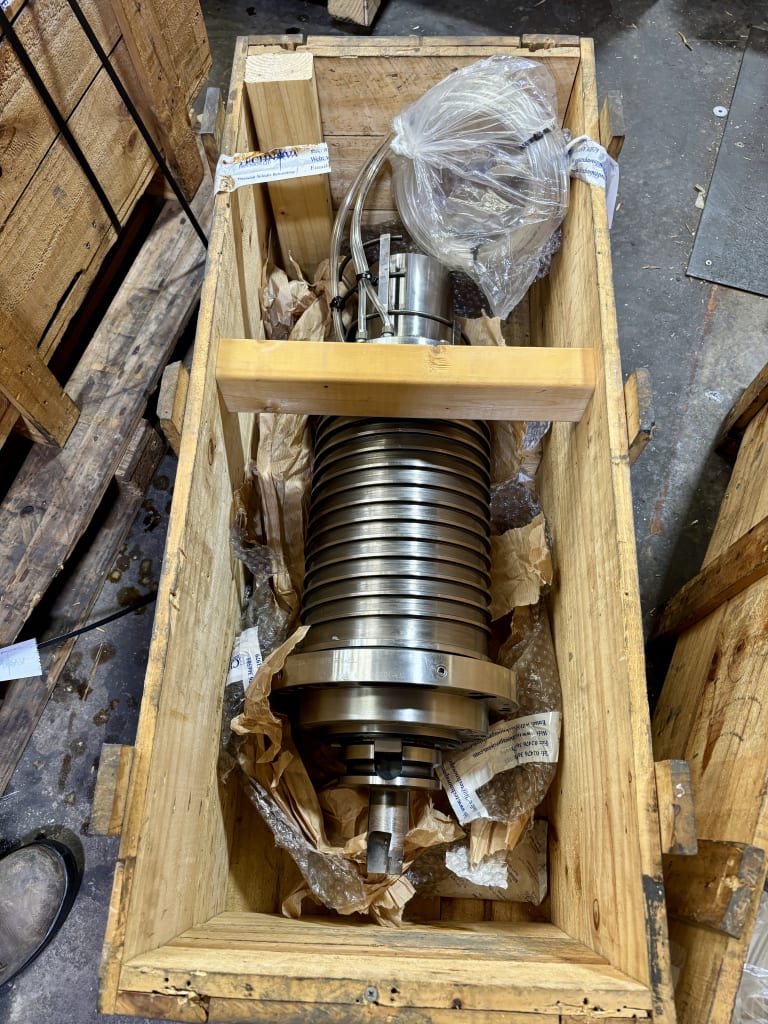

Mori Seiki SH-63 Fully Refurbished Spindle (2023)
Maximum Speed 15,000rpm. Spindle Taper ISO 50. - LOT 8
Mori Seiki SH-63 Fully Refurbished Spindle (2023)
Maximum Speed 15,000rpm. Spindle Taper ISO 50. - LOT 10

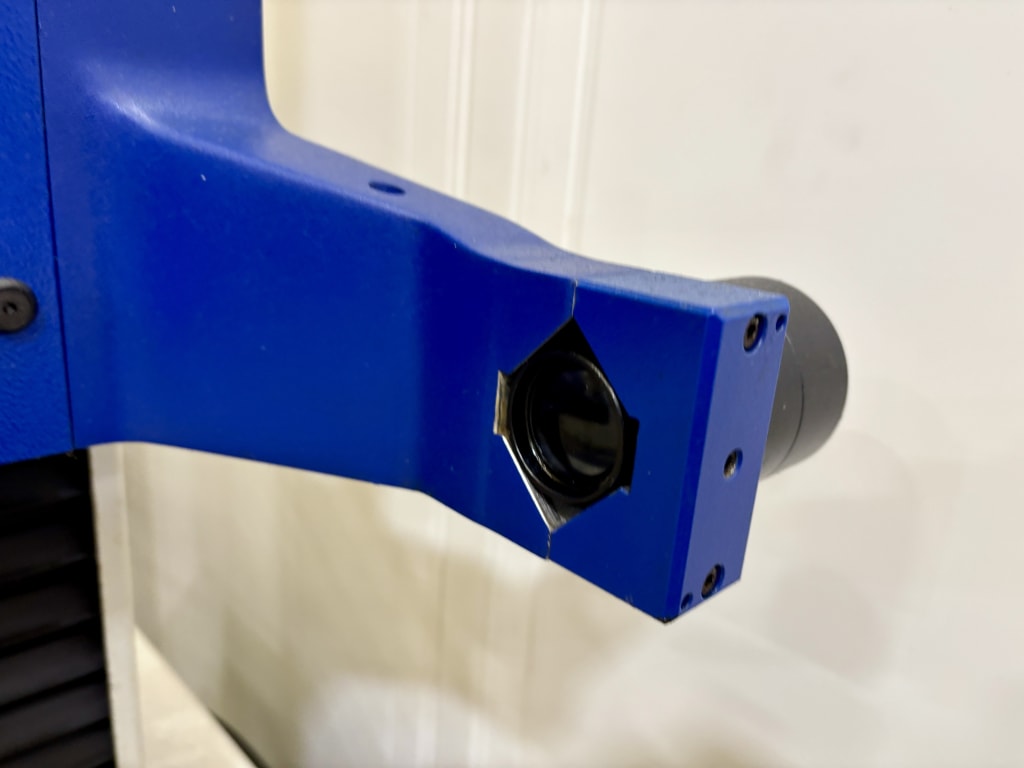

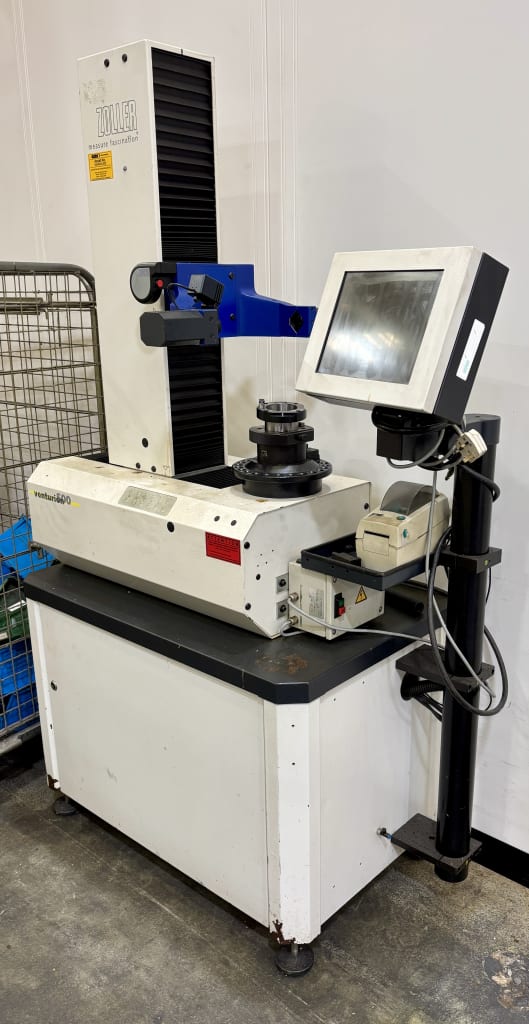

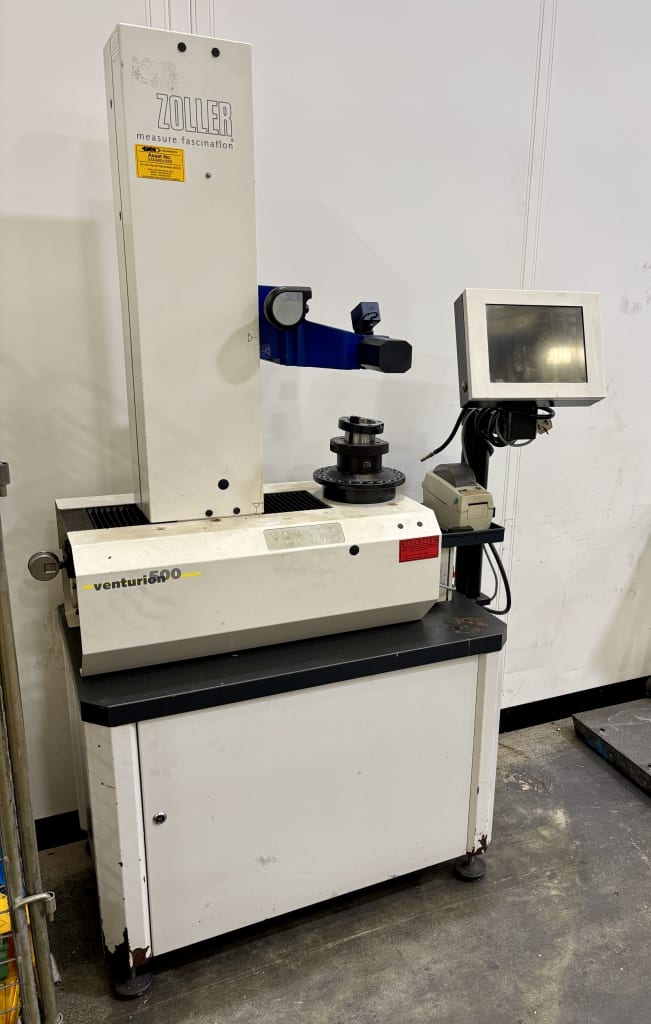

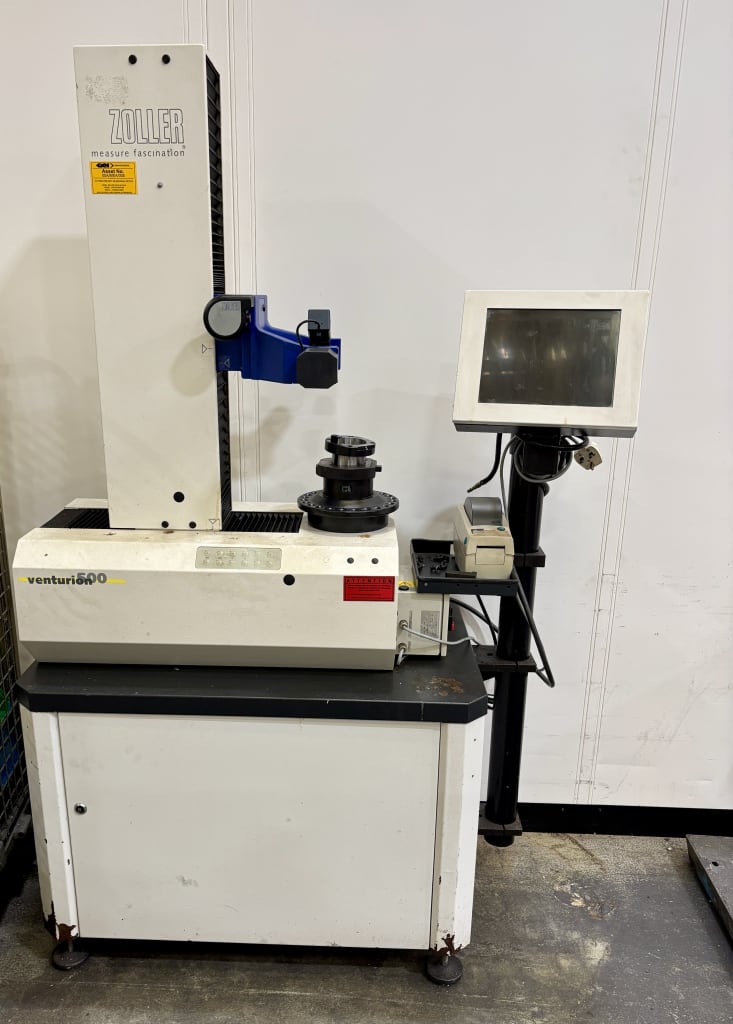

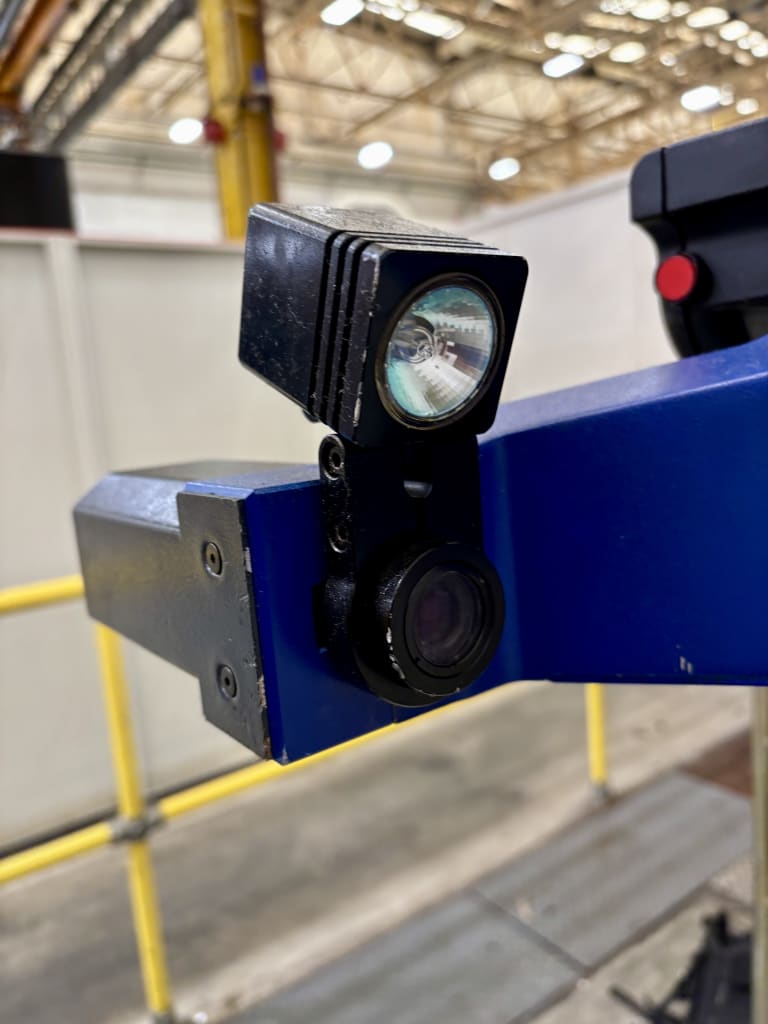

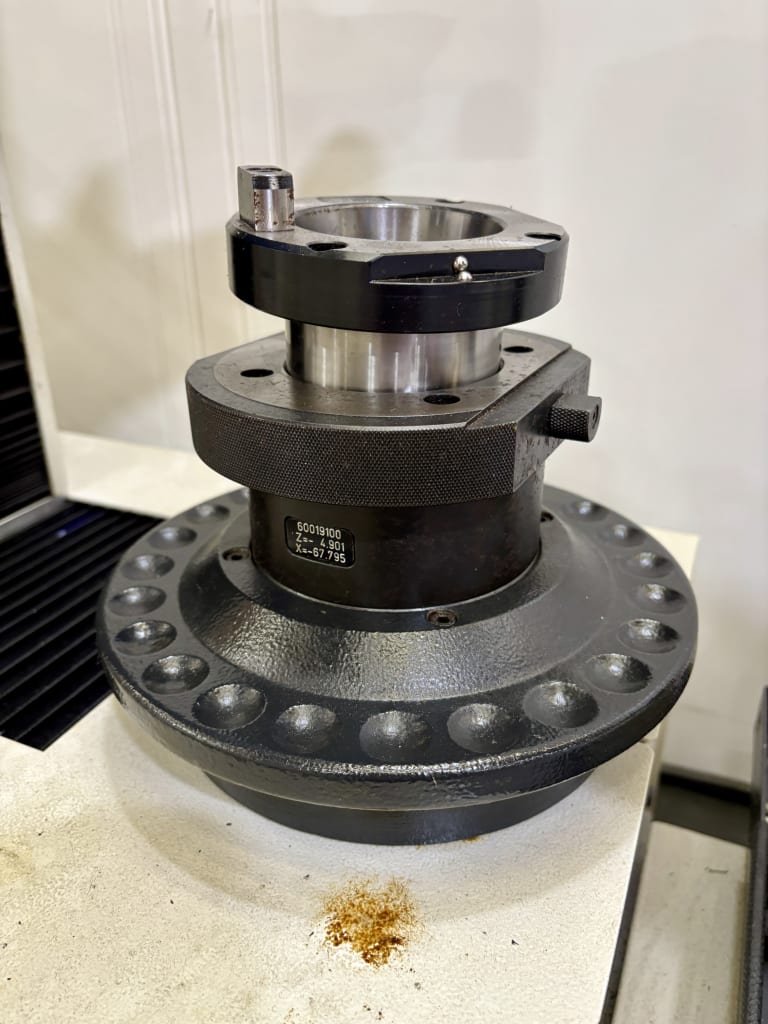

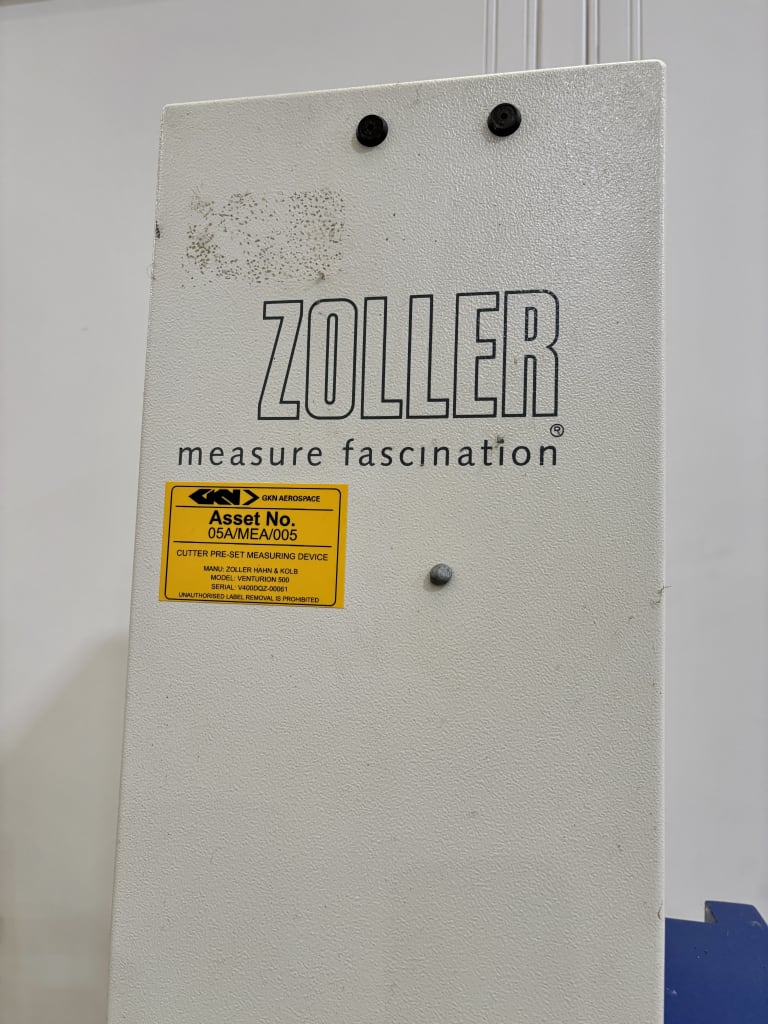

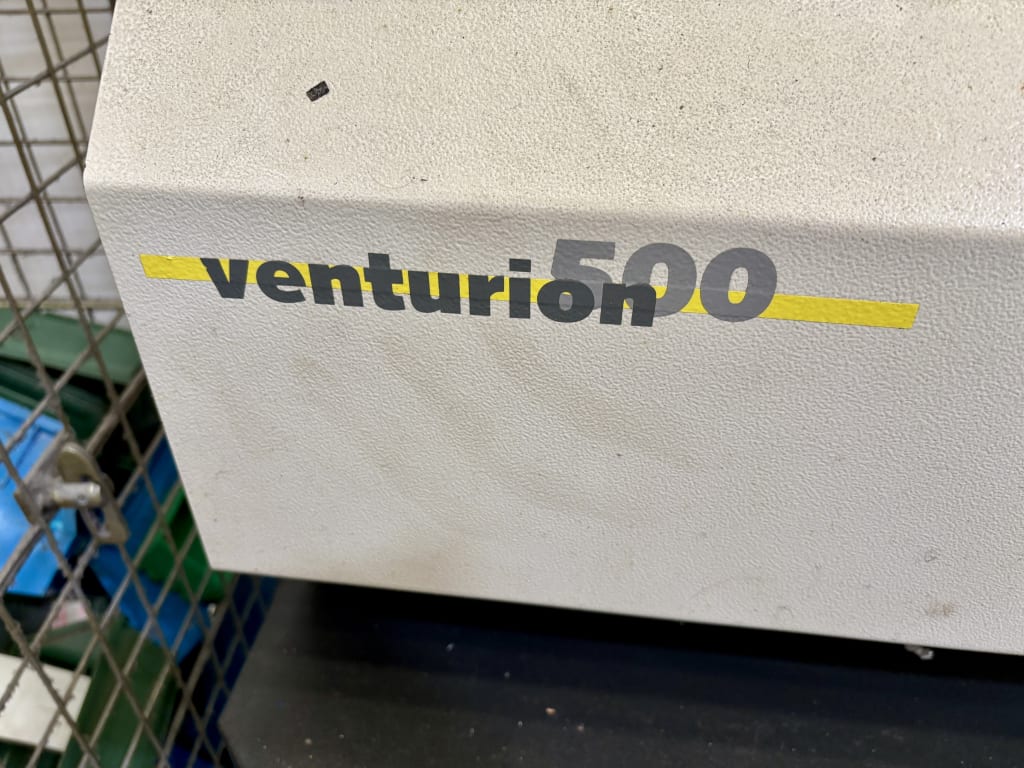

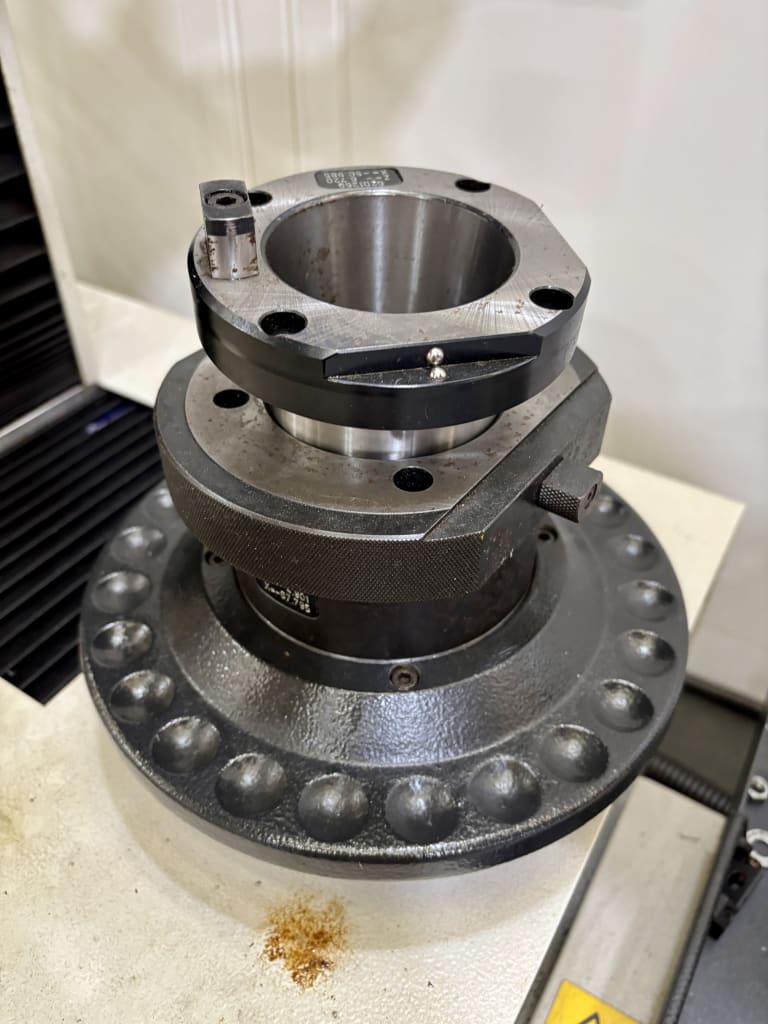

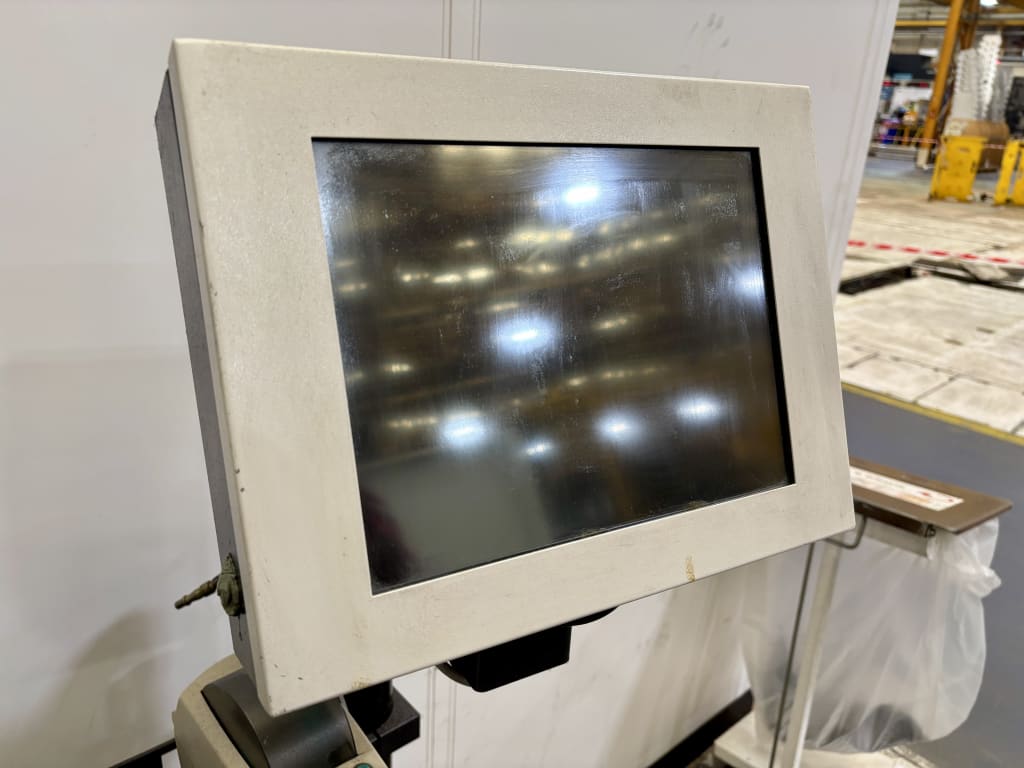

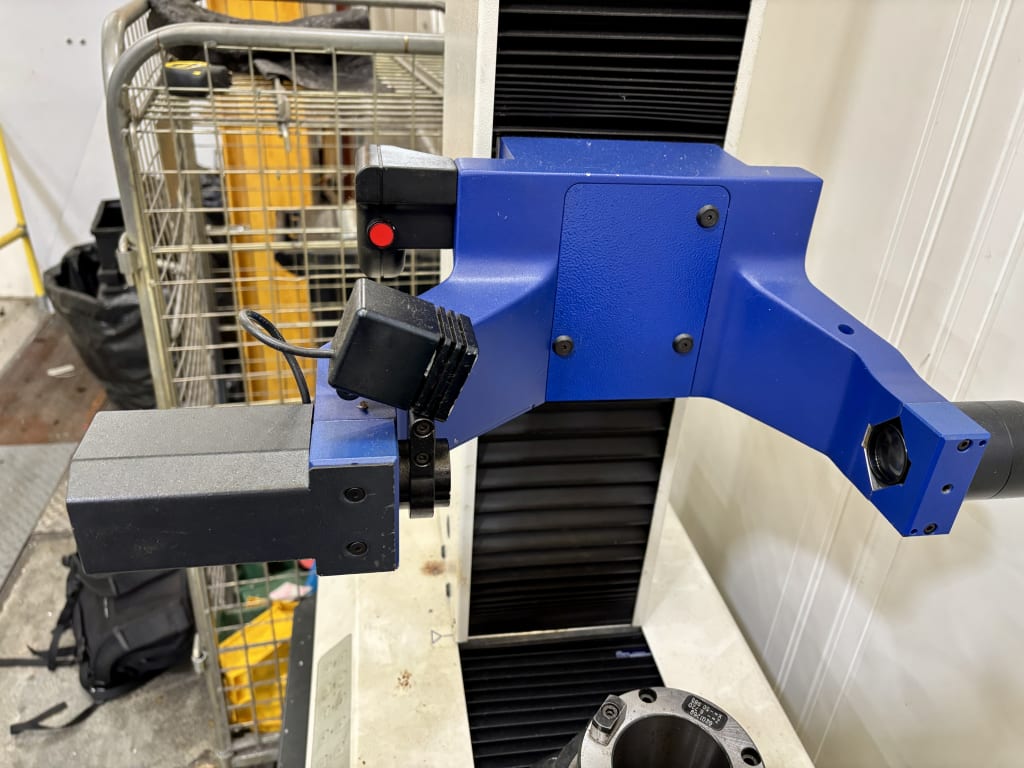

Zoller Venturion 500 Tool Presetting & Measuring Machine On Steel Cabinet

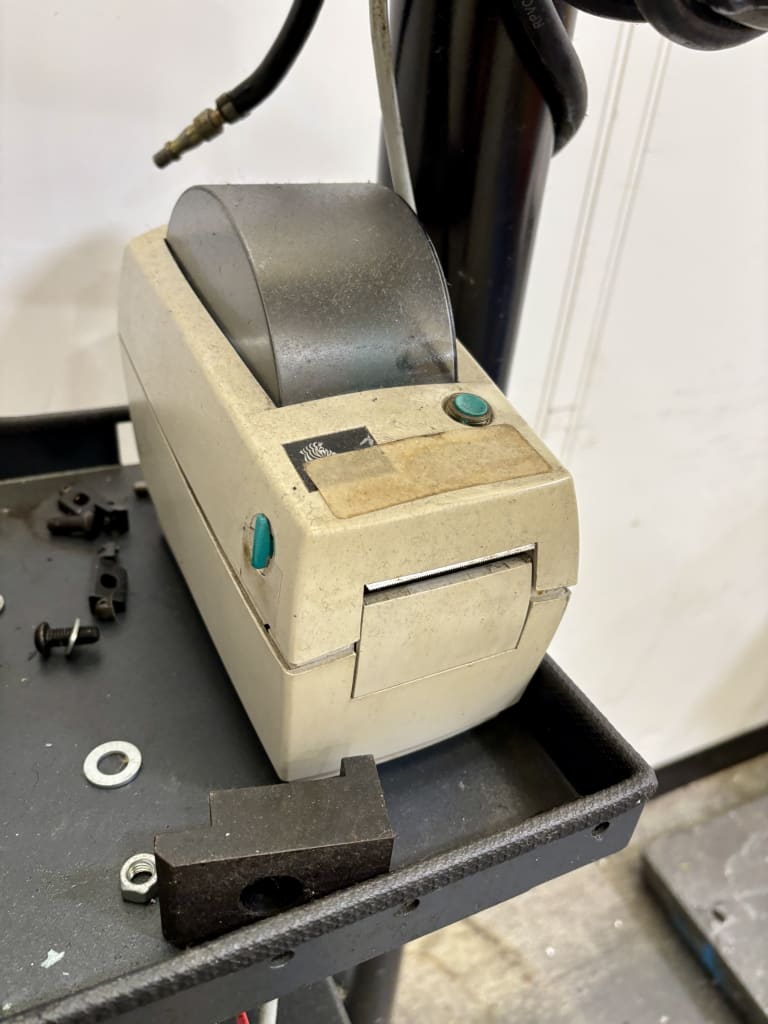

With Touchscreen Control & Label Printer.
