Surplus CNC Grinding, Hobbing, EDM & Workshop Equipment from Specialist Gear Cutting Tool Manufacturer

Starts: 18 September 2026 at 11:00 BST
Ends: 29 October 2026 at 15:00 GMT
Highlights include a 2014 Schneeberger Sirius HPM 6-Axis Tool Grinding Machine with Fanuc 31i-A5 CNC Control, David Brown Hydrax V High Performance Gear Hobbing Machine, Baron-Max KE-320 ZNC EDM and Jones & Shipman 540P Surface Grinder. The sale also includes a Bridgeport 2S Vari-Feed Horizontal Milling Machine with Heidenhain TNC 131 Control, multiple Diaform 5/1 Wheel Form Grinding Attachments and Eclipse Ultralift 1000 Manual Magnetic Lifter.
Register for auctionEssential Information
Share:
Showing 10 of 10 lots
  • 1-1.jpg
    site

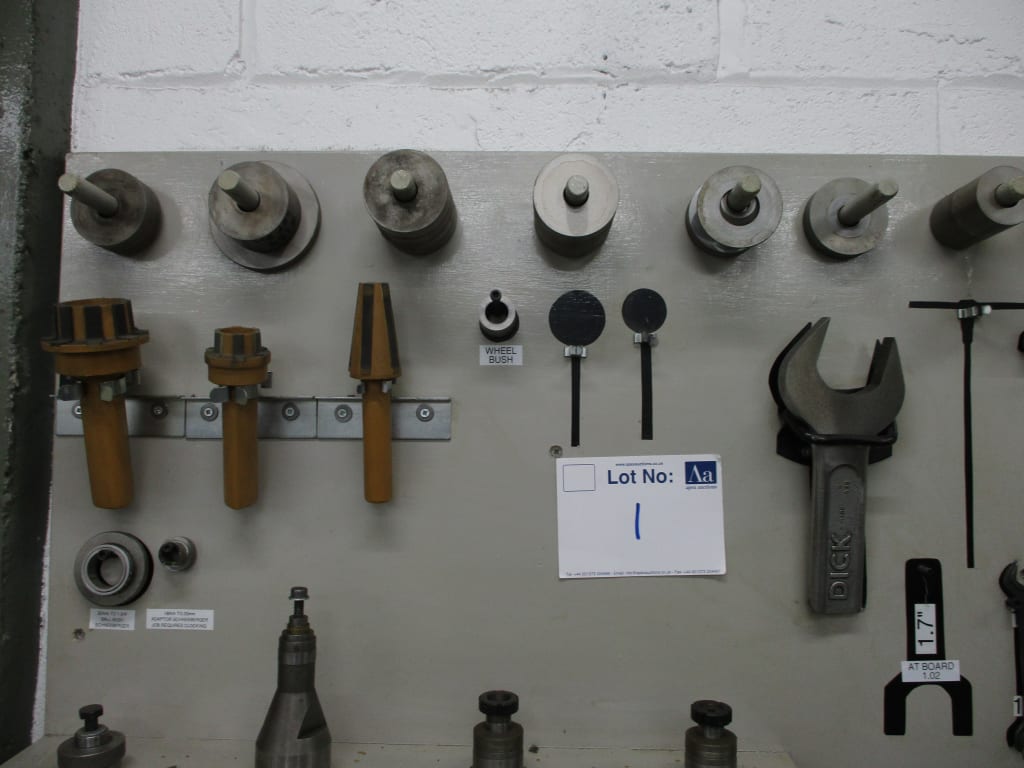

    LOT 1

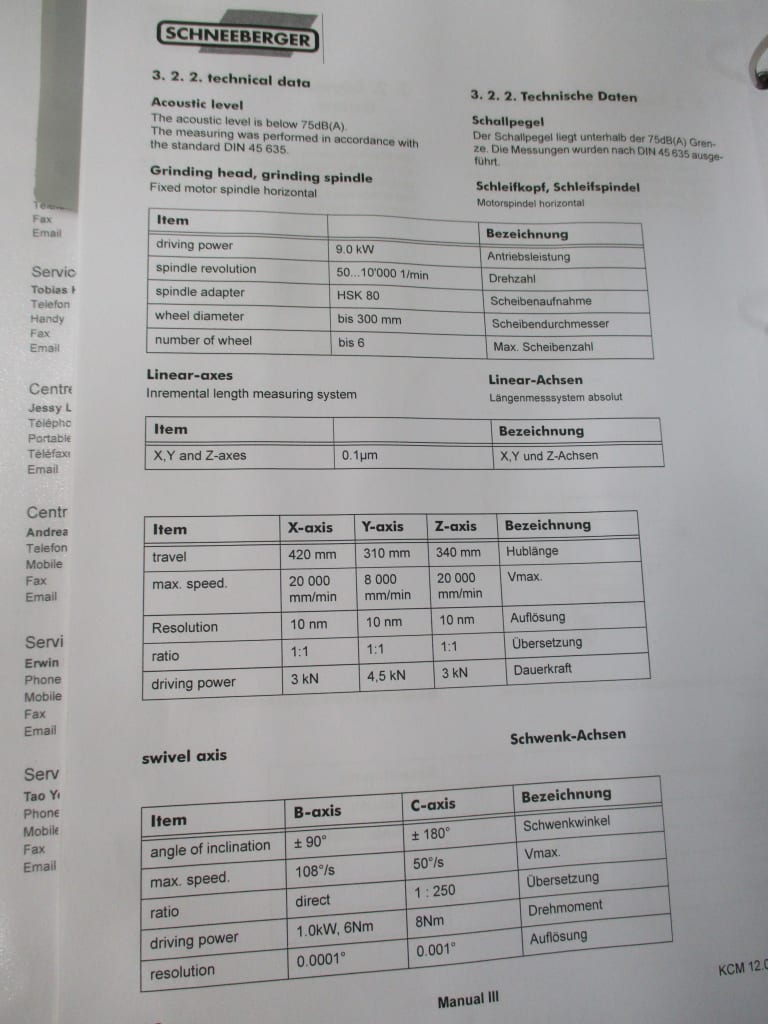

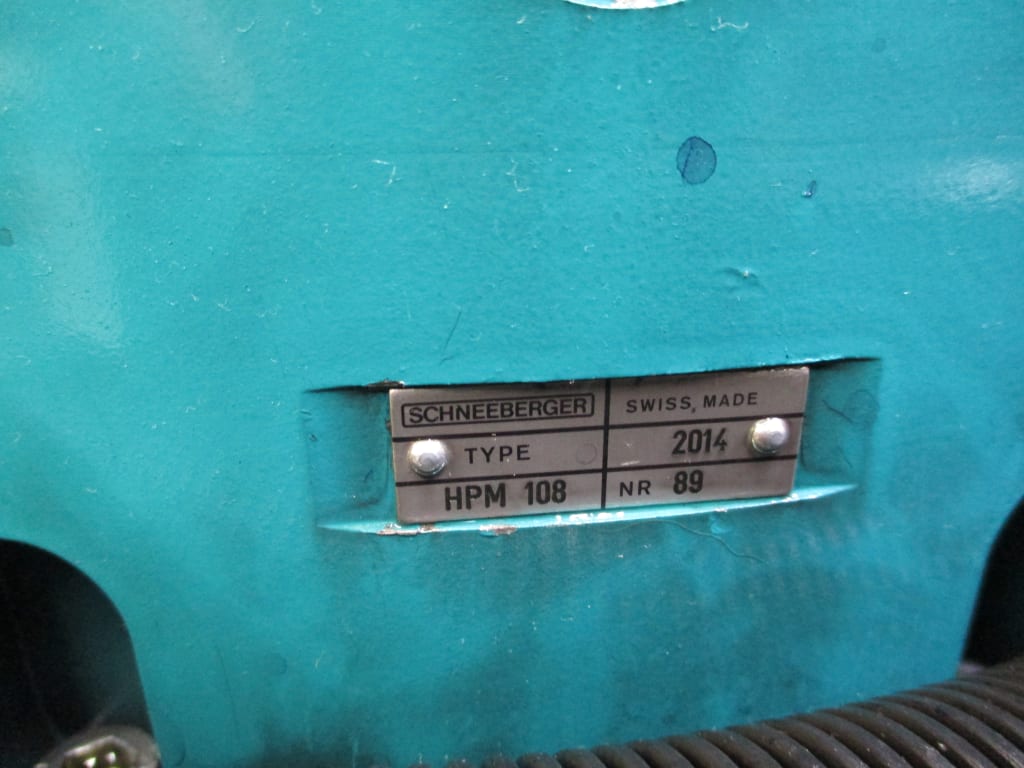

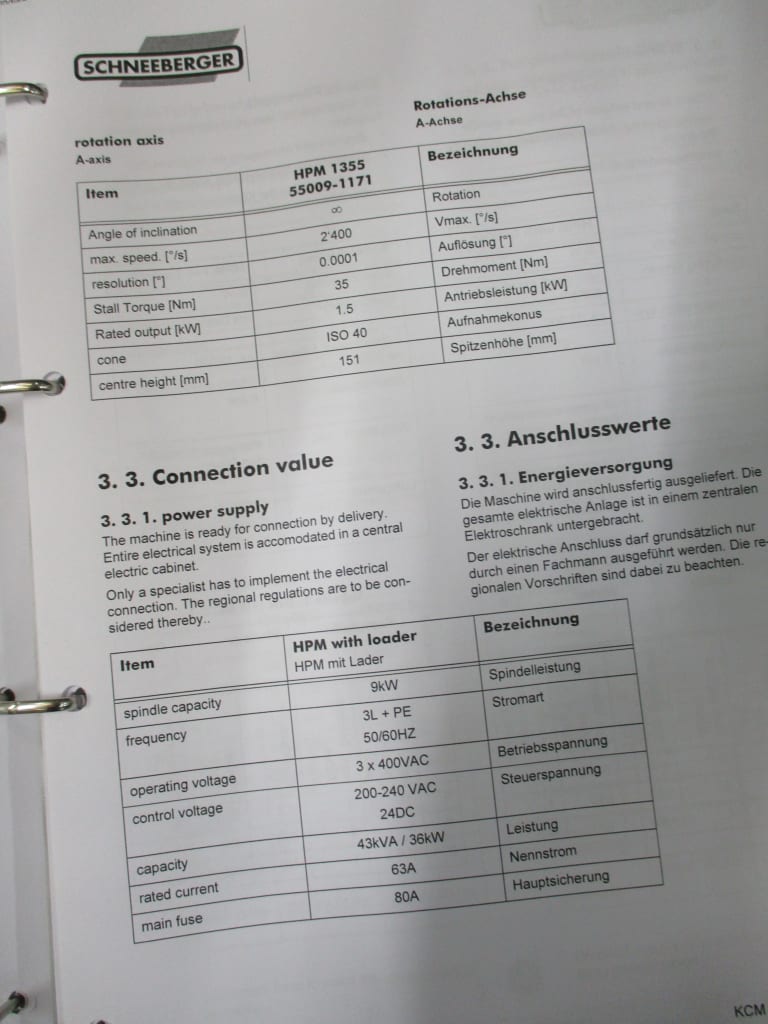

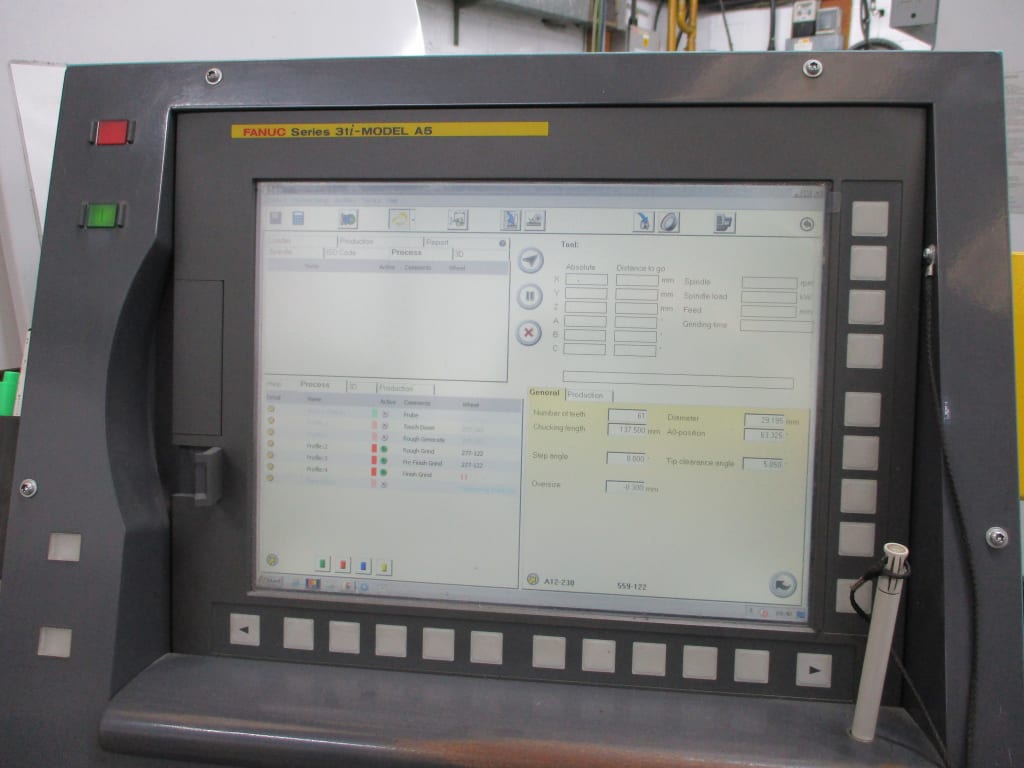

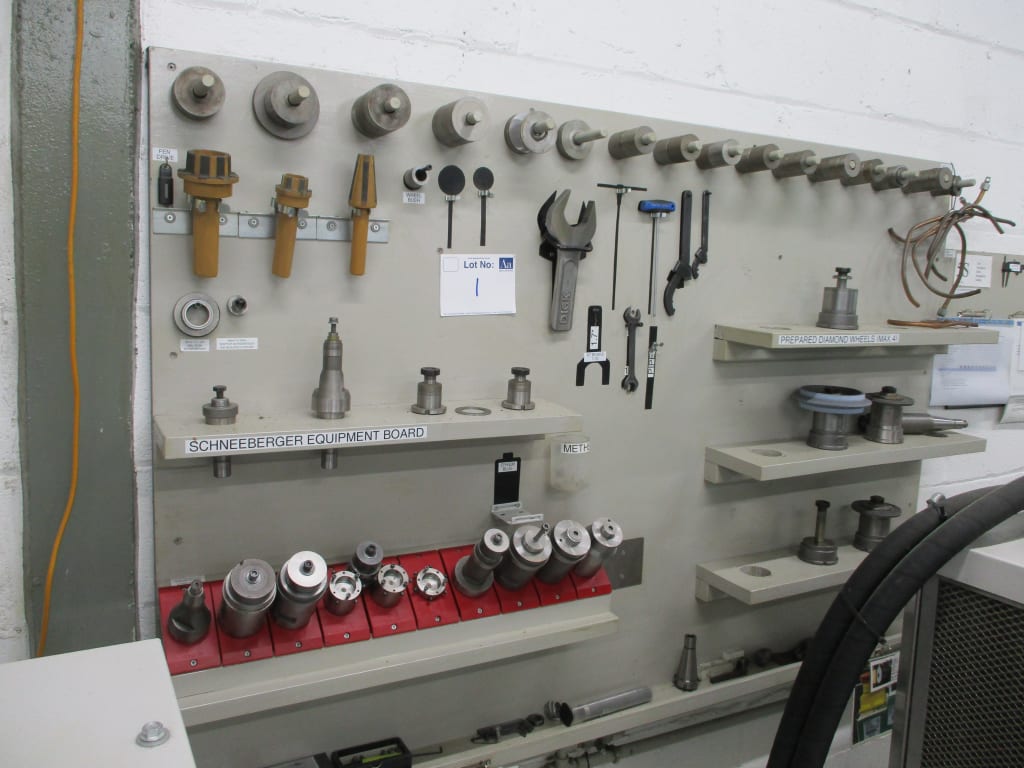

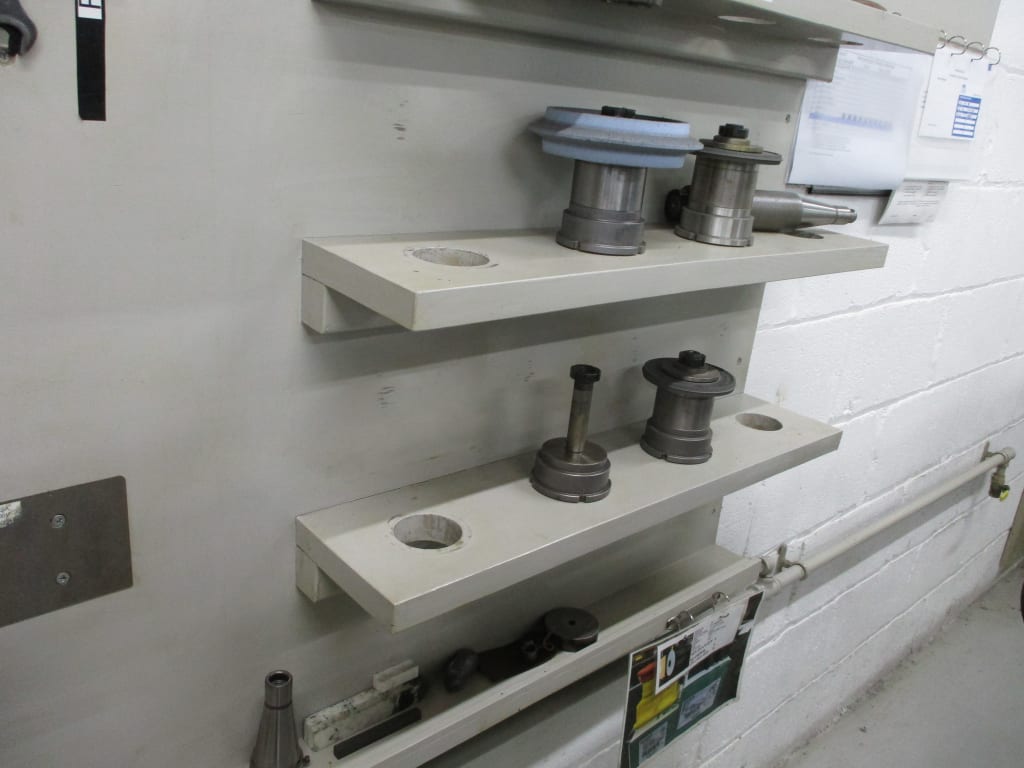

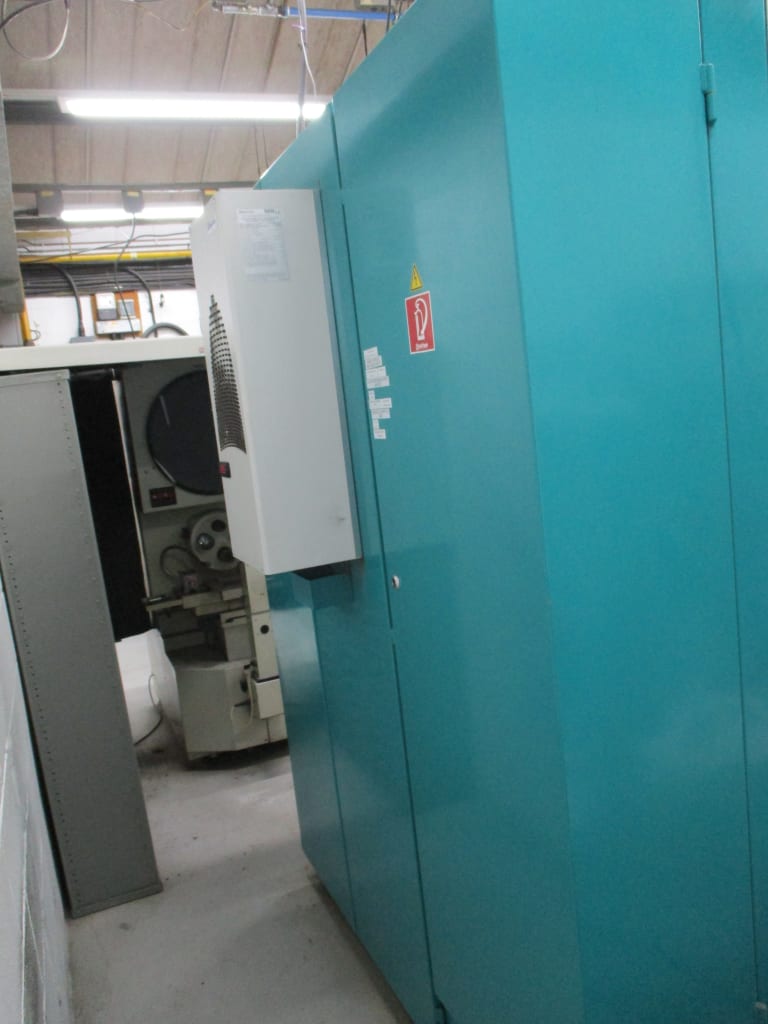

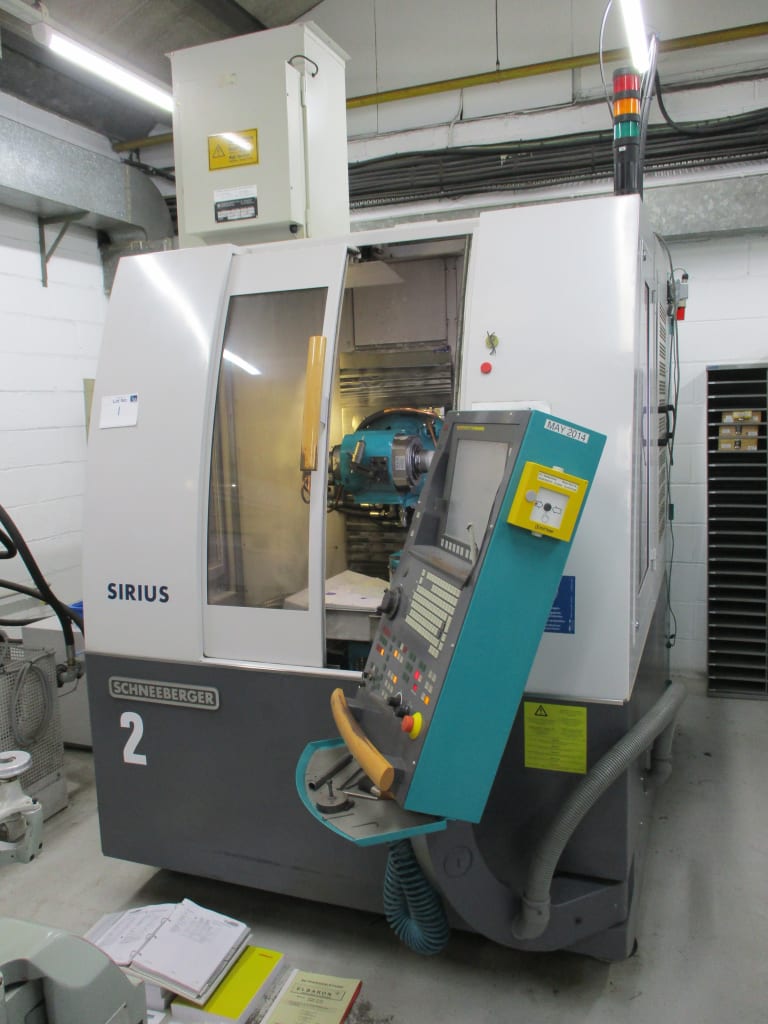

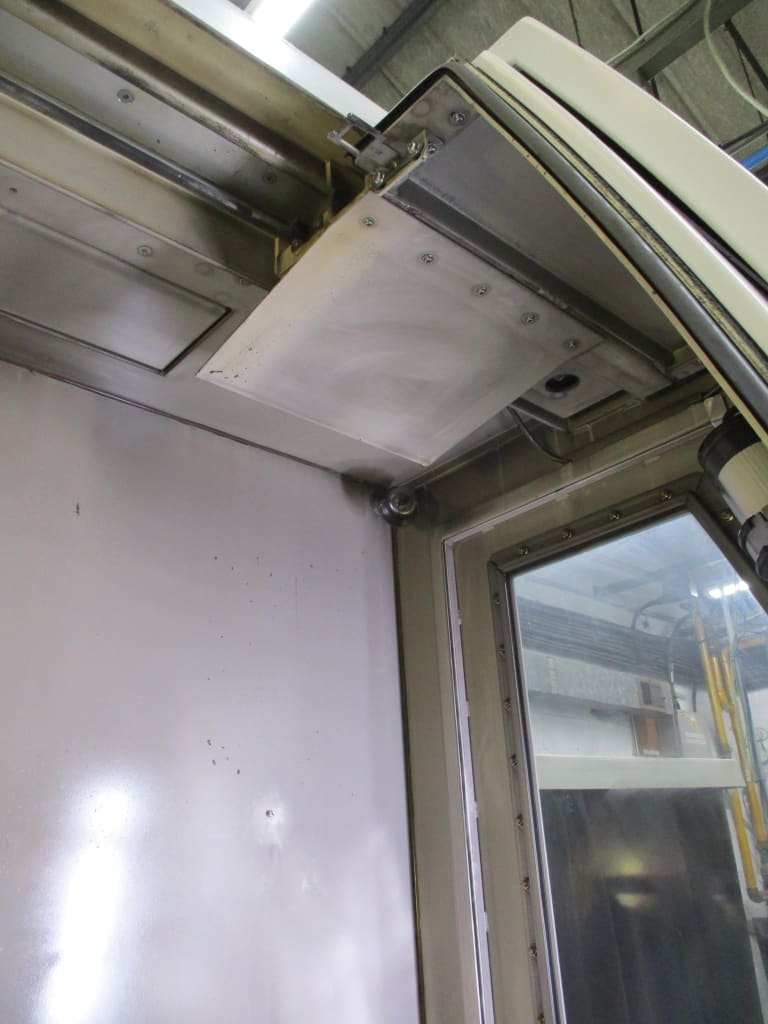

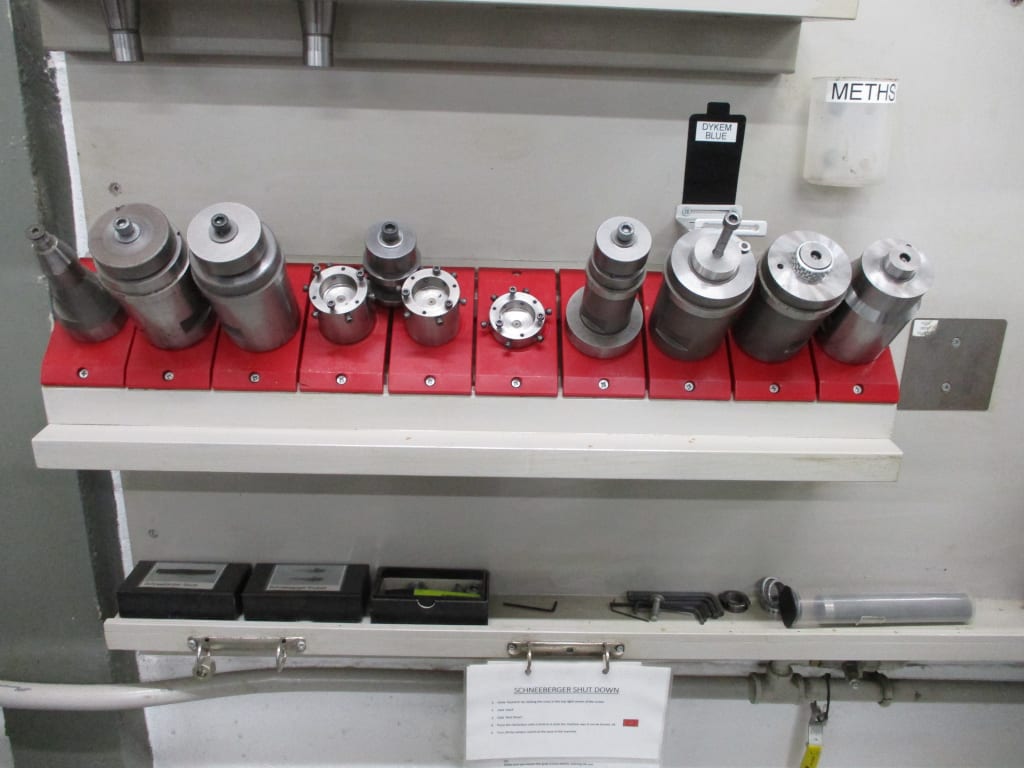

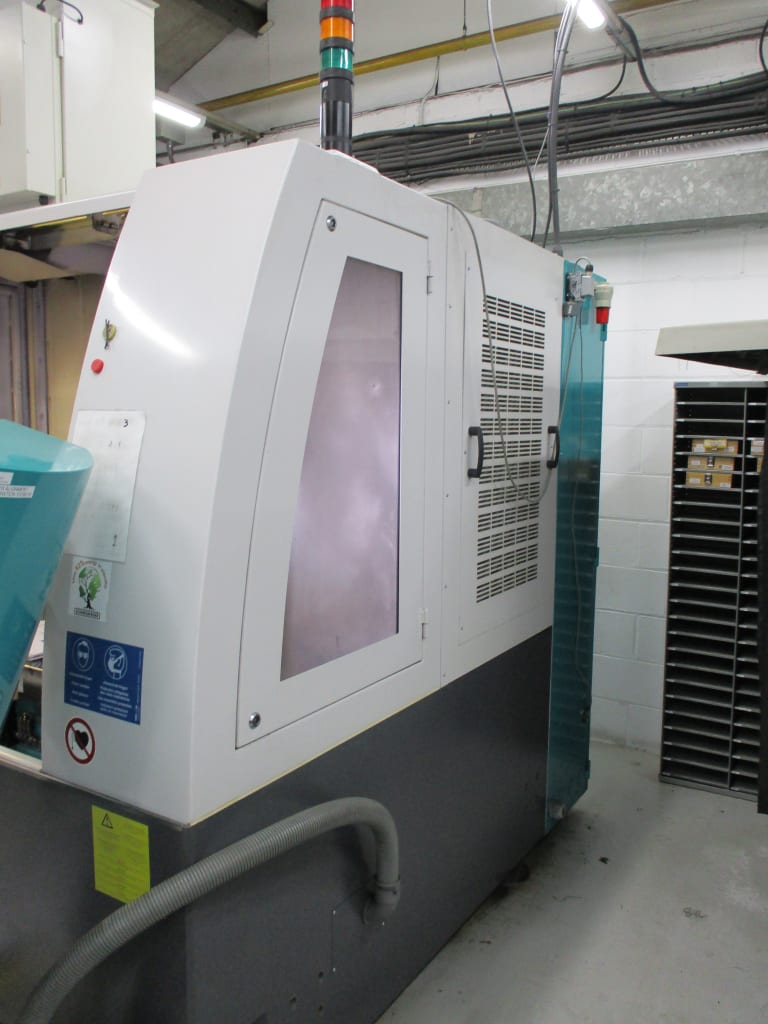

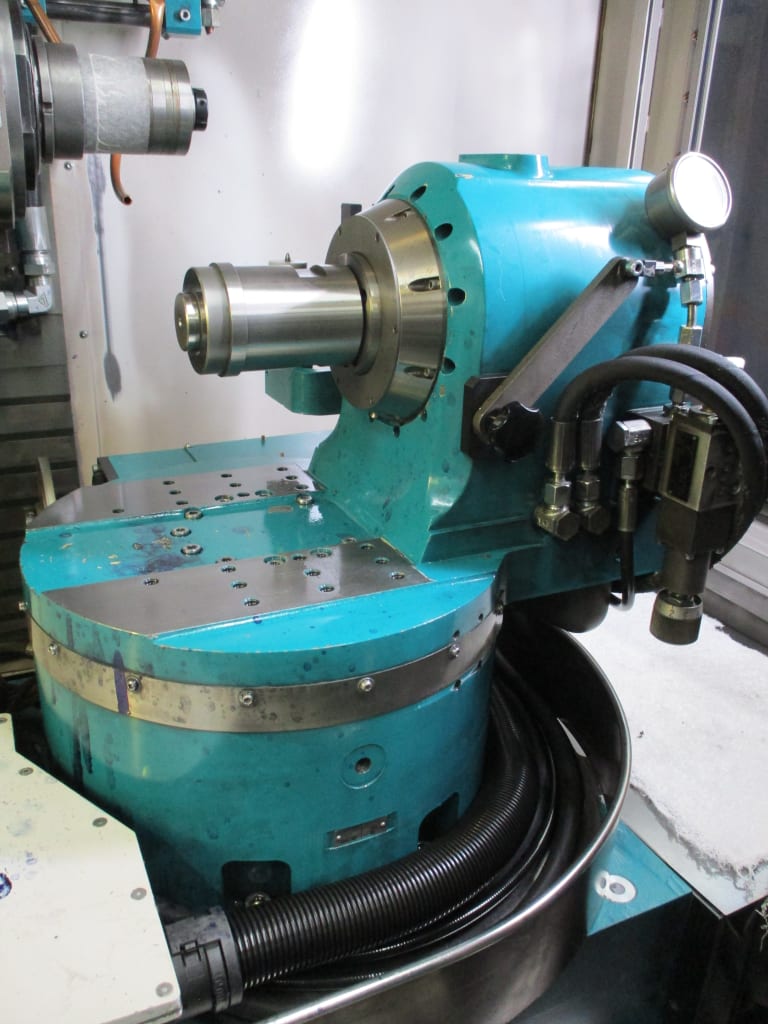

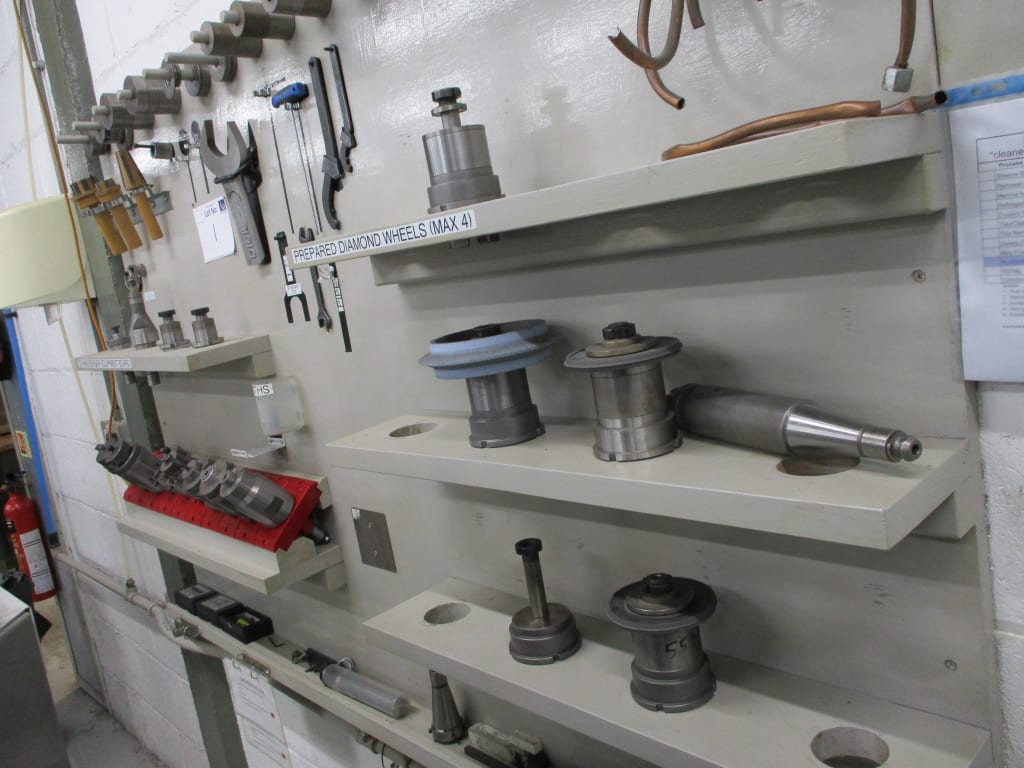

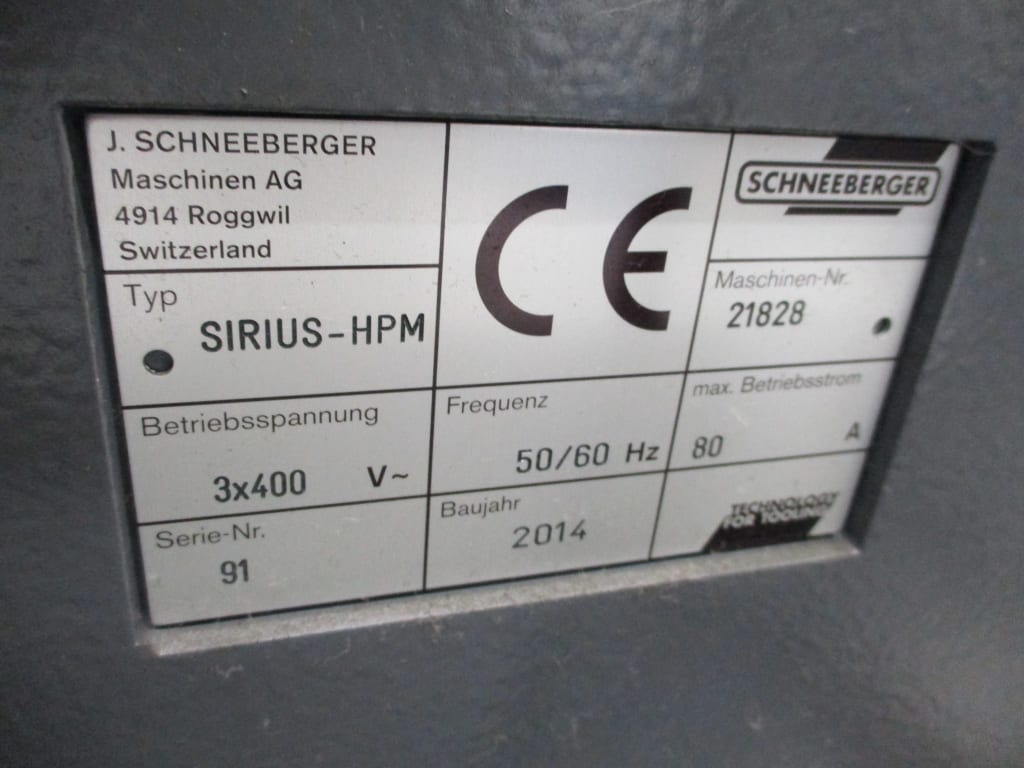

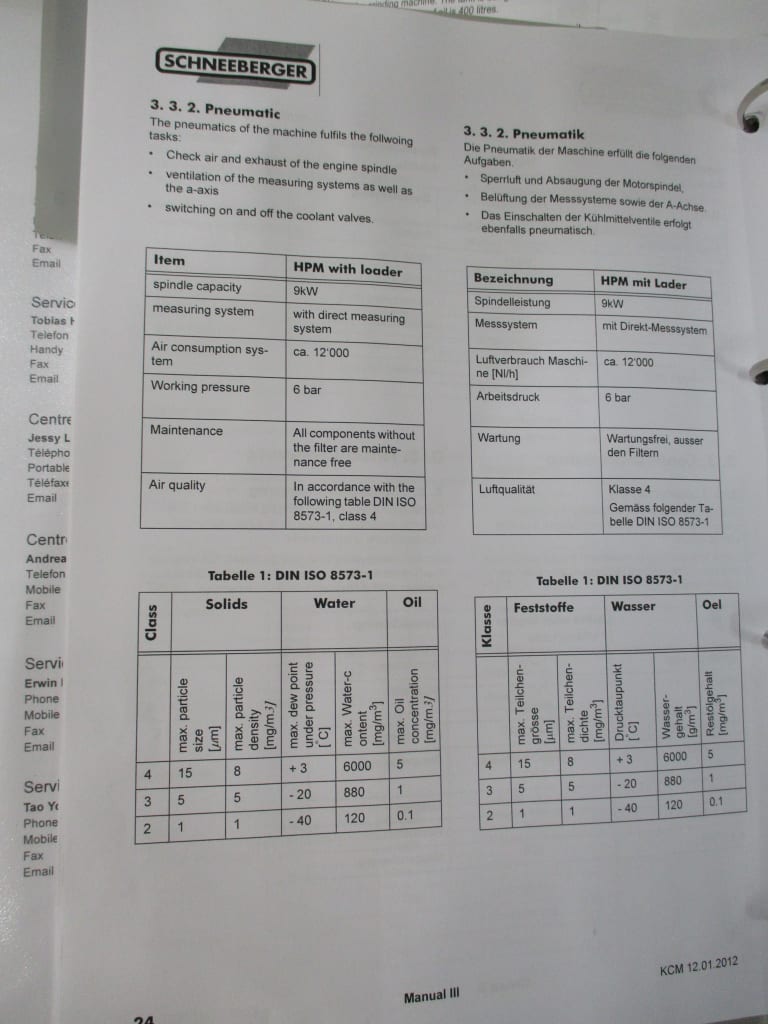

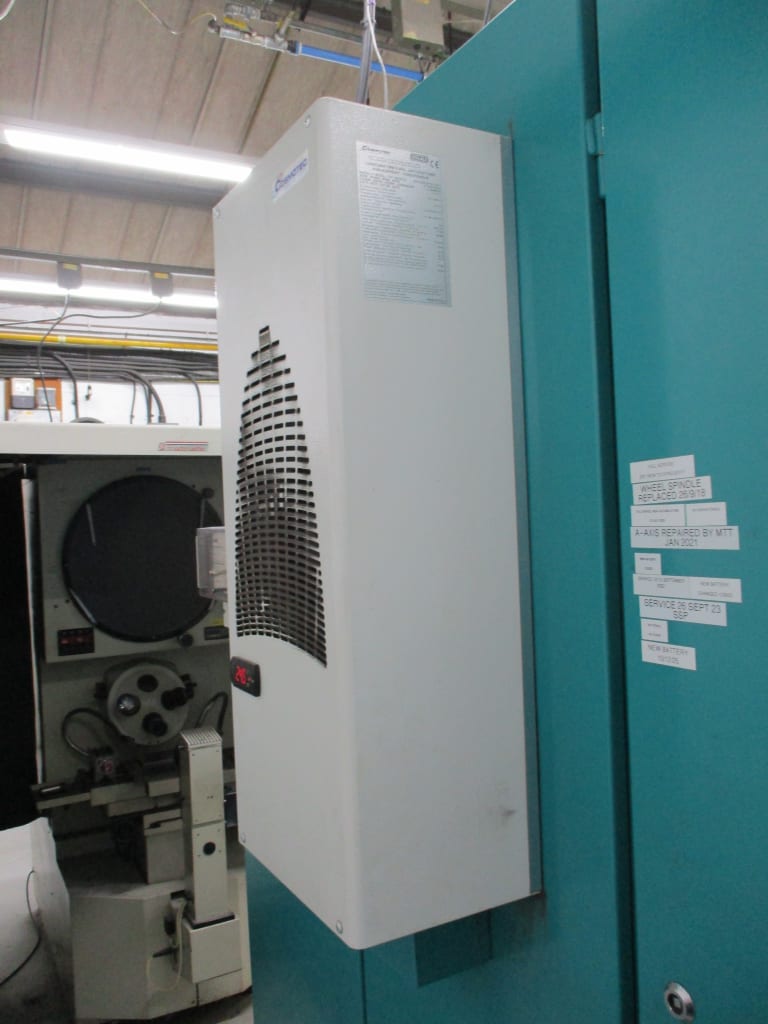

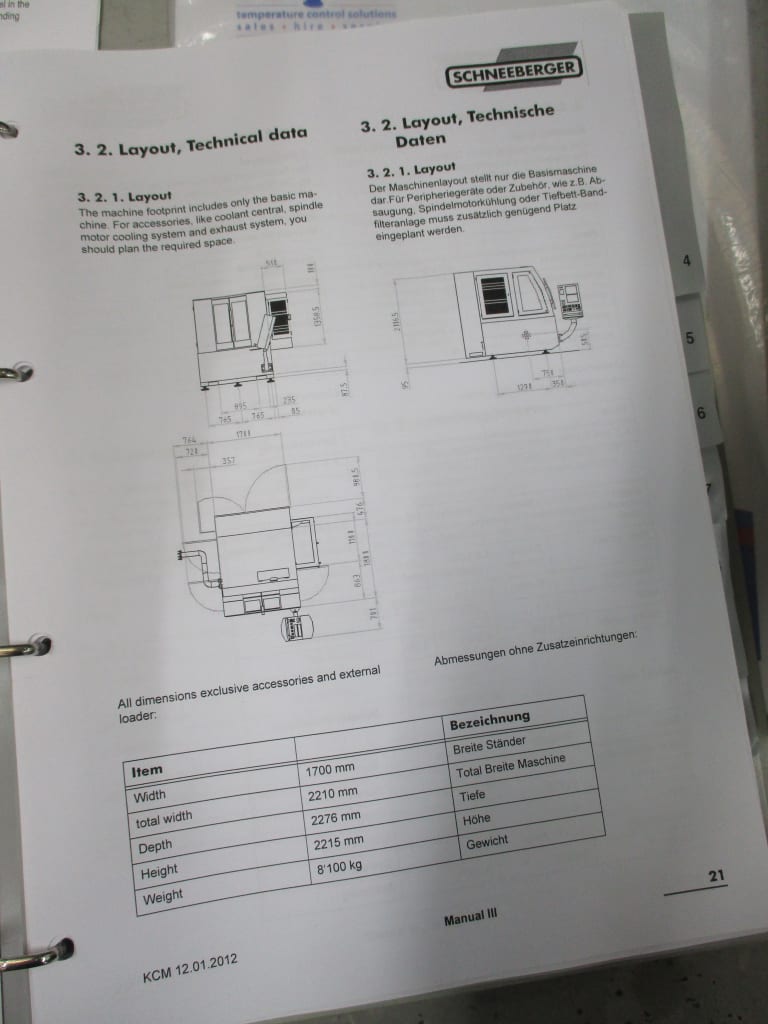

    2014 Schneeberger Sirius HPM 6-Axis Tool Grinding Machine With Fanuc Series 31I-Model A5 CNC Control

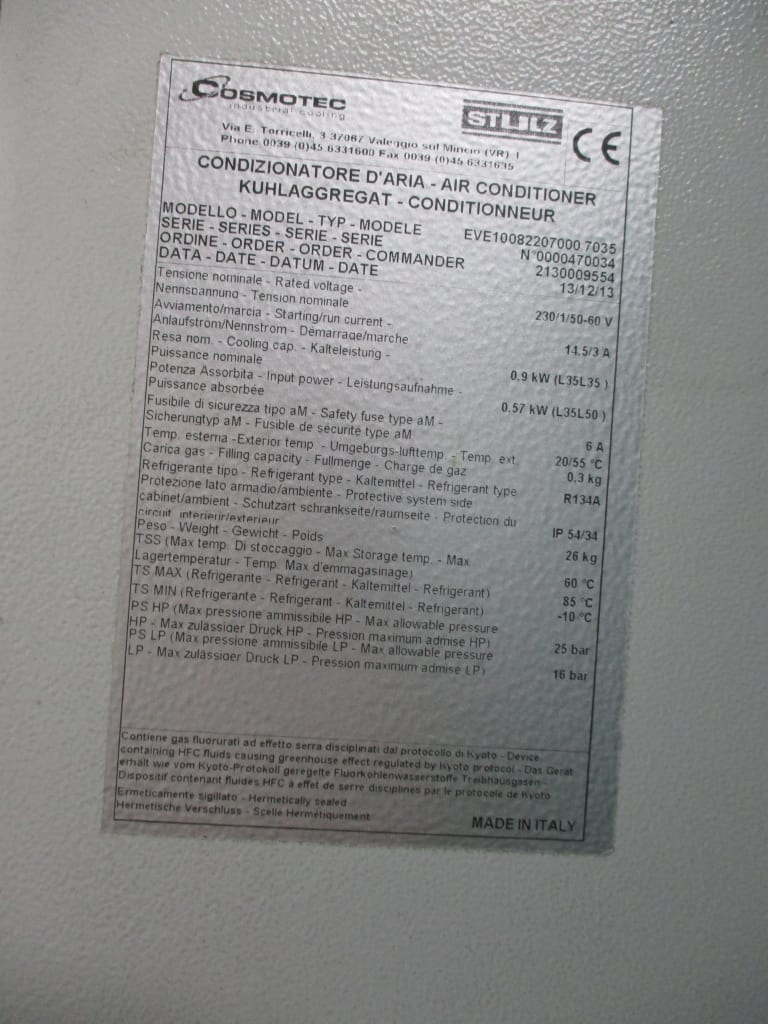

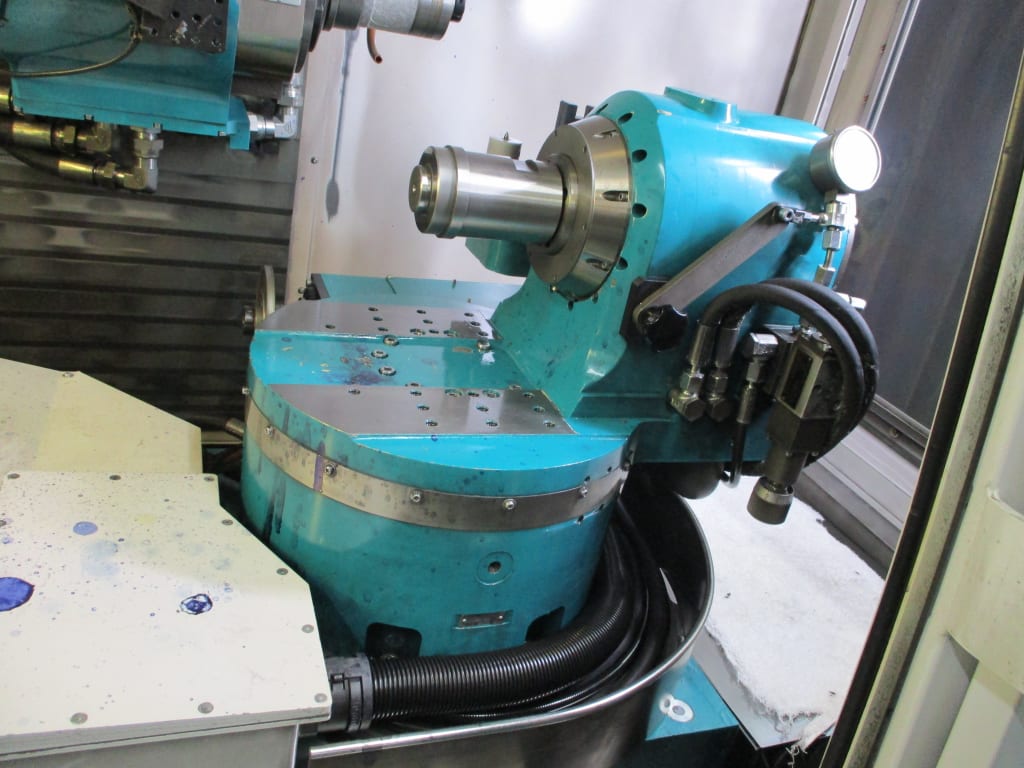

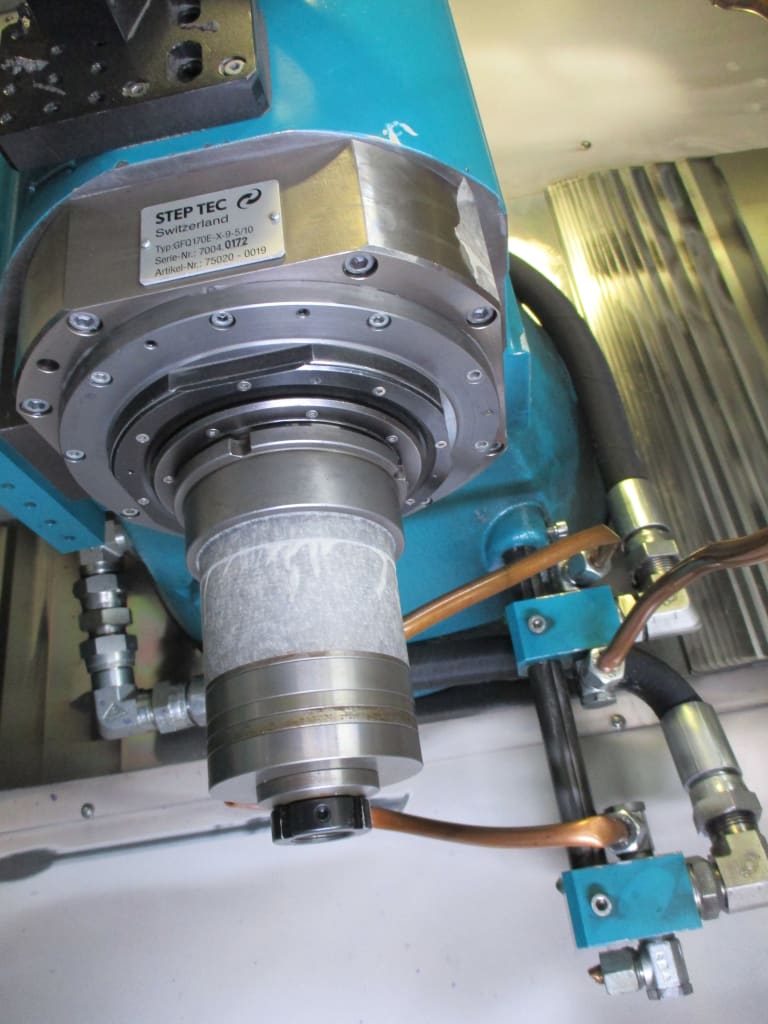

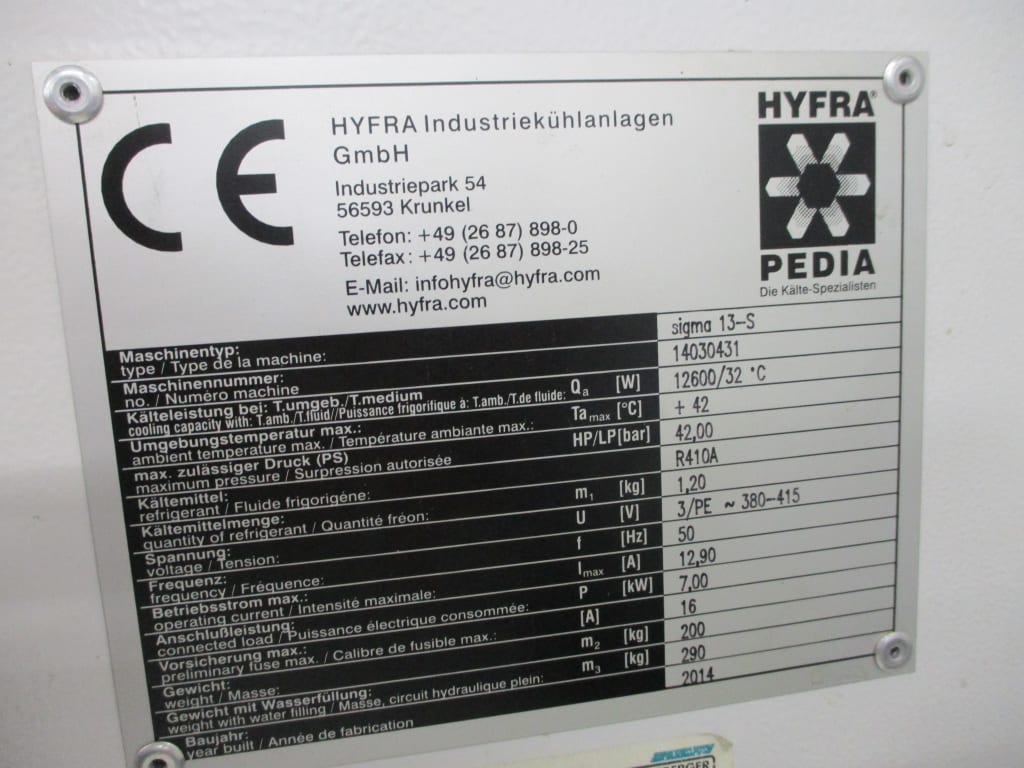

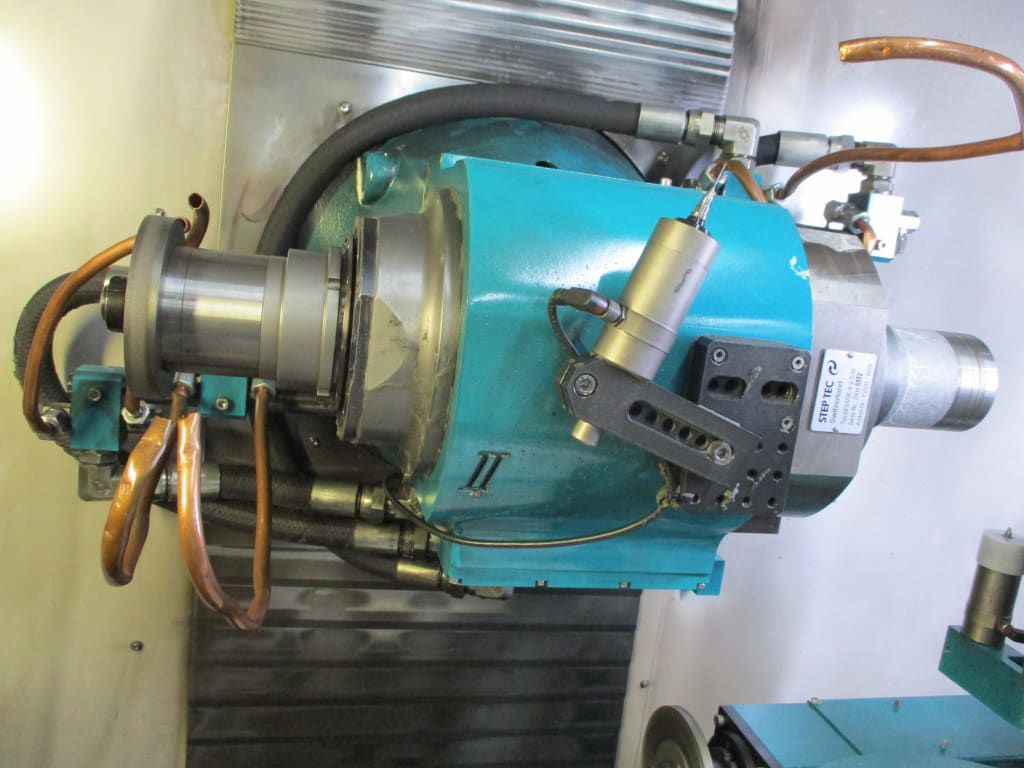

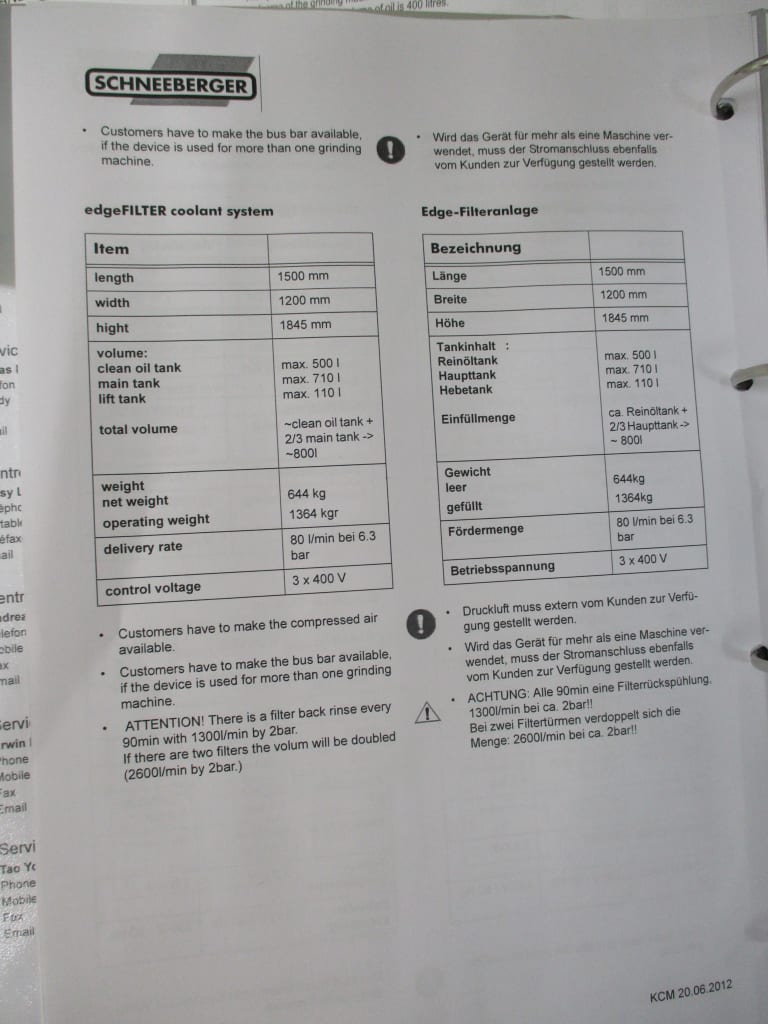

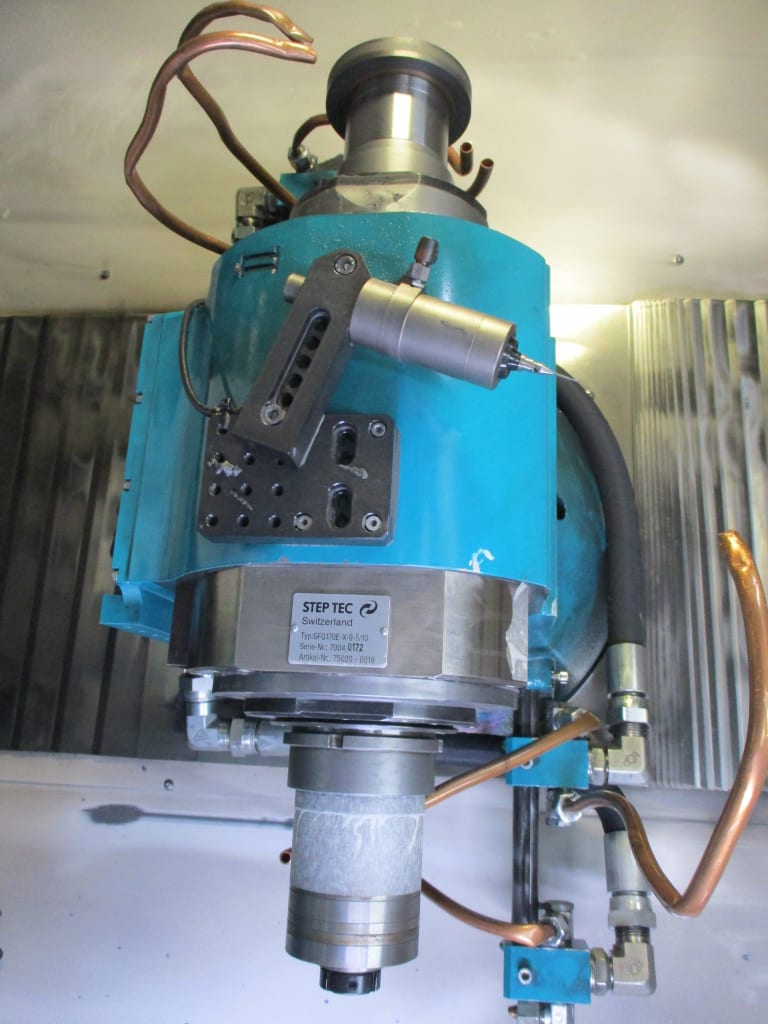

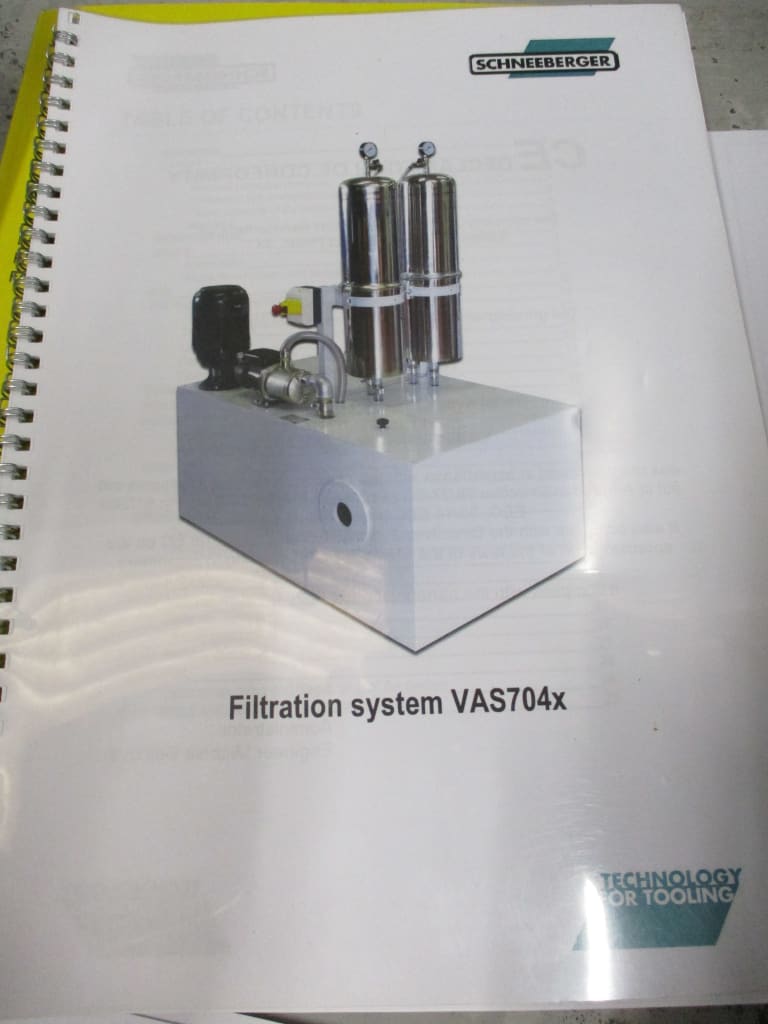

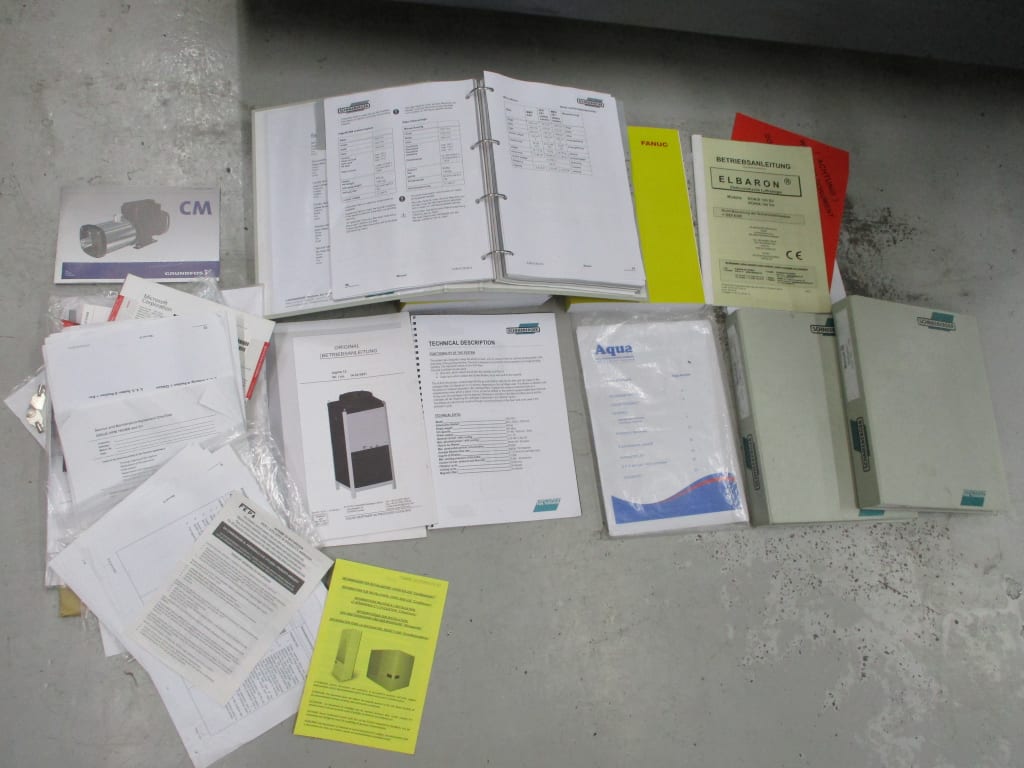

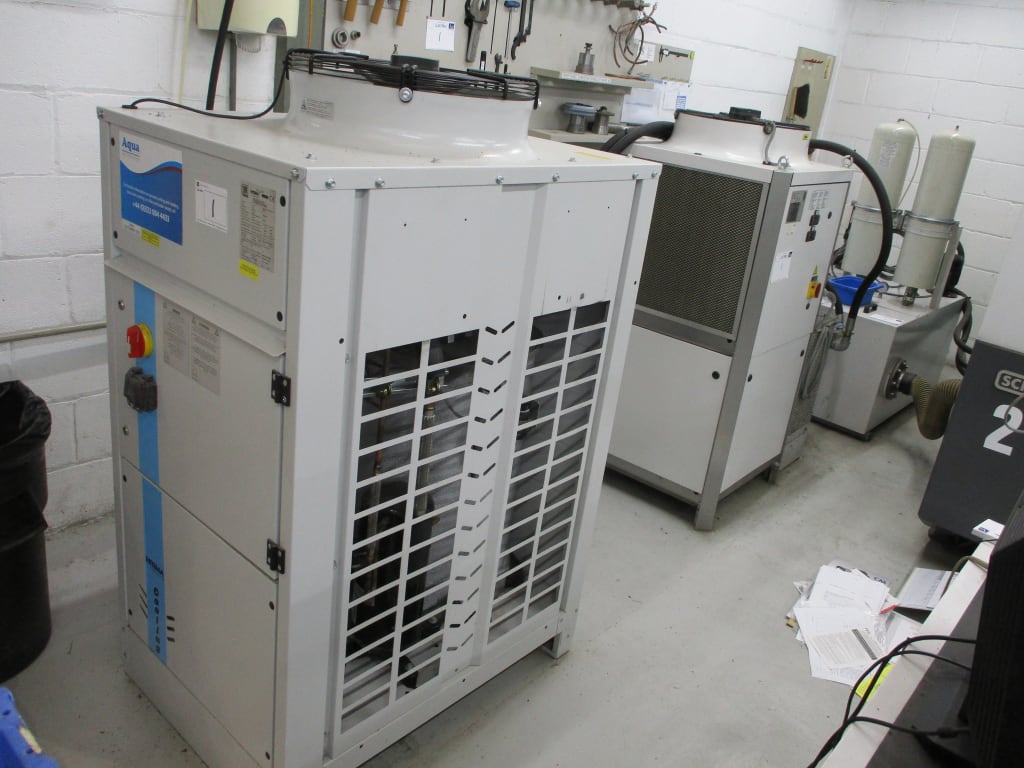

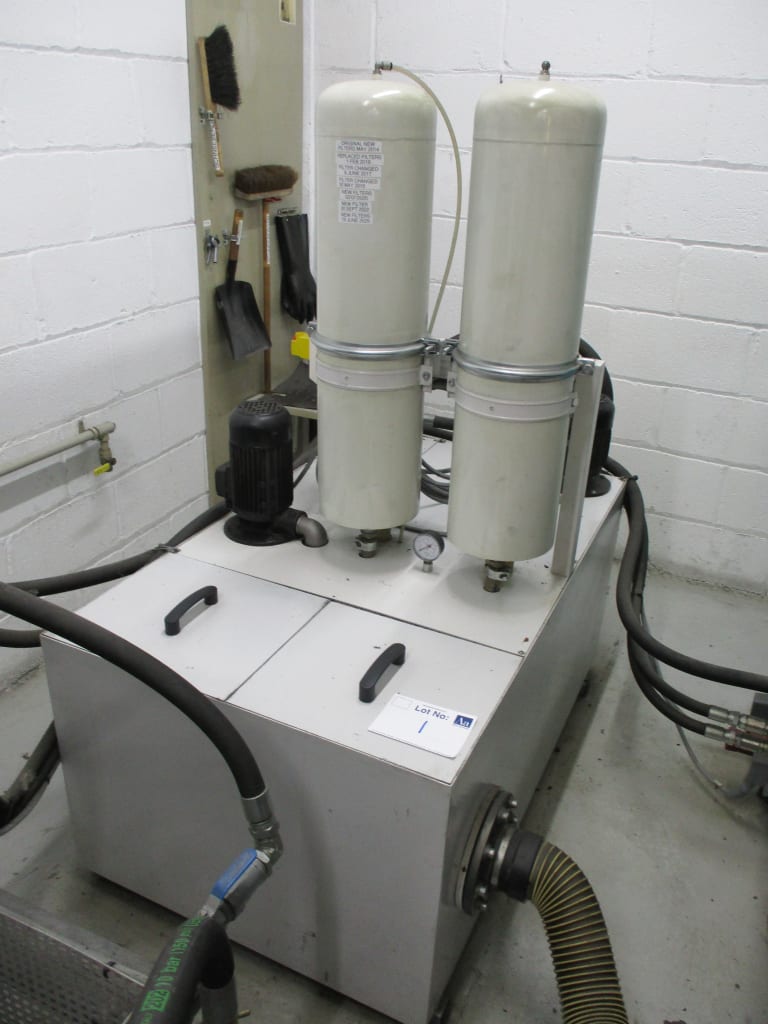

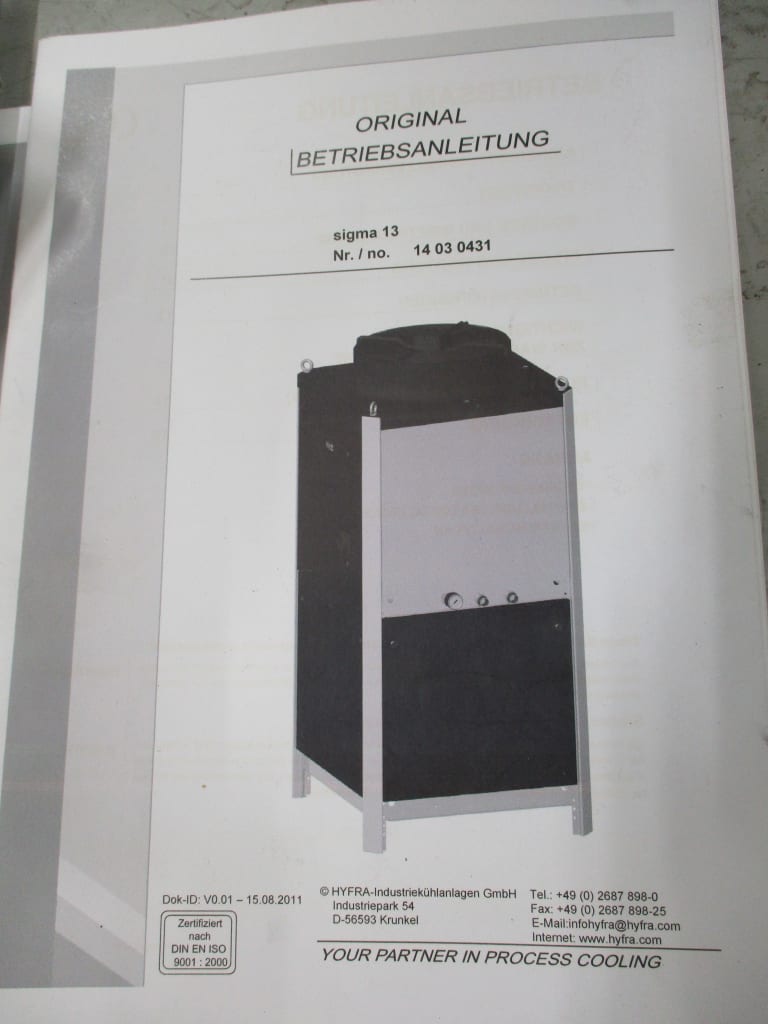

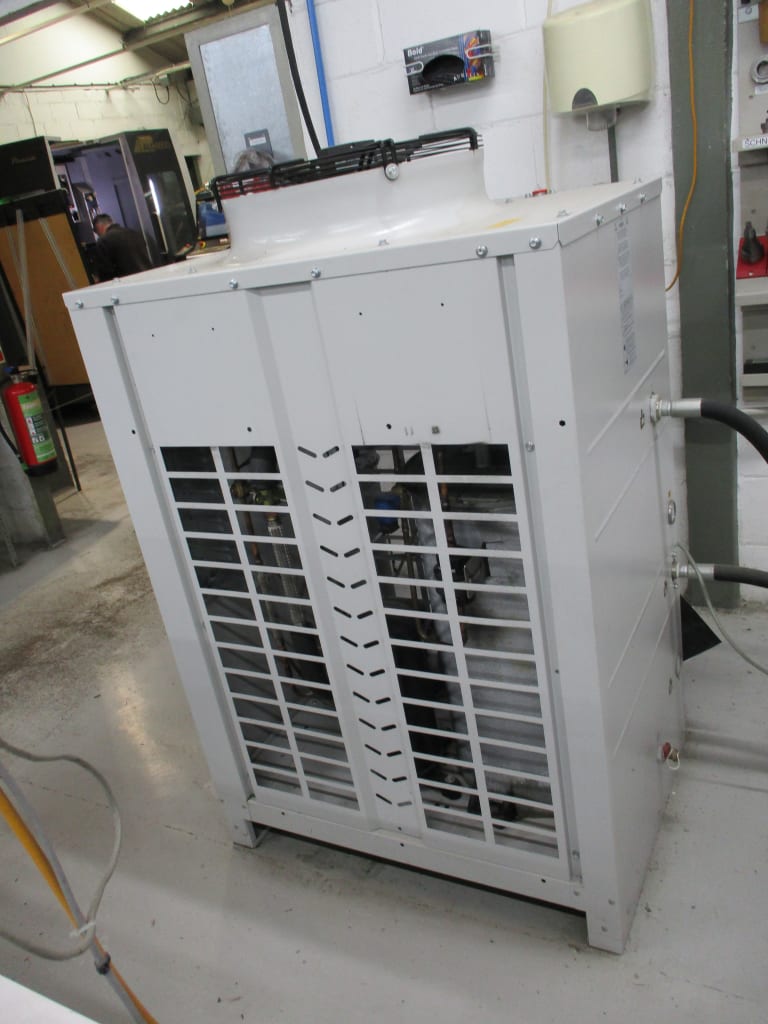

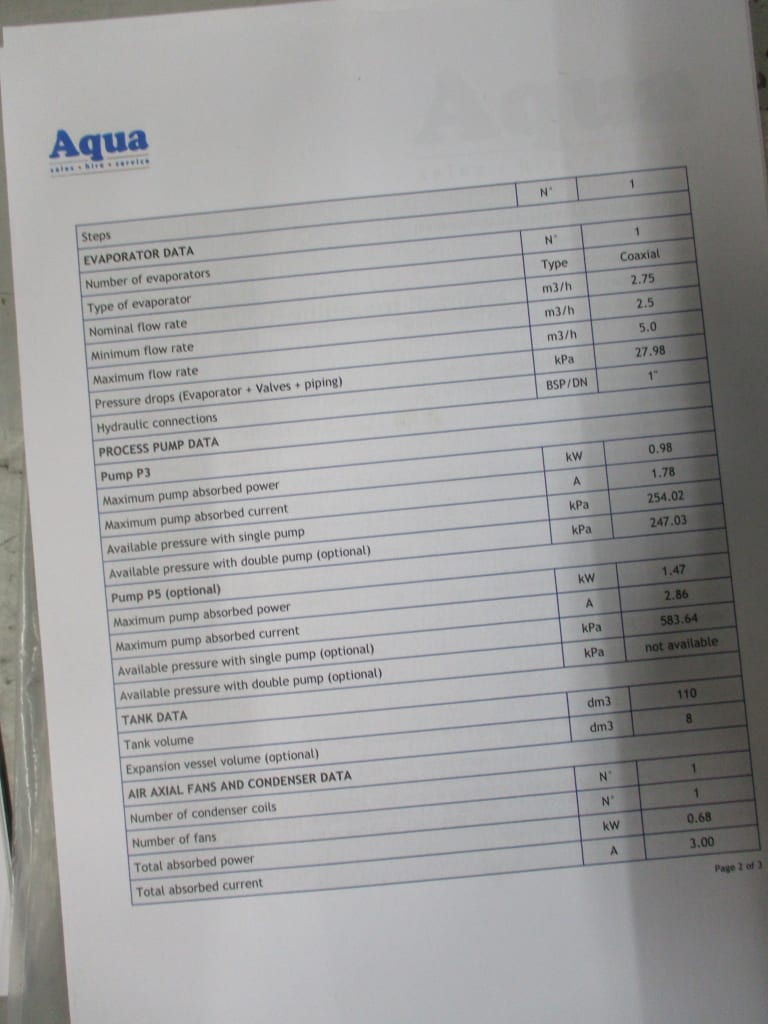

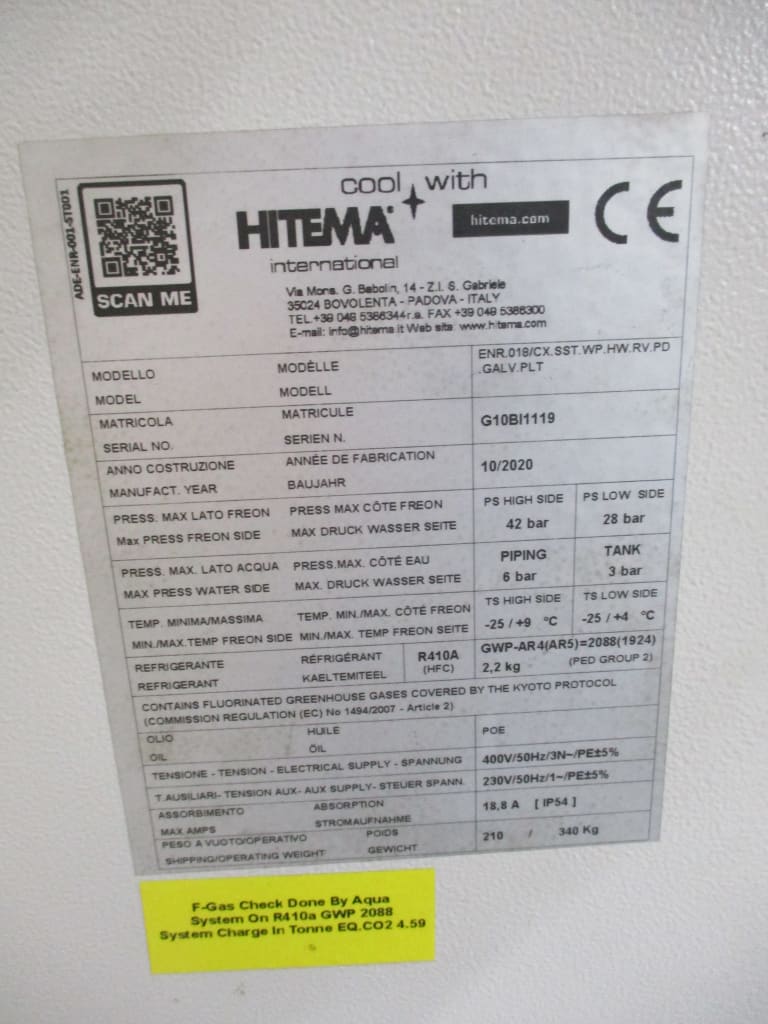

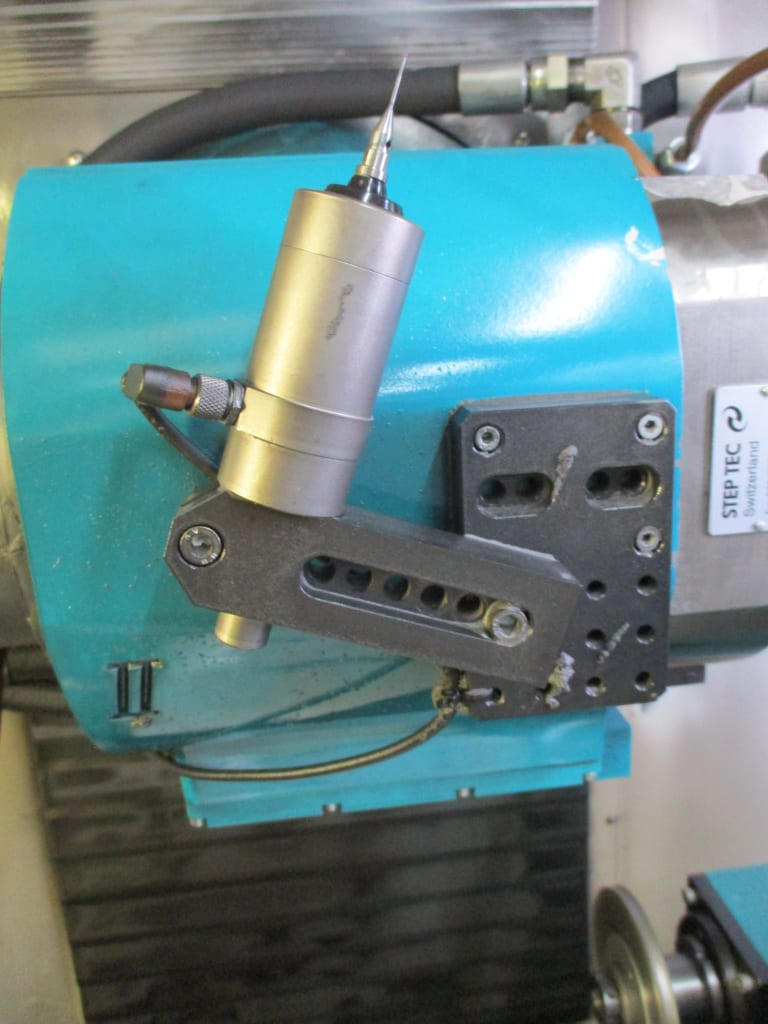

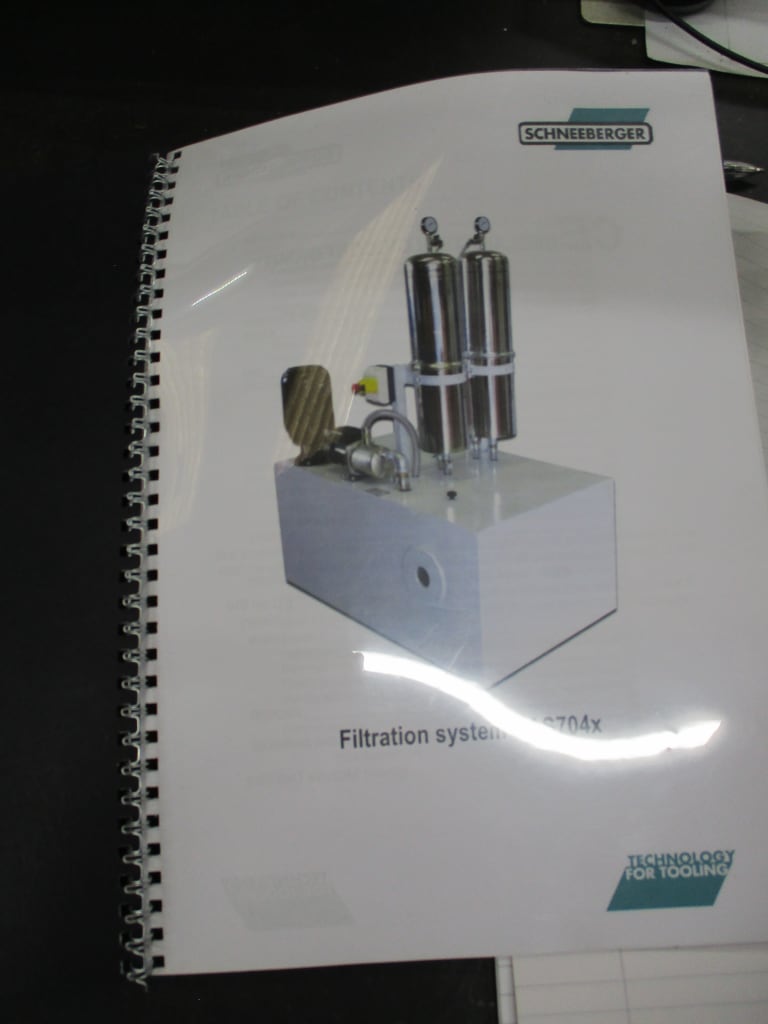

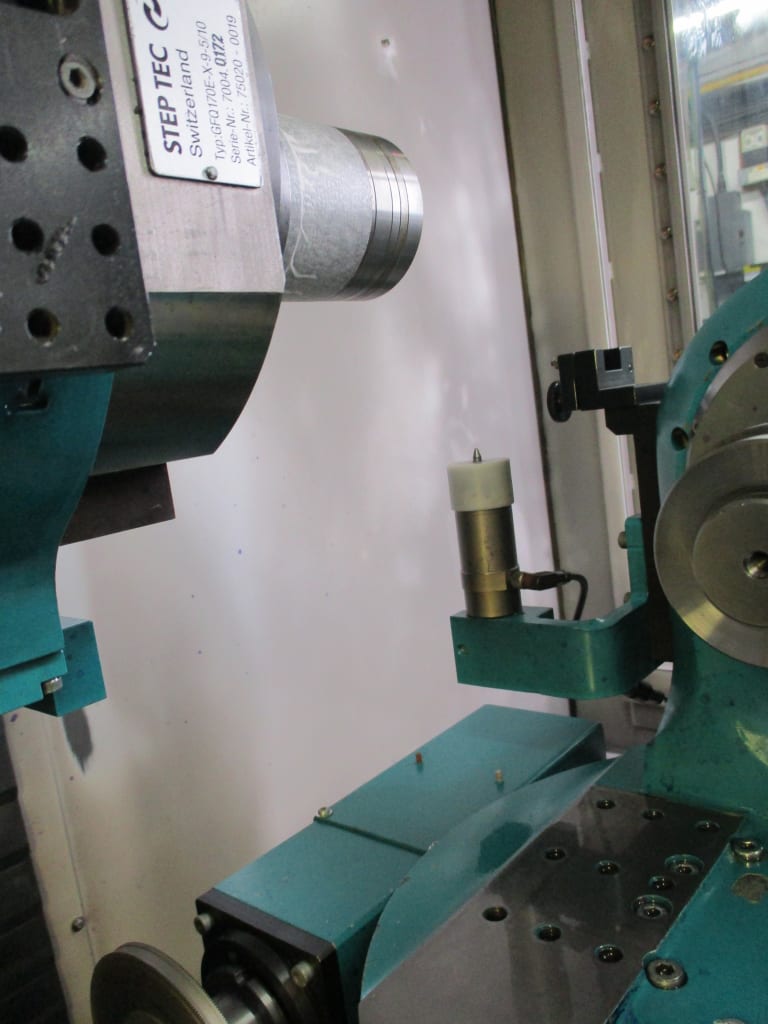

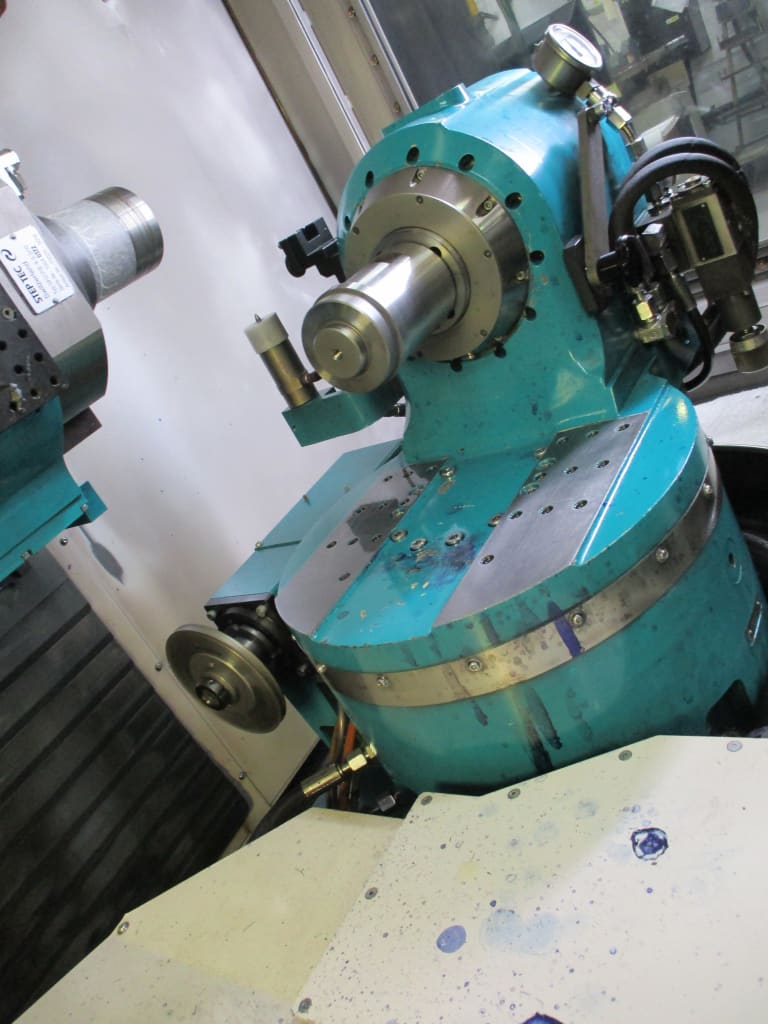

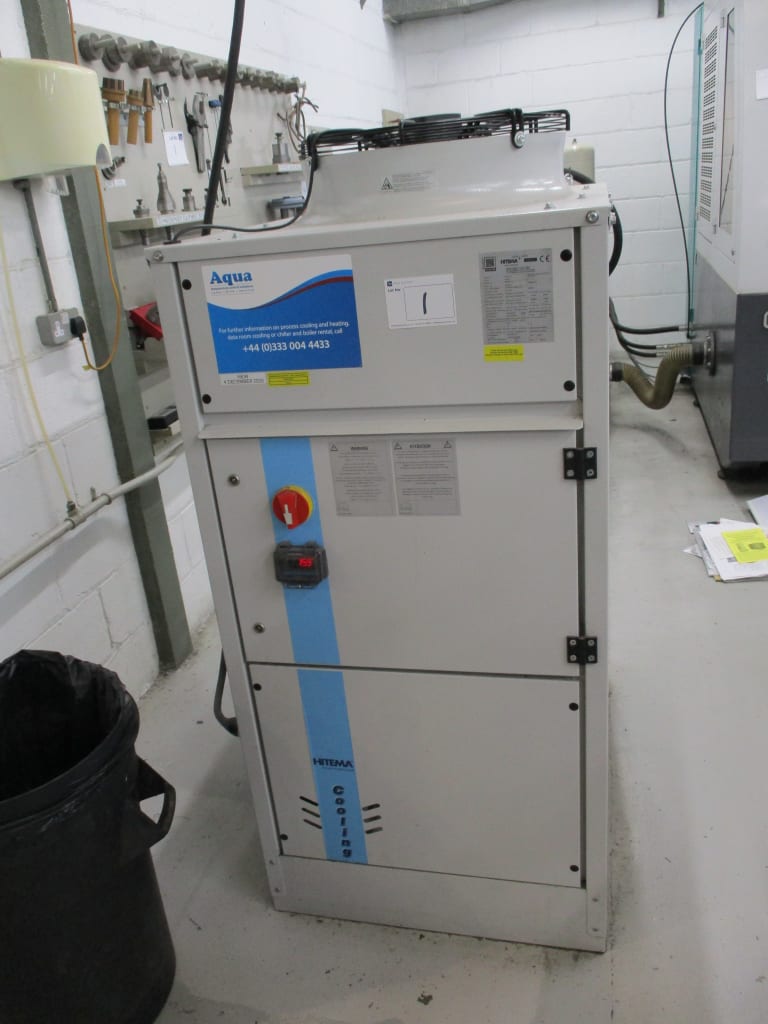

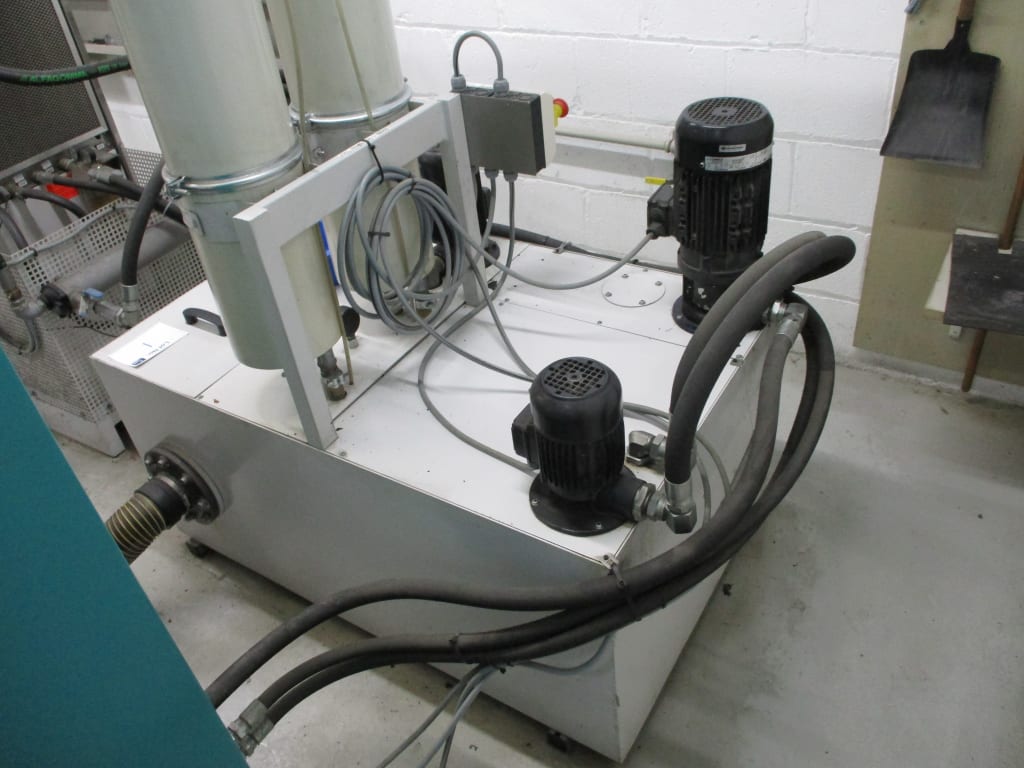

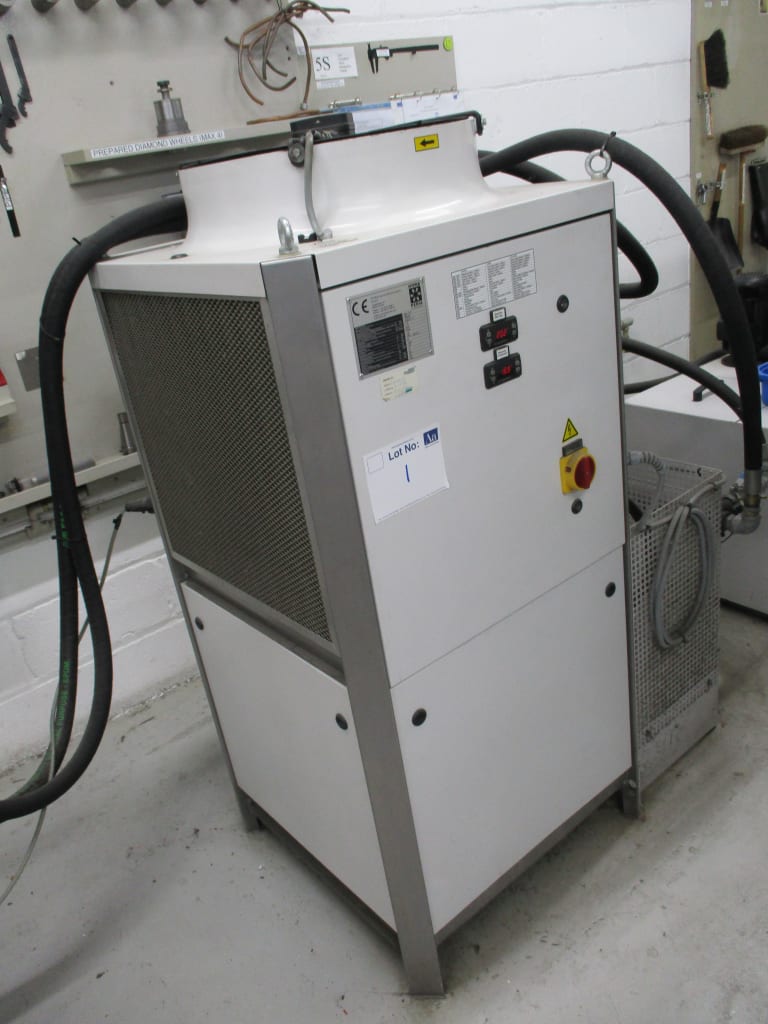

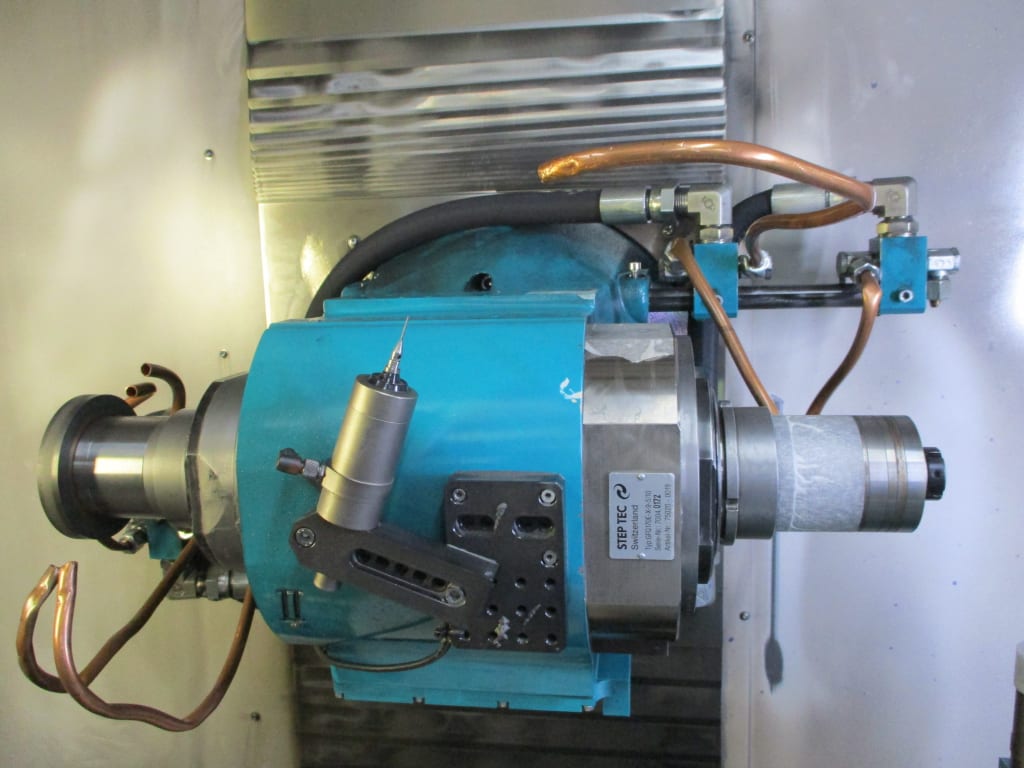

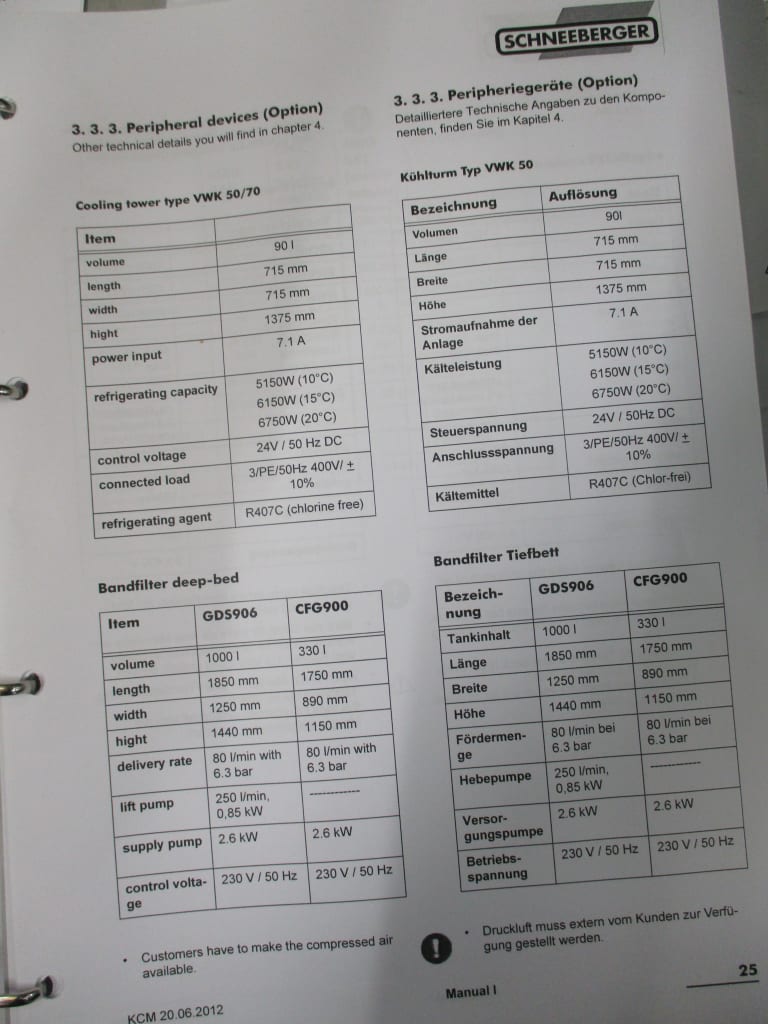

    Gear Tooth Production Steptec GFQ 170E Swivel Spindle Workhead. Travel: 'X' Axis = 420mm, 'Y' Axis = 310mm, 'Z' Axis = 340mm. 'A' Axis (Rotation) = 2,400°/S. ISO40, Centre Height 150mm. Swivel Axis 'B' = 90°, Swivel Axis 'C' = 180°. (1) Hitema Stand Alone Air Cooled Liquid Chiller Type ENR.018/CX.SST.WP.HW.RV.DD.GALV (340kg, 2020). (1) Hyfra Pedia Sigma 13-S Stand Alone Water Cooling Chiller (200kg, 2014). VAS 7041, 400 Litre Stand Alone Filtration System (800mm x 1,300mm x 600mm, 400kg). Sirius S/No. 21828.
    View Item
  • 2-1.jpg
    site
    LOT 2

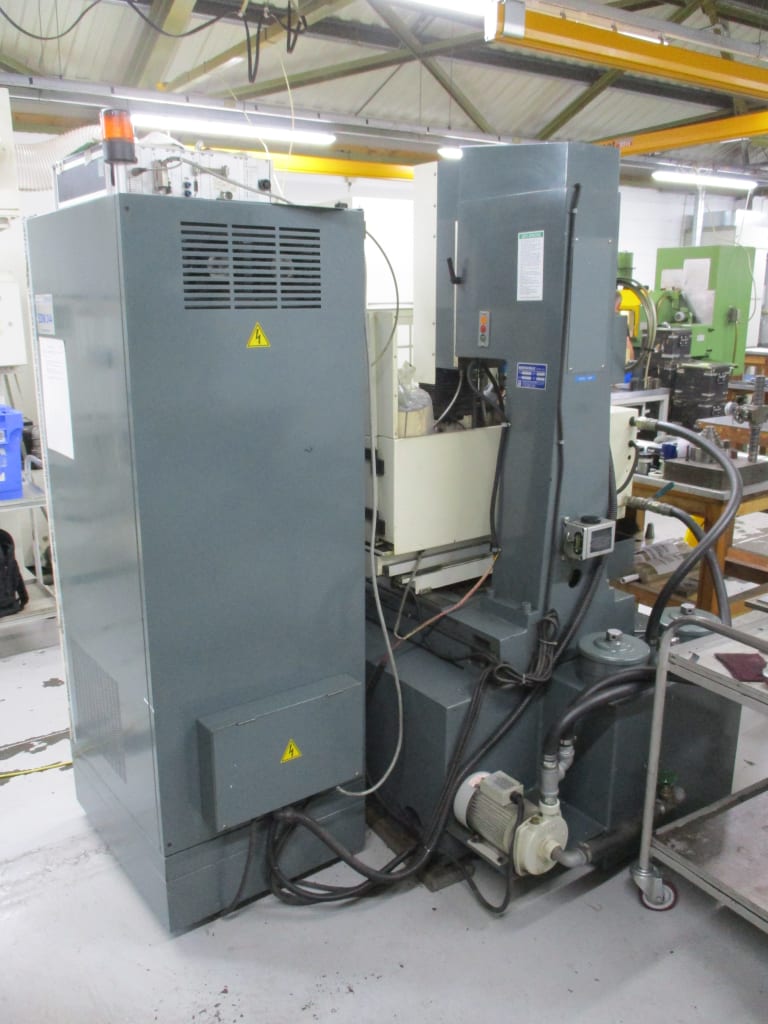

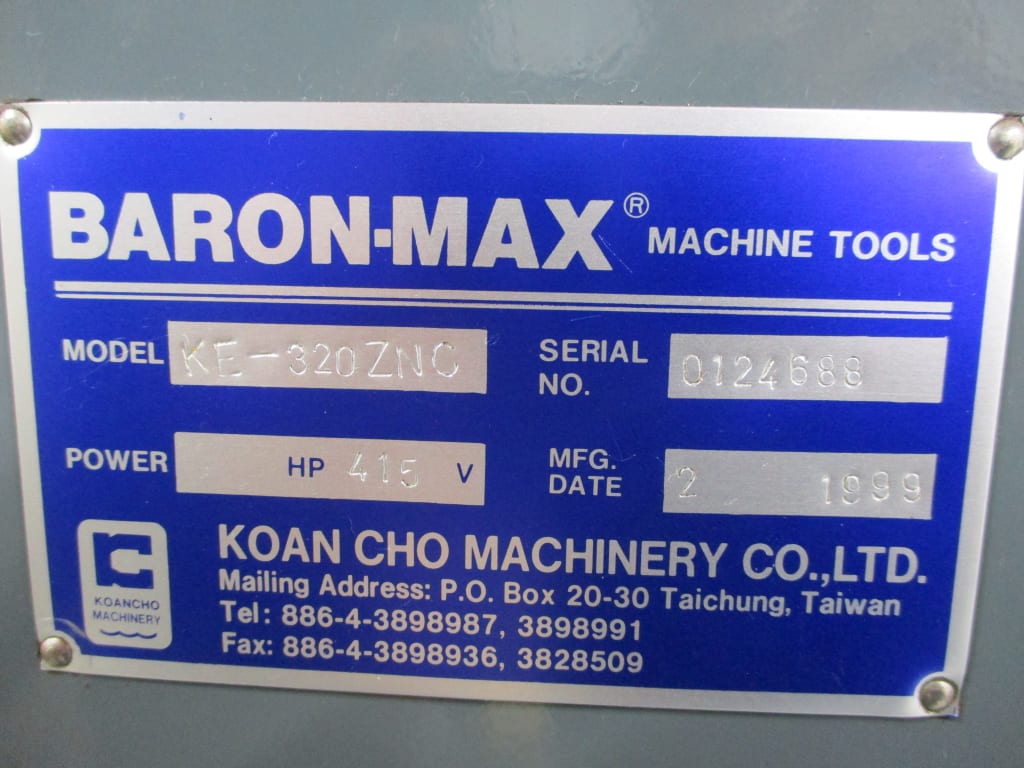

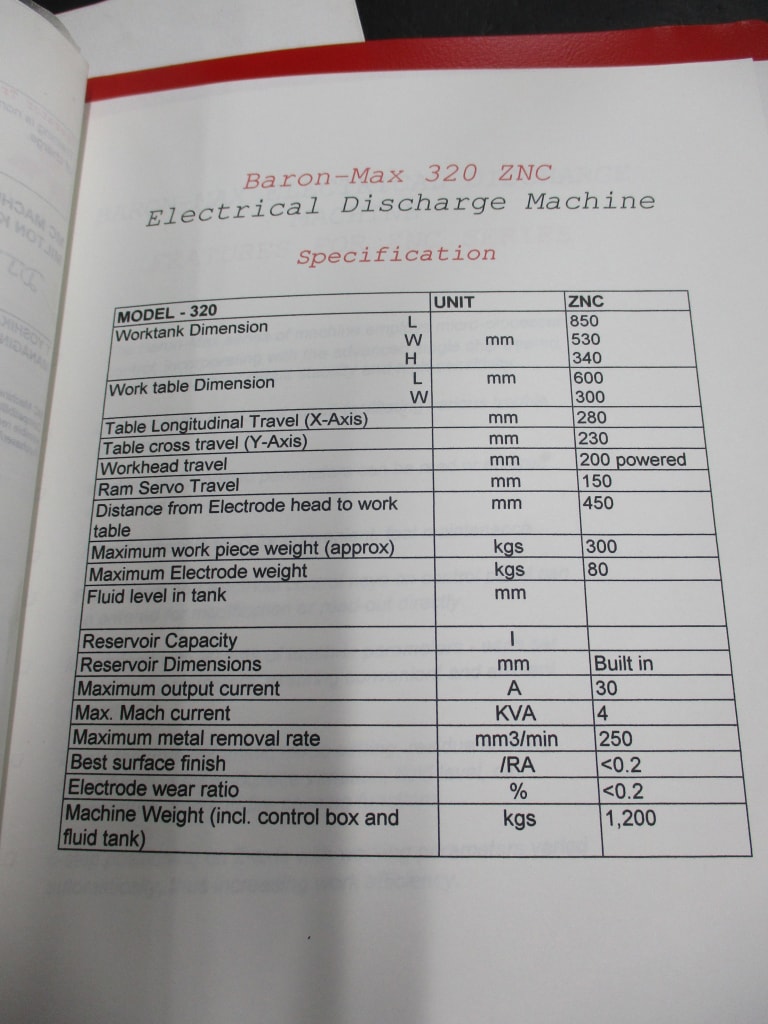

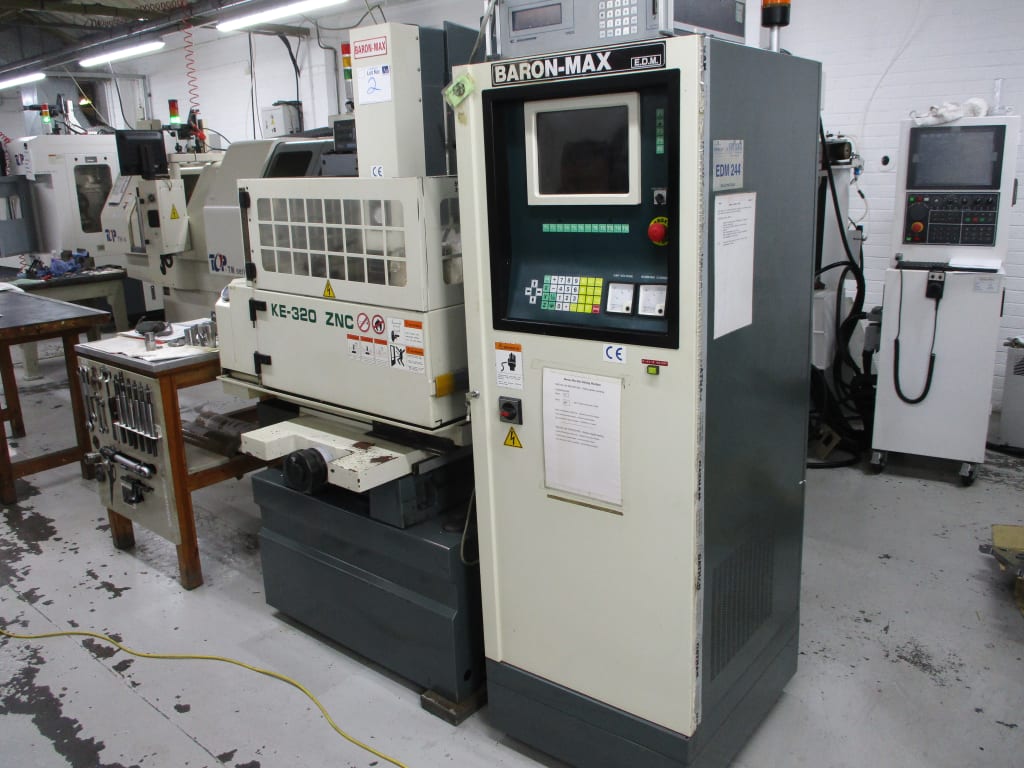

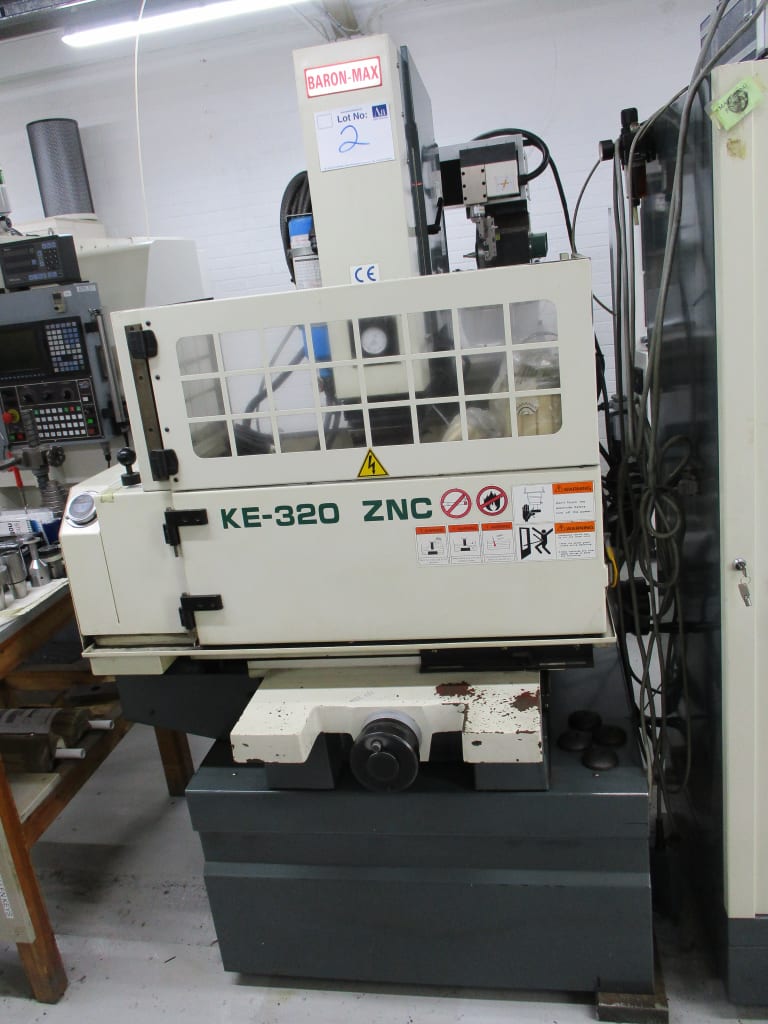

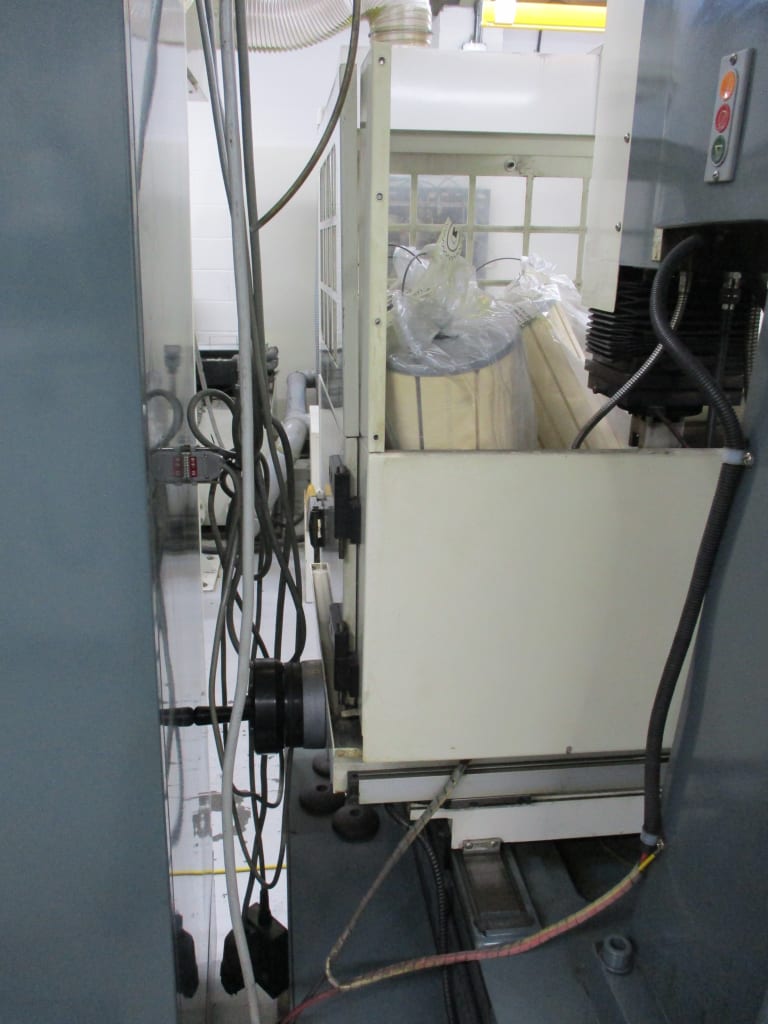

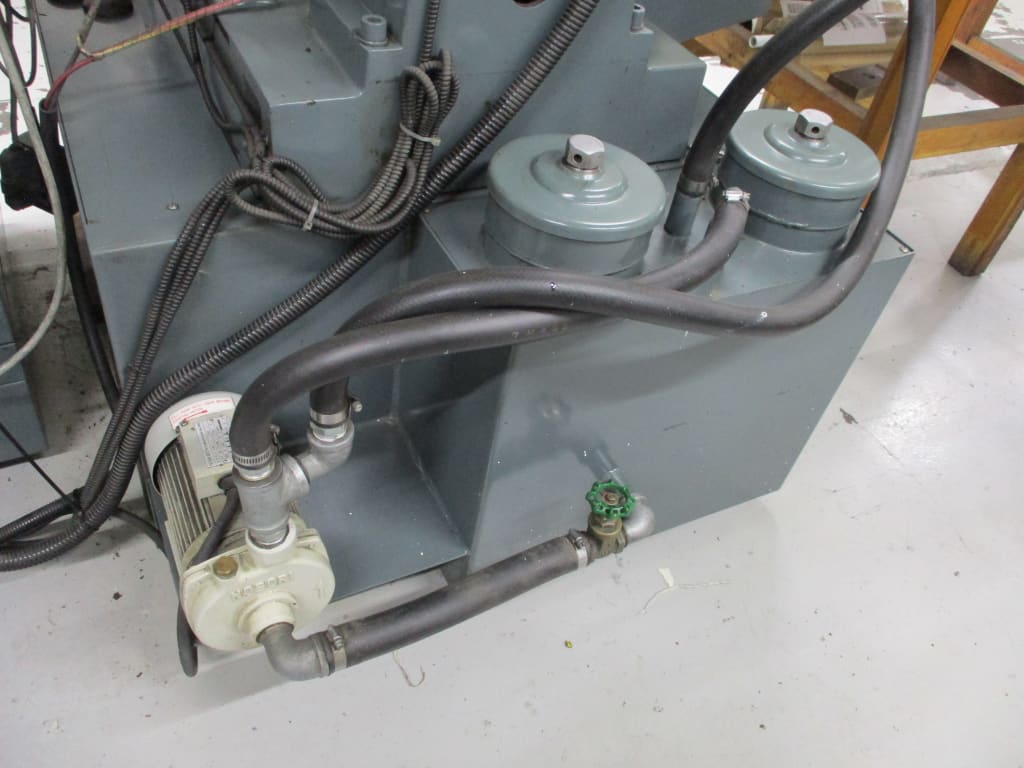

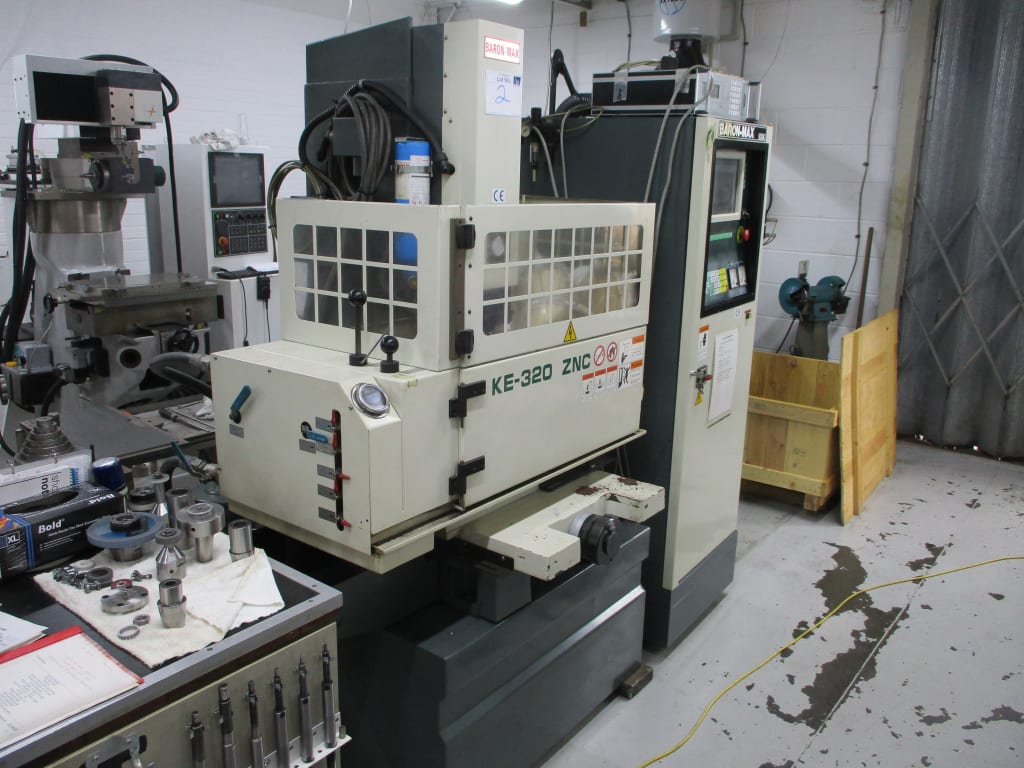

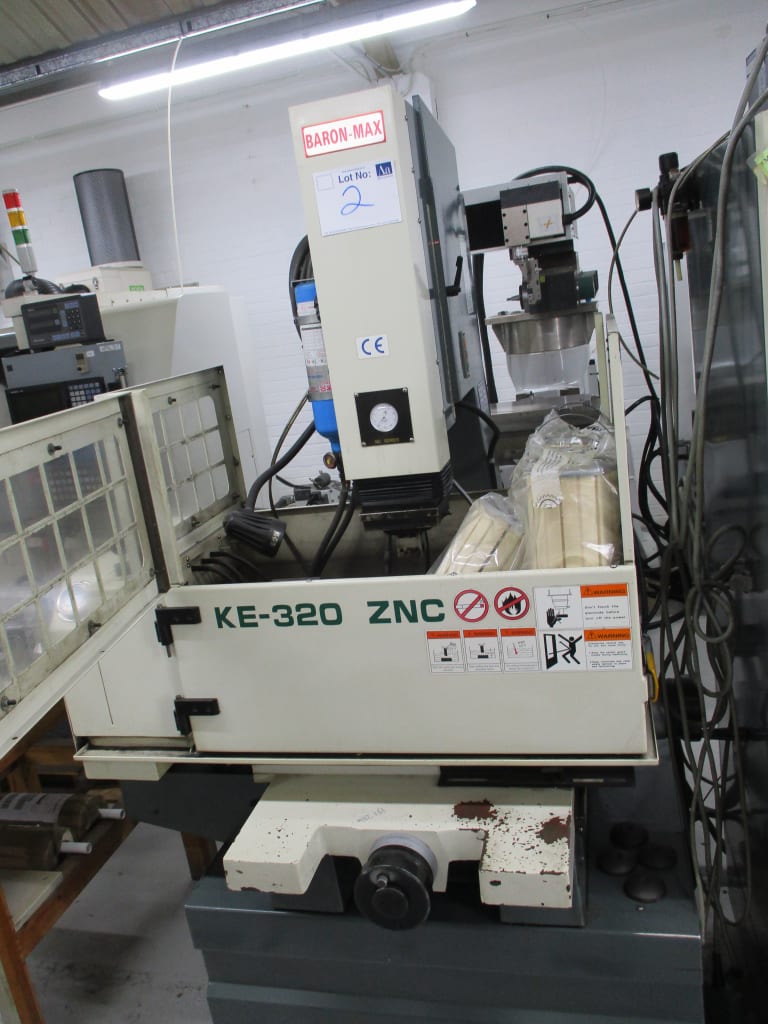

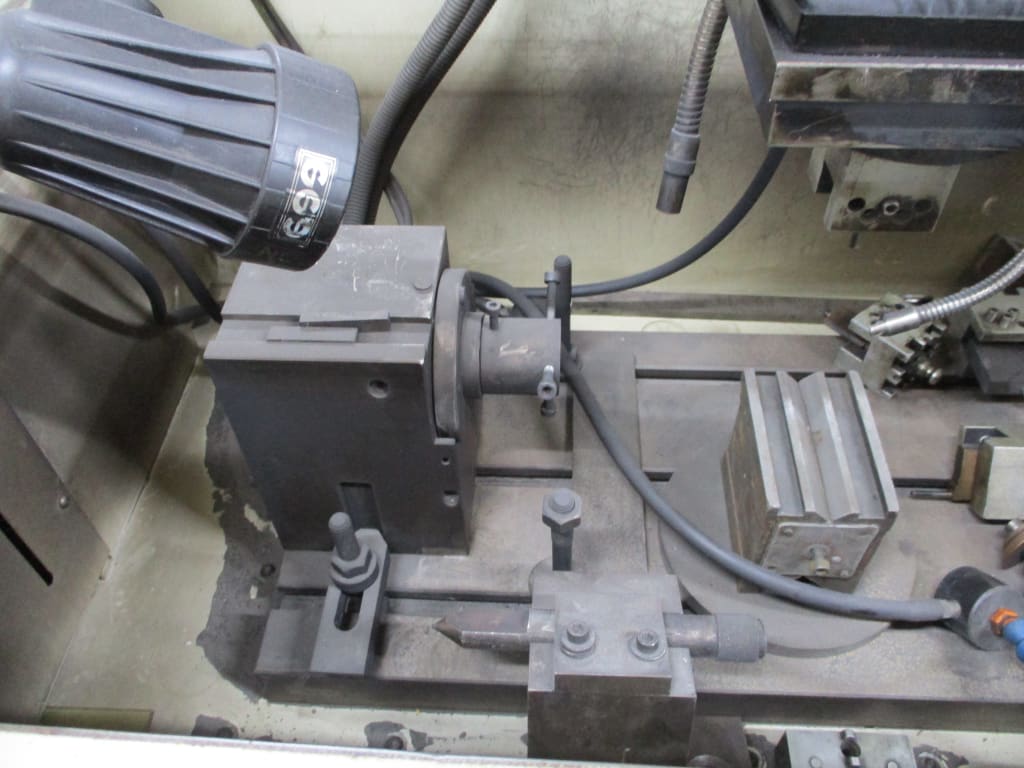

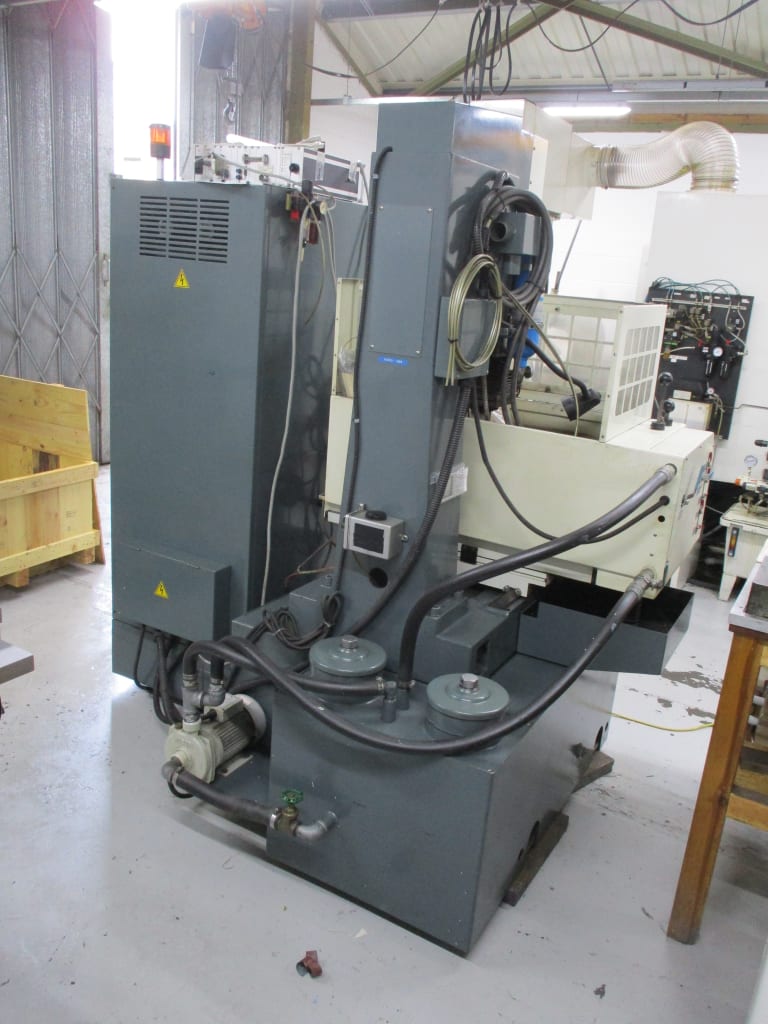

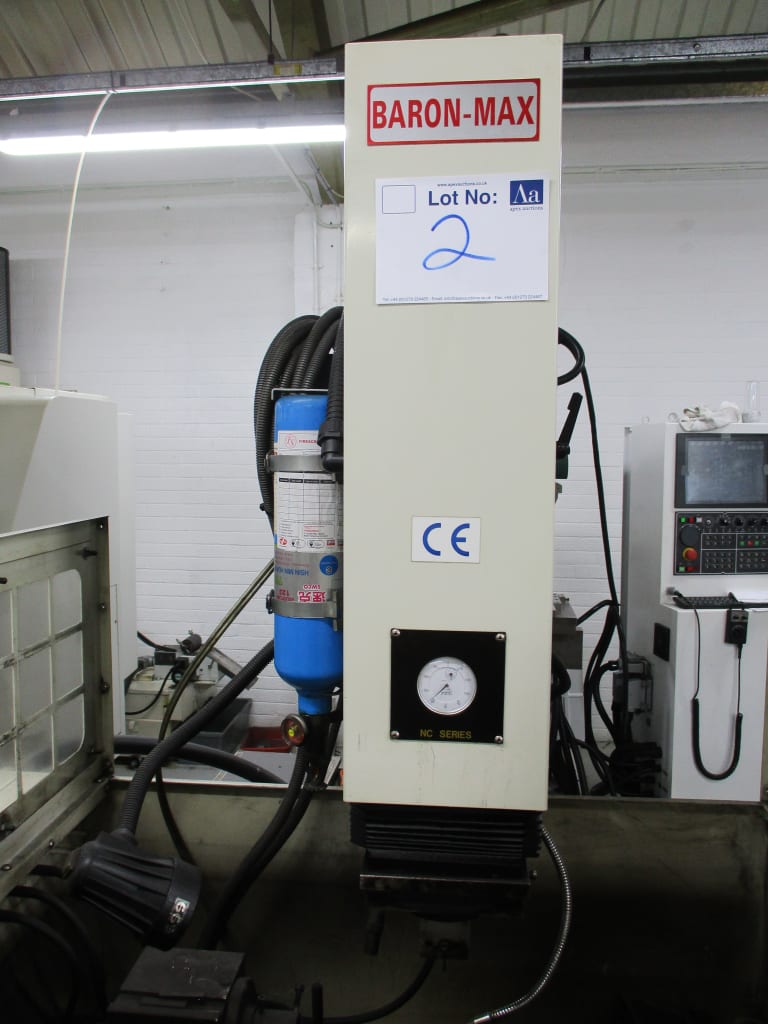

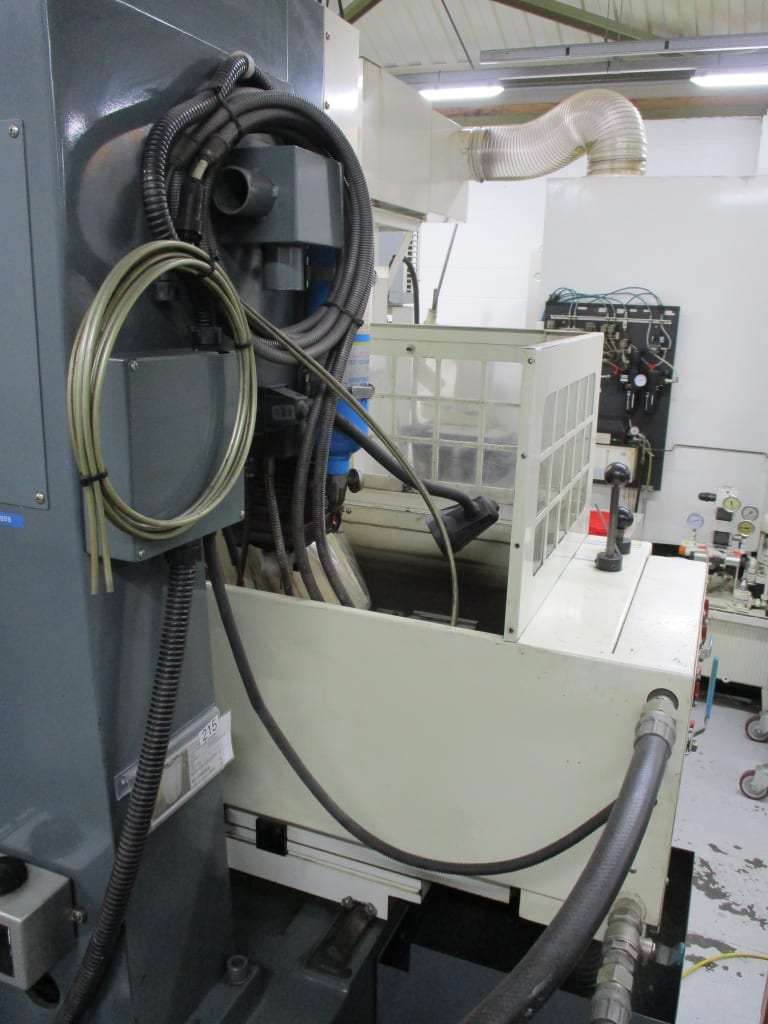

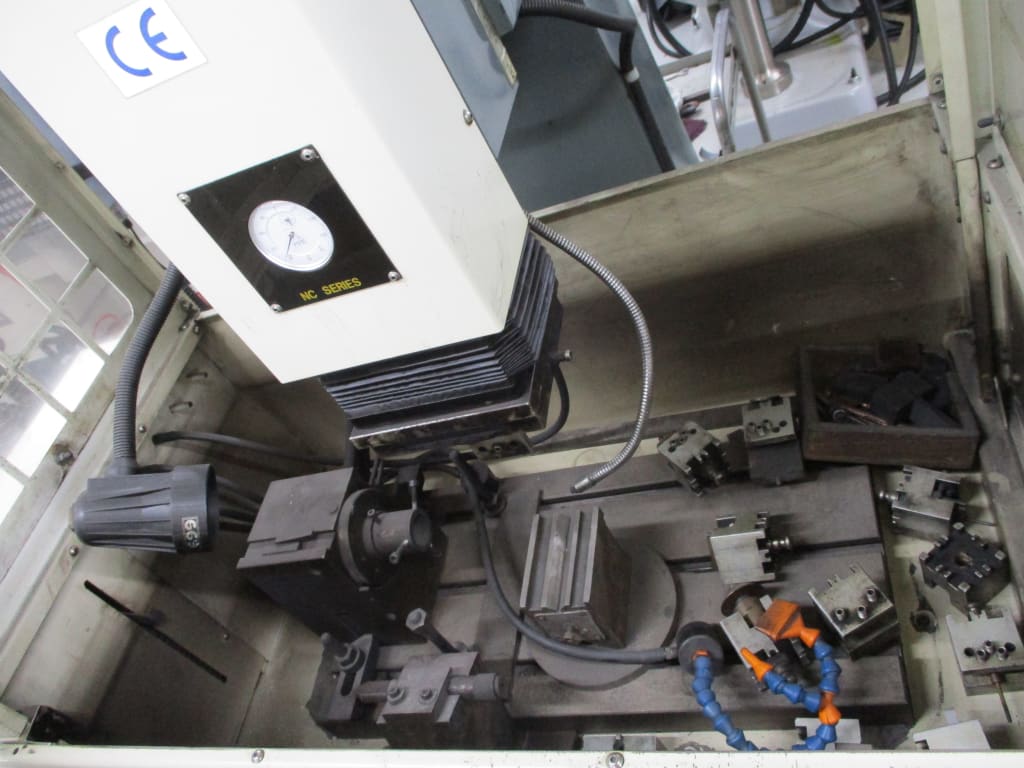

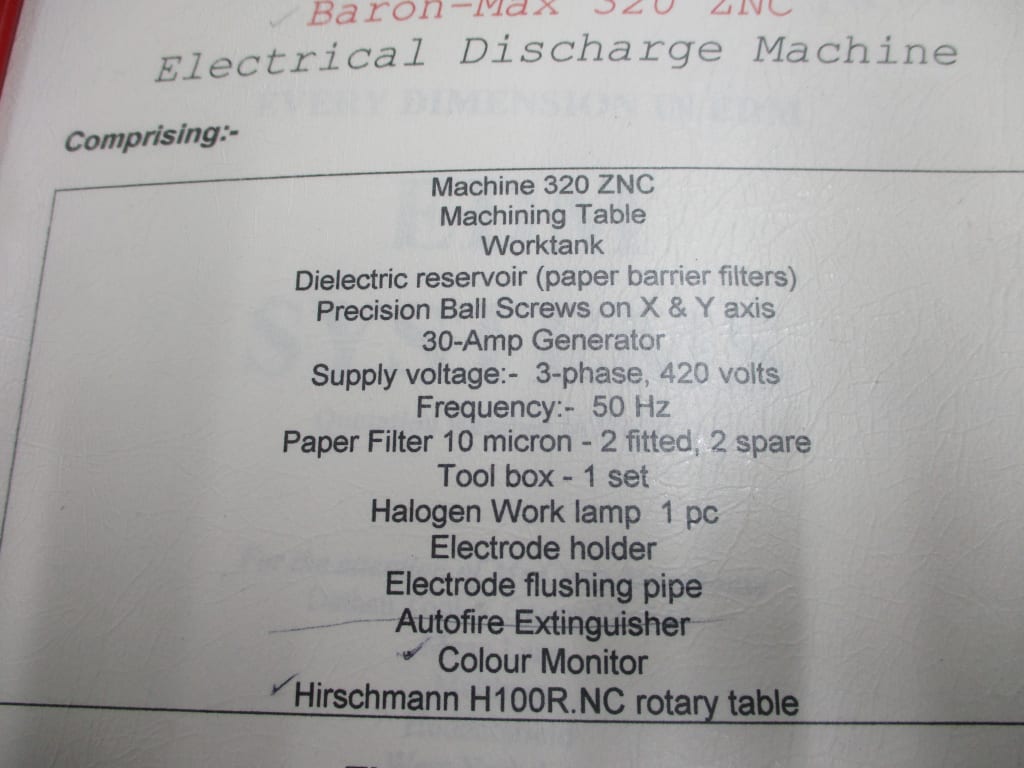

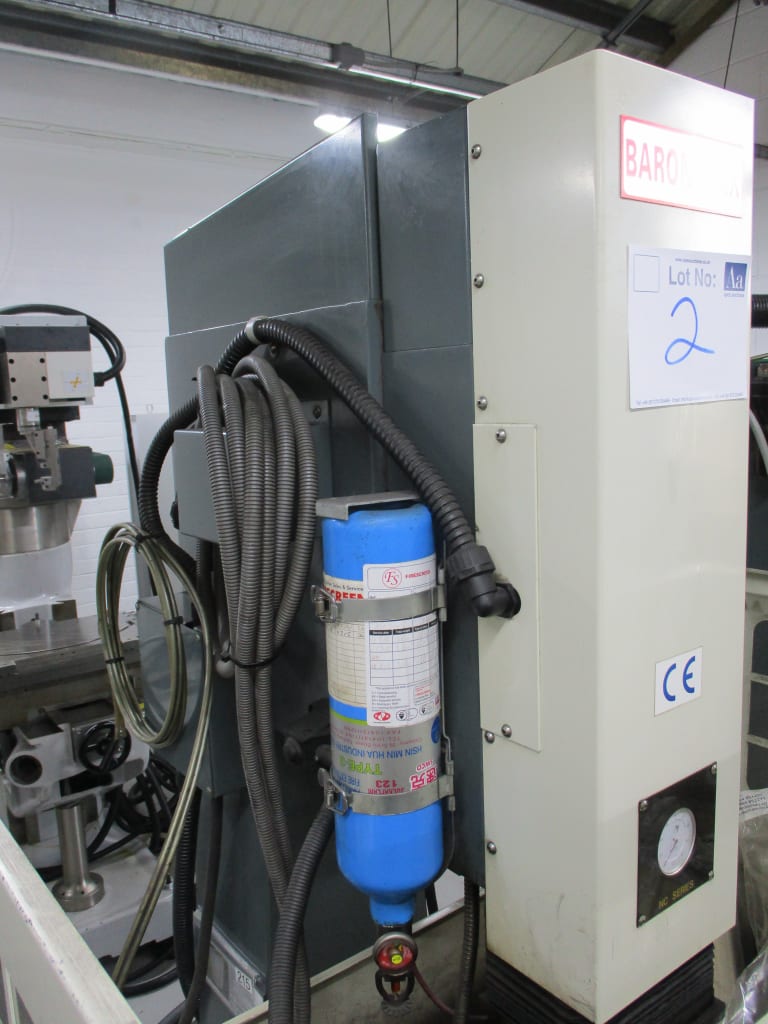

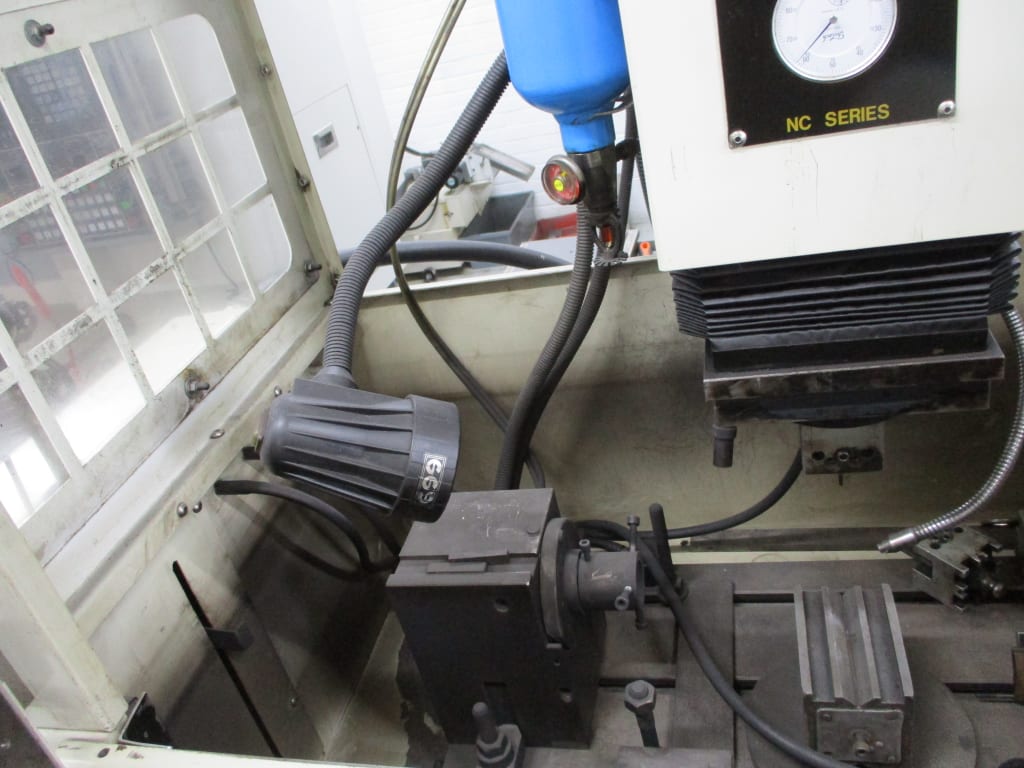

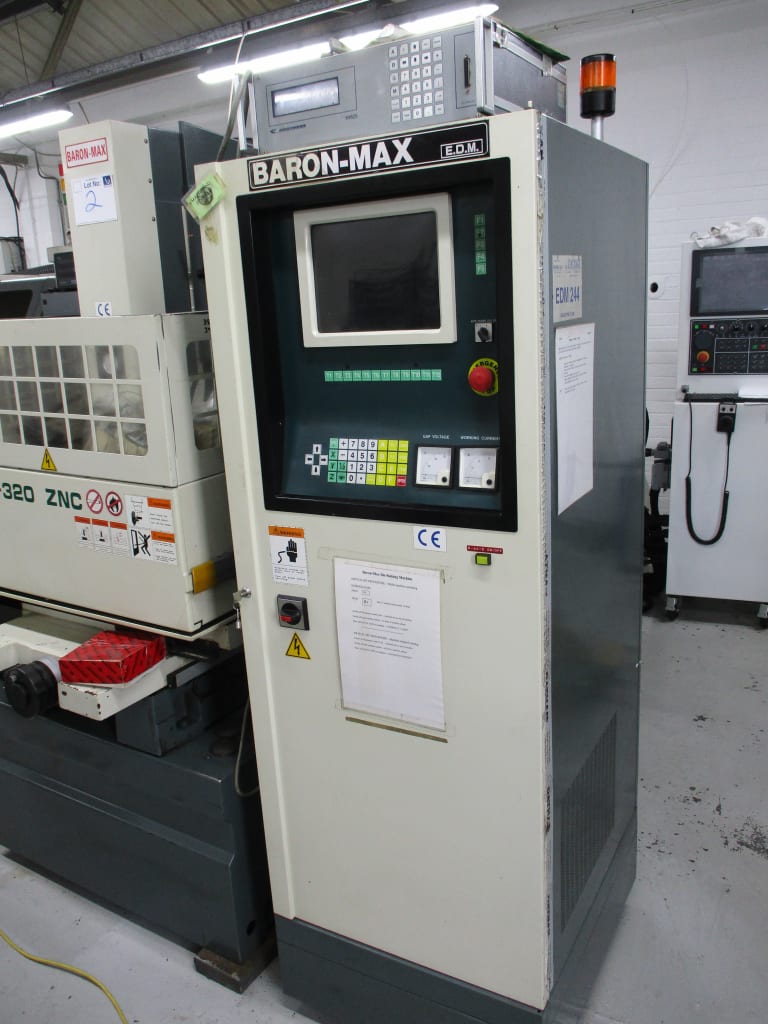

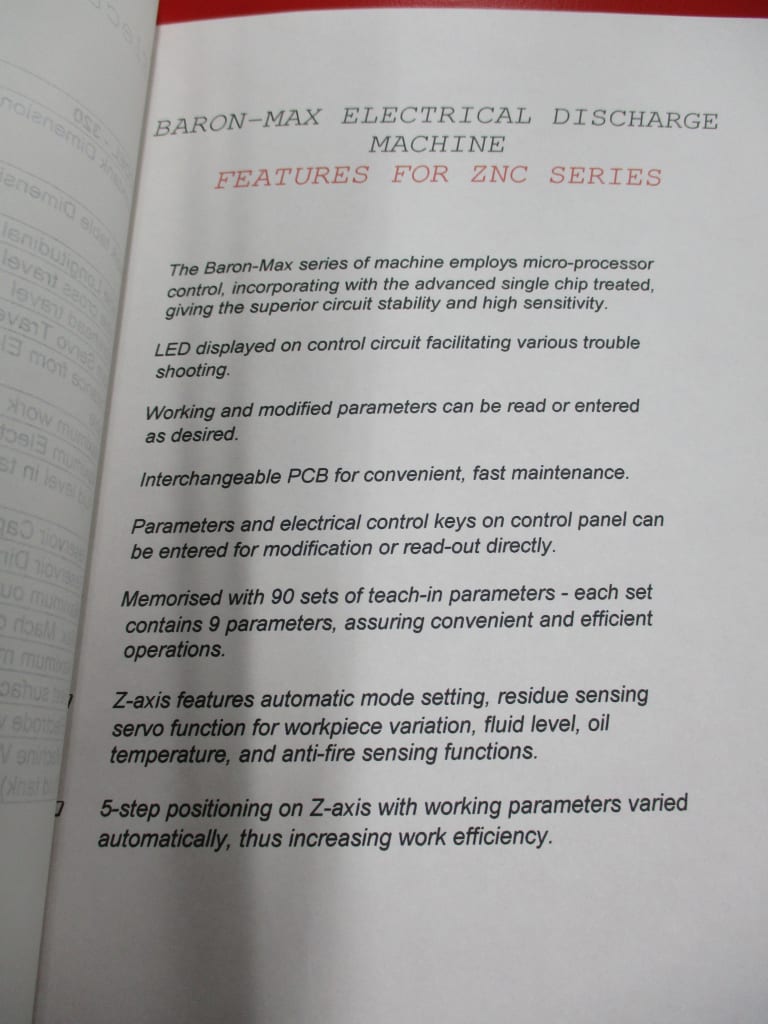

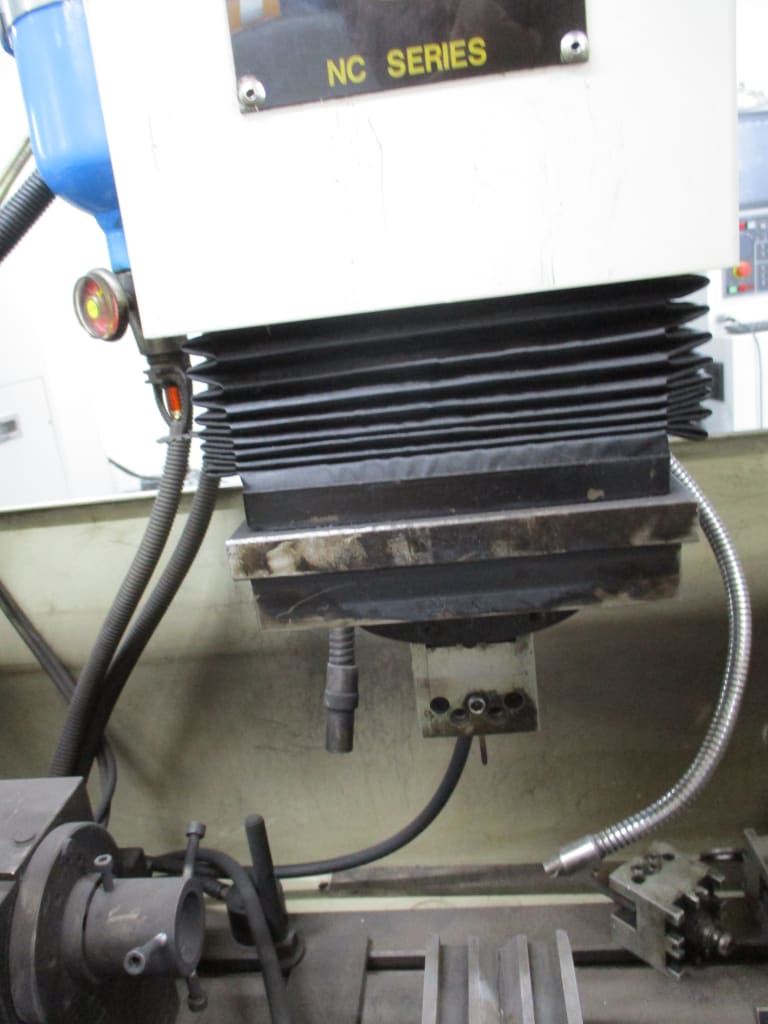

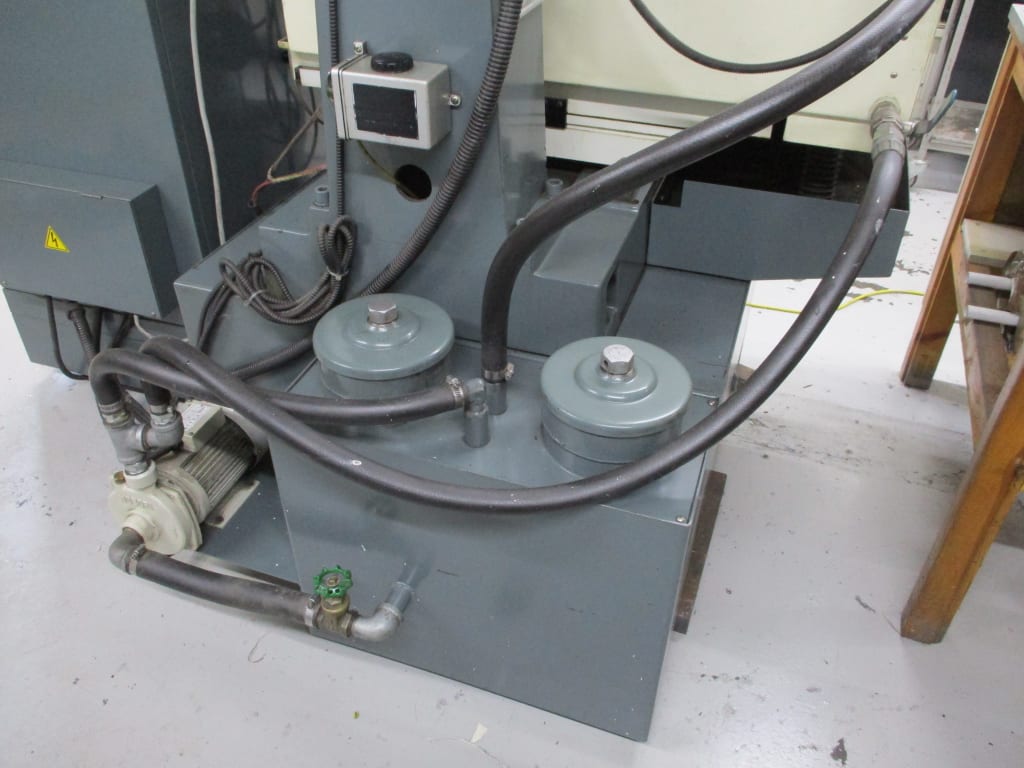

    1999 Baron-Max KE-320 ZNC EDM With Stand Alone Z-Axis NC Control

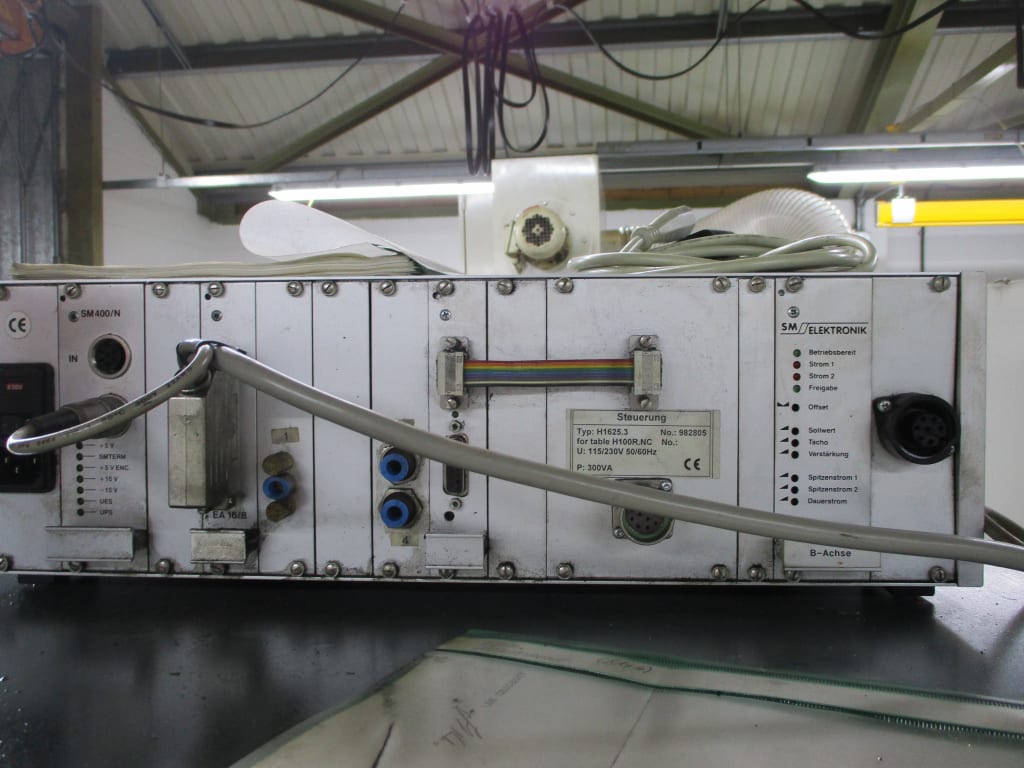

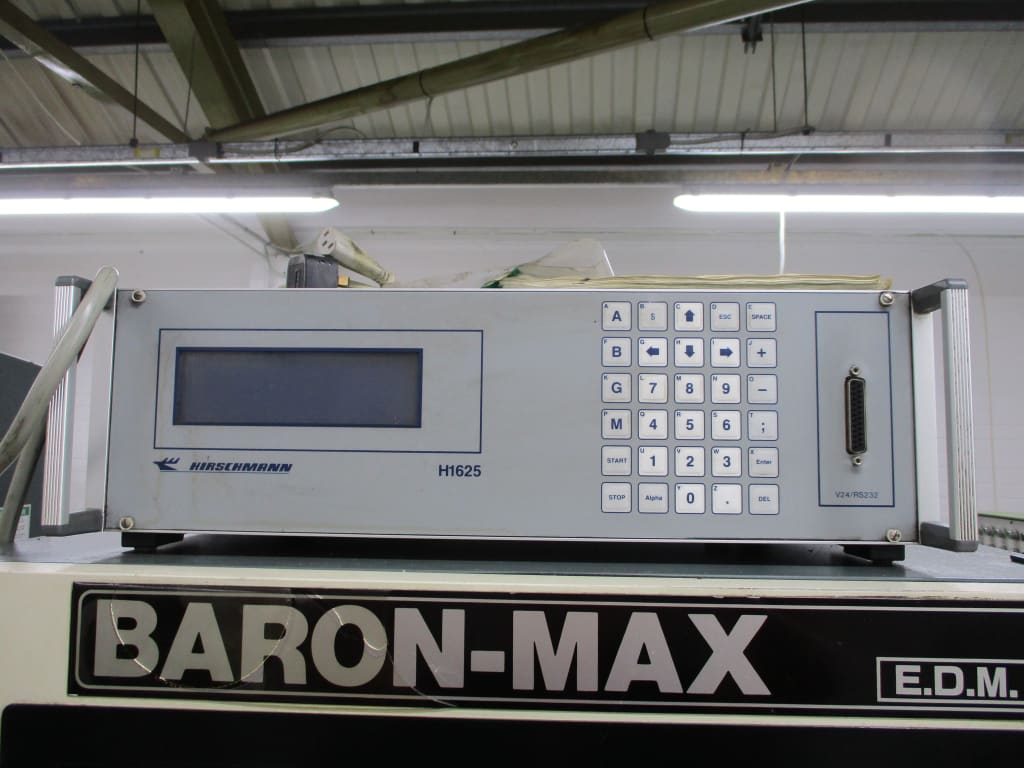

    Includes: 'D' Axis Hirschmann H1625 Control with H100R.NC Table. Work Tank Dimensions 850mm x 530mm x 340mm. Work Table Dimensions 600mm x 300mm. 'X' Axis 280mm, 'Y' Axis 230mm, Workhead Travel 200mm. Quill Travel 150mm. Distance from Electro Head to Table 450mm. Maximum Workpiece Weight 300kg. Maximum Electrode Weight 80kg. S/No. 0124688.
    View Item
  • 3-1.jpg
    site
    LOT 3

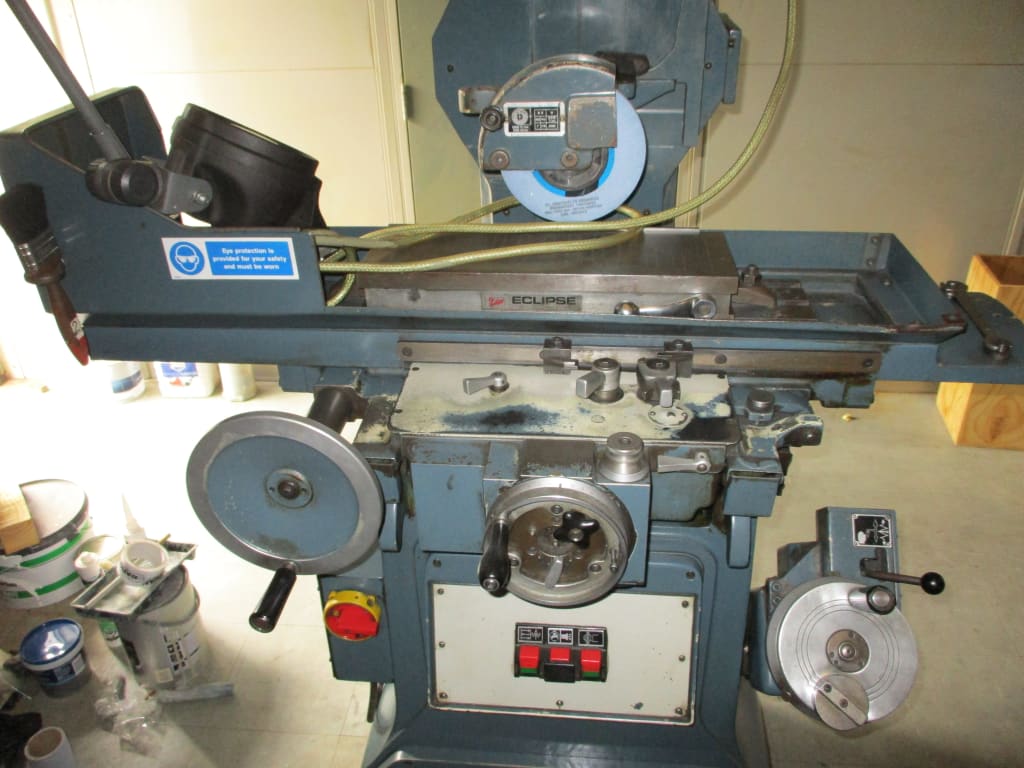

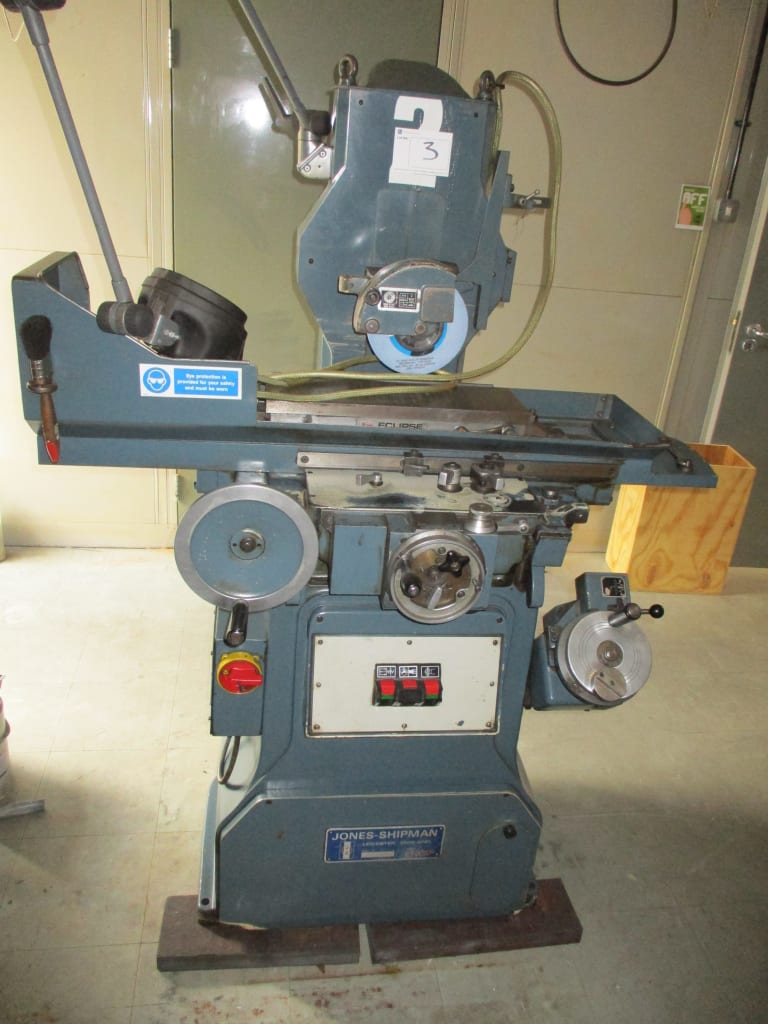

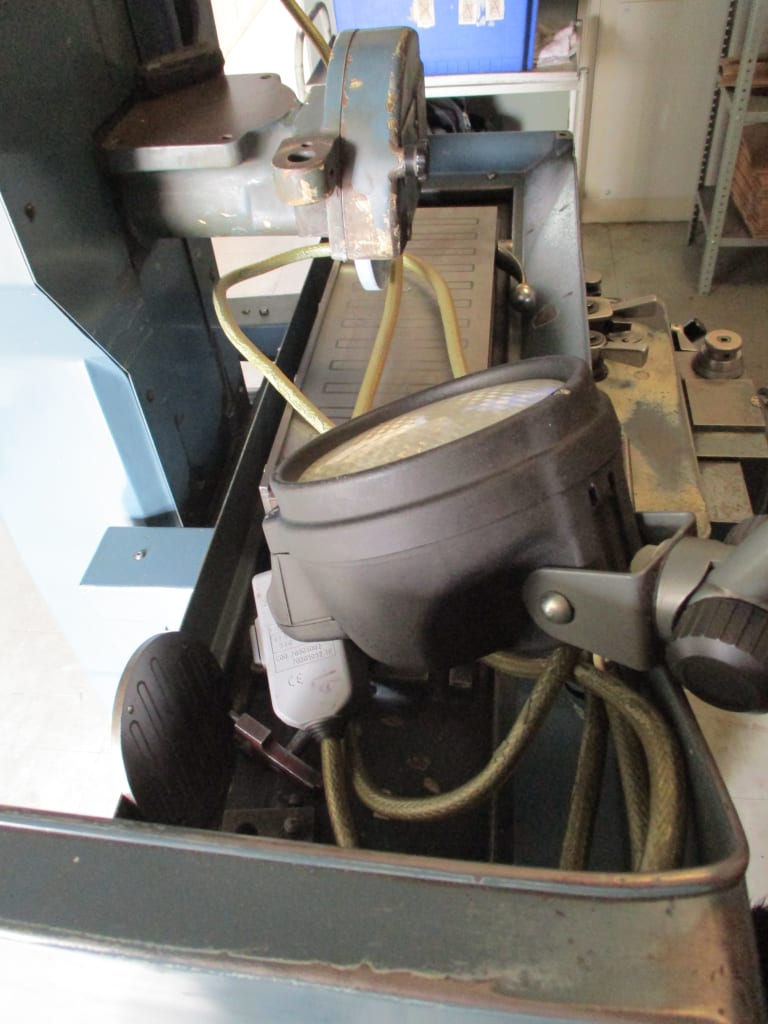

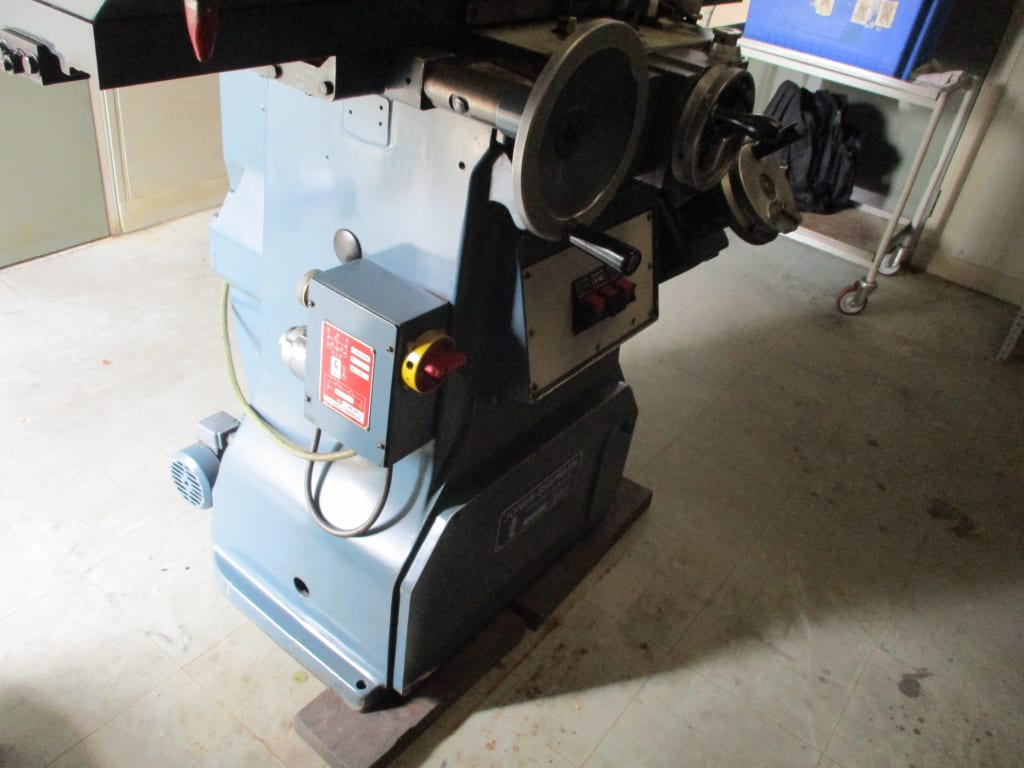

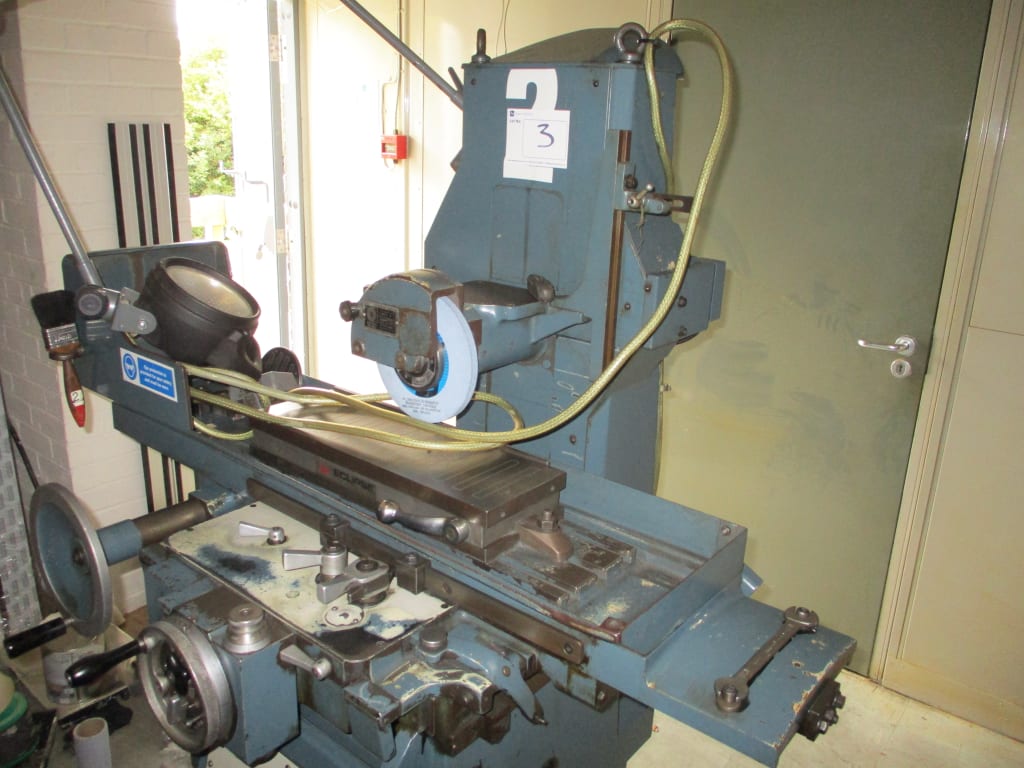

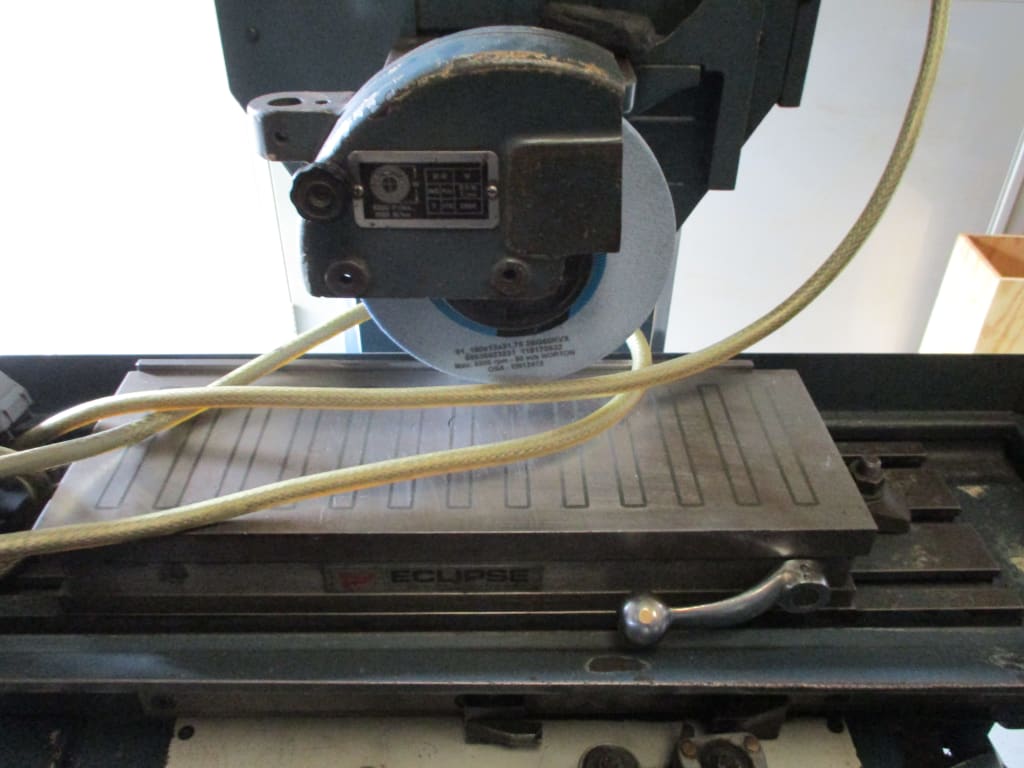

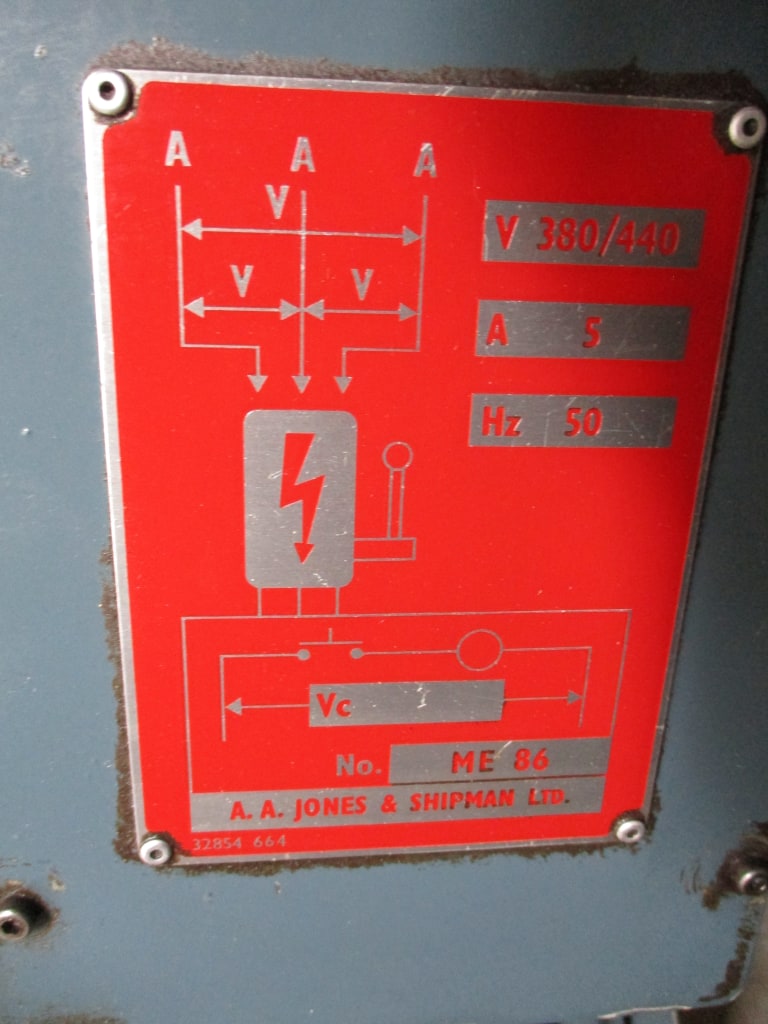

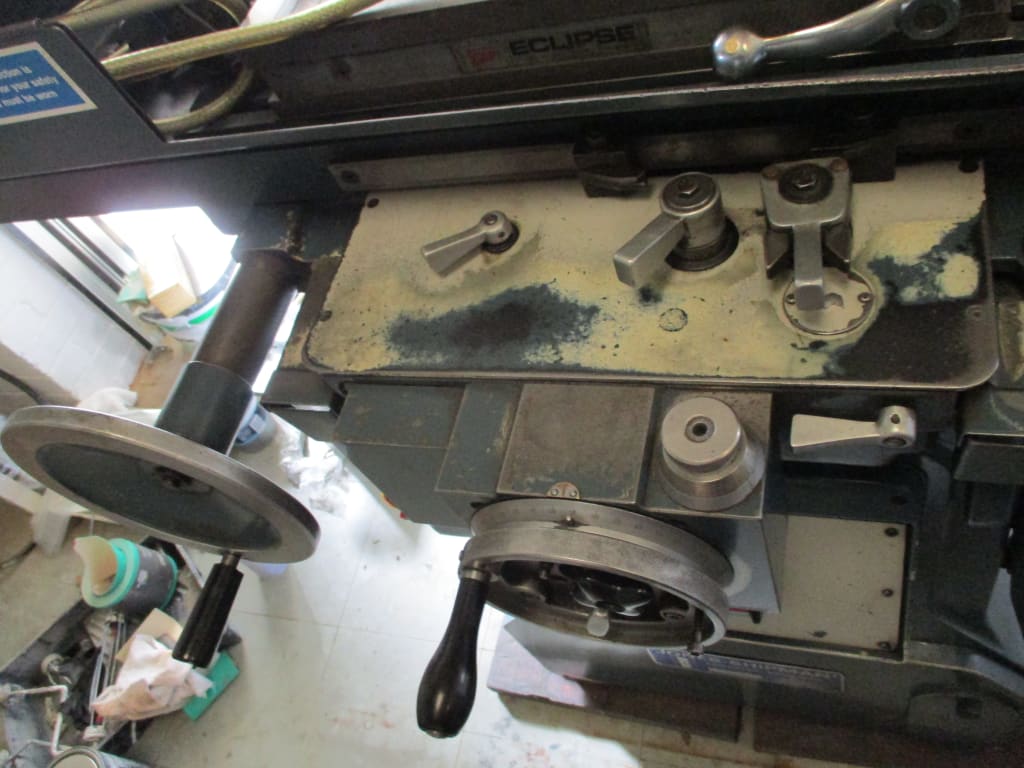

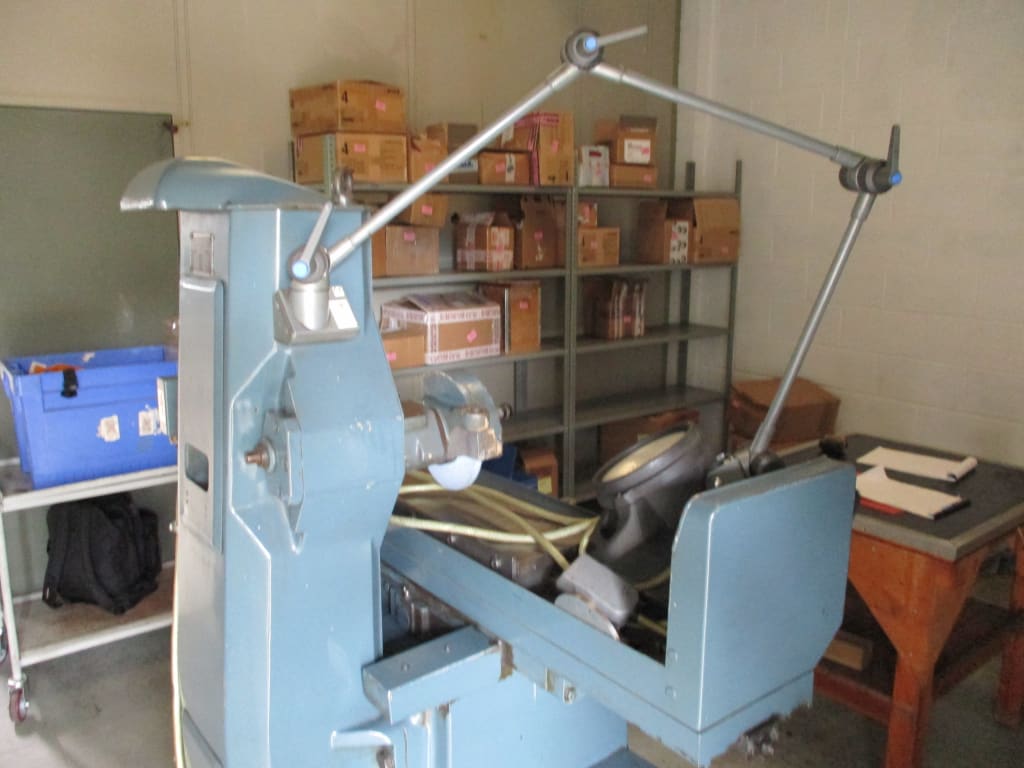

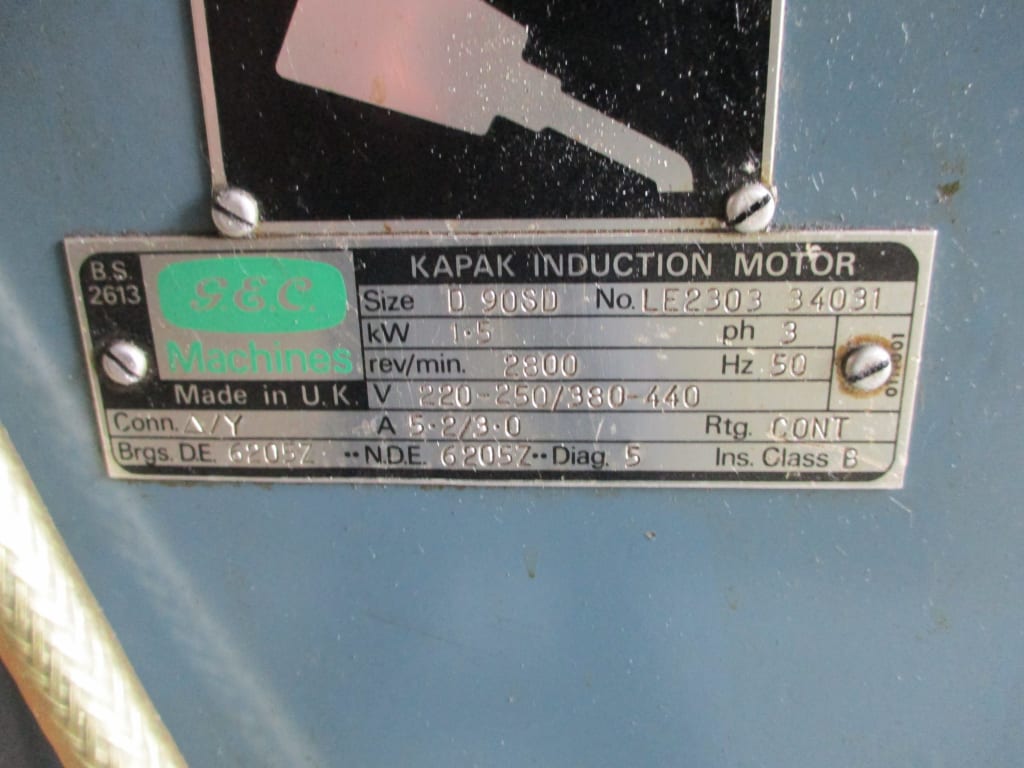

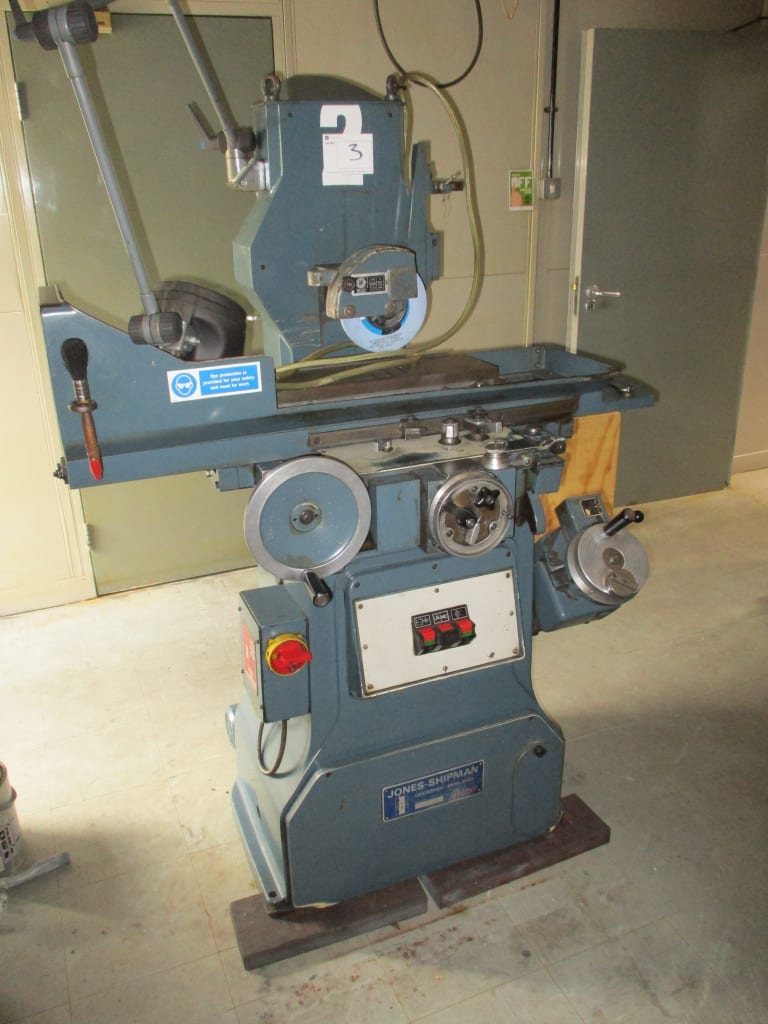

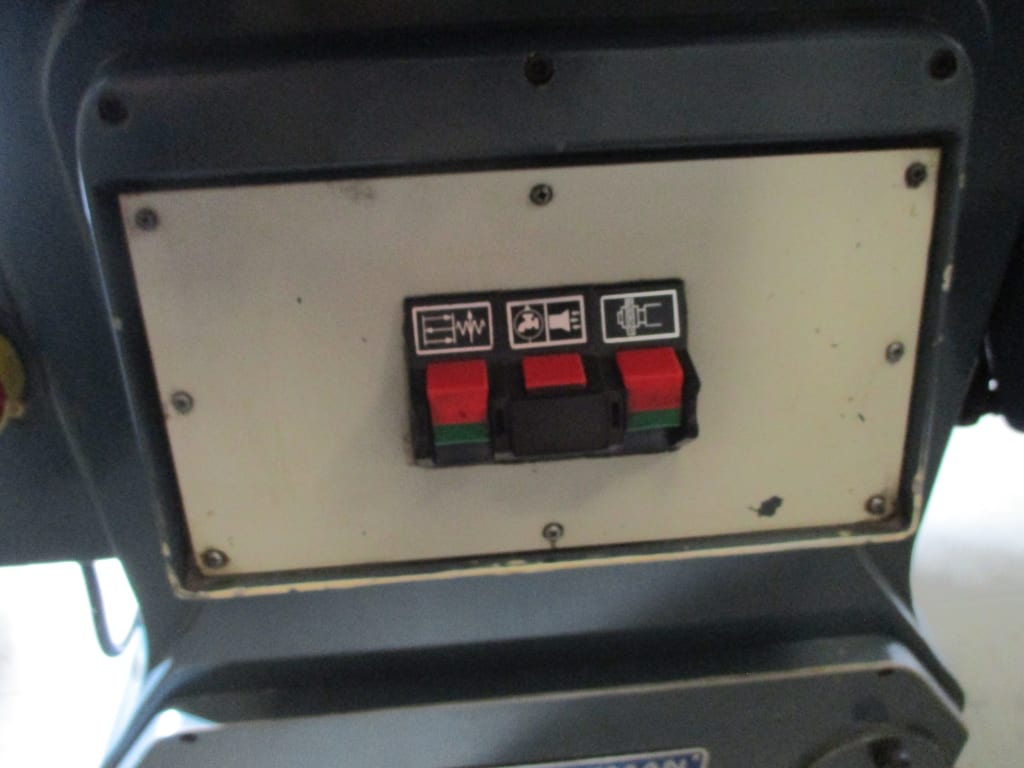

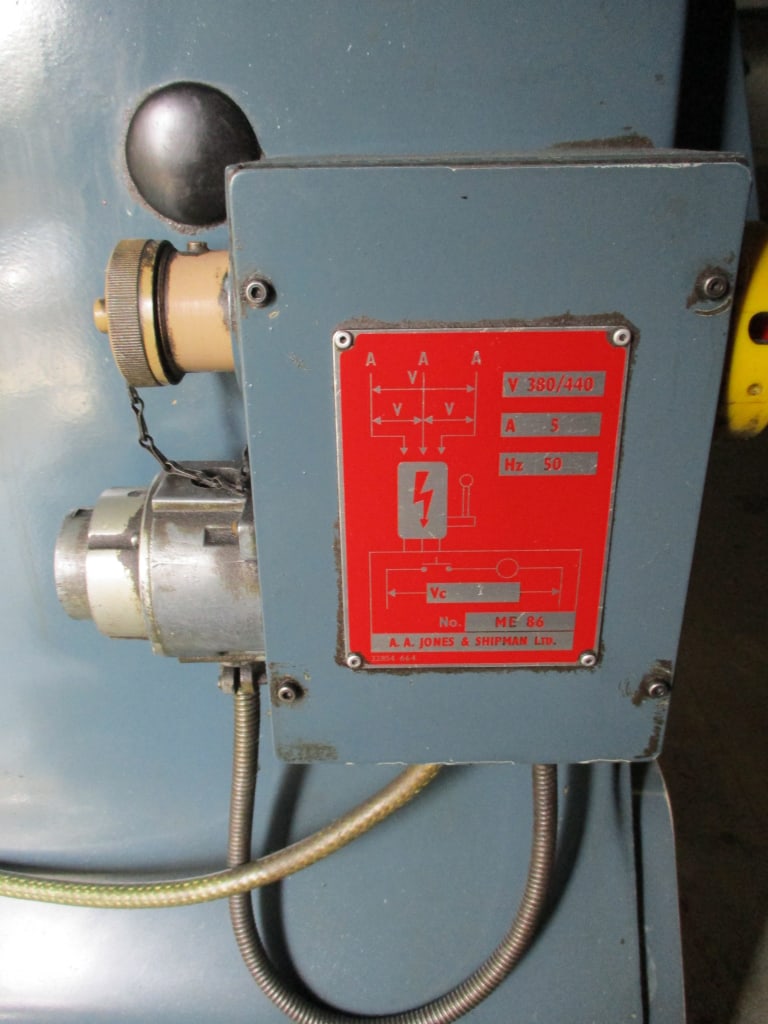

    Jones & Shipman 540P Surface Grinder

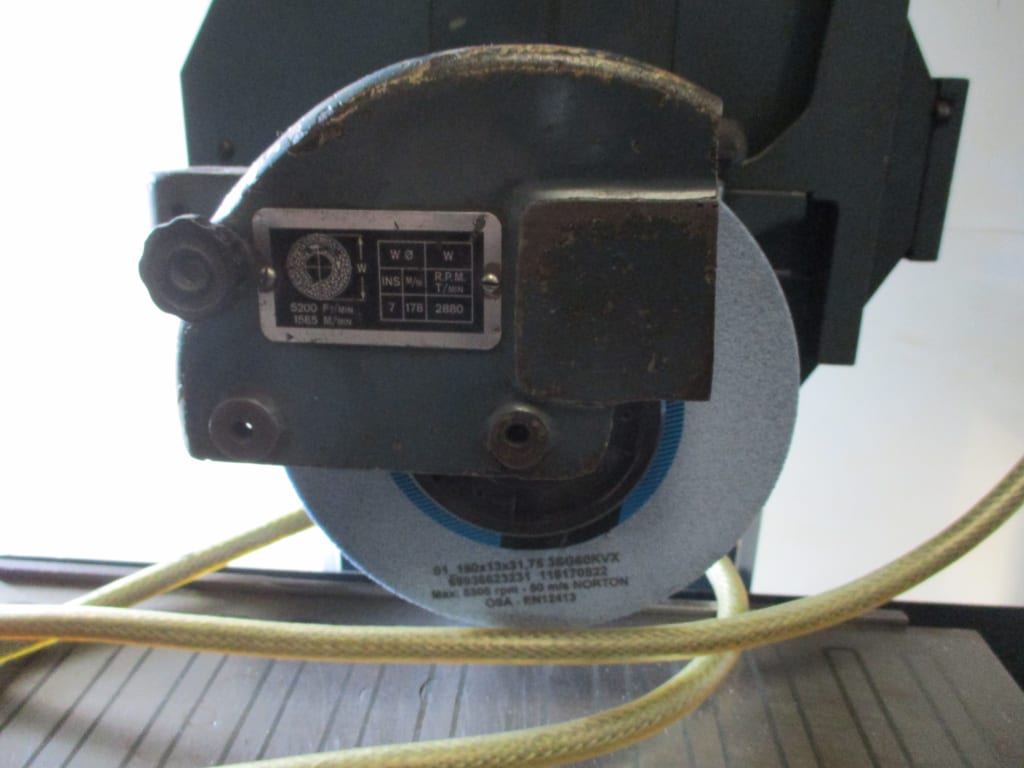

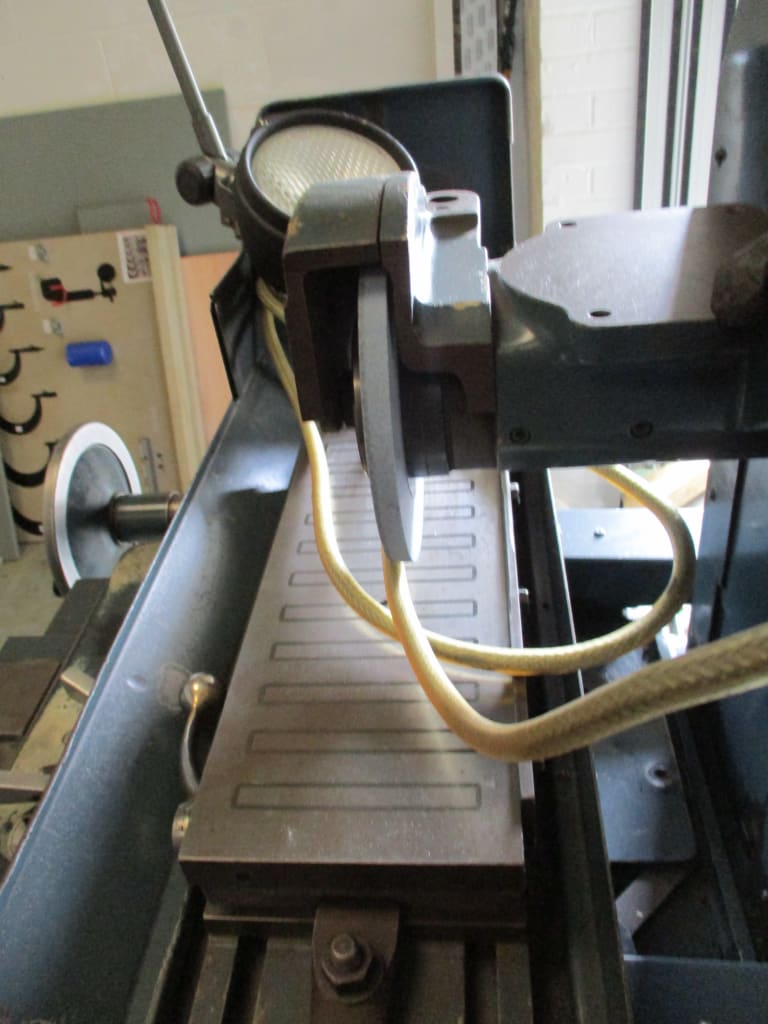

    Longitudinal Table Travel Approx 480mm. Cross Table Travel Approx 165mm. Vertical Movement of Wheel Head Approx 280mm. Eclipse 540mm x 150mm Magnetic Chuck. Ø178mm x 13mm Wide Grinding Wheel, 2,880 Max RPM. S/No. BO 79532.
    View Item
  • 4-1.jpg
    site
    LOT 4

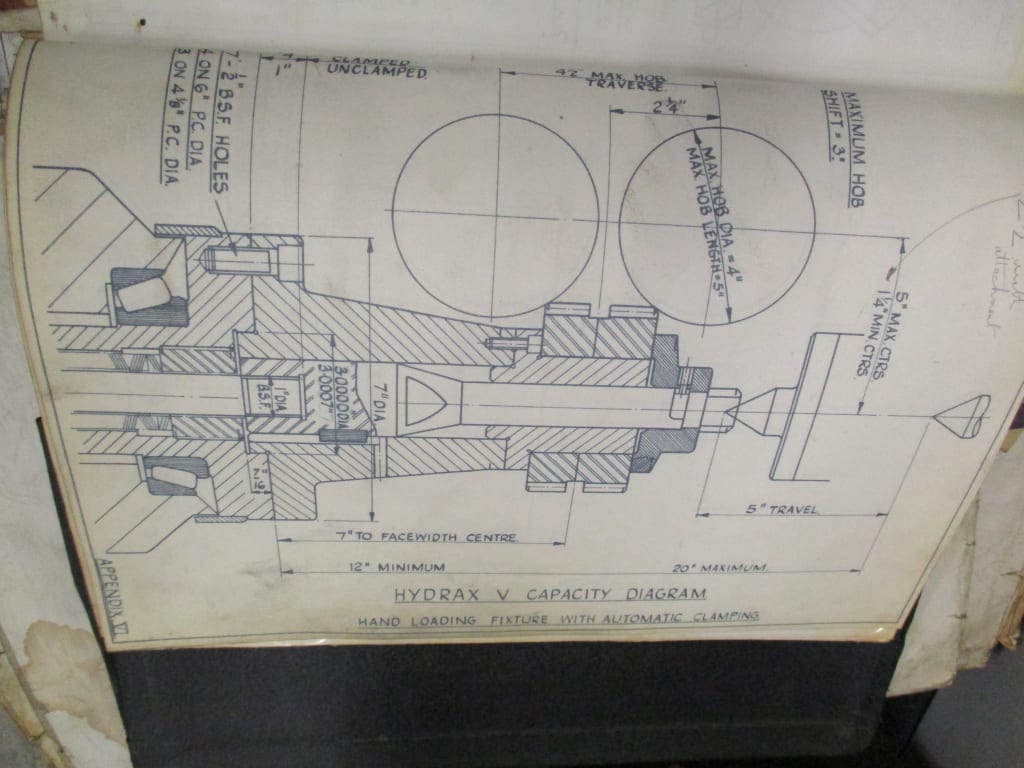

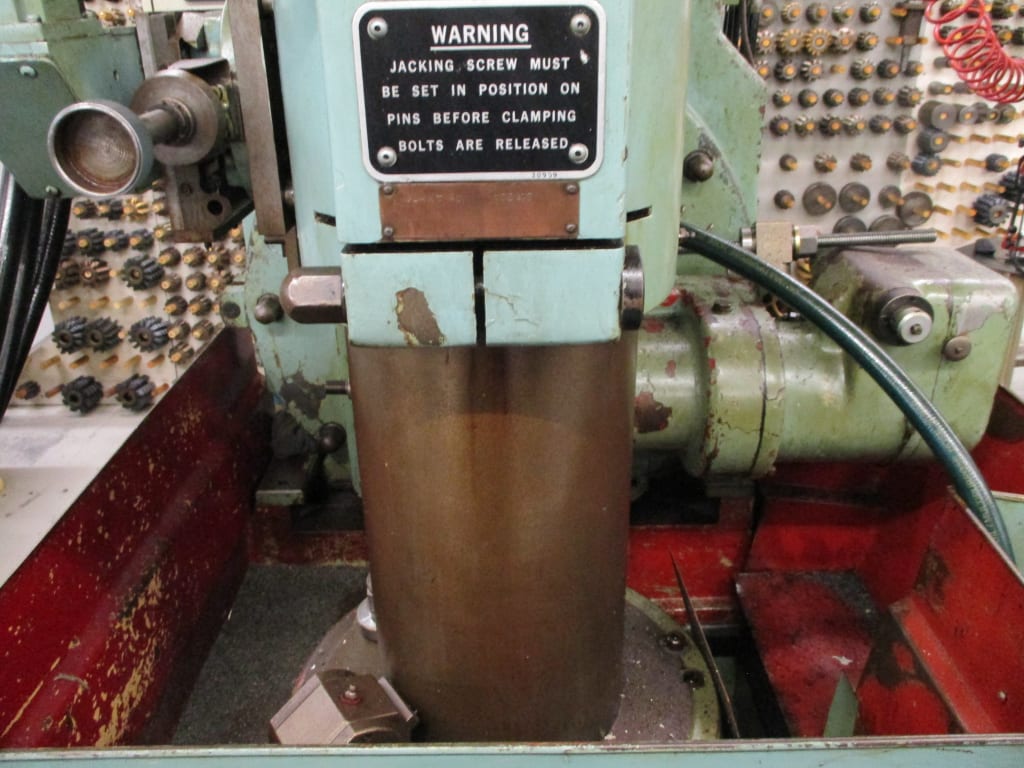

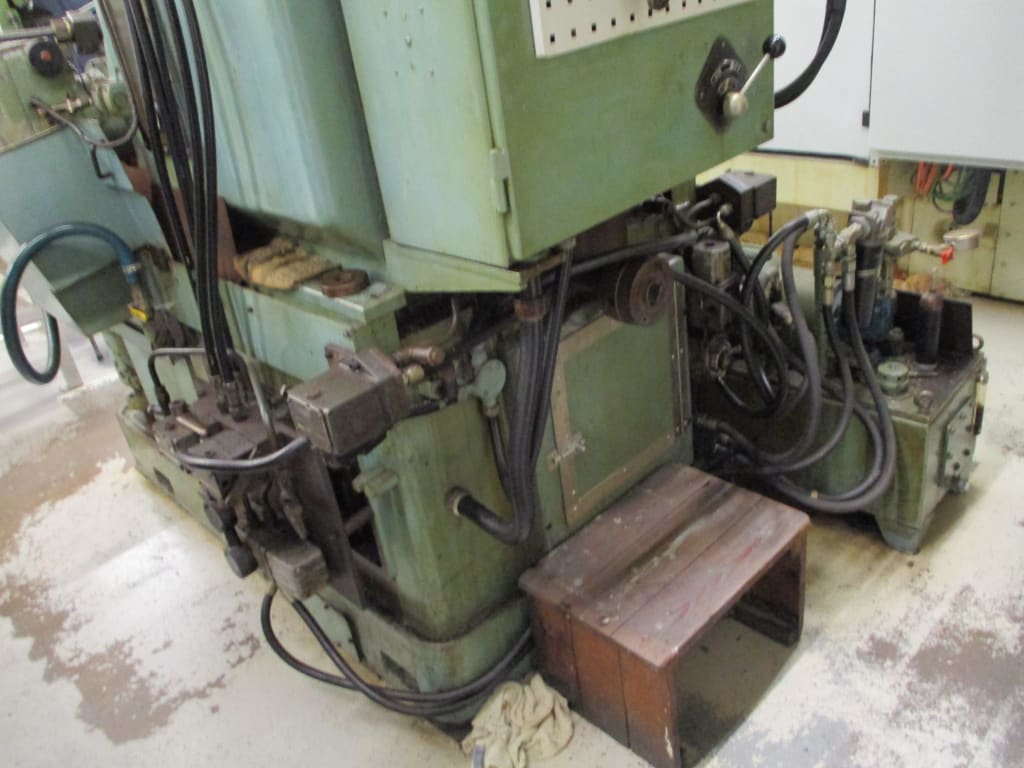

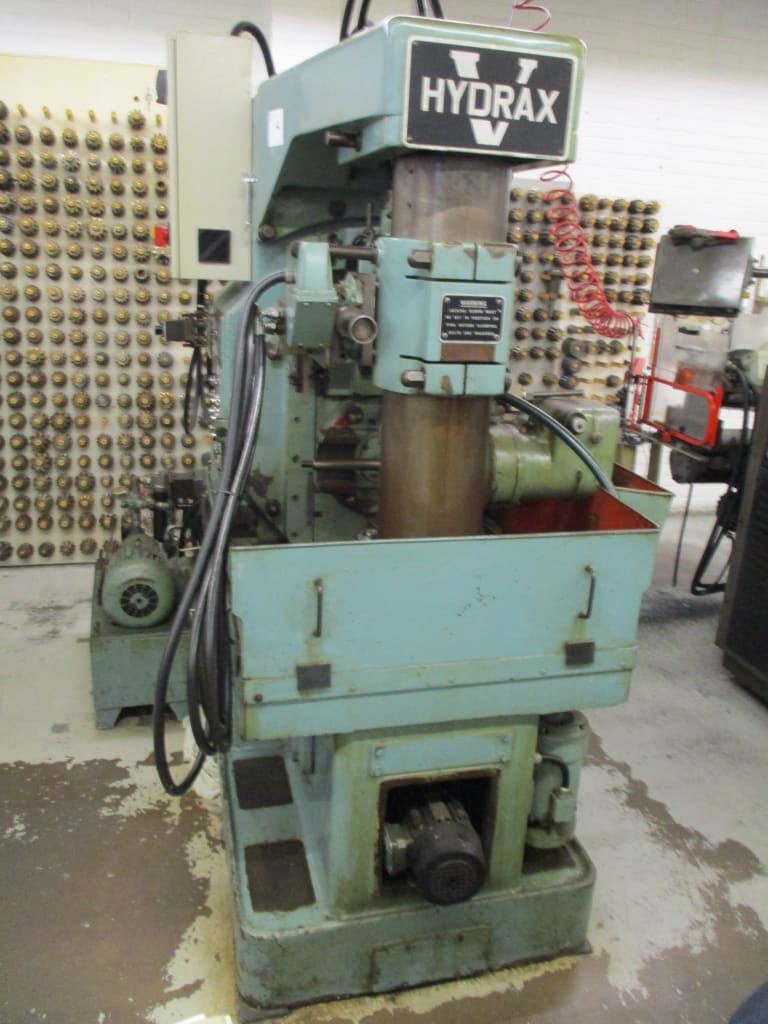

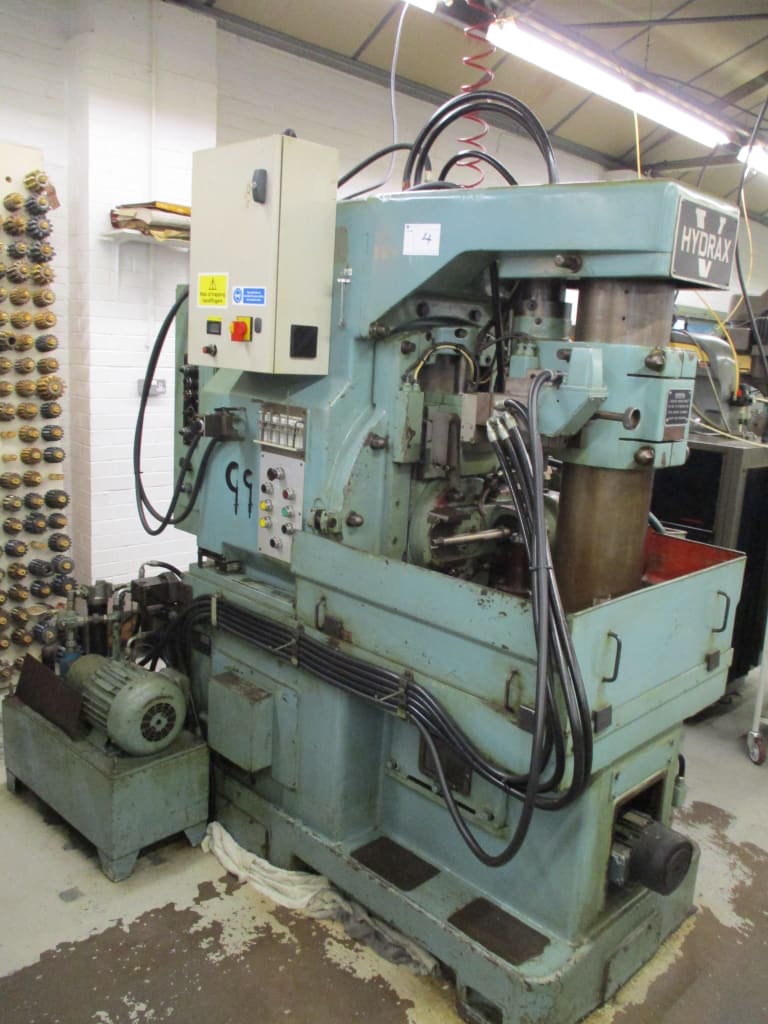

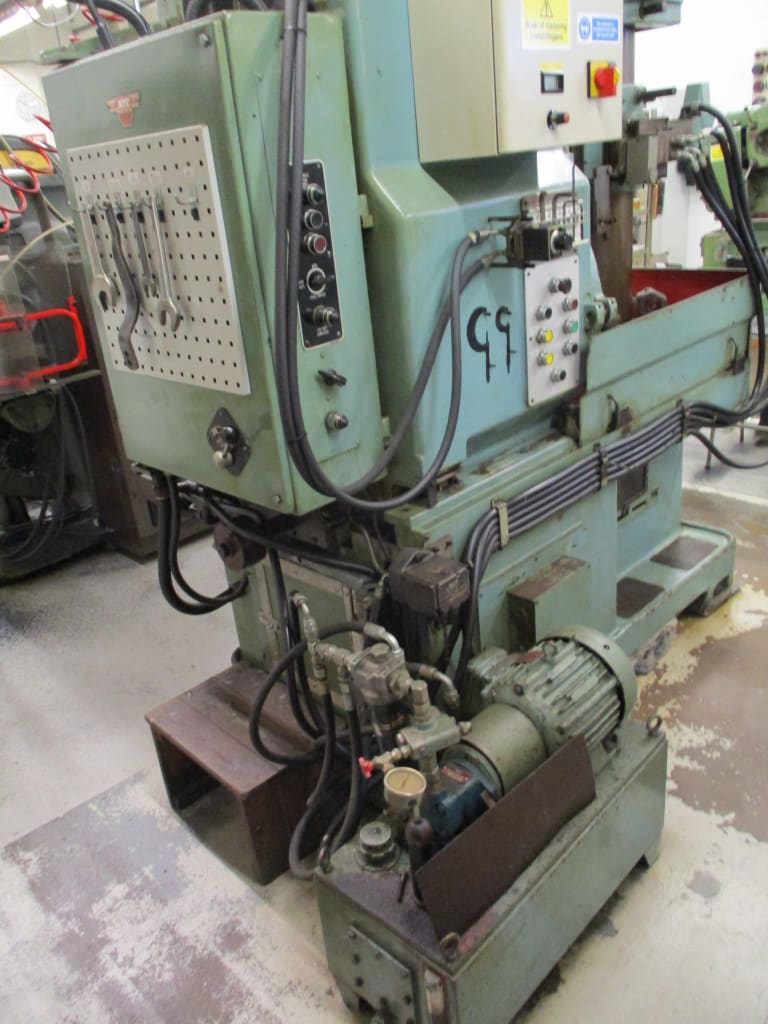

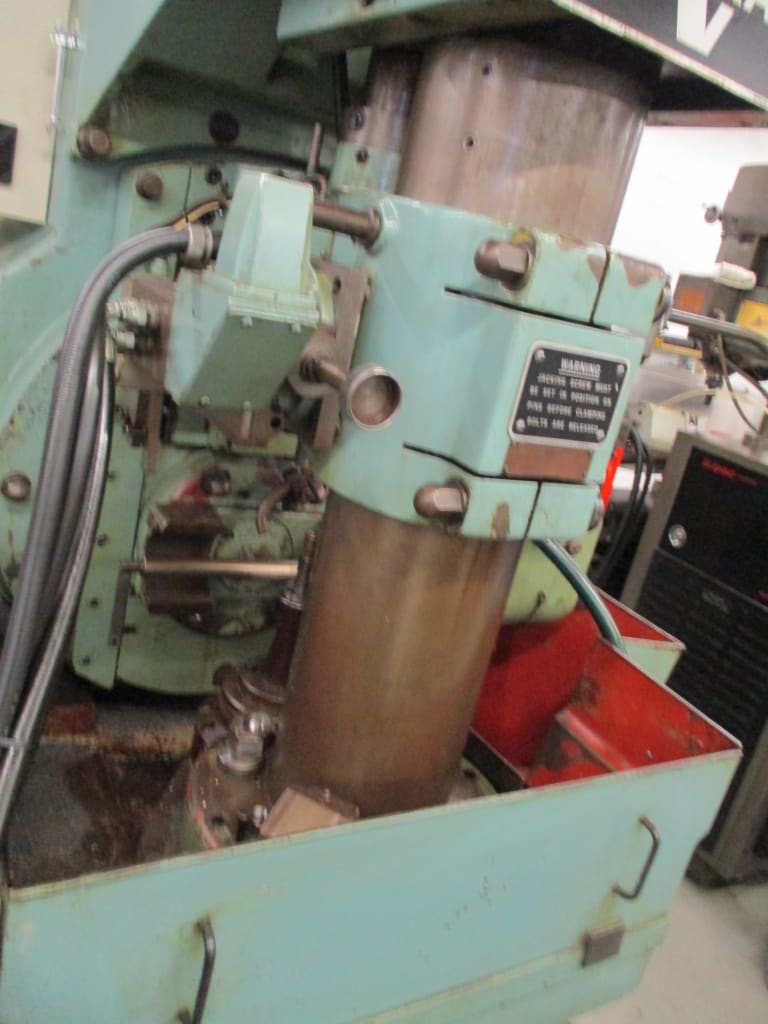

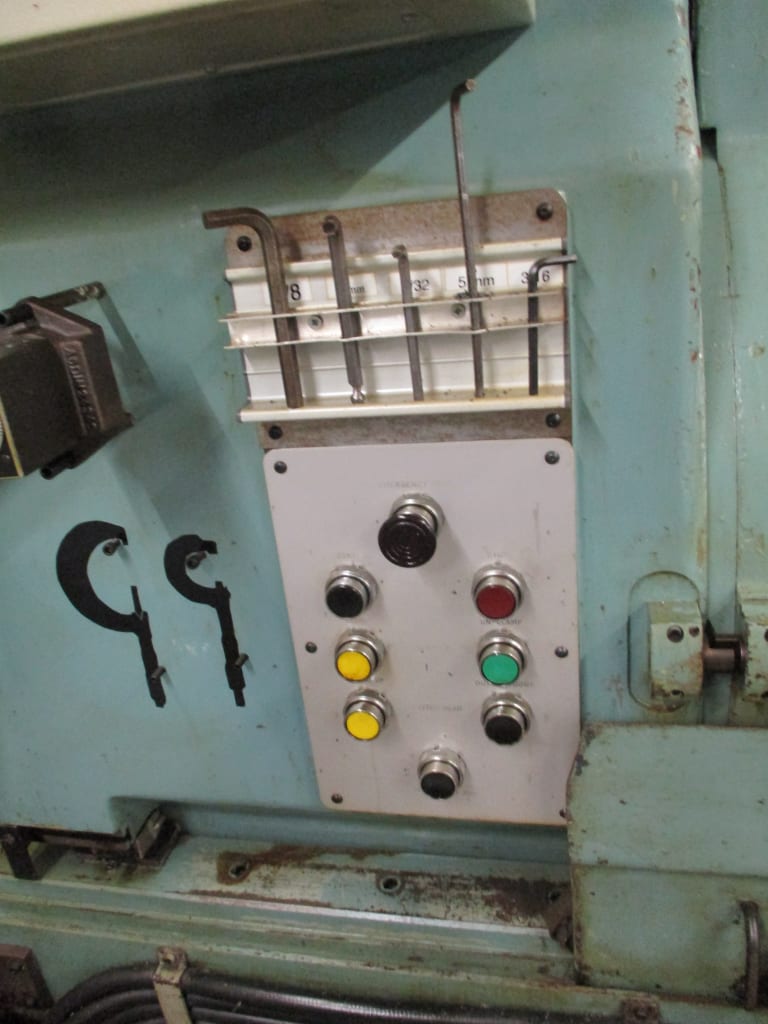

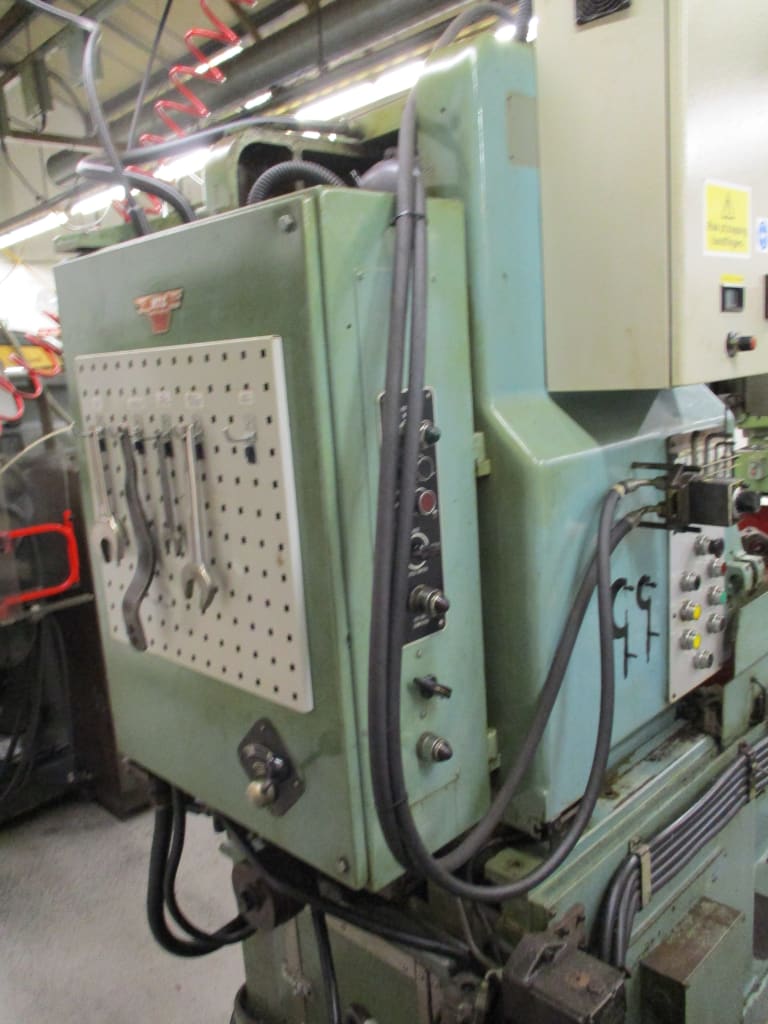

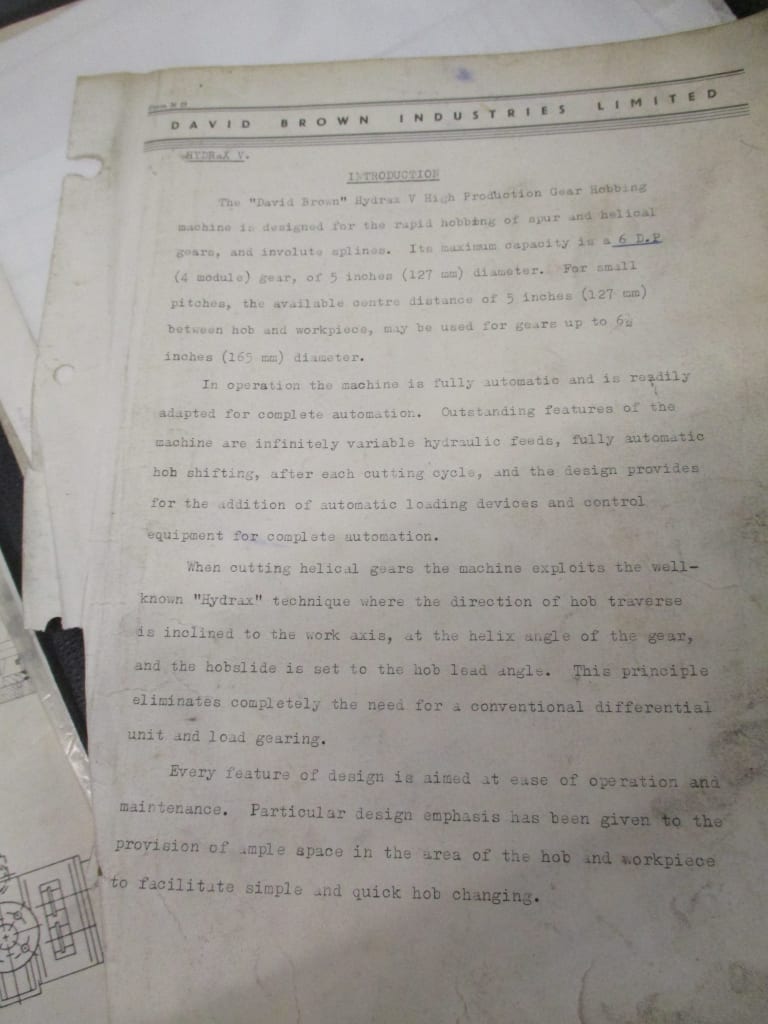

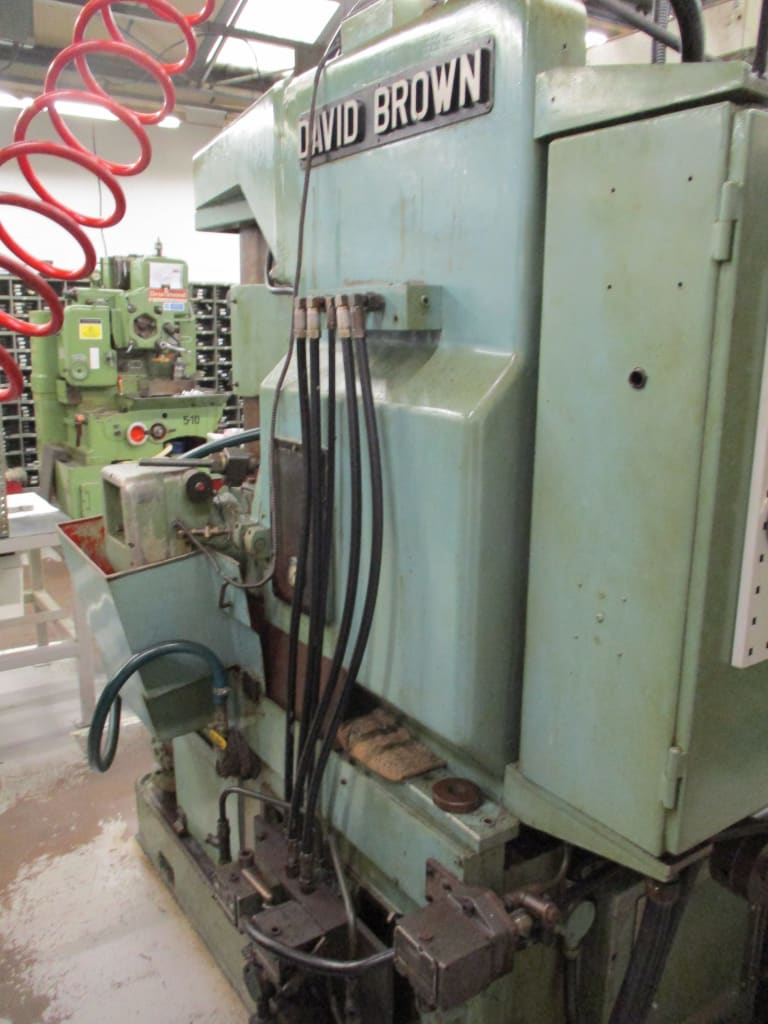

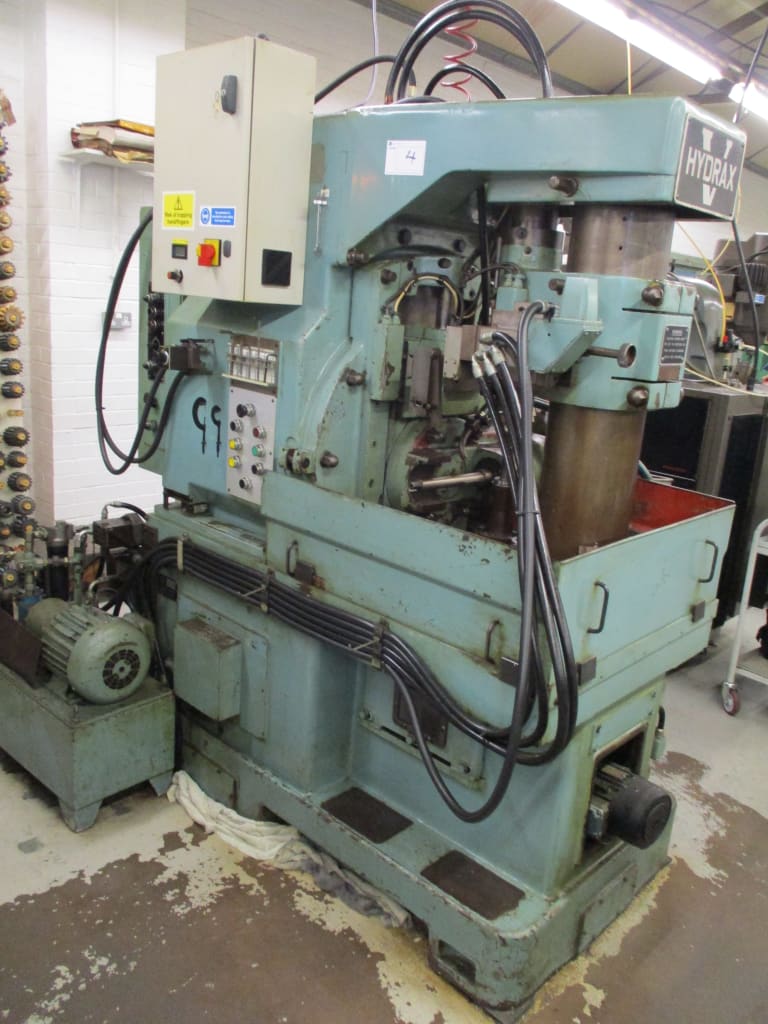

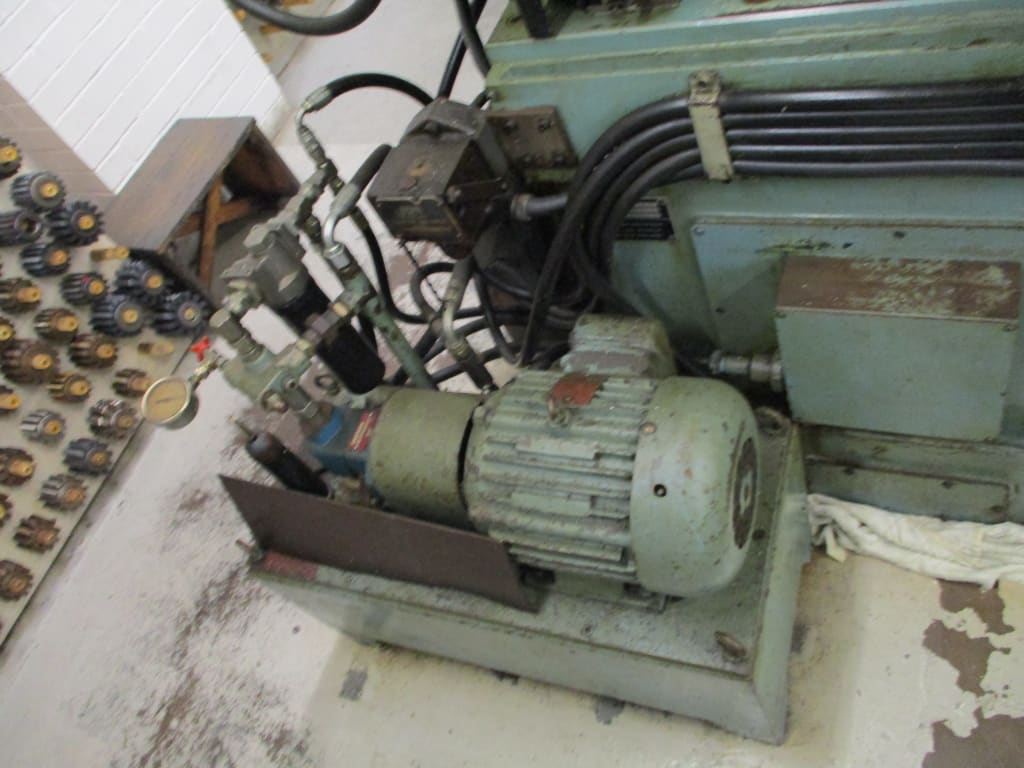

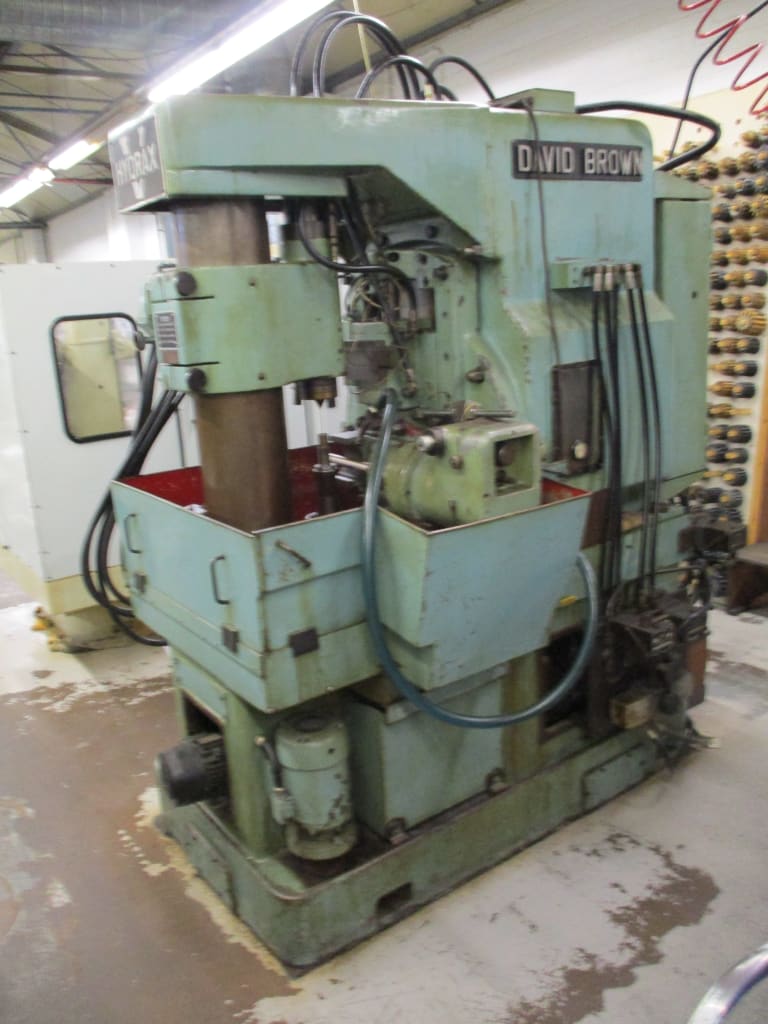

    David Brown Hydrax V High Performance Gear Hobbing Machine

    Fully Automatic. Infinite Variable Hydraulic Feed. Fully Automatic Hob Shifting After Each Cutting Cycle. Rapid Hobbing of Spur, Taper & Helical Gears & Involute Splines. Max Capacity 6DP (4 Module) Gear of Ø127mm. For Small Pitches, the Available Centre Distance of 127mm Between Hob & Workpiece may be Used For Gears up to Ø165mm.
    View Item
  • 5-1.jpg
    site
    LOT 5

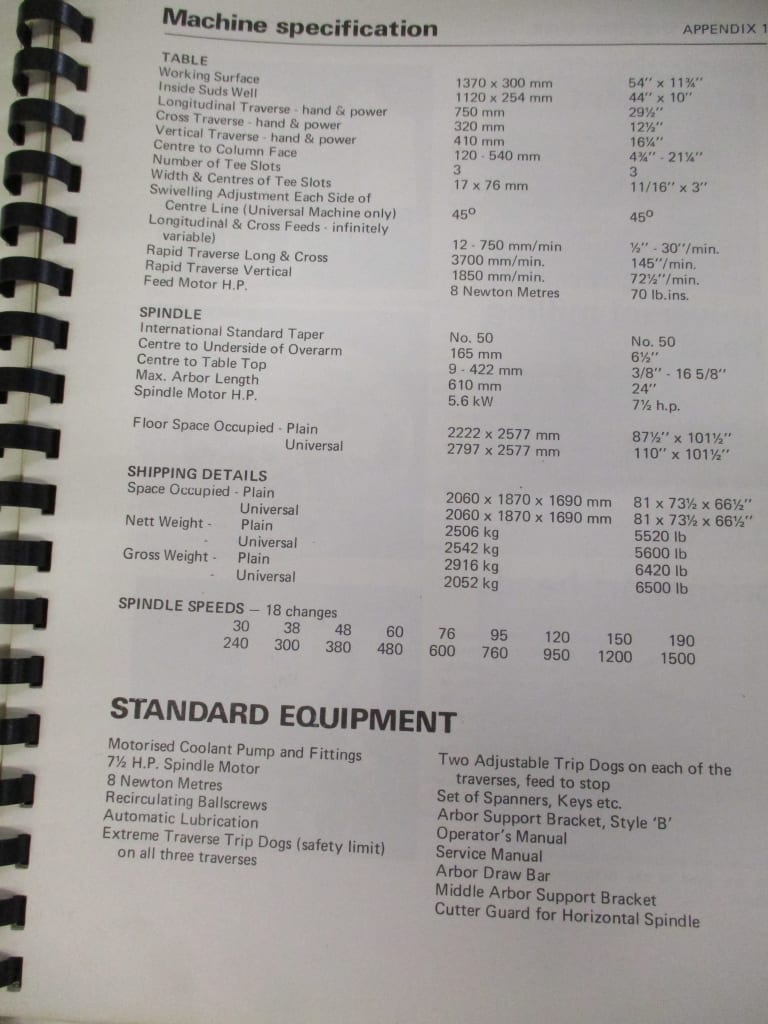

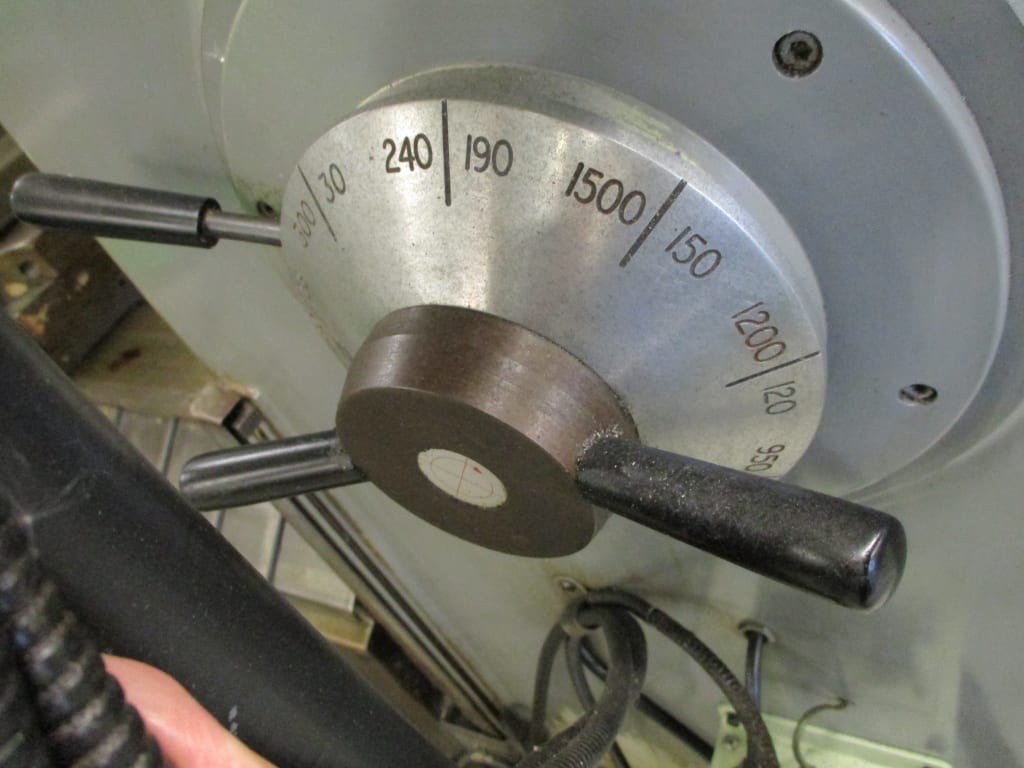

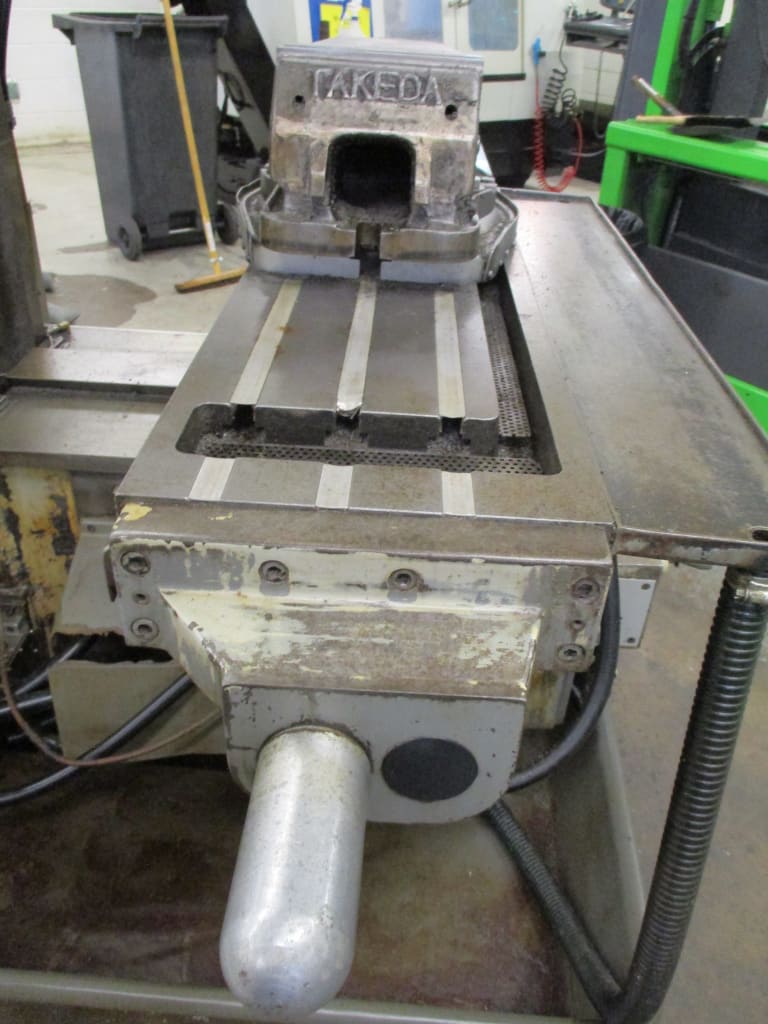

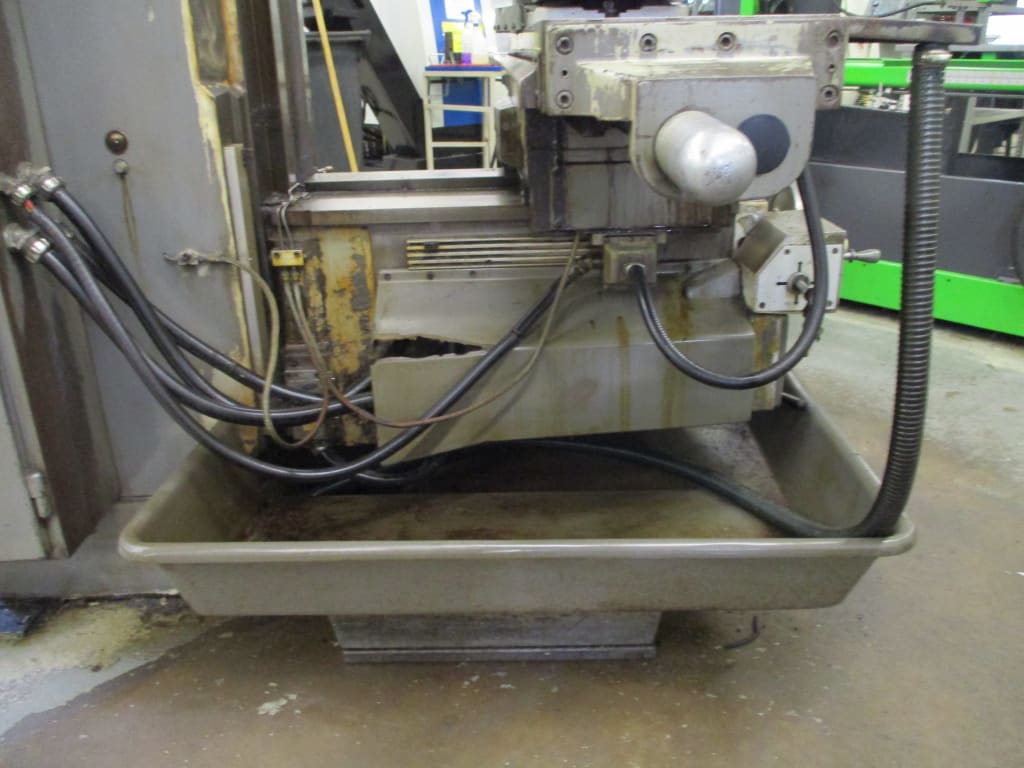

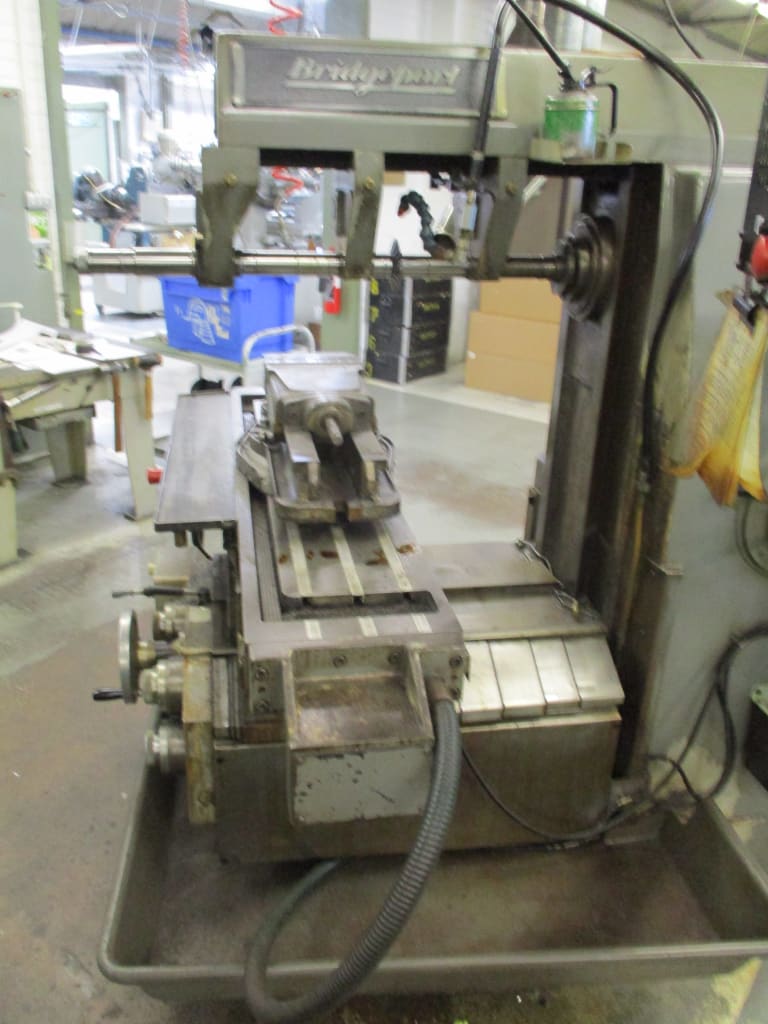

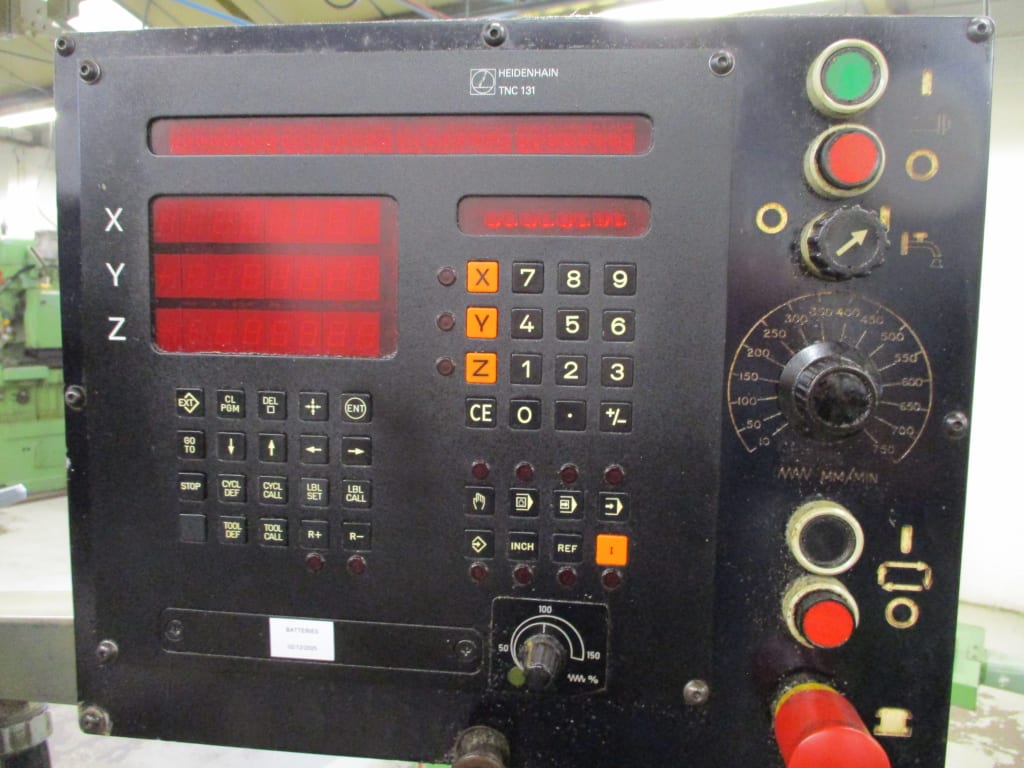

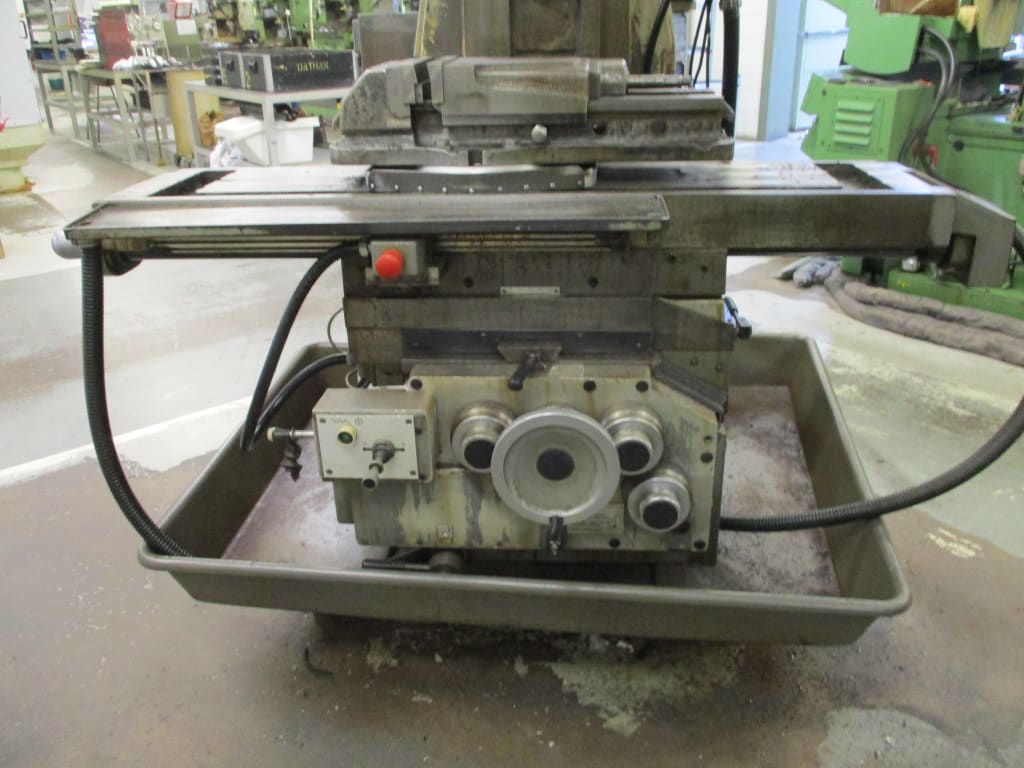

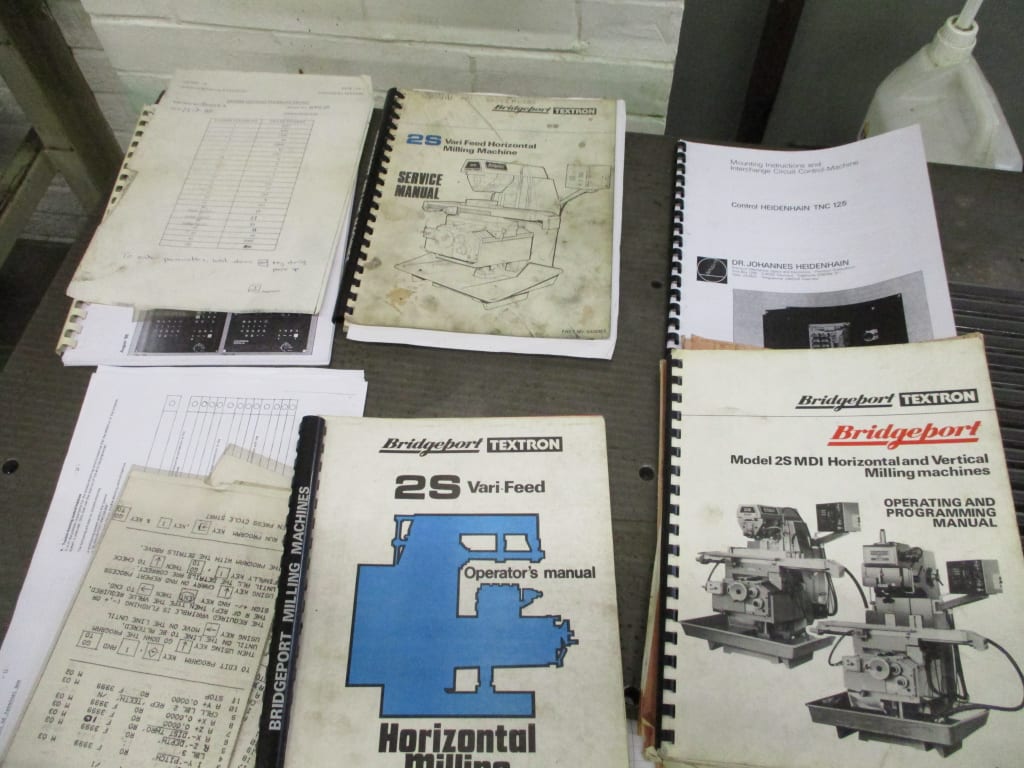

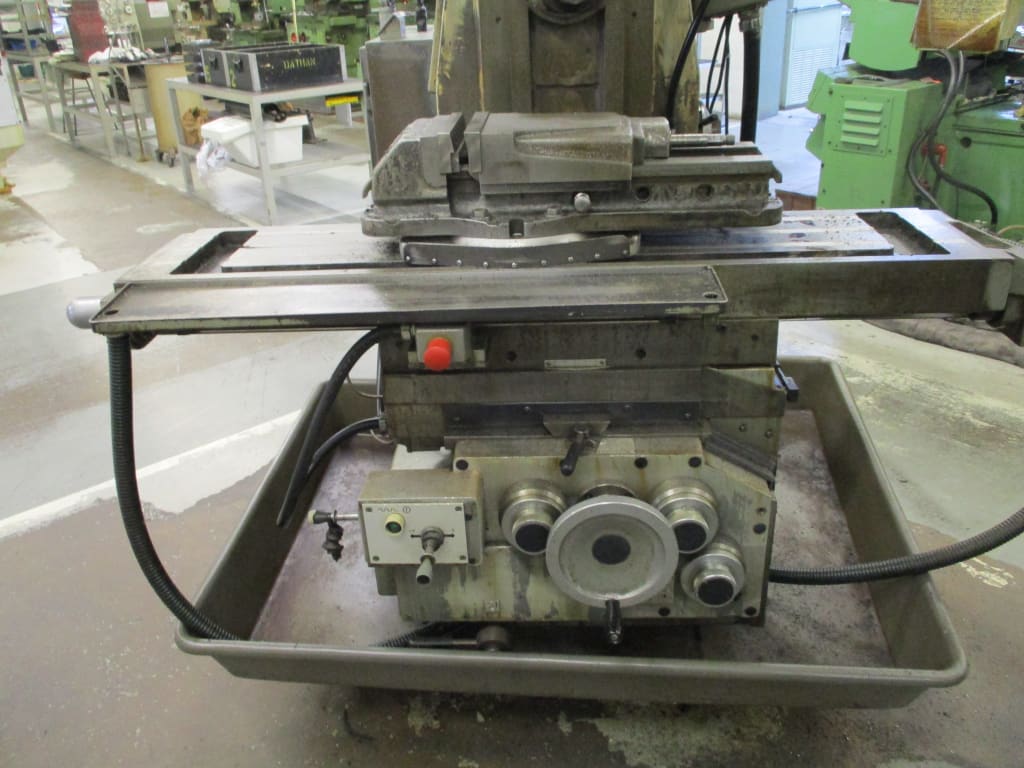

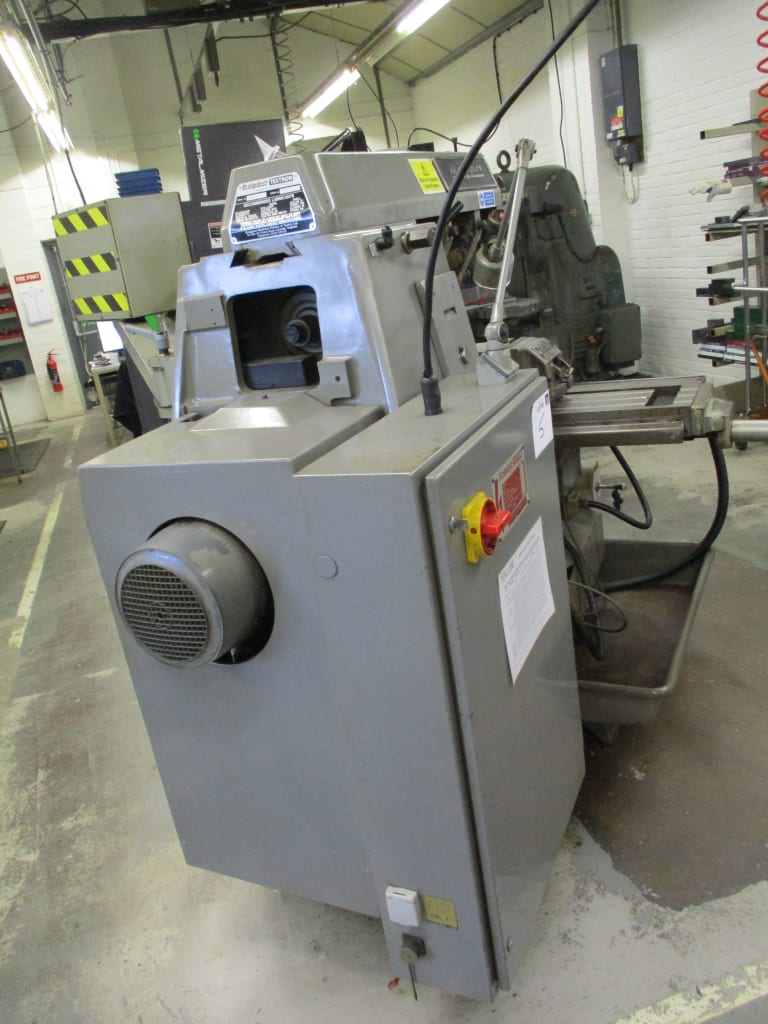

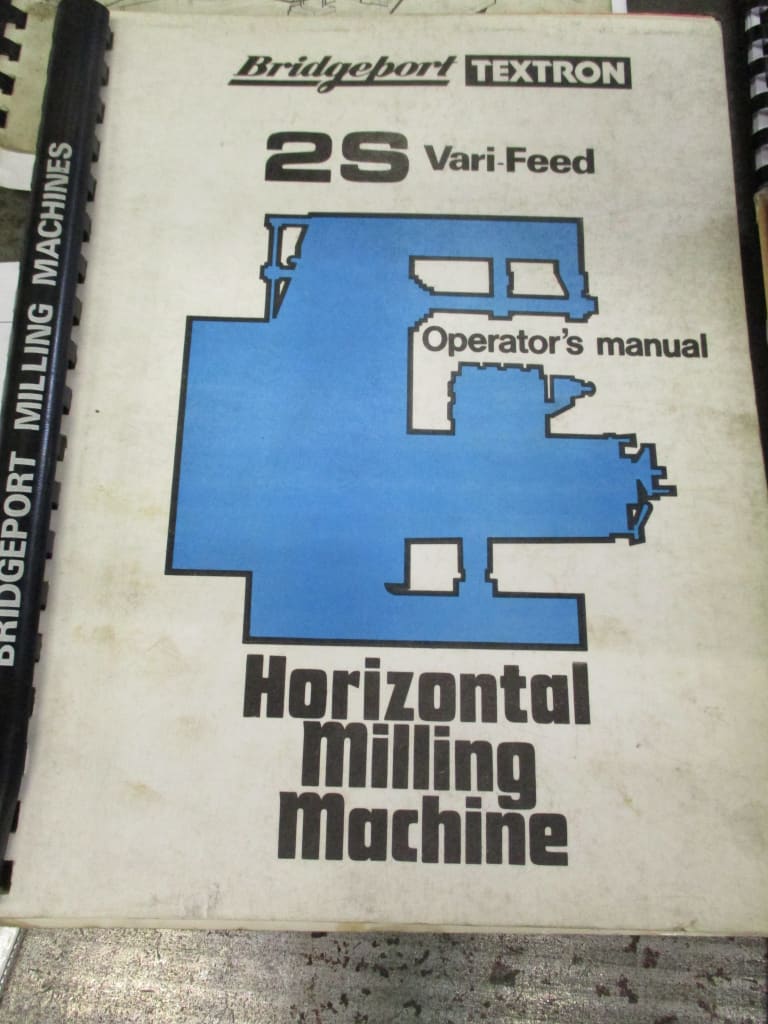

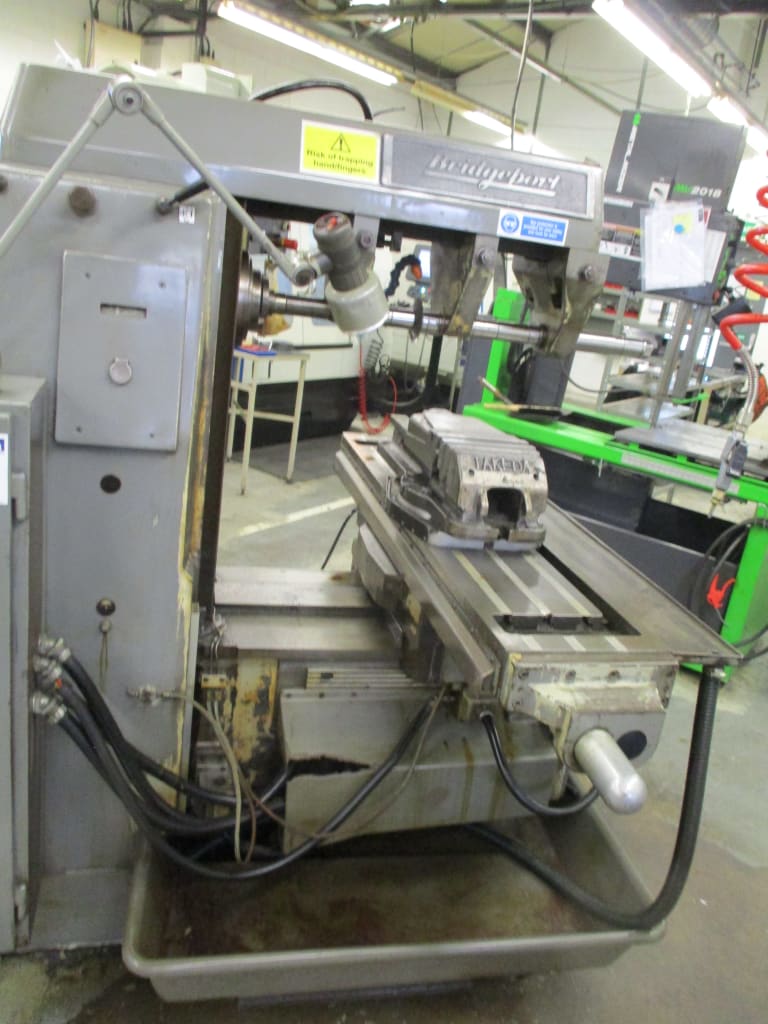

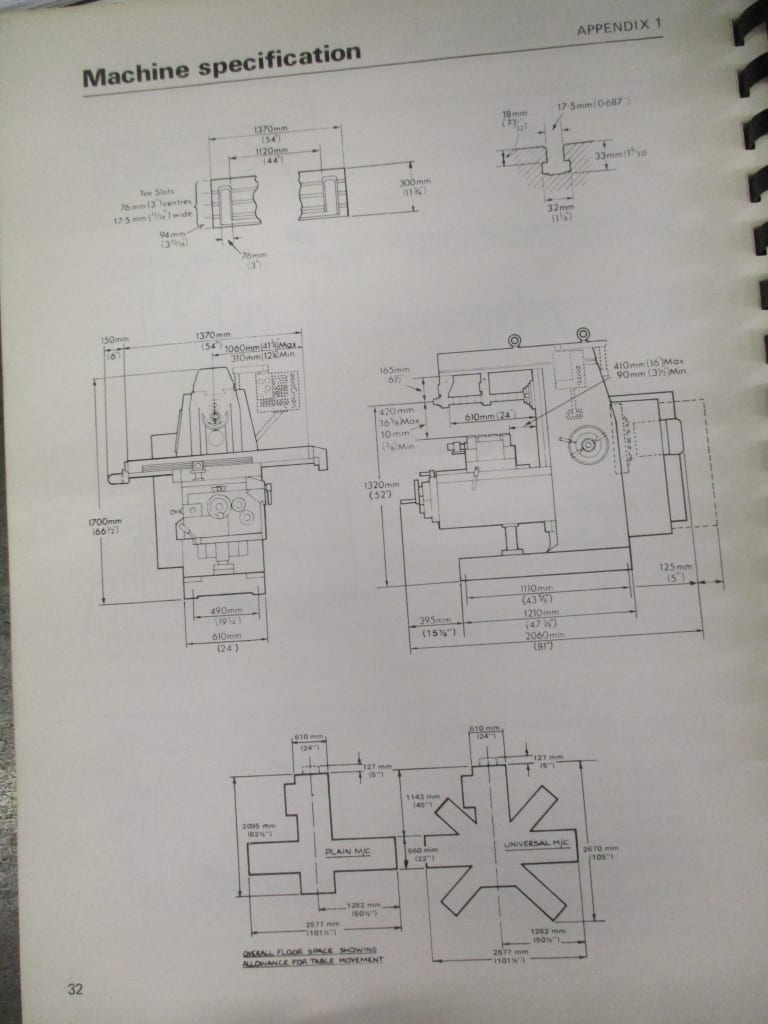

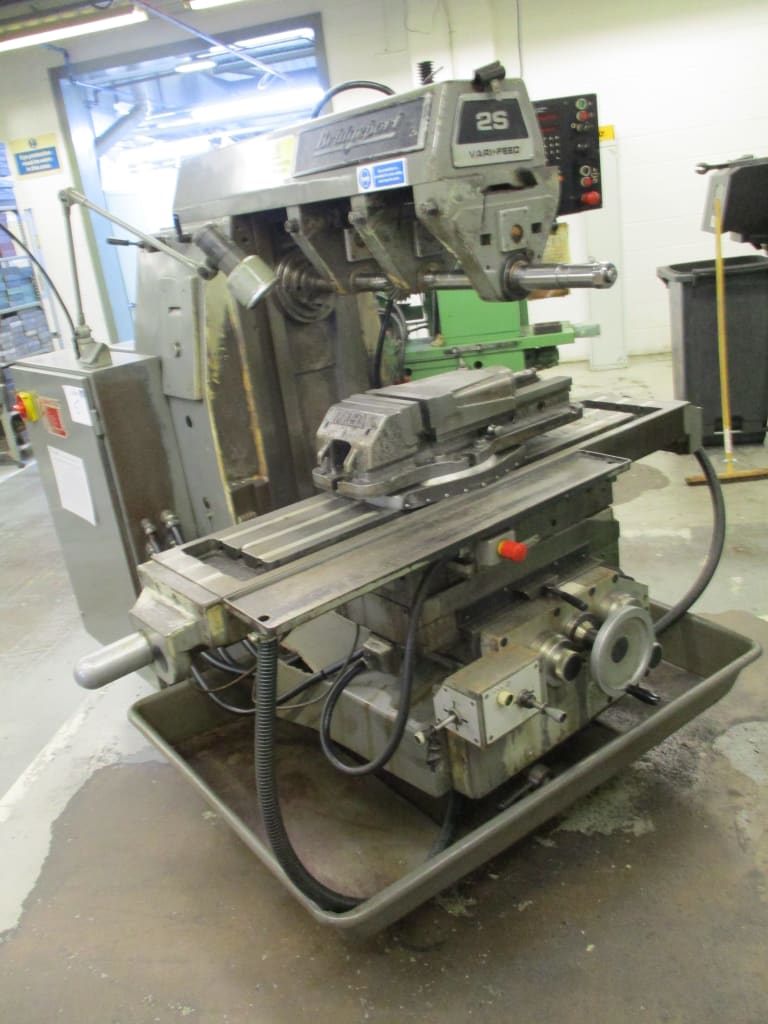

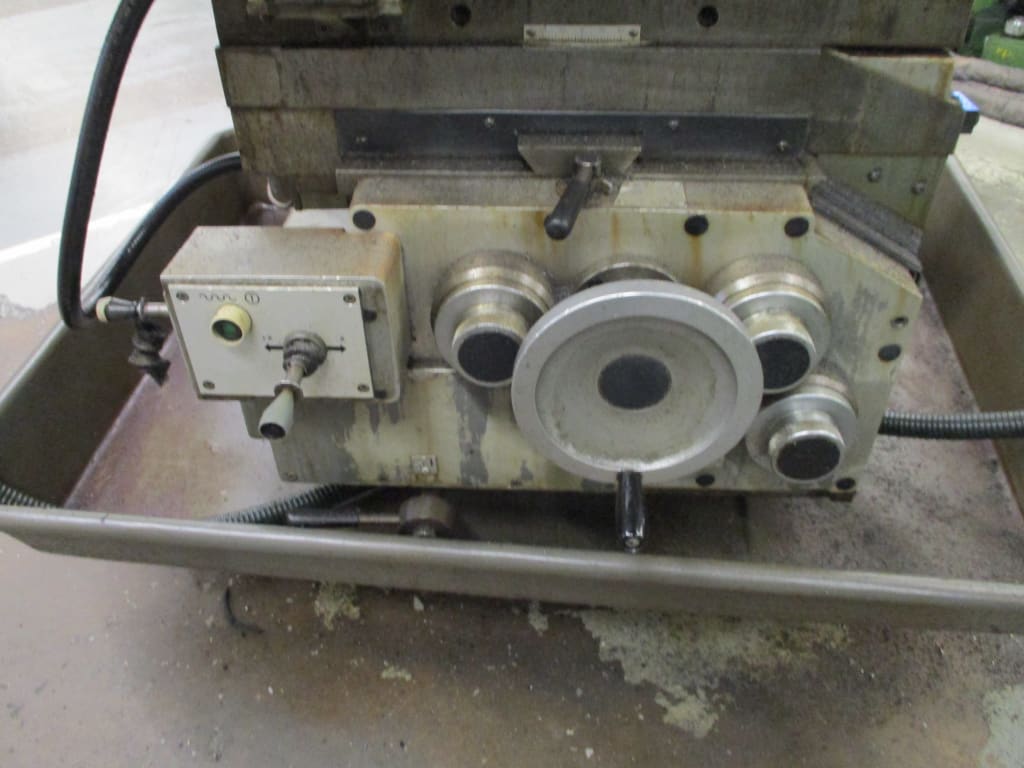

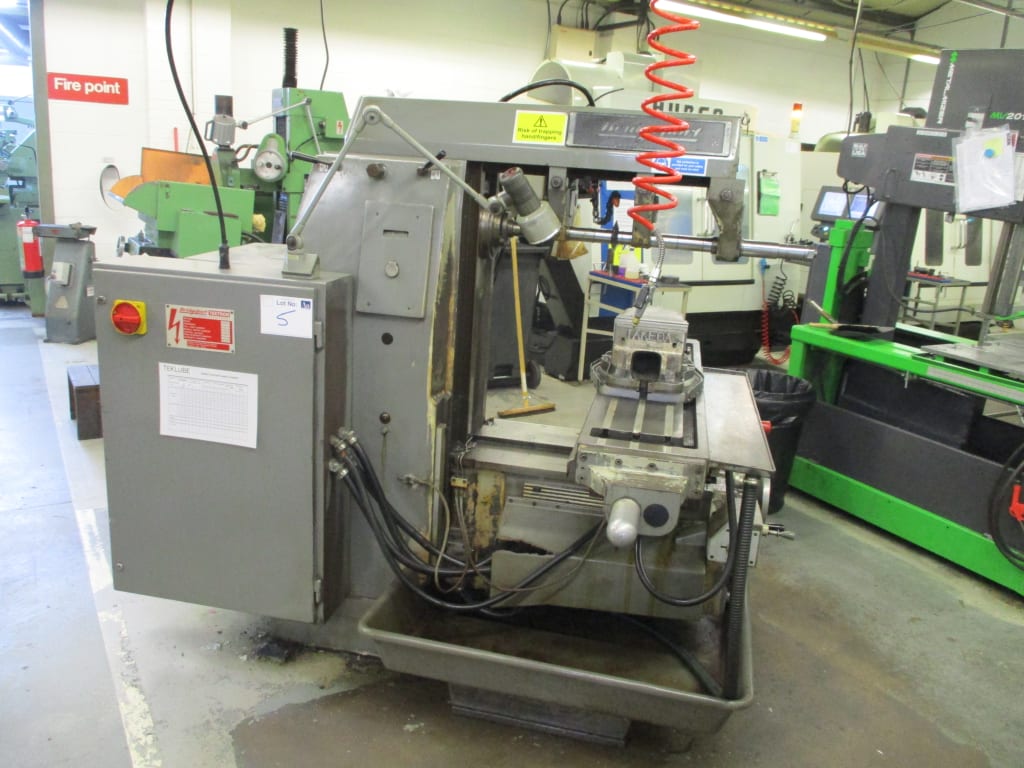

    Bridgeport 2S Vari-Feed Horizontal Milling Machine with Heidenhain TNC 131 Control

    Working Surface 1370mm x 300mm. 'X' Axis Travel 750mm, 'Y' Axis Travel 320mm, 'Z' Axis Travel 410mm. Cross Traverse 320mm. Centre to Column Face 120mm-540mm. Longitudinal & Cross Feed 12-750mm/Min. 50 International Taper. Max Arbor Length 610mm. Spindle Nose 5.6kW. 18 Change Spindle Speeds 30-1,500RPM.
    View Item
  • 6-1.jpg
    site
    LOT 6

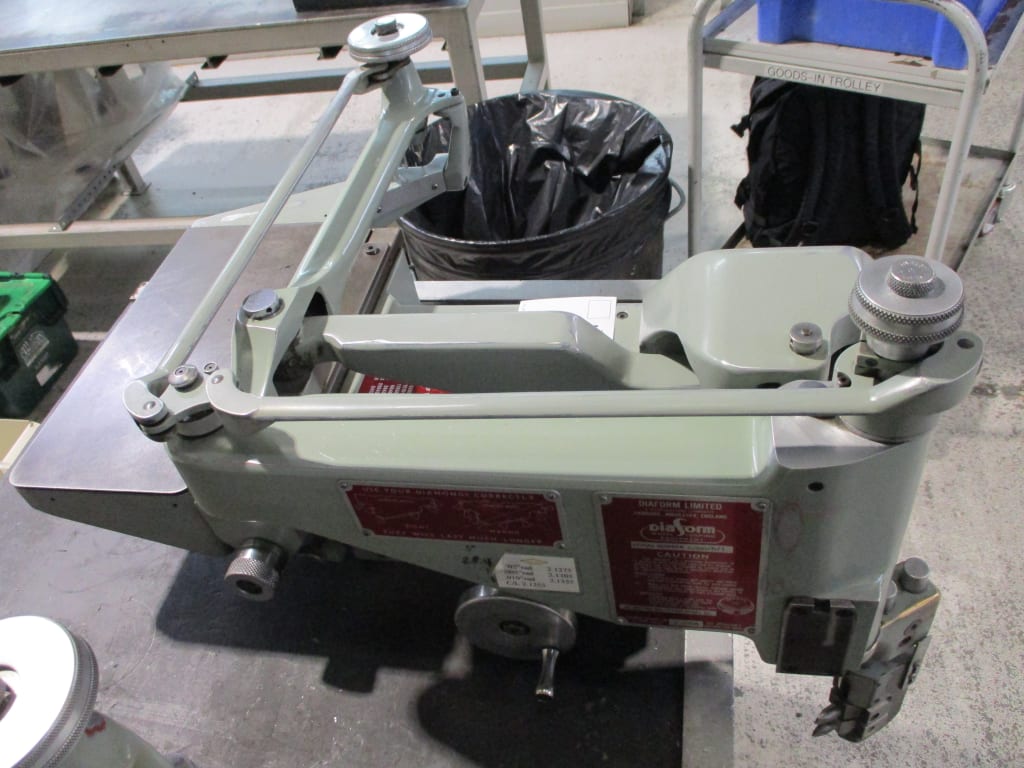

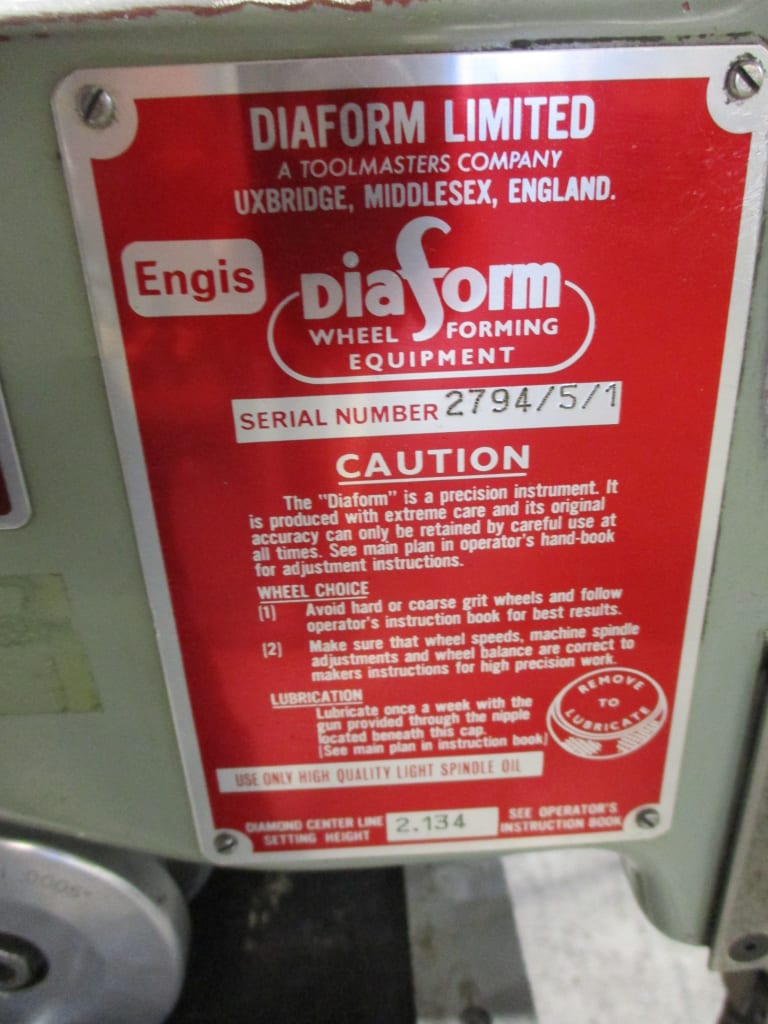

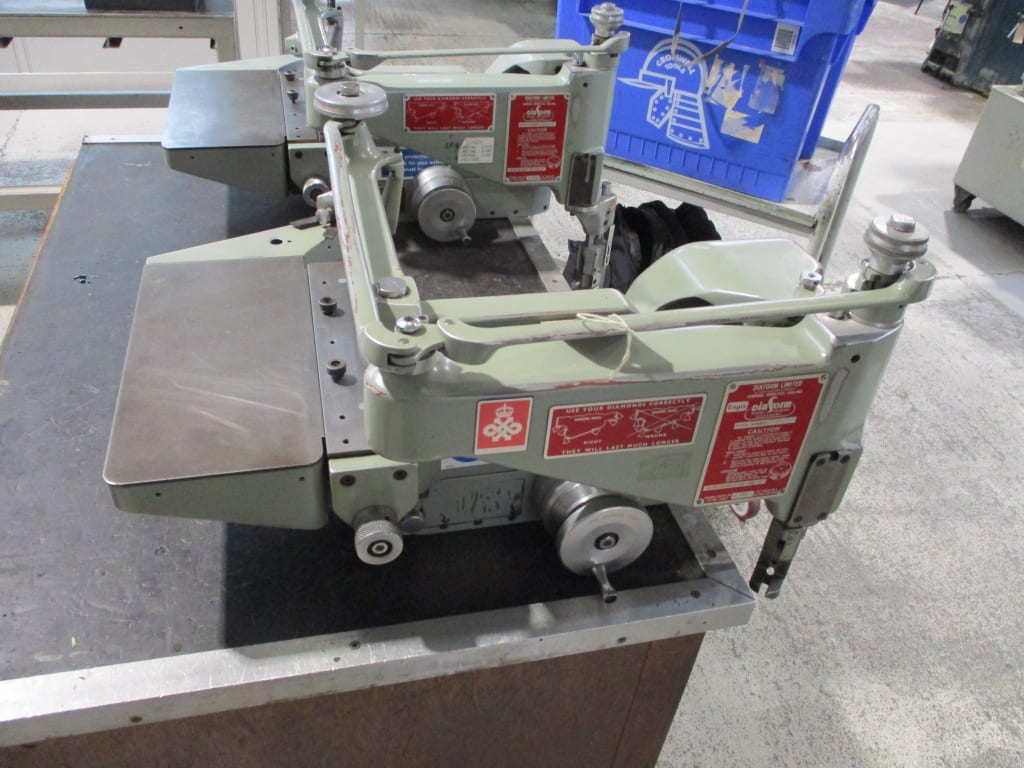

    Diaform 5/1 Wheel Form Grinding Attachment

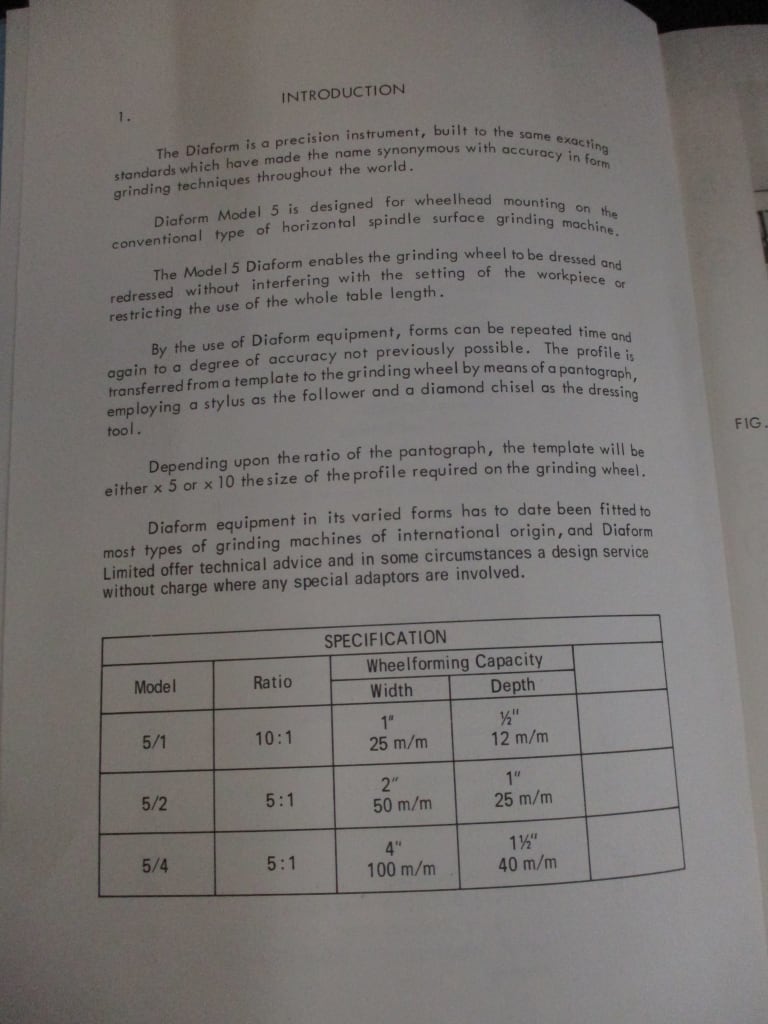

    Wheelhead mounting enables the grinding wheel to be dressed & redressed without interfering with the setting of the workpiece. Pantograph Ratio 10:1. Wheelforming Capacity 25mm Wide x 12mm Deep. Table Dimensions 300mm x 150mm. S/No. 2794/5/1.
    View Item
  • 7-1.jpg
    site
    LOT 7

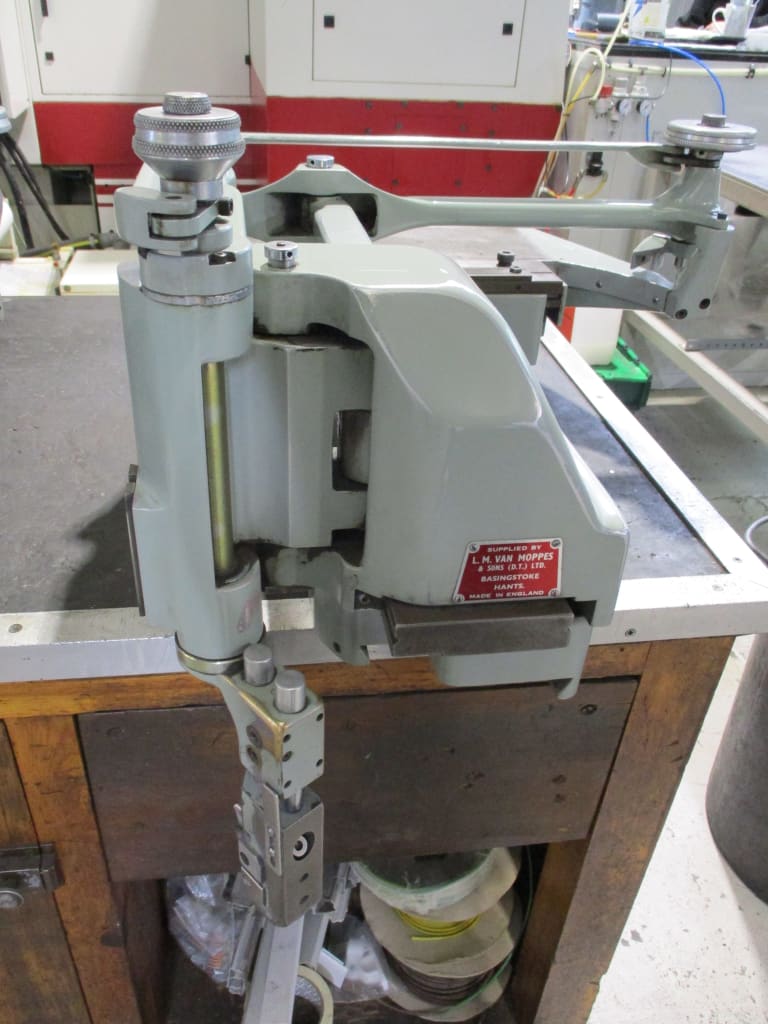

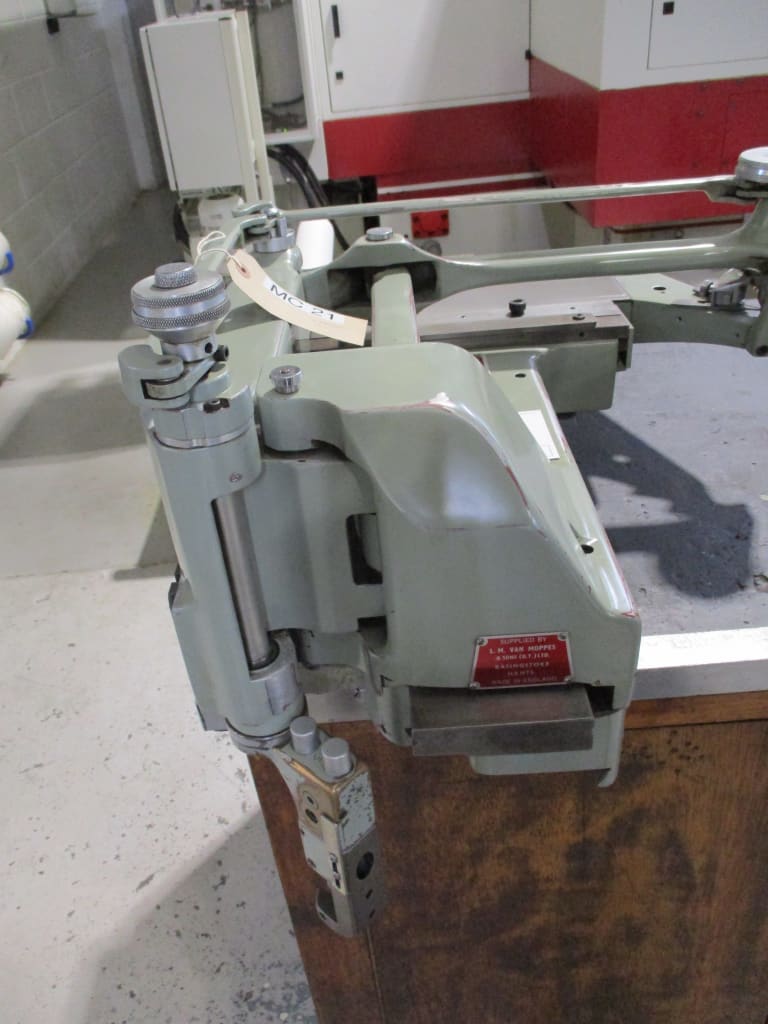

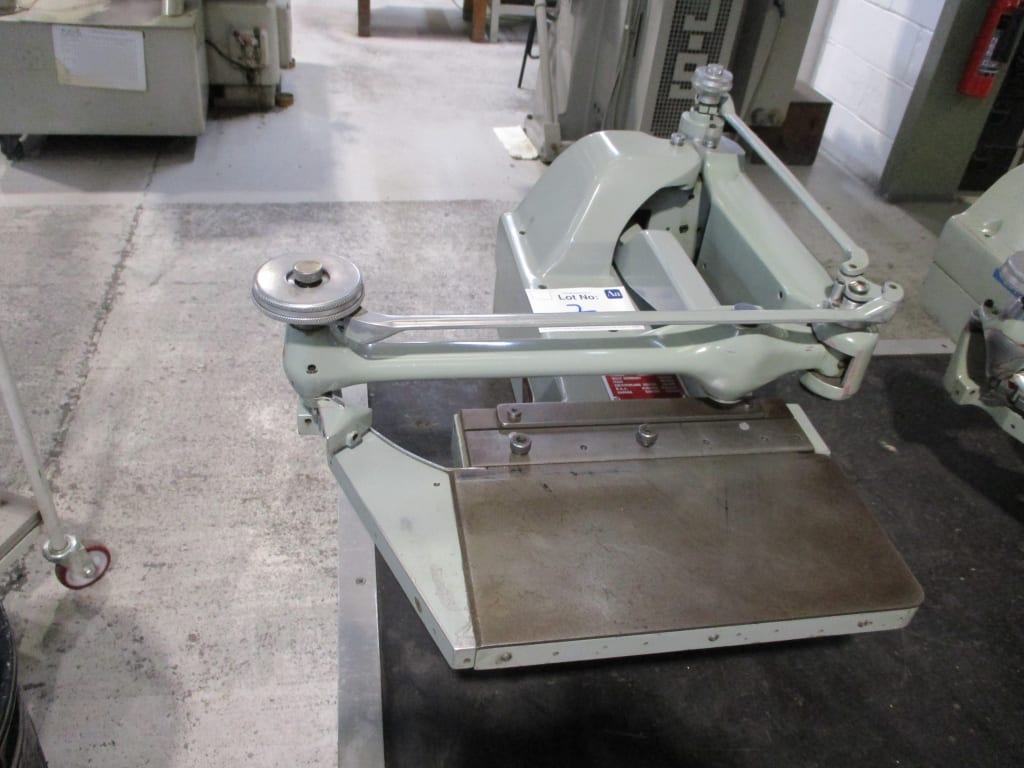

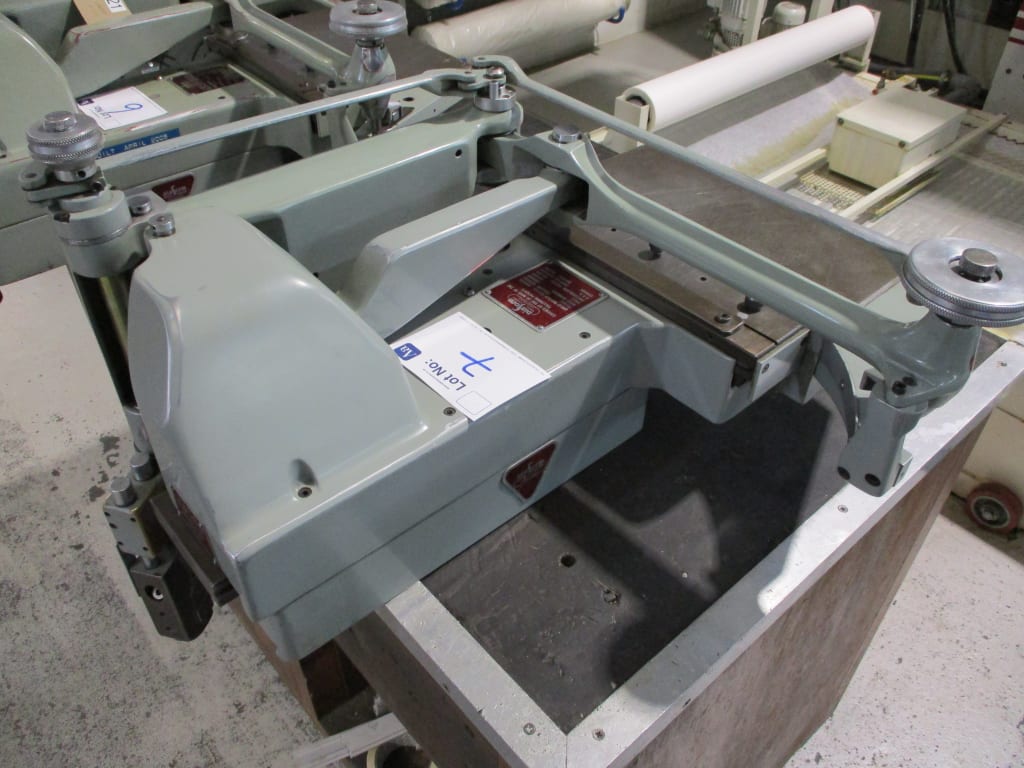

    Diaform 5/1 Wheel Form Grinding Attachment

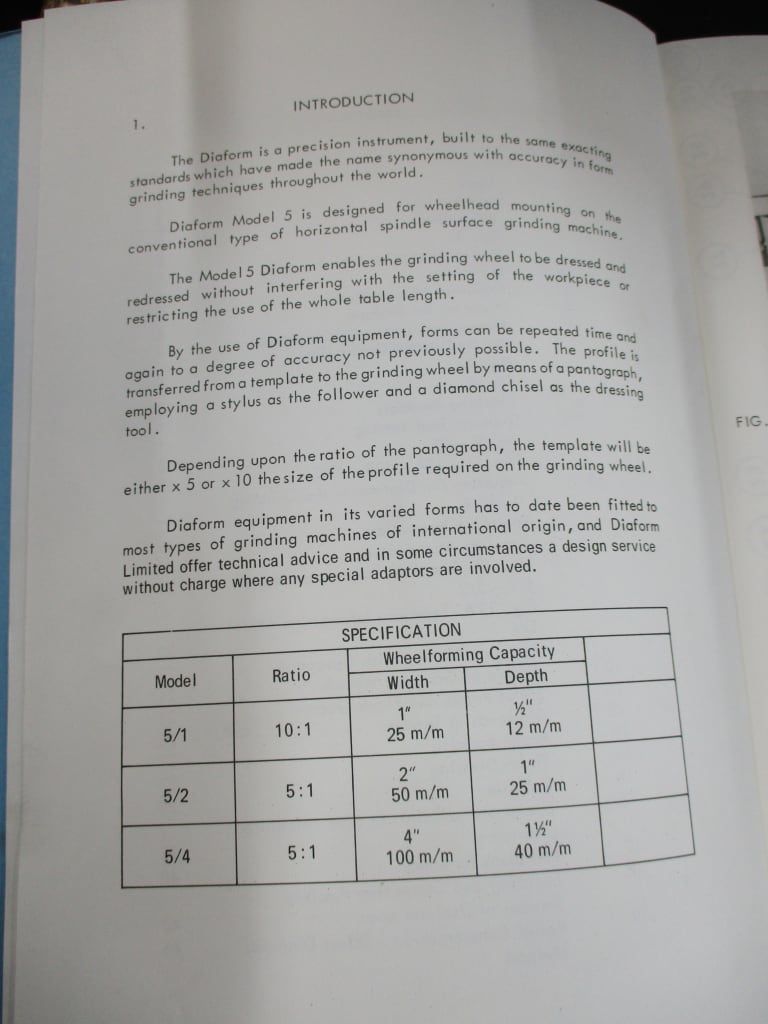

    Wheelhead mounting enables the grinding wheel to be dressed & redressed without interfering with the setting of the workpiece. Pantograph Ratio 10:1. Wheelforming Capacity 25mm Wide x 12mm Deep. Table Dimensions 300mm x 150mm. S/No. 5260/5/1.
    View Item
  • 8-1.jpg
    site
    LOT 8

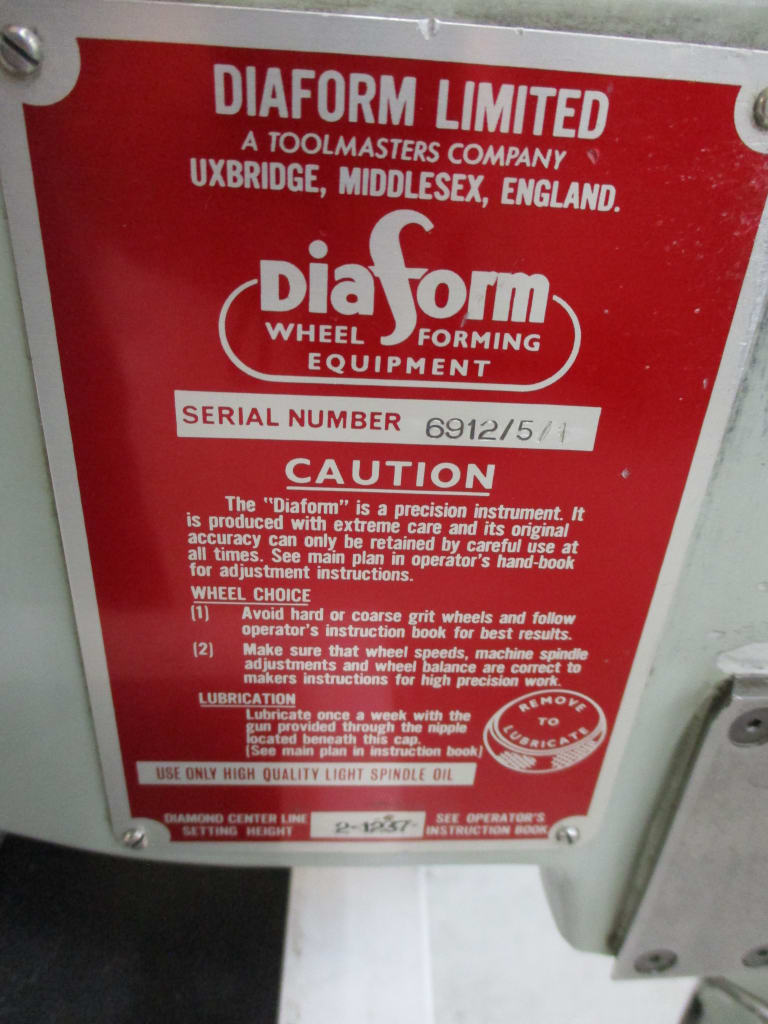

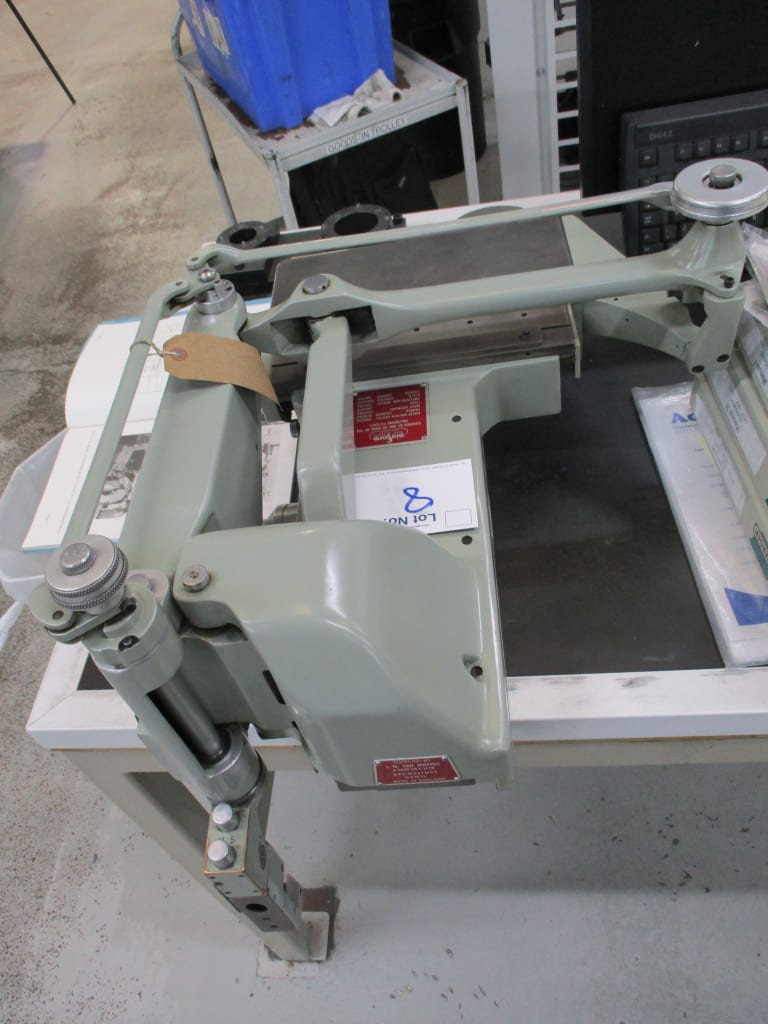

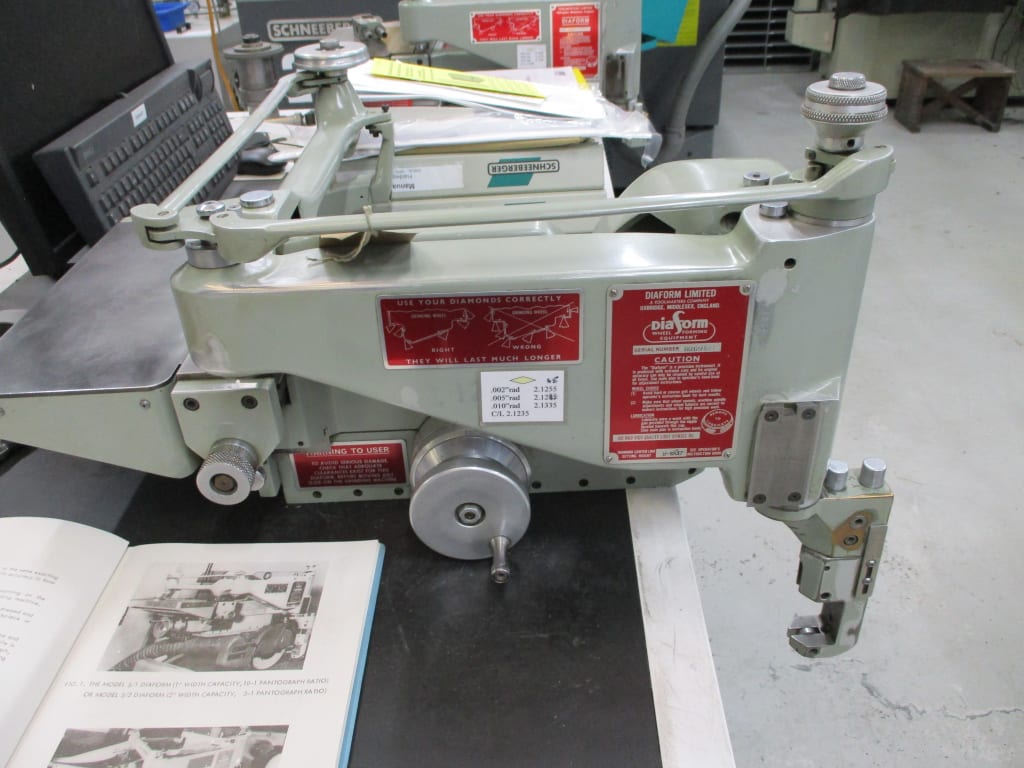

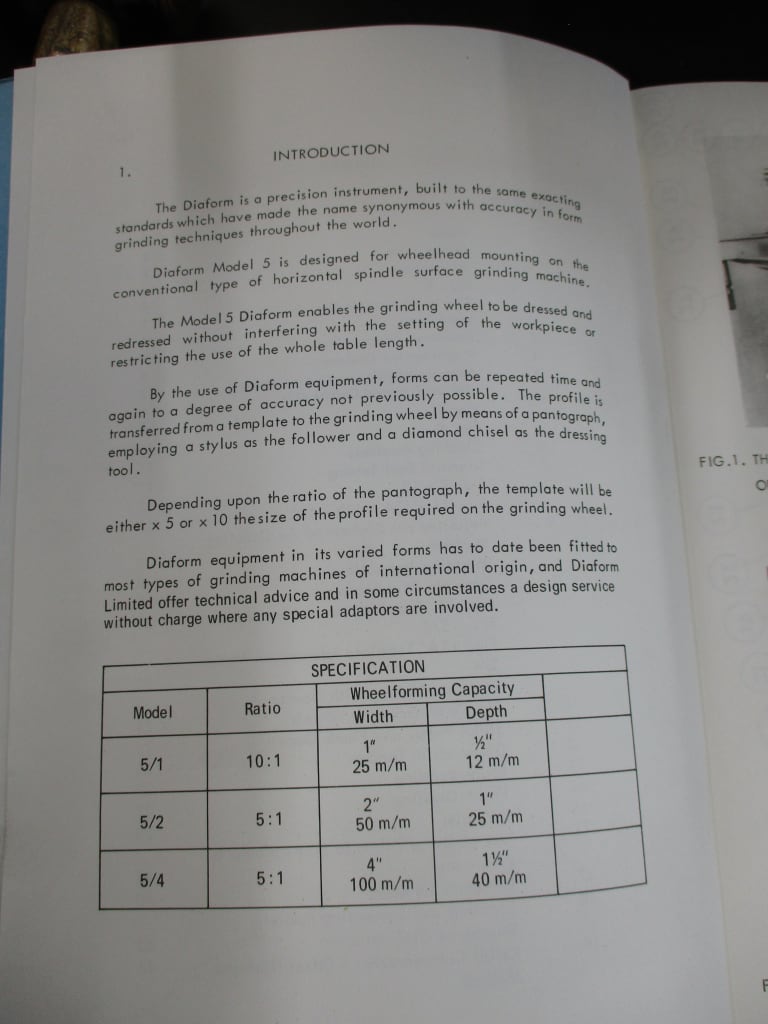

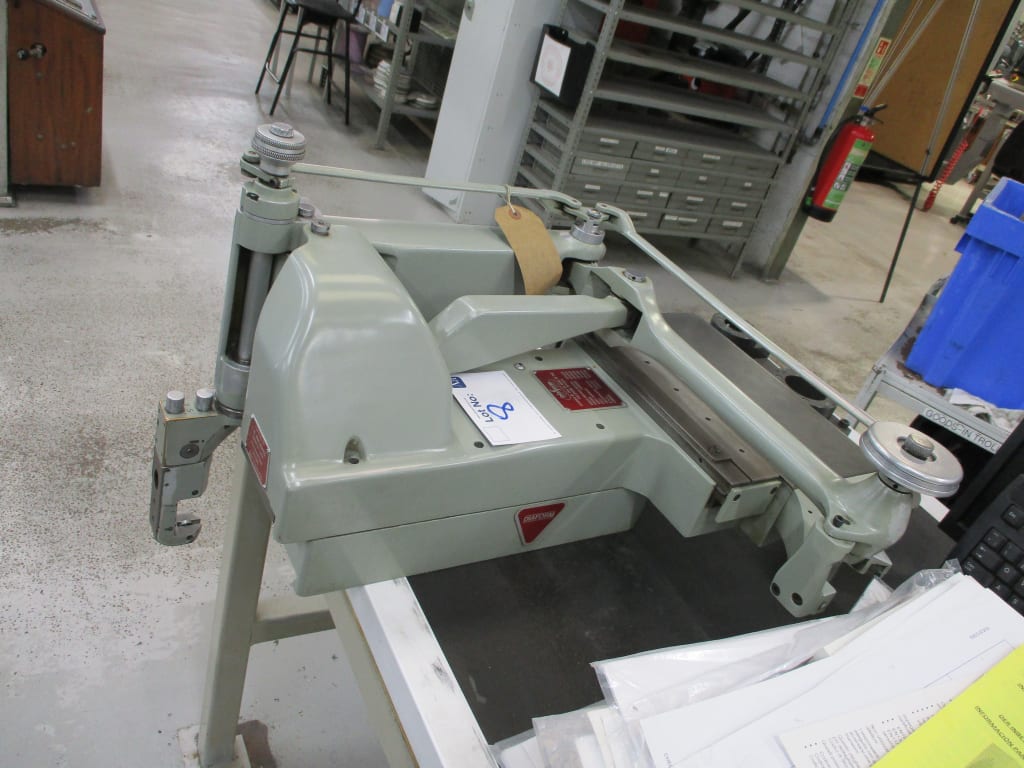

    Diaform 5/1 Wheel Form Grinding Attachment

    Wheelhead mounting enables the grinding wheel to be dressed & redressed without interfering with the setting of the workpiece. Pantograph Ratio 10:1. Wheelforming Capacity 25mm Wide x 12mm Deep. Table Dimensions 300mm x 150mm. S/No. 6912/5/1.
    View Item
  • 9-1.jpg
    site
    LOT 9

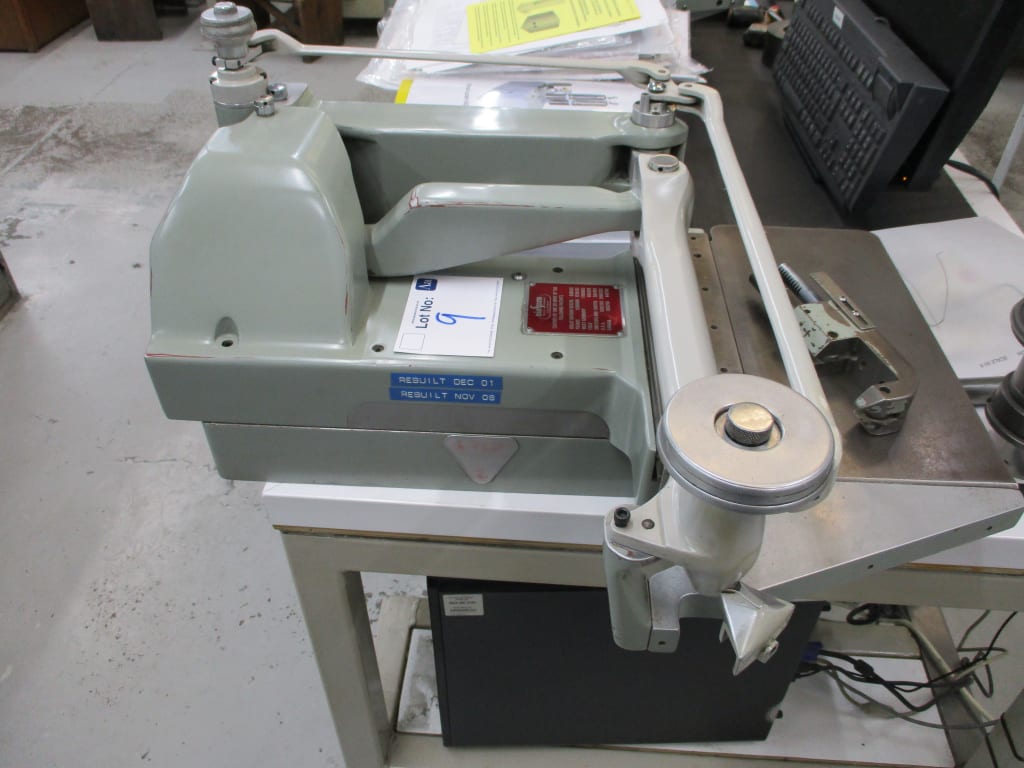

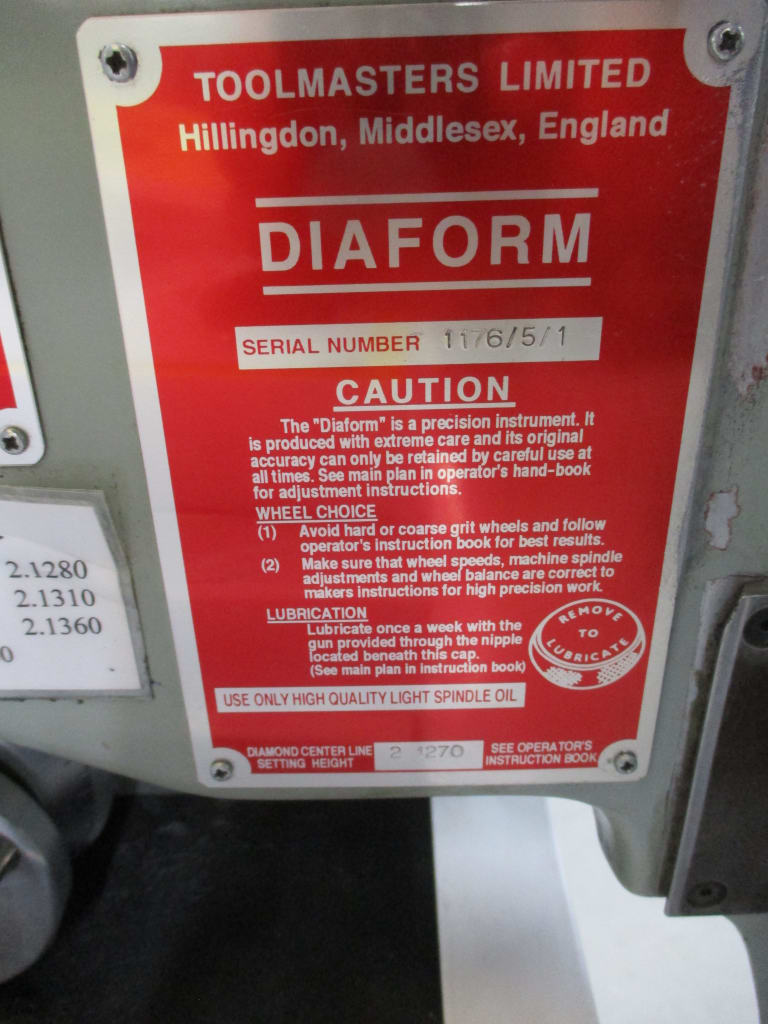

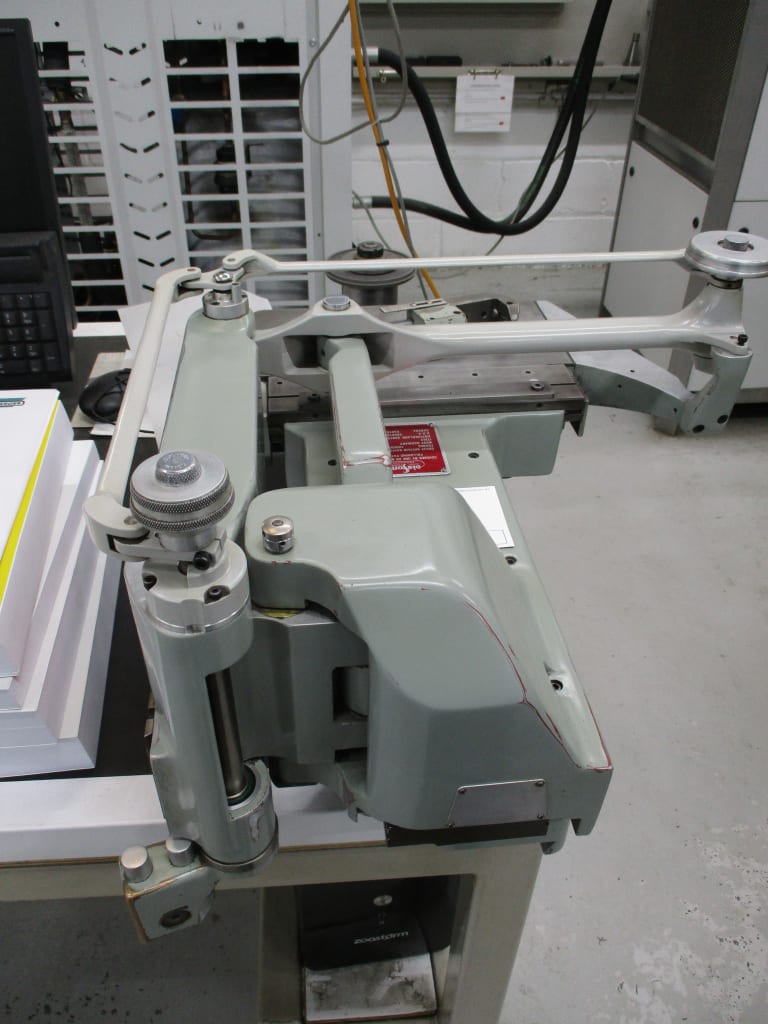

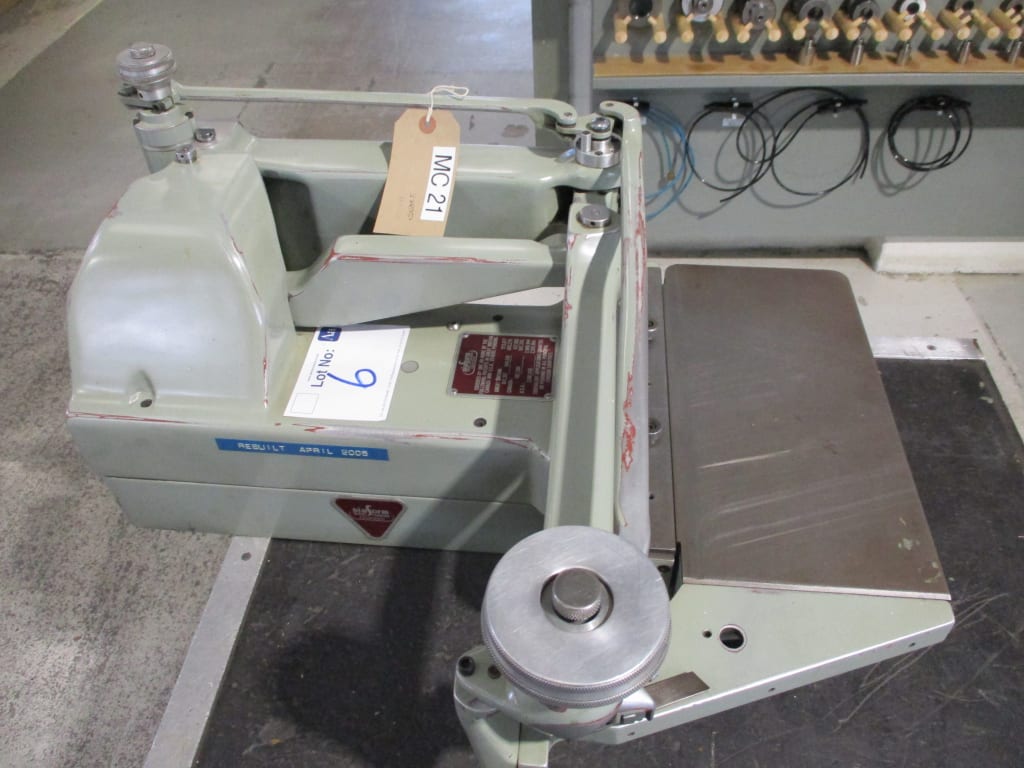

    Diaform 5/1 Wheel Form Grinding Attachment

    Wheelhead mounting enables the grinding wheel to be dressed & redressed without interfering with the setting of the workpiece. Pantograph Ratio 10:1. Wheelforming Capacity 25mm Wide x 12mm Deep. Table Dimensions 300mm x 150mm. S/No. 1176/5/1.
    View Item
  • 10-1.jpg
    site
    LOT 10

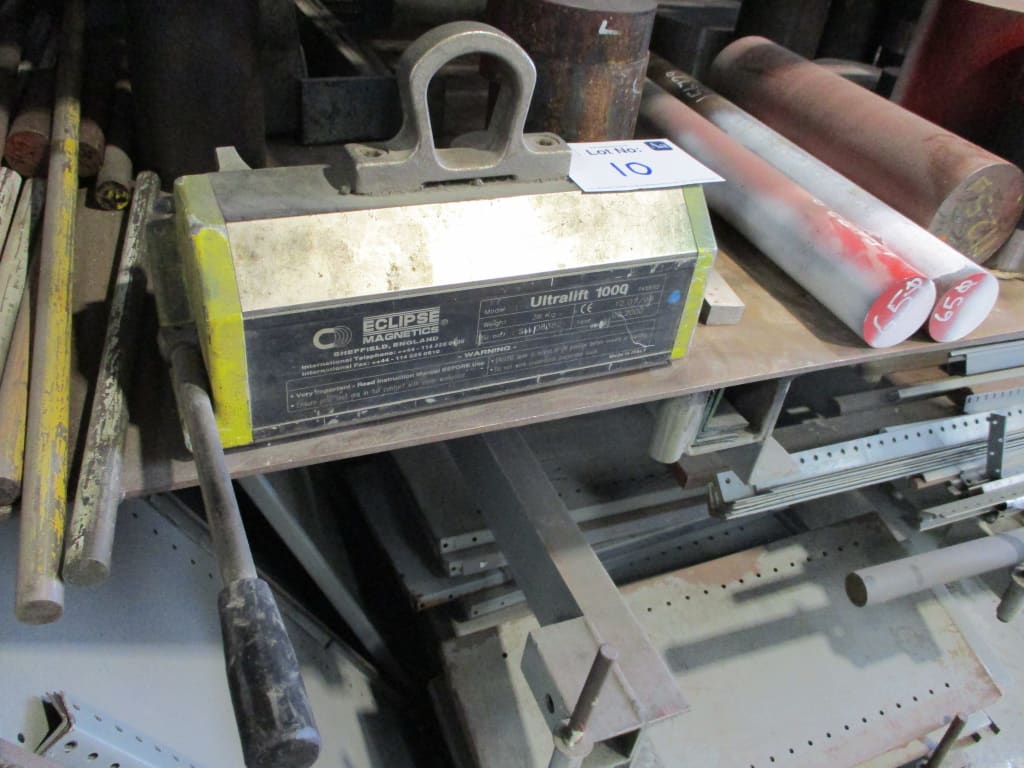

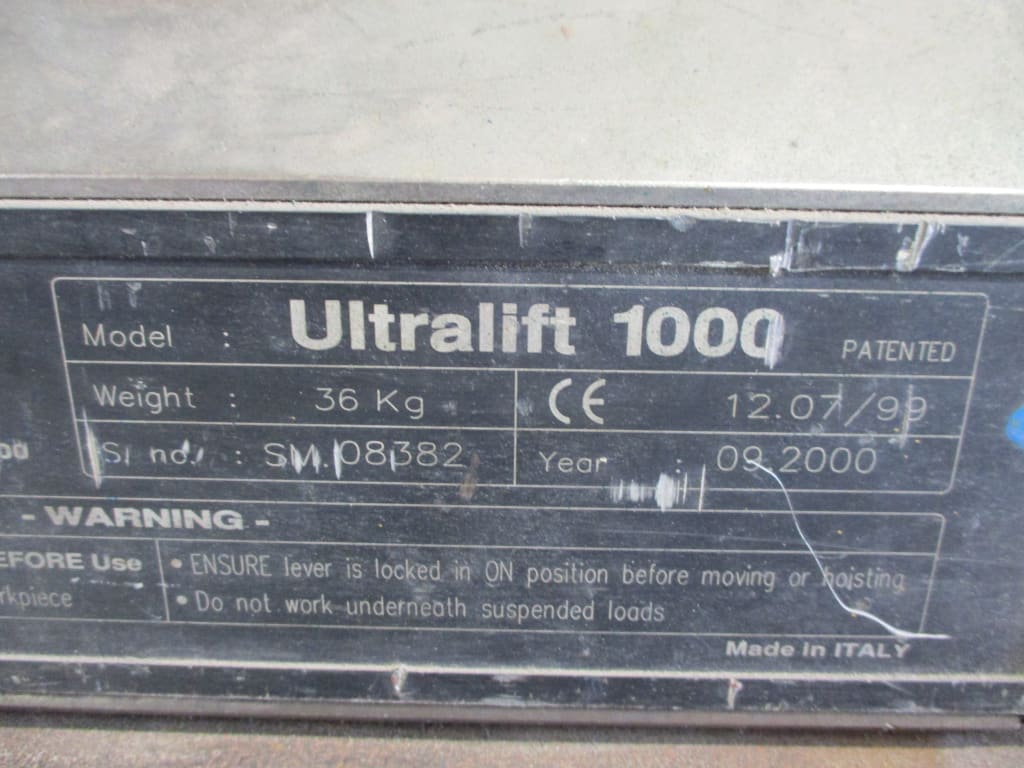

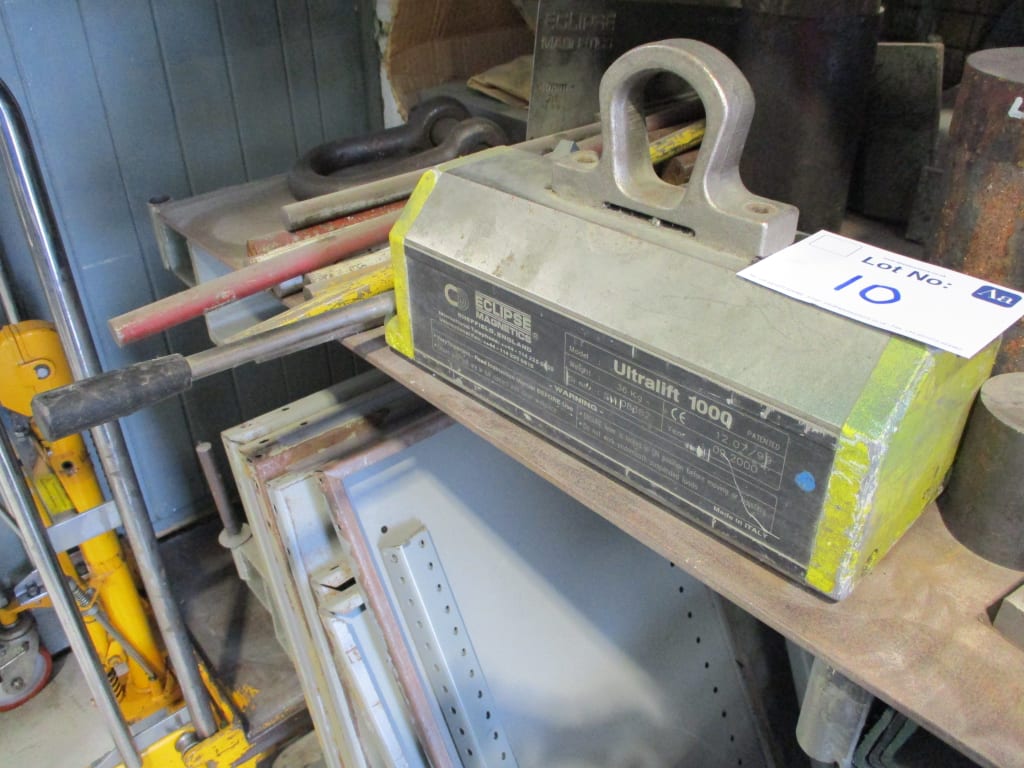

    Eclipse Ultralift 1000 Manual Magnetic Lifter

    1,000kg Capacity. S/No. SM 08382.
    View Item
