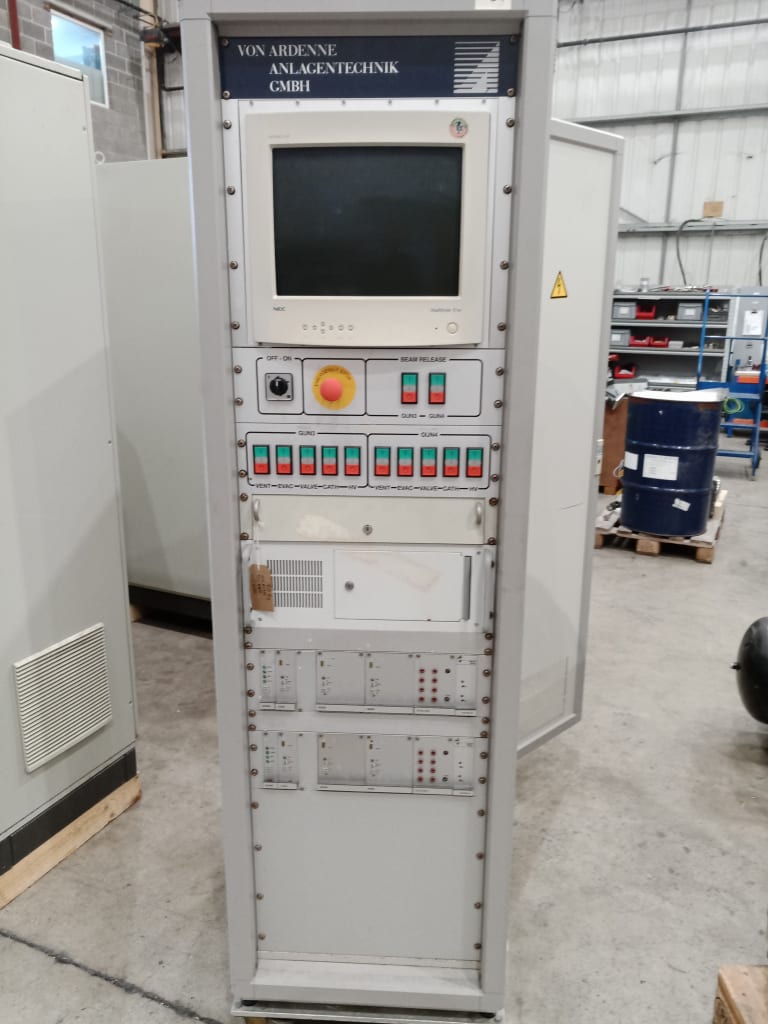

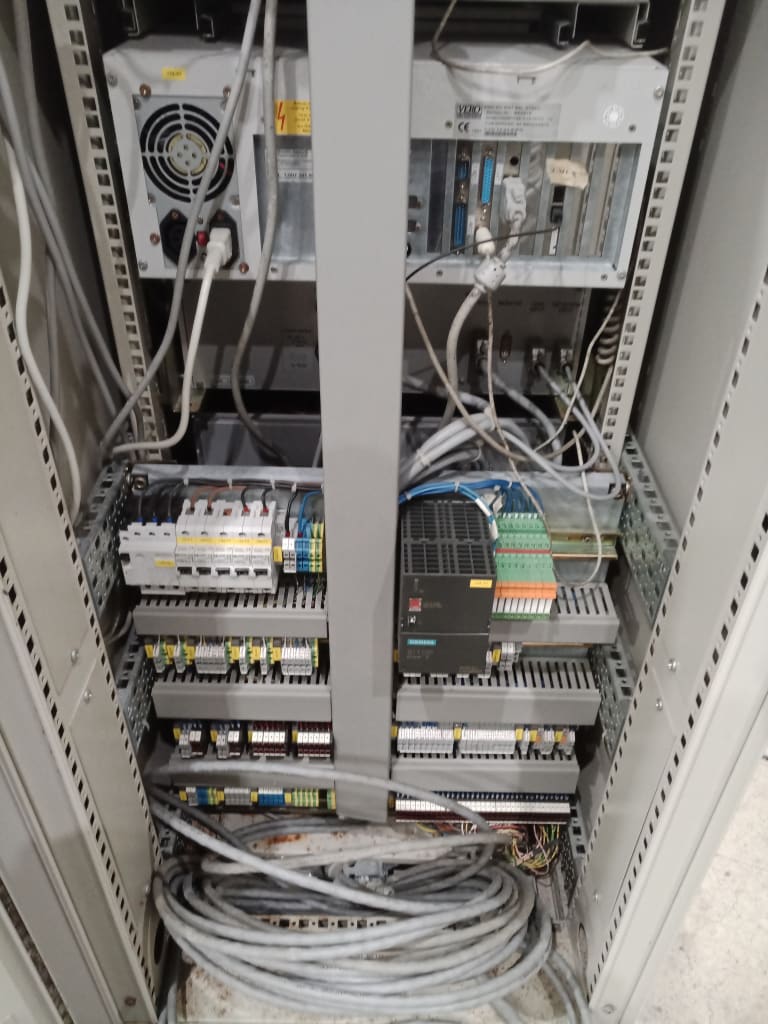

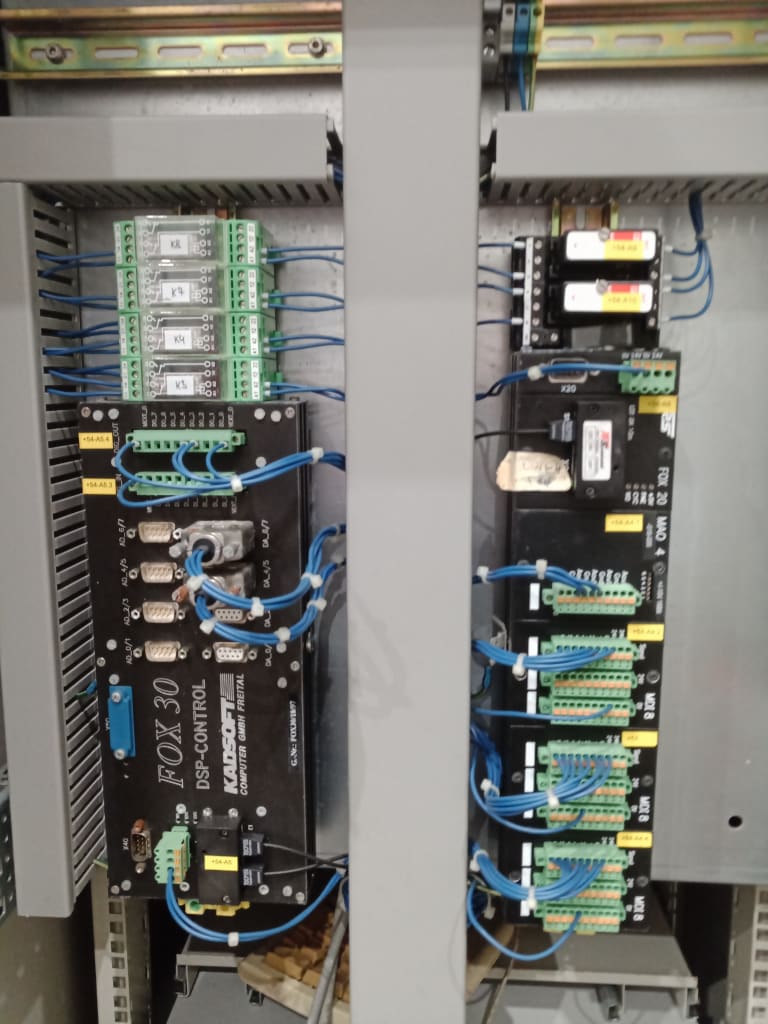

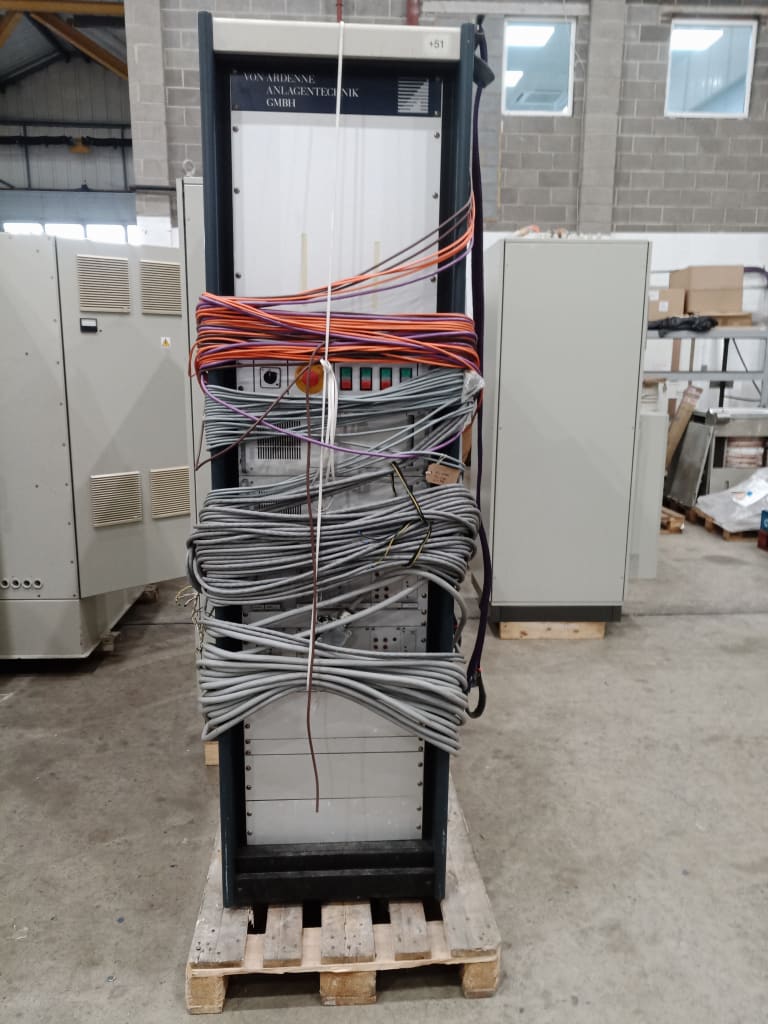

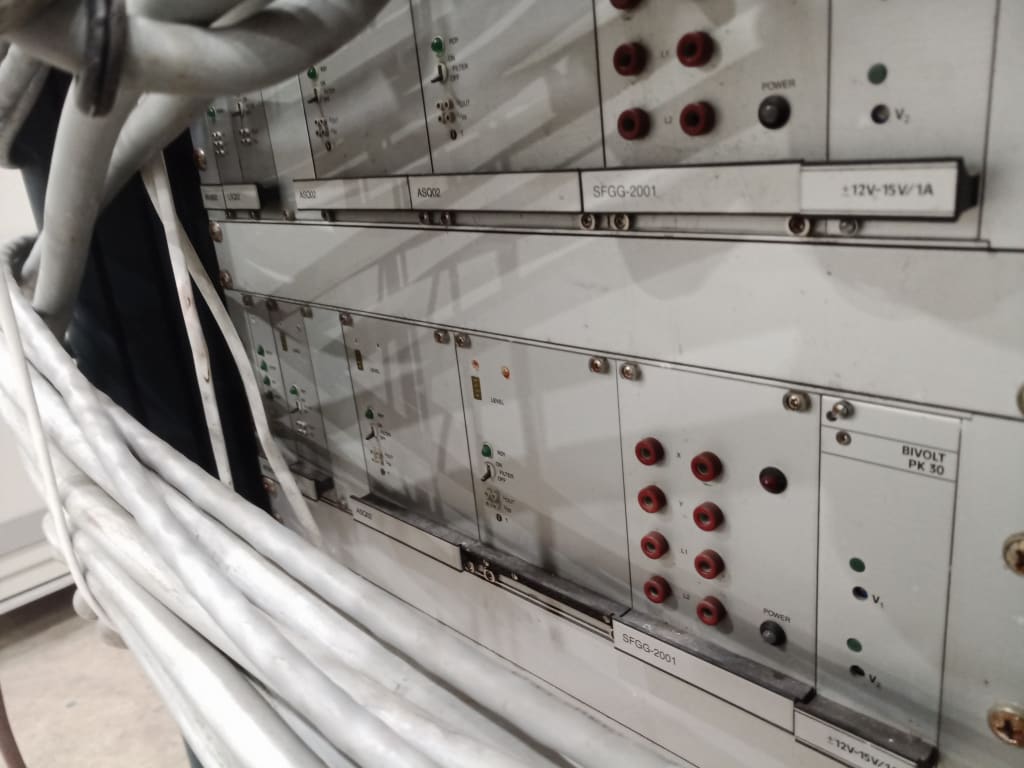

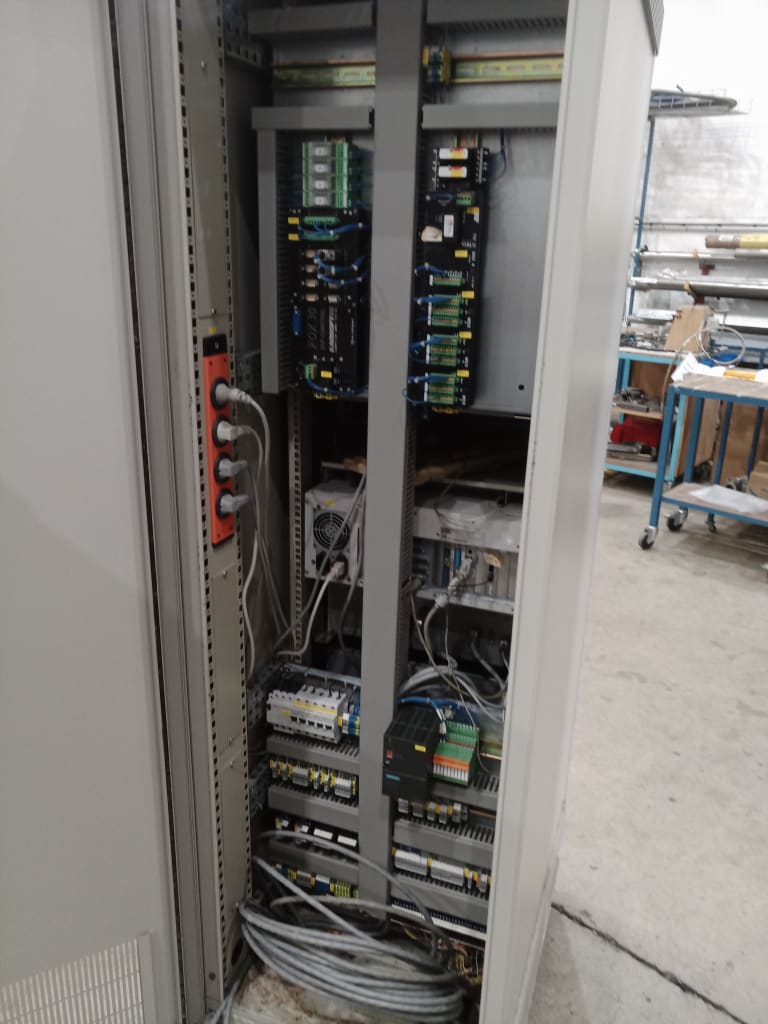

This lot contains only the Data system and deposition cabinet as photographed. Containing two rack mounted Max Tec Inc MSVS DSC 330-2 E beam deposition controllers and MSVS Motor controller with other rack mounted units. **PLEASE NOTE This Lot is included in the Collective Lot 2. At the end of the Auction, it is at the sole discretion of the Seller whether to accept the bid on this individual Lot or the Collective Lot 2.

Comprising of Gun 1 (+81) and PSU (+61) and (+71). **PLEASE NOTE This Lot is included in the Collective Lot 2. At the end of the Auction, it is at the sole discretion of the Seller whether to accept the bid on this individual Lot or the Collective Lot 2.

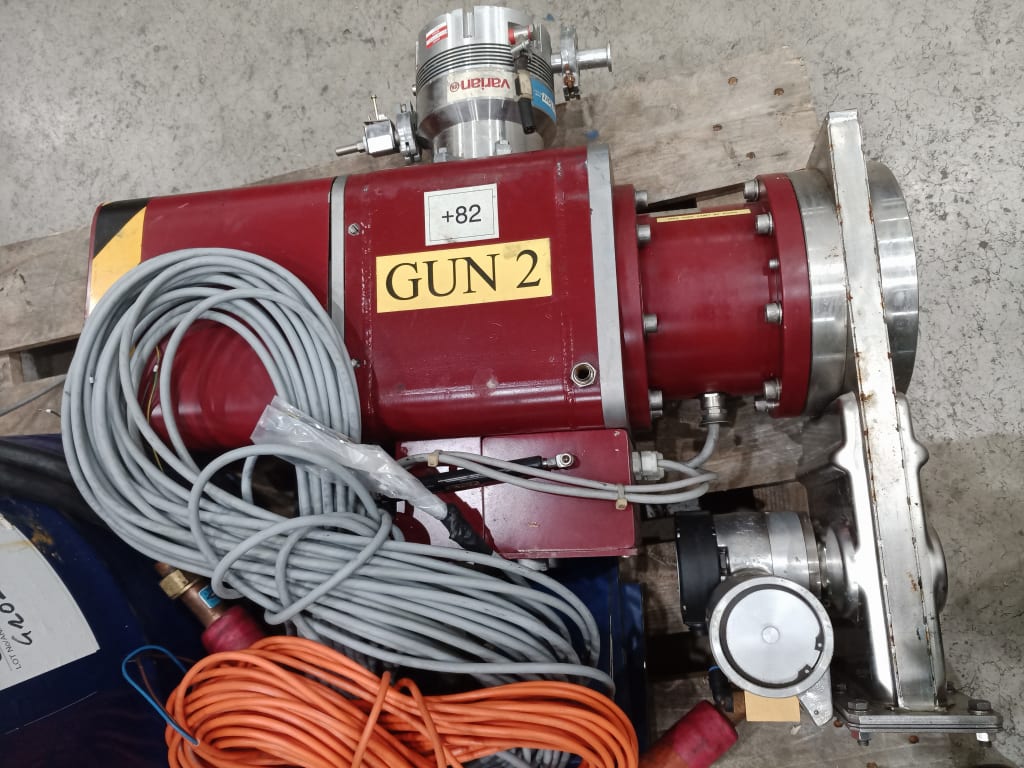

Comprising of Gun 2 (+82) and PSU (+62) please note PSU (+72) is missing. **PLEASE NOTE This Lot is included in the Collective Lot 2. At the end of the Auction, it is at the sole discretion of the Seller whether to accept the bid on this individual Lot or the Collective Lot 2.

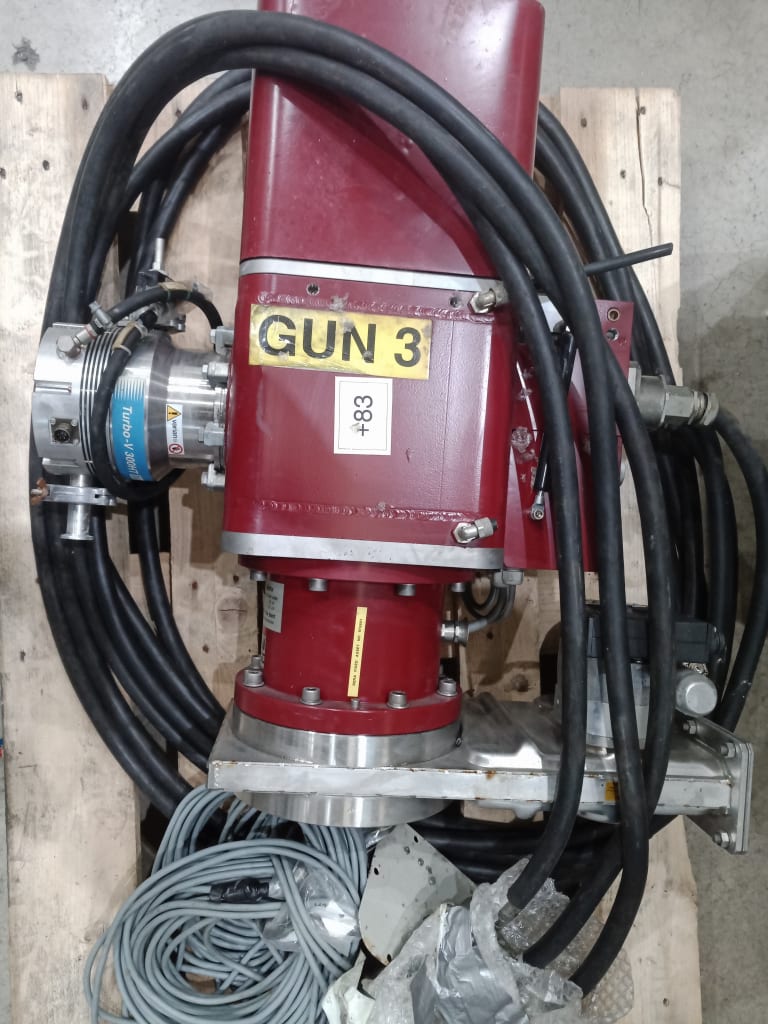

Comprising of Gun 3 (+83) and PSU (+63) and (+73). **PLEASE NOTE This Lot is included in the Collective Lot 2. At the end of the Auction, it is at the sole discretion of the Seller whether to accept the bid on this individual Lot or the Collective Lot 2.

Comprising of Gun 4 (+84) and PSU (+64) and (+74). **PLEASE NOTE This Lot is included in the Collective Lot 2. At the end of the Auction, it is at the sole discretion of the Seller whether to accept the bid on this individual Lot or the Collective Lot 2.

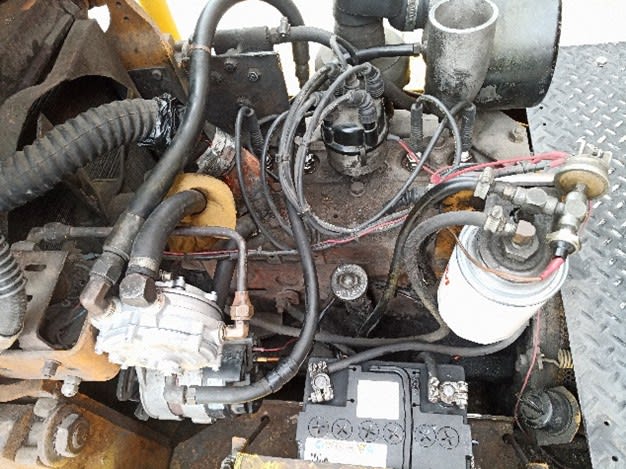

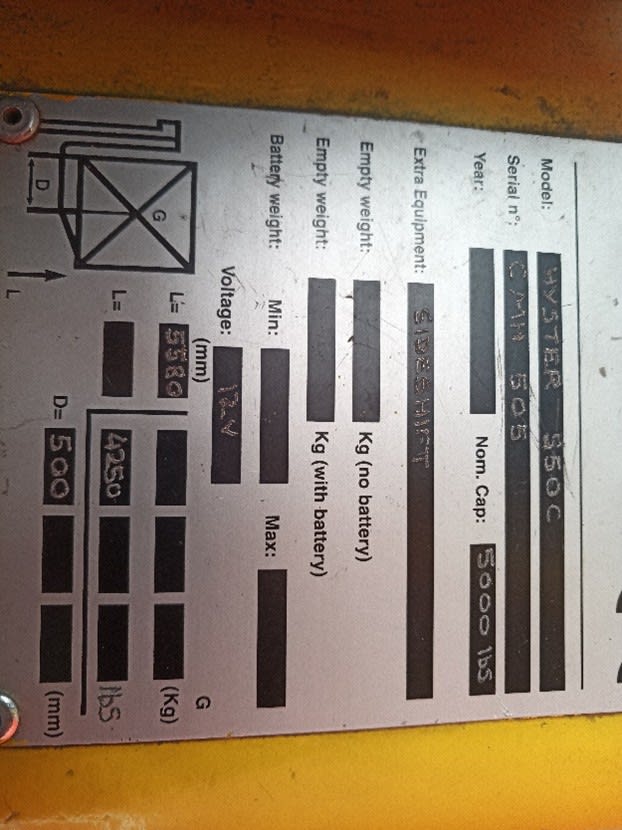

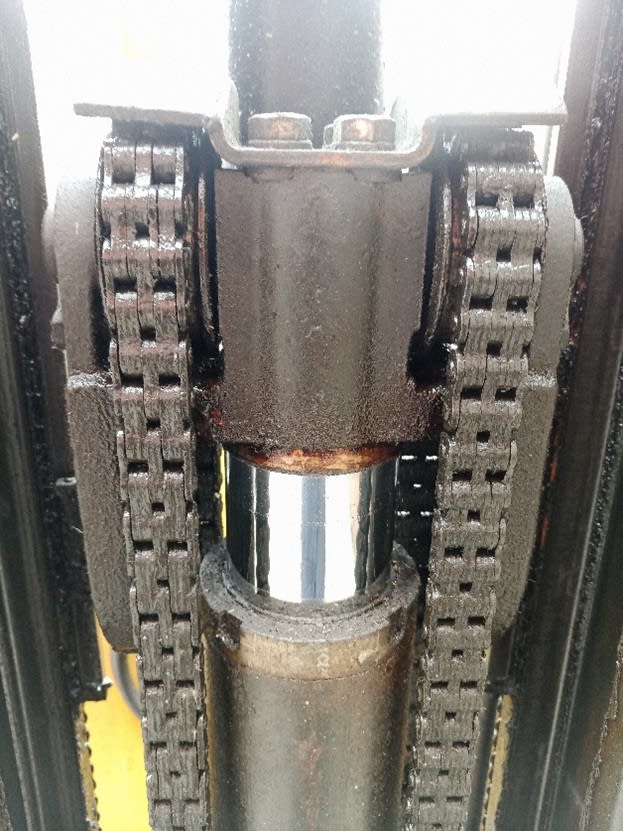

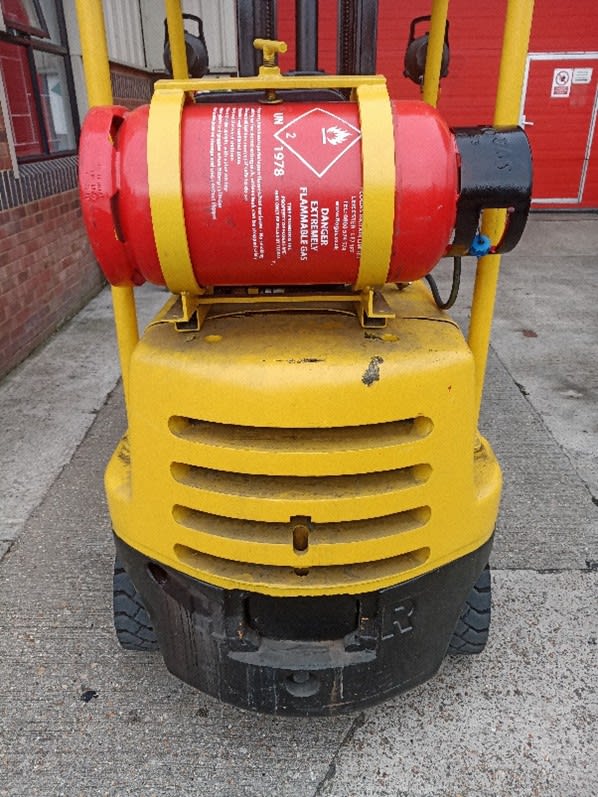

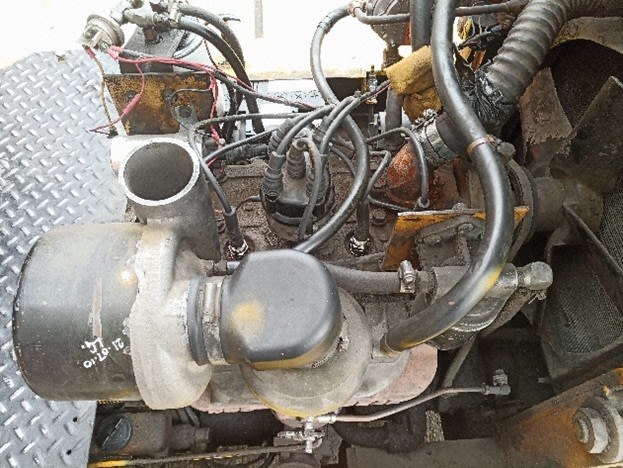

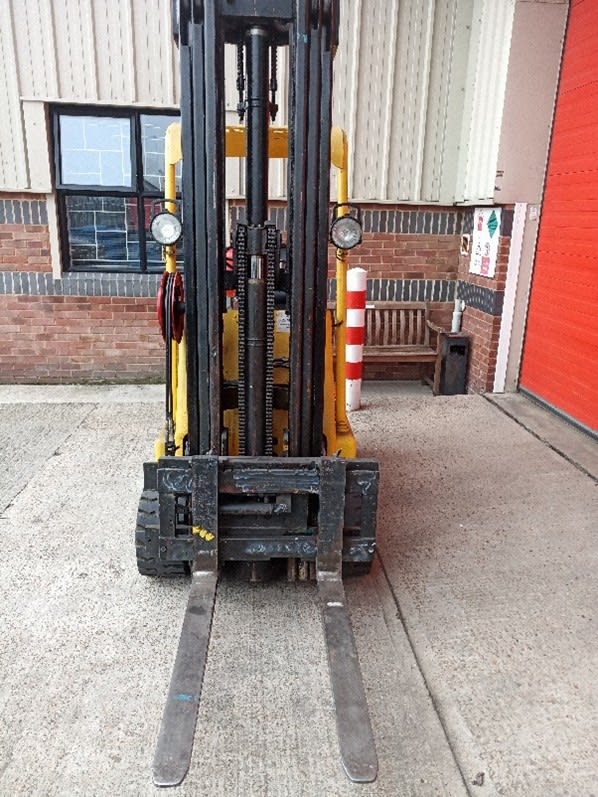

Starts and runs well, recently had the following parts replaced: Battery & LPG regulator Recently serviced: including oil and filter, plugs, fluids topped up and bearings greased Year of Manufacture: not known

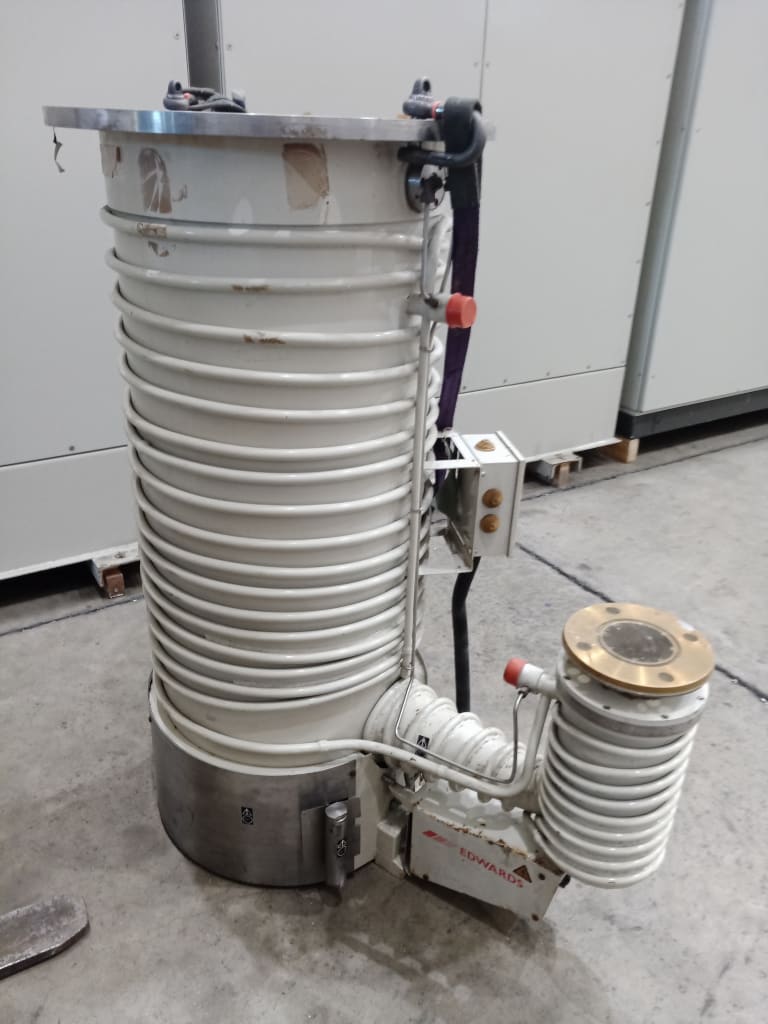

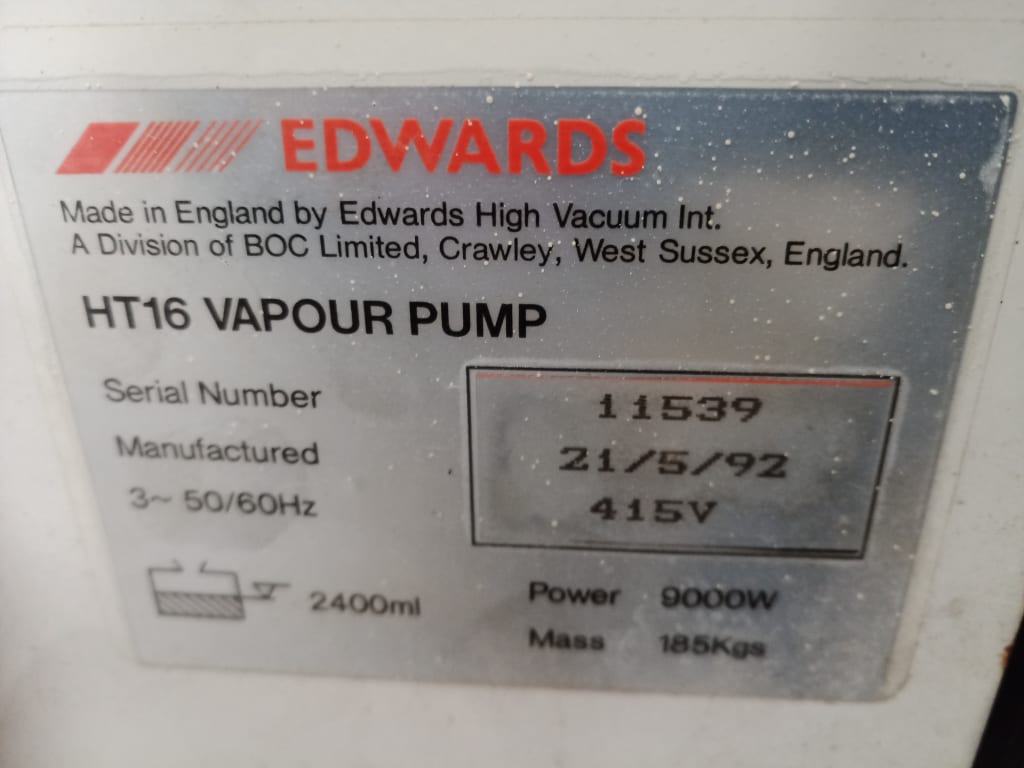

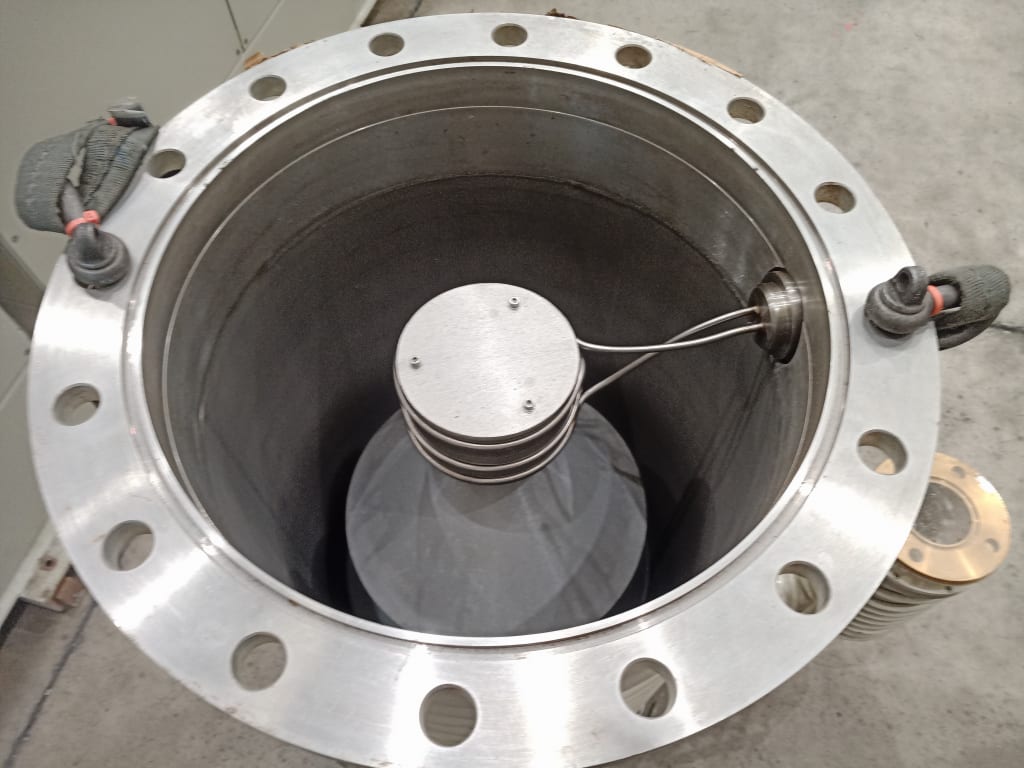

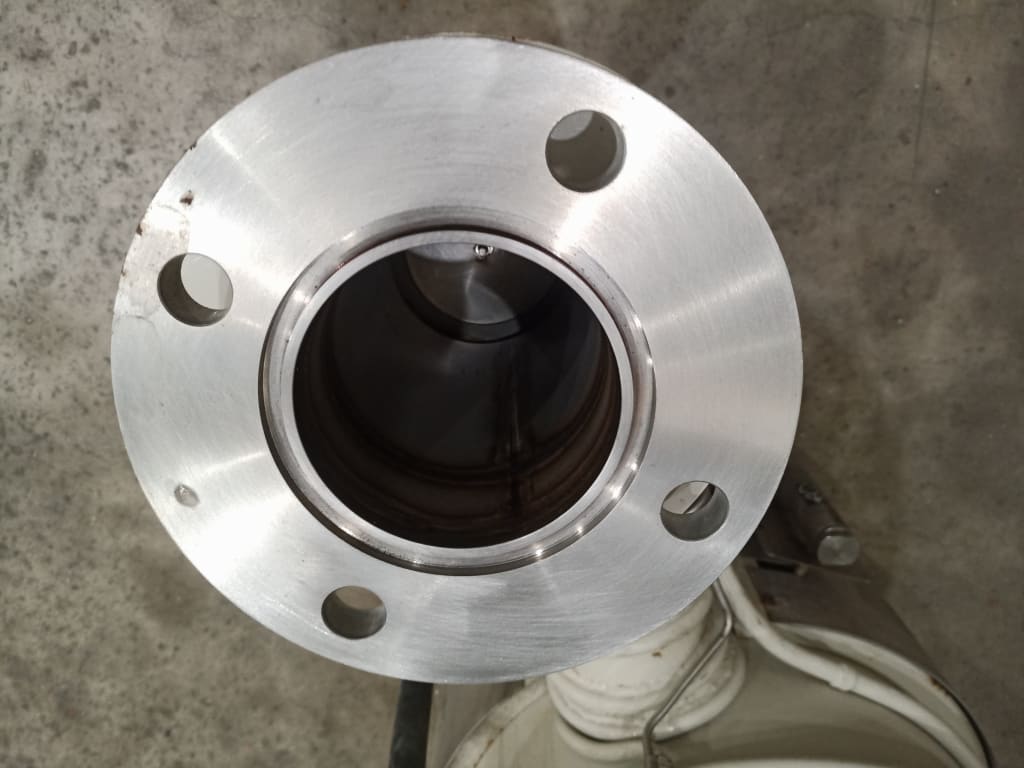

Part No. B31220440. Displacement: 11,580 lit/sec. Inlet flange: ANSI. Backing connection: ANSI. Cooling: Water Fluid capacity: 3000 ml. Type of fluid: Diffusion Pump Oil. Recommended minimum backing pump: 94 CMH. Heater power: 400v 9000W 3ph. Height: 1214mm. Weight: 185 Kg. S/No.11539 (21/05/1992)

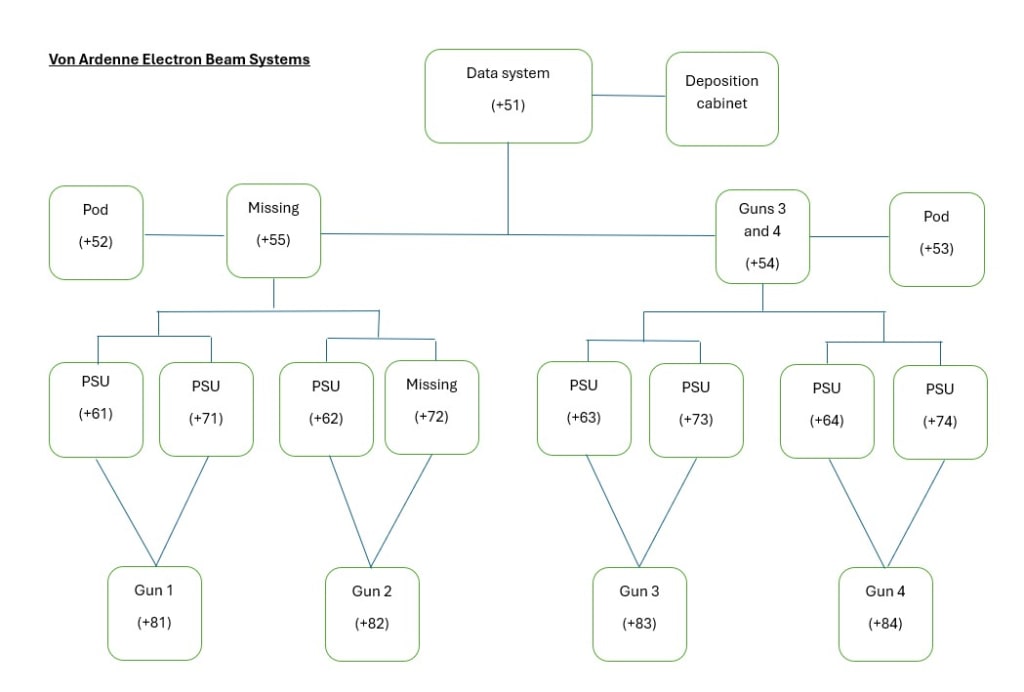

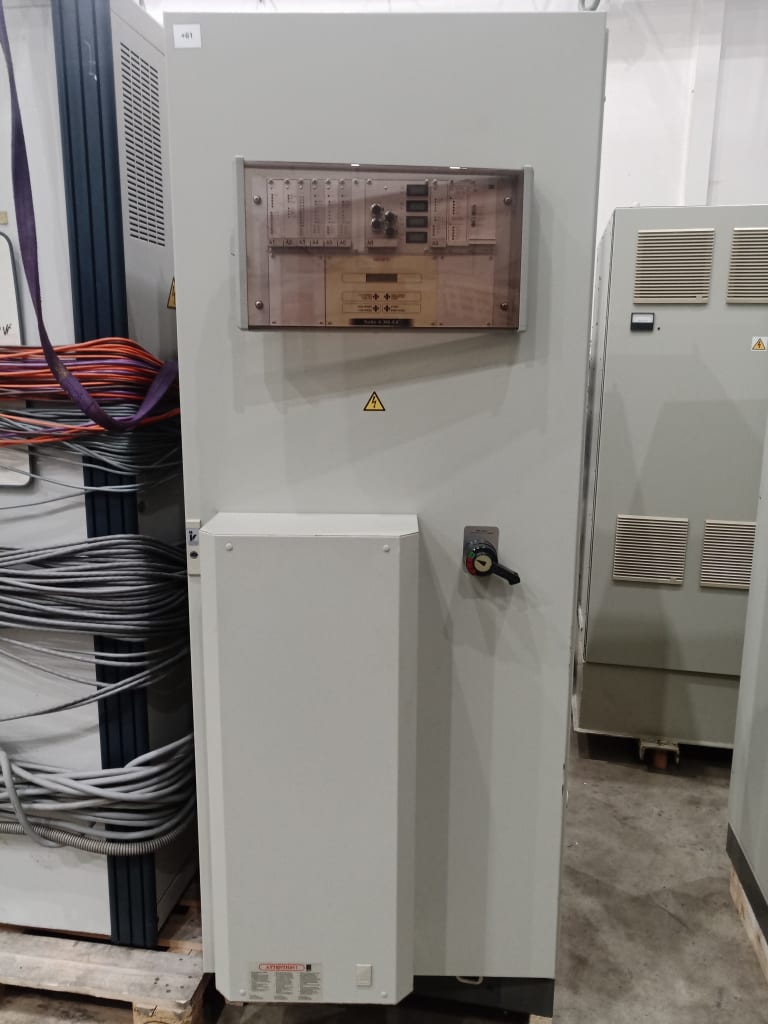

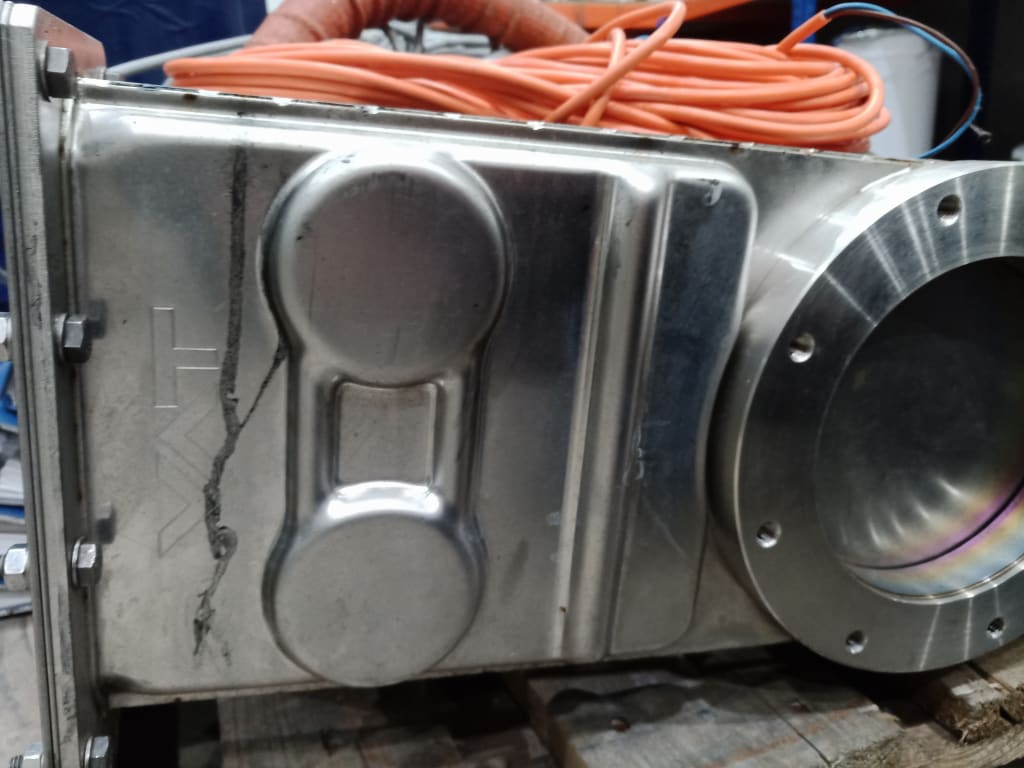

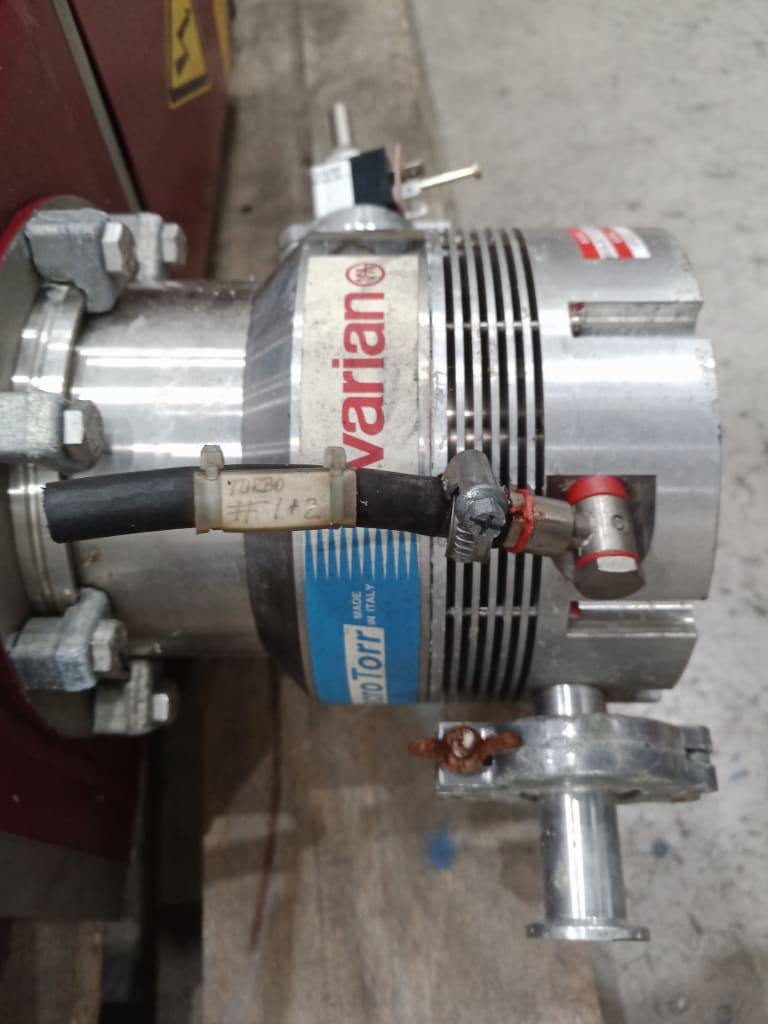

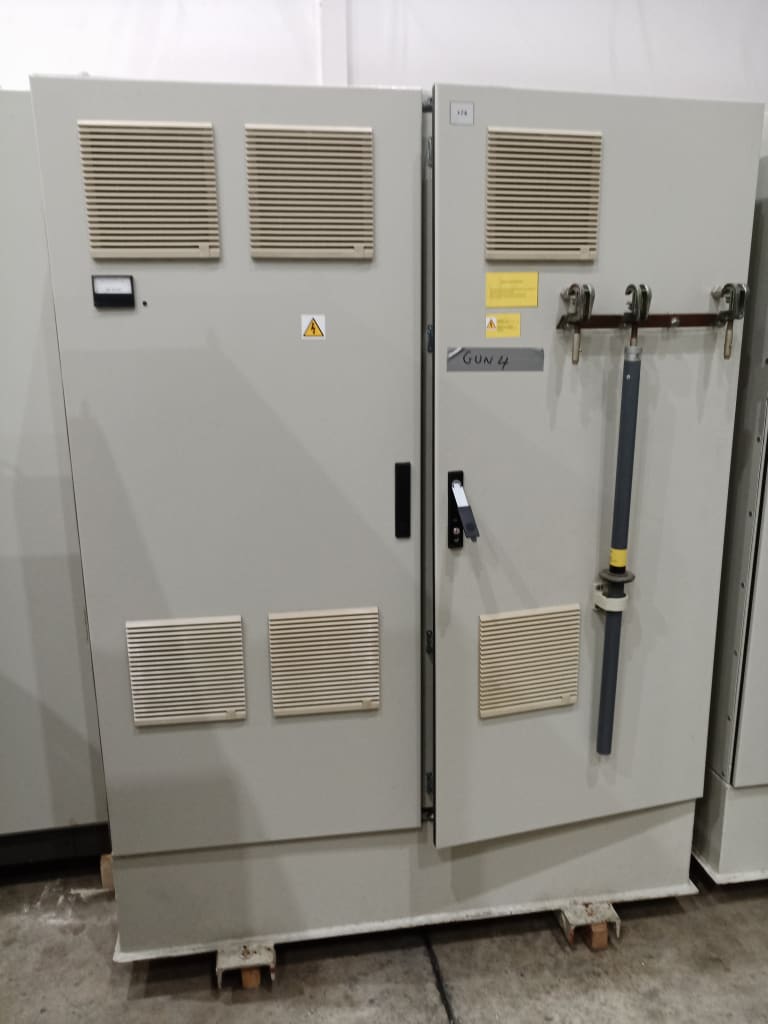

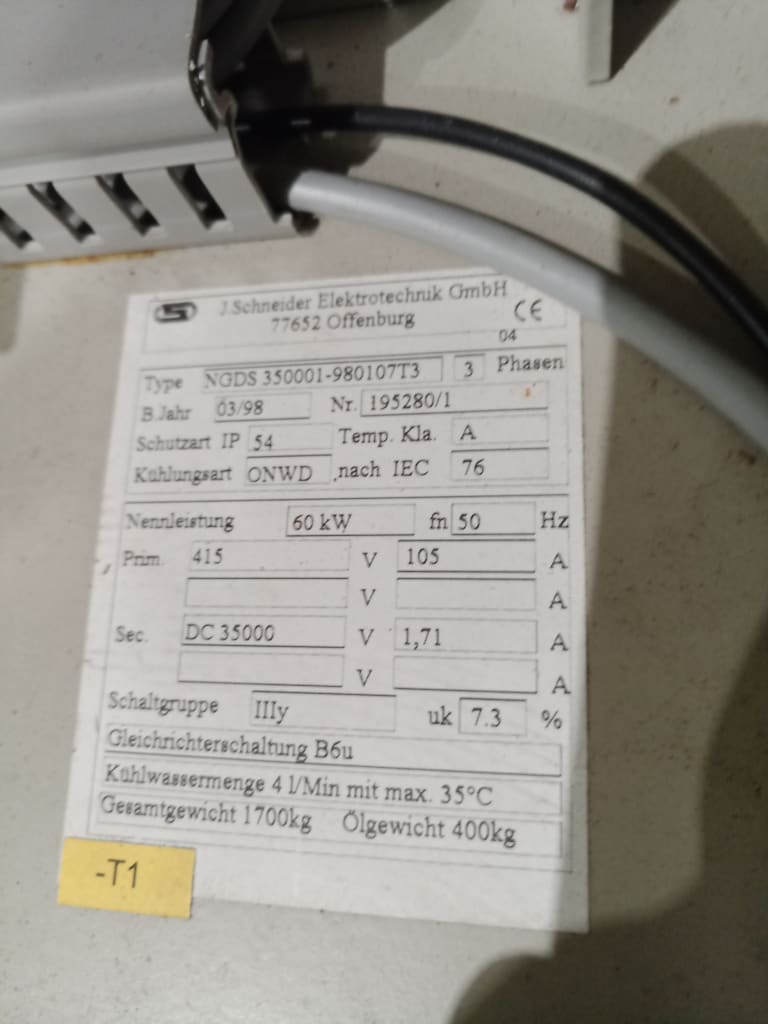

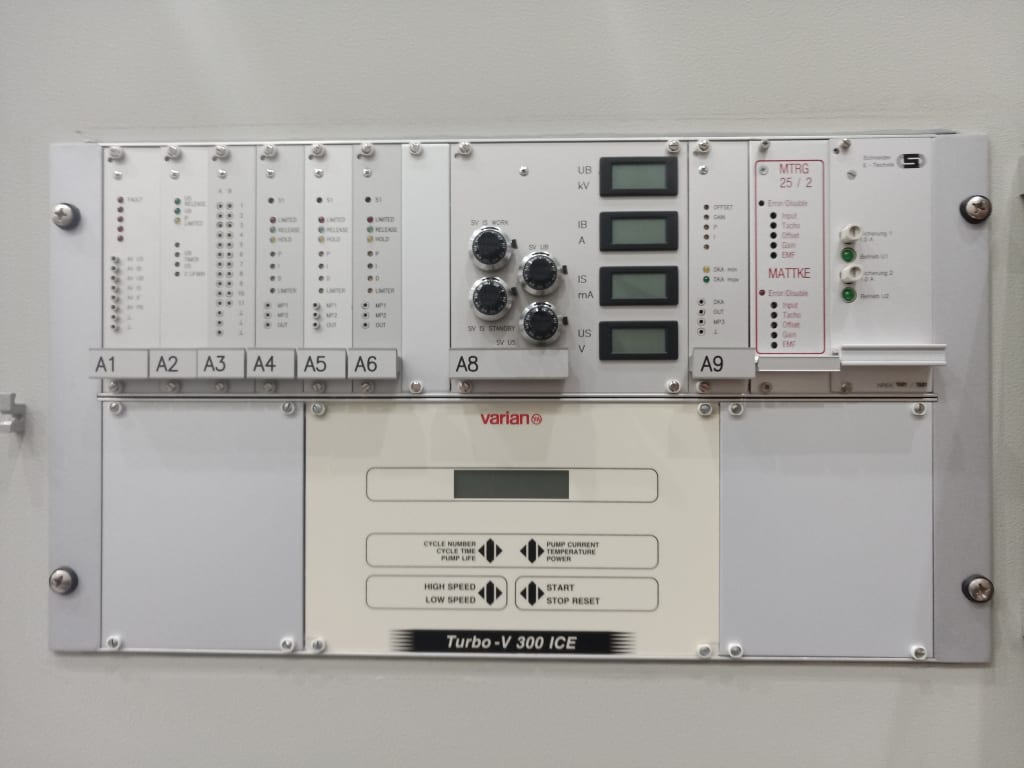

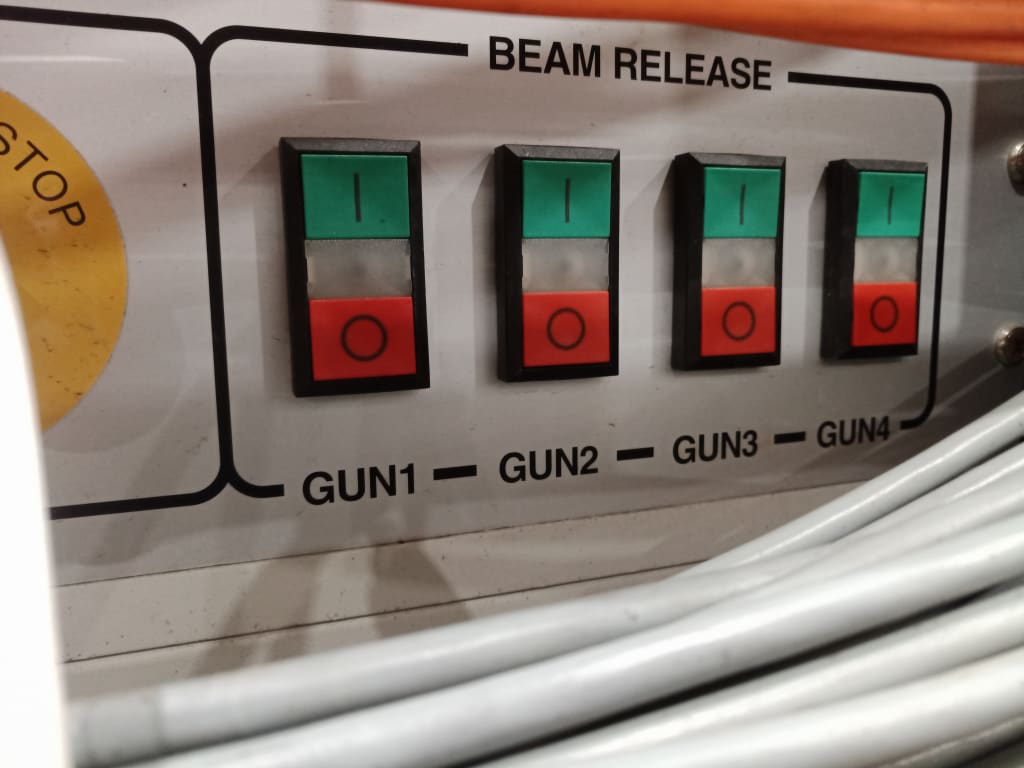

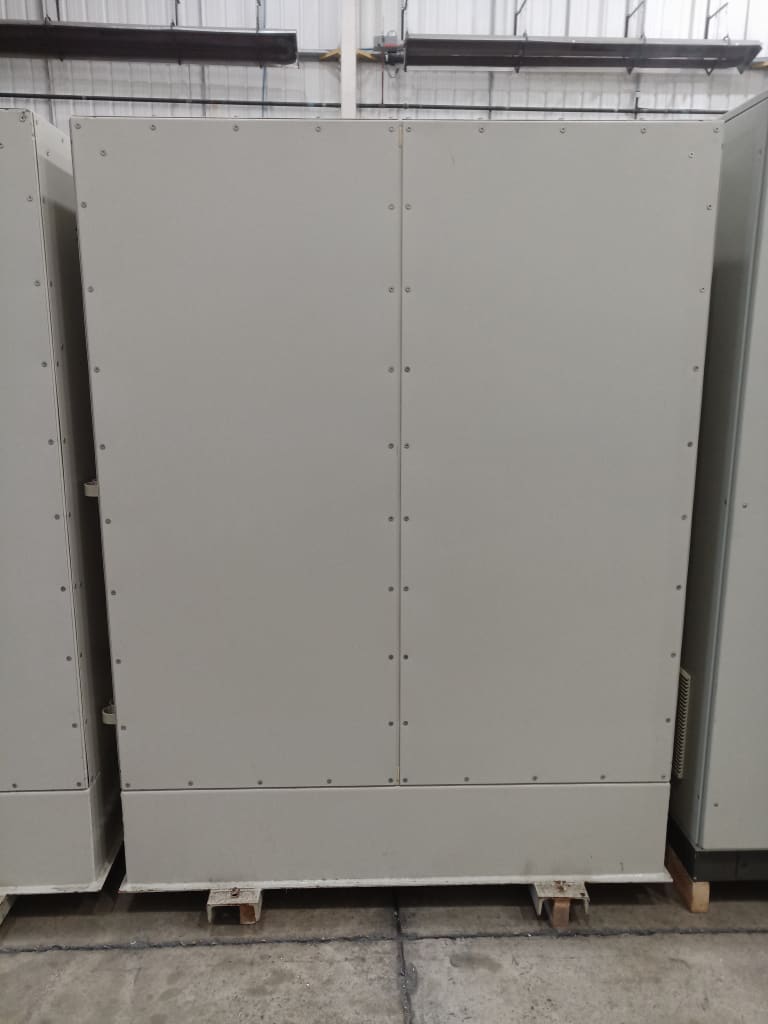

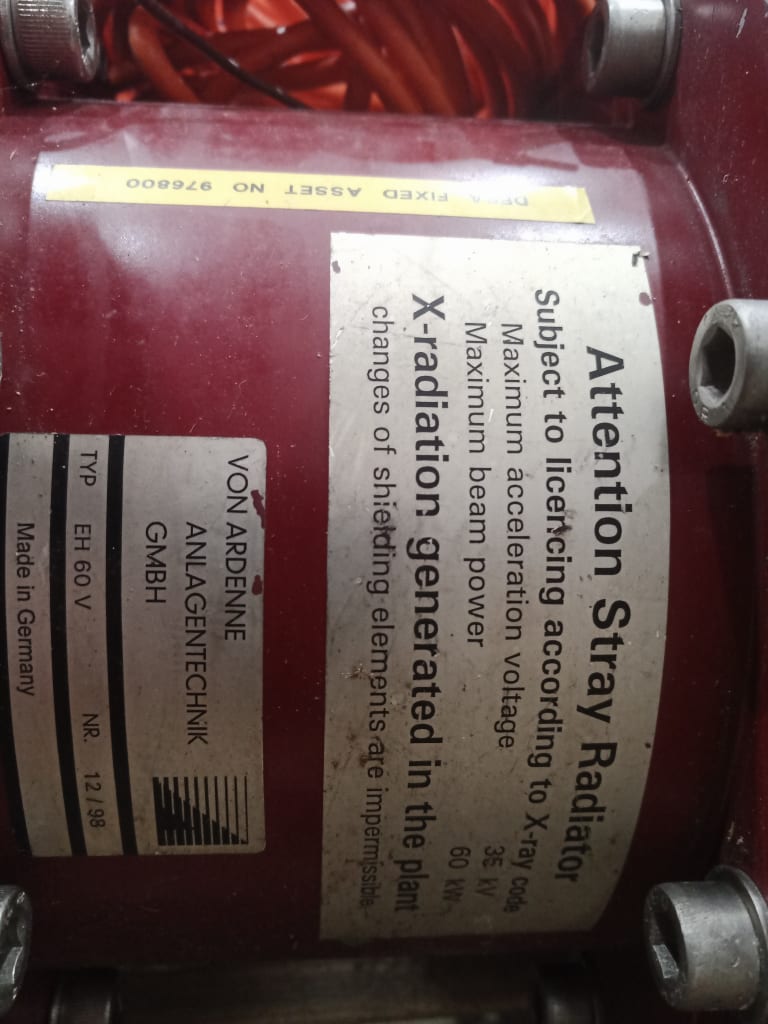

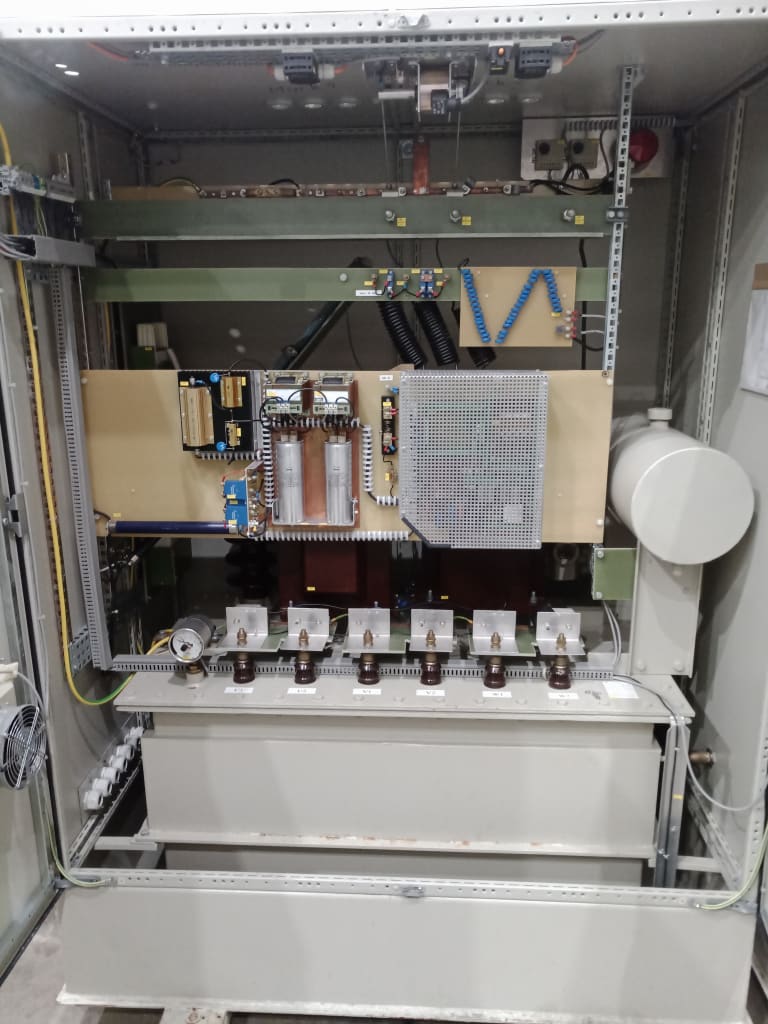

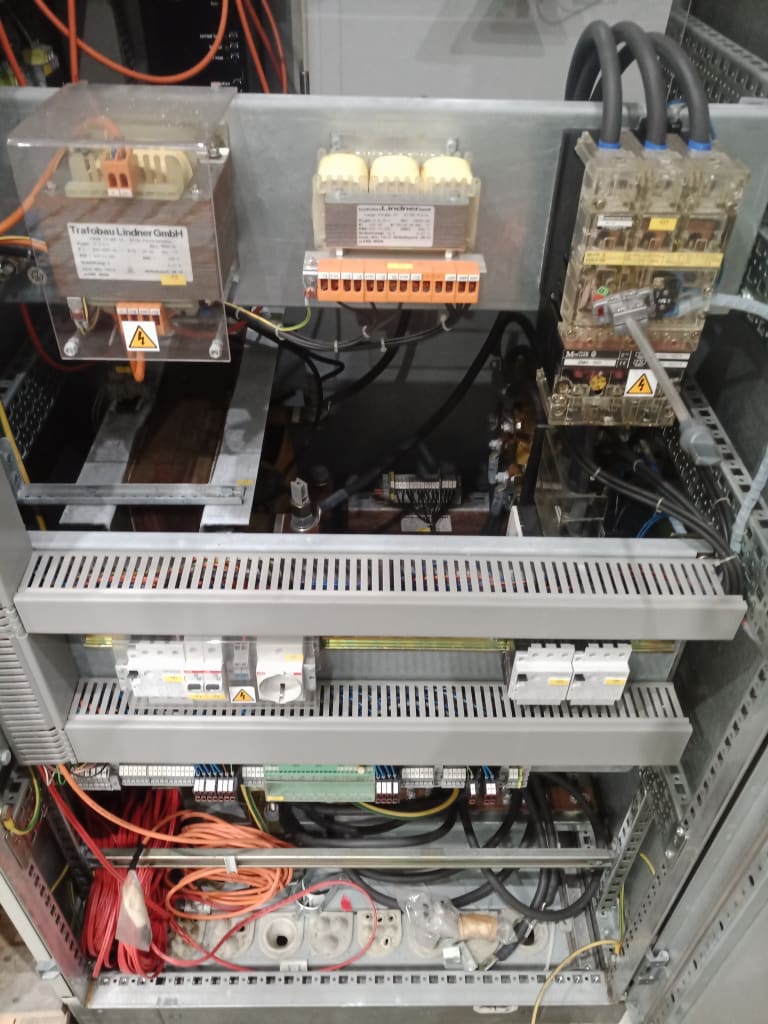

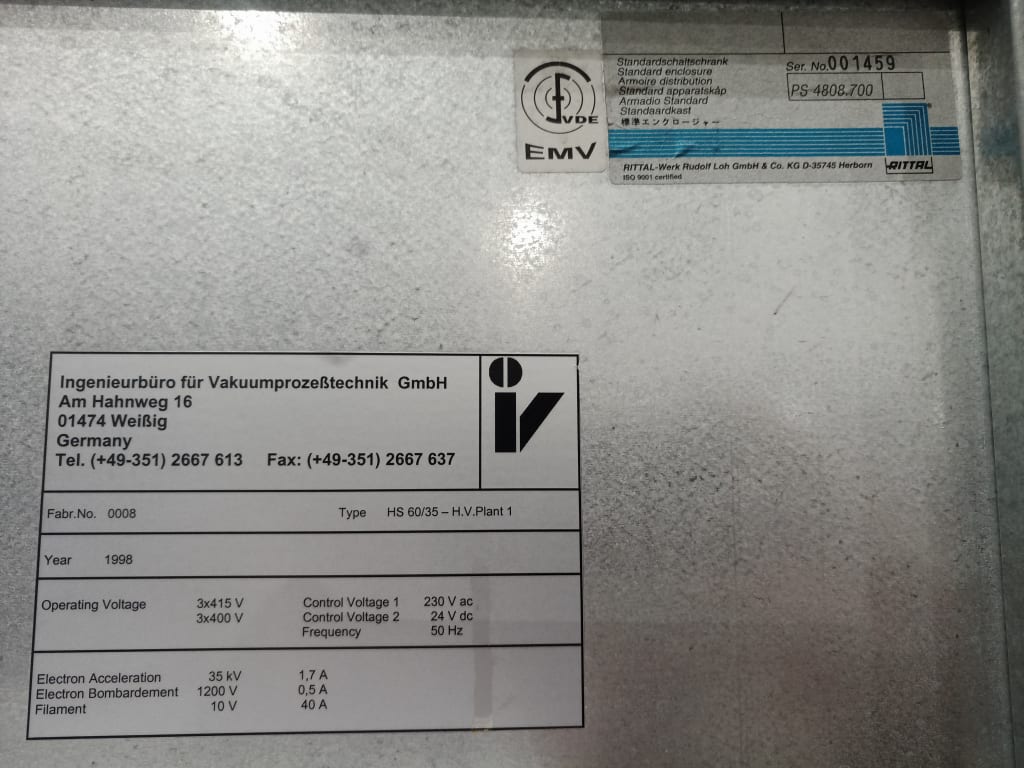

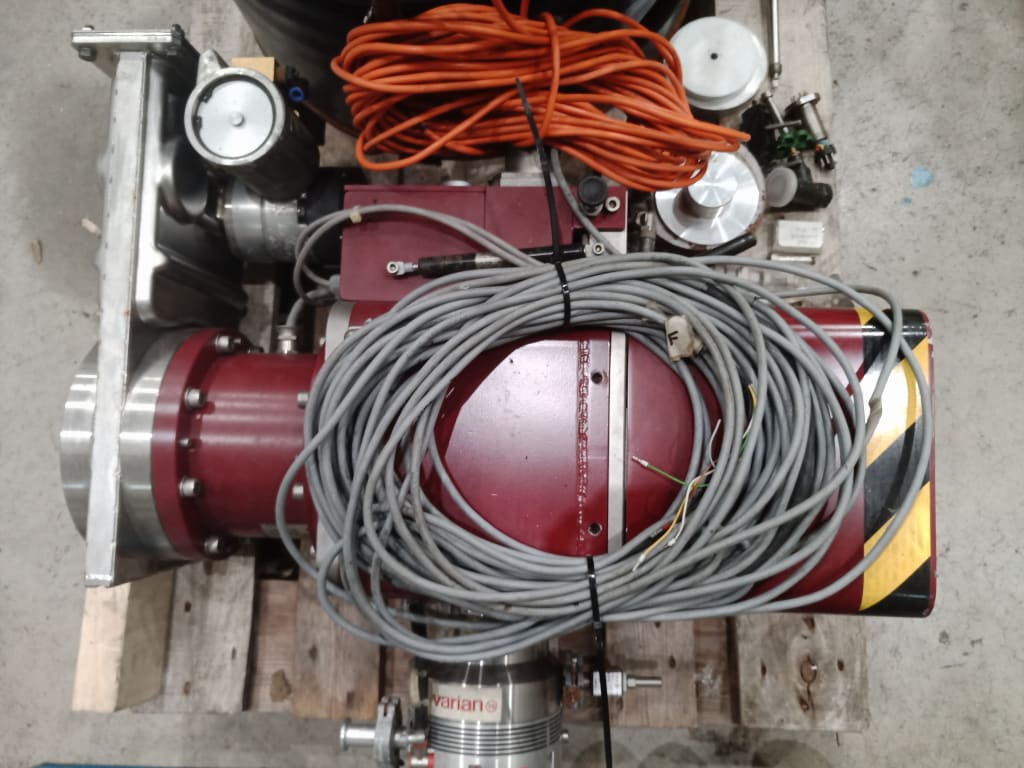

This collective lot contain lots 2A - 2E. Set of electron beam guns and associated power supplies. The equipment was preowned by a government research laboratory specialising in aerospace engineering and having had little use in the UK. Comprises of: 1 off Deposition Controller cabinet 1 off Gun Control cabinet, 4 off Power supplier with Turbo Pump Controller, 3 off High Voltage Power supplies, 4 off Electron Beam Guns with 2 original manual sets. E-Guns (refer to system layout 81- 84) Model EH60V specification: - Variable output up to a maximum acceleration voltage of 35kV and maximum beam power of 60 kW. Fitted with water cooled Varian V300 HT Macro Torr turbomolecular pump. VAT F14-110439 gate valve, 150mm bore. Fitted with HV cables. HV PSUs (61-64 and 71-74) High voltage cabinets in pairs to driving Von Ardenne Electron Guns, temperature controlled with oil, water and air. Mains input: - 3 Phase 415V 50Hz Output: - Electron Acceleration supply of 35KV at 1.7Amps; Electron Bombardment 1200V at 0.5 Amps; Gun Filament supply 10V at 40amps. Power supplier with Turbo Pump Controller (81 to 84) For driving Von Ardenne Electron Guns also Contains Varian Turbo V 300ICE Pump Controller and other powers supplies for the E Guns.
