Grinding

2,880RPM. Voltage 415v.

C/w Dual Dials, Mag Chuck 14” x 6” dust & Coolant tanks.

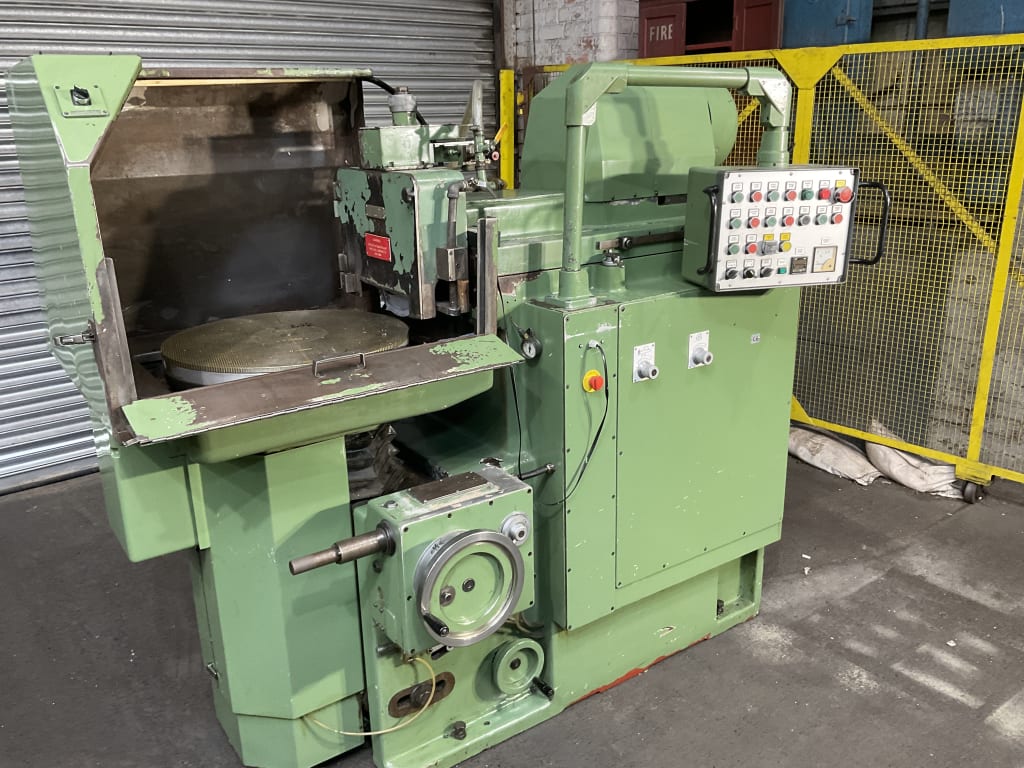

Mag Chuck 600 mm Dia, overhead dresser coolant system. Late machine.

Wheel Dimension Ø200mm.

Diamond Wheel.

Wheel Dims Approx 20mm x Ø200mm. 2950rpm

Belt Width 100mm. Disc Ø150mm. Power 370W. Voltage 240v. With Spare Belts

Spares Or Repair. Capacity 90° Round Ø170mm, 90° Square/Rectangular 170 x 200mm, 45° Round Ø80mm, 45° Square/Rectangular 170 x 80mm. Voltage 240v.

Axis Travel 'X'=686mm, 'Y'=254mm, Table rotation 20 to -18 degrees. Centre Height 127mm. Spindle 5 Morse Taper. Grinding Wheel Size Ø305mm x 25mm. Maximum Weight Between Centres 100kg. Spindle Speed Range 40-2,300rpm.

Magnetic Table Dimension Ø500mm. Wheel Dimension Ø310mm. With Coolant System.

Eclipse Magnetic Chuck Dimension 450 x 150mm. Wheel Dimension Ø203mm. Wheel Speed 2,650/1,325rpm. Longitudinal Table Traverse 483mm. Cross Table Travel 168mm. Vertical Movement Of Wheel Head 280mm. S/No. BO 76628

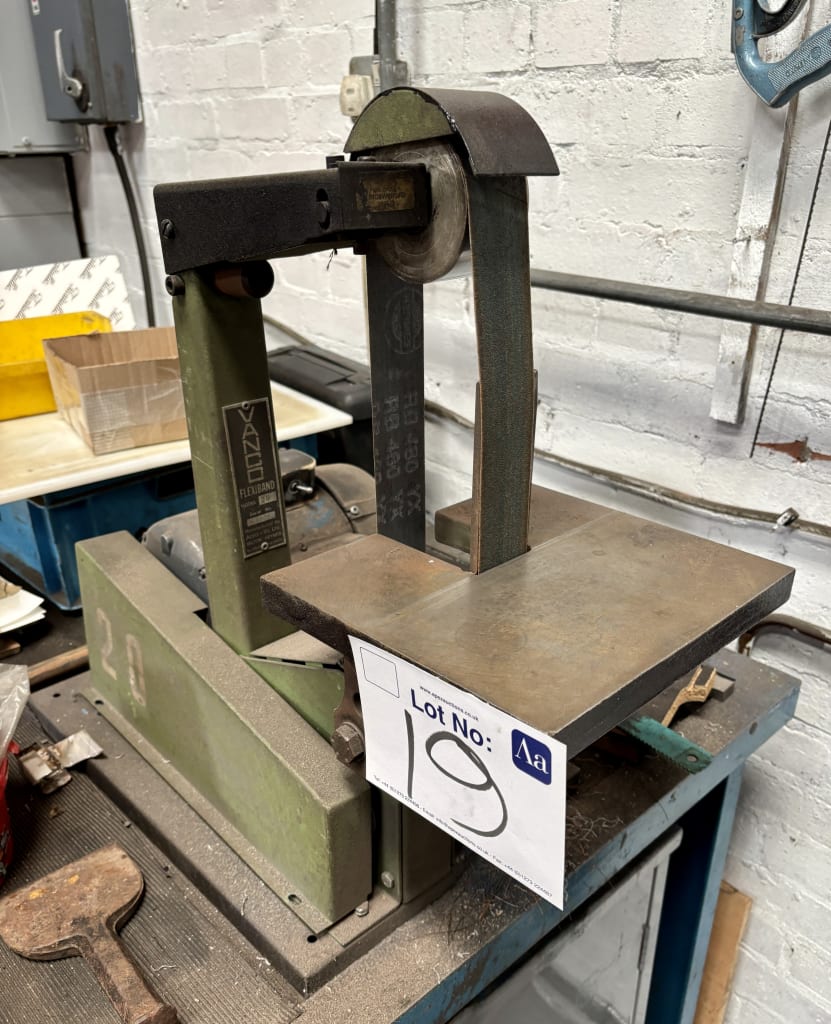

Table Dimension 255 x 230mm. Belt Width 50mm.

Capacity 203 x 610mm. Eclipse Magnetic Chuck Dimension 500 x 200mm. Wheel Dimension Ø203mm. Wheel Speed 2,450rpm

Wheel Dimension Ø100 x 50 x Ø20mm. Speed 2,810rpm (0.25kW Motor). S/No. 1611003 (2011)

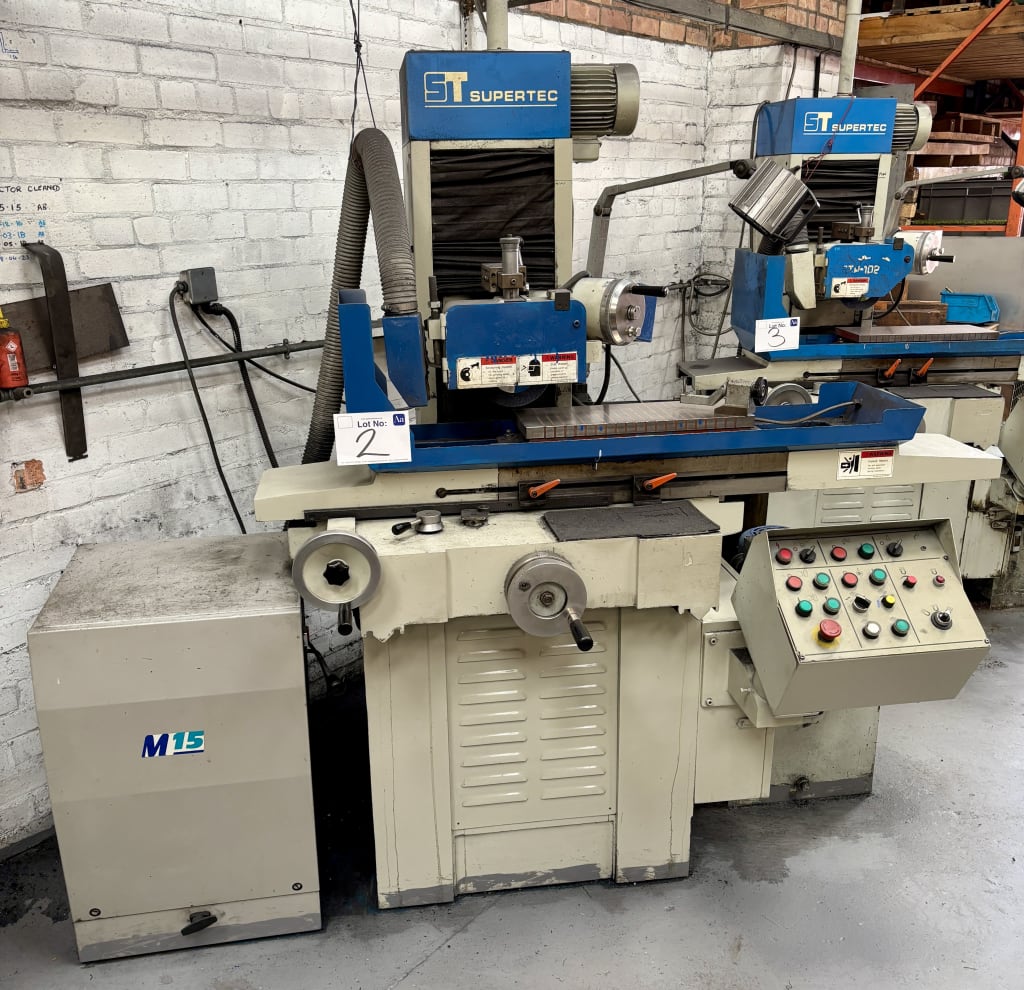

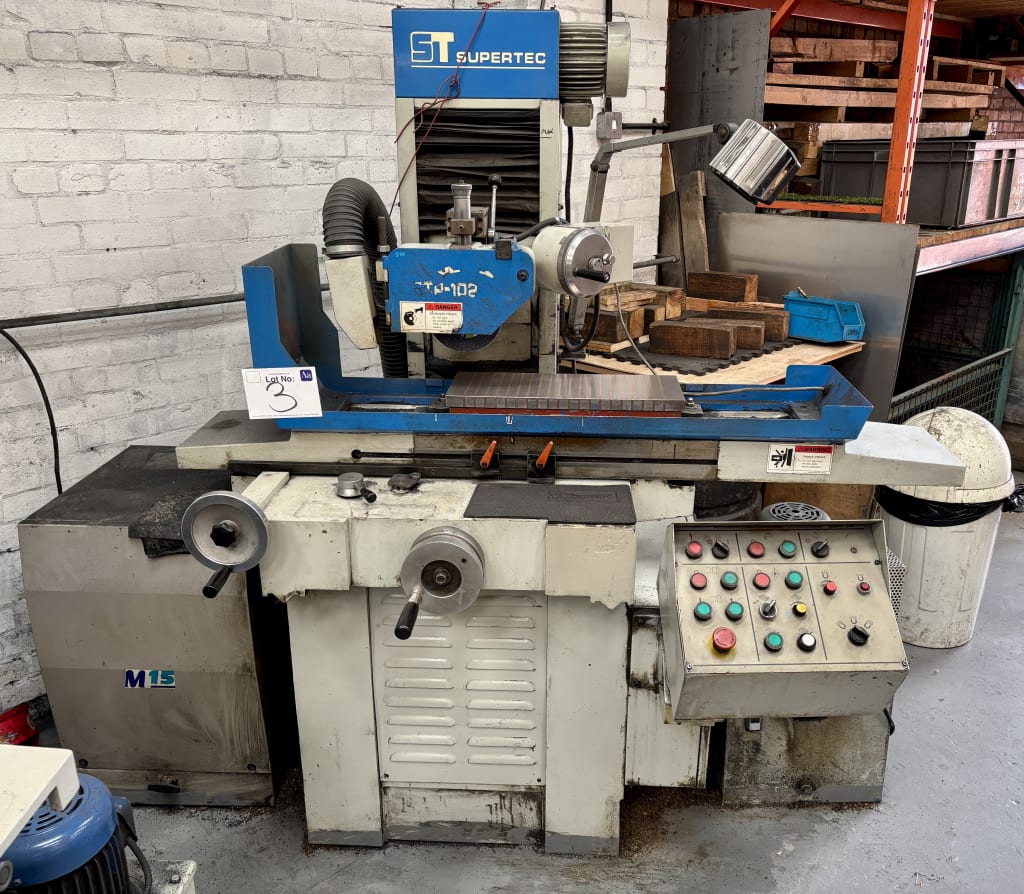

Table Dimension 500 x 200mm. Maximum Grinding Length 550mm, Maximum Grinding Width 210mm. Distance From Table Surface To Spindle Centre 415mm. Maximum Table Load 300kg. Magnetic Chuck Dimension 500 x 200mm. Grinding Wheel Dimension Ø205 x 2...

Table size 22” x 8” C/w coolant System.

Belt Width 100mm. Disc Ø150mm. Power 370W. Voltage 240v. With Spare Belts

with Extended height under Wheel. Mag Chuck 600 mm Dia, overhead dresser Coolant system.

Table Dimension 500 x 200mm. Maximum Grinding Length 550mm, Maximum Grinding Width 210mm. Distance From Table Surface To Spindle Centre 415mm. Maximum Table Load 300kg. Magnetic Chuck Dimension 500 x 200mm. Grinding Wheel Dimension Ø205 x 2...
